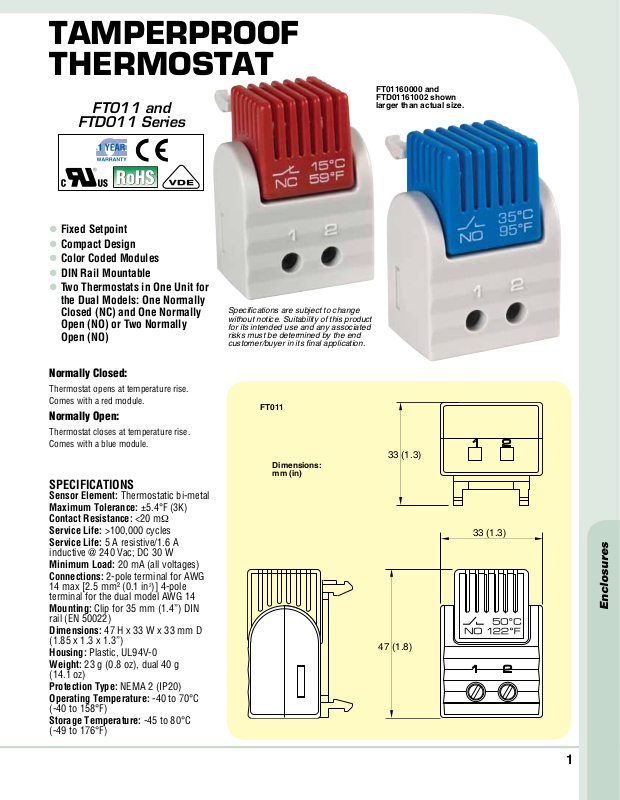

Tamperproof
33 (1.3)
33 (1.3)
47 (1.8)
ThermosTaT
FT011 and
FTD011 Series
l Fixed Setpoint
l Compact Design
l Color Coded Modules
l DIN Rail Mountable
l Two Thermostats in One Unit for
the Dual Models: One Normally
Closed (NC) and One Normally
Open (NO) or Two Normally
Open (NO)
Specifications are subject to change
without notice. Suitability of this product
for its intended use and any associated
risks must be determined by the end
customer/buyer in its final application.
FT01160000 and
FTD01161002 shown
larger than actual size.
Normally Closed:
Thermostat opens at temperature rise.
Comes with a red module.
Normally Open:
Thermostat closes at temperature rise.
Comes with a blue module.
SPECIFICATIONS
Sensor Element: Thermostatic bi-metal
Maximum Tolerance: ±5.4°F (3K)
Contact Resistance: <20 mΩ
Service Life: >100,000 cycles
Service Life: 5 A resistive/1.6 A
inductive @ 240 Vac; DC 30 W
Minimum Load: 20 mA (all voltages)
Connections: 2-pole terminal for AWG
14 max [2.5 mm² (0.1 in2)] 4-pole
terminal for the dual model AWG 14
Mounting: Clip for 35 mm (1.4”) DIN
rail (EN 50022)
Dimensions: 47 H x 33 W x 33 mm D
(1.85 x 1.3 x 1.3”)
Housing: Plastic, UL94V-0
Weight: 23 g (0.8 oz), dual 40 g
(14.1 oz)
Protection Type: NEMA 2 (IP20)
Operating Temperature: -40 to 70°C
(-40 to 158°F)
Storage Temperature: -45 to 80°C
(-49 to 176°F)

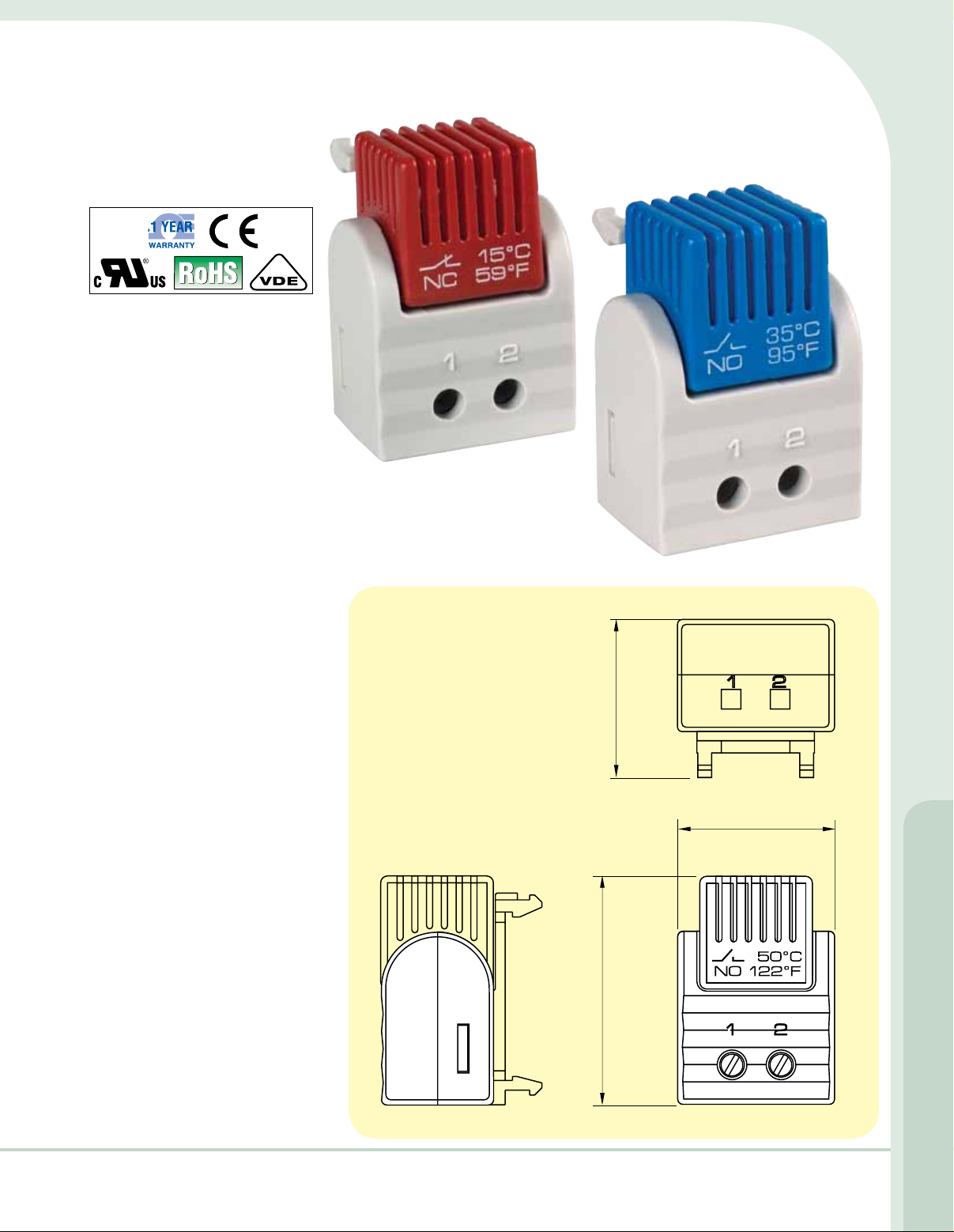

FT011
Dimensions:
mm (in)
Enclosures
1
Page 2
33 (1.3)
63 (2.5)
47 (1.8)

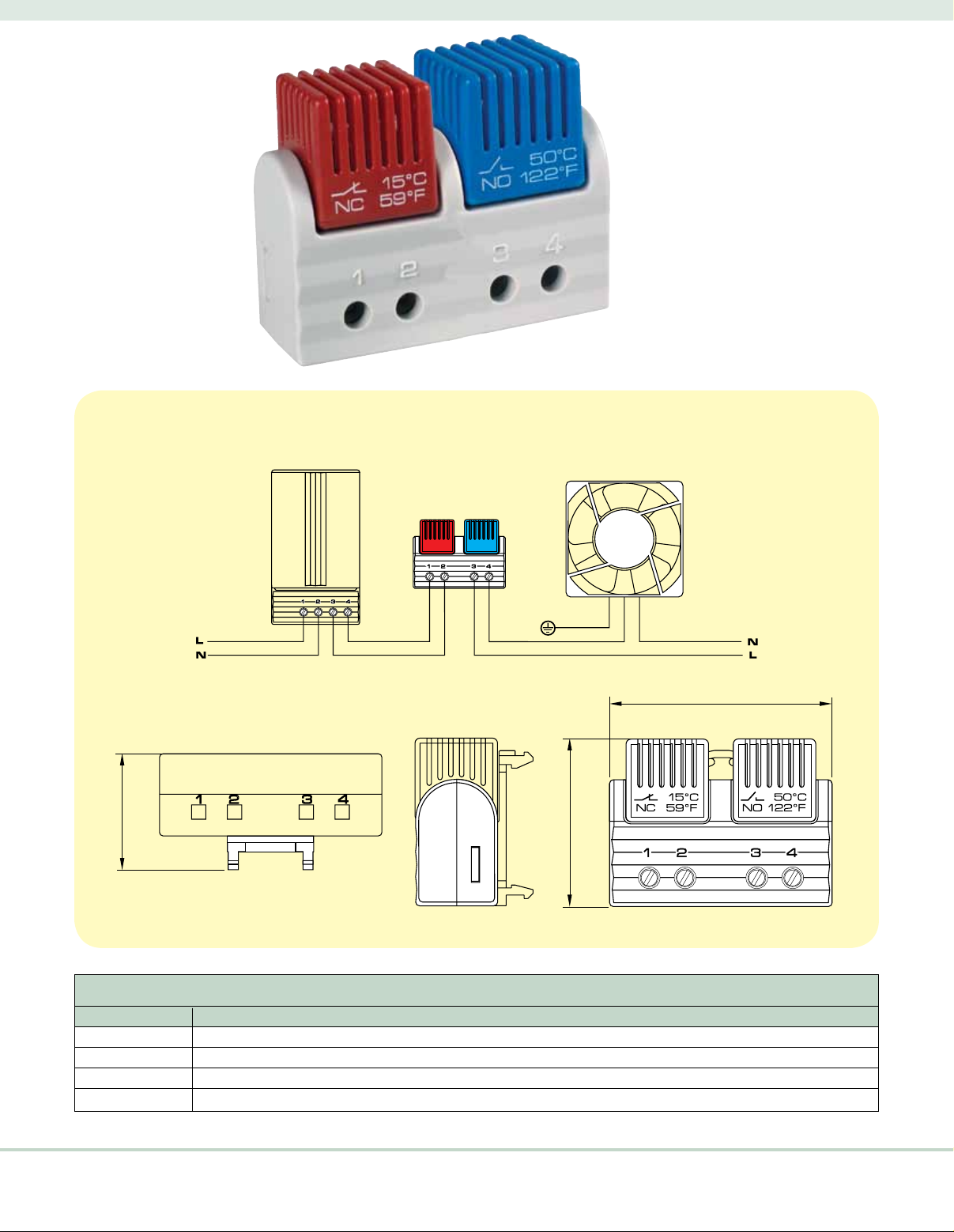

FTD011 Wiring Examples
Heater
Thermostat
FTD 011
Filter fan
FT01163000, dual
thermostat fixed point
shown larger than
actual size.
Dimensions:
mm (in)
To Order
MODEL NO. DESCRIPTION
FT01160000 Thermostat, fixed point, NC, 15°C (59°F) open/5°C (41°F) close
FT01160001 Thermostat, fixed point, NC, 25°C (77°F) open/15°C (59°F) close
FT01161002 Thermostat, fixed point, NO, 35°C (95°F) close/25°C (77°F) open
FTD01163000
Comes complete with operator’s manual.
Ordering Examples: FT01160000, thermostat, fixed point, NC, 15°C (59°F) open/5°C (41°F) close. FT01160001, thermostat, fixed point.
Dual thermostat, fixed point, NC 15°C (59°F) open/5°C (41°F) close, NO 50°C (122°F) close/40°C (104°F) open
