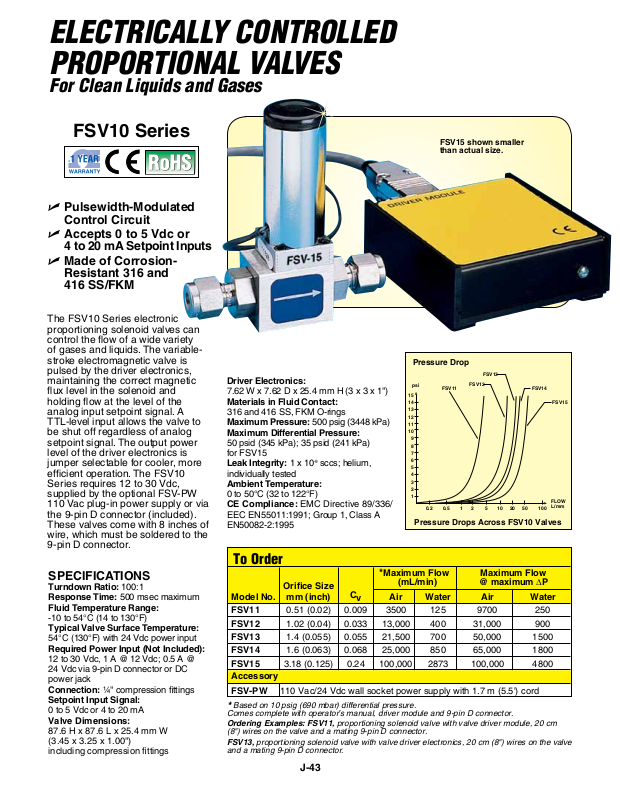

ELECTRICALLY CONTROLLED
PROPORTIONAL VALVES
For Clean Liquids and Gases
FSV10 Series
U Pulsewidth-Modulated
Control Circuit
U Accepts 0 to 5 Vdc or
4 to 20 mA Setpoint Inputs
U Made of Corrosion-
Resistant 316 and
416 SS/FKM
The FSV10 Series electronic
proportioning solenoid valves can
control the flow of a wide variety
of gases and liquids. The variablestroke electromagnetic valve is
pulsed by the driver electronics,
maintaining the correct magnetic
flux level in the solenoid and
holding flow at the level of the
analog input setpoint signal. A
TTL-level input allows the valve to
be shut off regardless of analog
setpoint signal. The output power
level of the driver electronics is
jumper selectable for cooler, more
efficient operation. The FSV10
Series requires 12 to 30 Vdc,
supplied by the optional FSV-PW
110 Vac plug-in power supply or via
the 9-pin D connector (included).
These valves come with 8 inches of
wire, which must be soldered to the
9-pin D connector.
SPECIFICATIONS
Turndown Ratio: 100:1
Response Time: 500 msec maximum
Fluid Temperature Range:
-10 to 54°C (14 to 130°F)
Typical Valve Surface Temperature:
54°C (130°F) with 24 Vdc power input
Required Power Input (Not Included):
12 to 30 Vdc, 1 A @ 12 Vdc; 0.5 A @
24 Vdc via 9-pin D connector or DC
power jack
Connection: ¹⁄₄" compression fittings
Setpoint Input Signal:
0 to 5 Vdc or 4 to 20 mA
Valve Dimensions:
87.6 H x 87.6 L x 25.4 mm W
(3.45 x 3.25 x 1.00")
including compression fittings

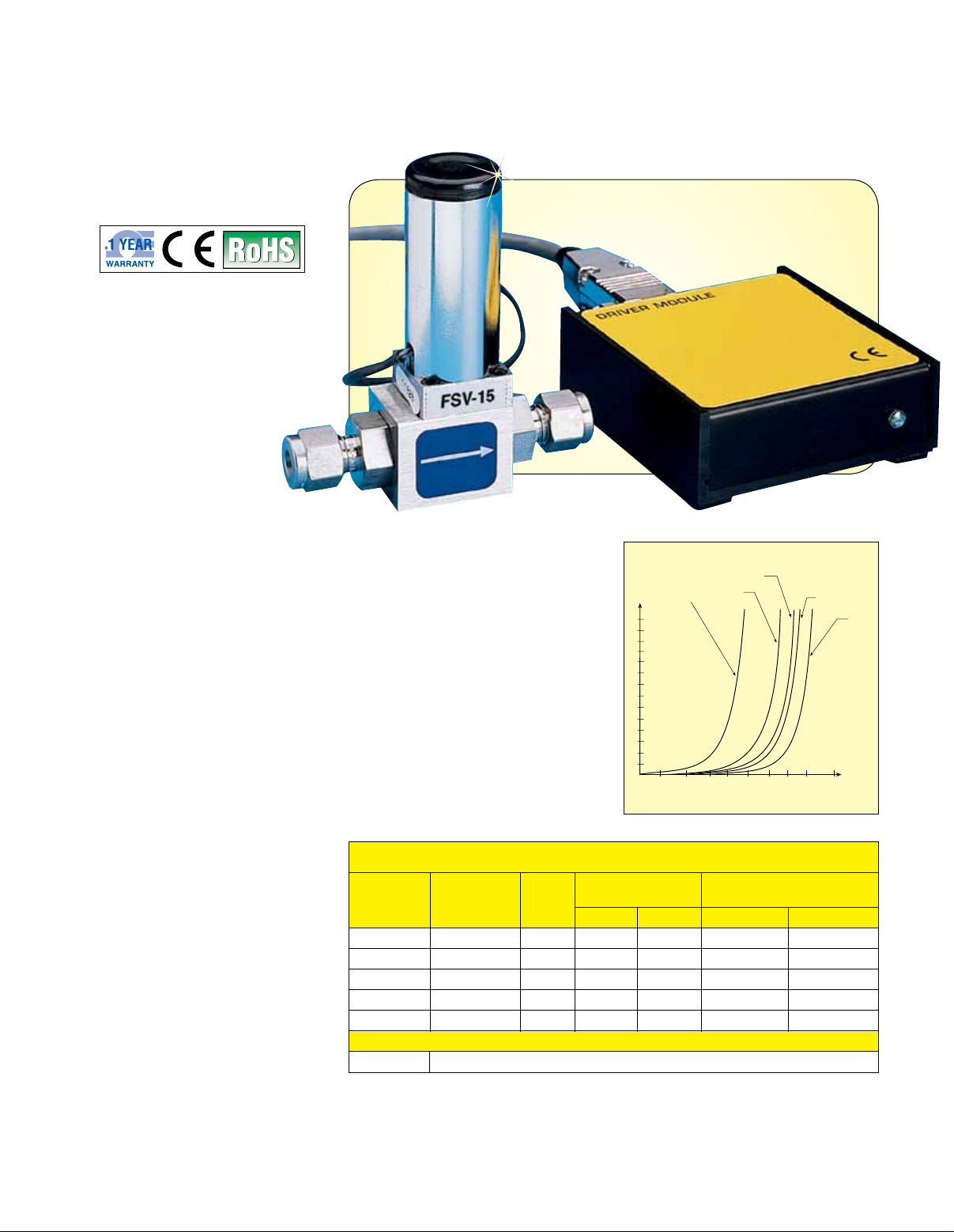

FSV15 shown smaller
than actual size.
Pressure Drop
Driver Electronics:
7.62 W x 7.62 D x 25.4 mm H (3 x 3 x 1")
Materials in Fluid Contact:
316 and 416 SS, FKM O-rings
Maximum Pressure: 500 psig (3448 kPa)
Maximum Differential Pressure:
50 psid (345 kPa); 35 psid (241 kPa)
for FSV15
Leak Integrity: 1 x 10
-9
sccs; helium,
individually tested
Ambient Temperature:
0 to 50°C (32 to 122°F)
CE Compliance: EMC Directive 89/336/
EEC EN55011:1991; Group 1, Class A
EN50082-2:1995
psi
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
FSV11
0.2
Pressure Drops Across FSV10 Valves
FSV12
FSV13
FSV14
1005020105210.5
FSV15
FLOW
L/mm
To Order
Orifice Size
Model No. mm (inch)
*Maximum Flow Maximum Flow
(mL/min) @ maximum ∆P
C
Air Water Air Water
v
FSV11 0.51 (0.02) 0.009 3500 125 9700 250
FSV12 1.02 (0.04) 0.033 13,000 400 31,000 900
FSV13 1.4 (0.055) 0.055 21,500 700 50,000 1500
FSV14 1.6 (0.063) 0.068 25,000 850 65,000 1800
FSV15 3.18 (0.125) 0.24 100,000 2873 100,000 4800
Accessory
FSV-PW 110 Vac/24 Vdc wall socket power supply with 1.7 m (5.5') cord
Based on 10 psig (690 mbar) differential pressure.
*
Comes complete with operator’s manual, driver module and 9-pin D connector.
Ordering Examples: FSV11, proportioning solenoid valve with valve driver module, 20 cm
(8") wires on the valve and a mating 9-pin D connector.
FSV13, proportioning solenoid valve with valve driver electronics, 20 cm (8") wires on the valve
and a mating 9-pin D connector.
J-43
