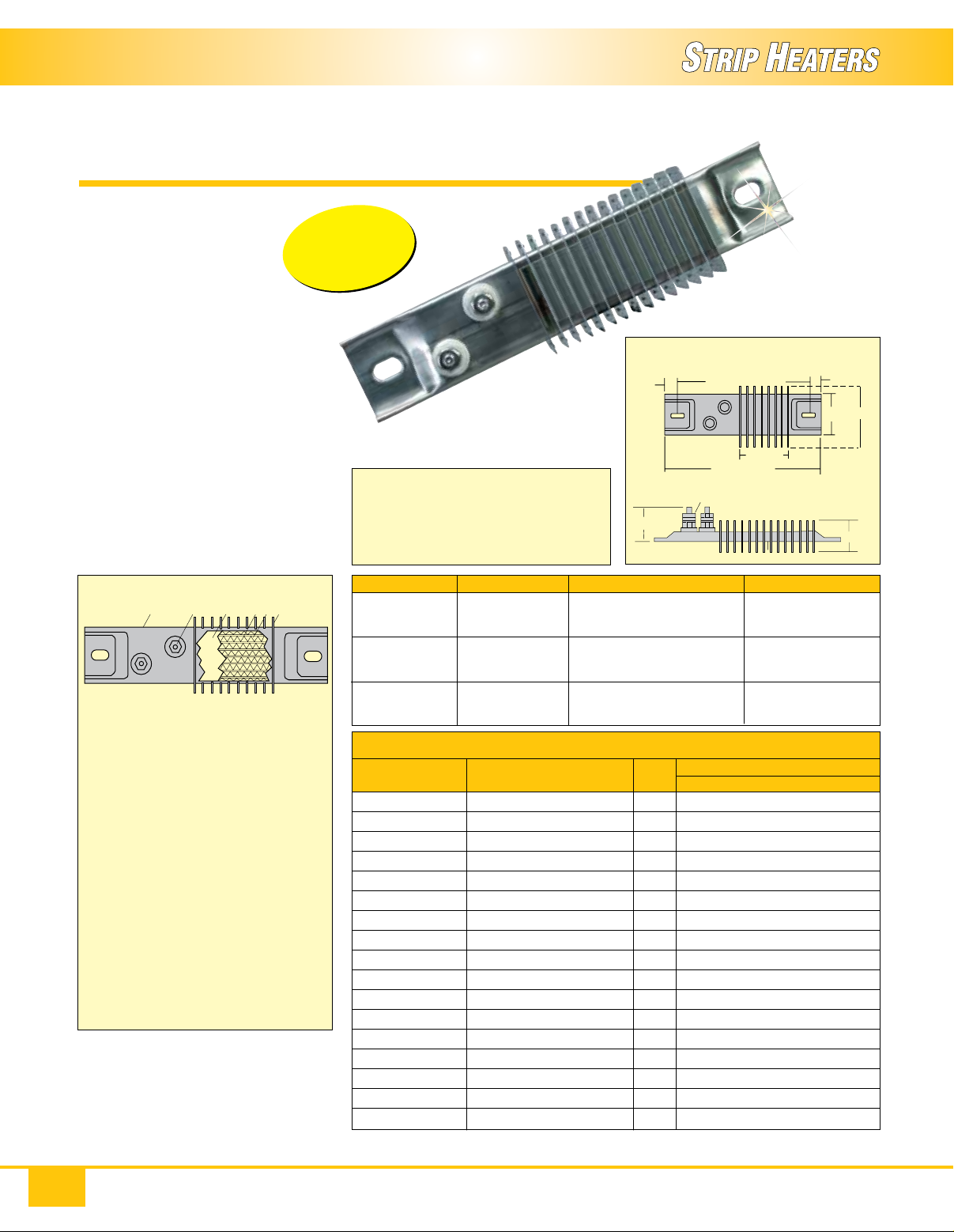

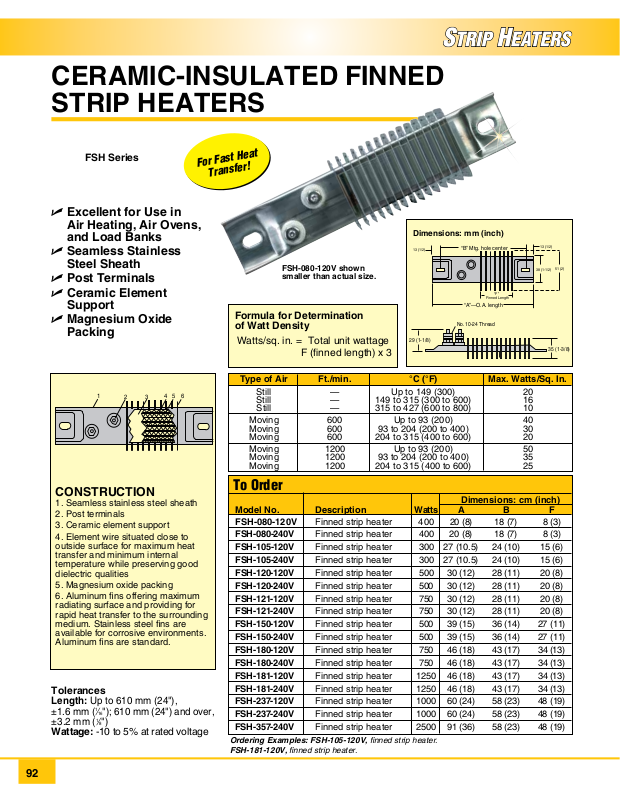

CERAMIC-INSULATED FINNED
1
23
4 5
6
“B” Mtg. hole center
38 (1-1/2)
“F”
Finned Length
“A”—O.A. length
13 (1/2)
13 (1/2)
51 (2)
29 (1-1/8)
35 (1-3/8)
No. 10-24 Thread
STRIP HEATERS
FSH Series
U Excellent for Use in
Air Heating, Air Ovens,
and Load Banks
U Seamless Stainless
Steel Sheath
U Post Terminals
U Ceramic Element
Support
U Magnesium Oxide
Packing
For Fast Heat
Transfer!
Dimensions: mm (inch)
FSH-080-120V shown
smaller than actual size.
Formula for Determination
of Watt Density
Watts/sq. in. = Total unit wattage
F (finned length) x 3
Type of Air Ft./min. °C (°F) Max. Watts/Sq. In.
Still — Up to 149 (300) 20
Still — 149 to 315 (300 to 600) 16
Still — 315 to 427 (600 to 800) 10
Moving 600 Up to 93 (200) 40
Moving 600 93 to 204 (200 to 400) 30
Moving 600 204 to 315 (400 to 600) 20
Moving 1200 Up to 93 (200) 50
Moving 1200 93 to 204 (200 to 400) 35
Moving 1200 204 to 315 (400 to 600) 25
CONSTRUCTION
1. Seamless stainless steel sheath
2. Post terminals
3. Ceramic element support
4. Element wire situated close to
outside surface for maximum heat
transfer and minimum internal
temperature while preserving good
dielectric qualities
5. Magnesium oxide packing
6. Aluminum fins offering maximum
radiating surface and providing for
rapid heat transfer to the surrounding
medium. Stainless steel fins are
available for corrosive environments.
Aluminum fins are standard.
Tolerances
Length: Up to 610 mm (24"),
±1.6 mm (1⁄16"); 610 mm (24") and over,
±3.2 mm (1⁄8")
Wattage: -10 to 5% at rated voltage
92
To Order
Dimensions: cm (inch)
Model No. Description Watts A B F
FSH-080-120V Finned strip heater 400 20 (8) 18 (7) 8 (3)
FSH-080-240V Finned strip heater 400 20 (8) 18 (7) 8 (3)
FSH-105-120V Finned strip heater 300 27 (10.5) 24 (10) 15 (6)
FSH-105-240V Finned strip heater 300 27 (10.5) 24 (10) 15 (6)
FSH-120-120V Finned strip heater 500 30 (12) 28 (11) 20 (8)
FSH-120-240V Finned strip heater 500 30 (12) 28 (11) 20 (8)
FSH-121-120V Finned strip heater 750 30 (12) 28 (11) 20 (8)
FSH-121-240V Finned strip heater 750 30 (12) 28 (11) 20 (8)
FSH-150-120V Finned strip heater 500 39 (15) 36 (14) 27 (11)
FSH-150-240V Finned strip heater 500 39 (15) 36 (14) 27 (11)
FSH-180-120V Finned strip heater 750 46 (18) 43 (17) 34 (13)
FSH-180-240V Finned strip heater 750 46 (18) 43 (17) 34 (13)
FSH-181-120V Finned strip heater 1250 46 (18) 43 (17) 34 (13)
FSH-181-240V Finned strip heater 1250 46 (18) 43 (17) 34 (13)
FSH-237-120V Finned strip heater 1000 60 (24) 58 (23) 48 (19)
FSH-237-240V Finned strip heater 1000 60 (24) 58 (23) 48 (19)
FSH-357-240V Finned strip heater 2500 91 (36) 58 (23) 48 (19)
Ordering Examples: FSH-105-120V, finned strip heater.
FSH-181-120V, finned strip heater.
