Page 1
Series
3-15/64
[82.04]
2-13/64
[55.88]
1-15/16
[49.02]
4-15/16
[125.22]
3/4
[18.93]
2-59/64
[74.17]
4-15/16 [125.23]
2X 1-1/4
[31.69]
PHONE
219-878-8000
FAX
219-872-9057
WEB
WWW.DWYER-INST.COM
MADE IN: XXXXX
FPCA
PWC1 PWC2

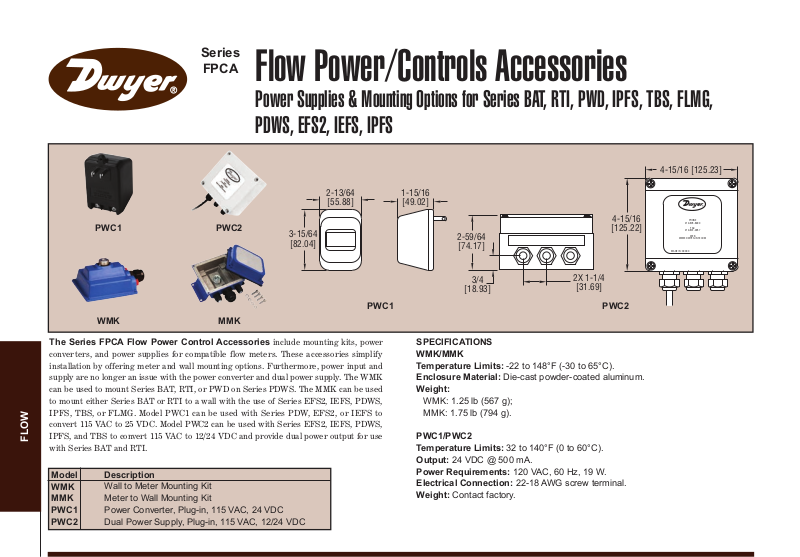

Flow Power/Controls Accessories
Power Supplies & Mounting Options for Series BAT, RTI, PWD, IPFS, TBS, FLMG,
PDWS, EFS2, IEFS, IPFS
MMK
WMK
The Series FPCA Flow Power Control Accessories include mounting kits, power
converters, and power supplies for compatible flow meters. These accessories simplify
installation by offering meter and wall mounting options. Furthermore, power input and
supply are no longer an issue with the power converter and dual power supply. The WMK
can be used to mount Series BAT, RTI, or PWD on Series PDWS. The MMK can be used
to mount either Series BAT or RTI to a wall with the use of Series EFS2, IEFS, PDWS,
IPFS, TBS, or FLMG. Model PWC1 can be used with Series PDW, EFS2, or IEFS to
convert 115 VAC to 25 VDC. Model PWC2 can be used with Series EFS2, IEFS, PDWS,
IPFS, and TBS to convert 115 VAC to 12/24 VDC and provide dual power output for use
FLOW
with Series BAT and RTI.
Model
WMK
MMK
PWC1
PWC2
Description
Wall to Meter Mounting Kit
Meter to Wall Mounting Kit
Power Converter, Plug-in, 115 VAC, 24 VDC
Dual Power Supply, Plug-in, 115 VAC, 12/24 VDC
PWC1
PWC2
SPECIFICATIONS
WMK/MMK
Temperature Limits: -22 to 148°F (-30 to 65°C).
Enclosure Material: Die-cast powder-coated aluminum.
Weight:
WMK: 1.25 lb (567 g);
MMK: 1.75 lb (794 g).
PWC1/PWC2
Temperature Limits: 32 to 140°F (0 to 60°C).
Output: 24 VDC @ 500 mA.
Power Requirements: 120 VAC, 60 Hz, 19 W.
Electrical Connection: 22-18 AWG screw terminal.
Weight: Contact factory.
