Omega FP-5300M, FP-5300CM User guide

Download

Page 1

User’s Guide

Shop online at

omega.com

e-mail: [email protected]

For latest product manuals:

www.omegamanual.info

FP-5300M/FP-5300CM

Schedule 80 PVC and CPVC

Molded Installation Fittings

Page 2

omega.com [email protected]

Servicing North America:

U.S.A. Omega Engineering, Inc. Headquarters: Toll-Free: 1-800-826-6342 (USA & Canada only)

Customer Service: 1-800-622-2378 (USA & Canada only) Engineering Service: 1-800-872-9436 (USA & Canada only) Tel: (203) 359-1660 Fax: (203) 359-7700 e-mail: [email protected]

For Other Locations Visit omega.com/worldwide

The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.

Page 3

Omega FP-5300M/FP-5300CM Schedule 80 PVC and CPVC Molded Installation Fittings

SAFETY INSTRUCTIONS

1. Conrm chemical compatibility before use.

2. Do not exceed maximum temperature or pressure specications of ttings or sensors.

3. Do not use this product for any purpose other than for which it was designed.

4. Use schedule 80 pipe.

5. Use with liquids only.

6. Improper pipe tting installation may result in pressure failure, personal injury, and/or

property damage.

7. Always match tting and piping materials.

8. Always use piping cement designed for your specic tting and piping material.

9. Install according to local, state and federal guidlines.

Compatibility

The Omega schedule 80 molded ttings are designed to be used with the following Omega ow sensors:

• FMG series magmeters

• FP-5600 paddlewheel sensor series

• FP-5100 paddlewheel sensor series

• FP-5300 paddlewheel sensor series

• FP-5600 paddlewheel sensor series

• FP8500 paddlewheel sensor series

• FP8500A paddlewheel sensor series

• FPB-100 paddlewheel sensor series

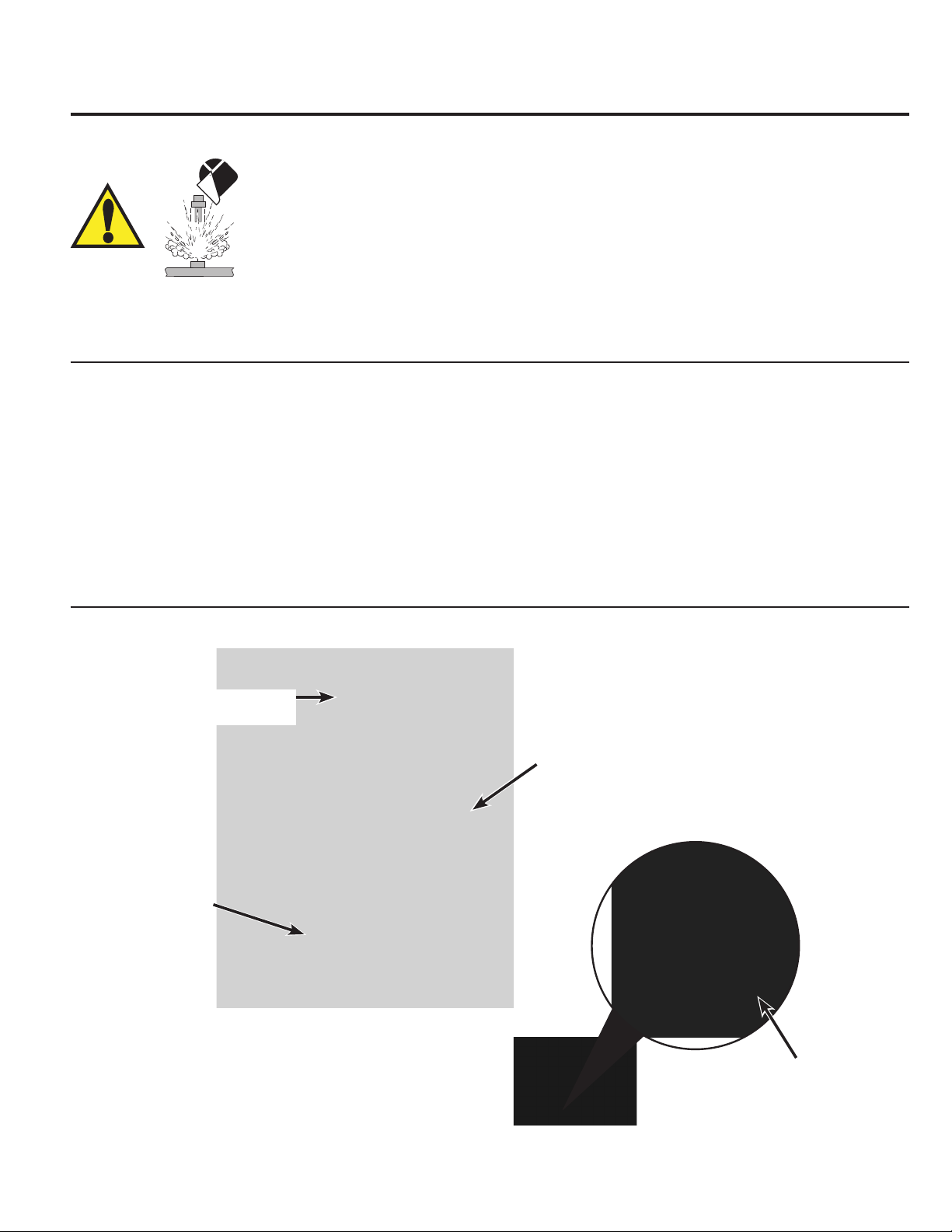

Identication

Sensor alignment notch

Glue trap

45º marker

Pipe end marker

Page 4

Fitting only

Material

SCH 80 PVC SCH 80 CPVC

i.d.

Part No. Part No. Size L H i.d.

FP-5305M FP-5305CM 1/2" 3.75" 3.50" 0.85"

FP-5307M FP-5307CM 3/4" 3.75" 3.70" 1.06"

FP-5310M FP-5310CM 1" 4.30" 4.00" 1.33"

FP-5312M FP-5312CM 1-1/4" 4.40" 4.30" 1.67" FP-5315M FP-5315CM 1-1/2" 5.00" 4.60" 1.91"

FP-5320M FP-5320CM 2" 5.50" 5.00" 2.40"

K-Factors

A K-Factor is the number of pulses a sensor will generate for each engineering unit of uid that passes the sensor. K-Factors for water

are listed below in U.S. gallons and liters. For example, in a 1 inch SCH 80 PVC pipe, the FP-5100 paddlewheel generates 172.07 pulses per gallon of water passing the rotor.

K-Factors are for Schedule 80 pipe.

PIPE SIZE

1/2"

3/4"

1-1/4"

1-1/2"

SCH. 80 FITTING

FP-5305M FP-5305CM

FP-5307M FP-5307CM

FP-5310M FP-5310CM

FP-5312M FP-5312CM

FP-5315M FP-5315CM

FP-5320M FP-5320CM

FP-5100, FP-5300, FP8500

Series

Pulses/LITER

Pulses/

U.S. GAL

FP-5600, FP8500A, FPB-100

Series

Pulses/LITER

Pulses/

U.S. GAL

FMG-3000

Series

Pulses/LITER

137.42 520.12 271.37 1027.1 601.58 2277.0

78.61 297.52 154.08 583.19 371.90 1407.6

45.46 172.07 88.65 335.53 227.52 861.17

24.19 91.54 47.24 178.79 122.83 464.91

16.44 62.22 32.08 121.42 87.56 331.43

9.60 36.32 18.87 71.44 50.96 192.89

Pulses/

U.S. GAL

Page 5

PVC

(psi

CPVC

-200 20 40 60 80 100

120

°F

°C

-4 32 68 104 140 176 212

248

(bar)

(psi)

1.7

3.4

5.2

6.9

8.6

10.3

100

125

150

12.1

175

13.8

200

225

15.5

0.5 - 2”

CPVC

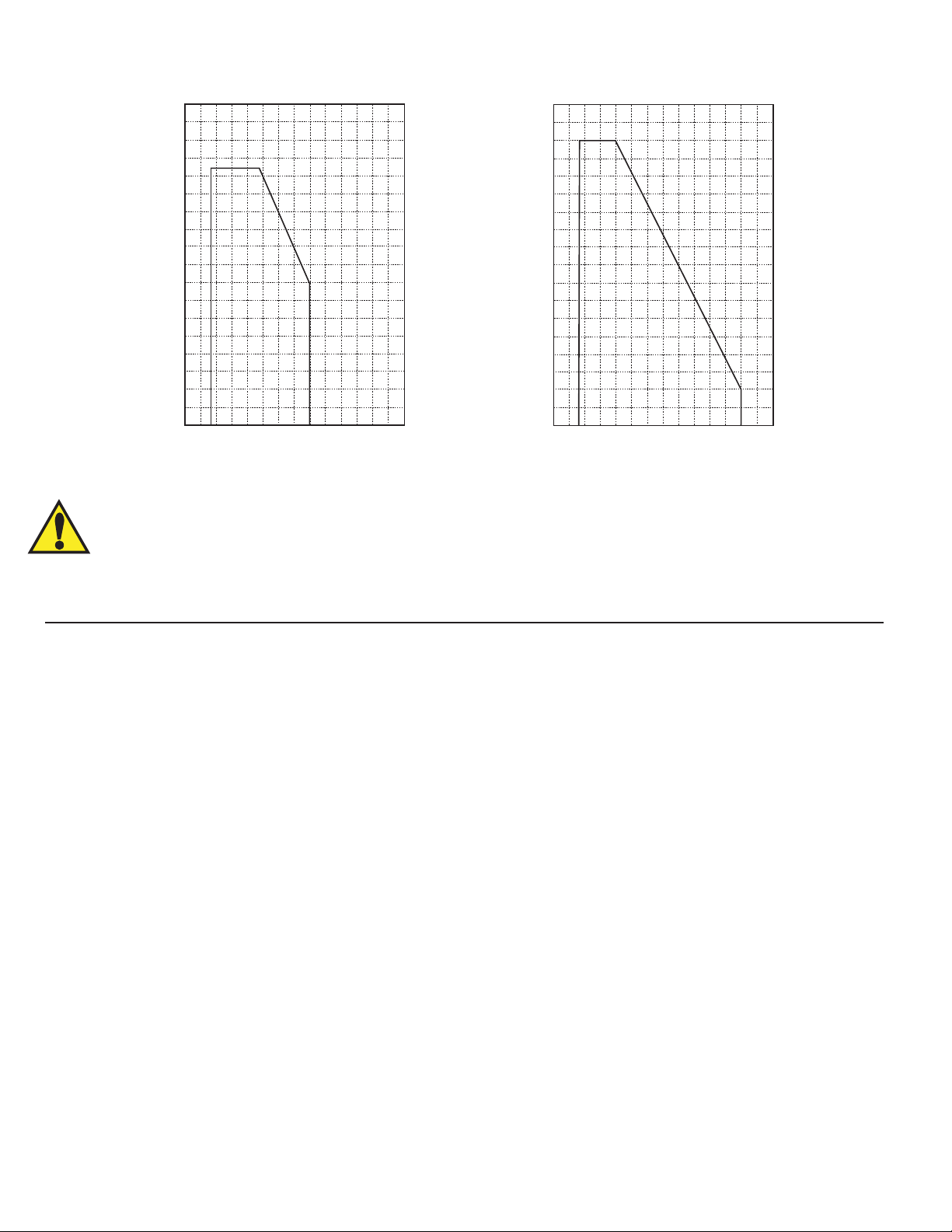

Pressure Rating

)

(bar)

15.5

225

13.8

200

12.1

175

10.3

150

8.6

125

6.9

100

5.2

3.4

1.7

-200 20 40 60 80 100

°C °F

-4 32 68 104 140 176 212

PVC Fittings CPVC Fittings

0.5 -2”

120 248

The pressure ratings are for the tting only. NEVER EXCEED the pressure rating of the installed sensor.

(psi)

(bar)

15.5

225

13.8

200

12.1

175

10.3

150

8.6

125

6.9

100

5.2

3.4

1.7

-200 20 40 60 80 100

°C °F

-4 32 68 104 140 176 212

0.5 - 2”

120 248

Follow plastic piping cement manufacturer's recommended preparation and gluing instructions. Avoid excess cement in tting joints to prevent any port obstruction.

Specications

Rigid PVC and CPVC Material Compounds Specication:

ASTM D 1784

Dimensional and Compound Plastic Pipe Fittings Specications: ASTM D 2467 ASTM F 439

Standard Test Methods Specication:

ASTM F 1970

Page 6

Notes

Page 7

WARRANTY/DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month grace period to the normal one (1) year product warranty to cover handling and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each product.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence of having been damaged as a result of excessive corrosion; or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating conditions outside of OMEGA’s control. Components in which wear is not warranted, include but are not limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any damages that result from the use of its products in accordance with information provided by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of OMEGA with respect to this order, whether based on contract, warranty, negligence, indemnification, strict liability or otherwise, shall not exceed the purchase price of the component upon which liability is based. In no event shall OMEGA be liable for consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or with any nuclear installation or activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set forth in our basic WARRANTY/D ISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the Product(s) in such a manner.

RETURN REQUESTS/INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return package and on any correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in transit.

FOR WARRANTY RETURNS, please have the following information available BEFORE contacting OMEGA:

1. Purchase Order number under which the product was PURCHASED,

2. Model and serial number of the product under warranty, and

3. Repair instructions and/or specific problems

relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our customers the latest in technology and engineering.

reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the prior written consent of OMEGA ENGINEERING, INC.

FOR NON-WARRANTY REPAIRS, OMEGA for current repair charges. Have the following information available BEFORE contacting OMEGA:

1. Purchase Order number to cover the COST of the repair,

2. Model and serial number of the product, and

3. Repair instructions and/or specific problems relative to the product.

consult
