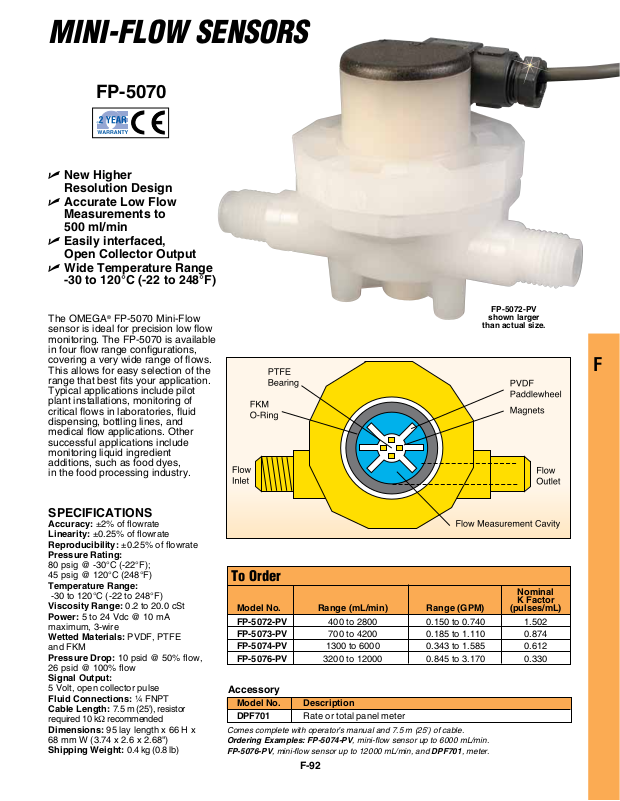

Mini-Flow SenSorS
FP-5070
U New Higher
Resolution Design
U Accurate Low Flow
Measurements to
500 ml/min
U Easily interfaced,
Open Collector Output
U Wide Temperature Range
-30 to 120°C (-22 to 248°F)
The OMEGA® FP-5070 Mini-Flow
sensor is ideal for precision low flow
monitoring. The FP-5070 is available
in four flow range configurations,
covering a very wide range of flows.
This allows for easy selection of the
range that best fits your application.
Typical applications include pilot
plant installations, monitoring of
critical flows in laboratories, fluid
dispensing, bottling lines, and
medical flow applications. Other
successful applications include
monitoring liquid ingredient
additions, such as food dyes,
in the food processing industry.

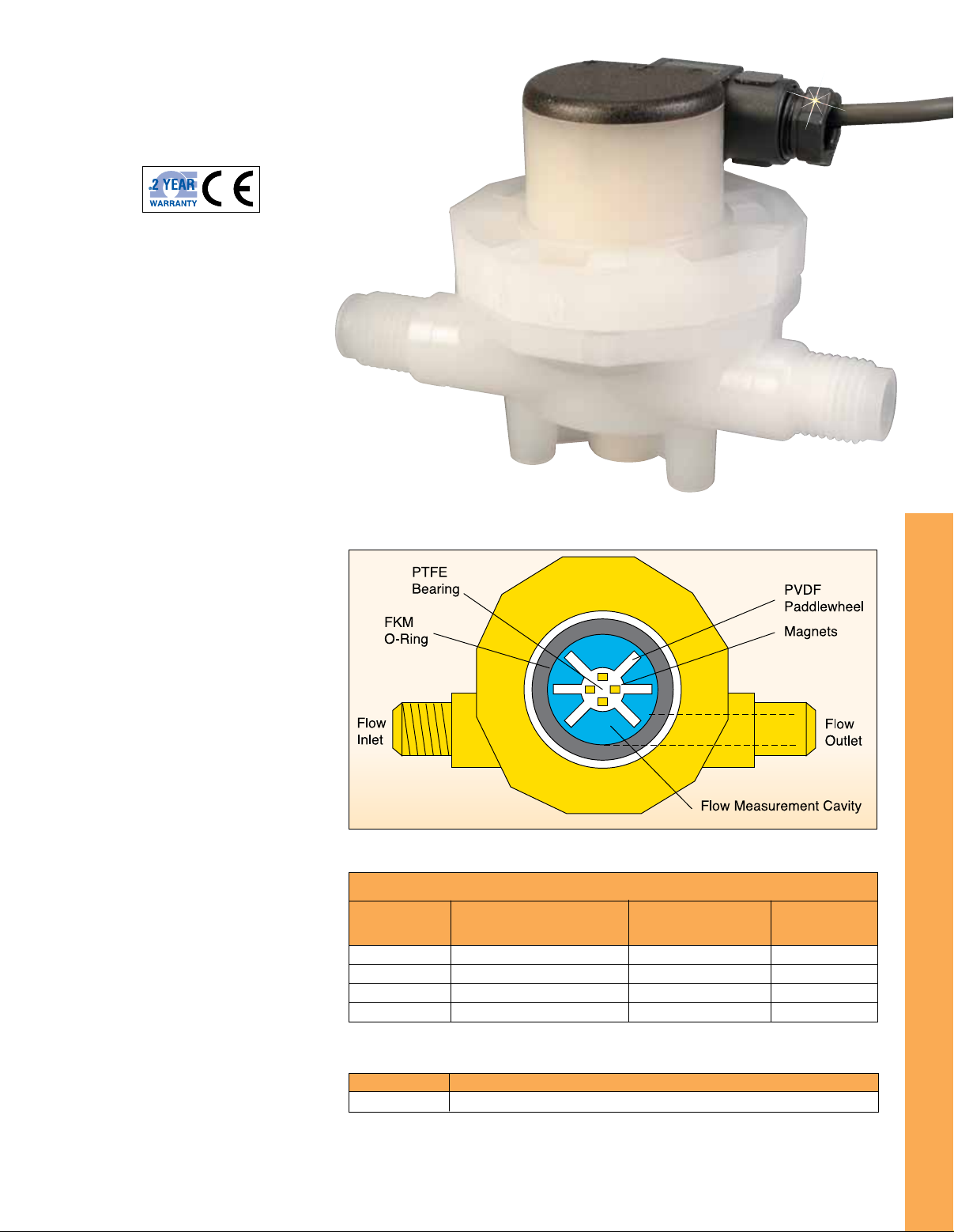

FP-5072-PV
shown larger
than actual size.
F
SPECIFICATIONS
Accuracy: ±2% of flowrate
Linearity: ±0.25% of flowrate
Reproducibility: ±0.25% of flowrate
Pressure Rating:
80 psig @ -30°C (-22°F);
45 psig @ 120°C (248°F)
Temperature Range:
-30 to 120°C (-22 to 248°F)
Viscosity Range: 0.2 to 20.0 cSt
Power: 5 to 24 Vdc @ 10 mA
maximum, 3-wire
Wetted Materials: PVDF, PTFE
and FKM
Pressure Drop: 10 psid @ 50% flow,
26 psid @ 100% flow
Signal Output:
5 Volt, open collector pulse
Fluid Connections: ¹⁄₄ FNPT
Cable Length: 7.5 m (25'), resistor
required 10 kΩ recommended
Dimensions: 95 lay length x 66 H x
68 mm W (3.74 x 2.6 x 2.68")
Shipping Weight: 0.4 kg (0.8 lb)
To Order
K Factor
Model No. Range (mL/min) Range (GPM) (pulses/mL)
FP-5072-PV 400 to 2800 0.150 to 0.740 1.502
FP-5073-PV 700 to 4200 0.185 to 1.110 0.874
FP-5074-PV 1300 to 6000 0.343 to 1.585 0.612
FP-5076-PV 3200 to 12000 0.845 to 3.170 0.330
Accessory
Model No. Description
DPF701 Rate or total panel meter
Comes complete with operator’s manual and 7.5 m (25') of cable.
Ordering Examples: FP-5074-PV, mini-flow sensor up to 6000 mL/min.
FP-5076-PV, mini-flow sensor up to 12000 mL/min, and DPF701, meter.
