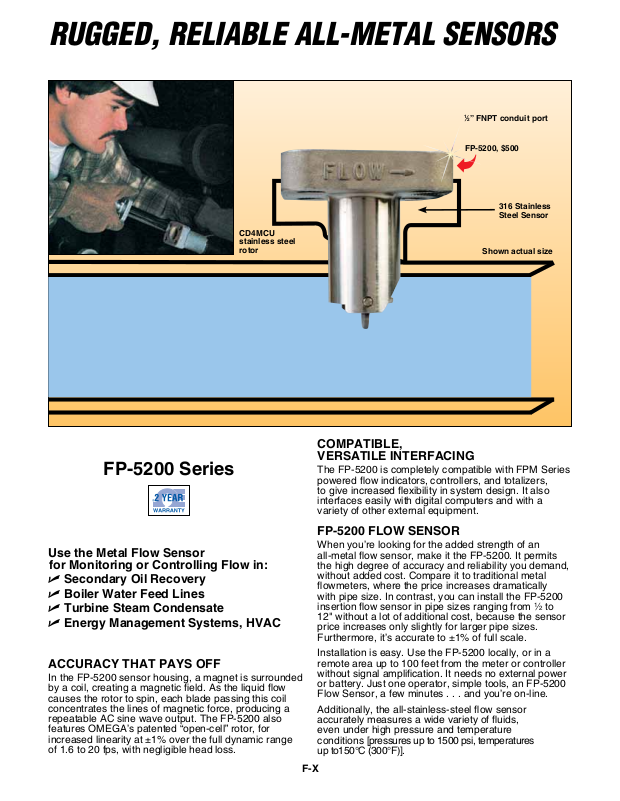

RUGGED, RELIABLE ALL-METAL SENSORS
1
⁄2” FNPT conduit port
FP-5200, $500
316 Stainless
Steel Sensor
CD4MCU
stainless steel
rotor

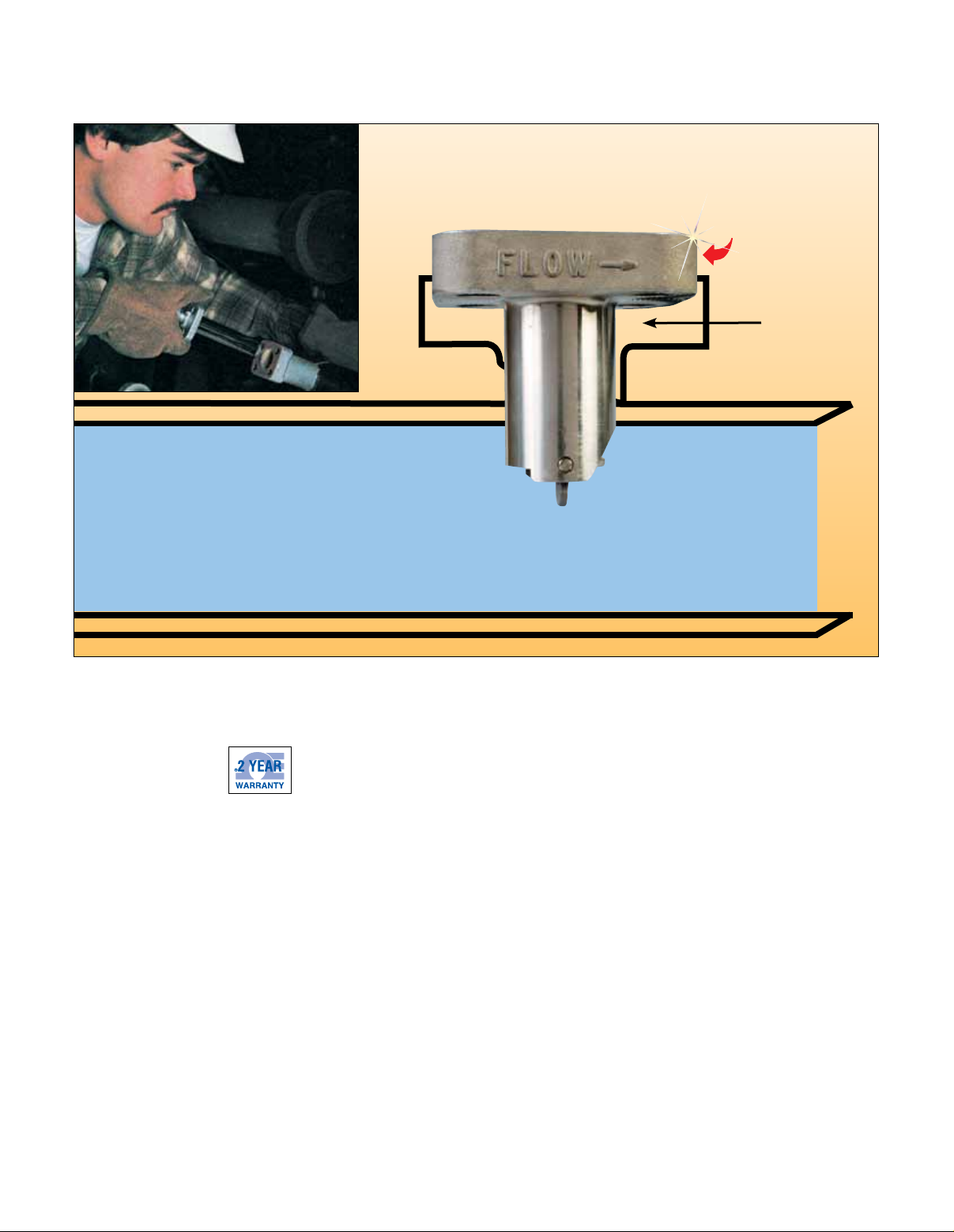

Shown actual size
FP-5200 Series
Use the Metal Flow Sensor
for Monitoring or Controlling Flow in:
U Secondary Oil Recovery
U Boiler Water Feed Lines
U Turbine Steam Condensate
U Energy Management Systems, HVAC
ACCURACY THAT PAYS OFF
In the FP-5200 sensor housing, a magnet is surrounded
by a coil, creating a magnetic field. As the liquid flow
causes the rotor to spin, each blade passing this coil
concentrates the lines of magnetic force, producing a
repeatable AC sine wave output. The FP-5200 also
features OMEGA’s patented “open-cell” rotor, for
increased linearity at ±1% over the full dynamic range
of 1.6 to 20 fps, with negligible head loss.
COMPATIBLE,
VERSATILE INTERFACING
The FP-5200 is completely compatible with FPM Series
powered flow indicators, controllers, and totalizers,
to give increased flexibility in system design. It also
interfaces easily with digital computers and with a
variety of other external equipment.
FP-5200 FLOW SENSOR
When you’re looking for the added strength of an
all-metal flow sensor, make it the FP-5200. It permits
the high degree of accuracy and reliability you demand,
without added cost. Compare it to traditional metal
flowmeters, where the price increases dramatically
with pipe size. In contrast, you can install the FP-5200
insertion flow sensor in pipe sizes ranging from 1⁄2 to
12" without a lot of additional cost, because the sensor
price increases only slightly for larger pipe sizes.
Furthermore, it’s accurate to ±1% of full scale.
Installation is easy. Use the FP-5200 locally, or in a
remote area up to 100 feet from the meter or controller
without signal amplification. It needs no external power
or battery. Just one operator, simple tools, an FP-5200
Flow Sensor, a few minutes . . . and you’re on-line.
Additionally, the all-stainless-steel flow sensor
accurately measures a wide variety of fluids,
even under high pressure and temperature
conditions [pressures up to 1500 psi, temperatures
up to150°C (300°F)].
F-X
Page 2
SPECIFICATIONS
Installation/
45ϒ 45ϒ
-3
-2
-1
38.4 (1.51)
63.5 (2.5)
114.3 (4.5)
7.6 (25') cable included
FP-5200
Sensor
FP-5201
Sensor
FP-5202
Sensor
.5
Tee Fitting
socket weld
Mini-Tap Fitting
Saddle Fitting
.5
Output Signal: Sine wave
Output Frequency: 12 Hz per ft/sec,
80 mV peak-to-peak per fps nominal
Flow Rate Range: 1.6 fps to 20 fps
Output Amplitude: 5 to 8 mV/P-P/Hz
Source Impedance: 10 kΩ
Accuracy: ±0.2 fps
Linearity: ±1% of full range
Repeatability: ±0.5% of full range
Maximum Viscosity: 1 centipoise (water); up to 5 cp above
5 fps velocity
Materials: Rotor: CD4MCU SS; Rotor Housing: 316 SS;
Rotor Shaft: Tungsten Carbide; Transducer Body: 347 SS;
Top Flange: 316 SS; Cap: 316 SS
Rotor Bearing: Fluoroloy B (PTFE-based fluoroplastic)
Cable Length: 7.5 m (25'), can be extended up to 30 m
(100') with copper wire
Maximum % Solids: 10%, with particulate size not
exceeding 5 mm cross section or length
Weight: 0.9 kg (2 lb)

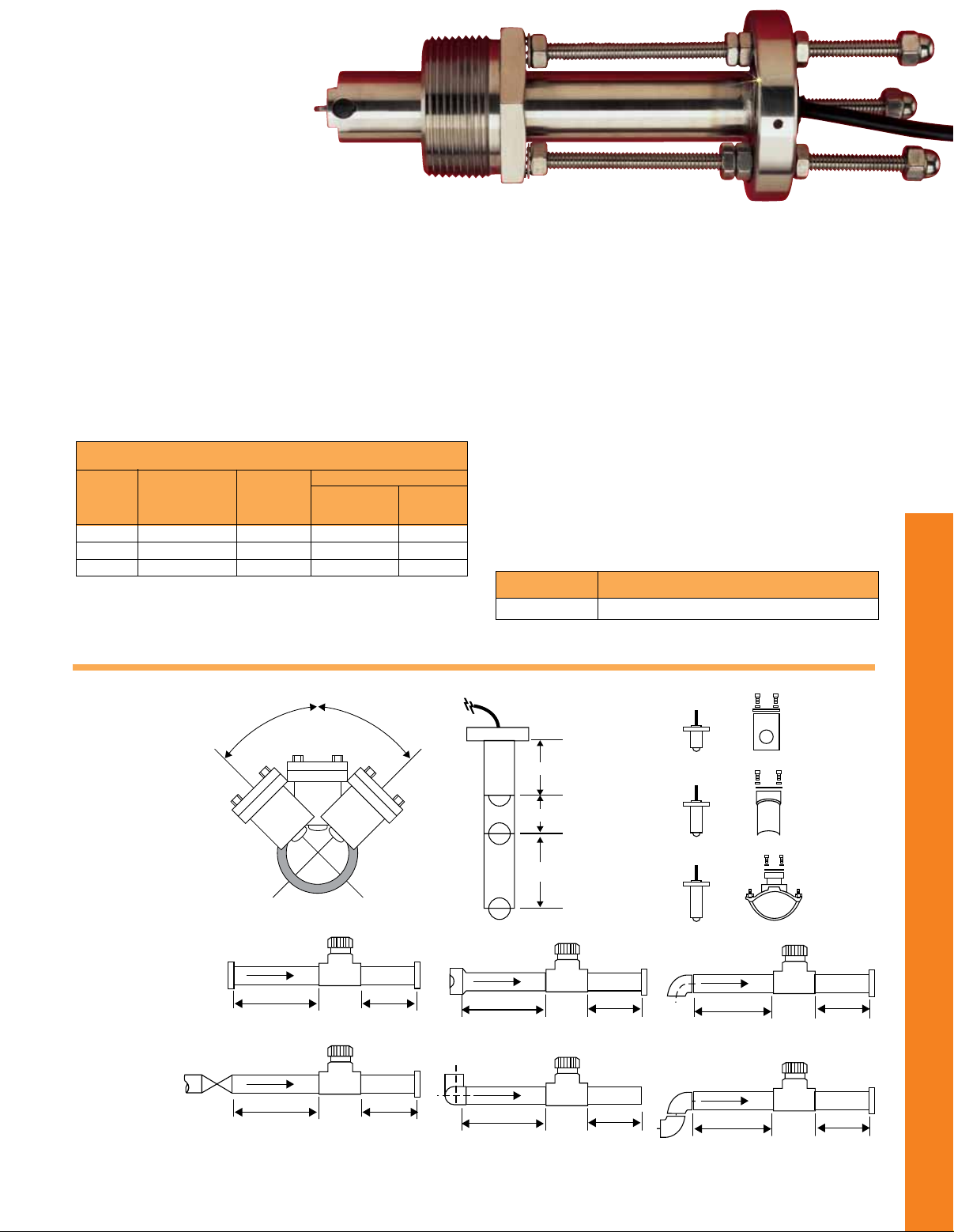

FP-3-1500-2B, hot tap sensor
shown smaller than actual size.
METAL HOT-TAP FLOW SENSOR
The metal hot-tap sensor allows the user easy
sensor installation and removal without shutting down
the process stream. Compatible with Mueller drill
assemblies, this new hot-tap sensor can be quickly
installed into pipe sizes from 11⁄2 to 24". This hot-tap
assembly is compatible with any 11⁄2 NPT female pipe
fitting such as weldolets and saddles. Installation
fitting not supplied.
Metal Flow Sensors
To Order
Sensor Maximum
Model Pipe Fitting Length Temperature Maximum
No. Size/Style mm (inch) °C (°F) Pressure
FP-5200 ¹⁄₂"-1" mini-tap 38.4 (1.512) 149 (300) 1500 psi
FP-5201 1¹⁄₄"-12" mini-tap 63.5 (2.50) 149 (300) 1500 psi
FP-5202 2"-12" saddle 114.3 (4.50) 149 (150) 300 psi
Comes complete with operator’s manual
Ordering Example: FP-5200 paddle wheel sensor, FP-5205, fitting.
See Page F-40 for FP-5200 Fittings. Complete replacement rotor/
paddlewheel kit for FP-5200 series: FP-52509.
Cap kit with gasket and bolts: FP52628. Gasket only: FP-52618.
Installation Dimensions: mm (inch)
INSTALLATION
SUGGESTIONS
FOR
PADDLEWHEEL
SENSORS
For maximum
linearity and
accuracy, the
sensor should
be located in a
straight run of
pipe upstream and
downstream of
the sensor. Major
obstructions
such as pumps
or throttle
valves
require longer
straight runs.
[Minimum -46°C (-50°F)]
45 45
Inlet Outlet
Flange
10 x I.D.5 x I.D.
Flange
50 x I.D.
5 x I.D.
SPECIFICATIONS
Flow Range: 0.3 to 20 fps
Wetted Parts: 316 and CD4MCU stainless steel;
FKM and PEEK
Power Input: 5 to 24 Vdc @ 10 mA maximum
Maximum Pressure/Temperature: 82°C (180°F)
up to 250 psig
Model No. Description
FP-3-1500-2B 1¹⁄₂" MNPT sensor
Comes complete with operator’s manual.
Ordering Example: FP-3-1500-2B, hot tap sensor.
7.6 (25') cable included
-1
38.4 (1.51)
-2
63.5 (2.5)
114.3 (4.5)
-3
Reducer
15 x I.D.5 x I.D.
2 x 90ϒ Elbow
3 dimensions
40 x I.D.5 x I.D.
FP-5200
Sensor
FP-5201
Sensor
FP-5202
Sensor
90ϒ Elbow
20 x I.D
2 x 90ϒ Elbow
25 x I.D
Tee Fitting
socket weld
Mini-Tap Fitting
Saddle Fitting
x I.D.
x I.D.
F1
F-X
Page 3

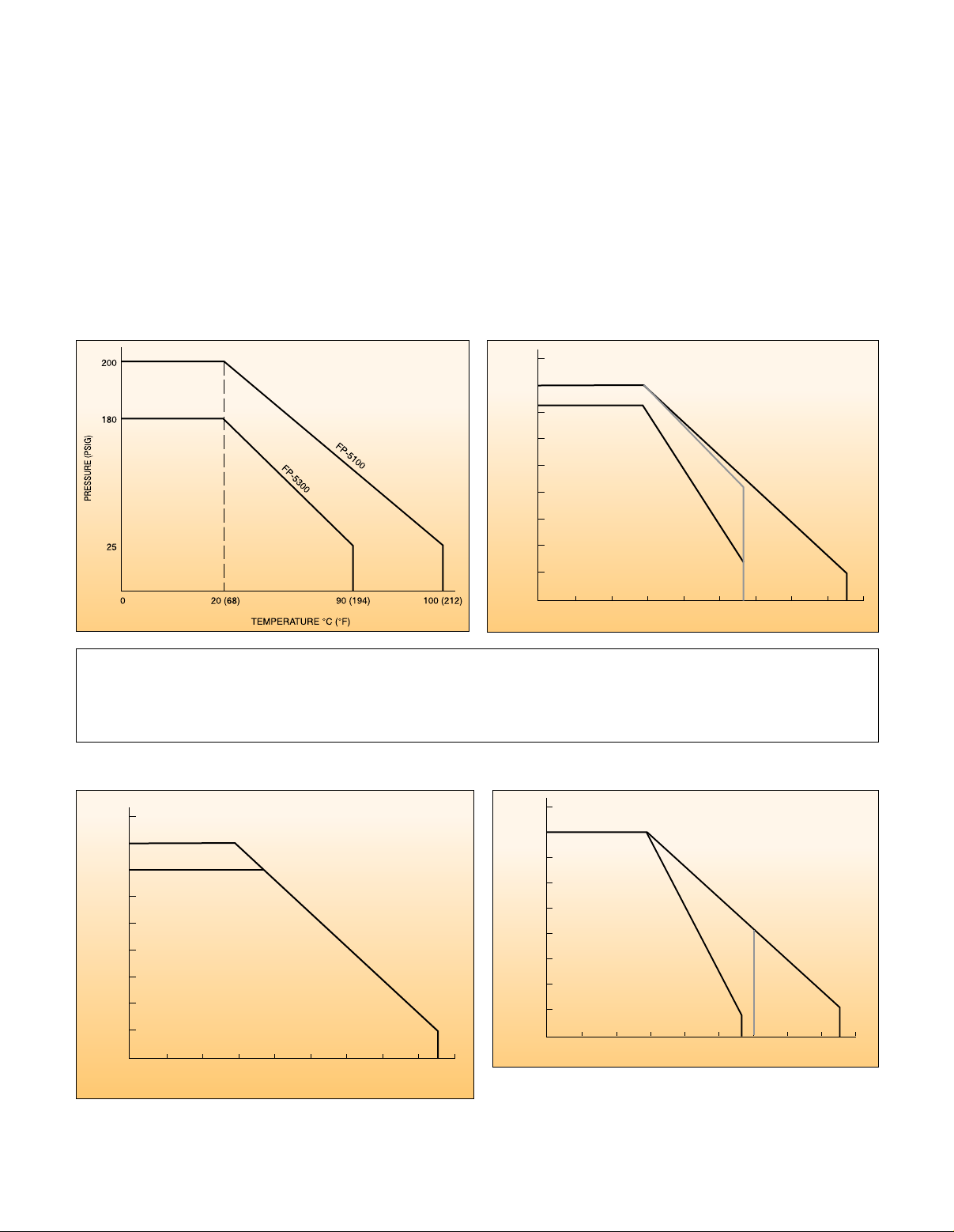

PRESSURE/TEMPERATURE CHARTS
For FP-5100, FP-5200, FP-5300 and FP-8500 Series
Sensors and Associated Fittings
NOTE: All pressure/temperature ratings listed are for water under non-shock conditions with no pressure cycling.
Various chemicals and cycling pressures up and down can weaken plastics. Fittings must be installed so that the
fitting does not carry the weight of the piping and does not suffer from thermal expansion stresses. Water hammer,
fluid surges, and cavitation must always be avoided. If the end user elects to thread the plastic fittings with socket
ends, the pressure rating will be substantially decreased.
FP-5100, FP-5300 and FP-8500 Series Sensors
Pressure/Temperature Ratings
PVC and CPVC Tees and Saddles
225
200
175
150
125
(psi)
100
75
50
25
0
-18 -4 10 24 38 52 66 79 93 107
°C
0255075 100 125 150 175 200 225
°F
CPVC 0.5 TO 1.5"
PVC 2 TO 8"
0.5 TO 1.5 PVC
WARNING: THE ABOVE PRESSURE/TEMPERATURE CURVES ARE SPECIFICALLY FOR THE FP-5100.
FP-5300, AND FP-8500 SENSORS. DURING SYSTEM DESIGN, THE SPECIFICATIONS OF ALL
COMPONENTS MUST BE CONSIDERED. IN A METAL PIPING SYSTEM, A PLASTIC SENSOR WILL REDUCE
THE SYSTEM SPEC. ON THE OTHER HAND, IF USING A PVDF SENSOR IN A PVC PIPING SYSTEM, THE
FITTING WILL REDUCE THE SYSTEM SPEC.
Metal Weld-On and Saddle FittingsMetal Tees
225
200
175
BRONZE TEES
150
125
(psi)
100
75
50
25
0
0
°F
°C
25-4501075241003812552150661757920093225
-18
METAL TEES 0.5
TO 2"
107
225
200
175
150
125
(psi)
100
75
50
25
0
0
°F
°C
25-4501075241003812552150661757920093225
-18
METAL WELD-ON 2.5 T
IRON SADDLES 10"-UP
METAL WELD-ON AND
O 8"
IRON SADDLES
2 TO 8"
107
These ratings are for PVC and PVDF fittings. For all metal
fittings 10” and larger, a PVC insert is used; for 8” and below, a
PVDF insert is used. Use the appropriate curve to determine the
maximum pressure rating of these fittings.
F-X
