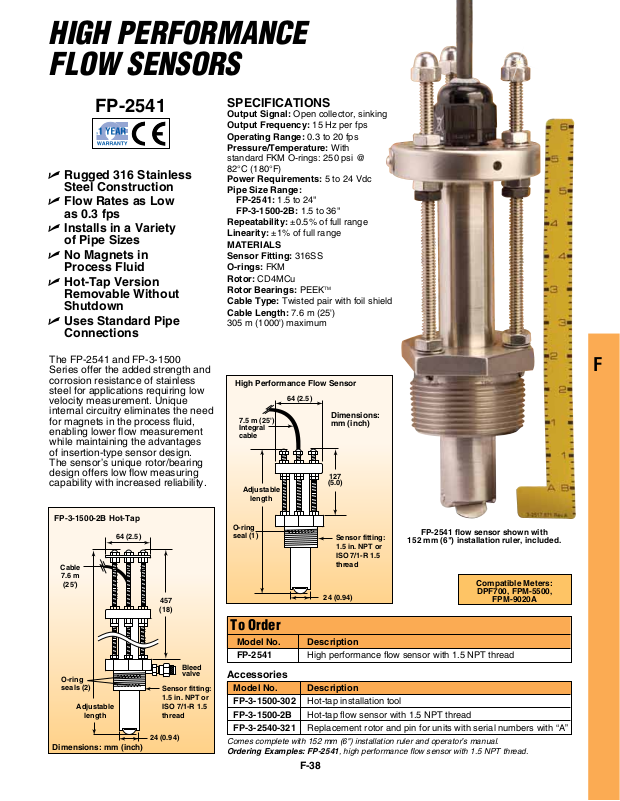

HigH Performance
Adjustable
length
7.5 m (25')
Integral cable
Sensor fitting:
1.5 in. NPT or
ISO 7/1-R 1.5
thread
O-ring
seal (1)
127
(5.0)
64 (2.5)
24 (0.94)
flow SenSorS
FP-2541
U Rugged 316 Stainless
Steel Construction
U Flow Rates as Low
as 0.3 fps
U Installs in a Variety
of Pipe Sizes
U No Magnets in
Process Fluid
U Hot-Tap Version
Removable Without
Shutdown
U Uses Standard Pipe
Connections
The FP-2541 and FP-3-1500
Series offer the added strength and
corrosion resistance of stainless
steel for applications requiring low
velocity measurement. Unique
internal circuitry eliminates the need
for magnets in the process fluid,
enabling lower flow measurement
while maintaining the advantages
of insertion-type sensor design.
The sensor’s unique rotor/bearing
design offers low flow measuring
capability with increased reliability.
SPECIFICATIONS
Output Signal: Open collector, sinking
Output Frequency: 15 Hz per fps
Operating Range: 0.3 to 20 fps
Pressure/Temperature: With
standard FKM O-rings: 250 psi @
82°C (180°F)
Power Requirements: 5 to 24 Vdc
Pipe Size Range:
FP-2541: 1.5 to 24"
FP-3-1500-2B: 1.5 to 36"
Repeatability: ±0.5% of full range
Linearity: ±1% of full range
MATERIALS
Sensor Fitting: 316SS
O-rings: FKM
Rotor: CD4MCu
Rotor Bearings: PEEK
Cable Type: Twisted pair with foil shield
Cable Length: 7.6 m (25')
305 m (1000') maximum
High Performance Flow Sensor
64 (2.5)
7.5 m (25')
Integral
cable
Adjustable
length
TM
Dimensions:
mm (inch)
127
(5.0)
F
FP-3-1500-2B Hot-Tap
64 (2.5)
Cable
7.6 m
(25')
O-ring
seals (2)
Adjustable
length
Dimensions: mm (inch)
457
(18)
Sensor fitting:
1.5 in. NPT or
ISO 7/1-R 1.5
thread
24 (0.94)
Bleed
valve
O-ring
seal (1)
Sensor fitting:
1.5 in. NPT or
ISO 7/1-R 1.5
thread
24 (0.94)

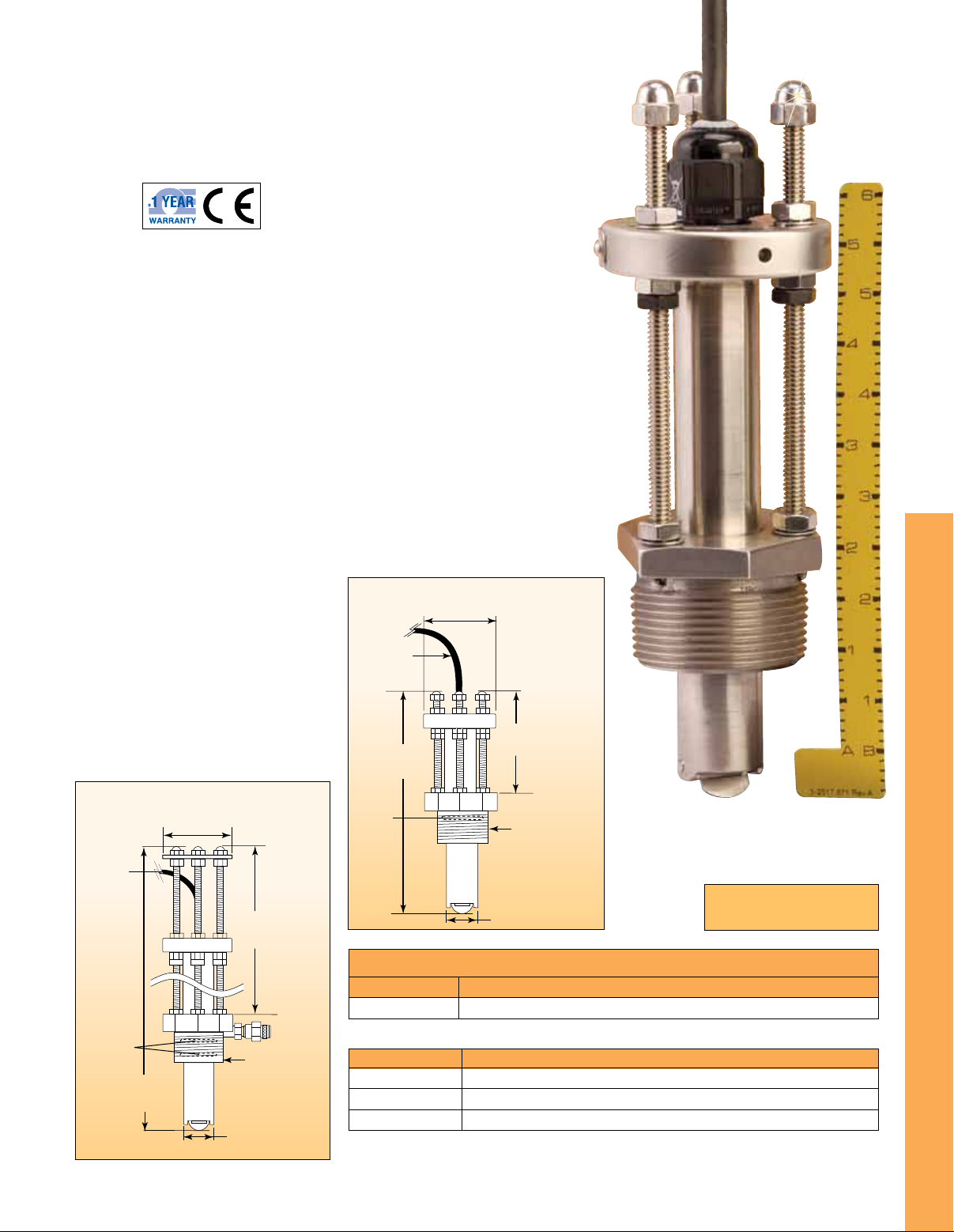

FP-2541 flow sensor shown with
152 mm (6") installation ruler, included.
Compatible Meters:
DPF700, FPM-5500,
FPM-9020A
To Order
Model No. Description
FP-2541 High performance flow sensor with 1.5 NPT thread
Accessories
Model No. Description
FP-3-1500-302 Hot-tap installation tool
FP-3-1500-2B Hot-tap flow sensor with 1.5 NPT thread
FP-3-2540-321 Replacement rotor and pin for units with serial numbers with “A”
Comes complete with 152 mm (6") installation ruler and operator’s manual.
Ordering Examples: FP-2541, high performance flow sensor with 1.5 NPT thread.
