FOM-Series
_____________________________________________________________________________________

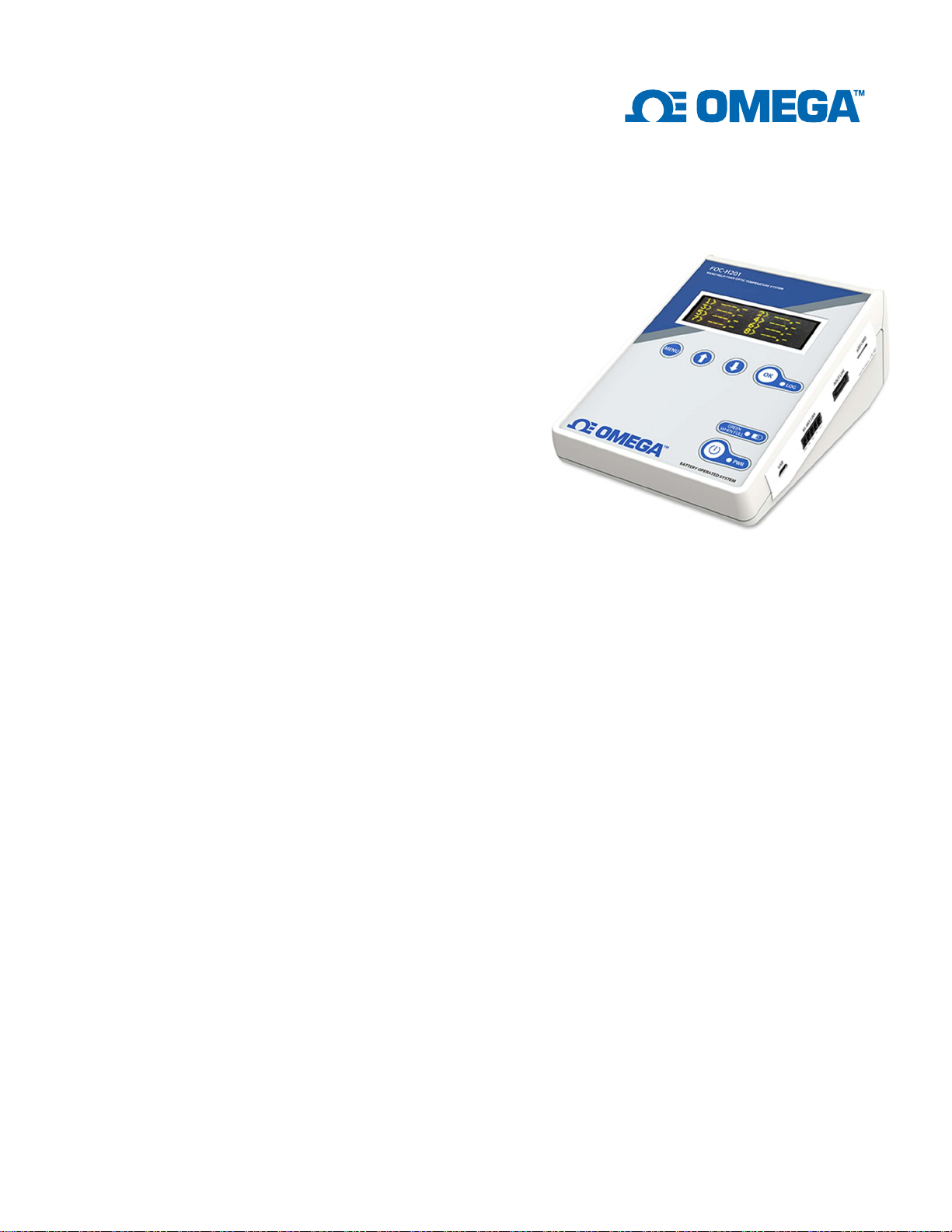

Fiber Optic Monitor
The FOM-Series fiber optic monitors are designed to be
compact and reliable. Fiber optic temperature
measurement using the FOM-Series monitors provides
accurate readings combined with a user-friendly
interface. The FOM-Series boasts a
-80°C to +300°C temperature measurement range as well
as ±1.0°C (+/- 0.2°C in relative temperature) accuracy.
Common applications include transformer factories,
chemical processing, medical equipment testing (MRI,
PETSCAN, NMR), commercial grade microwave heating,
food and beverage processing, electric vehicle and
battery testing and wood drying.
Fiber optic sensors transfer information to the fiber optic
monitor via light that travels through the fiber optic
cable. This is quite different compared to traditional
sensors that use resistance/voltage to communicate with
monitors. Since fiber optic sensors use light the signal is
very fast, reliable and is not influenced by outside forces
such as EMI, RFI, NMR or microwave radiation.
Features
Temperature ranges from -80°C to 300°C
Temperature monitors up to 8 channels
Accuracy ±1.0 °C (+/- 0.2 °C in relative temperature)
Logging capabilities available through USB connectivity
Free software with data logging capabilities
Complete the system with fiber optic sensors
Expandable memory with MicroSD slot (MicroSD card not included)
Case accessory available for easy storage and transportation
RS-485 and USB output with Modbus
Configurable 0-10 V / 4-20 mA with FOM-AOUT accessory
UNRESTRICTED
Page 2
Specifications
Process Temperature
Range
-80 to 300°C
(-
112 to 572°F)
Ambient Operating Temperature
Accuracy
± 1.0°C (1.8°F)
Temperature Units
°C only (
o
F selectable in Omega Fiber Optic Sensing software)
Connection Type
ST Connector
Response Time
Typically, 0.2 to 0.5 seconds per channel
Number of Channels
2 through 8
Analog Outputs
Optiona
l external module (4
-
20 mA and 0
-
10 V, software
Supply Voltage
5 VDC
Display Resolution
0.1°C
Probe Compatibility
All Omega fiber optic probes, most competitive GaAs probes
Portability Option
Rechargeable
batter
y (FOM
-
H201 version)
Dimensions
4.9" x 7.1" x
2.7"
Weight
FOM
-
L201: 450 g (15.8 oz); FOM
-
H201: 600 g (21.1 oz)
Memory
MicroSD external memory slot (up to 2 TB)
-40 ° to 55 °C, non-condensing
selectable), with 8 programmable outputs
(125 mm x 180 mm x 69 mm)
Ordering Example: FOM-L201-6: 6-Channel -80 to 300°C Fiber Optic Monitor, USB-powered.
