GENERAL INFORMATION, FEATURES and SPECIFICATIONS

The complete lack of moving parts of the FMG900 Series insertion ow
sensor is the source of its reliability. Brass and stainless steel models
withstand a variety of temperature, pressure, and chemical conditions.
The FMG900 Series has no rotor to stop turning in dirty water and there
are no bearings to wear out.

A rapidly reversing magnetic eld is produced in the lower housing.
As the uid moves through this eld, a voltage is generated that is
measured and translated into a frequency signal proportional to ow

rate.
This square wave signal can be sent directly to a PLC or other control

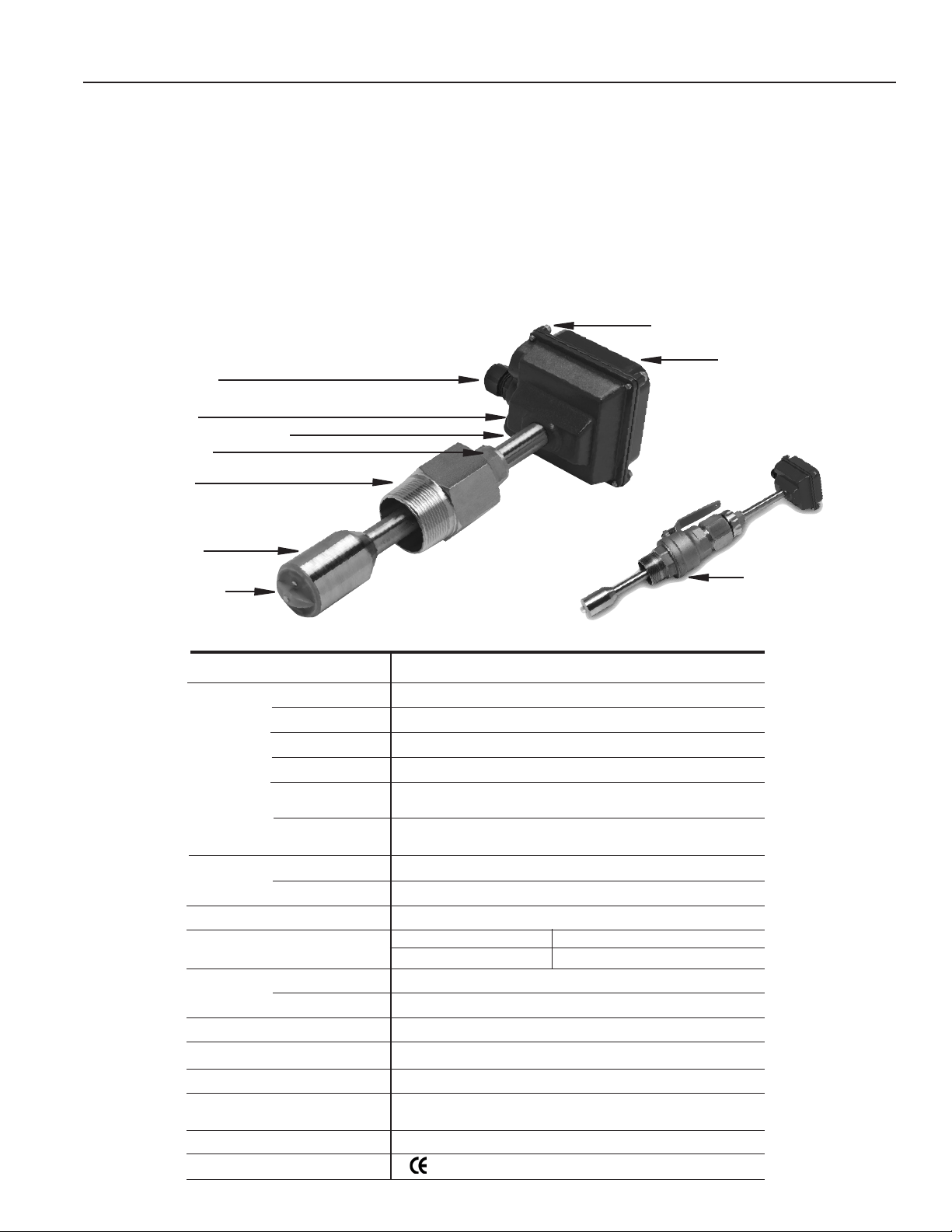

FEATURES

Cable Strain Relief

Lower Housing
Brass or 316 Stainless Shaft

Compression Nut

Adapter Fitting

1 1/2” Male NPT threads

Sensor Housing

Electrodes and Cap

or can be converted using any of the Omega family of indicators and
converters.

The adapter tting of the sensor is standard male NPT, and can be
directly threaded into ordinary saddles or threaded weld ttings. The

FMG905/906/907/908 include an isolation valve, allowing hot-tap
installation, or installation and removal under pressure; a bronze ball
valve is standard, with a 316 stainless steel valve option if needed.

Reverse ow output and immersibility are optional.

Housing Screw (connect ground to one)

Cover or Electronics Module

FMG901/902/903/904

FMG905/906/907/908

Valve assembly for
hot tap installation

SPECIFICATIONS*

Page 1

Pipe Sizes

Materials Shaft/Fitting

Electrodes

Electrode Cap

Housing

Valve Assembly
(115/215 Only)

O-Ring
(115/215 Only)

Power Full Power

Low Power

Flow Range

Fitting Size

Temperature Ambient

Fluid

Pressure

Minimum Conductivity

Calibration Accuracy

Output

Empty Pipe Detection

Regulatory

*Specications subject to change.

3” to 48” (up to 72” optional)

316 SS or Brass

Hastelloy

PVDF

Cast powder-coated aluminum

Bronze (stainless optional) with bronze ball valve

EPDM

12-25 Vdc, 250 mA

12-25 Vdc, 40 mA average with 250 mA peaks

0.28 to 20 ft/sec (0.08 - 6.09 m/sec)

FMG901/902/903/904 FMG905/906/907/908

1-1/2” Male NPT 2” Male NPT

0˚ to 160˚ F (-17˚ to 72˚ C)

32˚ to 200˚ F (0˚ to 93˚ C)

200 psi (13.8 bar)

20 microSiemens/cm

+/- 1% of full scale

Square wave pulse, opto isolated, 550 Hz @ 20 ft/sec

6 mA max, 30 Vdc forward ow standard; reverse ow optional

Software, defaults to zero ow

Mark

INSTALLATION

Piping. For best results, the sensor should be in-

stalled with at least ten diameters of straight pipe

upstream and ve downstream. Certain extreme situations
such as partially-opened valves are particularly difcult and

may require more straight diameters upstream (see page 6
for straight pipe recommendations).

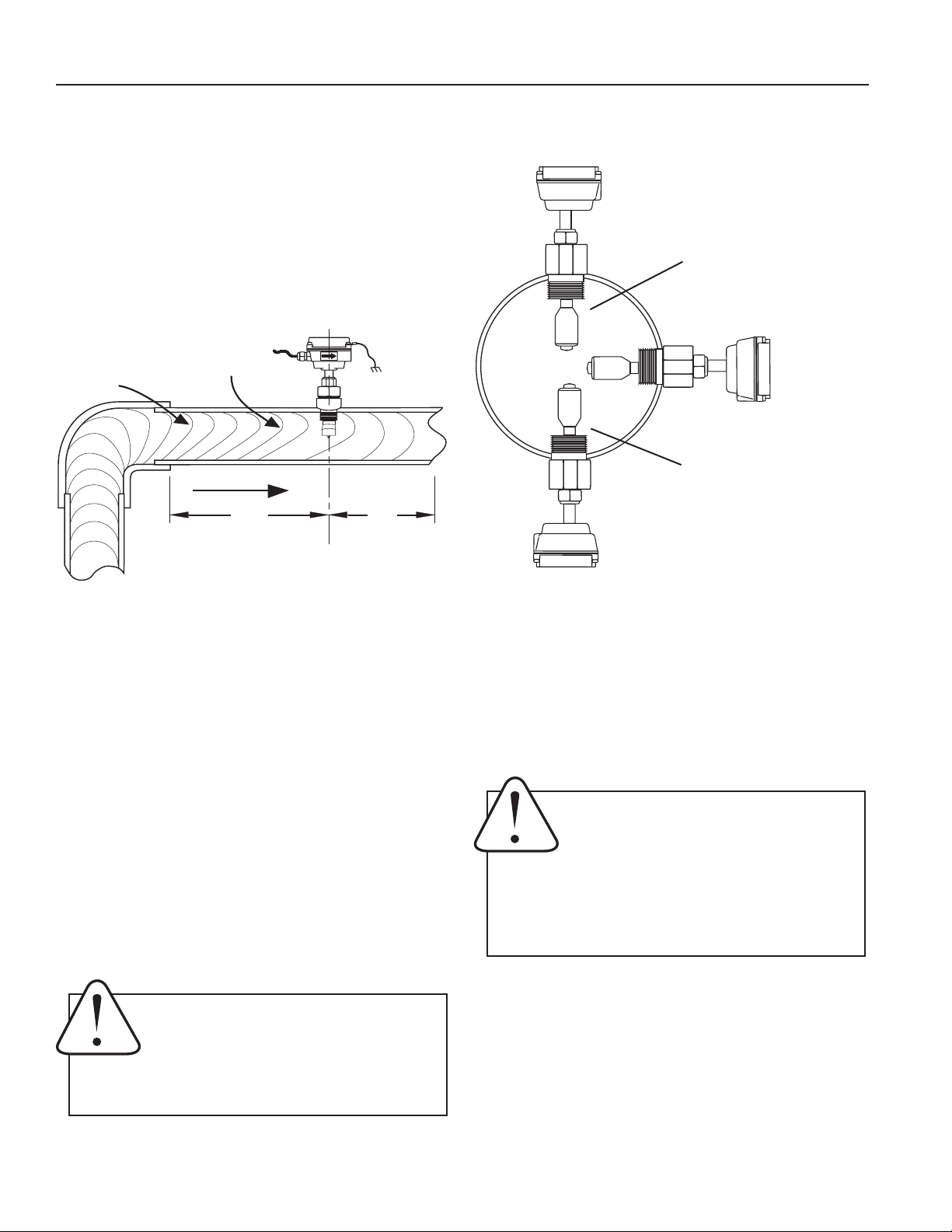

DISTORTED FLOWS

Faster Flow
Causes Meter

Distorted

Flow Prole

To Read High

FLOW

10X

5X

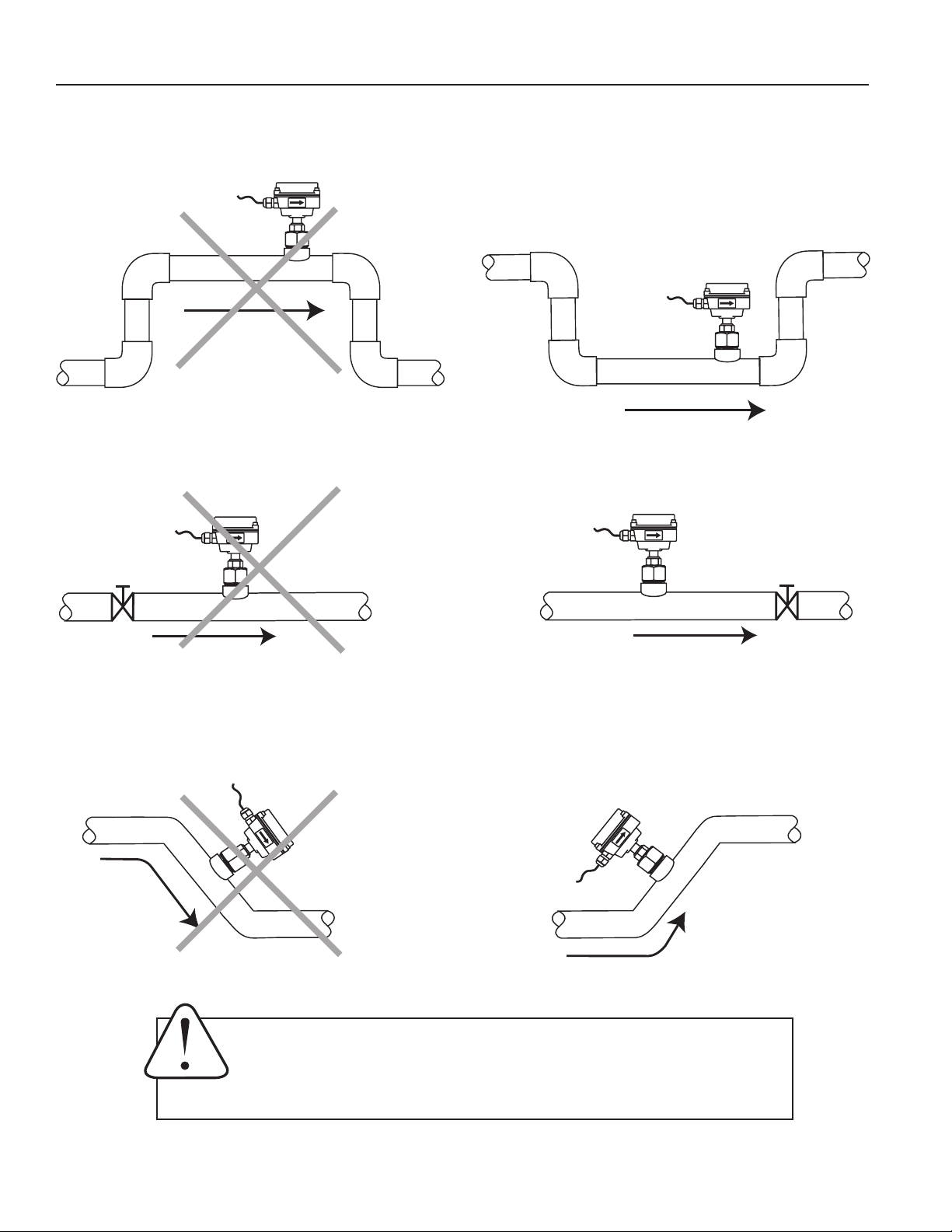

POSITIONING THE METER

Fair

(Unacceptable position

if air is present)

Best
Position

Fair

(Unacceptable position if uid

contains sediment)

Immersion. The FMG900 Series sensors are not designed for
underwater operation. Even occasional immersion can cause
damage. If occasional immersion is possible, such as when a

vault oods, then the -40 option, (immersion) is recomended.

Chemical Injection or Fertigation. When any magmeter, by
any manufacturer, is used in a chemical injection applica­tion (including fertigation), the chemical line must be placed
downstream of the magmeter OR far enough upstream for

complete mixing to occur before the uid reaches the meter.

When unmixed chemical or fertilizer alternates with water
passing through the meter, the rapid changes in conductivity
may cause sudden spikes and drops in the meter’s reading,
resulting in inaccurate measurement. The magmeter will

restabilize, however, with a steady ow of uid of uniform

conductivity.

Caution: In chemical injection or fertiga­tion applications, install chemical line
downstream of magmeter, or far enough
upstream to allow complete mixing of

uids before the meter.

Vertical ow in upward direction is the preferred installation

orientation, since it improves low-ow performance and avoids

problems with trapped air and sediment. Bottom, top, and

vertical pipe installations are all acceptable if required by

the piping layout.

Caution: These ow sensors are not rec-
ommended for installation downstream
of a boiler feedwater pump where instal-

lation fault may expose the ow sensor

to boiler pressure and temperature. Maximum
recommended temperature is 200°F.

Page 2

INSTALLATION

FMG901/902/903/904 INSTALLATION

Fitting Installation. FMG901/902 sensors come with a 1-1/2” male

NPT pipe thread adapter tting. Any tting that provides the matching
NPT female thread may be used. Installation procedure compensates
for tting height differences. Cut a minimum 1-3/4” hole in the pipe. If

possible, measure the wall thickness and write it down for use in depth

setting. Then install the threaded tting (saddle, weldolet, etc.) on the

pipe.

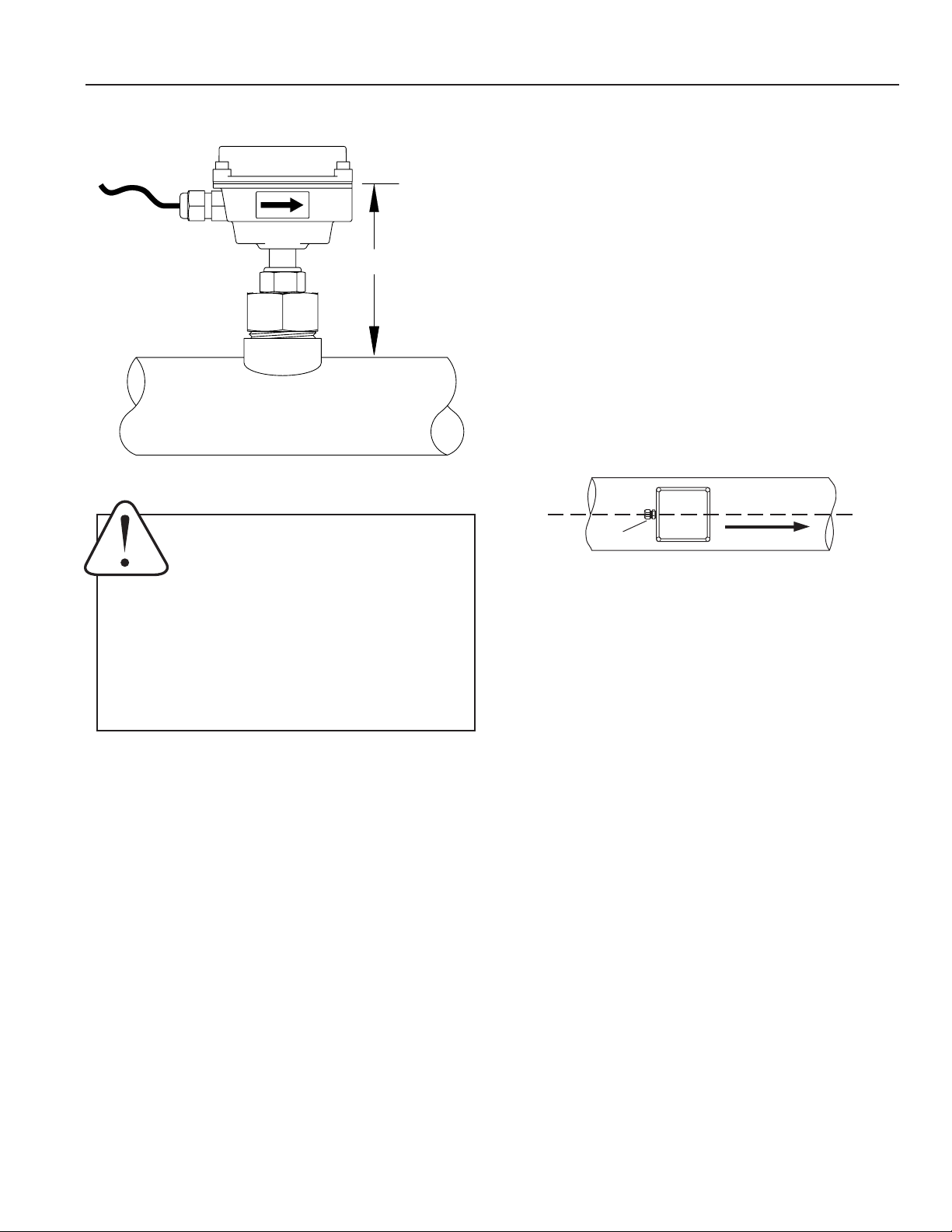

Meter Installation. Loosen the compression nut so that the adapter

slides freely. Pull the meter fully upward and nger-tighten the compres­sion nut. Using a thread sealant, install the adapter in the pipe tting.
Do not overtighten. Now loosen the compression nut, lower the meter

to the appropriate depth setting (see diagram and instructions that fol-

low). Be sure ow is in the direction of the arrow on the housing. Tighten

compression nut fully.

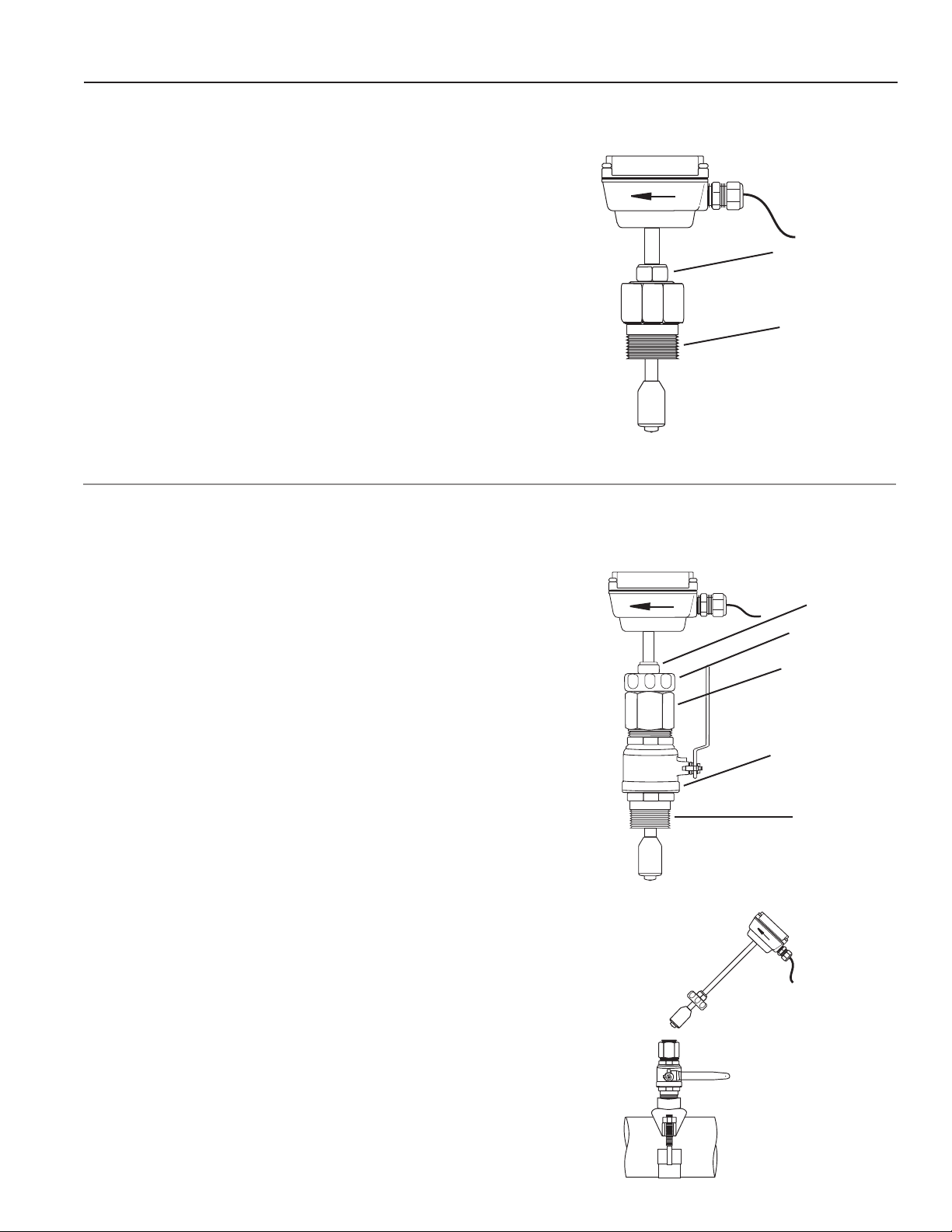

Compression nut

Adapter tting

with

standard NPT

threads

FMG905/906/907/908 INSTALLATION

‘Hot tap’ meters are designed so they can be installed and serviced
without depressurizing the pipe.

Fitting Installation. The FMG905/906/907/908 sensors have a 2”

NPT thread for compatibility with the 2” isolation valve. Any tting that
provides matching NPT female thread may be used. The installation
procedure compensates for differences in tting height.

If initial installation is performed on an unpressurized pipe, cut a
minimum 1-3/4” hole in the pipe. If possible, measure the wall thickness

and write it down for use in depth setting. Then install the threaded tting

(saddle, weldolet, etc.) on the pipe.

If it is necessary to do the initial installation under pressure, any standard

hot tap drilling machine with 2” NPT adapter, such as a Transmate or a

Mueller, can be used. Ordinarily, it is not necessary to use an installation
tool, due to the small diameter tube the meter can be installed by hand
at all but the highest pressures.

Compression nut

Locking collar

2” adapter removes

to mount hot-tap

machine

Full-port 2” ball

valve allows sensor

removal

Standard 2”

NPT threads

Meter Installation. Remove the sensor unit from the valve assembly.

Using a thread sealant, install the valve assembly on the pipe tting. If

the initial installation is a pressure (“hot”) tap, remove the 1-1/2” x 2”
adapter bushing at the back of the valve. Thread the tapping machine
on, open the valve, and tap using a minimum of 1-3/4” or maximum
1-7/8” cutter. After retracting the machine and closing the valve, reinstall

the ow sensor. When the sensor is secure, open the valve and adjust
depth setting (see diagram and instructions that follow). Be sure ow is

in the direction of the arrow on the housing. Tighten locking collar and
compression nut fully.

FMG905/906/907/908

Sensor Removal

Page 3

INSTALLATION

"D"

PROPER DEPTH SETTING

Depth Setting. It is important for accuracy that the sensor

be inserted to the correct depth into the pipe.

1. In Table 1, nd Dimension C for your sensor model

and pipe size. Subtract wall thickness of your pipe

(Table 2) to nd Dimension D.

2. Measuring from the outside of the pipe to the joint in

the housing, as shown in the diagram, adjust the

sensor to Dimension D and hand-tighten compression

nut.

3. Align the conduit housing with the centerline of the

pipe, as shown. Be sure the arrow on the housing

points in the direction of ow.

Caution! Never attempt to remove a ow

sensor when there is pressure in the pipe

unless it is specically designed for hot

tap installation and removal. Loosen the

compression nut slowly to release any trapped pres-

sure. If uid sprays out when removing the sensor,

stop turning and depressurize the pipe. Failure to
do so could result in the sensor being thrown from
the pipe, resulting in damage or serious injury.

strain
relief

4. Check Dimension D one more time.

5. Tighten the compression nut fully.

FLOW

Page 4

INSTALLATION

TABLE 1: DIMENSION “C”

NOMINAL PIPE SIZE

3” 4” 6” 8” 10” 12” 14” 16” 18” 20” 24” 30” 36”

FMG901/903

FMG902/904

FMG905/907

FMG906/908

10.04 9.93 9.69 9.46 9.22 8.99 8.75 8.52 8.28 8.05 7.58 6.87 6.17

15.04 14.93 14.69 14.46 14.22 13.99 13.75 13.52 13.28 13.05 12.58 11.87 11.17

17.04 16.93 16.69 16.46 16.22 15.99 15.75 15.52 15.28 15.05 14.58 13.87 13.17

21.04 20.93 20.69 20.46 20.22 19.99 19.75 19.52 19.28 19.05 18.58 17.87 17.17

TABLE 2: PIPE WALL THICKNESS

NOMINAL PIPE SIZE

3” 4” 6” 8” 10” 12” 14” 16” 18” 20” 24” 30” 36”

PVC/Steel

Sch. 40

PVC/Steel

Sch. 80

Stainless

Steel (10S)

0.216 0.237 0.280 0.322 0.365 0.406 0.438 0.500 0.562 0.593 0.687

0.300 0.337 0.432 0.500 0.593 0.687 0.750 0.843 0.937 1.031 1.218

0.120 0.120 0.134 0.148 0.165 0.180 0.188 0.188 0.188 0.218 0.250 0.312 0.312

Stainless

Steel (40S)

Copper Tubing

(Type L)

Copper Tubing

(Type K)

Brass Pipe

Duct. Iron
(Class 52)

0.216 0.237 0.280 0.322 0.365 0.375 0.375 0.375 0.375 0.375 0.375 0.375 0.375

0.090 0.110 0.140 0.200 0.250 0.280

0.109 0.134 0.192 0.271 0.338 0.405

0.219 0.250 0.250 0.312 0.365 0.375

0.280 0.290 0.310 0.330 0.350 0.370 0.390 0.400 0.410 0.420 0.440 0.470 0.530

Page 5

INSTALLATION

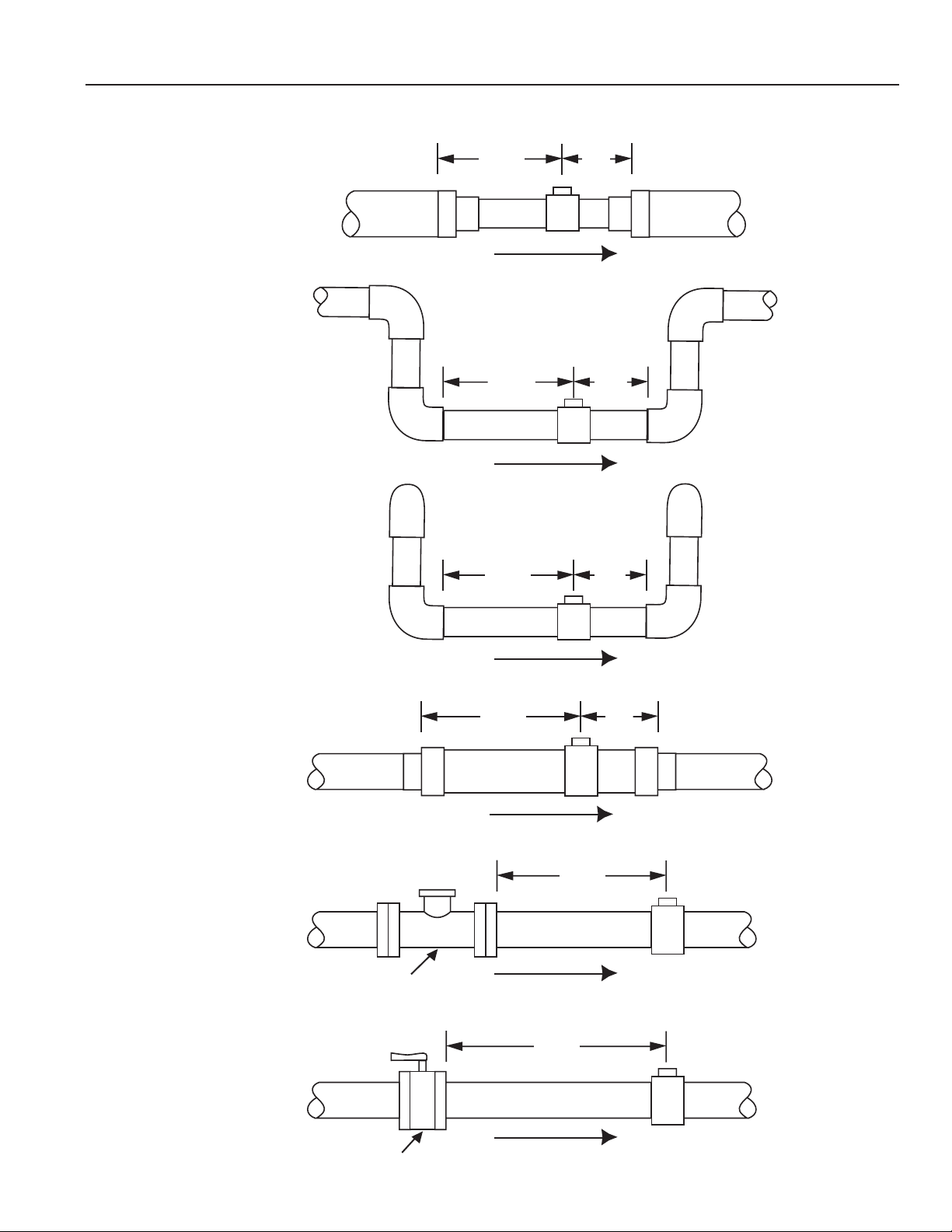

STRAIGHT PIPE RECOMMENDATIONS

(X = diameter)

Reduced Pipe

Two Elbows In Plane

Two Elbows, Out Of Plane

10X

20X

5X

5X10X

5X

Expanded Pipe

Spiral Flow

Swirling Flow

Propeller Meter

Partially Open

Buttery Valve

20X

5X

30X

50X

Page 6

INSTALLATION

FULL PIPE RECOMMENDATIONS

Allows air pockets to form at sensor

Better InstallationPossible Problem

Ensures full pipe

Better InstallationPossible Problem

Post-valve cavitation can create air pocket Keeps pipe full at sensor

Better InstallationPossible Problem

Air can be trapped

Allows air to bleed off

Caution: These ow sensors are not recommended for installation down-
stream of a boiler feedwater pump where installation fault may expose the

ow sensor to boiler pressure and temperature. Maximum recommended

temperature is 200°F.

Page 7

ELECTRICAL CONNECTIONS

+
_

+
_

+
_

GENERAL ELECTRICAL GUIDELINES

• Whenever possible, avoid running control cables in the

same conduit with AC power.

• Use shielded cable, with one end grounded.

• Avoid routing ow sensor cables in close proximity to a

variable frequency drive.

• Recommended power and output wiring is shielded

18-22 AWG control cable.

• Recommended voltage is 12-24 Vdc.

Note: unregulated power supplies can vary from name­ plate voltage by a considerable amount. When in
doubt, use a regulated power supply.

Power: A 12 - 24 Vdc power supply capable of at least 250
mA current output is needed.

Forward (and Reverse) Flow Output: This open-collector
isolated output does not supply power. It functions like a
polarity-sensitive switch closure. This pulse is generated in

the forward ow direction on the standard unit. (Reverse ow

output is available as an option). Note: This output is limited
to 6 mA at 30 Vdc maximum.

GROUNDING GUIDELINES

For best results, use a good quality earth ground, such as
metallic water piping, or a stake driven into the ground, to
ensure a good connection to earth ground and good noise
suppression.

If the ow sensor is installed in metallic piping, for optimum

connection clamp wire to the piping a short distance to one

side of the ow sensor using a hose type clamp. Connect the

wire to the earth ground and to one of the housing screws. (For
non-metallic piping, this step is not needed.)

PLACE FERRITE BEAD HERE

Earth
Ground

Hose Clamp

Metallic Pipe

FMG900 Series meters are usually unaffected by moderate
levels of electrical noise. In some applications performance
may be improved by taking the following steps:

Housing Screw

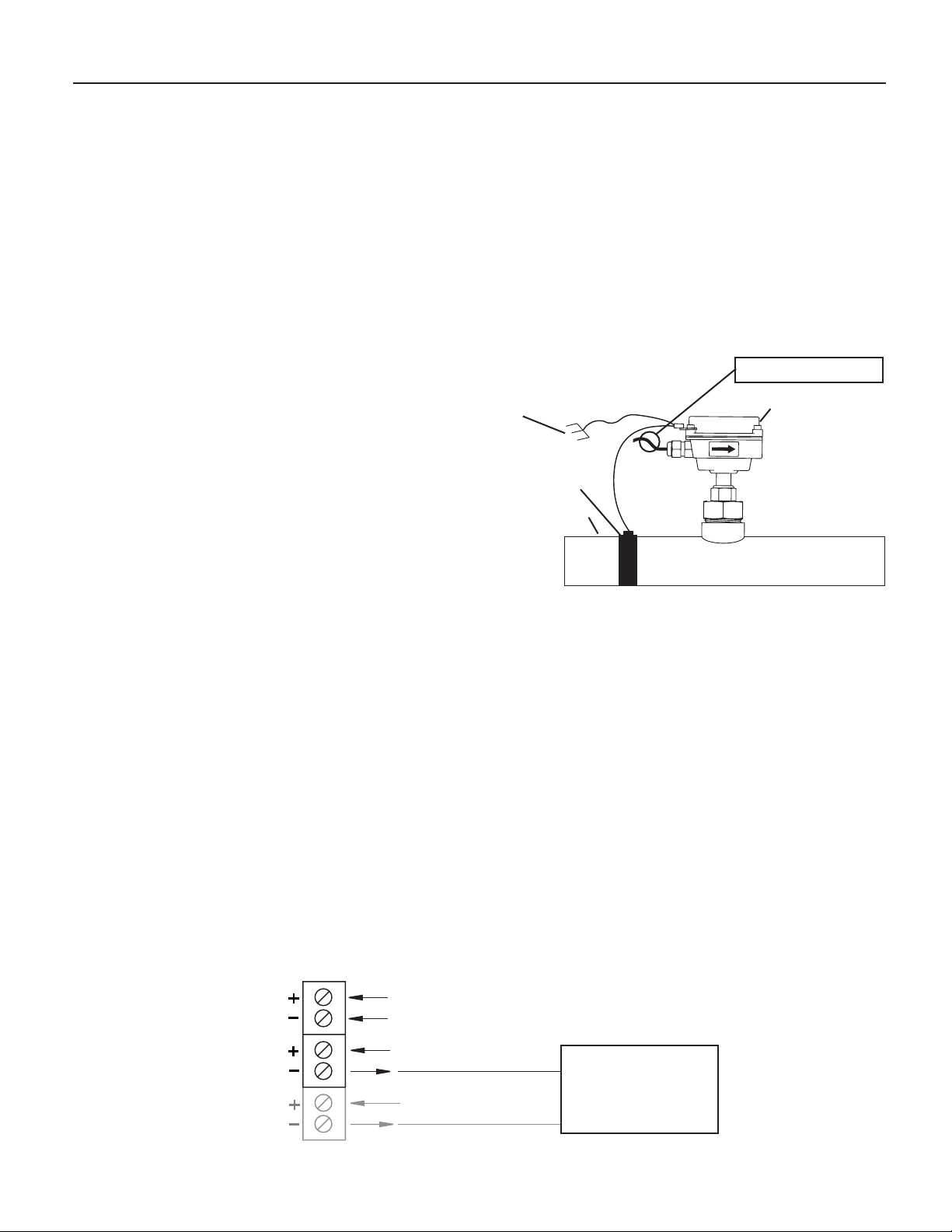

CONNECTION DIAGRAM

Forward Output

Reverse Output

(Option-15 only)

Power

• Use shielded twisted pair cable (Belden 8723 or

equivalent above ground or Alpha 35482 or
equivalent burial).

• Clamp a ferrite bead (Steward 28A2029-OAO or

equivalent) on meter signal/power wire within 3/4”
of the meter strain relief (tape or tie wrap in place if
necessary). See diagram above.

• IMPORTANT - Connect the cable shield ground wire
to ground, ONLY at power supply end of cable.

12 - 24 Vdc

Max. 6 mA, 30 Vdc

Max. 6 mA 30 Vdc

COUNTER OR PLC

DIGITAL INPUT

FMG900 SERIES

Page 8

OPERATION & MAINTENANCE

30Vdc

Max. 6mA

-+-

+

12-24Vdc

345621

Power

Forward

Output

Status
LED

Zero

Adjust

Pins

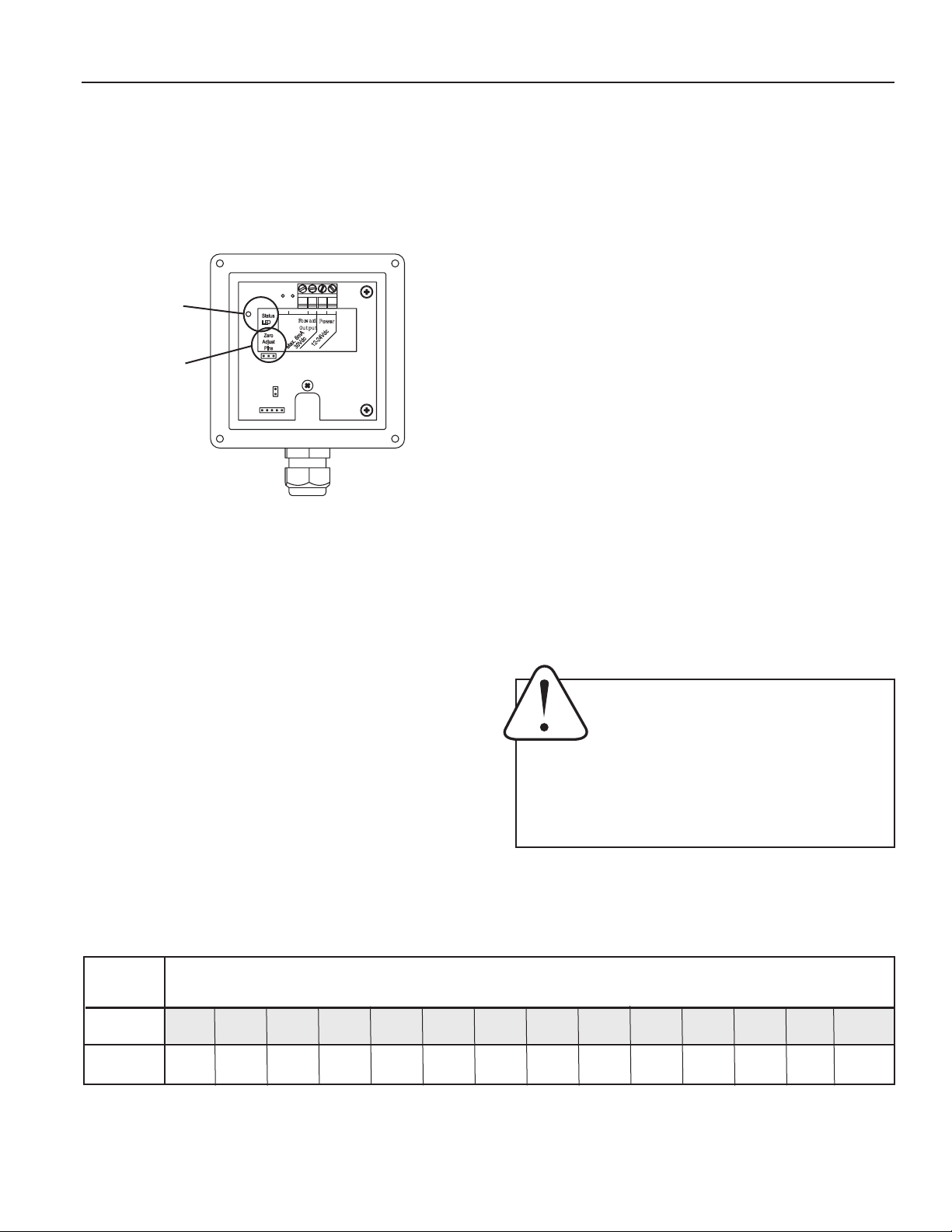

Zero Adjustment. When the FMG900 Series meter is powered

up and there is no ow, there should be no output pulses (or,
if connected to a display or controller, ow rate should read

“0”). If there are pulses, it may be necessary to adjust the

ow meter under no-ow conditions after it has been installed.

This should only be done if the indicated ow is low, near
the lower cutoff.

Status

LED

Zero

Adjust

Pins

To perform the adjustment, after determining that there is a

full pipe with no ow, short between the two pins marked “Zero

Adjust”. A red LED light will come on for approximately 50 sec­onds and then go out. The zero adjustment is completed.

Minimum Flow. As with any other ow sensor, there is a rate

below which the FMG900 Series sensor cannot read. Check

the table below for the minimum ow rate detectable by the
sensor for a given pipe size. Minimum ow is 0.28 ft/sec.

Presence of Flow Indication. To assist in troubleshooting,
the “Status LED” has two blinking modes in normal operation.
When there is no flow detectable by the meter (below
minimum threshold) the LED blinks every 8.0 seconds. When

there is detectable ow, the same indicator blinks every 3.0

seconds (Pulses are being output when indicator is blinking
every 3 seconds).

Filtering. The software of the FMG900 Series lters out
electrical noise and averages sudden variations in the ow

to smooth the output. It takes a matter of seconds for the

ow sensor to get up to full output when it is powered up or
when ow begins.

Electrode Coating. Grease or other adhering, non-conductive

materials can stop ow detection if the electrodes become

heavily coated. To clean the electrodes, remove the sensor
from the pipe and gently scrub the electrodes (three silver

bumps) on the reading face of the ow sensor. A mild soap

(dishwashing liquid for example) can be used to aid the
cleaning process.

Calibration (“K-Factor”). In order to properly process pulses
from the ow sensor, a number must be entered into the con­trol to which the sensor is connected. This number, called the
K-factor, is the number of pulses the sensor puts out per unit

of uid passing through the pipe. Find the K-factor for your
pipe size and type in the table on the following page and

enter it into your display or controller. These numbers are

based on extensive testing, which has shown close agreement
among different FMG900 sensors in the same installation.
Typically, most K-factor error can be attributed to installation

variables, such as depth setting and tting conguration.

CAUTION! Never attempt to remove a ow

sensor when there is pressure in the pipe

unless it is specically designed for hot tap

installation and removal. Loosen the com-

pression nut slowly to release any trapped pressure. If

uid sprays out when removing the sensor, stop turning

and depressurize the pipe. Failure to do so could result
in the sensor being thrown from the pipe, resulting in
damage or serious injury.

FLOW RATES (IN GALLONS PER MINUTE)

NOMINAL PIPE SIZE

3” 4” 6” 8” 10” 12” 14” 16” 18” 20” 24” 30” 36” 48”

6 11 25 44 69 99 134 175 222 274 395 617 888 1580

440 783 1,762 3,133 4,895 7,050 9,596 12,533 15,863 19,584 28,200 44,064 63,452 112,804

Feet Per

Second

Min 0.2

Max 20.0

Page 9

K-FACTOR CHART

FMG900 SERIES K-FACTORS FOR VARIOUS PIPE SIZES

NOMINAL PIPE SIZE

3” 4” 6” 8” 10” 12” 14” 16” 18” 20” 24” 30” 36”

PVC/Steel

Sch. 40

70.397 40.985 18.130 10.497 6.674 4.709 3.900 2.989 2.364 1.904 1.319

PVC/Steel

Sch. 80

Stainless

Steel (10S)

Stainless

Steel (40S)

Copper Tubing

(Type L)

Copper Tubing

78.748 45.360 20.084 11.495 7.322 5.184 4.297 3.281 2.588 2.094 1.451

62.385 36.626 16.510 9.642 6.173 4.373 3.620 2.756 2.169 1.762 1.223 0.784 0.576

70.397 40.985 18.130 10.497 6.674 4.661 3.827 2.893 2.263 1.819 1.249 0.791 0.580

76.371 43.552 19.513 11.201 7.230 5.016

78.371 44.638 20.223 11.622 7.500 5.239

(Type K)

Brass Pipe

Duct. Iron

(Class 52)

70.672 41.517 17.778 10.445 6.674 4.661

57.376 37.320 16.915 9.503 6.197 4.325 3.189 2.443 1.931 1.565 1.088 0.747 0.520

Note: These K-Factors are calculated using actual pipe diameters and wall thicknesses for each pipe type. They are
based on the most current testing at the time of printing.

Page 10

TROUBLESHOOTING

Problem

No pulse output

Output pulses incor­rect

Probable Cause Try...

Unit not grounded

Below minimum ow cutoff

Flow reversed

Output connections reversed

Pipe not full

Excessive electrical noise

No power

Power reversed

Fluid conductivity <20 microSiemens/cm

Missing or incorrect ground wire

Incorrect depth setting

Connect to earth ground

Check the Presence of Flow LED (see p. 12)

Note ow direction arrow,

reverse direction to meter

Change output connections

Check plumbing

Check for proper electrical wiring

Check for power across power input terminals

Reverse connections

Select another ow meter

Check for proper ground

Check depth setting from
Dimension “C” table (page 4)

Jumpy reading

Fluid conductivity <20 microSiemens/cm

Empty pipe

Not enough straight pipe

Excessive electrical noise

Rapidly changing conductivity (in chemi­cal
injection or fertigation applications)

Select another ow meter

Check for full pipe or install meter in the verti­cal
position

Check for air pockets or turbulence. Refer to

installation, page 6

Check for proper electrical wiring

Install chemical injection line downstream of
magmeter (or far enough upstream to allow

complete mixing of uids before meter)

Page 11

WARRANTY/DISCLAIMER

FOR NON-WARRANTY REPAIRS,

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a
period of 13 months f rom date of purchase. OMEGA’s WARRANTY adds an additional one (1) month
grace period to the normal one (1) year product warranty to cover handling and shipping time. This
ensures that OMEGA’s customers receive maximum coverage on each product.

If the unit malfunctions, it must be re t u rned to the factory for evaluation. O M E G A’s Customer Serv i c e
D e p a rtm ent will issue an Authorized Return (AR) number immediately upon phone or written re q u e s t .
Upon examination by OMEGA, if the unit is found to be defective, it will be re p a i red or replaced at no
c h a rge. O M E G A’s WARRANTY does not apply to defects resulting from any action of the purc h a s e r ,
including but not limited to mishandling, improper interfacing, operation outside of desi
i m p roper re p a i r, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of
having been tampered with or shows evidence of having been damaged as a result of excessive corro s i o n ;
or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating
conditions outside of OMEGA’s c o n t r ol. Components in which wear is not warranted, include but are not
limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or e
damages that result from the use of its products in accordance with information provided by
OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the
company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
R E P R E S E N T ATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF
TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY W
AND FITNESS FOR A PA R TICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
L I A B I L I T Y: The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this ord e r, whether based on contract, warr a n t y, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of the
compone nt upo n which li ability is b ased. I n no event shall OMEGA be liabl e for
co

nsequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or with any nuclear installation or
a c t i v i t y , medical application, used on humans, or misused in any way, OMEGA assumes no re s p o n s i b i l i t y
as set forth in our basic WA R R A N T Y/ D ISCLAIMER language, and, additionally, purchaser will indemnify
OMEGA and hold OMEGA h a rmless from any liability or damage whatsoever arising out of the use of the
P roduct(s) in such a manner.

rrors nor assumes liability for any

ARRANTY OF MERCHANTA B I L I T Y

gn limits,

RETURN REQUESTS/INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE
RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN
(AR

) NUMB ER FROM OMEG A’S CUSTO MER SERVICE DEPA R TMENT (IN O R DER TO AV O I D
PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return
package and on any correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.

WARRANTY RETURNS, please have the

FOR
following information available BEFORE
contacting OMEGA:

1 . P u r chase Order number under which the pro d u c t

was PURCHASED,

2. Model and serial number of the product under
warranty, and

3. Repair instructions and/or specific problems
relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords
our customers the latest in technology and engineering.

OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2005 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,

reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the
prior written consent of OMEGA ENGINEERING, INC.

for current repair charges. Have the following
information available BEFORE contacting OMEGA:

1. Purchase Order number to cover the COST
of the repair,

2. Model and serial number of the product, and

3. Repair instructions and/or specific problems
relative to the product.

consult OMEGA

W h e r e Do I Find Eve rything I Need for

P r ocess Measurement and Control?

OME GA…Of Cours e !

Shop online at omega.com

T E M P E R A T U R E



Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies



Wire: Thermocouple, RTD & Thermistor



Calibrators & Ice Point References



Recorders, Controllers & Process Monitors



Infrared Pyrometers

PRESSURE, STRAIN AND FO R C E



Transducers & Strain Gages



Load Cells & Pressure Gages



Displacement Transducers



Instrumentation & Accessories

F L OW / L E V E L



Rotameters, Gas Mass Flowmeters & Flow Computers



Air Velocity Indicators



Turbine/Paddlewheel Systems



Totalizers & Batch Controllers

p H / C O N D U C T I V I T Y



pH Electrodes, Testers & Accessories



Benchtop/Laboratory Meters



Controllers, Calibrators, Simulators & Pumps



Industrial pH & Conductivity Equi

pment

DATA AC Q U I S I T I O N



Data Acquisition & Engineering Software



Communications-Based Acquisition Systems



Plug-in Cards for Apple, IBM & Compatibles



Datalogging Systems



Recorders, Printers & Plotters

H E A T E R S



Heating Cable



Cartridge & Strip Heaters



Immersion & Band Heaters



Flexible Heaters



Laboratory Heaters

E N V I R O N M E N T A L
M O N I T ORING AND CONTRO L



Metering & Control Instrumentation



R e f r a c t o m e t e r s



Pumps & Tubing



Air, Soil & Water Monitors



Industrial Water & Wastewater Treatment



pH, Conductivity & Dissolved Oxygen Instruments

PL-OM-65200313-050511

05/05/11

M-4598/0511
