GENERAL INFORMATION, FEATURES and SPECIFICATIONS
The FMG80 magmeter is designed for low-ow chemical injection or difcult-to-meter applications with pulsating metering pumps in 3/4” to 1/4” pipe/tube. The housing is made of
sturdy splashproof HDPE plastic.
With no moving parts, the FMG80 can handle uids containing particulate matter without clogging or jamming, keeping
maintenance at a minimum. With no metallic parts (100%
PVDF body and PVDF carbon ber-lled electrodes), the meter is corrosion-resistant and compatible with a wide range of
chemicals. Accuracy is maintained with conductive uids (>20
microSiemens) of varying viscosities and densities.
FEATURES
8-pin circular bulkhead connector
Internals made of chemical and corrosion-resistant PVDF
Sturdy HDPE housing
Mounting bracket

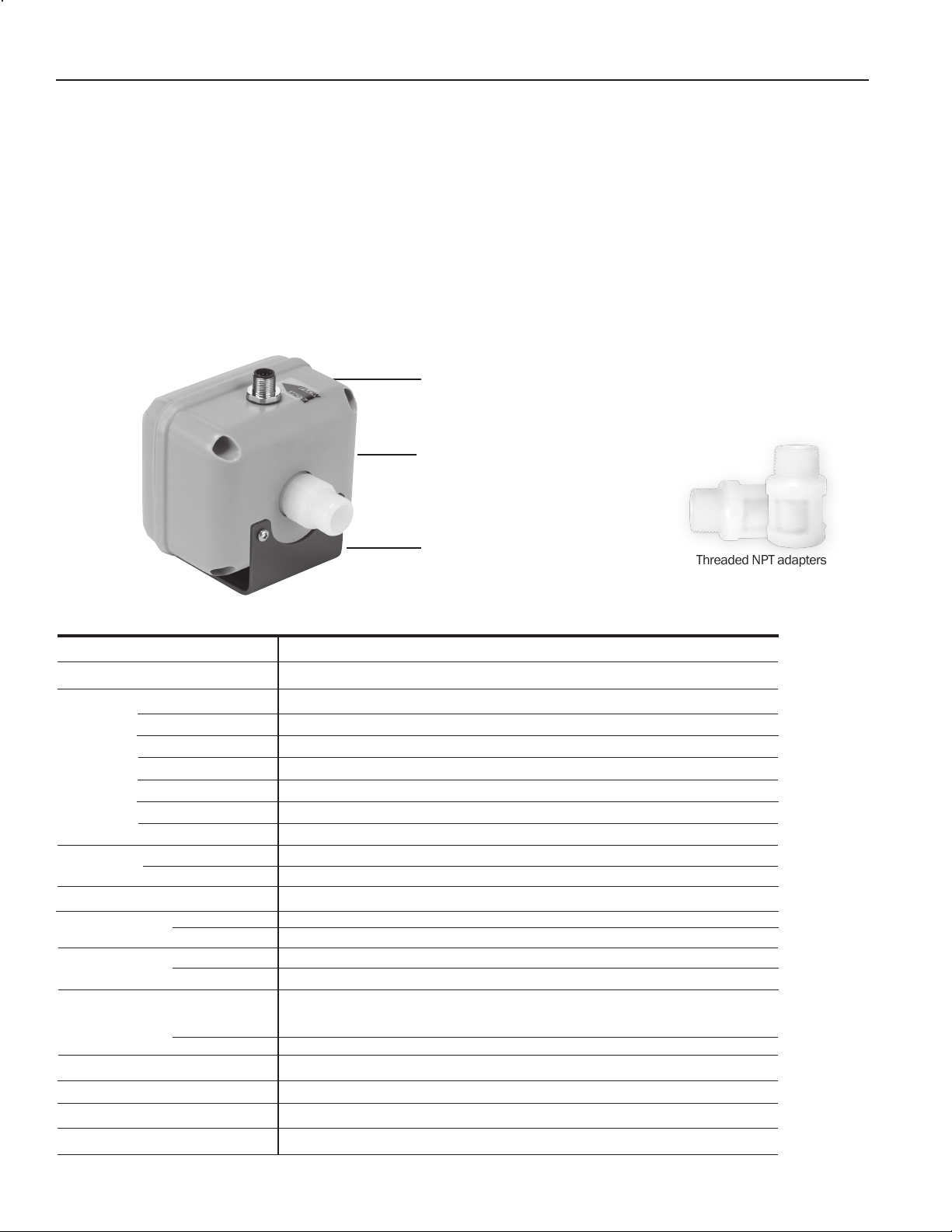

The FMG80 meter is compact enough to t most pump/injection systems. With zero straight pipe required after an elbow, it
can be easily mounted in tight spaces. The mounting bracket
adds stability.
The FMG80 meter has optocoupled current sinking or current
sourcing pulse output that can be connected to many Omega
rate/total displays or batch processors, as well as a 4-20 mA
loop for powering analog devices. Outputs and power are provided through a cable with 8-pin female circular connector.
ThreadedNPT adapters
in PVDF
SPECIFICATIONS*
Pipe Size
Fittings
Materials Body
Electrodes
Ground
Housing
Fittings (FlareTek)
Adapters (for NPT)
O-Rings (for NPT)
Temperature Ambient
Fluid
Pressure
Flow Range FMG83, FMG84
FMG81, FMG82
Accuracy FMG83, FMG84
FMG81, FMG82
Output Signal
FMG83, FMG84
FMG81, FMG82
Power
Conductivity
Empty Pipe Detection
Environmental
*Specications subject to change • Please consult our website for current data (www.omega.com).
3/4”, 1/2”, 3/8”, 1/4”
NPT threaded adapters
PVDF
PVDF carbon ber-lled
PVDF carbon ber-lled
HDPE with glass ber
PVDF
PVDF
EPDM or optional FKM
0˚ to 130˚ F (-18˚ to 54˚ C)
32˚ to 200˚ F (0˚ to 93˚ C)
10-15 Vdc, 150 mA (linear power supply recommended)
>20 microSiemens
Hardware/software, conductivity-based
NEMA 4X standard; IP 66 Splashproof standard
Page 4
INSTALLATION and CONNECTIONS
INSTALLATION
Positioning. The FMG80 can be mounted vertically or horizon-
tally. It is important to choose a position that will ensure full
pipe. (Under certain conditions of empty or partially-full pipe
the meter may give a pulse out when there is no ow.) With a
zero straight pipe requirement after an elbow, the FMG80 meter can be installed in tight spaces.
Mounting. The FMG80 may be supported by its piping connections IF the piping is rigid. The meter and pipe must be perfectly aligned with no exion at the ttings to prevent damage
to the meter and leakage. It is highly recommended to use the
mounting bracket provided. The mounting bracket uses two #8
screws on a 1.5” center.
Piping. Metal pipe, metal tube, or plastic tubing can be used
with the meter. NPT adapters should be hand-tightened onto
the ttings to avoid damage to internal O-ring seals. Thoroughly clean the pipe threads and nose and apply Teon tape to
adapter threads. Hold ttings/adapters with a wrench while
tightening the pipe to prevent damage to the meter.
Power Supply. A 12 Vdc linear, regulated power supply with an
output current of at least 0.25A is recommended. If a switching power supply must be used, consult Omega for approved
manufacturer’s model numbers.
CONNECTIONS
Power and signal connections are provided through the 8pin male bulkhead connector on the meter housing. See the
Pin Assignment and Connections diagrams below. If using an
Omega cable, the wire colors in the table below will be accurate; if using cable from another source, use the pin assignments as your wiring guide.
5
46
37
8
21
Cable Plug Contact
Arrangement
In addition, it is necessary for proper operation to ground the
unit to a good quality earth ground. Assure negative power
supply is grounded to earth and to the entire electrical/mechanical system. If metal piping is used, jumper inlet and
outlet pipes together and connect to ground for best results
in metering accuracy.
Pin# Function Color
1 Pulse (-) White
2 Ground Brown
3 Pulse (+) Green
4 4-20 (+) Yellow
5 Not Used Grey
6 Not Used Pink
7 4-20 (-) Blue
8 Power (+) Red

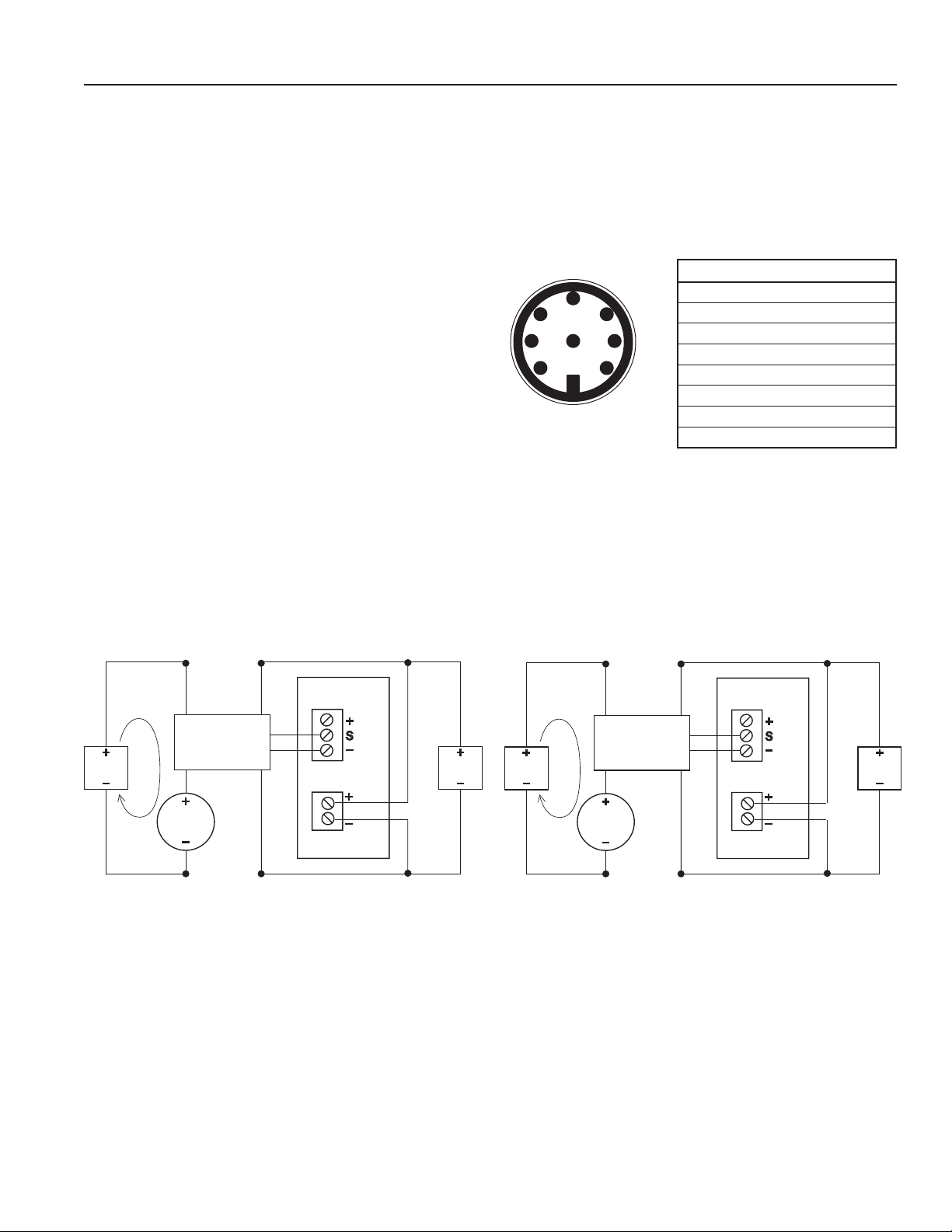

Dual Power Supply with Loop Isolation
Red
+
12-24
Vdc
_
4-20 mA
loop
Black
Yellow
48
FMG80
7
Blue
+
4-20
device
_
2
Red
3
1
Brown
Green
White
Sensor Input
+
S
_
Display
Power
+
_
Red
Black
+
12-15
Vdc
_
4-20 mA Device and FMG80 with Single Power Supply
Red
+
12-24
Vdc
_
4-20 mA
loop
Black
Yellow
48
FMG80
7
Blue
+
4-20
device
_
2
Red
3
1
Brown
Green
White
Sensor Input
+
S
_
Display
Power
+
_
Red
Black
+
12-15
Vdc
_
Page 5
OPERATION
The meter will output one pulse when powered up. The newlyinstalled meter takes from a few seconds to a minute for the
signal to stabilize at startup, especially if it has been dry. In
normal operation, keep the meter lled with uid and powered on to prevent this delay. When the meter is mounted
properly, an empty pipe detection feature will normally detect
absence of liquid in the pipe and register zero ow.
TROUBLESHOOTING
The 4-20 mA signal outputs 4 mA at zero ow and 20 mA at
20 gallons/minute ow or 3 gallons per minute, depending
on model. The pulse signal is a 50% duty cycle pulse set at
FMG83, FMG84: 500 pulses/liter (1892 pulses/gallon),
FMG81, FMG82: 1,000 pulses/liter (3785 pulses/gallon).
Problem
No output
Flow rate incorrect
Probable CausesTry...
Reversed ow direction
Empty pipe
Flow rate below minimum
Loose or incorrect wiring
Fluid conductivity too low
Electrical noise
Fluid conductivity too low
Empty pipe
Electrical noise
Reverse ow connections
Check piping conditions
Select a different owmeter
Check electrical connections
Select a different owmeter
Relocate meter or reduce noise
Select another owmeter
Check piping conditions
Relocate meter or reduce noise
Page 6
