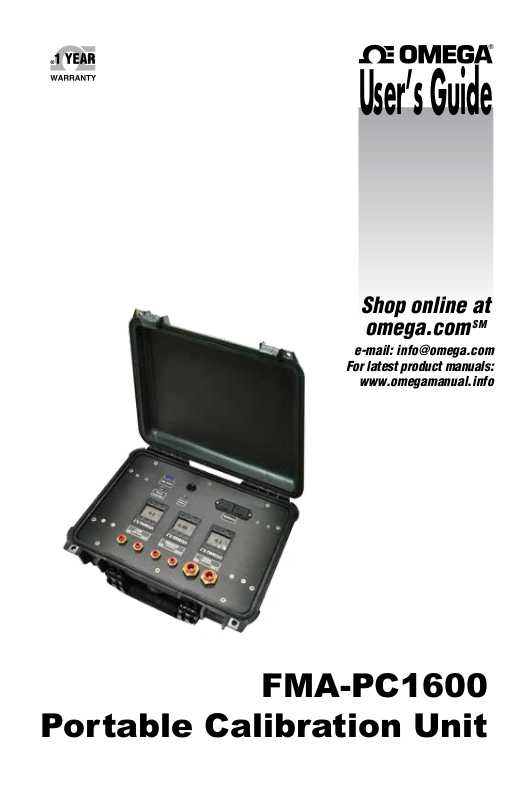

Portable Calibration Unit
Page 2
Servicing North America:
U.S.A.: Omega Engineering, Inc., One Omega Drive, P.O. Box 4047
Stamford, CT 06907-0047 USA
Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: (203) 359-1660 Fax: (203) 359-7700
e-mail: [email protected]
For Other Locations Visit omega.com/worldwide
omega.com [email protected]
omega.com [email protected]
Servicing North America:
U.S.A. Omega Engineering, Inc.
Headquarters: Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: (203) 359-1660 Fax: (203) 359-7700
e-mail: [email protected]
For Other Locations Visit omega.com/worldwide
The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains,
and reserves the right to alter specifications without notice.
Page 3
FMA-PC1600
The Omega FMA-PC1600 is designed for CLEAN, DRY, NON-CORROSIVE gases.
Please contact Omega if you have any quesons regarding the use or
operaon of this device.
3
Page 4
TABLE OF CONTENTS Page
5
7
7
8
8
9
9
9
Flashing Error Message
38
43
4
Page 5
CONNECTING THE FMA-PC1600
It is essenal to use the correct cuer such as a pipe slice for copper pipe or
dedicated plasc pipe cuers for plasc tube — Do not use a saw because any
burrs le on the tube can damage the O-ring and cause the joint to leak!
5
Page 6
Tube Fitting
Oulet - 1/4" O.D. Push connect
Inlet - 3/8" O.D. Push connect
Medium Range Flow Meter (M)
AC Charge Port
USB Type-B Communication
Low Range Flow Meter (L)
Display and Control
Low Range Flow Meter (L)
Display and Control
Low Range Flow Meter (L)
Tube Fitting
Inlet - 1/4" O.D. Push connect
Display and Control
Medium Range Flow Meter (M)
Power Switch
Low Battery Light
Battery Compartment
High Range Flow Meter (H)
Tube Fitting
High Range Flow Meter (H)
Outlet - 1/2" O.D. Push connect
Inlet - 1/2" O.D. Push connect
High Range Flow Meter (H)
Tube Fitting
Outlet - 3/8" O.D. Push connect
Medium Range Flow Meter (M)
Tube Fitting
Connector
RS 232 Port - 9 Pin D-sub

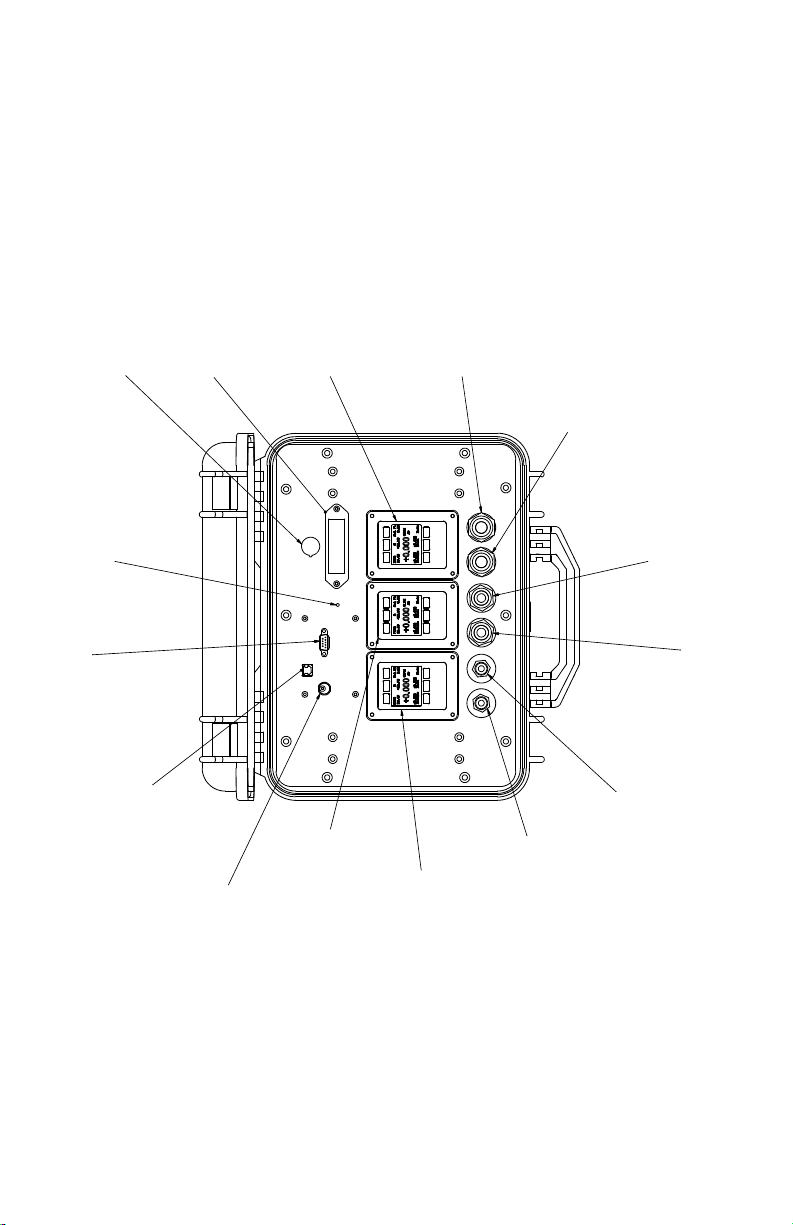

FMA-PC1600 Controls and Connections
Tube Fitting
Page 7
POWER
Exceeding the maximum specied line pressure may cause permanent
damage to the solid-state dierenal pressure sensor.
FMA-1600A
FMA-LP1600A
7
Page 8

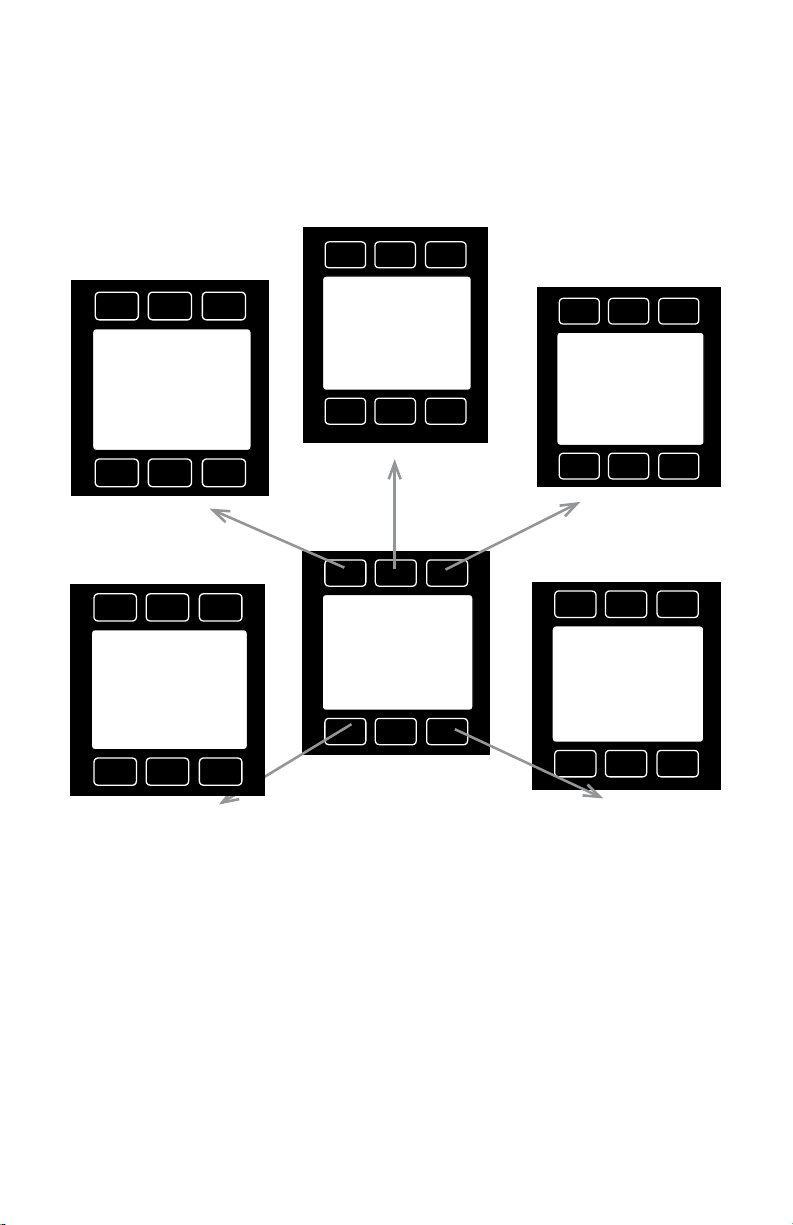

Main
Main
Main
PSIA
+13.60
+0.000
CCM
TARE V
#C
+21.50
SCCM
+0.00
SCCM
Air
+0.000
MENU/
TOTAL
Select Menu
Totalizer
TOTAL/
TIMER
+0.0
+0.0
Scm3
SCCM
PEAK
00123.45
2:05 h:m:s
BACK RESET
MENU/
Select Menu
MISC
GAS
SELECT
MAIN
MFG
DATA
RS232
COMM
MAIN
Totalizer
TOTAL
Select Menu
Select Menu
Select Menu
MAIN
8
Page 9

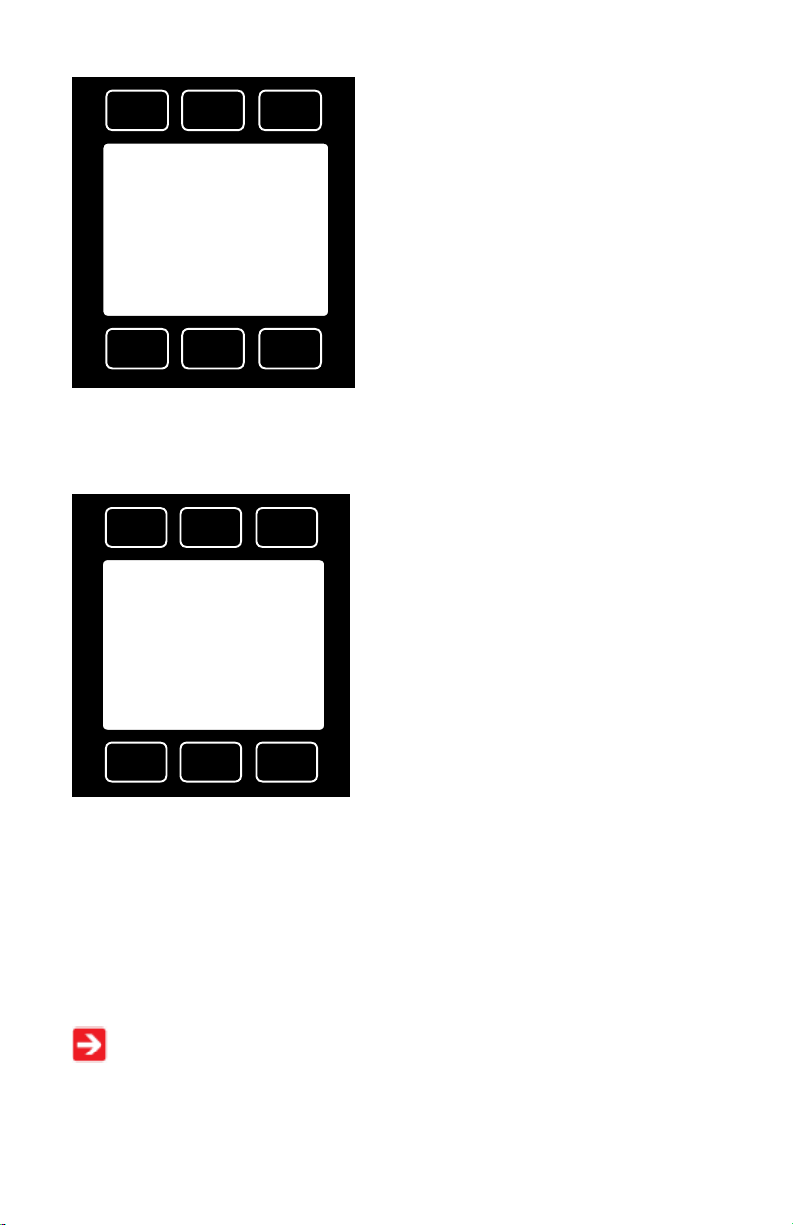

MAIN
TARE V
PSIA
+13.60
+0.000
CCM
UP
>#C
K
#F
#R
CANCEL SET
Zeroing the unit while there is any ow will directly aect the accuracy
by providing a false zero point.
#C
+21.50
SCCM
+0.00
Mass Flow
+0.000
SCCM
DOWN
Air
MENU/
TOTAL
MODE
PSIA
°C
9
Page 10
CCM
SCCM
S
To get an accurate volumetric or mass ow rate, the gas being measured
must be selected. See Gas Select, page 12.
Select Menu
Page 11
MODEL
INFO
OMEGA
MISC1
MISC2
Ph 800-826-6342
Fax 203-359-7700
BACK MAIN
UNIT ID
BAUD
A
19200
DEVICE
BACK
UNITS
DOWN
UP
>Recent
Standard
Factory Custom
Composer User Mixes
Bioreactor
Breathing
Chromatography
Fuel
CANCEL SELECT
MAIN
PAGE
MFG
MISC
DATA
GAS
SELECT
Select Menu
RS232
COMM
MAIN
BACK MAIN
PSIA
+13.60
+ 0.00
+0.000
CCM MAIN
#C
+21.50
+0.000
SCCM
TARE V
SCCM
Air
Page 12
GAS SELECT
Gas Select
Composer
UP
>Recent
Standard
Factory Custom
Composer User Mixes
Bioreactor
Breathing
Chromatography
Fuel
CANCEL SET
UP
> Fuel
Laser
O2 Concentrator
Pure Corrosive
Pure Non-Corrosive
Refrigerant
Stack
Welding
CANCEL SET
DOWN
DOWN
PAGE
PAGE
* FMA-1600A-LSS
See pages 28 -35 for a full list of gases in each category.
Gas Select
GAS SELECT
»
»
»
»
»
»
»
»
»
»
»
»
»
»
»
Page 13
COMPOSER
UP
>Add Mix: 20 Free
CANCEL SET
UP
Composer Mix name:
MyGas
------˄
BACK/
CANCEL
EDIT
NAME
Composer Mix: MyGAS
DOWN
DOWN
CHANGE
CASE
ADD GAS
NEXT
LETTER
SET
GAS
OPTNS
Composer
CHANGE CASE
ADD GAS
GAS OPTNS
0.00% of Total
BACK/
CANCEL
CHANGE
CASE
SET
Page 14
UP
DOWN
Percent of Air:
50.00
˄
SELECT
DIGIT
UP
DOWN
Percent of Ar Argon:
SELECT
30.00
˄
DIGIT
BACK/
CANCEL
Percent of He Helium:
UP
CLEAR
DOWN
20.00
˄
BACK/
CANCEL
CREATE
NEW
MAIN
CLEAR
COMPOSER USER MIX
MyGas
HAS BEEN SAVED
SET
SELECT
DIGIT
SET
CREATE
SIMILAR
SELECT
MIXTURE
BACK/
CANCEL
EDIT
NAME
Composer Mix: MyGAS
50% Air
30% AR Argon
20% He Helium
100.00% Total
CANCEL SAVE
CLEAR
ADD GAS
SET
GAS
OPTNS
CREATE SIMILAR
CREATE NEW
Page 15
UNIT ID
A
BACK MAIN
UNIT ID
C
UP
BAUD
19200
DOWN
C
BACK
BAUD
RESET A
DOWN
SET
UP
RS232 COMM
Select Menu
.
If the symbol @ is selected as the Unit
ID, the device will enter streaming mode
when Communicaon Select is exited.
See RS232 Communicaons (page 19) for
informaon about the streaming mode.
19200
BACK SET
Page 16
MiscellaneousMISC
MISC1
MISC1
ZERO BAND
ZERO BAND
BACK
UP
PRESS
AVG
LCD
CONTRAST
DOWN
FLOW
AVG
MAIN
SELECT
ZERO
BAND
0.0
>
CANCEL
CLEAR
SET
DOWN
UP
11
CANCEL
RESET
SET
Page 17
MISC2
STP/NPT
standard
STP/
NTP
DIAG
TEST
ROTATE
DISP
normal
STPSTP TEMP
BACK MAIN
STP PRESS
STP TEMP
NTPNTP
TEMPNTP PRESS
SET
STP
TEMP
STP
PRESS
MAIN
SET
MAIN
STP PRESS
SET
SETSET
UP
Temperature: #C
DOWN
25.0000
BACK/
CANCEL
CLEAR
SELECT
DIGIT
SET
UP
Pressure: PaA
DOWN
101355.0
BACK/
CANCEL SET
CLEAR
SELECT
DIGIT
Page 18
SCROLL
R8: AP Sig 7871
R9: Temp Sig 39071
R10: DP Side 9986
R11: DP Brdg 36673
R13: AP Brdg 36673
R16: Meter Func 199
R18: Power Up 32768
BACK MAIN
DIAG TESTMISC2
SCROLL
ROTATE DISP
DOWN
UP
Mass Flow
Volumetric Flow
Pressure
Temperature
Mass Totalizer
Totalizer Time
DONE SELECT
DOWN
UP
SCCM
Scm3/h
Sm3/h
Sm3/d
Sin3/m
SCFH
NmL/s
CANCEL SET
PAGE
PRESSING SET WILL
AFFECT DISPLAY
AND SERIAL VALUES
VERIFY CONNECTED
SERIAL DEVICES
EXPECT THE CHANGE
CANCEL
SET
Page 19
MODEL
INFO
OMEGA
Ph 800-826-6342
Fax 203-359-7700
BACK MAIN
MODEL: FMA-1600A-100SCCM-D
SERIAL NO: 100903
DATE MFG: 10/7/2014
DATE CAL: 10/9/2014
CAL BY: DL
SW REV: 5v00.G
Manufacturer Data
the MFG DATA
MODEL INFO
BACK MAIN
Page 20
Page 21
return
Page 22
Page 23
Gas Select
# GAS
0 Air Air
1 Argon Ar
2 Methane
3 CO
CO2
Ethane C2H6
6 H2
Helium He
Nitrogen N2
9 N2O
10 Neon Ne
11 Oxygen O2
12 Propane
13 normal-Butane
Acetylene C2H2
Ethylene
16 iso-Butane i-C2H10
Krypton Kr
Xenon Xe
19 SF6
20
21 C-10
22
23 C-2
26
29
Star29
Page 24
No
Create a Gas Mixture
GM
?
Delete a Gas Mixture
?"
Page 25
For extended term data capture see page 26
Page 26
Page 27
Tex t
Page 28
14.696 PSIA
Compressibilty
14.696
Density
Viscosity
Absolute
14.696 PSIA
Compressibilty
Density
14.696 PSIA
Viscosity
Absolute
PSIA
Long Name
Short
Name
14 C2H2 Acetylene 104.44800 1.07200 0.9928000 97.374 1.1728 0.9905
Gas
Number
GAS SELECT > Standard:
FMA-1600A Meters will display: Acetylene, Air, Argon, Butane, Carbon Dioxide, Carbon Monoxide, Ethane, Ethylene (Ethene), Helium, Hydrogen,
Iso-Butane, Krypton, Methane, Neon, Nitrogen, Nitrous Oxide, Oxygen, Propane, Sulfur Hexauoride, Xenon, HE-25, HE-75, A1025, C-2, C-8, C-10,
C-25, C-75, P-5, Star29.
FMA-1600A-LSS Meters add the following: Ammonia, Chlorine Gas, Hydrogen Sulde, Nitric Oxide, Nitrogen Triouride, Propylene, Sulfur
PURE NON-CORROSIVE GASES 25°C 0°C
Dioxide, and Nitrogen Dioxide to 0.5% in an inert carrier, Refrigerant gases.
0 Air Air 184.89890 1.18402 0.9996967 172.574 1.2930 0.9994
1 Ar Argon 226.23990 1.63387 0.9993656 210.167 1.7840 0.9991
16 i-C4H10 i-Butane 74.97846 2.44028 0.9735331 68.759 2.6887 0.9645
13 n-C4H10 n-Butane 74.05358 2.44930 0.9699493 67.690 2.7037 0.9591
4 CO2 Carbon Dioxide 149.31840 1.80798 0.9949545 137.107 1.9768 0.9933
3 CO Carbon Monoxide 176.49330 1.14530 0.9996406 165.151 1.2505 0.9993
5 C2H6 Ethane 93.54117 1.23846 0.9923987 86.129 1.3550 0.9901
60 D2 Deuterium 126.59836 0.16455 1.0005970 119.196 0.1796 1.0006
7 He Helium 198.45610 0.16353 1.0004720 186.945 0.1785 1.0005
15 C2H4 Ethylene (Ethene) 103.18390 1.15329 0.9942550 94.697 1.2611 0.9925
6 H2 Hydrogen 89.15355 0.08235 1.0005940 83.969 0.0899 1.0006
17 Kr Krypton 251.32490 3.43229 0.9979266 232.193 3.7490 0.9972
2 CH4 Methane 110.75950 0.65688 0.9982472 102.550 0.7175 0.9976
10 Ne Neon 311.12640 0.82442 1.0004810 293.822 0.8999 1.0005
8 N2 Nitrogen 178.04740 1.14525 0.9998016 166.287 1.2504 0.9995
9 N2O Nitrous Oxide 148.41240 1.80888 0.9945327 136.310 1.9779 0.9928
12 C3H8 Propane 81.46309 1.83204 0.9838054 74.692 2.0105 0.9785
11 O2 Oxygen 205.50210 1.30879 0.9993530 191.433 1.4290 0.9990
19 SF6 Sulfur Hexauoride 153.53200 6.03832 0.9886681 140.890 6.6162 0.9849
18 Xe Xenon 229.84830 5.39502 0.9947117 212.157 5.8980 0.9932
Page 29
14.696 PSIA
Compressibilty
Density
14.696 PSIA
Viscosity
Absolute
14.696 PSIA
Compressibilty
Density
14.696 PSIA
Viscosity
Absolute
79.96139 2.36608 0.9692405 Liquid Liquid Liquid
Short
Gas
PURE CORROSIVES* 25°C 0°C
Long Name
Name
32 NH3 Ammonia 100.92580 0.70352 0.9894555 91.930 0.7715 0.9848612
80 1Butene Butylene (1-Butene) 81.62541 2.35906 0.9721251 74.354 2.6036 0.9614456
Number
Cis-Butene
81 cButene
(cis-2-butene)
82 iButene Iso-Butene 80.84175 2.35897 0.9721626 73.640 2.6038 0.9613501
83 tButene Trans-Butene 80.28018 2.36596 0.9692902 Liquid Liquid Liquid
84 COS Carbonyl Sulde 124.09600 2.48322 0.9888443 113.127 2.7202 0.985328
85 CH3OCH3 Dimethylether 90.99451 1.91822 0.9816453 82.865 2.1090 0.9745473
33 Cl2 Chlorine 134.56600 2.93506 0.9874470 125.464 3.1635 0.98407
30 NO NO (Nitric Oxide) 190.05950 1.22672 0.9997970 176.754 1.3394 0.9995317
34 H2S Hydrogen Sulfide (H2S) 123.86890 1.40376 0.9923556 112.982 1.5361 0.9898858
31 NF3 NF3 (Nitrogen Triuoride) 175.42500 2.91339 0.9963859 162.426 3.1840 0.9951506
36 C3H6 Propylene (Propylene) 85.59895 1.74509 0.9856064 78.129 1.9139 0.9809373
35 SO2 Sulfur Dioxide 127.83100 2.66427 0.9828407 116.717 2.9312 0.9750866
86 SiH4 Silane (SiH4) 115.94400 1.32003 0.9945000 107.053 1.4433 0.99282
*Pure Corrosive gases are only available on FMA-1600A-LSS instruments that are compatible with these gases.
Page 30
14.696 PSIA
Compressibilty
Density
14.696 PSIA
Viscosity
Absolute
14.696 PSIA
Compressibilty
Density
14.696 PSIA
Viscosity
Absolute
Short
Gas
REFRIGERANTS* 25°C 0°C
Long Name
Name
100 R-11 Trichlorouoromethane 101.60480 5.82358 0.9641448 Liquid Liquid Liquid
101 R-115 Chloropentauoroethane 125.14780 6.43293 0.9814628 114.891 7.0666 0.9752287
Number
102 R-116 Hexauoroethane 137.81730 5.70097 0.9895011 126.635 6.2458 0.9858448
103 R-124 Chlorotetrauoroethane 115.93110 5.72821 0.9738286 105.808 6.3175 0.963807
104 R-125 Pentauoroethane 129.61740 4.98169 0.9847599 118.793 5.4689 0.979137
105 R-134A Tetrauoroethane 118.18820 4.25784 0.9794810 108.311 4.6863 0.9713825
106 R-14 Tetrauoromethane 172.44680 3.61084 0.9962553 159.688 3.9467 0.9948964
107 R-142b Chlorodiuoroethane 104.20190 4.21632 0.9742264 95.092 4.6509 0.9640371
110 R-22 Diuoromonochloromethane 126.30390 3.58679 0.9853641 115.325 3.9360 0.9801128
108 R-143a Triuoroethane 110.86600 3.49451 0.9830011 101.344 3.8394 0.9765755
109 R-152a Diuoroethane 100.81320 2.75903 0.9785245 91.952 3.0377 0.9701025
111 R-23 Triuoromethane 149.13160 2.88404 0.9922734 136.997 3.1568 0.9895204
112 R-32 Diuoromethane 126.13140 2.15314 0.9875960 115.303 2.3619 0.9827161
113 RC-318 Octauorocyclobutane 115.04690 8.42917 0.9700156 104.785 9.3017 0.9594738
116 R-410A 50% R-32 / 50% R-125 130.24384 3.56538 0.9861780 122.417 3.9118 0.9811061
115 R-407C 23% R-32 / 25% R-125 / 52% R-134A 123.55369 3.95268 0.9826672 112.698 4.3427 0.9762849
114 R-404A 44% R-125 / 4% R-134A / 52% R-143A 120.30982 4.18002 0.9836342 111.584 4.5932 0.9770889
117 R-507A 50% R-125 / 50% R-143A 121.18202 4.23876 0.9838805 112.445 4.6573 0.9774207
*Refrigerant gases are only available on FMA-1600A-LSS instruments that are compatible with these gases.
Page 31
14.696 PSIA
Compressibilty
Density
14.696 PSIA
Viscosity
Absolute
14.696 PSIA
Compressibilty
Density
14.696 PSIA
Viscosity
Absolute
219.79340 1.64099 0.9991638 203.890 1.7918 0.998798
Short
Gas
WELDING GASES 25°C 0°C
Long Name
Name
23 C-2 2% CO2 / 98% Ar 224.71480 1.63727 0.9993165 208.673 1.7877 0.998993
22 C-8 8% CO2 / 92% Ar 220.13520 1.64749 0.9991624 204.199 1.7989 0.9987964
Number
21 C-10 10% CO2 / 90% Ar 218.60260 1.65091 0.9991086 202.706 1.8027 0.9987278
140 C-15 15% CO2 / 85% Ar 214.74960 1.65945 0.9989687 198.960 1.8121 0.9985493
141 C-20 20% CO2 / 80% Ar 210.86960 1.66800 0.9988210 195.198 1.8215 0.9983605
20 C-25 25% CO2 / 75% Ar 206.97630 1.67658 0.9986652 191.436 1.8309 0.9981609
24 C-75 75% CO2 / 25% Ar 168.22500 1.76344 0.9965484 154.670 1.9271 0.995401
142 C-50 50% CO2 / 50% Ar 187.53160 1.71972 0.9977484 172.843 1.8786 0.9969777
25 He-25 25% He / 75% Ar 231.60563 1.26598 0.9996422 216.008 1.3814 0.9999341
26 He-75 75% He / 25% Ar 234.68601 0.53081 1.0001954 216.937 0.5792 1.000571
143 He-50 50% He / 50% Ar 236.15149 0.89829 0.9999188 220.464 0.9800 1.00039
27 A1025 90% He / 7.5% Ar / 2.5% CO2 214.97608 0.31460 1.0002511 201.175 0.3433 1.000556
144 He-90 90% He / 10% Ar 222.14566 0.31041 1.0003614 205.813 0.3388 1.00057
8% CO2 / 2% O2
Stargon CS 90% Ar /
28 Star29
Page 32
14.696 PSIA
Compressibilty
Density
14.696 PSIA
Viscosity
Absolute
14.696 PSIA
Compressibilty
Density
14.696 PSIA
Viscosity
Absolute
Short
Gas
BIOREACTOR GASES 25°C 0°C
Long Name
Name
145 Bio-5M 5% CH4 / 95% CO2 148.46635 1.75026 0.9951191 136.268 1.9134 0.9935816
146 Bio-10M 10% CH4 / 90% CO2 147.54809 1.69254 0.9952838 135.383 1.8500 0.993893
Number
147 Bio-15M 15% CH4 / 85% CO2 146.55859 1.63484 0.9954484 134.447 1.7867 0.9941932
148 Bio-20M 20% CH4 / 80% CO2 145.49238 1.57716 0.9956130 133.457 1.7235 0.994482
149 Bio-25M 25% CH4 / 75% CO2 144.34349 1.51950 0.9957777 132.407 1.6603 0.9947594
150 Bio-30M 30% CH4 / 70% CO2 143.10541 1.46186 0.9959423 131.290 1.5971 0.9950255
151 Bio-35M 35% CH4 / 65% CO2 141.77101 1.40424 0.9961069 130.102 1.5340 0.9952803
152 Bio-40M 40% CH4 / 60% CO2 140.33250 1.34664 0.9962716 128.834 1.4710 0.9955239
153 Bio-45M 45% CH4 / 55% CO2 138.78134 1.28905 0.9964362 127.478 1.4080 0.9957564
154 Bio-50M 50% CH4 / 50% CO2 137.10815 1.23149 0.9966009 126.025 1.3450 0.9959779
155 Bio-55M 55% CH4 / 45% CO2 135.30261 1.17394 0.9967655 124.462 1.2821 0.9961886
156 Bio-60M 60% CH4 /40% CO2 133.35338 1.11642 0.9969301 122.779 1.2193 0.9963885
157 Bio-65M 65% CH4 /35% CO2 131.24791 1.05891 0.9970948 120.959 1.1564 0.9965779
158 Bio-70M 70% CH4 / 30% CO2 128.97238 1.00142 0.9972594 118.987 1.0936 0.9967567
159 Bio-75M 75% CH4 / 25% CO2 126.51146 0.94395 0.9974240 116.842 1.0309 0.9969251
160 Bio-80M 80% CH4 / 20% CO2 123.84817 0.88650 0.9975887 114.501 0.9681 0.9970832
161 Bio-85M 85% CH4 / 15% CO2 120.96360 0.82907 0.9977533 111.938 0.9054 0.9972309
162 Bio-90M 90% CH4 / 10% CO2 117.83674 0.77166 0.9979179 109.119 0.8427 0.9973684
163 Bio-95M 95% CH4 / 5% CO2 114.44413 0.71426 0.9980826 106.005 0.7801 0.9974957
Page 33
14.696 PSIA
Compressibilty
Density
14.696 PSIA
Viscosity
Absolute
14.696 PSIA
Compressibilty
Density
14.696 PSIA
Viscosity
Absolute
180.95936 1.20909 0.9994833 170.051 1.3200 0.9992587
Short
Gas
BREATHING GASES 25°C 0°C
Long Name
Name
164 EAN-32 32% O2 / 68% N2 186.86315 1.19757 0.9996580 174.925 1.3075 0.9993715
165 EAN 36% O2 / 64% N2 187.96313 1.20411 0.9996401 175.963 1.3147 0.9993508
Number
166 EAN-40 40% O2 / 60% N2 189.06268 1.21065 0.9996222 176.993 1.3218 0.9993302
167 HeOx-20 20% O2 / 80% He 217.88794 0.39237 1.0002482 204.175 0.4281 1.000593
168 HeOx-21 21% O2 / 79% He 218.15984 0.40382 1.0002370 204.395 0.4406 1.000591
169 HeOx-30 30% O2 / 70% He 219.24536 0.50683 1.0001363 205.140 0.5530 1.000565
170 HeOx-40 40% O2 / 60% He 218.59913 0.62132 1.0000244 204.307 0.6779 1.000502
171 HeOx-50 50% O2 / 50% He 216.95310 0.73583 0.9999125 202.592 0.8028 1.000401
172 HeOx-60 60% O2 / 40% He 214.82626 0.85037 0.9998006 200.467 0.9278 1.000257
173 HeOx-80 80% O2 / 20% He 210.11726 1.07952 0.9995768 195.872 1.1781 0.9998019
174 HeOx-99 99% O2 / 1% He 205.72469 1.29731 0.9993642 191.646 1.4165 0.9990796
33
177 EA-80 Enriched Air-80% O2 200.15060 1.27727 0.9994412 186.937 1.3946 0.9991288
176 EA-60 Enriched Air-60% O2 194.79159 1.24578 0.9995295 182.261 1.3602 0.9992266
175 EA-40 Enriched Air-40% O2 189.42518 1.21429 0.9996177 177.396 1.3258 0.9993261
Metabolic Exhalant (16% O2 /
78.04% N2 / 5% CO2 / 0.96% Ar)
178 Metabol
Page 34
14.696 PSIA
Compressibilty
14.696 PSIA
Compressibilty
Density
14.696 PSIA
Viscosity
Absolute
14.696 PSIA
Compressibilty
Density
14.696 PSIA
Viscosity
Absolute
111.49608 0.68980 0.9980410 102.980 0.7534 0.9974725
81.45829 1.83428 0.9836781 74.933 2.0128 0.9784565
Density
14.696 PSIA
Viscosity
Absolute
14.696 PSIA
Compressibilty
Density
14.696 PSIA
Viscosity
Absolute
Short
Gas
FUEL GASES 25°C 0°C
Long Name
Name
186 Syn Gas-2 64% H2 + 28% CO + 1% CO2 + 7% CH4 151.98915 0.43715 1.0001064 142.249 0.4771 1.000263
185 Syn Gas-1 40% H2 + 29% CO + 20% CO2 + 11% CH4 155.64744 0.79774 0.9989315 144.565 0.8704 0.9992763
Number
188 Syn Gas-4 83% H2 + 14% CO + 3% CH4 133.63682 0.24825 1.0003901 125.388 0.2709 1.000509
189 Nat Gas-1 93% CH4 / 3% C2H6 / 1% C3H8 / 2% N2 / 1% CO2 111.77027 0.70709 0.9979255 103.189 0.7722 0.9973965
187 Syn Gas-3 70% H2 + 4% CO + 25% CO2 + 1% CH4 147.33686 0.56024 0.9991225 136.493 0.6111 0.9997559
C4H10 / 1.3% N2 / 0.7% CO2
95.2% CH4 / 2.5% C2H6 / 0.2% C3H8 / 0.1%
191 Nat Gas-3
190 Nat Gas-2 95% CH4 / 3% C2H6 / 1% N2 / 1% CO2 111.55570 0.69061 0.9980544 103.027 0.7543 0.9974642
192 Coal Gas 50% H2 / 35% CH4 / 10% CO / 5% C2H4 123.68517 0.44281 0.9993603 115.045 0.6589 0.996387
193 Endo 75% H2 + 25% N2 141.72100 0.34787 1.0005210 133.088 0.3797 1.000511
194 HHO 66.67% H2 / 33.33% O2 180.46190 0.49078 1.0001804 168.664 0.5356 1.000396
34
Long Name
C3H6 / 1.9% n-C4H10
LPG 96.1% C3H8 / 1.5% C2H6 / 0.4%
Short
Name
195 HD-5
196 HD-10 LPG 85% C3H8 / 10% C3H6 / 5% n-C4H10 81.41997 1.85378 0.9832927 74.934 2.0343 0.9780499
LASER GASES 25°C 0°C
Gas
Number
181 LG-7 7% CO2 / 14% N2 / 79% He 197.00519 0.41548 0.9999919 186.204 0.4533 1.000514
179 LG-4.5 4.5% CO2 / 13.5% N2 / 82% He 199.24300 0.36963 1.0001332 187.438 0.4033 1.000551
180 LG-6 6% CO2 / 14% N2 / 80% He 197.87765 0.39910 1.0000471 186.670 0.4354 1.00053
182 LG-9 9% CO2 / 15% N2 / 76% He 195.06655 0.45805 0.9998749 184.835 0.4997 1.000478
183 HeNe-9 9% Ne / 91% He 224.68017 0.22301 1.0004728 211.756 0.2276 1.000516
184 LG-9.4 9.4% CO2 / 19.25% N2 / 71.35% He 193.78311 0.50633 0.9998243 183.261 0.5523 1.000458
Page 35
14.696 PSIA
Compressibilty
14.696 PSIA
Compressibilty
14.696 PSIA
Compressibilty
Density
14.696 PSIA
Viscosity
Absolute
14.696 PSIA
Compressibilty
Density
14.696 PSIA
Viscosity
Absolute
Density
14.696 PSIA
Viscosity
Absolute
14.696 PSIA
Compressibilty
Density
14.696 PSIA
Viscosity
Absolute
Density
14.696 PSIA
Viscosity
Absolute
14.696 PSIA
Compressibilty
Density
14.696 PSIA
Viscosity
Absolute
Short
Gas
O2 CONCENTRATOR GASES 25°C 0°C
Long Name
Name
198 OCG-93 93% O2 / 3% N2 / 4% Ar 205.62114 1.31687 0.9993670 191.795 1.4379 0.9990499
197 OCG-89 89% O2 / 7% N2 / 4% Ar 204.53313 1.31033 0.9993849 190.897 1.4307 0.9990695
Number
199 OCG-95 95% O2 / 1% N2 / 4% Ar 206.16497 1.32014 0.9993580 192.241 1.4414 0.99904
Short
Gas
STACK GASES 25°C 0°C
Long Name
Name
200 FG-1 2.5% O2 / 10.8% CO2 / 85.7% N2 / 1% Ar 175.22575 1.22550 0.9992625 165.222 1.3379 0.9990842
201 FG-2 2.9% O2 / 14% CO2 / 82.1% N2 / 1% Ar 174.18002 1.24729 0.9991056 164.501 1.3617 0.9989417
Number
202 FG-3 3.7% O2 / 15% CO2 / 80.3% N2 / 1% Ar 174.02840 1.25520 0.9990536 164.426 1.3703 0.9988933
203 FG-4 7% O2 / 12% CO2 / 80% N2 / 1% Ar 175.95200 1.24078 0.9991842 166.012 1.3546 0.9990116
204 FG-5 10% O2 / 9.5% CO2 / 79.5% N2 / 1% Ar 177.65729 1.22918 0.9992919 167.401 1.3419 0.9991044
35
205 FG-6 13% O2 / 7% CO2 / 79% N2 / 1% Ar 179.39914 1.21759 0.9993996 168.799 1.3293 0.9991932
CHROMATOGRAPHY GASES 25°C 0°C
Long Name
Short
Name
29 P-5 5% CH4 / 95% Ar 223.91060 1.58505 0.9993265 207.988 1.7307 0.9990036
Gas
Number
206 P-10 10% CH4 90% Ar 221.41810 1.53622 0.9992857 205.657 1.6774 0.99895
Page 36
Supported Units: This device supports many dierent units. You may select the desired units (see
page 28). Note that only units appropriate to this device are available for selection.
Pressure Units
Absolute Gauge Dierential Notes
PaA PaG PaD pascal
hPaA hPaG hPaD hectopascal
kPaA kPaG kPaD kilopascal
MPaA MPaG MPaD megapascal
mbarA mbarG mbarD millibar
barA barG barD bar
g/cm2A g/cm2G g/cm2D gram force per square centimeter
kg/cmA kg/cmG kg/cmD kilogram force per square centimeter
PSIA PSIG PSID pound force per square inch
PSFA PSFG PSFD pound force per square foot
mTorrA mTorrG mTorrD millitorr
torrA torrG torrD torr
mmHgA mmHgG mmHgD millimeter of mercury at 0 C
inHgA inHgG inHgD inch of mercury at 0 C
mmH2OA mmH2OG mmH2OD millimeter of water at 4 C (NIST conventional)
mmH2OA mmH2OG mmH2OD millimeter of water at 60 C
cmH2OA cmH2OG cmH2OD centimeter of water at 4 C (NIST conventional)
cmH2OA cmH2OG cmH2OD centimeter of water at 60 C
inH2OA inH2OG inH2OD inch of water at 4 C (NIST conventional)
inH2OA inH2OG inH2OD inch of water at 60 C
atm atmosphere
m asl meter above sea level (only in /ALT builds)
ft asl foot above sea level (only in /ALT builds)
V volt; no conversions are performed to or from other units
count count count setpoint count, 0 – 64000
% % % percent of full scale
Flow Units
Volumetric Standard Normal Notes
uL/m SuL/m NuL/m microliter per minute
mL/s SmL/s NmL/s milliliter per second
mL/m SmL/m NmL/m milliliter per minute
mL/h Sml/h NmL/h milliliter per hour
L/s SL/s NL/s liter per second
LPM SLPM NLPM liter per minute
L/h SL/h NL/h liter per hour
US GPM US gallon per minute
US GPH US gallon per hour
CCS SCCS NCCS cubic centimeter per second
CCM SCCM NCCM cubic centimeter per minute
cm3/h Scm3/h Ncm3/h cubic centimeter per hour
m3/m Sm3/m Nm3/m cubic meter per minute
m3/h Sm3/h Nm3/h cubic meter per hour
m3/d Sm3/d Nm3/d cubic meter per day
in3/m Sin3/m cubic inch per minute
CFM SCFM cubic foot per minute
CFH SCFH cubic foot per hour
count count count setpoint count, 0 – 64000
% % % percent of full scale
kSCFM 1000 cubic feet per minute
Page 37
True Mass Flow Units
Label Notes
mg/s milligram per second
mg/m milligram per minute
g/s gram per second
g/m gram per minute
g/h gram per hour
kg/m kilogram per minute
kg/h kilogram per hour
oz/s ounce per second
oz/m ounce per minute
lb/m pound per minute
These can be used for mass ow on gas devices. These can also be used for volumetric ow on liquid
devices calibrated in one of these units (liquid density is not yet supported).
lb/h pound per hour
Totalizer Units
Volumetric Standard Normal Notes
uL SuL NuL microliter
mL SmL NmL milliliter
L SL NL liter
US GAL US gallon
cm3 Scm3 Ncm3 cubic centimeter
m3 Sm3 Nm3 cubic meter
in3 Sin3 cubic inch
ft3 Sft3 cubic foot
uP
kSft3 1000 cubic feet
micropoise, a measure of viscosity; no conversions are performed to or from
other units
Total Mass Units
Label Notes
mg milligram
g gram
kg kilogram
oz ounce
These can be used for totalized mass on gas devices. These can also be used for totalized
volume on liquid devices calibrated in one of these units (liquid density is not yet supported).
lb pound
Temperature Units
Label Notes
°C degree Celsius
°F degree Farenheit
K Kelvin
°R degree Rankine
Time Units
Label Notes
h:m:s Displayed value is hours:minutes:seconds
ms millisecond
s second
m minute
hour hour
day day
37
Page 38
Display does not come on or is weak.
Flow reading is approximately xed either near zero or near full scale
regardless of actual line ow.
Displayed mass ow, volumetric ow, pressure or temperature is ashing and
message MOV, VOV, POV or TOV is displayed:
Meter reads negave ow when there is a conrmed no ow condion.
Meter does not agree with another meter I have in line.
38
Page 39
Flow uers or is jumpy.
The output signal is lower than the reading at the display.
RS232 Serial Communicaons is not responding.
Slower response than specied.
Jumps to zero at low ow.
Discrepancies between old and new units.
39
Page 40
Page 41
TOTAL/TIMERMAIN
TOTAL/
TIMER
SETPT
+123.4
SCCM
+123.4
Scm3
+123.45
50:56 h:m:s
MENU/
BATCH RESET
RESET TOTAL/
TIMER
RESET
MAIN
Page 42
Accessories
Part Number Description
FMA1600-C1
FMA1600-C2
FMA1600-C3
FMA1600-PSU
FMA1600-CRA
FMA1600-C1-25FT
FMA1600-C2-25FT
FMA1600-MDB Multi-Drop Box
8 Pin Male Mini-DIN connector cable, single ended,
6 foot length
8 Pin Male Mini-DIN connector cable, double ended,
6 foot length
8 Pin Male Mini-DIN to DB9 Female Adapter, 6 foot
length
Universal 100-240 VAC to 24 Volt DC Power Supply
Adapter
8 Pin Male Right Angle Mini-Din Cable, single ended,
6 foot length
8 Pin Male Mini-DIN connector cable, single ended,
25 foot length
8 Pin Male Mini-DIN connector cable, double ended,
25 foot length
Page 43
Technical Data for Omega FMA-PC1600 Mass Flow Meters
FMA-1600A 0 to 0.5 sccm Full Scale through 0 to 1500 slpm Full Scale
FMA-LP1600A 0 to 0.5 sccm Full Scale through 0 to 250 slpm Full Scale
Standard Operating Specications (Contact Omega for available options)
Accuracy at calibration conditions
High Accuracy at calibration conditions
Operating Range / Turndown Ratio 0.5% to 100% Full Scale / 200:1 Turndown
Maximum Measurable Flow Rate 128% Full Scale
Mass Reference Conditions (STP) 25 ºC & 14.696 psia (standard — others available on request)
Humidity Range (Non–Condensing) 0 to 100%
Maximum Allowable Instantaneous Dierential
Pressure Across Device (Inlet to Outlet)
Communications / Power FMA-PC1600 Mass Flow Meter
Monochrome LCD Display with
1. The Digital Output Signal communicates Mass Flow, Volumetric Flow, Pressure and Temperature
2. Four AA 1.5 Vdc Alkaline, Zinc-Carbon or Lithium Ion batteries. Use of 1.2 Vdc rechargeable batteries is not
recommended.
Range Specic Specications
FS Flow FMA-1600A
Meter
0.5 sccm to 1 sccm 1.0
2 sccm to 50 sccm 1.0
100 sccm to 20 slpm 1.0
50 slpm 2.0
100 slpm 2.5
250 slpm 2.1
500 slpm 4.0
1000 slpm 6.0
1500 slpm 9.0
*Venting to atmosphere
Performance FMA-PC1600 Mass Flow Meter
after tare
after tare
Repeatability ± 0.2% Full Scale
Zero Shift and Span Shift 0.02% Full Scale / ºCelsius / Atm
Typical Response Time 10 ms (Adjustable)
Warm-up Time < 1 Second
Operating Conditions FMA-PC1600 Mass Flow Meter
Operating Temperature −10 to +60 ºCelsius
Maximum Pressure (Static) FMA-1600A: 145 psig FMA-LP1600A: 50 psig
Proof Pressure 175 psig
Ingress Protection IP40
Wetted Materials
integrated touchpad
Digital Output Signal
Electrical Supply
Pressure Drop at
High Accuracy option not available for units ranged under 5 sccm or over 500 slpm.
303 & 302 Stainless Steel, FKM Heat Cured Silicone Rubber, Glass Reinforced
Polyphenylene Sulde, Heat Cured Epoxy, Aluminum, Gold, Silicon, Glass.
If your application demands a dierent material, please contact Omega.
Simultaneously displays Mass Flow, Volumetric Flow, Pressure and Temperature
1
Four AA Vdc batteries
FS Flow
(psid)*
± (0.8% of Reading + 0.2% of Full Scale)
± (0.4% of Reading + 0.2% of Full Scale)
FMA-1600A: 75 psig FMA-LP1600A: 15 psig
RS232 Serial
2
9-20 Vdc wall outlet adaptor minimum 150 mA
FS Flow FMA-LP1600A
Meter
0.5 sccm to 2 sccm 0.06
5 sccm to 20 sccm 0.07
50 sccm 0.07
100 sccm to 200 sccm 0.06
500 sccm 0.07
1 slpm to 5 slpm 0.07
10 slpm 0.08
20 slpm 0.25
40 slpm 0.12
50 slpm 0.14
100 slpm 0.24
250 slpm 0.60
*Venting to atmosphere
Pressure Drop at
FS Flow (psid)*
No charge for alternate full scale ranges to increase accuracy (e.g. 2.5 slpm) or alternate units of measure (e.g. 133 scfh).
Full Scale range applies for all 30 gases and mixtures in the calibration table (page 17).
Weight: 12 - 20 lb depending on conguration
FMA-PC1600 Case Dimensions: 16” L x 13” W x 7” H
Process Connections: 1/8”, 1/4”, 3/8”, 1/2”, 6mm, 10mm, or 12mm push-connect style tubing ttings
43
Page 44
44
Page 45
WARRANTY/DISCLAIMER
OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and
workmanship for a period of 13 months from date of purchase. OMEGA’s WARRANTY adds
an additional one (1) month grace period to the normal one (1) year product warranty to
cover handling and shipping time. This ensures that OMEGA’s customers receive maximum
coverage on each product.
If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer
Service Department will issue an Authorized Return (AR) number immediately upon phone
or written request. Upon examination by OMEGA, if the unit is found to be defective, it
will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects
resulting from any action of the purchaser, including but not limited to mishandling, improper
interfacing, operation outside of design limits, improper repair, or unauthorized modification.
This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows
evidence of having been damaged as a result of excessive corrosion; or current, heat, moisture
or vibration; improper specification; misapplication; misuse or other operating conditions
outside of OMEGA’s control. Components in which wear is not warranted, include but are not
limited to contact points, fuses, and triacs.
OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes
liability for any damages that result from the use of its products in accordance
with information provided by OMEGA, either verbal or written. OMEGA warrants
only that the parts manufactured by the company will be as specified and free of
defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY
KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL
IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION
OF LIABILITY: The remedies of purchaser set forth herein are exclusive, and the
total liability of OMEGA with respect to this order, whether based on contract,
warranty, negligence, indemnification, strict liability or otherwise, shall not exceed
the purchase price of the component upon which liability is based. In no event shall
OMEGA be liable for consequential, incidental or special damages.
CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1)
as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or
activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or
with any nuclear installation or activity, medical application, used on humans, or misused in
any way, OMEGA assumes no responsibility as set forth in our basic WARRANTY / DISCLAIMER
language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from
any liability or damage whatsoever arising out of the use of the Product(s) in such a manner.
Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department.
RETURN REQUESTS/INQUIRIES
BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN
AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT
(IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be
marked on the outside of the return package and on any correspondence.
The purchaser is responsible for shipping charges, freight, insurance and proper packaging to
prevent breakage in transit.
FOR WARRANTY RETURNS, please have
the following information available BEFORE
contacting OMEGA:
1. Purchase Order number under which
the product was PURCHASED,
2. Model and serial number of the product
under warranty, and
3. Repair instructions and/or specific
problems relative to the product.
OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible.
This affords our customers the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2016 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,
reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without
the prior written consent of OMEGA ENGINEERING, INC.
FOR NON-WARRANTY REPAIRS,
consult
OMEGA for current repair charges. Have the
following information available BEFORE
contacting OMEGA:
1. Purchase Order number to cover the
COST of the repair,
2. Model and serial number of the product, and
3. Repair instructions and/or specific problems
relative to the product.
Page 46
Where Do I Find Everything I Need for
Process Measurement and Control?
OMEGA…Of Course!
Shop online at omega.com
TEMPERATURE
MU
Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies
MU
Wire: Thermocouple, RTD & Thermistor
MU
Calibrators & Ice Point References
MU
Recorders, Controllers & Process Monitors
MU
Infrared Pyrometers
PRESSURE, STRAIN AND FORCE
MU
Transducers & Strain Gages
MU
Load Cells & Pressure Gages
MU
Displacement Transducers
MU
Instrumentation & Accessories
FLOW/LEVEL
MU
Rotameters, Gas Mass Flowmeters & Flow Computers
MU
Air Velocity Indicators
MU
Turbine/Paddlewheel Systems
MU
Totalizers & Batch Controllers
pH/CONDUCTIVITY
MU
pH Electrodes, Testers & Accessories
MU
Benchtop/Laboratory Meters
MU
Controllers, Calibrators, Simulators & Pumps
MU
Industrial pH & Conductivity Equipment
SM
DATA ACQUISITION
MU Communications-Based Acquisition Systems
MU Data Logging Systems
MU Wireless Sensors, Transmitters, & Receivers
MU Signal Conditioners
MU Data Acquisition Software
HEATERS
MU
Heating Cable
MU
Cartridge & Strip Heaters
MU
Immersion & Band Heaters
MU
Flexible Heaters
MU
Laboratory Heaters
ENVIRONMENTAL
MONITORING AND CONTROL
MU
Metering & Control Instrumentation
MU
Refractometers
MU
Pumps & Tubing
MU
Air, Soil & Water Monitors
MU
Industrial Water & Wastewater Treatment
MU
pH, Conductivity & Dissolved Oxygen Instruments
M-5453/1016
Loading...
