FLK2000-Series
Acrylic Variable Area Flow Meters For Air or Water
Page 2
CONFIDENTIAL
U.S.A.
Headquarters:
omega.com [email protected]
Servicing North America:
Omega Engineering, Inc.
Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: (203) 359-1660
e-mail: [email protected]
Fax: (203) 359-7700
For Other Locations Visit omega.com/worldwide
The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it
Page 3
CONFIDENTIAL
contains, and reserves the right to alter specifications without notice.
F
low Meters
Series FLK-2201~FLK-2224
INSTRUCTION
SHEET
Shop online at omega.com e-mail: [email protected]
For latest product manuals: www.omegamanual.info
INSTALLATION & OPERATION INSTRUCTIONS
FLK-2201~FLK-2224
Acrylic block flowmeters are available in various
sizes and ranges, with direct reading scales in both
SAE and SI units for air and water (see charts on
other side). For other gases or liquids, special scales
can be provided.
If
you use this meter with fluids
other than air or water, please consult chemical
compatibility data for possible effects on the meter.
These meters are manufactured of durable acrylic
and if properly installed and maintained, will
provide long-term trouble-free operation.
SPECIFICATIONS
ACCURACY:
FLK - 2201
to
FLK - 2224
± 4% Full Scale
FLOATS:
Black agate or Stainless
Steel
METER BODY:
Clear Acrylic
FITTINGS:
Brass
ELASTOMERS:
Silicon O - rings with
Brass fittings
VALVES:
Brass
MOUNTING
INSERTS:
10-32UNF
MAXIMUM
TEMPERATURE:
140℉ (60℃)
MAXIMUM
PRESSURE:
145PSI (1000kpa)
Page 4
CONFIDENTIAL
UNPACKING
Precautions have been taken to prevent any
damage from occurring during shipment.
However, if the meter is received damaged,
report it to the carrier immediately.
Before
installing, verify that you have the model and
flow range required.
ACHIEVING ACCURATE FLOWRATES
To obtain an accurate flowrate, the float must be
read at the position indicated on the meter. If the
meter uses a ball float, the flowrate is determined
by reading the center of the ball. Additionally, the
flowmeter should be installed in a manner, which
minimizes both external vibrations and internal
flow variations. Special care should be taken so
that the connections to the meter's inlet and outlet
fittings do not overly restrict the liquid or gas
flow being metered. This could result in a
reduced flow volume, preventing the meter from
reaching its maximum flowrate. Furthermore,
internal pressures could be affected, which can
cause inaccurate flow readings. On start- up, slowly
purge any fluid trapped in the meter.
INSTALLATION
These meters are supplied with 5/8" or 7/8" hex's on
the inlet and outlet fittings. When installing
2-
NPT1/8”
fittings into the meter,
place th
eappropriate size wrench on the hex to prevent
the inlet/outlet fitting from rotating. Torque only
to 60 in-lbs.
Failure to do so will cause the fitting
to rotate, and may damage the meter body, causing
leaks and/or meter failure. Use pipe thread sealant or
Teflon® tape to ease installation and provide a better
seal. This meter is supplied with #10-32 threaded
inserts for mounting. When installing, use slotted
screws and torque to a maximum of 35 in-lbs.

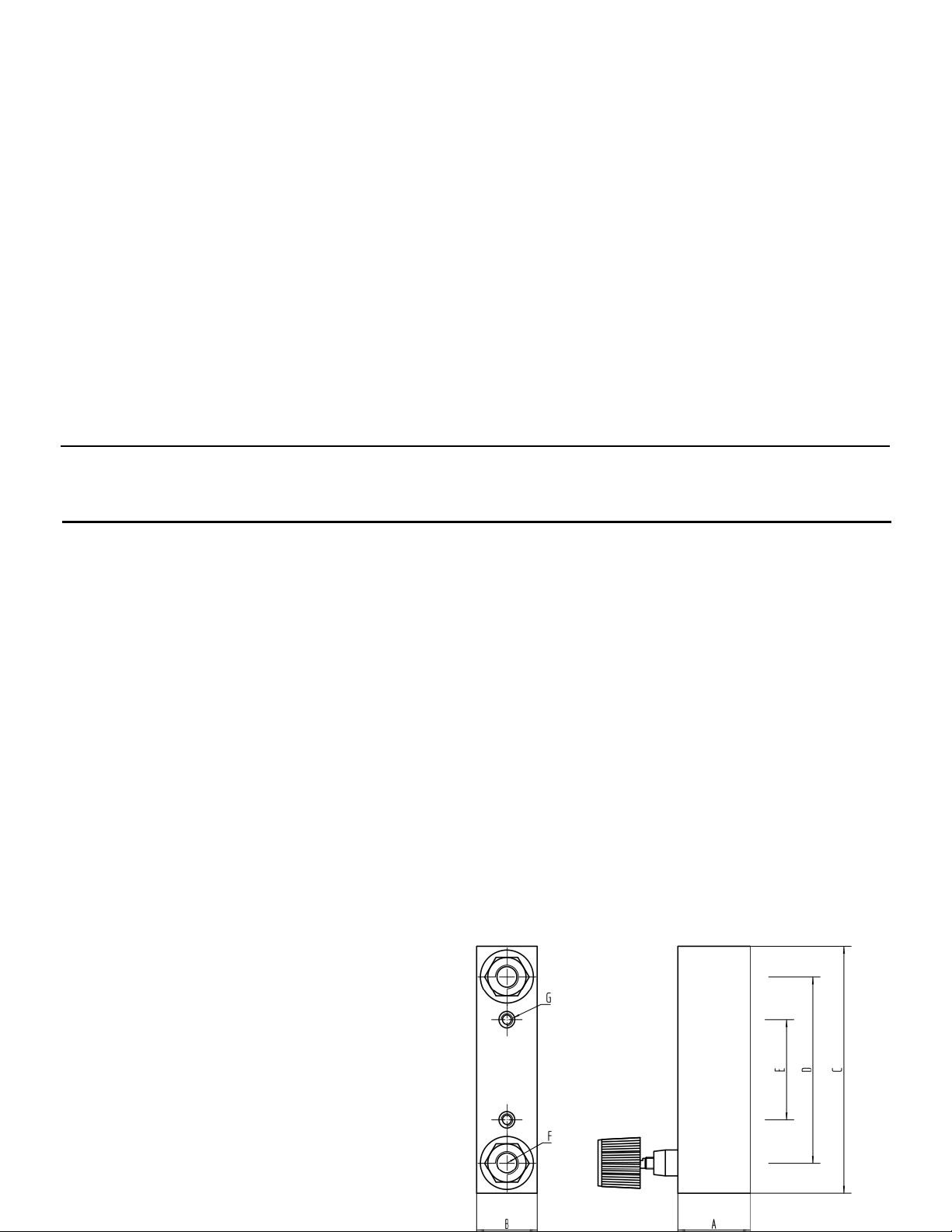

Mounting dimensions are shown in Figure I.
CAUTION
THIS FLOWMETER IS DESIGNED FOR USE WITH NON-HAZARDOUS FLUIDS AT PRESSURES UP TO145 PSI(1000KPA) AND TEMPERATURES
UP TO140
°f
(60 °C). Do NOT USE HAZAROOUS FLUIDS AND 00 NOT EXCEED TEMPERATURE OR PRESSURE LIMITS. USE WITH HAZARIXJUS
FLUIDS OR EXCEEDING THE PRESSURE AND TEMPERATURE LIMITS MAY CAUSE FAILURE WHICH COULD RESULT IN INJURY.
CLEANING AND DISASSEMBLY RE-ASSEMBLY
Occasional cleaning may be required if dirt appears in Check to make sure that all parts are clean and dry.
the flow tube or if float movement becomes restricted. To lubricate the a-rings, apply a small amount of
To clean, remove the top plug (standard back) or the halocarbon grease prior to reassembly. Replace the
outlet fitting (inline) and remove the rod guide float on the rod guide and reinstall the float stops.
assembly. Wash the tapered hole, float stops and top Reinstall the rod guide assembly into the flowmeter
plug with a mild liquid detergent and soft brush. body. Make sure the rod guide is seated firmly in the
Rinse all parts with clean water and dry thoroughly body of the meter for a Standard Back meter or in the
with clean air or nitrogen. Do not use solvents to inlet fitting of the Inline meter. (For meters with
clean this meter as they will attack the acrylic and valves, it will be necessary for the rod guide to pass
destroy the meter. through the slot in the valve tip.) To allow proper use
of the valve, do not tighten the valve tip completely
on the valve stem. Reinstall the top plug or the outlet
fitting, making sure that the rod guide is properly
aligned. If you have any questions regarding the
installation, maintenance or use of this flowmeter,
please call Omega Customer Service.
Page 5
CONFIDENTIAL
CONTINUED PRODUCT IMPROVEMENT MAY RESULT IN
SPECIFICATION REVISIONS
WHEN ORDERING PARTS PLEASE tNCLUDE PART
DESCRlPTION, ITEM NUMBER AND lYPE OF MATERIAL
REQUIRED.
WARRANTY/DISCLAIMER
DIMENSIONS
FLK-2201-FLK-2224
A
IN
1.18
mm
30
B
IN
0.98
mm
25
C
IN
4.01
mm
102
D
IN
3.03
mm
77
E
IN
1.63
mm
41.5
F
IN
2-NPT1/8”
mm
2-NPT1/8”
G
IN
10-32UNF
mm
10-32UNF
FLK - 2201 to FLK - 2224 FLOW RATES
RANGE
MODEL
RANGE
MODEL
RANGE
MODEL
RANGE
MODEL
SCFH
AIR
CODE
LPM
Air
CODE
SCCM
WATER
CODE
GPH
WATER
CODE
.2 - 2
FLK-2201
.1 - 1
LK-2211
6 - 60
FLK-2218
0.25 - 25
FLK-2221
.2 - 3
FLK-2202
.3 - 3
LK-2212
16 - 160
FLK-2219
0.4 -o 4
FLK-2222
.85- 8.5
FLK-2203
.4 - 4
LK-2213
25 - 250
FLK-2220
1.6 - 8
FLK-2223
2.5 - 25
FLK-2205
1 - 12
LK-2214
1.6 - 16
FLK-2224
4- 40
FLK-2206
2 - 20
LK-2215
12 - 50
FLK-2208
4 - 20
LK-2216
25- 200
FLK-2209
10- 100
LK-2217
