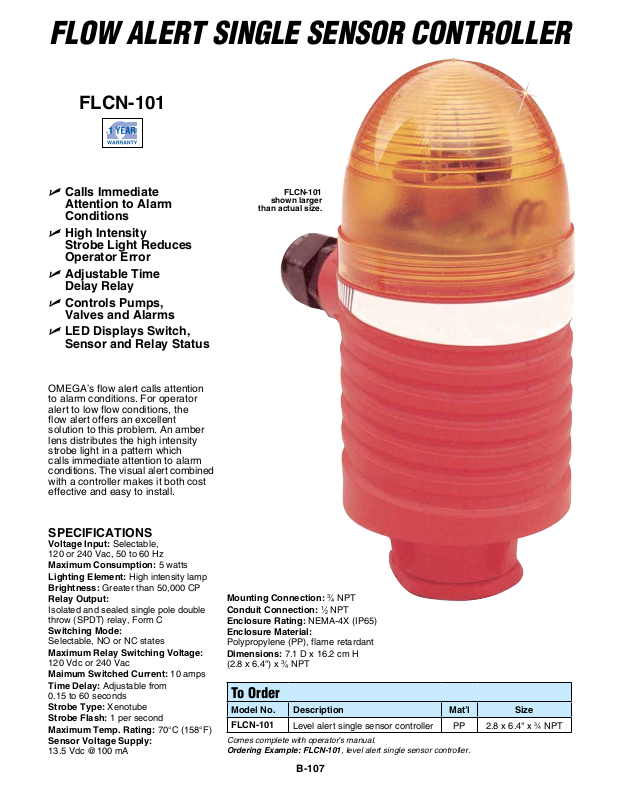

Flow Alert Single SenSor Controller
FLCN-101
U Calls Immediate
Attention to Alarm
Conditions
U High Intensity
Strobe Light Reduces
Operator Error
U Adjustable Time
Delay Relay
U Controls Pumps,
Valves and Alarms
U LED Displays Switch,
Sensor and Relay Status
OMEGA’s flow alert calls attention
to alarm conditions. For operator
alert to low flow conditions, the
flow alert offers an excellent
solution to this problem. An amber
lens distributes the high intensity
strobe light in a pattern which
calls immediate attention to alarm
conditions. The visual alert combined
with a controller makes it both cost
effective and easy to install.
FLCN-101
shown larger
than actual size.
SPECIFICATIONS
Voltage Input: Selectable,
120 or 240 Vac, 50 to 60 Hz
Maximum Consumption: 5 watts
Lighting Element: High intensity lamp
Brightness: Greater than 50,000 CP
Relay Output:
Isolated and sealed single pole double
throw (SPDT) relay, Form C
Switching Mode:
Selectable, NO or NC states
Maximum Relay Switching Voltage:
120 Vdc or 240 Vac
Maimum Switched Current: 10 amps
Time Delay: Adjustable from
0.15 to 60 seconds
Strobe Type: Xenotube
Strobe Flash: 1 per second
Maximum Temp. Rating: 70°C (158°F)
Sensor Voltage Supply:
13.5 Vdc @100 mA
Mounting Connection:
Conduit Connection:
Enclosure Rating: NEMA-4X (IP65)
Enclosure Material:
Polypropylene (PP), flame retardant
Dimensions: 7.1 D x 16.2 cm H
(2.8 x 6.4") x
3
⁄4 NPT
3
⁄4 NPT
1
⁄2 NPT
To Order
Model No. Description Mat’l Size
FLCN-101
Comes complete with operator’s manual.
Ordering Example: FLCN-101, level alert single sensor controller.
Level alert single sensor controller PP 2.8 x 6.4" x
B-107
3
⁄4 NPT
