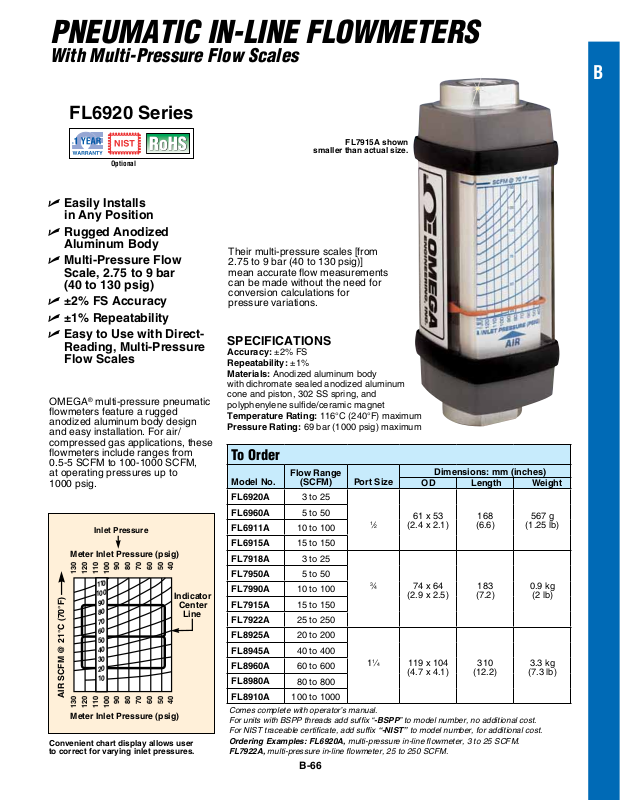

PNEUMATIC IN-LINE FLOWMETERS
With Multi-Pressure Flow Scales
FL6920 Series
B
Optional
U Easily Installs
in Any Position
U Rugged Anodized
Aluminum Body
U Multi-Pressure Flow
Scale, 2.75 to 9 bar
(40 to 130 psig)
U ±2% FS Accuracy
U ±1% Repeatability
U Easy to Use with Direct-
Reading, Multi-Pressure
Flow Scales
OMEGA® multi-pressure pneumatic
flowmeters feature a rugged
anodized aluminum body design
and easy installation. For air/
compressed gas applications, these
flowmeters include ranges from
0.5-5 SCFM to 100-1000 SCFM,
at operating pressures up to
1000 psig.
Inlet Pressure
Meter Inlet Pressure (psig)
110
110
100
90
80
70
60
50
40
30
20
10
110
100
100
9080706050
9080706050
130
120
AIR SCFM @ 21°C (70°F)
130
120
Meter Inlet Pressure (psig)
Convenient chart display allows user
to correct for varying inlet pressures.
40
Indicator
Center
Line
40
smaller than actual size.

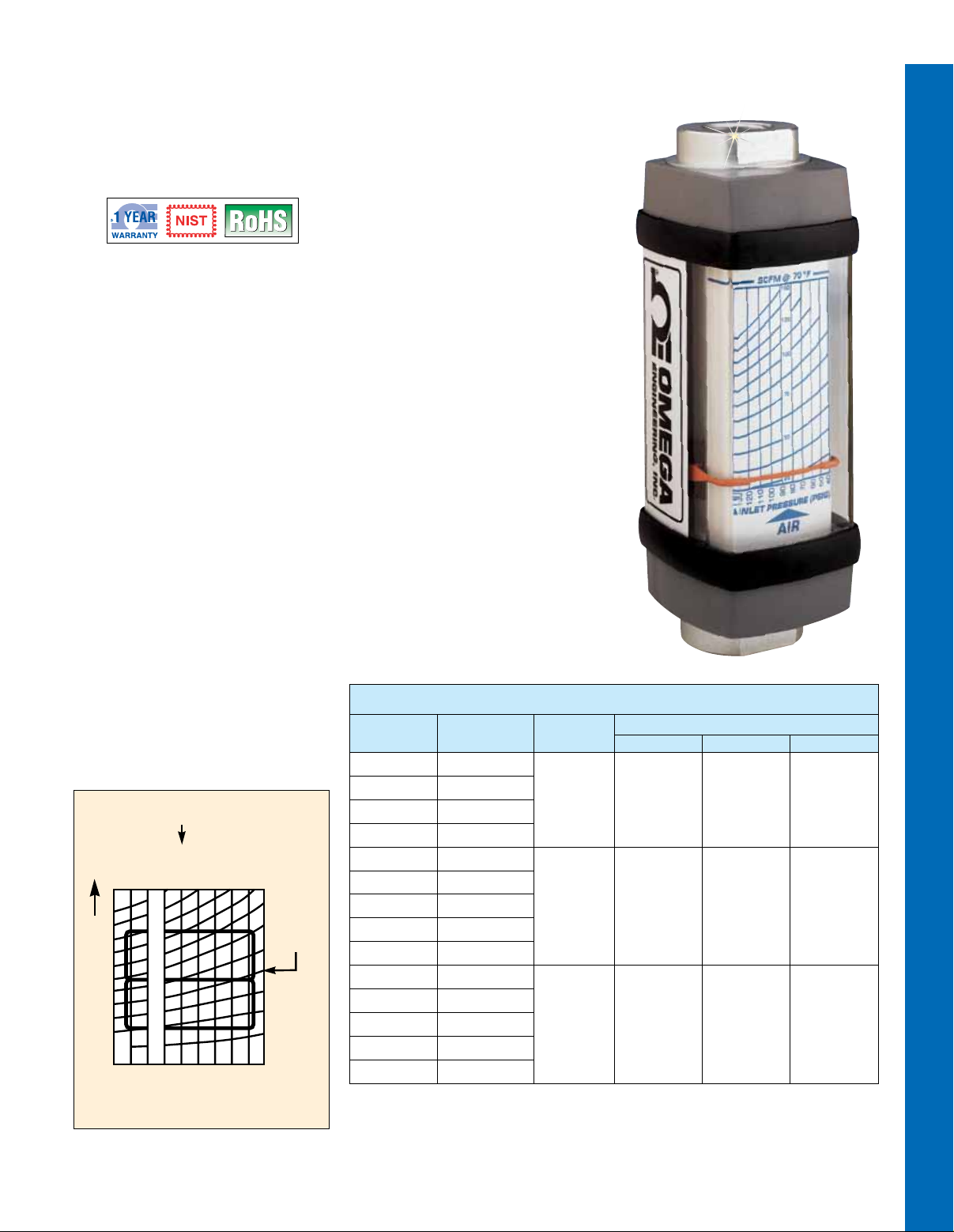

FL7915A shown
Their multi-pressure scales [from
2.75 to 9 bar (40 to 130 psig)]
mean accurate flow measurements
can be made without the need for
conversion calculations for
pressure variations.
SPECIFICATIONS
Accuracy: ±2% FS
Repeatability: ±1%
Materials: Anodized aluminum body
with dichromate sealed anodized aluminum
cone and piston, 302 SS spring, and
polyphenylene sulfide/ceramic magnet
Temperature Rating: 116°C (240°F) maximum
Pressure Rating: 69 bar (1000 psig) maximum
To Order
Model No.
FL6920A
FL6960A
FL6911A
FL6915A
FL7918A
FL7950A
FL7990A
FL7915A
FL7922A
FL8925A
FL8945A
FL8960A
FL8980A
FL8910A
Comes complete with operator’s manual.
For units with BSPP threads add suffix “-BSPP” to model number, no additional cost.
For NIST traceable certificate, add suffix “-NIST” to model number, for additional cost.
Ordering Examples: FL6920A, multi-pressure in-line flowmeter, 3 to 25 SCFM.
FL7922A, multi-pressure in-line flowmeter, 25 to 250 SCFM.
Flow Range
(SCFM)
3 to 25
5 to 50
10 to 100
15 to 150
3 to 25
5 to 50
10 to 100
15 to 150
25 to 250
20 to 200
40 to 400
60 to 600
80 to 800
100 to 1000
Port Size
1
⁄2
3
⁄4
1
1
⁄4
B-66
Dimensions: mm (inches)
OD Length Weight
61 x 53
(2.4 x 2.1)
74 x 64
(2.9 x 2.5)
119 x 104
(4.7 x 4.1)
168
(6.6)
183
(7.2)
310
(12.2)
567 g
(1.25 lb)
0.9 kg
(2 lb)
3.3 kg
(7.3 lb)
