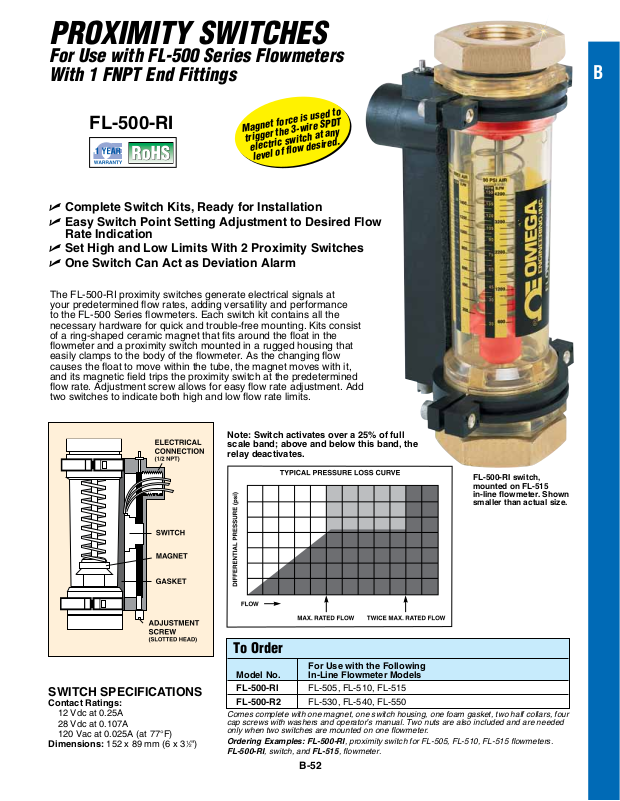

Page 1
PROXIMITY SWITCHES
For Use with FL-500 Series Flowmeters
With 1 FNPT End Fittings
B
FL-500-RI
Magnet force is used to
trigger the 3-wire SPDT
electric switch at any
level of flow desired.
U Complete Switch Kits, Ready for Installation
U Easy Switch Point Setting Adjustment to Desired Flow
Rate Indication
U Set High and Low Limits With 2 Proximity Switches
U One Switch Can Act as Deviation Alarm
The FL-500-RI proximity switches generate electrical signals at
your predetermined flow rates, adding versatility and performance
to the FL-500 Series flowmeters. Each switch kit contains all the
necessary hardware for quick and trouble-free mounting. Kits consist
of a ring-shaped ceramic magnet that fits around the float in the
flowmeter and a proximity switch mounted in a rugged housing that
easily clamps to the body of the flowmeter. As the changing flow
causes the float to move within the tube, the magnet moves with it,
and its magnetic field trips the proximity switch at the predetermined
flow rate. Adjustment screw allows for easy flow rate adjustment. Add
two switches to indicate both high and low flow rate limits.
SWITCH SPECIFICATIONS
Contact Ratings:
12 Vdc at 0.25A
28 Vdc at 0.107A
120 Vac at 0.025A (at 77°F)
Dimensions: 152 x 89 mm (6 x 3
1
⁄2")
Note: Switch activates over a 25% of full
scale band; above and below this band, the
relay deactivates.

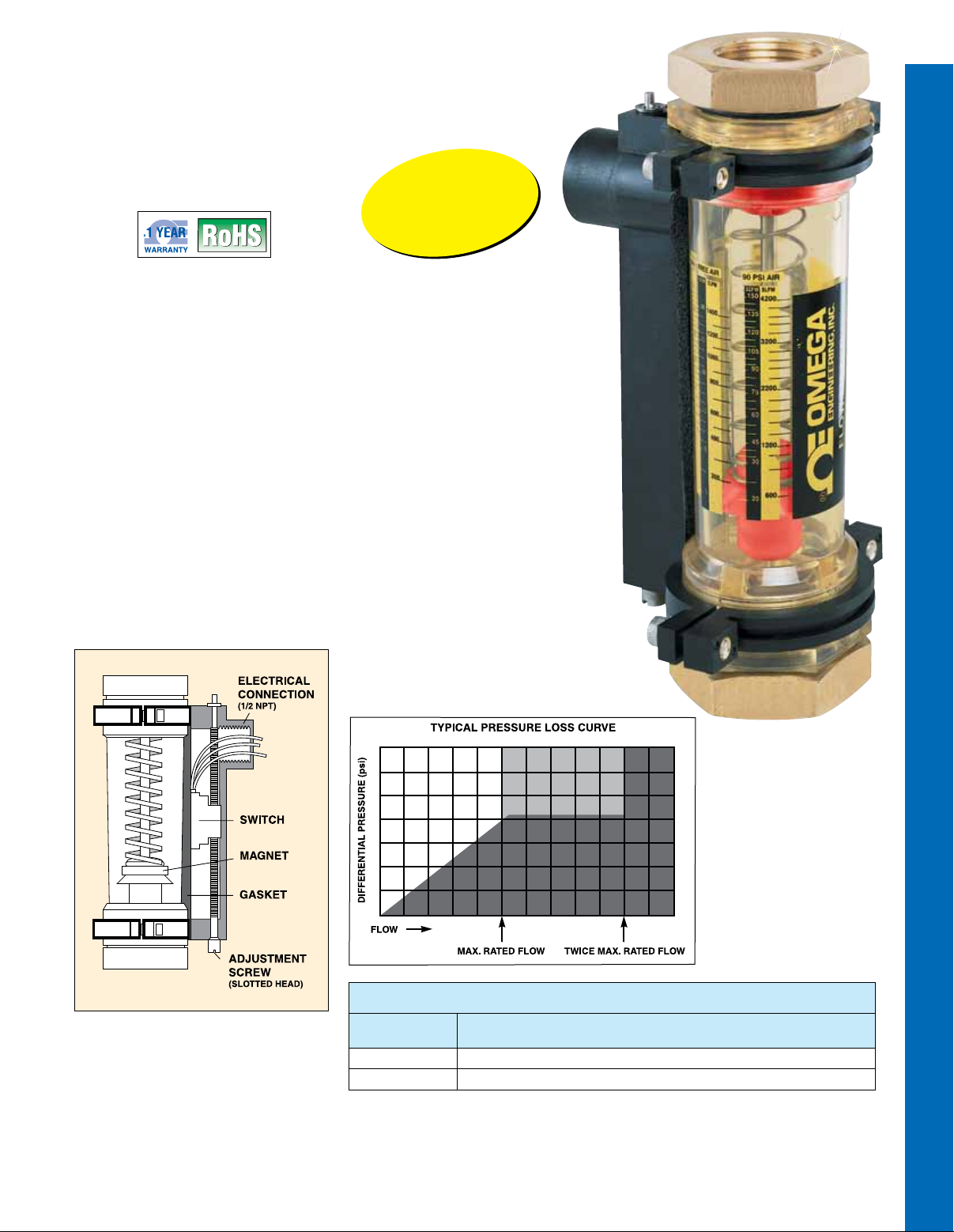

FL-500-RI switch,
mounted on FL-515
in-line flowmeter. Shown
smaller than actual size.
To Order
For Use with the Following
Model No. In-Line Flowmeter Models
FL-500-RI FL-505, FL-510, FL-515
FL-500-R2 FL-530, FL-540, FL-550
Comes complete with one magnet, one switch housing, one foam gasket, two half collars, four
cap screws with washers and operator’s manual. Two nuts are also included and are needed
only when two switches are mounted on one flowmeter.
Ordering Examples: FL-500-RI, proximity switch for FL-505, FL-510, FL-515 flowmeters.
FL-500-RI, switch, and FL-515, flowmeter.
B-52
