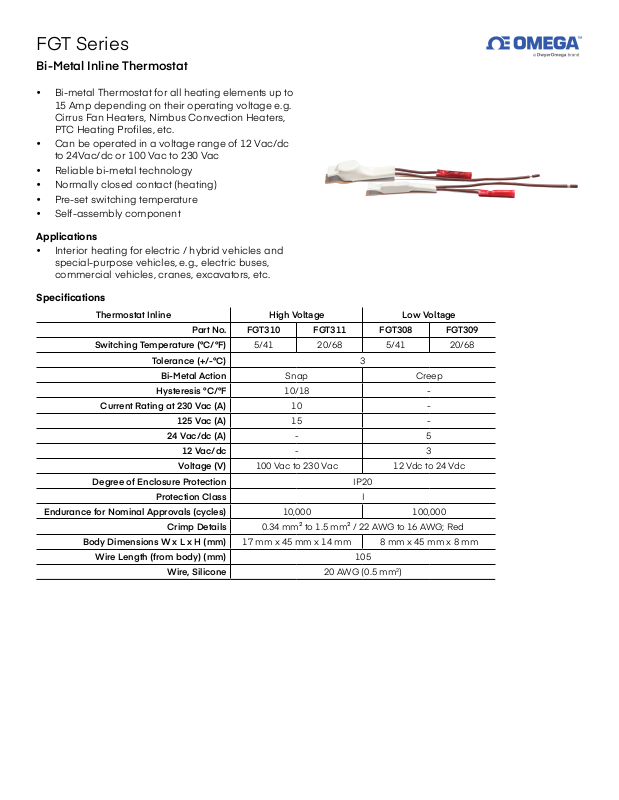

Omega FGT Data Sheet

FGT Series

Bi-Metal Inline Thermostat

• Bi-metal Thermostat for all heating elements up to
15 Amp depending on their operating voltage e.g.
Cirrus Fan Heaters, Nimbus Convection Heaters,

PTC Heating Proles, etc.

• Can be operated in a voltage range of 12 Vac/dc
to 24Vac/dc or 100 Vac to 230 Vac

• Reliable bi-metal technology

• Normally closed contact (heating)

• Pre-set switching temperature

• Self-assembly component

Applications

• Interior heating for electric / hybrid vehicles and
special-purpose vehicles, e.g., electric buses,
commercial vehicles, cranes, excavators, etc.

Specications

Thermostat Inline High Voltage Low Voltage

Part No. FGT310 FGT311 FGT308 FGT309

Switching Temperature (°C/°F)

Tolerance (+/-°C)

Bi-Metal Action

Hysteresis °C/°F

Current Rating at 230 Vac (A)

125 Vac (A)

24 Vac/dc (A)

12 Vac/dc

Voltage (V)

Degree of Enclosure Protection

Protection Class

Endurance for Nominal Approvals (cycles)

Crimp Details

Body Dimensions W x L x H (mm)

Wire Length (from body) (mm)

Wire, Silicone

5/41 20/68 5/41 20/68

Snap Creep

10/18 -

100 Vac to 230 Vac 12 Vdc to 24 Vdc

10,000 100,000

0.34 mm² to 1.5 mm² / 22 AWG to 16 AWG; Red

17 mm x 45 mm x 14 mm 8 mm x 45 mm x 8 mm

3

10 ­15 -

- 5

- 3

IP20

I

105

20 AWG (0.5 mm

2

)

Dimensional Diagram

High Voltage

Improving the world, one measurement at a time.

Low Voltage

DS-FGT
