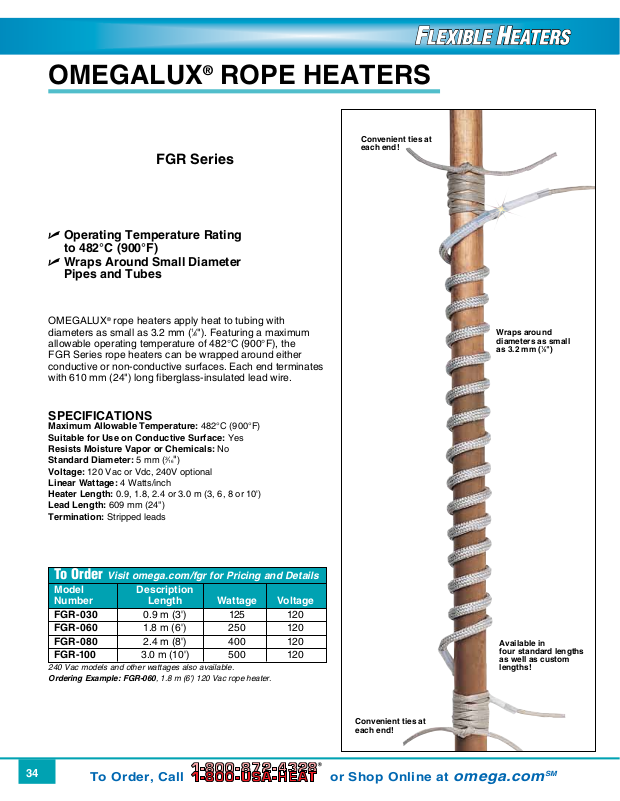

OMEGALUX® ROPE HEATERS
Convenient ties at
each end!
FGR Series
U Operating Temperature Rating
to 482°C (900°F)
U Wraps Around Small Diameter
Pipes and Tubes
OMEGALUX® rope heaters apply heat to tubing with
diameters as small as 3.2 mm (1⁄8"). Featuring a maximum
allowable operating temperature of 482°C (900°F), the
FGR Series rope heaters can be wrapped around either
conductive or non‑conductive surfaces. Each end terminates
with 610 mm (24") long fiberglass‑insulated lead wire.
Wraps around
diameters as small
as 3.2 mm (1⁄8")
SPECIFICATIONS
Maximum Allowable Temperature: 482°C (900°F)
Suitable for Use on Conductive Surface: Yes
Resists Moisture Vapor or Chemicals: No
Standard Diameter: 5 mm (
Voltage: 120 Vac or Vdc, 240V optional
Linear Wattage: 4 Watts/inch
Heater Length: 0.9, 1.8, 2.4 or 3.0 m (3, 6, 8 or 10')
Lead Length: 609 mm (24")
Termination: Stripped leads
3
⁄16")
To Order Visit omega.com/fgr for Pricing and Details
Model Description
Number Length Wattage Voltage
FGR-030 0.9 m (3') 125 120
FGR-060 1.8 m (6') 250 120
FGR-080 2.4 m (8') 400 120
FGR-100 3.0 m (10') 500 120
240 Vac models and other wattages also available.
Ordering Example: FGR-060, 1.8 m (6') 120 Vac rope heater.
Available in
four standard lengths
as well as custom
lengths!
34
Convenient ties at
each end!
