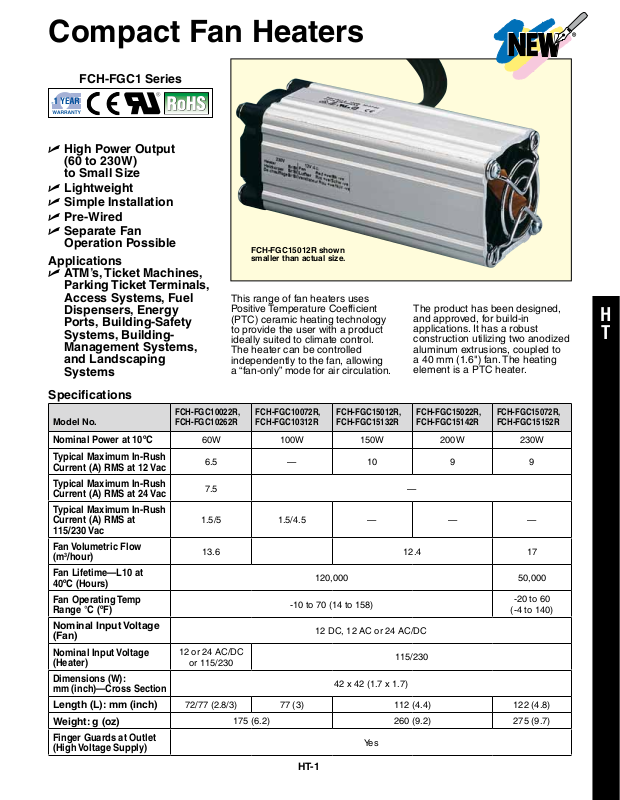

Compact Fan Heaters
FCH-FGC1 Series
U High Power Output
(60 to 230W)
to Small Size
U Lightweight
U Simple Installation
U Pre-Wired
U Separate Fan
Operation Possible
Applications
U ATM’s, Ticket Machines,
Parking Ticket Terminals,
Access Systems, Fuel
Dispensers, Energy
Ports, Building-Safety
Systems, BuildingManagement Systems,
and Landscaping
Systems
FCH-FGC15012R shown
smaller than actual size.
This range of fan heaters uses
Positive Temperature Coefficient
(PTC) ceramic heating technology
to provide the user with a product
ideally suited to climate control.
The heater can be controlled
independently to the fan, allowing
a “fan-only” mode for air circulation.
The product has been designed,
and approved, for build-in
applications. It has a robust
construction utilizing two anodized
aluminum extrusions, coupled to
a 40 mm (1.6") fan. The heating
element is a PTC heater.
H
T
Specifications
Model No.
Nominal Power at 10ºC
Typical Maximum In-Rush
Current (A) RMS at 12 Vac
Typical Maximum In-Rush
Current (A) RMS at 24 Vac
Typical Maximum In-Rush
Current (A) RMS at
115/230 Vac
Fan Volumetric Flow
(m3/hour)
Fan Lifetime—L10 at
40ºC (Hours)
Fan Operating Temp
Range °C (ºF)
Nominal Input Voltage
(Fan)
Nominal Input Voltage
(Heater)
Dimensions (W):
mm (inch)—Cross Section
Length (L): mm (inch)
Weight: g (oz)
Finger Guards at Outlet
(High Voltage Supply)
FCH-FGC10022R,
FCH-FGC10262R
60W 100W 150W 200W 230W
6.5 — 10 9 9
7.5 —
1.5/5 1.5/4.5 — — —
13.6 12.4 17
12 or 24 AC/DC
or 115/230
72/77 (2.8/3) 77 (3) 112 (4.4) 122 (4.8)
FCH-FGC10072R,
FCH-FGC10312R
-10 to 70 (14 to 158)
175 (6.2) 260 (9.2) 275 (9.7)
FCH-FGC15012R,
FCH-FGC15132R
120,000 50,000
12 DC, 12 AC or 24 AC/DC
42 x 42 (1.7 x 1.7)
Yes
FCH-FGC15022R,
FCH-FGC15142R
115/230
FCH-FGC15072R,
FCH-FGC15152R
-20 to 60
(-4 to 140)
HT-1
Page 2
107
(4.21)
72
(2.83)
42
(1.65)
FCH-FGC15012R shown
smaller than actual size.
Dimensions:
mm (inch)
L
W
To Order
Model No. Description
FCH-FGC10022R
FCH-FGC10072R
FCH-FGC10262R
FCH-FGC10312R
FCH-FGC15012R
FCH-FGC15022R
FCH-FGC15072R
FCH-FGC15132R
FCH-FGC15142R
FCH-FGC15152R
Comes complete with operator’s manual.
Ordering Example: FCH-FGC10072R, compact fan heater, 100W, 115/230V heater, 12 Vdc fan, 600 mm (24") lead with DIN and outlet
finger guard.
60W, 12V heater, 12 Vdc fan, 600 mm (24") lead with DIN and outlet finger guard
100W, 115/230V heater, 12 Vdc fan, 600 mm (24") lead with DIN and outlet finger guard
60W, 24V heater, 24 Vac/Vdc fan, 600 mm (24") lead with DIN and outlet finger guard
100W, 115/230V heater, 24 Vac/Vdc fan, 600 mm (24") lead with DIN and outlet finger guard
150W, 115/230V heater, 12 Vdc fan, 600 mm (24") lead with DIN and outlet finger guard
200W, 115/230V heater, 12 Vdc fan, 600 mm (24") lead with DIN and outlet finger guard
230W, 115/230V heater, 24 Vdc fan, 600 mm (24") lead with DIN and outlet finger guard
150W, 115/230V heater, 24 Vac/Vdc fan, 600 mm (24") lead with DIN and outlet finger guard
200W, 115/230V heater, 24 Vac/Vdc fan, 600 mm (24") lead with DIN and outlet finger guard
230W, 115/230V heater, 24 Vac/Vdc fan, 600 mm (24") lead with DIN and outlet finger guard
HT-2
