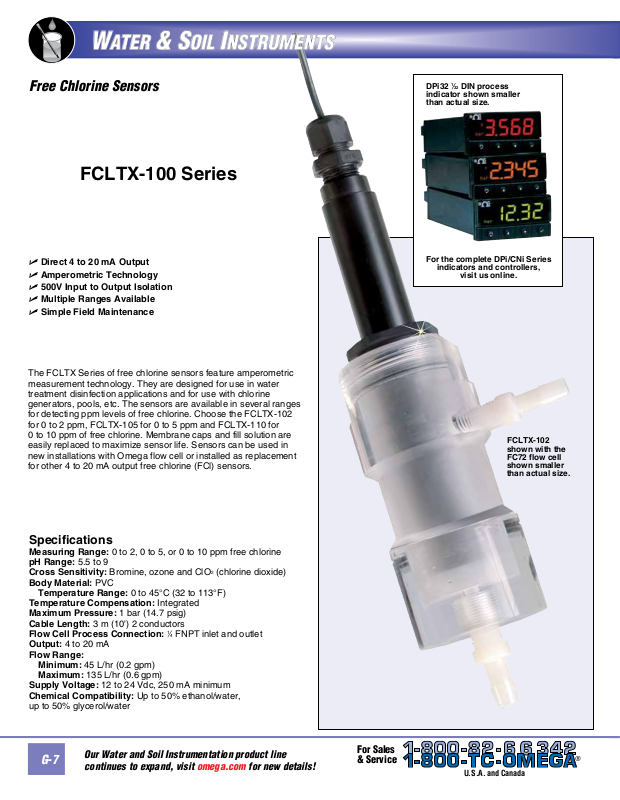

Free Chlorine Sensors
FCLTX-100 Series
DPi32 1⁄32 DIN process
indicator shown smaller
than actual size.
U Direct 4 to 20 mA Output
U Amperometric Technology
U 500V Input to Output Isolation
U Multiple Ranges Available
U Simple Field Maintenance
The FCLTX Series of free chlorine sensors feature amperometric
measurement technology. They are designed for use in water
treatment disinfection applications and for use with chlorine
generators, pools, etc. The sensors are available in several ranges
for detecting ppm levels of free chlorine. Choose the FCLTX-102
for 0 to 2 ppm, FCLTX-105 for 0 to 5 ppm and FCLTX-110 for
0 to 10 ppm of free chlorine. Membrane caps and fill solution are
easily replaced to maximize sensor life. Sensors can be used in
new installations with Omega flow cell or installed as replacement
for other 4 to 20 mA output free chlorine (FCl) sensors.
Specifications
Measuring Range: 0 to 2, 0 to 5, or 0 to 10 ppm free chlorine
pH Range: 5.5 to 9
Cross Sensitivity: Bromine, ozone and ClO
Body Material: PVC
Temperature Range: 0 to 45°C (32 to 113°F)
Temperature Compensation: Integrated
Maximum Pressure: 1 bar (14.7 psig)
Cable Length: 3 m (10') 2 conductors
Flow Cell Process Connection:
Output: 4 to 20 mA
Flow Range:
Minimum: 45 L/hr (0.2 gpm)
Maximum: 135 L/hr (0.6 gpm)
Supply Voltage: 12 to 24 Vdc, 250 mA minimum
Chemical Compatibility: Up to 50% ethanol/water,
up to 50% glycerol/water
1
⁄4 FNPT inlet and outlet
2
(chlorine dioxide)
For the complete DPi/CNi Series
indicators and controllers,
visit us online.

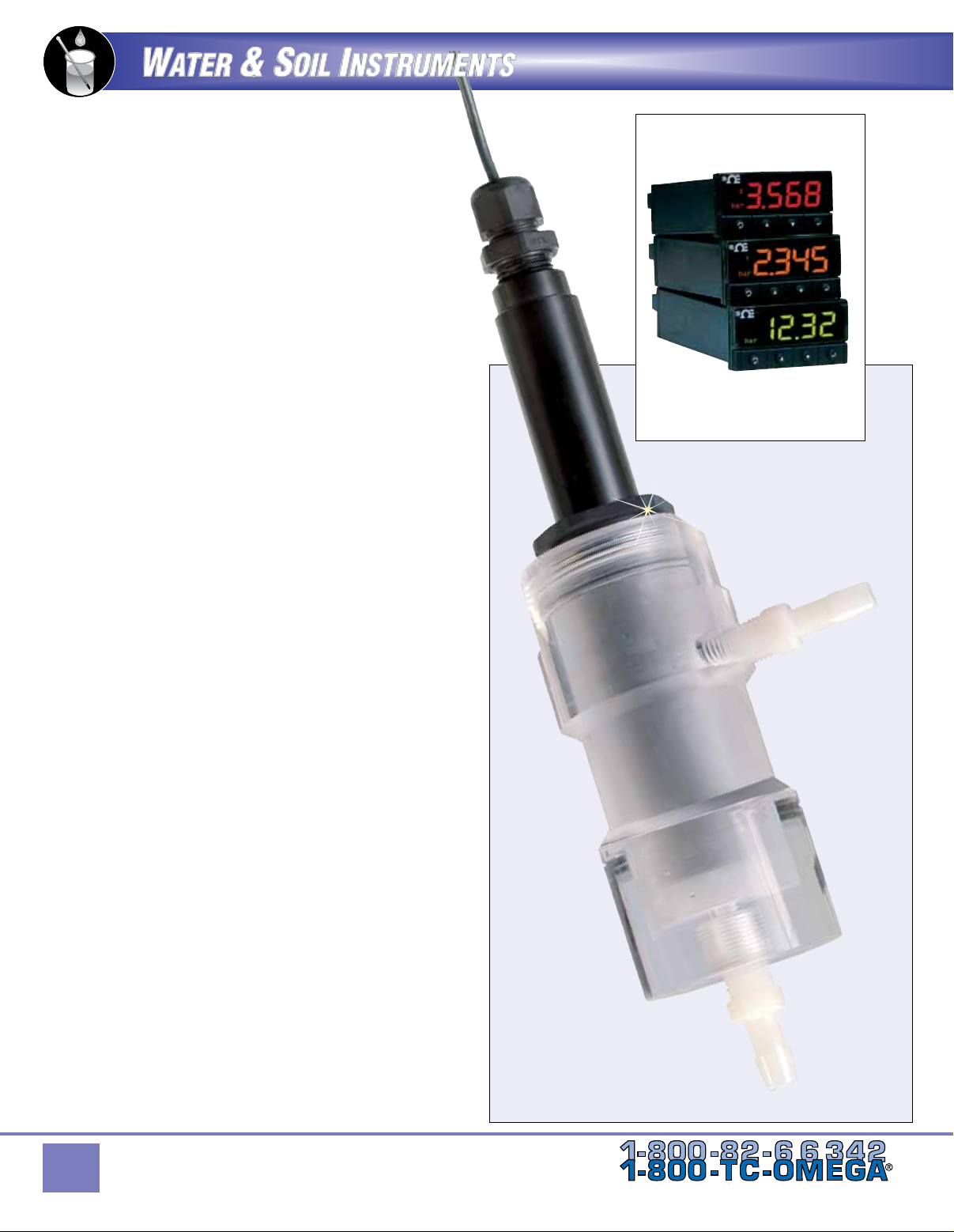

FCLTX-102
shown with the
FC72 flow cell
shown smaller
than actual size.
G-7
Our Water and Soil Instrumentation product line
continues to expand, visit omega.com for new details!
For Sales
& Service
U.S.A. and Canada
Page 2
omega.com
¼
¼
¼
¼
Dimensions: mm (inch)
To Order
Dimensions: mm (inch)
Model No. Description
FCLTX-102 Free chlorine sensor with 4 to 20 mA output, 0 to 2 ppm
FCLTX-105 Free chlorine sensor with 4 to 20 mA output, 0 to 5 ppm
FCLTX-110 Free chlorine sensor with 4 to 20 mA output, 0 to 10 ppm
¼
¼
Accessories
Model No. Description
FC72 Flow cell for FCL or CLD sensors
FCL-RM FCLTX replacement membranes
FCL-ES FCLTX replacement electrolyte solution 30 ml (0.03 qt)
DPi32 ¹⁄₃₂ DIN process indicator
Comes complete with operator’s manual and calibration instruction sheet.
Ordering Example: FCLTX-102, free chlorine sensor with 4 to 20 mA output for 0 to 2 ppm, FC72, flow cell and DPi32,
Order Online
Over 100,000 Products Available!
®
To download information and to order Water and Soil
Instrumentation products online, visit omega.com
1
DIN process indicator.
⁄
32
