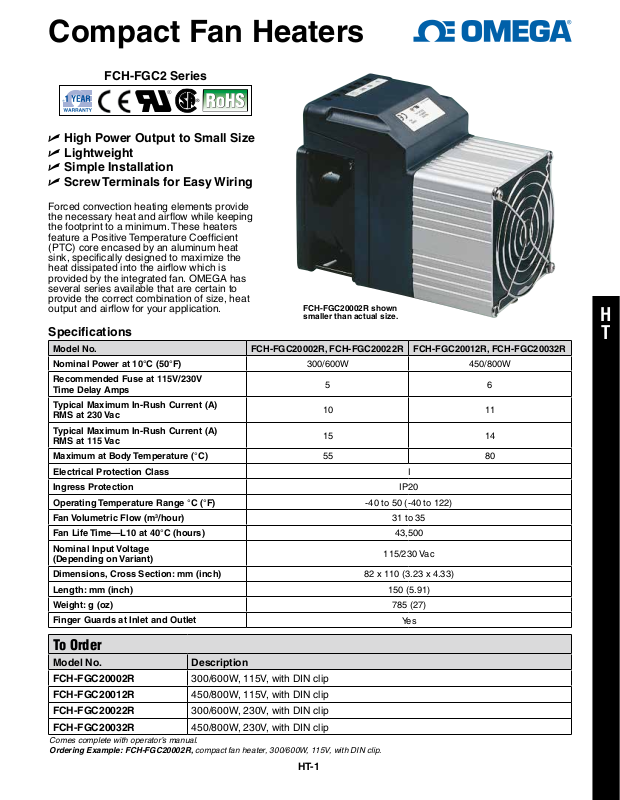

Compact Fan Heaters
FCH-FGC2 Series
U High Power Output to Small Size
U Lightweight
U Simple Installation
U Screw Terminals for Easy Wiring
Forced convection heating elements provide
the necessary heat and airflow while keeping
the footprint to a minimum. These heaters
feature a Positive Temperature Coefficient
(PTC) core encased by an aluminum heat
sink, specifically designed to maximize the
heat dissipated into the airflow which is
provided by the integrated fan. OMEGA has
several series available that are certain to
provide the correct combination of size, heat
output and airflow for your application.
Specifications
Model No. FCH-FGC20002R, FCH-FGC20022R FCH-FGC20012R, FCH-FGC20032R
Nominal Power at 10°C (50°F)
Recommended Fuse at 115V/230V
Time Delay Amps
Typical Maximum In-Rush Current (A)
RMS at 230 Vac
Typical Maximum In-Rush Current (A)
RMS at 115 Vac
Maximum at Body Temperature (°C)
Electrical Protection Class
Ingress Protection
Operating Temperature Range °C (°F)
3
Fan Volumetric Flow (m
Fan Life Time—L10 at 40°C (hours)
Nominal Input Voltage
(Depending on Variant)
Dimensions, Cross Section: mm (inch)
Length: mm (inch)
Weight: g (oz)
Finger Guards at Inlet and Outlet
/hour)
FCH-FGC20002R shown
smaller than actual size.
300/600W 450/800W
5 6
10 11
15 14
55 80
I
IP20
-40 to 50 (-40 to 122)
31 to 35
43,500
115/230 Vac
82 x 110 (3.23 x 4.33)
150 (5.91)
785 (27)
Ye s
H
T
To Order
Model No. Description
FCH-FGC20002R
FCH-FGC20012R
FCH-FGC20022R
FCH-FGC20032R
Comes complete with operator’s manual.
Ordering Example: FCH-FGC20002R, compact fan heater, 300/600W, 115V, with DIN clip.
300/600W, 115V, with DIN clip
450/800W, 115V, with DIN clip
300/600W, 230V, with DIN clip
450/800W, 230V, with DIN clip
HT-1
