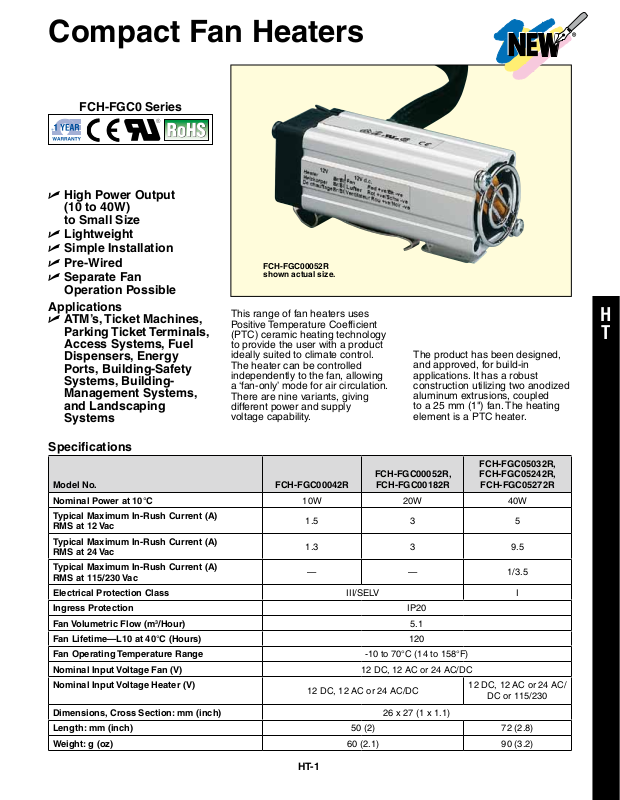

Compact Fan Heaters
FCH-FGC0 Series
U High Power Output
(10 to 40W)
to Small Size
U Lightweight
U Simple Installation
U Pre-Wired
U Separate Fan
Operation Possible
Applications
U ATM’s, Ticket Machines,
Parking Ticket Terminals,
Access Systems, Fuel
Dispensers, Energy
Ports, Building-Safety
Systems, BuildingManagement Systems,
and Landscaping
Systems
This range of fan heaters uses
Positive Temperature Coefficient
(PTC) ceramic heating technology
to provide the user with a product
ideally suited to climate control.
The heater can be controlled
independently to the fan, allowing
a ‘fan-only’ mode for air circulation.
There are nine variants, giving
different power and supply
voltage capability.
FCH-FGC00052R

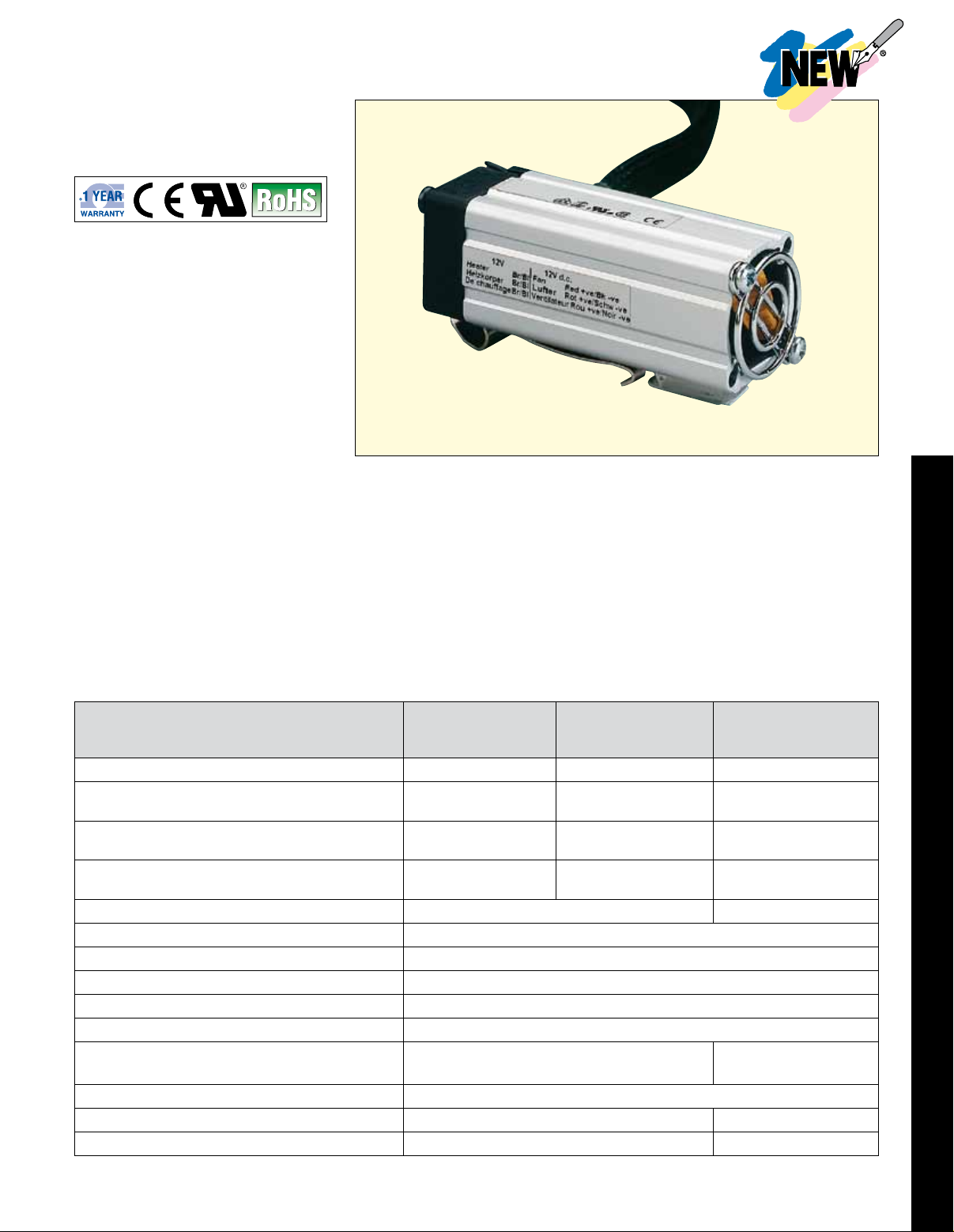

shown actual size.
H
T
The product has been designed,
and approved, for build-in
applications. It has a robust
construction utilizing two anodized
aluminum extrusions, coupled
to a 25 mm (1") fan. The heating
element is a PTC heater.
Specifications
Model No.
Nominal Power at 10°C
Typical Maximum In-Rush Current (A)
RMS at 12 Vac
Typical Maximum In-Rush Current (A)
RMS at 24 Vac
Typical Maximum In-Rush Current (A)
RMS at 115/230 Vac
Electrical Protection Class
Ingress Protection
Fan Volumetric Flow (m
Fan Lifetime—L10 at 40°C (Hours)
Fan Operating Temperature Range
Nominal Input Voltage Fan (V)
Nominal Input Voltage Heater (V)
Dimensions, Cross Section: mm (inch)
Length: mm (inch)
Weight: g (oz)
3
/Hour)
FCH-FGC00042R
10W 20W 40W
1.5 3 5
1.3 3 9.5
— — 1/3.5
12 DC, 12 AC or 24 AC/DC
FCH-FGC00052R,
FCH-FGC00182R
III/SELV I
-10 to 70°C (14 to 158°F)
12 DC, 12 AC or 24 AC/DC
50 (2) 72 (2.8)
60 (2.1) 90 (3.2)
IP20
5.1
120
26 x 27 (1 x 1.1)
FCH-FGC05032R,
FCH-FGC05242R,
FCH-FGC05272R
12 DC, 12 AC or 24 AC/
DC or 115/230
HT-1
Page 2

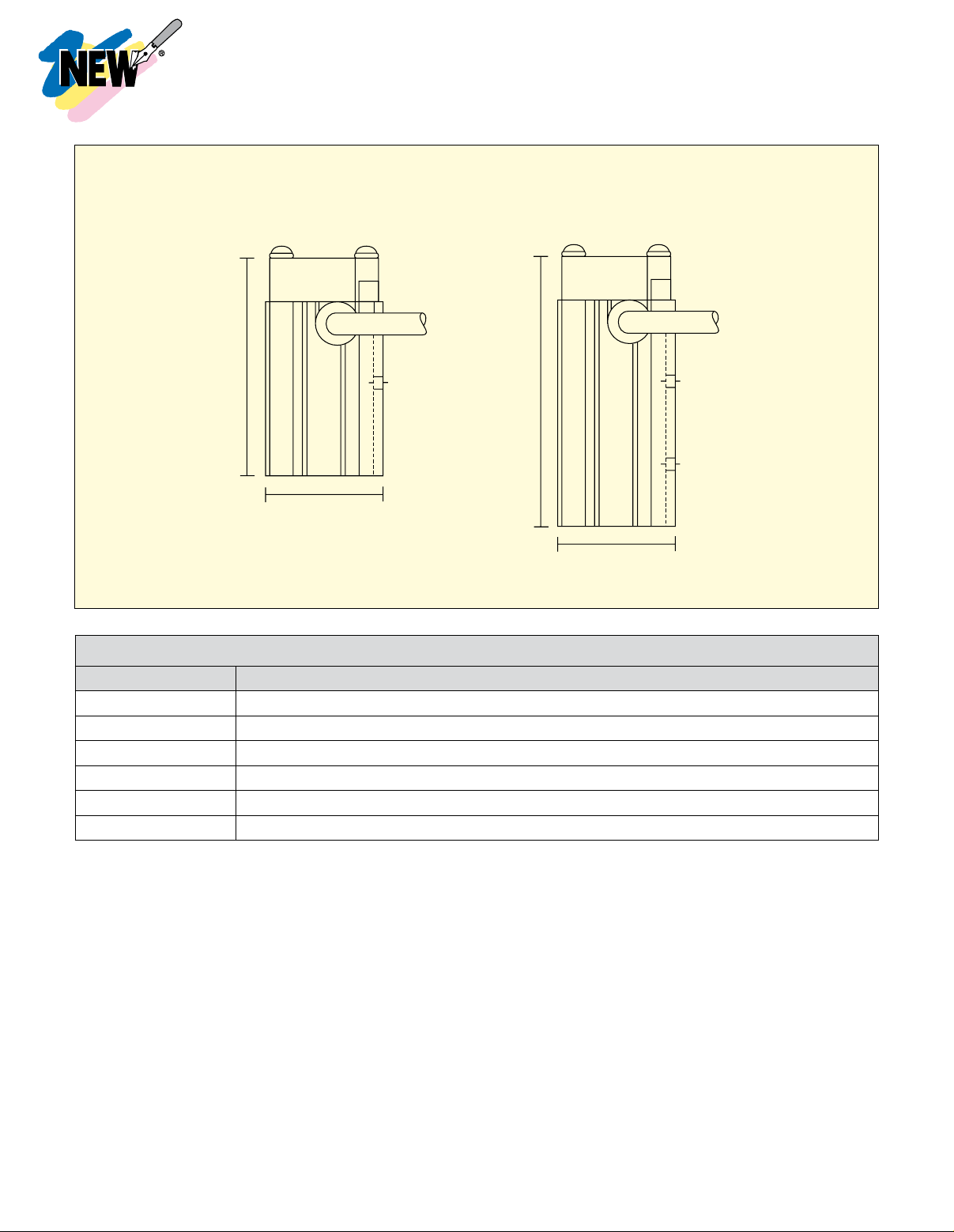

Dimensions: mm (inch)
FCH-FGC00042R
FCH-FGC00052R
FCH-FGC00182R
FCH-FGC05032R
FCH-FGC05242R
FCH-FGC05272R
50
(1.96)
72
(2.83)
27
(1.06)
27
(1.06)
To Order Visit omega.com/fch-fgc0 for Pricing and Details
Model No. Description
FCH-FGC00042R
FCH-FGC00052R
FCH-FGC00182R
FCH-FGC05032R
FCH-FGC05242R
FCH-FGC05272R
Comes complete with operator’s manual.
Ordering Example: FCH-FGC00042R, compact fan heater, 10W, 12V heater, 12 Vdc fan, 600 mm (24") lead with DIN and outlet finger guard.
10W, 12V heater, 12 Vdc fan, 600 mm (24") lead with DIN and outlet finger guard
20W, 12V heater, 12 Vdc fan, 600 mm (24") lead with DIN and outlet finger guard
20W, 24V heater, 24 Vac/dc fan, 600 mm (24") lead with DIN and outlet finger guard
40W, 12V heater, 12 Vdc fan, 600 mm (24") lead with DIN and outlet finger guard
40W, 24V heater, 24 Vac/dc fan, 600 mm (24") lead with DIN and outlet finger guard
40W, 115/230V heater, 24 Vac/dc fan, 600 mm (24") lead with DIN and outlet finger guard
HT-2
