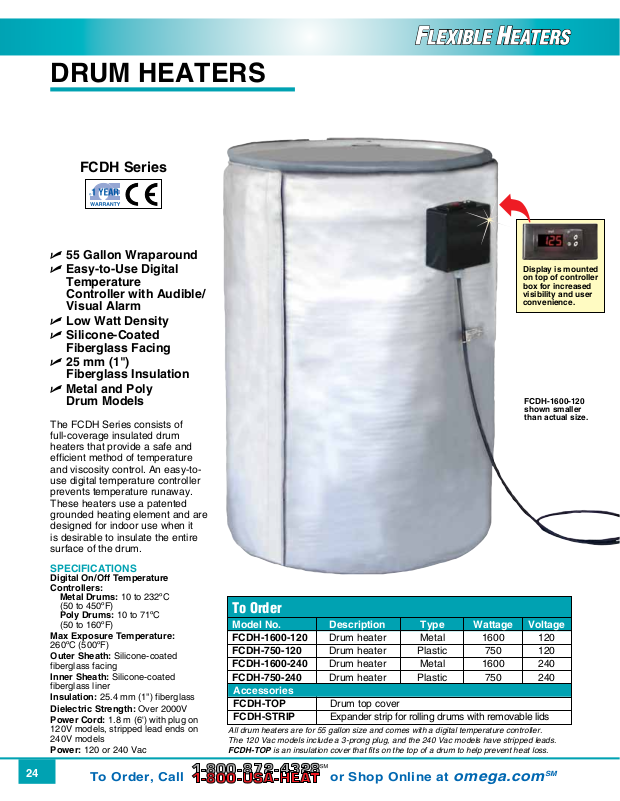

DRUM HEATERS
FCDH Series
U 55 Gallon Wraparound
U Easy-to-Use Digital
Temperature
Controller with Audible/
Visual Alarm
U Low Watt Density
U Silicone-Coated
Fiberglass Facing
U 25 mm (1")
Fiberglass Insulation
U Metal and Poly
Drum Models
The FCDH Series consists of
full-coverage insulated drum
heaters that provide a safe and
efficient method of temperature
and viscosity control. An easy-touse digital temperature controller
prevents temperature runaway.
These heaters use a patented
grounded heating element and are
designed for indoor use when it
is desirable to insulate the entire
surface of the drum.
Display is mounted
on top of controller
box for increased
visibility and user
convenience.
FCDH-1600-120
shown smaller
than actual size.
SPECIFICATIONS
Digital On/Off Temperature
Controllers:
Metal Drums: 10 to 232ºC
(50 to 450ºF)
Poly Drums: 10 to 71ºC
(50 to 160ºF)
Max Exposure Temperature:
260ºC (500ºF)
Outer Sheath: Silicone-coated
fiberglass facing
Inner Sheath: Silicone-coated
fiberglass liner
Insulation: 25.4 mm (1") fiberglass
Dielectric Strength: Over 2000V
Power Cord: 1.8 m (6') with plug on
120V models, stripped lead ends on
240V models
Power: 120 or 240 Vac
24
To Order, Call or Shop Online at omega.com
To Order
Model No. Description Type Wattage Voltage
FCDH-1600-120 Drum heater Metal 1600 120
FCDH-750-120 Drum heater Plastic 750 120
FCDH-1600-240 Drum heater Metal 1600 240
FCDH-750-240 Drum heater Plastic 750 240
Accessories
FCDH-TOP Drum top cover
FCDH-STRIP Expander strip for rolling drums with removable lids
All drum heaters are for 55 gallon size and comes with a digital temperature controller.
The 120 Vac models include a 3-prong plug, and the 240 Vac models have stripped leads.
FCDH-TOP is an insulation cover that fits on the top of a drum to help prevent heat loss.
