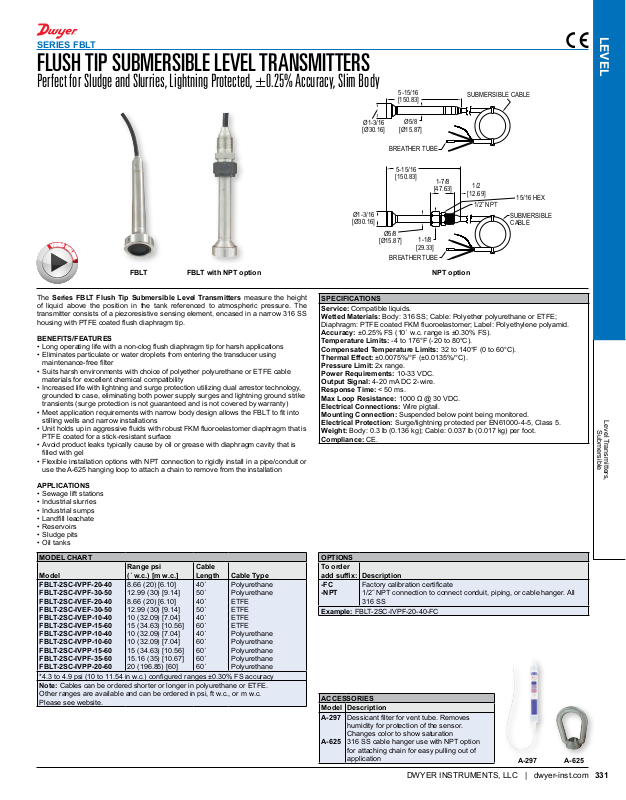

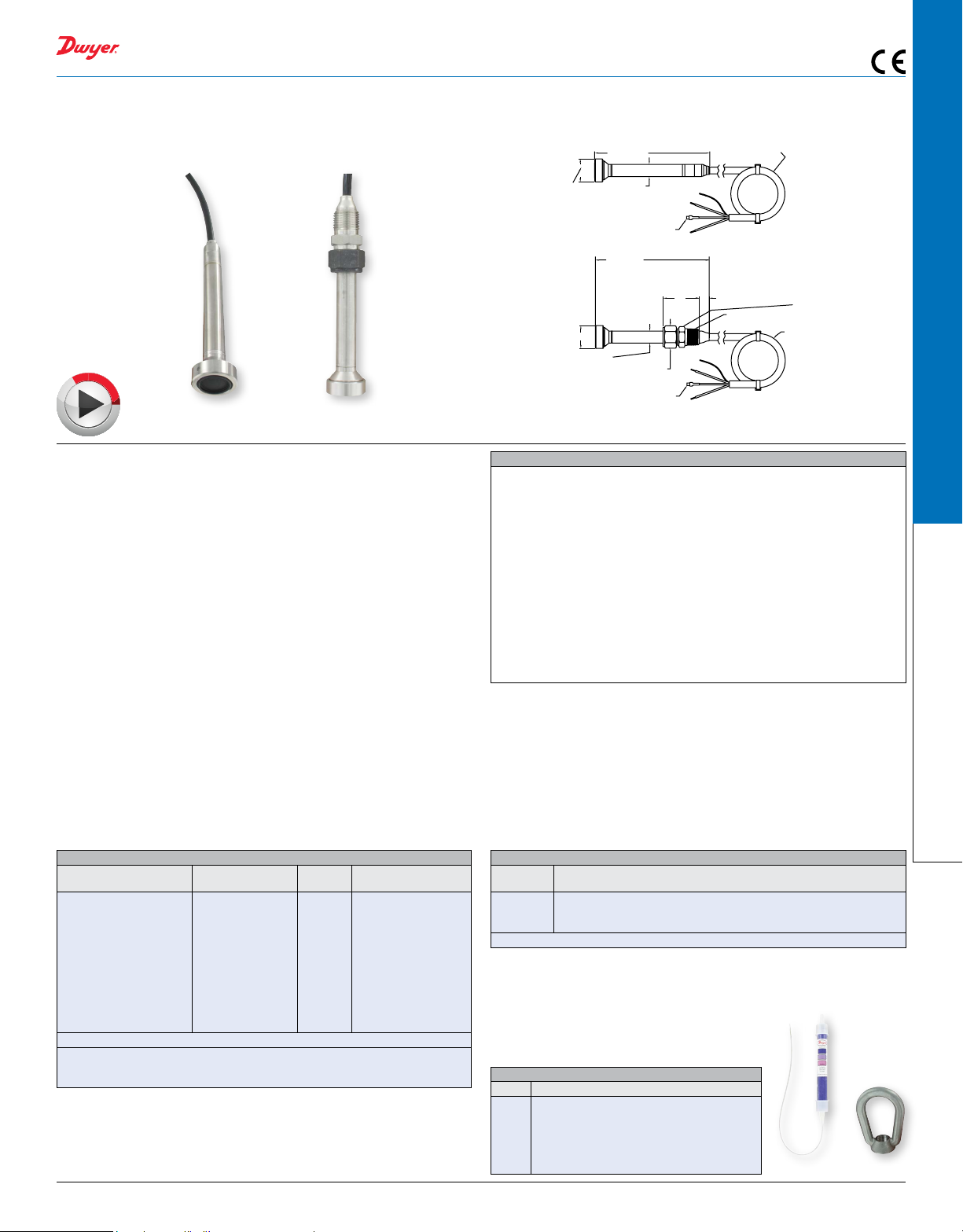

BREATHER TUBE
SUBMERSIBLE CABLE
[Ø30.16]
5-15/16
[Ø30.16]
5-15/16
SERIES FBLT
E
FLUSH TIP SUBMERSIBLE LEVEL TRANSMITTERS
Perfect for Sludge and Slurries, Lightning Protected, ±0.25% Accuracy, Slim Body
LEVEL
[150.83]
E
O
D
I
V
O
N
L
I
N
FBLT FBLT with NPT option
The Series FBLT Flush Tip Submersible Level Transmitters measure the height
of liquid above the position in the tank referenced to atmospheric pressure. The
transmitter consists of a piezoresistive sensing element, encased in a narrow 316 SS
housing with PTFE coated ush diaphragm tip.
BENEFITS/FEATURES
• Long operating life with a non-clog ush diaphragm tip for harsh applications
• Eliminates particulate or water droplets from entering the transducer using
maintenance-free lter
• Suits harsh environments with choice of polyether polyurethane or ETFE cable
materials for excellent chemical compatibility
• Increased life with lightning and surge protection utilizing dual arrestor technology,
grounded to case, eliminating both power supply surges and lightning ground strike
transients (surge protection is not guaranteed and is not covered by warranty)
• Meet application requirements with narrow body design allows the FBLT to t into
stilling wells and narrow installations
• Unit holds up in aggressive uids with robust FKM uoroelastomer diaphragm that is
PTFE coated for a stick-resistant surface
• Avoid product leaks typically cause by oil or grease with diaphragm cavity that is
lled with gel
• Flexible installation options with NPT connection to rigidly install in a pipe/conduit or
use the A-625 hanging loop to attach a chain to remove from the installation
APPLICATIONS
• Sewage lift stations
• Industrial slurries
• Industrial sumps
• Landll leachate
• Reservoirs
• Sludge pits
• Oil tanks
MODEL CHART
Model
FBLT-2SC-IVPF-20-40
FBLT-2SC-IVPF-30-50
FBLT-2SC-IVEF-20-40
FBLT-2SC-IVEF-30-50
FBLT-2SC-IVEP-10-40
FBLT-2SC-IVEP-15-60
FBLT-2SC-IVPP-10-40
FBLT-2SC-IVPP-10-60
FBLT-2SC-IVPP-15-60
FBLT-2SC-IVPF-35-60
FBLT-2SC-IVPP-20-60
*4.3 to 4.9 psi (10 to 11.54 in w.c.) congured ranges ±0.30% FS accuracy
Note: Cables can be ordered shorter or longer in polyurethane or ETFE.
Other ranges are available and can be ordered in psi, ft w.c., or m w.c.
Please see website.
Range psi
(´ w.c.) [m w.c.]
8.66 (20) [6.10]
12.99 (30) [9.14]
8.66 (20) [6.10]
12.99 (30) [9.14]
10 (32.09) [7.04]
15 (34.63) [10.56]
10 (32.09) [7.04]
10 (32.09) [7.04]
15 (34.63) [10.56]
15.16 (35) [10.67]
20 (196.85) [60]
Cable
Length Cable Type
40´
50´
40´
50´
40´
60´
40´
60´
60´
60´
60´
Polyurethane
Polyurethane
ETFE
ETFE
ETFE
ETFE
Polyurethane
Polyurethane
Polyurethane
Polyurethane
Polyurethane
Ø1-3/16
Ø1-3/16
SPECIFICATIONS
Service: Compatible liquids.
Wetted Materials: Body: 316 SS; Cable: Polyether polyurethane or ETFE;
Diaphragm: PTFE coated FKM uoroelastomer; Label: Polyethylene polyamid.
Accuracy: ±0.25% FS (10´ w.c. range is ±0.30% FS).
Temperature Limits: -4 to 176°F (-20 to 80°C).
Compensated Temperature Limits: 32 to 140°F (0 to 60°C).
Thermal Effect: ±0.0075%/°F (±0.0135%/°C).
Pressure Limit: 2x range.
Power Requirements: 10-33 VDC.
Output Signal: 4-20 mA DC 2-wire.
Response Time: < 50 ms.
Max Loop Resistance: 1000 Ω @ 30 VDC.
Electrical Connections: Wire pigtail.
Mounting Connection: Suspended below point being monitored.
Electrical Protection: Surge/lightning protected per EN61000-4-5, Class 5.
Weight: Body: 0.3 lb (0.136 kg); Cable: 0.037 lb (0.017 kg) per foot.
Compliance: CE.
OPTIONS
To order
add sufx: Description
-FC
-NPT
Example: FBLT-2SC-IVPF-20-40-FC
ACCESSORIES
Model Description
A-297
A-625
Factory calibration certicate
1/2˝ NPT connection to connect conduit, piping, or cable hanger. All
316 SS
Dessicant lter for vent tube. Removes
humidity for protection of the sensor.
Changes color to show saturation
316 SS cable hanger use with NPT option
for attaching chain for easy pulling out of
application
Ø5/8
[Ø15.87]
[150.83]
Ø5/8
[Ø15.87]
BREATHER TUBE
1-1/8
[29.33]
1-7/8
[47.63]
NPT option
1/2
[12.69]
1/2˝ NPT
15/16 HEX
SUBMERSIBLE
CABLE
A-297 A-625
