Polycarbonate
50 mm
(1.97")
45 mm
(1.77")
C
enclosures
for circuit breakers and
electrical comPonents
EK Series
l NEMA 4X (IP65)
l 35 mm DIN Rail and Label Included
l Tinted Transparent Hinged Door
l Direct Mount
l Corrosion and Maintenance Free
l High Mechanical Strength
l Integral Polyurethane Seals
l Temperature Rated
-40 to 120°C (-40 to 248°F)

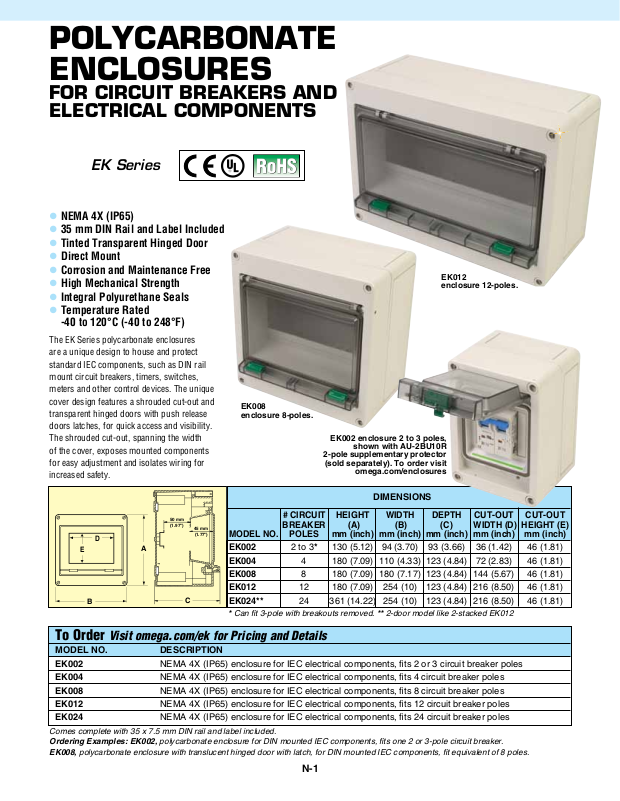

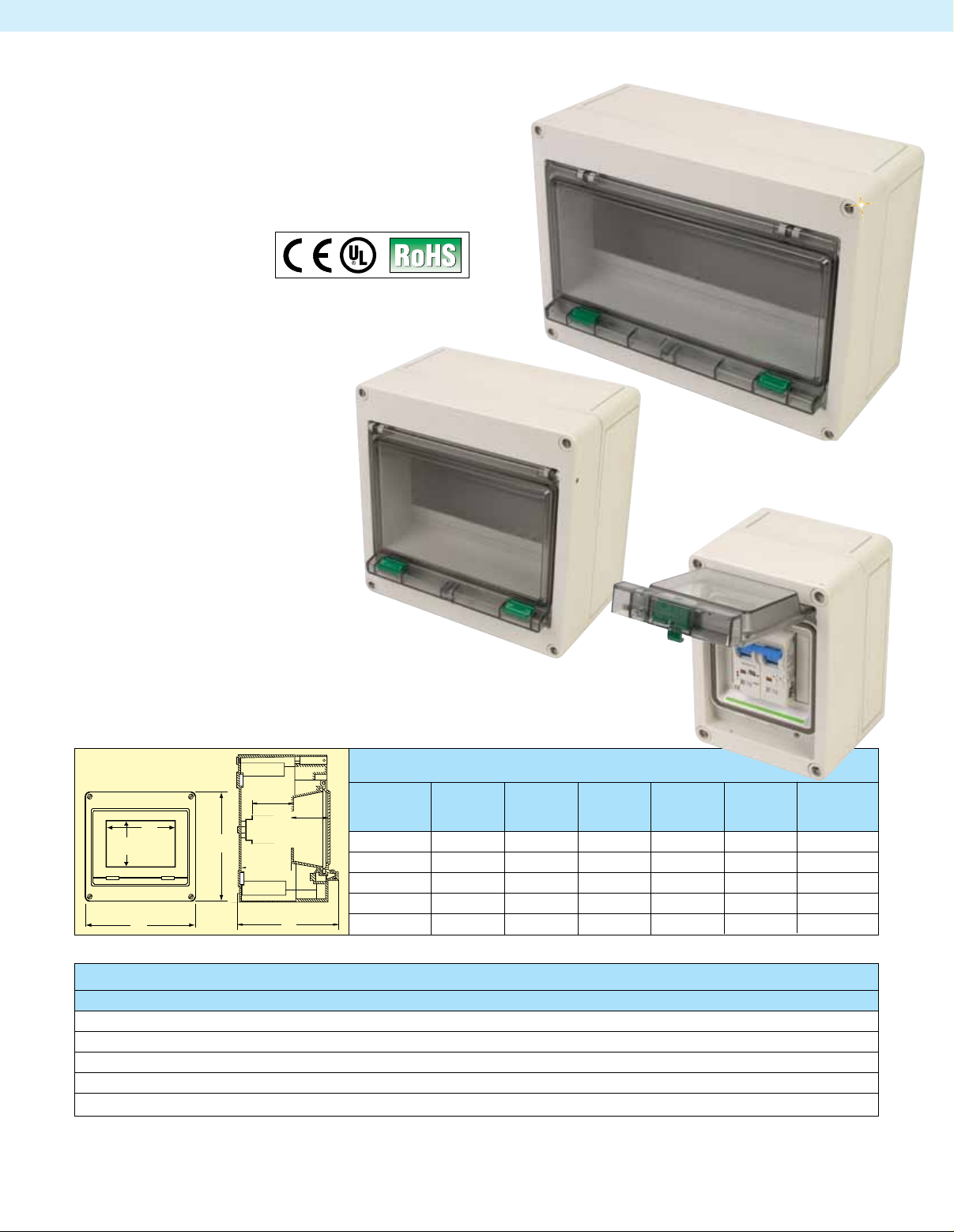

The EK Series polycarbonate enclosures
are a unique design to house and protect
standard IEC components, such as DIN rail
mount circuit breakers, timers, switches,
meters and other control devices. The unique
cover design features a shrouded cut-out and
transparent hinged doors with push release
doors latches, for quick access and visibility.
The shrouded cut-out, spanning the width
of the cover, exposes mounted components
for easy adjustment and isolates wiring for
increased safety.
EK008
enclosure 8-poles.
EK002 enclosure 2 to 3 poles,
2-pole supplementary protector
(sold separately). To order visit
EK012
enclosure 12-poles.
shown with AU-2BU10R
omega.com/enclosures
DIMENSIONS
50 mm
(1.97")
45 mm
(1.77")
C
D
E
B
To Order Visit omega.com/ek for Pricing and Details
MODEL NO. DESCRIPTION
EK002 NEMA 4X (IP65) enclosure for IEC electrical components, fits 2 or 3 circuit breaker poles
EK004 NEMA 4X (IP65) enclosure for IEC electrical components, fits 4 circuit breaker poles
EK008 NEMA 4X (IP65) enclosure for IEC electrical components, fits 8 circuit breaker poles
EK012 NEMA 4X (IP65) enclosure for IEC electrical components, fits 12 circuit breaker poles
EK024 NEMA 4X (IP65) enclosure for IEC electrical components, fits 24 circuit breaker poles
Comes complete with 35 x 7.5 mm DIN rail and label included.
Ordering Examples: EK002, polycarbonate enclosure for DIN mounted IEC components, fits one 2 or 3-pole circuit breaker.
EK008, polycarbonate enclosure with translucent hinged door with latch, for DIN mounted IEC components, fit equivalent of 8 poles.
A
# CIRCUIT HEIGHT WIDTH DEPTH CUT-OUT CUT-OUT
BREAKER (A) (B) (C) WIDTH (D) HEIGHT (E)
MODEL NO. POLES mm (inch) mm (inch) mm (inch) mm (inch) mm (inch)
EK002 2 to 3* 130 (5.12) 94 (3.70) 93 (3.66) 36 (1.42) 46 (1.81)
EK004 4 180 (7.09) 110 (4.33) 123 (4.84) 72 (2.83) 46 (1.81)
EK008 8 180 (7.09) 180 (7.17) 123 (4.84) 144 (5.67) 46 (1.81)
EK012 12 180 (7.09) 254 (10) 123 (4.84) 216 (8.50) 46 (1.81)
EK024** 24 361 (14.22) 254 (10) 123 (4.84) 216 (8.50) 46 (1.81)
* Can fit 3-pole with breakouts removed. ** 2-door model like 2-stacked EK012
N-1
