Omega EIS-PCB, EIS-PCB-ET, EIS-PCB-TTL User guide

MADE IN

User’s Guide

www.omega.com

e-mail: [email protected]

For latest product manuals

www.omegamanual.info

Shop on line at

Embedded

MMiiccrrooSSeerrvveerr

EIS-PCB, EIS-PCB-ET,
and EIS-PCB-TTL

Operator’s Manual

TM

USA

®

®

It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that apply.
OMEGA is constantly pursuing certification of its products to the European New Approach Directives. OMEGA will add the CE mark
to every appropriate device upon certification.

The information contained in this document is believed to be correct, but OMEGA Engineering, Inc. accepts no liability for any
errors it contains, and reserves the right to alter specifications without notice.

WARNING: These products are not designed for use in, and should not be used for, patient-connected applications.

!

This device is marked with the international caution symbol. It is important to read the Setup Guide before installing or
commissioning this device as the guide contains important information relating to safety and EMC.

®

®

OMEGAnet® On-Line Service

www.omega.com

Internet e-mail

[email protected]

Servicing North America:

USA: One Omega Drive, P.O. Box 4047

ISO 9001 Certified Stamford CT 06907-0047

 TEL: [phone] FAX: [phone]
 e-mail: [email protected]

Canada:  976 Bergar
 Laval (Quebec) H7L 5A1
 TEL: [phone] FAX: [phone]
 e-mail: [email protected]

For immediate technical or application assistance:

USA and Canada: Sales Service: 1-800-826-6342 / 1-800-TC-OMEGA

 Customer Service: 1-800-622-2378 / 1-800-622-BEST
 Engineering Service: 1-800-872-9436 / 1-800-USA-WHEN

Mexico and  TEL: (001)800-TC-OMEGA® FAX: [phone]
Latin American: En Espa

 e-mail: [email protected]

ñol: [phone]-7803

®

®

®

Servicing Europe:

Czech Republic: Frystatska 184, 733 01 Karviná

 TEL: [phone] FAX: [phone]
 e-mail: [email protected]

Germany/Austria: Daimlerstrasse 26, D-75392 Deckenpfronn, Germany
 TEL: [phone] FAX: [phone]
 Toll Free in Germany: 0800 639 7678
 e-mail: [email protected]

United Kingdom: One Omega Drive

ISO 9002 Certified River Bend Technology Centre

 Northbank, Irlam Manchester M44 5BD United Kingdom
 TEL: [phone] FAX: [phone]
 Toll Free in England: 0800 488 488
 e-mail: [email protected]

TABLE OF CONTENTS

Part 1: Introduction ....................................................................................................2

1.1 Safety and EMC Considerations ...........................................................2

1.2 Before You Begin ...................................................................................2

1.3 Description..............................................................................................3

Part 2: Hardware ....................................................................................................4

2.1 Mounting ................................................................................................4

2.1.1 Mounting ...................................................................................4

2.2 DIP Switches...........................................................................................4

2.3 Parts of iServer Unit ..............................................................................5

2.4 Serial Communication Interfaces ........................................................6

2.4.1 Wiring RS232 Interface ............................................................6

2.4.3 Wiring TTL Interface .................................................................7

2.4.4 Wiring RS485 Interface ............................................................7

2.5 Network Communication Interfaces ....................................................8

2.5.1 10Base-T RJ-45 Pinout .............................................................8

2.5.2 10Base-T Crossover Wiring .....................................................8

Part 3: Network Configuration ........................................................................................9

3.1 Network Protocols .................................................................................9

3.2 Ethernet (MAC) Address .......................................................................9

3.3 DHCP .................................................................................................10

3.4 DNS .................................................................................................10

3.5 IP Address ............................................................................................11

3.5.1 Default IP Address...................................................................11

3.6 Port Number..........................................................................................11

Part 4: Operations ..................................................................................................12

4.1 iCONNECT Software ...........................................................................13

4.2 Setup and Operation using a Web Browser .....................................14

4.2.1 Device Setup............................................................................15

4.2.2 Read Devices ...........................................................................16

4.2.3 Device Query ...........................................................................16

4.2.4 Configuration...........................................................................17

4.2.5 Configure Access Control .....................................................20

4.3 Setting a New IP Address using the Serial Port ...............................22

4.4 Setting a New IP Address over the Network .....................................24

4.5 Terminal Server Function ...................................................................25

4.6 Terminal Emulation .............................................................................26

4.7 Telnet Setup .........................................................................................27

4.8 HTTPGET Program...............................................................................29

4.9 ARP Protocol ........................................................................................30

4.10 Remote Access (Tunneling) ................................................................31

4.10.1 Remote iServer ........................................................................32

4.10.2 Local iServer ...........................................................................33

4.10.3 Tunneling Troubleshooting ...................................................34

4.11 iPORT, COM Port Redirector ...............................................................34

4.11.1 Overview ..................................................................................34

4.11.2 Configurations.........................................................................35

i

4.12 Mail Notifier Software...........................................................................37

4.12.1 Installation ...............................................................................37

4.12.2 Program Options Setup and Configuration .........................38

4.12.3 Device Setting Setup and Configuration...............................39

Part 5: Specifications.................................................................................................... 40

Part 6: Factory Preset Values .......................................................................................41

Appendix A Glossary................................................................................................42

Appendix B IP Address ............................................................................................43

Appendix C IP Netmask............................................................................................44

Appendix D ASCII Chart ..........................................................................................45

ASCII Chart Control Codes .................................................................46

Part 7: Approvals Information

7.1 Electromagnetic Compatibility (EMC) ...............................................47

7.2 FCC ..................................................................................................47

ii

LIST OF FIGURES:

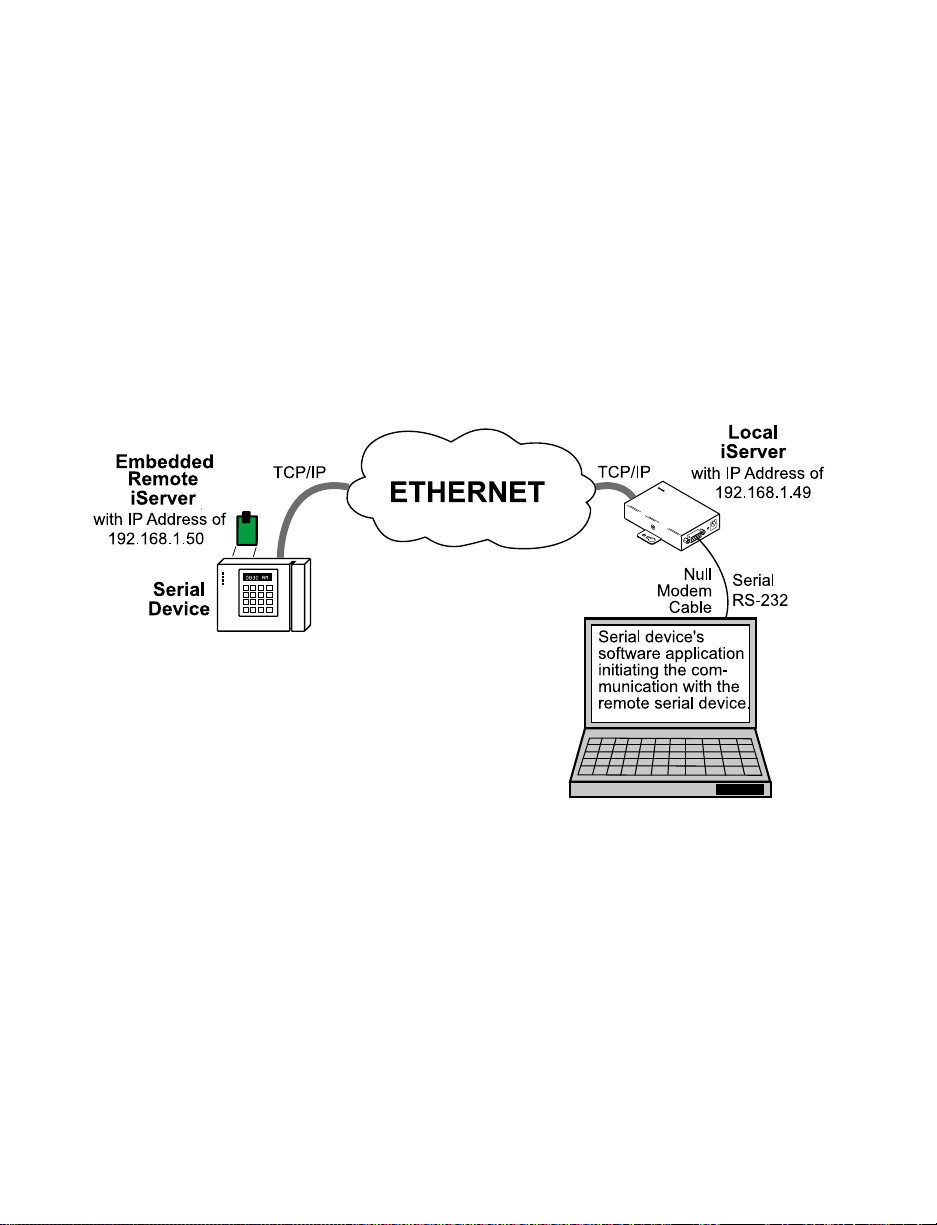

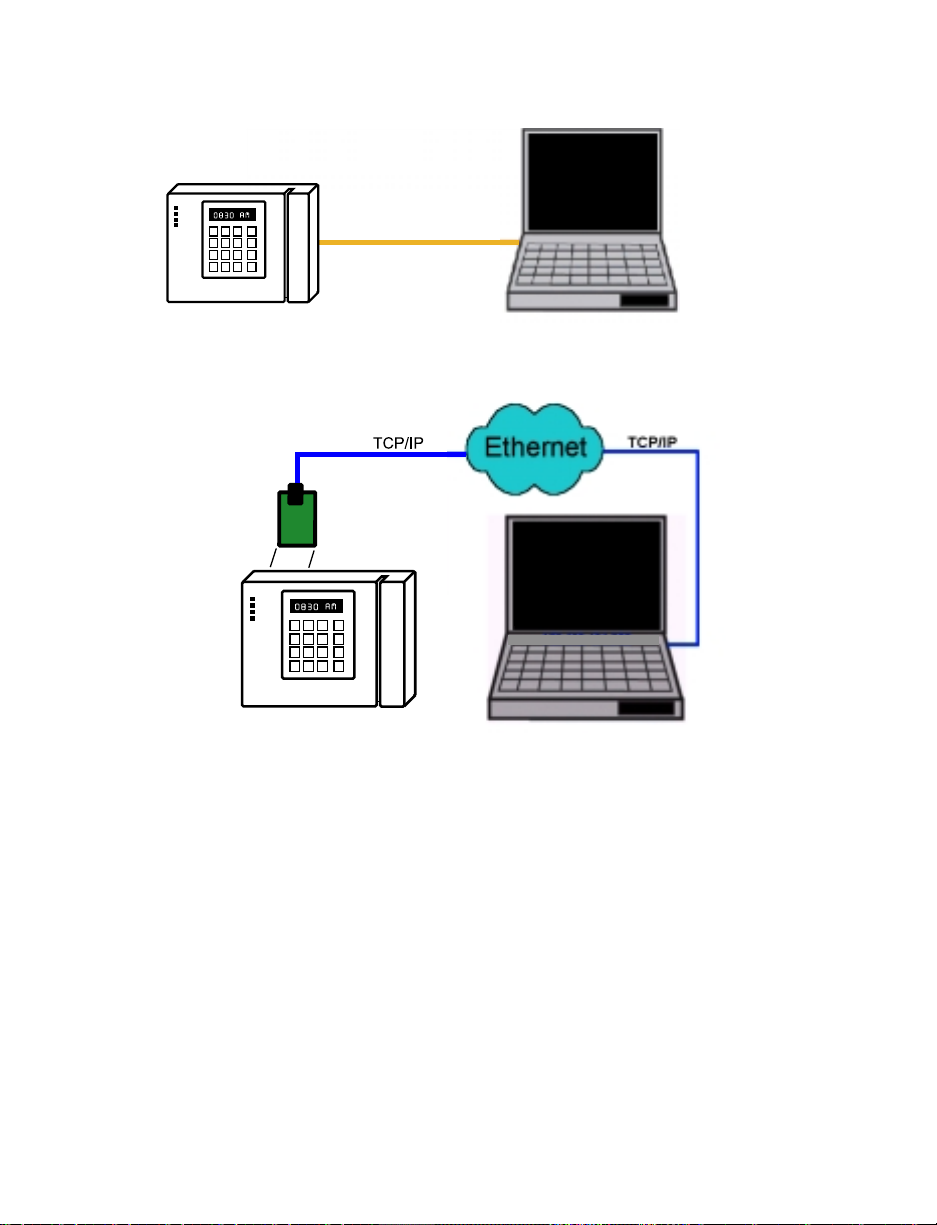

Figure 1.1 Accessing devices over the Ethernet ...............................................................3

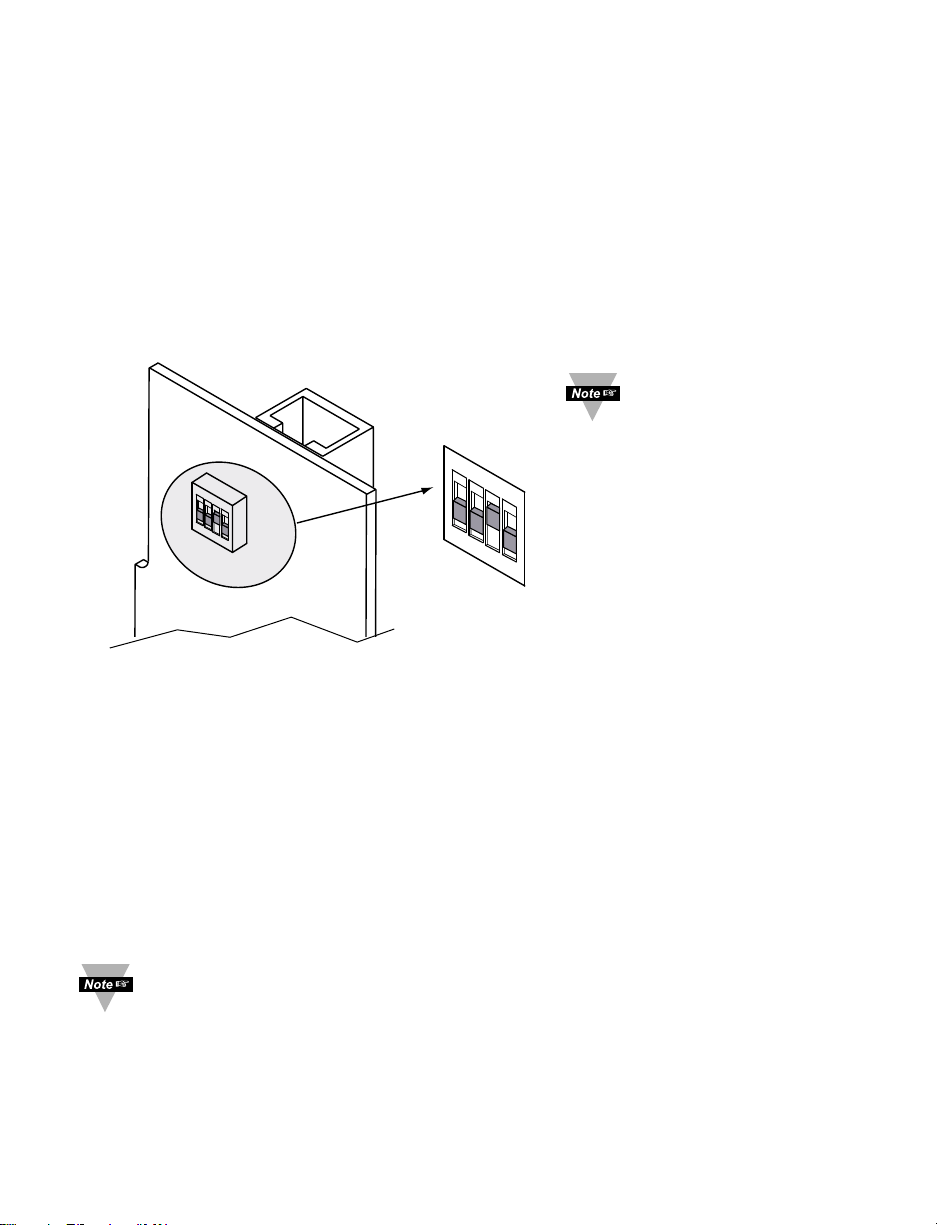

Figure 2.1 Mounting ............................................................................................................4

Figure 2.2 DIP Switches........................................................................................................4

Figure 2.3 Parts of the iServer Unit .....................................................................................5

Figure 2.4 J16A Connector...................................................................................................6

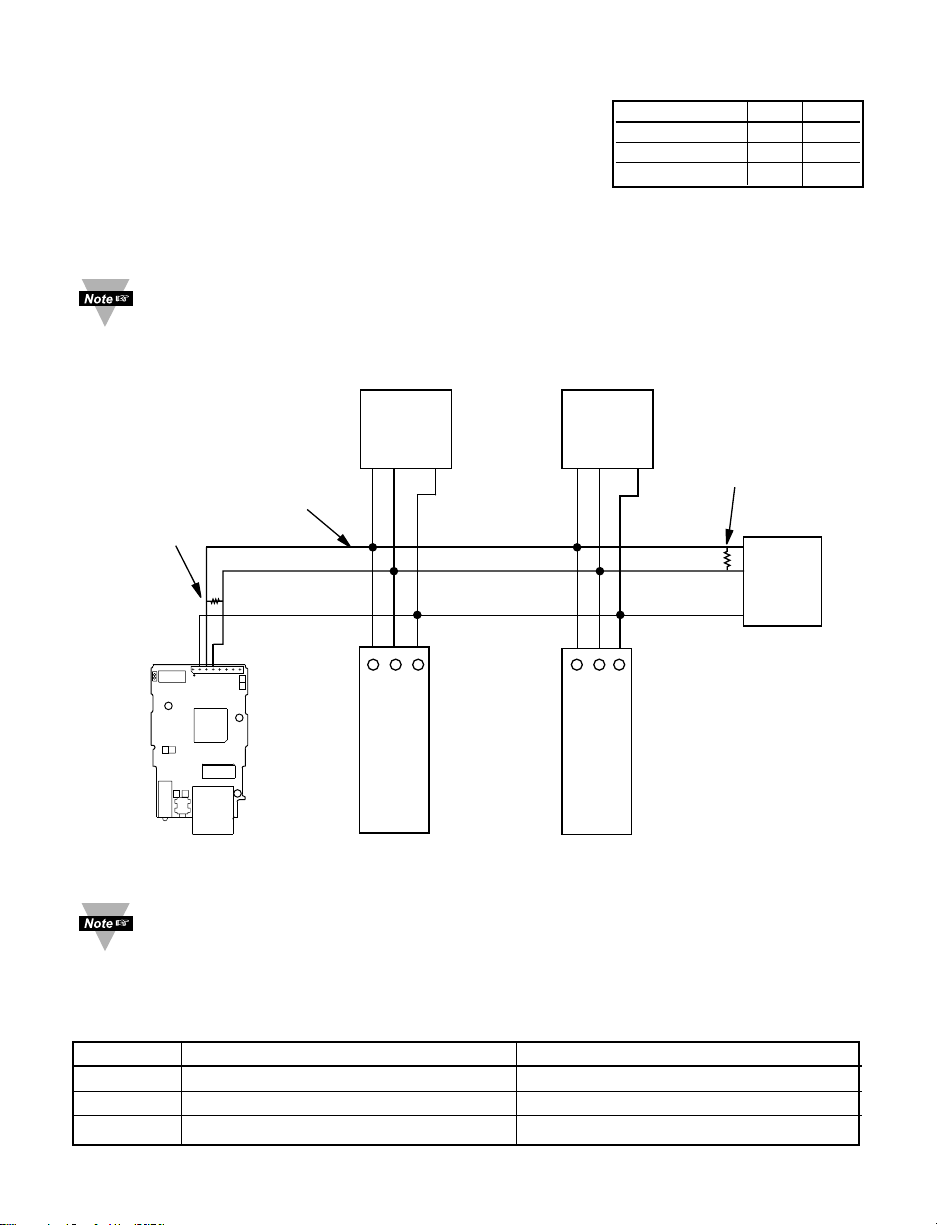

Figure 2.5 Multi-point, Half-Duplex RS485 Wiring .............................................................7

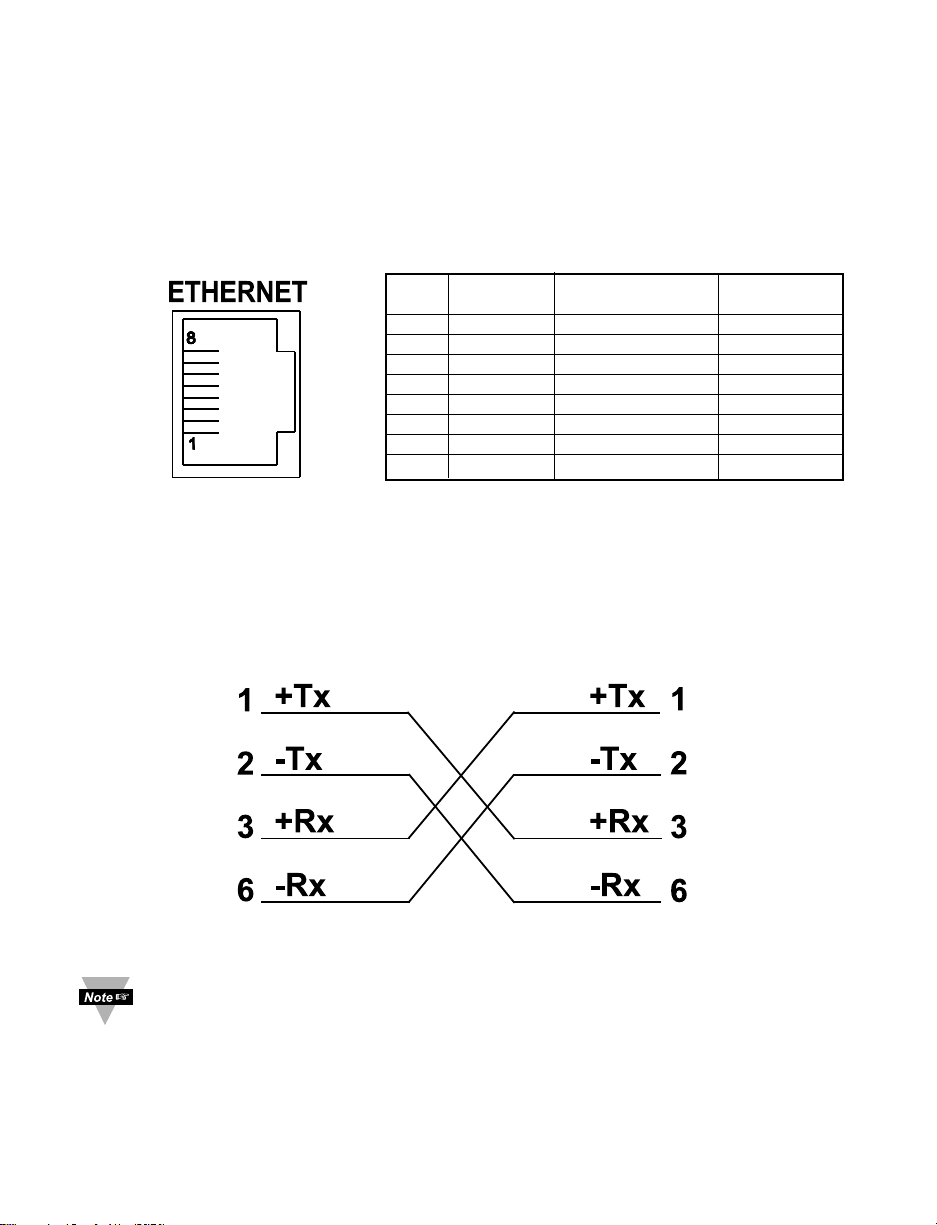

Figure 2.6 RJ45 Pinout ........................................................................................................8

Figure 2.7 10Base-T Crossover Cable Wiring ..................................................................8

Figure 3.1 Labeling ..............................................................................................................9

Figure 3.2 DIP Switch on Bottom Side of iServer ............................................................10

Figure 4.1 Pinging eis03ec MS-DOS Prompt ...................................................................12

Figure 4.2 Assigning an IP Address using iCONNECT ...................................................13

Figure 4.3 Accessing the iServer for Configuration ........................................................13

Figure 4.4 iServer Home Page Menu ................................................................................14

Figure 4.5 Login and Administrator Password ................................................................14

Figure 4.6 Device Setup .....................................................................................................15

Figure 4.7 Device Parameters ............................................................................................15

Figure 4.8 Error Message ...................................................................................................16

Figure 4.9 Read Devices.....................................................................................................16

Figure 4.10 Device Query .....................................................................................................16

Figure 4.11 Configuration ....................................................................................................17

Figure 4.12 Access Control .................................................................................................20

Figure 4.13 DIP Switch #1 ....................................................................................................22

Figure 4.14 Setting the IP address via the Serial Port .......................................................22

Figure 4.15 Pinging 192.168.1.70 from the MS-DOS Prompt ............................................23

Figure 4.16 Access Control .................................................................................................24

Figure 4.17 Terminal Server Configuration ........................................................................25

Figure 4.18 Terminal Emulation ..........................................................................................26

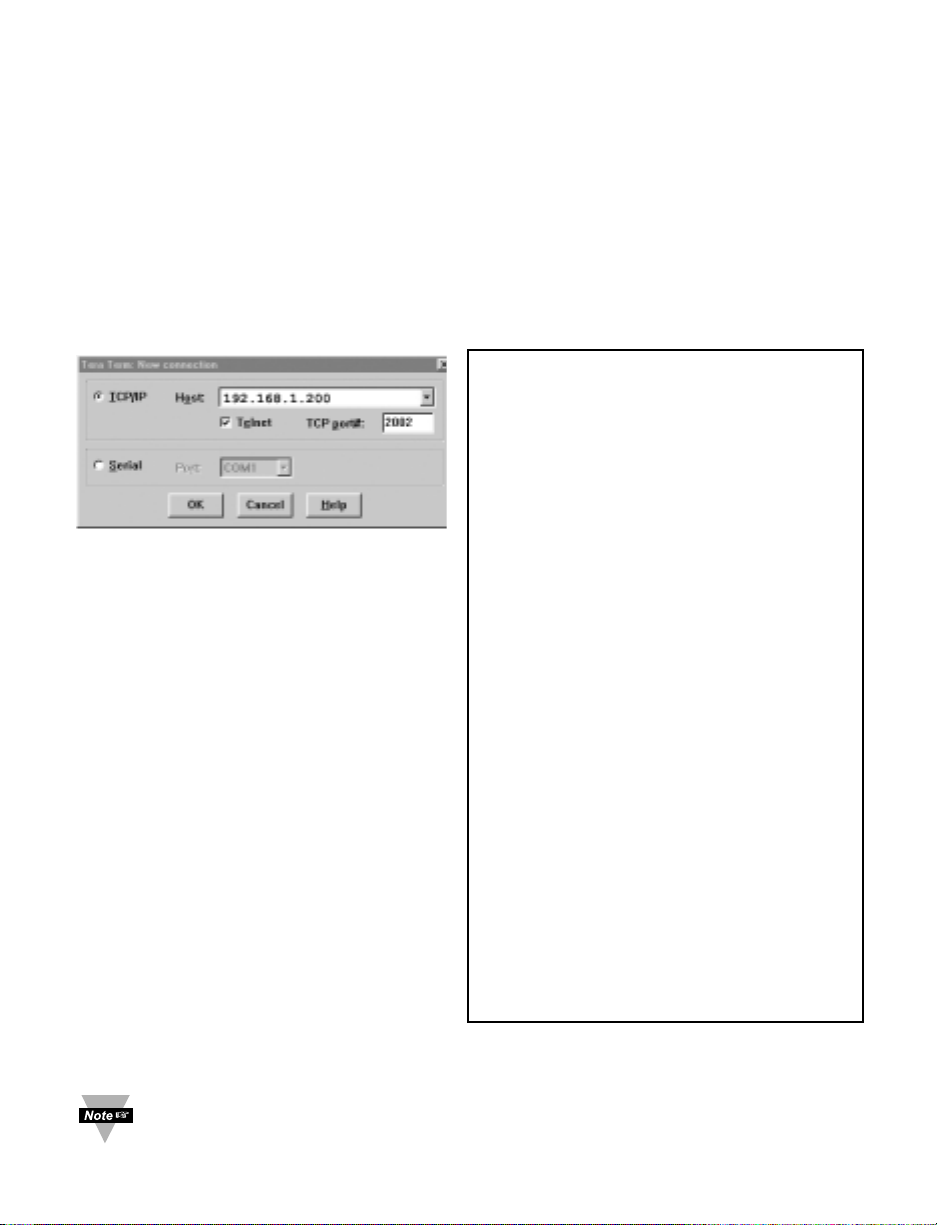

Figure 4.19 Tera Term Telnet Connection Screen .............................................................27

Figure 4.20 Telnet Setup - iServer Configuration Page ....................................................27

Figure 4.21 Telnet Setup - iServer Help Page ....................................................................28

Figure 4.22 ARP Commands and Responses ...................................................................30

Figure 4.23 Serial Tunneling ................................................................................................31

Figure 4.24 Configuration Page - Remote iServer .............................................................32

Figure 4.25 Configuration Page - Local iServer .................................................................33

Figure 4.26 Direct Serial Connection ..................................................................................35

Figure 4.27 Redirect Serial Connection ..............................................................................35

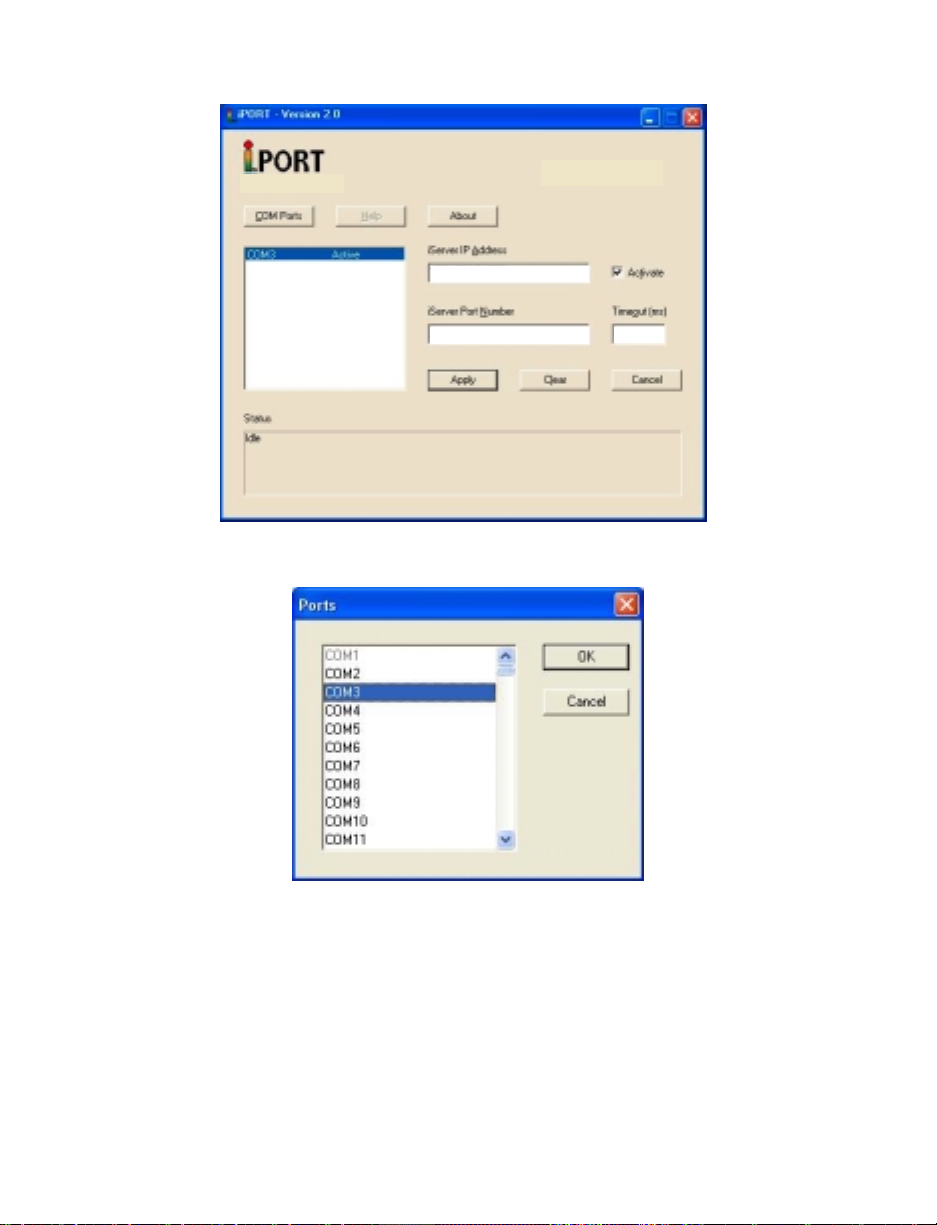

Figure 4.28 iPORT Main Window .........................................................................................36

Figure 4.29 COM Port Window.............................................................................................36

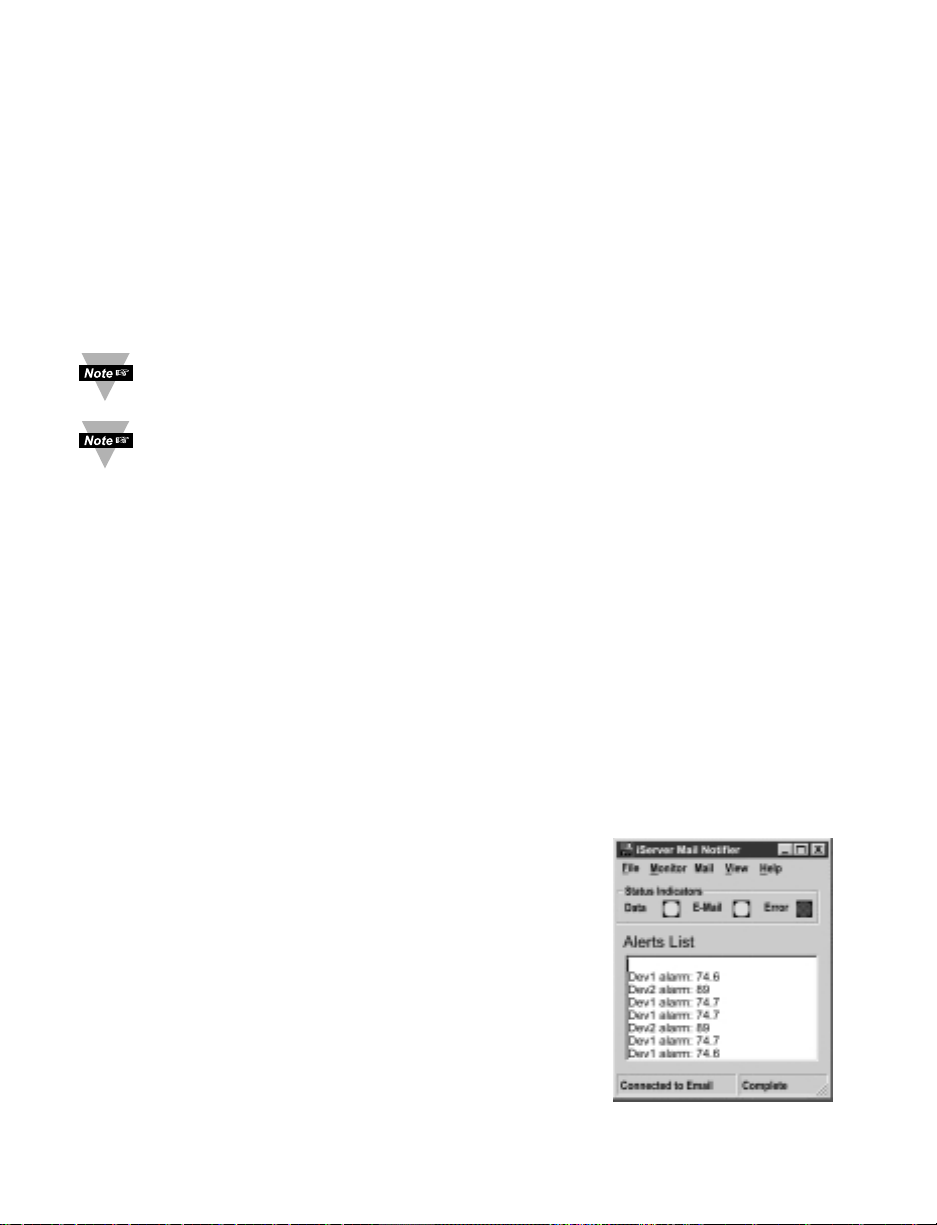

Figure 4.30 iServer Mail Notifier Main Window ..................................................................37

Figure 4.31 iServer Mail Notifier Profile Setup ...................................................................38

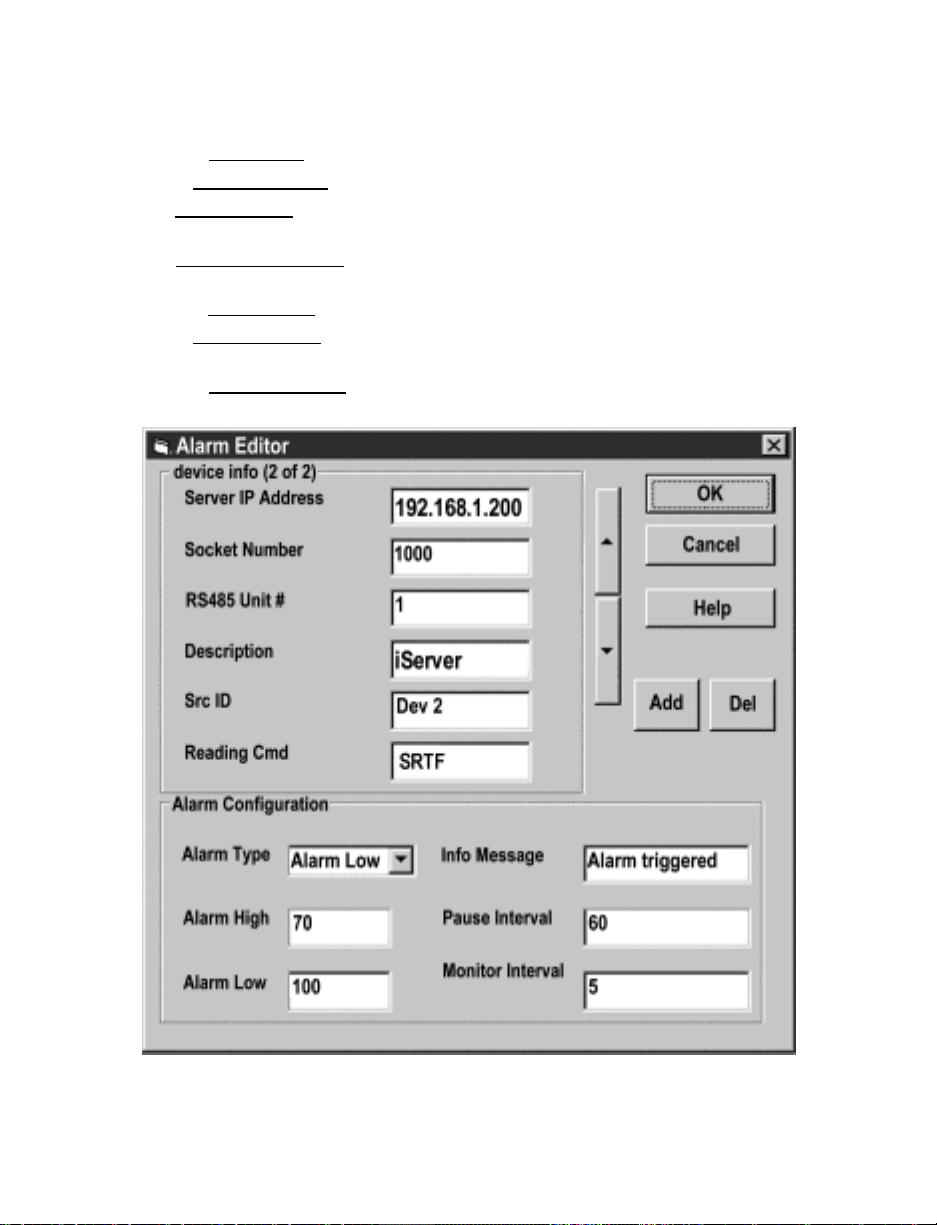

Figure 4.32 iServer Mail Notifier Device Setting ................................................................39

LIST OF TABLES:

Table 2.1 Parts of iServer Unit ...........................................................................................5

Table 2.2 Data Transmission Characteristics - RS232 and RS485 ................................6

Table 2.3 Signals and Directions of Connector ...............................................................6

Table 2.4 Signals and Directions of Connector................................................................7

Table 2.5 RS485 Half-Duplex Hookup ...............................................................................7

iii

iv

NOTES, WARNINGS and CAUTIONS

Information that is especially important to note is identified by following labels:

• NOTE

• WARNING or CAUTION

• IMPORTANT

• TIP

NOTE: Provides you with information that is important to successfully

setup and use the iServer.

CAUTION or WARNING: Tells you about the risk of electrical shock.

CAUTION, WARNING or IMPORTANT: Tells you of circumstances or

practices that can effect the instrument’s functionality and must refer
to accompanying documents.

TIP: Provides you helpful hints.

1

PART 1

INTRODUCTION

1.1 Safety and EMC Considerations

This device is a stand alone low voltage (5Vdc) Ethernet Server to be integrated into a
design or system. Installation of this device should be done by qualified personnel and
should follow electrical safety requirements in accordance to EN 61010-1:2001 or
EN 60950 safety standards.

EMC Considerations

• Whenever EMC is an issue, always use shielded cables.

• Never run signal and power wires in the same conduit.

• Use signal wire connections with twisted-pair cables.

• Install Ferrite Bead(s) on signal wires close to the instrument if EMC problems persist.

Failure to follow all instructions and warnings may result in injury!

1.2 Before You Begin

Inspecting Your Shipment:

Remove the packing slip and verify that you have received everything listed. Inspect the
container and equipment for signs of damage as soon as you receive the shipment. Note
any evidence of rough handling in transit. Immediately report any damage to the shipping
agent. The carrier will not honor damage claims unless all shipping material is saved for
inspection. After examining and removing the contents, save the packing material and
carton in the event reshipment is necessary.

Customer Service:

If you need assistance, please contact the Customer Service Department nearest you.

Manuals, Software:

The latest operator’s manual as well as free iServer configuration software (iCONNECT)
and iServer Mail Notifier software are available at the WEB site listed on the cover

page of this manual. They may also be on the CD-ROM enclosed with your
shipment.

2

1.3 Description

The iServer is a stand alone Ethernet Server designed to connect devices with serial
interfaces to the Ethernet network using the TCP/IP protocol. It contains Ethernet and
RS-232/485/422 interfaces.

The standard features include:

• Use standard Web Browser , TCP connection, HTTPGET DOS program or Telnet
Simulation, for network connectivity.

• Install via RS-232/485/422 serial port connection.

•

Transfer data from RS-232/485/422 serial interface to TCP/IP using built-in socket server.

• Use a standard home page or customize Web page for OEM applications.

This device can be purchased as a stand alone DIN Rail mounted unit, or
as a bench/wall mount unit.

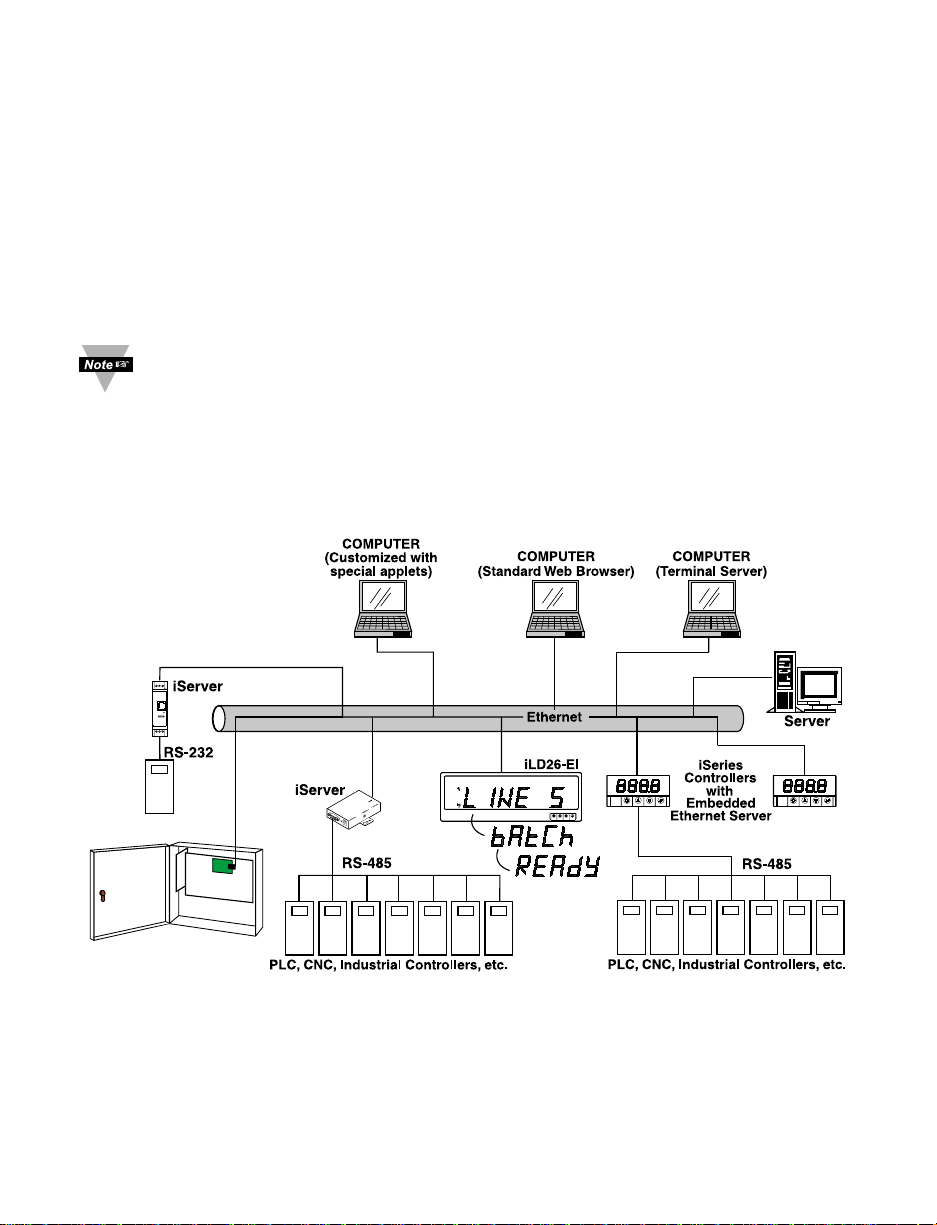

The following example illustrates how you can hookup the devices with serial interface
on the network using the iServer:

Figure 1.1 Accessing devices over the Ethernet

TX RX RTN

COMMUNICATIONS

ETHERNET

DC POWER IN

RX TX ON COL

RESET

+ - N/C

Control Panel with
Embedded iServer

3

4

PART 2 HARDWARE

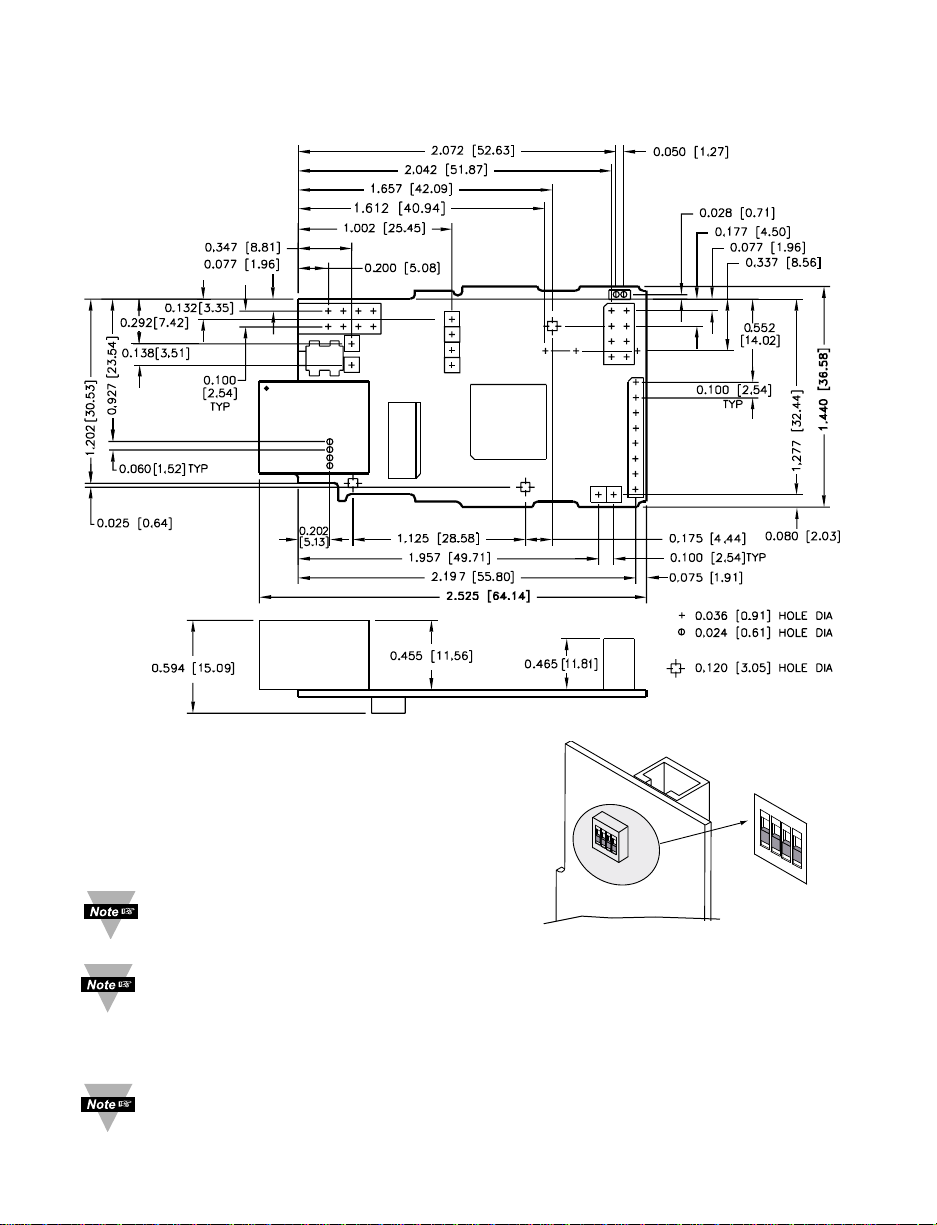

2.1 Mounting

Position unit where required. Mark and drill holes as required.

Figure 2.1 Mounting

2.2 DIP Switches

1 To change the IP address, gateway address,

and subnet mask from the serial port
2 To change to default factory settings
3 To enable/disable DHCP
4 To enable/disable Terminal Server function

The iServer is shipped with all
DIP switches in "OFF" position

To set the iServer to factory default settings, slide DIP switch #2 to ON position. Power the
iServer on and wait about 10 seconds until the iServer fully boots up. Set the DIP switch
#2 back to OFF position (it does not matter if the iServer is powered ON or OFF, just make
sure that the DIP switch is set to OFF, otherwise, every time the unit is power-cycled the
factory settings will take over. See Section 4.6 for setting the iServer to factory default
using the firmware (over the LAN).

To enable the DHCP, besides using DIP switch #3, set the iServer’s IP address to 0.0.0.0.
An iServer with IP address of 0.0.0.0 will request an IP address, gateway address, and
subnet mask from the DHCP server over the Ethernet.

For pin and socket connector

For mounting

RX (IN)
TX (OUT)
RST PWR
GND

J15

J18

LEDs

SW1

J9 GND

J8 +5V

J12

RJ45

GND

P11

+5V

J6

J16A

J1 (JTAG)

+5V

GND

RX (IN)

TX (OUT)

J10

SW2

1
2

1
2

1
2
3
4
5
6
7
8

1
3
5
7

1 2

1 2

1

RJ45

JTAG

J17

+5V
GND
TX (OUT)
RX (IN)
CTS (IN)
RTS (OUT)
DCD (IN)
DTR (OUT)

Dimensions are in inches
with millimeters in [ ].

Figure 2.2 DIP Switches

ON

1

2

OFF

3

4

1

ON

2

OFF

3

4

5

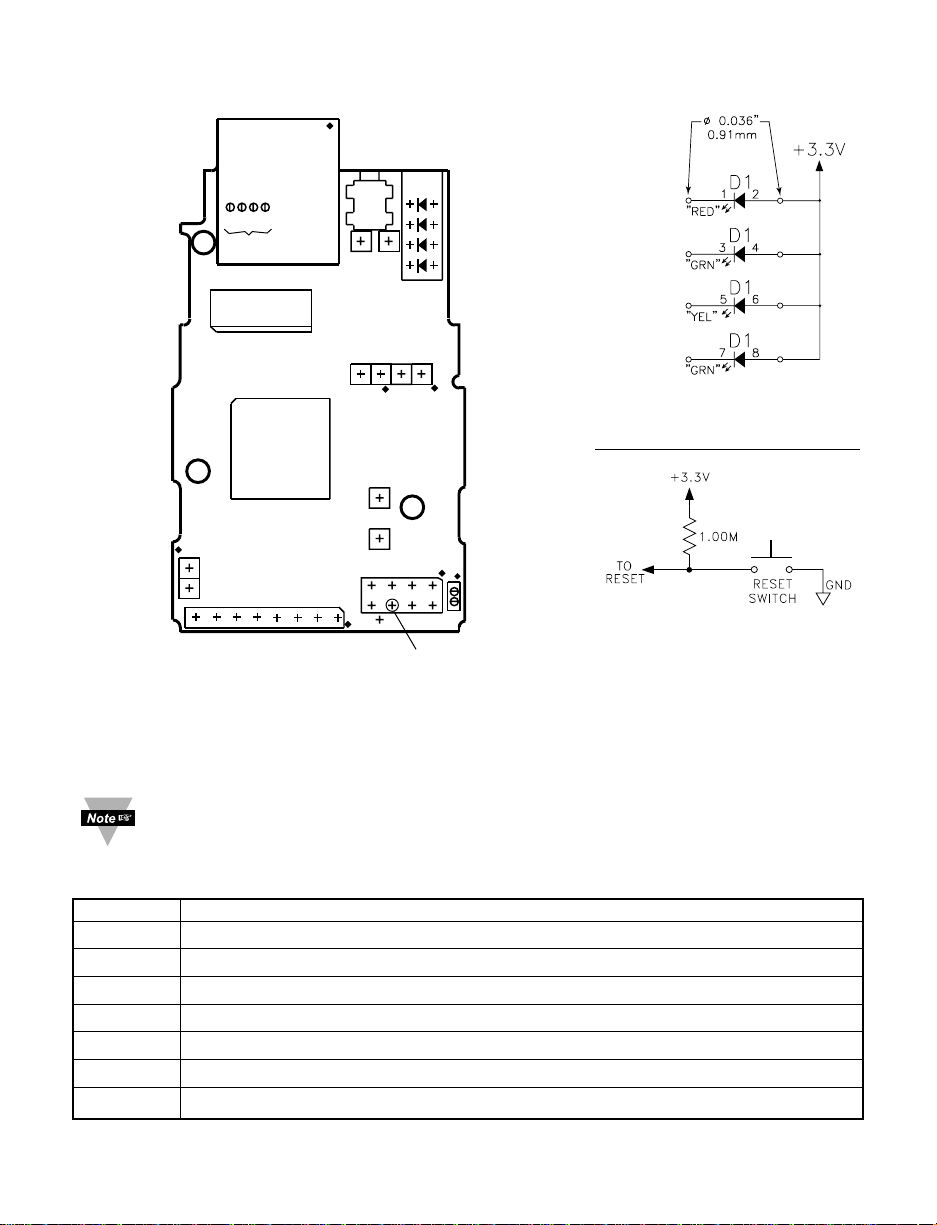

2.3 Parts of the iServer Unit

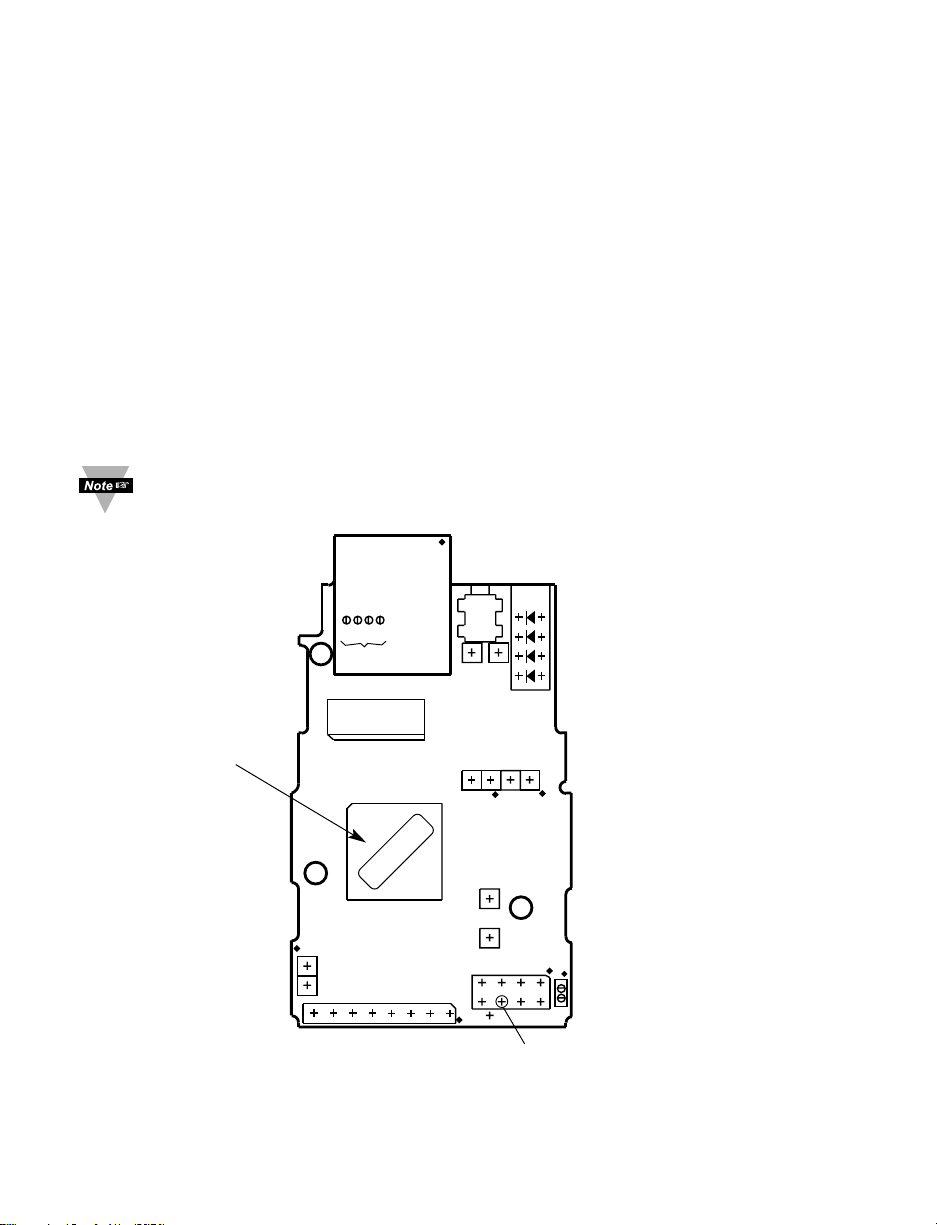

Figure 2.3 Parts of the iServer Unit

Pin headers can be installed on either side of the board for the serial interface
(J16A), in place of RJ45 Ethernet port (J17), Reset Switch (J18), and in place of
the LEDs.

Table 2.1 Parts of iServer Unit

SERIAL J16A for RS-232 / RS-485 / RS-422 connections / (firmware selectable).

ETHERNET RJ45 interface for 10BASE-T connection.

RESET Button: Used for power reseting the iServer.
ACTIVITY LED (Red) Blinking: Indicates network activities (receiving or sending packets).
NET LINK LED (Green) Solid: Indicates good network link.

TX LED (Yellow) Blinking: Indicates transmitting data to the serial port.
RX LED (Green) Blinking: Indicates receiving data on the serial port.

JTAG J1 is the JTAG Connector used for upgrading firmware revision.

Reference schematic

for wiring remote LED.

Reference schematic for

wiring remote Reset Switch

MOUNTING

HOLE

MOUNTING

HOLE

J6

+5V

GND

ETHERNET

4 3 2 1

J17

1
2

8

6

7

RTS (OUT)

DCD (IN)

DTR (OUT)

J12

RJ45

J16A

4

5

RX (IN)

CTS (IN)

J8

+5VJ9GND

J18

GND

P11

+5V

1

2

3

+5V

GND

TX (OUT)

RESET

SWITCH

1

2

RST PWR

GND

7

LED

CATHODE

1

2

RX (IN)

TX (OUT)

MNTG

HOLE

J1

JTAG

3

5

+3.3V

ACTIVITY (RED)

NETWORK LINK (GREEN)

TX TRANSMIT (YELLOW)

RX RECEIVE (GREEN)

ANODE

J15

1

J10

1

RX (IN)

2

TX (OUT)

6

2.4 Serial Communication Interfaces

Two communication interfaces are supported in the standard iServer: RS232 and
RS485. In addition, the serial port can also be provided with TTL logic on request.
These standards define the electrical characteristics of a communication network. The
RS485 port of the iServer is fully compatible to use with RS485 and RS422 instruments.
The RS485 is an extended version of the RS422 communication standard which
increases the allowable number of devices from 10 to 32 by improving the electrical
characteristics.

• The RS232 standard (point-to-point) allows a single device to be connected to an
iServer. The iServer operates with full-duplex RS232 using eight wires: Rx-receive,
Tx-transmit, DTR, DSR, DCD, CTS, RTS and common ground wires. RS232 cable
length is limited to 50 feet.

• The RS485 standard (multi-point) allows one or more devices (multi-dropped) to be
connected to the iServer using a two-wire connection (half-duplex) +Rx/+Tx and
–Rx/-Tx. Use of RS485 communications allows up to 31 devices to connect to the
iServer with cable length up to 4000 feet long.

Although the RS485 is commonly referred to as a "two wire" connection, the
iServer also provides a ground/return shield connection to use as a common
connection for EMI noise protection.

• The TTL standard (point-to-point) allows a single device to be connected to an
iServer. The iServer operates with full-duplex TTL using three wires:Rx-receive,
Tx-transmit, and common ground wires.

Table 2.2 shows the differences between RS232 and RS485 communication interfaces.

Table 2.2

Data Transmission Characteristics RS232 RS485

Transmission Mode Single ended Differential
Electrical connections 8 wire 2 wire
Drivers per line 1 driver 32 drivers
Receivers per line 1 receiver 32 receiver
Maximum cable length 50 ft (15 meters) 4000 ft (1200 meters)

Changing between RS232 and RS485 interfaces, as well as modifying the
other parameters is possible through the iServer firmware using its home Web
page or Telnet connection (see Part 4 for details).

2.4.1 Wiring RS232 Interface

Table 2.3 shows the signals and the direction of

signals on the DB9 (DTE configuration) RS-232
Serial Port.

J16A Pin # Signal Direction

1 +5V -­2 GND -­3 Tx OUT

4RxIN
* 5 CTS IN
* 6 RTS OUT
* 7 DCD IN
* 8 DTR OUT

* These 4 pins can also be used as digital

input/output signals (firmware selection)

+5V

GND

Tx (OUT)

Rx (IN)

CTS (IN)

RTS (OUT)

DCD (IN)

DTR (OUT)

8 7 6 5 4 3 2 1

J16A

Figure 2.4 J16A Connector

Table 2.3

7

2.4.2 Wiring TTL Interface
Table 2.4 shows the connector locations for Tx and Rx

signals for the TTL interface. The ground and +5Vdc can be
connected according to Table 2.3.

2.4.3 Wiring RS485 Interface

RS485 interface uses a two-wire communication system (one for transmitting and one for
receiving) plus a common wire to connect to the shield of the cable. It is recommended
to use a shielded cable with one twisted pair.

Use of twisted pair and shield will significantly improve noise immunity.

Figure 2.5 shows multi-point, half-duplex RS485 interface connections for the iServer.

Figure 2.5 Multi-point, Half-Duplex RS485 Wiring

Value of the termination resistor is not critical and depends on the cable
impedance.

Table 2.5 shows RS485 half-duplex hookup between the iServer serial port and device
with RS485 communication interface.

Table 2.5

Pin# iServer DEVICE WITH RS485

2

RTN (Common GND) GND (Common GND)

3 -Tx/-Rx (-Transmit/-Receive) -Tx/-Rx (-Transmit/-Receive)
4

+Tx/+Rx (+Transmit/+Receive) +Tx/+Rx (+Transmit/+Receive)

Connector Tx Rx

J16A 4 3

J10 1 2
J15 1 2

Table 2.4

DEVICE #1

.........................

DEVICE #29

120 Ohm

Termination

resistor

2

3

234

4

J16A

ETHERNET

Twisted

shielded

pair

-Tx/-Rx

+Tx/+Rx

-Tx/-Rx

-Tx/-Rx

DEVICE #2EIS-PCB iServer

GND

+Tx/+Rx

.........................

...............................

GND

+Tx/+Rx

...............................

-Tx/-Rx-Tx/-Rx

+Tx/+Rx

+Tx/+Rx

DEVICE #30

GND

GND

120 Ohm

Termination

resistor

DEVICE #31

-Tx/-Rx

+Tx/+Rx

GND

8

2.5 Network Communication Interfaces

2.5.1 10Base-T RJ-45 Pinout

The 10BASE-T Ethernet network (RJ-45) system is used in the iServer for network
connectivity. The 10 Mbps twisted-pair Ethernet system operates over two pairs of wires.
One pair is used for receiving data signals and the other pair is used for transmitting data
signals. This means that four pins of the eight-pin connector are used.

Figure 2.6 RJ45 Pinout

2.5.2 10Base-T Crossover Wiring

When connecting the iServer directly to the computer, the transmit data pins of the
computer should be wired to the receive data pins of the iServer, and vice versa. The
10Base-T crossover cable with pin connection assignments are shown on Figure 2.7.

Figure 2.7 10Base-T Crossover Cable Wiring

Use straight through cable for connecting the iServer to an Ethernet hub. The
ports on the hub are already crossed.

Pin# Name Description Pin# J17

RJ45 Remote

1 +Tx + Transmit Data 4
2 -Tx - Transmit Data 3
3 +RX + Receive Data 2
4 N/C Not Connected ­5 N/C Not Connected ­6 -Rx - Receive Data 1
7 N/C Not Connected ­8 N/C Not Connected -

9

PART 3

NETWORK CONFIGURATION

3.1 Network Protocols

The iServer can be connected to the network using standard TCP/IP protocols.
It also supports ARP, HTTP (WEB server), DHCP, DNS and Telnet protocols.

3.2 Ethernet (MAC) Address

MAC (Media Access Control) address is your computer's unique hardware number.
When you're connected to the LAN from your computer, a correspondence table relates
your IP address to your computer's physical (MAC) address. The MAC address can be
found on the label of your device and contains 6 bytes (12 characters) of hexadecimal
numbers XX:XX:XX:XX:XX:XX hex

For example: 0A:0C:3D:0B:0A:0B

There is an duplicate MAC address label included with your unit.

Figure 3.1 Labeling

MAC ADDRESS

LABEL IN HEX

CODE

MAC

00:00:00:00:00:00

MOUNTING

MOUNTING

HOLE

HOLE

J6

+5V

GND

ETHERNET

4 3 2 1

J17

1
2

8

6

7

RTS (OUT)

DCD (IN)

DTR (OUT)

J12

RJ45

SWITCH

J8

+5VJ9GND

J18

GND

RESET

1

2

RST PWR

GND

LED

CATHODE

2

TX (OUT)

MNTG
HOLE

P11

J16A

4

5

RX (IN)

CTS (IN)

+5V

1

2

3

+5V

GND

TX (OUT)

JTAG

3

5

7

ACTIVITY (RED)

NETWORK LINK (GREEN)

TX TRANSMIT (YELLOW)

RX RECEIVE (GREEN)

ANODE

J15

1

RX (IN)

J1

1

J10

1

RX (IN)

2

TX (OUT)

+3.3V

3.3 DHCP

DHCP, Dynamic Host Configuration Protocol enables individual computers or devices to
extract their IP configurations from a server (DHCP server). If the DHCP is enabled on
your iServer, as soon as the iServer is connected to the network, there is an exchange of
information between DHCP server and the iServer. During this process the IP address,
the Gateway address, and the Subnet Mask will be assigned to the iServer by the DHCP
server. Note that the DHCP server must be correctly configured to make such assignment.

The DHCP can also be enabled if the iServer’s IP address is set to 0.0.0.0.
If fixed or static IP address is desired, the DHCP must be disabled. The iServer is

shipped with DHCP disabled (factory default). The DHCP can be enabled by setting the
DIP switch # 3 to the “ON” position (refer to Figure 3.2).

Figure 3.2 DIP Switch on the Bottom Side of iServer

3.4 DNS

DNS, Domain Name System enables individual computers and devices to be recognized
over a network based on a specific name instead of an IP address. For example, instead
of having to use http://192.168.1.200 (IP address), you would use only http://eis03ec or
any eight character name stored as Host Name under Access Control page in the
iServer Home Page. The default DNS name for an iServer is "eis" followed by the last
four digits of the MAC address of that particular iServer.

1. It is very important to communicate with the network administrator in order to
understand the DHCP and its existing configurations on the host server,
before enabling the DHCP on the iServer.

2. The iServers are shipped with a default static IP address of

192.168.1.200 and Subnet Mask of 255.255.255.0.

3. On Novell networks or Windows 2000 where the DCHP is an updated
function of DNS this feature may be beneficial since a particular name can be
assigned eliminating the need for the IP address, as described in Section 3.4.

10

10

DIP switch # 3 shown
in “ON” position

ON

1

2

OFF

3

4

1

2

3

ON

OFF

4

3.5 IP Address

Every active device connected to the TCP/IP network must have a unique IP address.
This IP address is used to build a connection to the iServer’s serial port. Every computer
using TCP/IP should have a unique 32-bit address. It is divided into two portions, the
network ID and the host ID. For instance, every computer on the same network uses the
same network ID. At the same time, all of them have a different host ID. For more details
about the IP address see Appendix B.

3.5.1 Default IP Address

The iServer is shipped with a default IP address set to 192.168.1.200 and Subnet Mask
of 255.255.255.0. If you are going to use a Web browser or Telnet program to access
the iServer using its default IP address, make sure that the PC from which you’re
establishing the connection has an IP address that is in the same range as the iServer’s
IP address (192.168.1.x, where x can be any number from 1 to 254.

Your PC’s IP address cannot be the same as the iServer’s IP address).

You also need to make sure that your PC’s Subnet Mask is 255.255.255.0. This is a
good way to access the iServer over the network and make any configuration changes
needed. If the factory default address is already in use on your network, use an Ethernet
crossover cable between your computer and the iServer and modify the IP address or
any other settings within the iServer.

3.6 Port Number

All TCP connections are defined by the IP address and a port number. A port number is
an internal address that provides an interface between an application running on your
computer and the network through the TCP/IP protocol.

There are three default TCP port (socket) numbers assigned to the iServer:

1. Port (socket) number 1000 when using HTTPGET program.

2. Port (socket) number 2000 when trying to access your serial device connected to
the serial port of the iServer.

3. Port (socket) number 2002 when trying to access the iServer itself for reading or
changing the settings. This can be done using Telnet application.

Example: C:\>Telnet 192.168.1.200 2002

11

PART 4

OPERATIONS

This iServer can be used and configured in several ways, depending on user’s
preference and network setup. It can be used in Telnet simulation mode where it
emmulates serial communication operation over a network cable or directly from a Web
browser, like Netscape or Internet Explorer. It can also be configured using NEWPORT’s
iCONNECT Configuration Software.

If DHCP and DNS servers are used, the connection is very simple, you do not need to
worry about IP address, MAC address, or network conflicts, all of these issues are solved
for you by your network DHCP and DNS server. All that is left for you to do, is to enable
DHCP on the iServer (see Section 2.2) and use a straight network cable to connect the
iServer to a hub and power it up.

If DHCP is not the preferred method, you can configure your PC’s network connection with
an IP address of 192.168.1.x that is in the same range as the iServer’s default IP address
(192.168.1.200) and connect to the iServer using a cross-over network cable between your
PC’s network port and the iServer. After you’re done with configuring the iServer, you can
always set your PC back to its original settings.

On your computer, from the MS-DOS Prompt window type "ping 192.168.1.200” and
press Enter. If DHCP and DNS servers are used type “ping eisxxxx”, where xxxx are the
last four digits of the iServer’s MAC address, located on the back of the device. You should
get a reply as shown in Figure 4.1.

Figure 4.1 Pinging eis03ec MS-DOS Prompt

This proves that the connection is proper and you can get into configuration or run mode
using the Telnet or Web browser.

C:\>ping eis03ec
Pinging eis03ec with 32 bytes of data:

Reply from eis03ec: bytes=32 time=15ms TTL=60
Reply from eis03ec: bytes=32 time=8ms TTL=60
Reply from eis03ec: bytes=32 time=8ms TTL=60
Reply from eis03ec: bytes=32 time=8ms TTL=60

Pinging statistics for eis03ec:
Packets: Sent=4, Received=4, Lost=0 (0% loss)

Approximate round trip times in milli-seconds:

Minimum=8ms, Maximum=15ms, Average=9ms

12

13

4.1 iCONNECT Software

The iServer may also be assigned an IP Address by using the iCONNECT software.
a) Download the iCONNECT software from the website listed in this manual.
b) Install iCONNECT software on a networked PC. This software is compatible with

Windows 95, 98, NT, 2000, and XP.

c) Use iCONNECT to assign an IP address to the iServer and access its web pages

for configuration. You can also use any standard web browser to access the
iServer’s web pages. Consult with your IT department for obtaining an IP address.

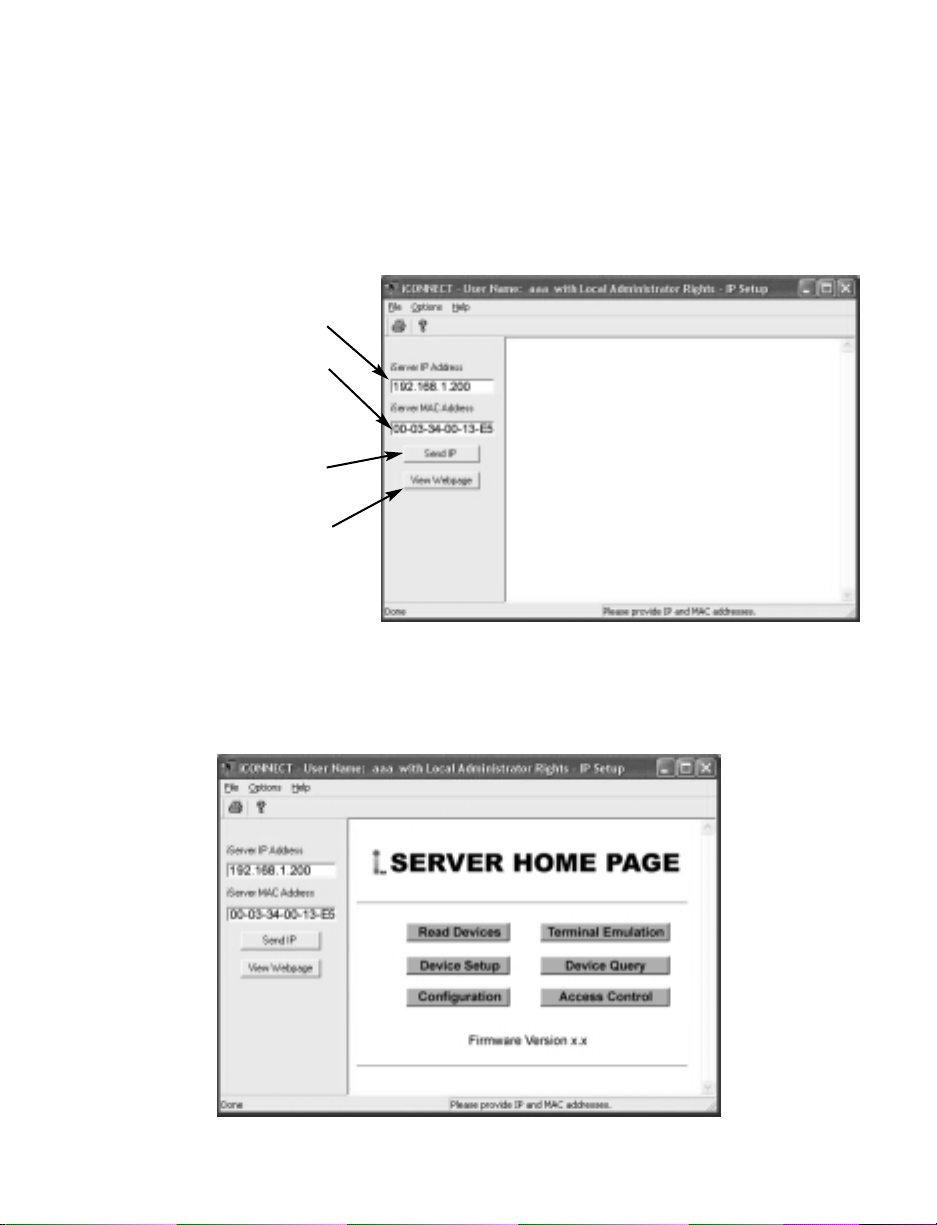

Figure 4.2 Assigning an IP Address using iCONNECT

To access the iServer for Configuration.
a) By clicking on the “View Webpage” button, you will access the iServer’s homepage,

refer to Section 4.2.

Figure 4.3 Accessing the iServer for Configuration

Place the IP address in this box

Take the MAC address from the
label attached to the bottom of
the iServer and place it in this
box

Click here to send the above IP
address to the iServer

After the IP address is assigned
to the iServer, click here to
access it’s web pages

4.2 Setup and Operation Using a Web Browser

• Start your web browser.

• In the URL field, type http://eisxxxx using the last four-digits from the MAC

address label located on the device if DHCP and DNS are used. If a static IP address
is used, then simply type http://x.x.x.x, where x.x.x.x is the iServer’s IP address.

• The Home Page, shown below, will be displayed.

Figure 4.4 iServer Home Page Menu

In order to access certain menu items of the Home Page, users may be
prompted for a password, as shown in Figure 4.5.

Figure 4.5 LOGIN and ADMINISTRATOR Passwords

There are 2 different access levels:

1. ADMINISTRATOR Password (administrator) allows certain groups and individual users to
access and modify "All" iServer pages items without any restrictions.

The default password is 00000000. This password can be up to 16 alphanumeric case­sensitive characters.

2. LOGIN Password (operator) allows users to access and modify all of the iServer
Home Page menu items, except “Access Control” which requires an Administrator
password. The "Read Devices" does not require a password.

The default password is 12345678. This password can be up to 16 alphanumeric
case-sensitive characters.

14

SERVER HOME PAGE

Address

http://192.168.1.200

SERVER HOME PAGE

Read Devices

Device Setup

Configuration

Firmware Version x.x

Terminal Emulation

Device Query

Access Control

LOGIN

http://192.168.1.200 http://192.168.1.200

LOGIN

ADMINISTRATOR

ADMINISTRATOR

15

4.2.1 Device Setup

From the iServer Home Page, this option allows the users to add up to eight devices (in
RS485 mode) and the iServer will send the entered commands out and will receive the
responses from those devices. The responses can be seen by clicking on the “Take
Readings” button.

Since only one device can be connected in an RS232 connection, there should be only
one device entered in the “Device Setup” page.

By clicking on the numbers from 1 to 8, the parameters for each device can be defined.

Figure 4.6 Device Setup

In the “Device Parameters” page the “Device Name” and the “Response Unit” fields are
simply text fields and each can take up to eight alphanumeric characters. The “Device
Command” field is where the actual command is typed. The iServer will send this
command to the serial device as soon as the “Take Reading” button is clicked.

Figure 4.7 Device Parameters

In RS485 connection, the
RS485 node number must
be typed before the actual

command.
Example: *01 is the RS485 node
number 1 and the X01 is the actual
command requesting temperature
value.

Click on numbers for
Device Parameters

DEVICE SETUP

Address

http://192.168.1.200

DEVICE SETUP

Device Name

No.

Check

1
2
3
4
5
6
7
8

Click on Device No. on the left to modify Device Parameters.

Boiler 1

Boiler 2

ABCDEFGH

ABCDEFGH

ABCDEFGH

ABCDEFGH

ABCDEFGH

ABCDEFGH

Device Command

*01X01

*02X01

Update Checked Box

Take Readings

Main Menu

Response Units

Deg. C

Deg. C

ABCDEFGH

ABCDEFGH

ABCDEFGH

ABCDEFGH

ABCDEFGH

ABCDEFGH

DEVICE PARAMETERS

Address

http://192.168.1.200

DEVICE PARAMETERS

Device No. 1

Device Name Boiler 1
Device Command *01X01
Response Unit Deg. C

Update Reset

Cancel

Main Menu

16

4.2.2 Read Devices

From the iServer home page, when
selecting “Read Devices” option, you
could be prompted with the following
error message.

To be able to select the “Read
Devices” option, you need to click on
the “Configuration” option and change
“Number of Connections” to 0
(see Figure 4.11). Make sure to
Save the page and click
“Read Devices” option again.

After adding the Parameters, including
the “Device Command” described in the
“Device Setup” page, the “Read Devices”
option allows you to monitor the
response back from the serial device.

4.2.3 Device Query

From the iServer Home Page, when selecting “Device Query” option, you could be
prompted with the following error message, shown in Figure 4.8.

To be able to select the “Device Query” option, you need to click on the “Configuration”
option and change “Number of Connections” to 0 (see Figure 4.11). Make sure to
Save the page and click “Device Query” option again.

The “Device Query” option allows you to
send a command to a single serial device
connected to the iServer and displays the
response back from that serial device. If
the connection is RS485, the RS485
node number must be typed before the
actual command.

Example: *01 is the RS485 node number
1 and the X01 is the actual command
requesting temperature value.

Figure 4.8 Error Message

Figure 4.9 Read Devices

Figure 4.10 Device Query

If you have 000, click the Auto Update
button to manually refresh the page.
If you want to change the time
interval of the page refresh, enter the
amount of seconds in the box.

Error

Address

http://192.168.1.200

ERROR

To view this page, disable Terminal Server option on the Configuration page,

by setting the "Number of Connections" to 0.

Main Menu

READ DEVICES

Address

http://192.168.1.200

READ DEVICES

92.4 Deg. C

1. Boiler 1 92.4 Deg.C

2. Boiler 2 91.8 Deg.C

Auto Update

000

Main Menu

DEVICE QUERY

Address

http://192.168.1.200

DEVICE QUERY

Command

Response

*01X01

92.4

Send

17

4.2.4 Configuration

This section describes the "Configuration" page of the iServers’s Web interface.
To get into the Configuration page, the user will be prompted with a Login Password. The

default Login password is 12345678 and is changeable, if desired.
When connecting your serial device to the iServer, the Serial Communications parameters

(baud rate, data bit, parity, and stop bit) must be the same on both, the iServer and your
serial device.

Figure 4.11 Configuration

4.2.4.A Serial Communication
Baud Rate: The serial port speed can be set from 300 to115,200 bits/s (default is 9600 bits/s.)
Data Bit: Options are 7 or 8 (default is 8 bits.)
Parity: Options are Odd, Even, and None (default is None.)
Stop Bits: Options are 1 and 2 bits (default is 1 bit.)
Flow Control: Options are Software Flow Control (Xon/Xoff), Hardware Flow Control

(CTS/RTS), and None (default is None.).

A

B

C

CONFIGURATION

Address

http://192.168.1.200

CONFIGURATION

Serial Communication

Baud Rate 9600 Data Bit 8 Bits Parity none Stop Bits 1 bit

Flow Control none Transciever RS-232

End Char (Hex) 00 Forward End Char enable Timeout 0 msecs

Serial Port Password disable 1234abcd

Modbus/TCP

disable

Terminal Server

TCP/UDP TCP Server Type slave Number of Connections 5 Local Port 02000

Connection Ctrl not used

Connection Timeout 00100 msecs

Device No. 1

Remote Access (Tunneling)

Remote Access

disable

Remote IP Address 0.0.0.0 Remote Port 02000

Save Reset

Main Menu

4.2.4.A Serial Communication (continued)
Transceiver: The iServer’s DB9 serial port can either be set to RS-232 or two-wire RS-

485 (default is RS-232.)
Modbus/TCP: A widely used protocol mainly in industrial automation applications with

default TCP port number of 502 (see Local Port field). The options are Enable and Disable.
If enabled, the Modbus/TCP is the only protocol driven by the iServer on its LAN port. If
disabled, the TCP/IP is the only protocol driven by the iServer on its LAN port (default is
disable).

End Character: When the defined Hex character is received by the iServer on its serial
port, the iServer will forward the buffered serial data to the Ethernet. The default value is
00, which forces the iServer to forward the data to the Ethernet as it receives the data on
its serial port (this means that the iServer requires NO “end character” to forward the
data).

Forward End Char: If enabled, the iServer will send the End Character out to the
Ethernet as part of the data. If disabled, the iServer will not count the End Character as
part of the data and will drop it (default is enabled.)

Timeout: In RS232 connection, if the iServer does not receive any more serial data
within the given time value, the iServer will forward the buffered serial data to the
Ethernet. For example, if the Timeout is set to 200 ms, the iServer will send out the
buffered serial data to the LAN, if it does not receive any more data on its serial port for a
period of 200 ms.

In RS485 connection, the Timeout value is used to switch between serial transmit and
receive mode. Since the iServer supports 2-wire RS485, it needs to either transmit or
receive serial data and the Timeout value determines the time interval for each. The
range can be from 0 to 9999 ms (default is 0 ms).

Serial Port Password: The Telnet connection to the iServer’s serial port (default port

2000) can be password protected if this option is enabled (default is disable). If enabled,
the actual password can be placed in the next field.

4.2.4.B Terminal Server
TCP/UDP: The iServer supports TCP and UDP protocol (default is TCP). If UDP is

selected, it can be configured either for Broadcast UDP or Directed UDP. In case of
Broadcast UDP, the iServer will transmit the serial data to every node on the network.
This can be accomplished if the Remote IP Address is set to 255.255.255.255.

The Broadcast UDP is a practical solution when one device needs to communicate with
multiple PC’s or devices over the network (one-to-many connection). In the case of
directed UDP, the iServer will transmit the serial data to a specific node on the network
(one-to-one connection). This can be accomplished if the Remote IP Address is set to
the IP address of that specific node.

Server Type: In most cases the iServer will be acting as a Slave device. Slave option is
chosen when a network host needs to connect to the serial port of the iServer (default is
Slave).

Number of Connections: The range is from 0 to 5. If 0 is selected, the Terminal Server
feature is disabled. This means that no network connection can be made to the serial
port of the iServer. If 1 is selected, only one network connection can be made to the
iServer’s serial port. Any number more than 1 would allow the network hosts to monitor
(read only) the traffic on the iServer’s serial port simultaneously, but only one network
host would be allowed to read and write (default is 5).

18

4.2.4B Terminal Server (continued)
Local Port: This is the port or socket number for the iServer’s serial port. Any number

between 500 and 9999 can be defined with the exceptions of 1000 and 2002 which are
already used by the iServer for other purposes (default is 2000.) Port number 502 is the
default socket number for Modbus/TCP protocol. If Modbus/TCP is enabled in the
iServer, it’s then suggested to use 502 for the Local Port unless your host software that
supports Modbus/TCP indicates otherwise.

If your application software is IP enabled, it means that it can open a connection
to a node on the network (i.e. iServer with the attached serial device) with an IP
address and a port number. In some cases the application software may not
allow you to specify the iServer’s port number (it only allows you to enter the
iServer’s IP address). In these cases, you should put 23 in the Local Port field of
the iServer. By doing this, the iServer will forward connections that are made to
its Ethernet port directly to its serial port.

Connection Control: Some serial devices accept connections or disconnect
connections based on certain signal conditions. For example, a serial device may accept
a connection only if the incoming DTR signal (connected to device’s DSR or DCD) is
high or low. In this case, when the iServer receives the TCP connection, before it
forwards it to its serial port, it must raise its DTR (DTR+) or to lower its DTR (DTR-). The
iServer is capable of doing this with any of the hardware or modem control signals (DTR,
DSR, DCD, RTS, and CTS).

"Reconnect" is one of the options in the Connection Control menu. This option
can be used in the Serial Tunneling described in Section 4.10. If the connection
in Serial Tunneling is broken due to network problems, power failure, etc., the
Reconnect option will try to get the connection back on line every whatever the
"Connection Timeout" is set to. For Example, if the Connection Timeout is set to
1000 x10 ms or 10 seconds, then every 10 seconds the iServer attempts to
reconnect and reestablish the serial tunnel to the other network node.

Device No.: Refer to Section 4.2.1

4.2.4.C Remote Access (Tunneling)
Remote Access: This option needs to be enabled when Serial Tunneling is configured.

The Serial Tunneling is explained in detail in Section 4.10.

Changes made in the iServer’s Configuration page can be saved permanently
by pressing the Save button. Pressing the Reset button will set all the fields
back to their default values.

19

20

4.2.5 Configure Access Control

This section describes the "Access Control" page of the iServers’s Web interface. This
page allows the users to set up the network and security parameters of the iServer.

To get into the Access Control page, the user will be prompted with an Administrator
Password. The default Admin password is 00000000 and is changeable, if desired.

At the initial entrance to the “Access Control” page you will be prompted for the Login
Password (see Figure 4.5) prior to an Administrator Password.

Figure 4.12 Access Control

Login Password: This allows users to access and modify all of the iServer Home Page

menu items, except “Access Control”, which requires an Administrator password. The
default Login password is 12345678. This password can be up to 16 alpha-numeric
case-sensitive characters.

If there is no Login Password assigned (blank box) the iServer will not require a
password to access and modify iServer Home page menu items.

Admin (administrator) Password: This allows users to access and modify the "Access
Control" page. The default password is 00000000. This password can be up to 16 alpha­numeric case-sensitive characters.

If there is no Administrator Password assigned (blank box) the iServer will not require
password to access and modify "Access Control" page.

Web Server: This will allow or disallow accessing the iServer’s Web server using an
Internet browser (default is enabled.)

Host Name: Refer to Section 3.4, DNS.

ACCESS CONTROL

Address

http://192.168.1.200

ACCESS CONTROL

Login Password 12345678

Admin Password

Web Server enable

Host Name eis21d9

MAC Address 00:03:03:00:21:D9
IP Address 192.168.1.200

Gateway Address

Subnet Mask

00000000

0.0.0.0

255.255.255.0

Save Reset

Power Recycle

Main Menu

21

4.2.5 Configure Access Control (continued)
MAC Address: This is also called Hardware address or Ethernet address, which is

assigned to the iServer at production. The MAC (Media Access Control) address is the
iServer’s unique hardware number and is not changeable.

IP Address: The IP (Internet Protocol) address is a 32-bit number that identifies each
sender or receiver of information that is sent in packets across the Ethernet or the
Internet. The iServer’s default IP address is 192.168.1.200. The iServer’s IP address
should be changed to fit user’s networking environment. Consult with your IT department
for obtaining an IP address.

The DHCP will be enabled in the iServer if its IP address is set to 0.0.0.0. The
DHCP can also be enabled by setting the dip switch number 3 to ON position.

Gateway Address: A gateway is a network point that acts as an entrance to another
network. A gateway is often associated with a router, which knows where to direct a
given packet of data that arrives at the gateway. If the iServer is sending packets to
another network node that is not on the same network on which the iServer is connected,
a gateway address needs to be given to the iServer. The gateway address should be the
IP address of the router connected to the same LAN to which the iServer is connected.
The iServer’s default gateway address is 0.0.0.0. Consult with your IT department for
obtaining a gateway address.

Subnet Mask: It’s a 32-bit number that is used to determine which part of the IP address
is the network portion and which part is the host portion. The iServer’s default subnet
mask is 255.255.255.0. Consult with your IT department for obtaining a subnet mask.

Changes made in the iServer’s Access Control page can be saved permanently
by pressing the Save button and power recycling the iServer (press Power
Recycle button). Pressing the Reset button will set all the fields back to their
default values.

22

4.3 Setting a New IP Address using the Serial Port

Once you know the IP address that you need to put on your iServer you can use a serial
connection (Terminal Emulation) to assign the IP address to the iServer.

Setting the IP address over the serial port requires a crossed-over (null modem) serial
cable and Hyper Terminal or any terminal emulation program. When all the connections
are done, change the DIP switch #1 to "ON" position and press the Reset button or
reset the power on the iServer. The Hyper Terminal screen will acknowledge your
connection by asking for the command.

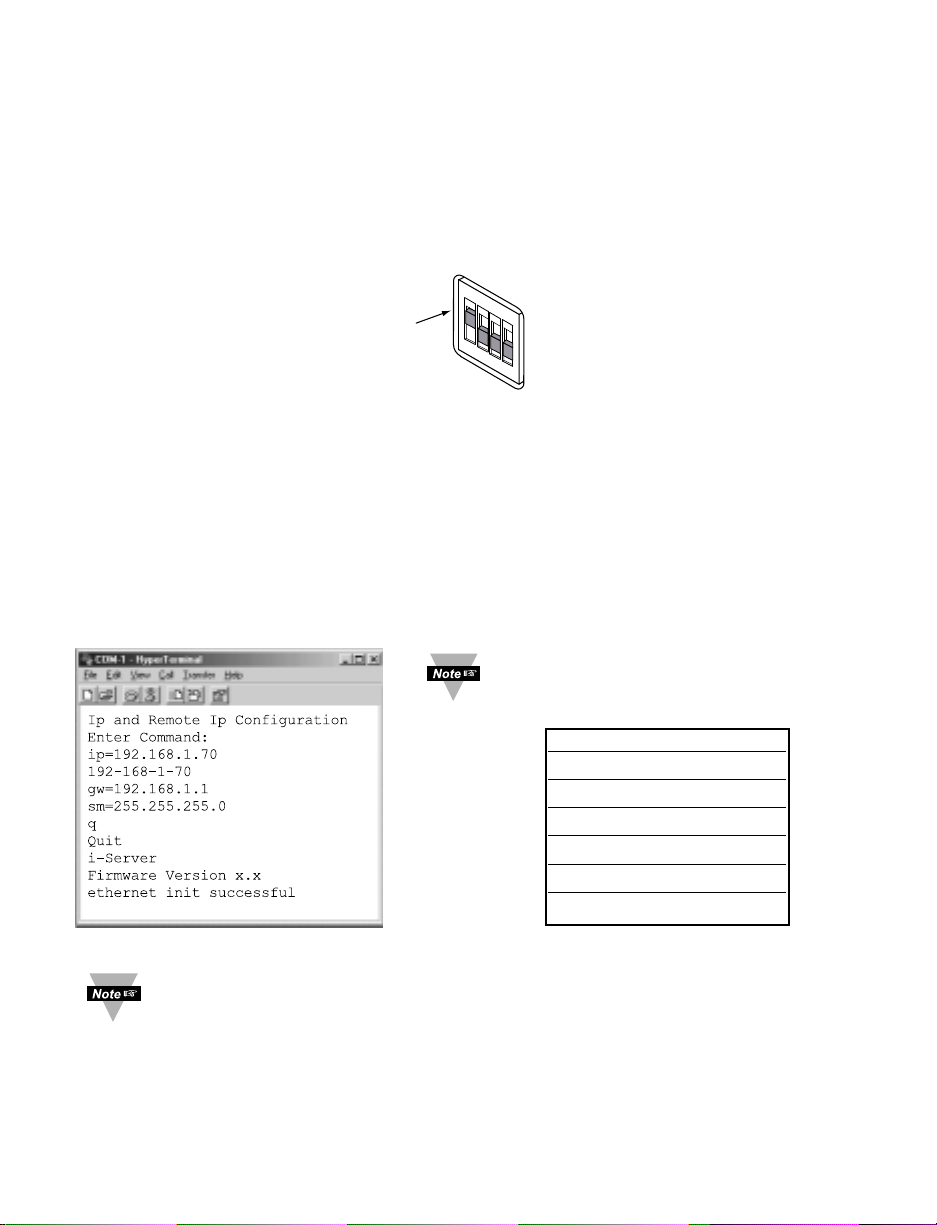

DIP switch # 1 shown
in “ON” position

Figure 4.13 DIP Switch #1

Type "IP=xxx.xxx.xxx.xxx" and press Enter.
The screen will acknowledge that your command was executed.
You can also set the iServer’s gateway and subnet mask by typing

"GW=xxx.xxx.xxx.xxx" and "SM=xxx.xxx.xxx.xxx", respectively.
Then type q and press Enter
You can now change the DIP switch #1 back to the “OFF” position and reset the power

on the iServer.

Figure 4.14 Setting the IP address via the Serial Port

You can access the iServer’s complete settings by connecting the iServer’s serial
port to your PC’s COM port using a null-modem cable. Bring up a terminal
emulation program (i.e. HyperTerminal) and make sure the right COM port is
selected and the serial communications settings (baud rate, character bit, stop bit,
and parity) match the iServer’s serial port. Power the iServer on and press the
Enter key within 5 seconds of powering the iServer. The iServer will then transmit
its complete configurations to the PC.

You need to make sure to setup the
following parameters on your terminal
emulation program (i.e. Hyper Terminal)

Baud Rate - 9600 b/s
Data Bit - 8 bits
Parity - None
Stop Bit - 1 bit
Flow Control - None
Local Echo - Enable
Line Feeds - Enable

1

2

ON

OFF

3

4

4.3 Setting a New IP Address using the Serial Port (continued)

All that is left for you to do, is to use a straight/normal network cable to connect the
iServer to an Ethernet hub and power it up. Then you can go to your computer that is
connected to the same network and from the MS-DOS-Prompt window type "ping

192.168.1.70" where 192.168.1.70 is the new IP address for the iServer.

Figure 4.15 Pinging 192.168.1.70 from the MS-DOS Prompt

This proves that the connection is proper and you can access the iServer using the
Telnet or Web browser.

C:\>ping 192.168.1.70
Pinging 192.168.1.70 with 32 bytes of data:

Reply from 192.168.1.70: bytes=32 time=15ms TTL=60
Reply from 192.168.1.70: bytes=32 time=8ms TTL=60
Reply from 192.168.1.70: bytes=32 time=8ms TTL=60
Reply from 192.168.1.70: bytes=32 time=8ms TTL=60

Pinging statistics for 192.168.1.70:
Packets: Sent=4, Received=4, Lost=0 (0% loss)

Approximate round trip times in milli-seconds:

Minimum=8ms, Maximum=15ms, Average=9ms

23

4.4 Setting a New IP Address over the Network

Besides using the iCONNECT software, you may use the iServer’s default IP address to
access it and assign a new IP address to it.

The iServer is shipped with a default IP address of 192.168.1.200 and Subnet Mask of

255.255.255.0. You can configure your PC’s Network connection with an IP address that
is in the same range as the iServer’s IP address (192.168.1.x) and connect to the iServer
using a crossover network cable between your PC and the iServer.

With this completed, you can go to the DOS-Prompt and ping 192.168.1.200. If you
receive responses back (Figure 4.15), you can go to the Web browser and type in
http://192.168.1.200 and it will take you to the iServer’s Home Page.

Select

,

button, you’ll be asked for the password. First default LOGIN
password is "12345678" and the ADMINISTRATOR password is "00000000", then you
should be on the Access Control page were you can simply type in the desired Static IP
address, and click Save.

For more details about the “Access Control” page refer to Section 4.2.5.

Figure 4.16 Access Control

For the IP address to take effect the iServer needs to be turned OFF/ON or
press the Reset button.

Once all of this is done, you can connect the iServer to an Ethernet hub using a straight
through cable, power it up, and follow the ping routine mentioned in the previous section.

Access Control

24

ACCESS CONTROL

Address

http://192.168.1.200

ACCESS CONTROL

Login Password 12345678

Admin Password

Web Server enable

Host Name eis21d9
MAC Address 00:03:03:00:21:D9
IP Address 192.168.1.200

Gateway Address

Subnet Mask

00000000

0.0.0.0

255.255.255.0

Save Reset

Power Recycle

Main Menu

25

4.5 Terminal Server Function

It is used to provide dedicated connectivity between computers and serial devices
through the iServer over the Ethernet, without dedicated wiring. The typical Internet
protocol consists of a request and a reply to that request. In this situation the server is
the Host that generates the request and receives the reply from the device, that gets
forwarded to the appropriate party on the network. But there are specific applications
where a message is generated by the device, and the server is simply passing the data
to the appropriate party on the network, in this situation the server acts as Slave.
Examples are the Attendance Time Clocks, Bar Code Readers, remote Displays or
Electronic signboards, etc.

For the iServer to pass the data back and forth between its Serial and Ethernet
interfaces, the Terminal Server option needs to be configured as follows (Figure 4.17):

1. Set the Server Type to Slave

2. Set the Number of Connections to 1 or higher.

3. Set the Local Port number to any number from 599 - 9999, except numbers
1000 and 2002.

4. Press the Save button to store the new settings.

From your application software on the host machine, you can now point to the IP address
of the iServer and the assigned port number to establish a TCP connection to your serial
device connected to the serial port of the iServer.

Figure 4.17 Terminal Server Configuration

If DIP switch #4 is
“ON”, Terminal
Server function is

always enabled,
regardless of the firmware
configuration. By default,
this DIP switch is set to
“OFF” position. You have
the option to enable the
Terminal Server feature
either through the firmware
or the DIP switch #4.

CONFIGURATION

Address

http://192.168.1.200

CONFIGURATION

Baud Rate 9600 Data Bit 8 Bits Parity none Stop Bits 1 bit

Flow Control none Transciever RS-232

End Char (Hex) 00 Forward End Char enable Timeout 0 msecs

TCP/UDP TCP Server Type slave Number of Connections 5 Local Port 02000

Connection Ctrl not used

Serial Communication

Modbus/TCP

Serial Port Password disable 1234abcd

Terminal Server

Connection Timeout 00100 msecs

disable

Device No. 1

Remote Access (Tunneling)

Remote Access

Remote IP Address 0.0.0.0 Remote Port 02000

disable

Save Reset

Main Menu

4.6 Terminal Emulation

On this page you can send and receive data to and from the serial device. Simply, type
the command in the white area and as you type the characters, the characters will be
transmitted out from the serial port of the iServer. If you want to send the whole
command as a word, simple paste the word in the same area. This is an excellent tool to
retrieve data from the serial port without any special software, only a web browser.

Figure 4.18 Terminal Emulation

26

TERMINAL SERVER

Address

http://192.168.1.200

TERMINAL EMULATION

reading

Main Menu

4.7 Telnet Setup

Telnet stands for Telecommunications Network, is a protocol that provides a way for
users (or clients) to connect to computers (or servers) on a network, whether in the next
building or across the other side of the world.

You can open a Telnet session using other terminal emulation programs like Tera Term
Pro (downloadable from the internet), which is a free software for MS-Windows. It
supports VT100 emulation, Telnet connection and serial port connection.

Once the Telnet mechanism is decided we can open a session by simply typing the IP
address of the iServer, and setting the Port on 2002 for logging into the iServer
Configuration page or 2000 for accessing the serial device connected to the iServer’s
serial port.

Figure 4.19

Tera Term Telnet Connection Screen

Figure 4.20 Telnet Setup

iServer Configuration Page

The default password for Telnet Login is 00000000 and can be changed if
desired. Telnet works only in RS-232 mode

27

Firmware Version 4.1
Admin. Password:00000000
Admin. Login Successful
p Configuration

Firmware Version 4.1
BD = 9600 (5)
PT = none(0)
ST = 1 bit (0)
DT = 8 bits (1)
MD = RS-232 (0)
TO = 0000
TT = SLAVE(1)
TN = 5
HN = eis1376
IP = 192.168.1.200
LP = 12345678
SP = 00000000
TP = iServer(0)
RE = disable(0)
RI = 0.0.0.0
RP = 02000
GW = 0.0.0.0
SM = 255.255.255.0
EC = 00
PP = 02000
FC = none (0)
MB = disable(0)
TU = TCP (0)
CC = not used(0)
CT = 01000
FE = enable (1)
EP = disable(0)
CP = 1234abcd
WB = enable (1)
MAC = 00:03:34:00:13:76
q
Quit

4.7 Telnet Setup (continued)

In the Configuration mode you can make any changes just like you would do using the Web
Browser. After connected to the iServer, the user can use the following commands to read, modify,
and get help from the iServer console.

? Following with a return character, the console will show all the commands and options (Figure 4.21).
p Following with a return character, the console will show the iServer configurations (Figure 4.20).
s Is the configuration command, used to set a new setting (see the example in Figure 4.21)
r This command is used to read the status of the digital I/O signals (0 is low and 1 is high)

Example

: r DCD response will be DCD (DSR)=0

r DTR response will be DTR=0

w This command is used to change the status of the digital I/O signals (applies only to the

outgoing signals, DTR and RTS)

Example

: w RTS=1 means raise the RTS

w DTR=0 means lower the DTR

RESET following with a return character, it will recycle the Power on the iServer.
FACTORY following with a return character, it will set the iServer to it’s factory default settings.

Figure 4.21 Telnet Setup - iServer Help Page

Admin. Password:00000000
Admin. Login Successful

iServer Configuration Command:

?

cc description pppppp
BD BaudRate 0-300,1-600,2-1200,3-2400,4-4800,5-9600,6-19200,

7-38400, 8-57600, 9-115200
PT Parity 0-none,1-Odd,2-even
ST StopBits 0-1bits,1-2bits
DT DataBits 0-7bits,1-8bits
FC FlowControl 0-none,1-XON/XOFF,2-Hardware
MD Mode 0-RS232, 1-RS485
MB Modbus/TCP 0-disable, 1-enable
TO TimeOut xxxx ms Rang range 100-9999
TU TCP/UDP 0-TCP, 1-UDP
TT TerminalType 0-Host, 1-Slave
TN TerminalNumber 0-5
PP TerminalPort XXXXX 500-65535 but 1000 and 2002
HN HostName XXXXXXXX maxim 18 characters
IP Static IP XXX.XXX.XXX.XXX
LP Login Password XXXXXX maxim 16 characters
SP Admin Password XXXXXX maxim 16 characters
TP Device Type 0-iServer,1-iDRN,2-iDRX,3-iSeries,4-iNFB,5-iLD
RE Remote Enable 0-Disable, 1-Enable
RI Remote IP XXX.XXX.XXX.XXX
RP Remote Port XXXXX 500-65535 but 1000 and 2002
GW Gateway XXX.XXX.XXX.XXX
EC End Char XX represents the Hex Num. of ASCII. i.e 0D means CR

(Carrige Return)
FE Forward End Char 0-disabled, 1-enabled
EP Enable Serial Port Password 0-disabled, 1-enabled
CP Serial Port Password XXXXXX maxim 16 characters
CC Connect CTRL 0-not used,1-RTS+,2-RTS-,3-CTS+,4-CTS_,5-RTS-CTS+,

6-RTS-CTS-, 7-DTS+,8-DTR-, 9-DCD/DSR+,

A-DCD/DSR-, B-DTR-DCD+, C-DTR-DCD-, D-RECONNECT
CT Connect Timeout XXXXX 1-65535
WB Web Server 0-disable, 1-enable
Example:
To configure Baudrate 9600, 1 stop bit, Odd Parity, and RS232 mode.
s -BD5 -PT1 -ST1 -MD0

28

4.8 HTTPGET Program

You can setup and read the information from the iServer by using the HTTPGET
program. The following program can be used to read data from the embedded server
firmware by using TCP port 1000. The command string sends to this TCP port, then it
reads back the response from the same port. Whatever you write to the port goes to the
serial port unmodified. Any response from the serial port can be read back from the
same socket.

The Httpget.exe file is used to setup and read information from the iServer. This file will
be automatically installed when you install the Mail Notifier software available on our
website and CD.

Example to use the "Httpget" program:

1. Create a directory C:\iServer\Httpget.

2. Copy httpget.exe and readme_features.doc files to this directory.

3. Make sure that you are in this directory and then enter the following test program:

C:\iServer\Httpget\httpget –r –S "*01X01\r" 192.168.1.200:1000

where:
"-r –S" are switches before the command string
"01" is device address (in hex format) for RS485 communication interface (skip for

RS232)
"X01" read measurement data value (iSeries protocol)
"\r" calls out a CR
"192.168.1.200" is an IP address
"1000" is a local port number

Respond:

01X01074.3

where:
"01X01" is Echo command
"074.3" is a display reading of the 4-digit device

In the example above the 4-digit iSeries controller has been connected to the
serial communication port of iServer.

29

4.9 ARP Protocol

ARP is the Internet layer protocol responsible for determining the MAC (hardware)
address that corresponds to a particular IP address. The ARP command allows the user
to view the current contents of the ARP cache of the local computer (residing on the
same network) or remote computer (residing on the different network) through a router.
Microsoft includes the ARP.EXE utility for viewing and modifying the ARP cache with its
Windows products. The following ARP commands can be used to view cache entries:

• arp –a ➞ Use this command to view all ARP cache entries.

• arp –a plus IP address ➞ Use this command to view ARP cache entries associated

with one particular interface on a network with multiple adapters.

• arp –g ➞ Same as arp –a.

• arp –N ➞ Use this command to display ARP entries for specific network interface.

• arp – s plus IP address plus Physical address ➞ Use this command to manually add

a permanent static entry to the ARP cache.

• arp –d ➞ Use this command to manually delete a static entry.

Ping the destination computer using IP address first before using the arp -a
command.

The following window shows examples of arp commands and responses.

• Your computer has an IP address of 192.168.1.118

• The destination computer has an IP address of 192.168.1.96

Figure 4.22 ARP Commands and Responses

C:\>arp - 192.168.1.96
No ARP Entries Found
C:\>ping 192.168.1.96
Pinging 192.168.1.96 with 32 bytes of data:

Reply from 192.168.1.96=bytes=32 time=5ms TTL=32
Reply from 192.168.1.96=bytes=32 time=3ms TTL=32
Reply from 192.168.1.96=bytes=32 time=3ms TTL=32
Reply from 192.168.1.96=bytes=32 time=4ms TTL=32

C:\>arp -a 192.168.1.96
Interface: 192.168.1.118
Internet Address Physical Addresss Type

192.168.1.96 00-03-34-00-00-23 dynamic
C:\>arp -s 192.168.1.96 00-03-34-00-00-23
C:\>arp -a 192.168.1.96
Interface: 192.168.1.118
Internet Address Physical Addresss Type

192.168.1.96 00-03-34-00-00-23 static
C:\>arp -d 192.168.1.96
C:\>arp -a 192.168.1.96
No ARP Entries Found
C:\>

30

31

4.10 Remote Access (Tunneling)

To "tunnel", in this context, is to transmit data between two points through a private
conduit on a shared or public network. The network could be an Ethernet LAN, a WAN,
or the Internet. The iServer allows for a connection between a serial device and a PC, or
between two serial devices, using an existing network rather than dedicated wiring.

Today, there are number of serial devices like sensors, gauges, PLCs, card readers,
security alarms, barcode scanners, data loggers, video cameras, ATM machines, time &
attendance terminals, medical lab equipments, electronic signboards, and many others
that are directly connected to PCs via their serial ports.

These devices can be attached to shared Ethernet networks (TCP/IP protocol) and get
accessed, controlled, and managed remotely using the iServer products. Any two
iServer’s can talk to each other over the Ethernet LAN, WAN, and Internet using TCP/IP
protocol. Therefore, the connected serial devices to iServer’s can also communicate with
each other back and forth over these networks. This characteristic is called Tunneling
and it’s illustrated in Figures 4.23.

Figure 4.23 Serial Tunneling

In order to use this Tunneling feature, some settings are required within the local and
remote iServer’s.

4.10.1 Remote iServer

It’s recommended to configure the Remote iServer and have it up and running before the
Local iServer is configured.

1. A static IP address must be assigned to the Remote iServer. This means that the DHCP
must remain disabled. Refer to the DHCP section of the user’s manual for details.

2. Use a browser to access the Remote iServer’s WEB page. Simply type the iServer’s IP
address at the browser’s URL location (i.e. 192.168.1.50) followed by an Enter key.
You should then see the iServer’s main WEB page.

3. Click on the Update button.

4. Click on Configuration, you will be prompted with a Password (default is 12345678).

5. On the Configuration page, under Serial Communication section, make sure the
parameters such as Baud Rate, Data Bits, Parity, Stop Bits, Flow Control, etc. match
with your attached serial device.

6. Make sure to set the End Character (Hex) to 00 and the Timeout to 0.

7. Under Terminal Server section, set Number of Connections to 1 or higher.

8. Click on Save button for the changes to take place.

Make sure that the serial cable and communication settings between the iServer and the
serial device are valid.

Figure 4.24 Configuration Page - Remote iServer

32

Figure 4.24

shows the
valid values

that need to be
set in the Remote
iServer. The Baud Rate,
Data Bits, Parity, Stop
Bits, Flow Control, and
Transceiver values
depend on what the
serial device supports.

CONFIGURATION

Address

http://192.168.1.50

CONFIGURATION

Serial Communication

Baud Rate 9600 Data Bit 8 Bits Parity none Stop Bits 1 bit

Flow Control none Transciever RS-232

End Char (Hex) 00 Forward End Char enable Timeout 0 msecs

Serial Port Password disable 1234abcd

Modbus/TCP

disable

Terminal Server

TCP/UDP TCP Server Type slave Number of Connections 5 Local Port 02000

Connection Ctrl not used

Connection Timeout 00100 msecs

Device No. 1

Remote Access (Tunneling)

Remote Access

disable

Remote IP Address 0.0.0.0 Remote Port 02000

Save Reset

Main Menu

4.10.2 Local iServer

1. An IP address should be assigned to the iServer dynamically or statically (recommended).

2. Use a browser to access the Local iServer’s WEB page. Simply type the iServer’s IP
address at the browser’s URL location (i.e. 192.168.1.49) followed by an Enter key.
You should then see the iServer’s main WEB page.

3. Click on the Update button.

4. Click on Configuration, you will be prompted with a Password (default is 12345678).

5. On the Configuration page, under Serial Communication section, make sure the
parameters such as Baud Rate, Data Bits, Parity, Stop Bits, Flow Control, etc. match
with your attached serial device and its application software.

6. Make sure to set the End Character (Hex) to 00 and the Timeout to 0.

7. Under Terminal Server section, set Number of Connections to 0.

8. Under Remote Access section, set the Remote Access to enable, Enter the Remote
IP address (would be the IP address of the remote iServer, 192.168.1.50), and use the
default Remote Port number 2000.

9. Set Connection Control to Reconnect and set the Connection Timeout to a desired value.

The Reconnect option is used in Serial Tunneling and it applies only to the Local
iServer. If the tunneling connection between the two iServers goes down due to
network problems, power failure, etc., the Reconnect option will enable the Local
iServer to reconnect with the Remote iServer based on the specified time interval in
the Connection Timeout. For example, based on a timeout of 1000 x 10 ms (10
seconds), the Local iServer will continually attempt to reconnect and re-establish the
tunnel with the Remote iServer every 10 seconds.

10. Click on Save button for the changes to take place.

11. Initialize the serial device application software to establish the connection.

Figure 4.25 Configuration Page - Local iServer

33

Figure 4.25 shows
the valid values that
need to be set in the

Local iServer. The
Baud Rate, Data Bits, Parity,
Stop Bits, Flow Control, and
Transceiver values depend on
what the attached device to
the iServer supports.

CONFIGURATION

Address

http://192.168.1.49

CONFIGURATION

Serial Communication

Baud Rate 9600 Data Bit 8 Bits Parity none Stop Bits 1 bit

Flow Control none Transciever RS-232

End Char (Hex) 00 Forward End Char enable Timeout 0 msecs

Serial Port Password disable 1234abcd

Terminal Server

TCP/UDP TCP Server Type slave Number of Connections 0 Local Port 02000

Connection Ctrl reconnect

Connection Timeout 00100 msecs

Remote Access (Tunneling)

Remote Access

Remote IP Address 192.168.1.50 Remote Port 02000

enable

Save Reset

Main Menu

Modbus/TCP

disable

Device No. 1

34

4.10.3 Tunneling Troubleshooting

Using the original serial cable, please confirm valid communication between the serial
device and its application software on the PC with no iServers in between (direct serial
connection).

A successful connection is evident when the Remote Access drop down menu in the
Configuration page shows enable. This proves that the Serial Tunnel between the two
iServers is up and running. Otherwise, reset the power, first on the remote iServer and
then on the local iServer and recheck for Remote Access drop down menu as enable.

A quick way to check the LAN and serial tunneling connection is to separately access
each iServer WEB page via the Ethernet. If successful, this should prove a valid LAN
connection.

For serial tunneling, open a HyperTerminal session on the PC pointing to the same COM
port to which the Local iServer is connected and type/send some characters. This should
cause the Rx LED on the Local iServer to blink as it receives the data from the serial port
and onto the LAN. Accordingly, the Tx LED on the Remote iServer should blink as it
transmits the data from the LAN into the serial device. If no LEDs blink, then that could
possibly point to the iServer connection in trouble - particularly, the serial cabling and/or
the serial settings (Baud rate, stop bit, parity, etc.) throughout the communication path
between the PC, the iServer, and the serial device.

4.11 iPORT, COM Port Redirector

To obtain the iPORT software (iPORT.exe file) please use the phone number, as listed on
the cover of this manual, to contact the Sales Department nearest you.

To install the iPORT application, simply double-click on the iPORT.exe file and follow the
installation steps. The iPORT is compatible with Windows NT, 2000, and XP operating
systems.

4.11.1 iPORT Overview

The iPORT is a COM port redirecting software for Windows NT, 2000, and XP. Its
function is to redirect connections that are destined for a local serial (COM) port on a PC,
to an iServer network-enabling device on the LAN. In a direct serial connection,
application software can communicate directly over an RS232 or RS485 with a serial
device (Figure 4.26).

By installing iPORT software on the same PC, the iPORT will redirect the serial
connection from the COM port to the network port on that PC. The connection can simply
reach the serial device through an iServer sitting anywhere on an Ethernet network
(Figure 4.27). This connection redirection is totally transparent to the serial device and
its application software. Once the connection is up from the PC to the serial device, the
data is transmitted across the Ethernet network to the serial device and back from the
serial device to the PC, all through the iServer and the iPORT.

4.11.1 iPORT Overview (continued)

Figure 4.26 Direct Serial Connection

Figure 4.27 Redirect Serial Connection

4.11.2 iPORT Configurations

After the iPORT is successfully installed on your windows machine, you will have an
iPORT icon on your desktop and Control Panel window. By double-clicking on this icon,
you can start the application and the iPORT main window will appear on your screen
(Figure 4.28).

Click on "COM Ports" button and you will see the window on Figure 4.29. Select the
appropriate COM port (this should be the same COM port that your application software
uses). The selected COM port will then appear on the main iPORT window. By
highlighting the selected COM port, you will be able to add the IP address and the port
number to connect that COM port to the iServer on the network.

Up to 255 COM ports can be selected and each can have a different IP configuration
pointing to different iServers on the network. This enables users to simultaneously
redirect different application software to connect to serial devices attached to networked
iServers.

35

Serial Device

Serial Device with

Embedded iServer

192.168.1.200
Port# 2000

Serial Device
Software

Serial Cable (RS232)

Serial Device
Software

iPORT Software

192.168.1.254192.168.1.254

36

4.11.2 iPORT Configurations (continued)

Figure 4.28 iPORT Main Window

Figure 4.29 COM Port Window

iServer IP Address – This is the IP address of the iServer that is connected to the serial

device on one end and attached to the Ethernet LAN on the other end. The iServer’s
default IP address is 192.168.1.200, which can be changed to fit your network IP
address range (see the iServer’s manual for details).

iServer Port Number – This is the port number for the iServer’s local serial port. The
default value is 2000. If this port number is changed in the iServer’s Configuration page
(see the iServer’s manual for details), the same number should be placed in the iPORT
window.

Activate – If this box is checked, the selected COM port will be available for network
connection. If it is unchecked, the selected COM port will be in sleep mode.

192.168.1.200

2000

5000

37

4.11.2 iPORT Configurations (continued)
Timeout – This is the amount of time (in milliseconds) in which the iPORT keeps the

application software waiting before the device response is arrived. The default value is 5
seconds and it can be set between 0 to 10 seconds.

Status – This window shows the connection status as the iPORT makes connection to
the iServer or disconnects from the iServer. The connection status can be ideal,
connecting, connected, or disconnected along with the IP address of the iServer shown
in the Status window.

Apply button – To save the configuration for a selected COM port, click on the "Apply"
button and reboot your PC for settings to take place in your Windows registry.

Clear button – This button deletes the settings for a selected COM port.
Cancel button – This button closes the iPORT window without saving the settings.

In Figure 4.29, if a COM port number is dimmed and cannot be selected, it
means that the COM port is already used by another application or it could be a
physical serial COM port on that PC.

The serial communication settings (baud rate, data bit, stop bit and parity) of
your application software must be identical to the serial communication settings
of the iServer’s serial port and your serial device’s port connected to the iServer.
You can use a Web browser to log into the iServer and configure its serial port’s
settings (see the iServer’s manual for details).

4.12 Mail Notifier Software

The Mail Notifier Software can be used only with NEWPORT Electronics instruments.
For complete information of how to use the Mail Notifier software, click on the Help menu

of the main window.
The Mail Notifier software generates email notifications for alarm conditions. Users can

be notified automatically of alarm conditions monitored via internet connections
throughout the world. By use of the email forwarding of alarm conditions, alarm
conditions can be monitored on a network isolated from the internet and forwarded to
connections on the Internet.

The Mail Notifier utility operates under Windows 98, NT 4.0, 2000, and XP in conjunction
with existing email that supports the MAPI messaging
interface. If MS Outlook has been loaded, the MAPI
support should be available.

4.12.1 Mail Notifier Installation

The Mail Notifier must be loaded on a computer running
Microsoft Windows (versions specified earlier) using an
email program that provides MAPI access. Network
access must be available between this computer and
the iServer. Network access must also be available
from this computer to the appropriate email server and
from the email server to the recipient’s email server

Figure 4.30 iServer

Mail Notifier Main Window

38

4.12.2 Mail Notifier Program Options Setup and Configuration

Complete program setup requires:

• Entering a recipient for the email

• Specifying connection details to MAPI services.

•

Defining alarms for devices, and selecting how and when the email will be active.

Figure 4.31 iServer Mail Notifier Profile Setup

The “Send To” tab contains a field to specify an email address to which alarm
notifications will be sent (i.e. the recipient). Only one entry is permitted, in the address
field. Additional addresses can be placed into “More Addresses” list.

Email Connection (MAPI Access)

The following instructions work with some versions of Microsoft Outlook. Note though
that some email systems may prevent the use of Mail Notifier due to security constraints.

The simplest way to obtain a connection the the Email services is as follows:

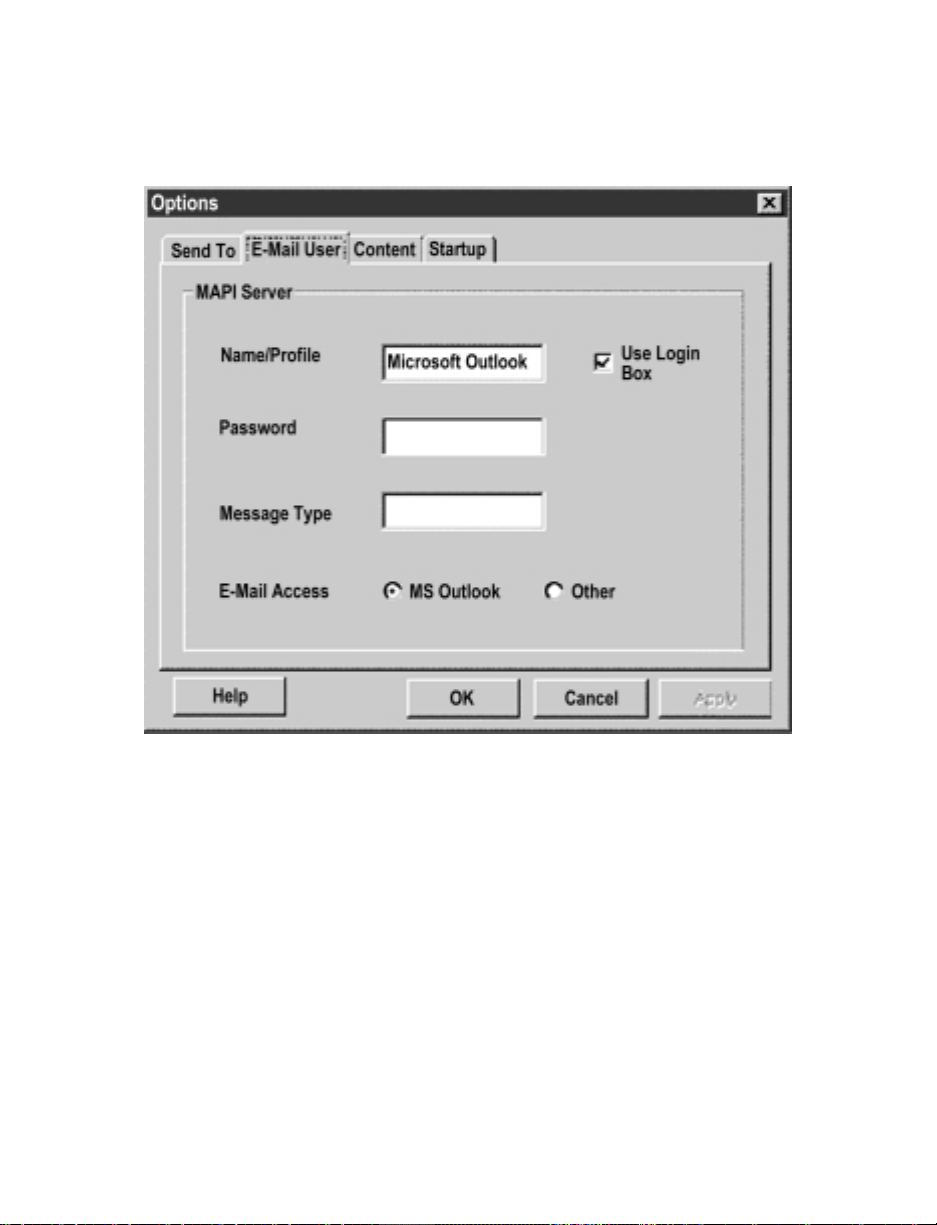

1. Configure the Mail Notifier to connect to the email by displaying a Login Box. This
option is found by selecting View, Options from the Mail Notifier's menubar. Select
the "Email Setup" tab, mark the checkbox for "Use Login Box"

2. After Mail Notifier is configured to use the login box, the Mail Notifier can be started
without user intervention if your MS Outlook program is running beforehand.
Otherwise, the Mail Notifier will display a Login Box that should display the
necessary User Profile.

39

4.12.3 Mail Notifier Device Setting and Configuration

Device setup requires:

• Entering the IP

address for iServer device (for example 192.168.1.200).

• Specifying Socket number

(1000 or 2000 depending on iServer settings).

• Defining RS485 Unit # interface address (1 to 199). Enter "0" for RS232 interface
or for iServer.

• Entering Reading command

. Normally set to X01 to obtain reading from the devices.

If you want to change this setting, refer to HTTPget Section 4.8.

• Defining the Alarm setup (High/Low, High value, or Low value).

• Specifying Pause Interval

. It determines how many seconds each subsequential alarm

notification will be sent.

• Determining Monitor interval. It establishes the interval or time resolution in seconds
for which readings will be obtained from the device.

Figure 4.32 iServer Mail Notifier Device Setting

40

PART 5

SPECIFICATIONS

SERIAL INTERFACE
Interface:

RS-232, RS-422, RS-485 CMOS, or TTL

Connector:

Pin header holes (0.1” pitch)

Data Rates:

300 to 115200 bps

Characters:

7 or 8 data bits

Parity:

odd, even, or none

Stop bits:

1 or 2

Flow Control:

Software (Xon/Xoff)
Hardware (CTS/RTS)

Digital I/O’s:

4 digital input/output lines

NETWORK INTERFACE
Interface:

Ethernet 10 Base-T

Connector:

RJ45

Protocols:

ARP, TCP/IP, ICMP, DNS, DHCP,
Telnet simulation and HTTP

Indicators (LED):

Network Activity (red),
Network Link (green),
TX-Transmit (yellow),
RX-Receive (green),

PROCESSOR
CPU:

Enhanced 8051, 22 MHz

Memory:

16 Kbyte SRAM, 512 Kbyte Flash

Management:

Serial Login, Telnet Login,
Internal Web Server

EMBEDDED WEB SERVER
Uses: Dynamic web pages and Java

applets (256 Kbyte capacity)

ENVIRONMENTAL
EIS-PCB and EIS-PCB-TTL

Operating Temperature:

0 to 70°C (32 to 158°F)

UL Safety Tested (EIS-PCB):

0 to 50°C (32 to 122°F)

EIS-PCB-ET and EIS-PCB-TTL-ET
Operating Temperature:

-4

0 to 85°C (-40 to 185°F)

Storage Temperature:

-40 to 125°C (-40 to 257°F)

Board Surface Area:

approximately 3 sq. inches

Weight:

23g (0.05 lbs).

POWER
Power Input

5 Vdc

Consumption:

0.7W average / 1 W max

GENERAL
Agency Approvals

FCC-B; CE (see CE Approval Section);
USR, CNR (recognized component for
U.S. and Canada)

Software

Firmware upgradeable. Compatible with
Windows 9x / ME / NT / 2000 / XP
software and related utilities

41

PART 6

FACTORY PRESET VALUES

PRESET PARAMETERS FACTORY DEFAULTS

Network Interface:

IP Address 192.168.1.200
Gateway Address 0.0.0.0
Subnet Mask 255.255.255.0
Device Host Name eis and Last 4 digits from the MAC address
Login Password 12345678
Admin Password 00000000
DHCP Disabled

Serial Interface:

Communication Protocol RS-232
Flow Control None
Baud Rate 9600
Parity None
Stop Bit 1 bit
Data Bit 8 bits
Timeout 0 msec
End Character 00 (Hex) Null

Terminal Server:

Server Type Slave
Number of Connections 5
Port # 2000
Server Mode Disable

Remote Access (Tunneling):

Remote Access Disable
Remote Port 2000
Remote IP Address 0.0.0.0

42

APPENDIX A GLOSSARY

User of this manual should be familiar with following definitions:

ARP (Address Resolution Protocol) is a protocol for mapping an Internet Protocol
address (IP address) to a physical machine address that is recognized in the local
network. For example, the IP address in use today is an address that is 32-bits long.
In an Ethernet local area network, however, addresses for attached devices are 48-bits
long. (The physical machine address is also known as a Media Access Control or
MAC address.) A table, usually called the ARP cache, is used to maintain a correlation
between each MAC address and its corresponding IP address. ARP provides the
protocol rules for making this correlation and providing address conversion in both
directions.

Ethernet is a network protocol defined by the IEEE 802.3 standard. Ethernet-based
networks use MAC Address rather then IP Address to exchange data between
computers. By using ARP and adding TCP/IP support, Ethernet devices may be
connected as part of the Internet. An Ethernet LAN typically uses coaxial cable or special
grades of twisted pair wires. The most commonly installed Ethernet systems are called
10BASE-T and provide transmission speeds up to 10 Mbps. Devices are connected to
the cable and compete for access using a Carrier Sense Multiple Access with Collision
Detection (CSMA/CD) protocol.

IP (Internet Protocol) is the method or protocol by which data is sent from one computer
to another on the Internet.

IP address (Internet Protocol address) is a 32-bit number that identifies each sender
or receiver of information that is sent in packets across the Internet.

IP Netmask is a 32-bit pattern of bits used to determine which part of the IP address is
the network portion and which part is the host portion.

MAC (Media Access Control) Address is your computer's unique hardware number.
When you're connected to the Internet from your computer, a correspondence table
relates your IP address to your computer's physical (MAC) address on the LAN.

Ping is a utility that tests the network connectivity. It is used to determine if the host is
capable of exchanging information with another host.

Port number/Socket number is a way to identify a specific process to which an Internet
or other network message is to be forwarded when it arrives at a server. It is a
predefined address that serves as a route from the application to the Transport layer or
from the Transport layer to the application of the TCP/IP system.

Sockets are a method for communication between a client program and a server
program in a network and defined as "the endpoint in a connection." Information
transferred across the Internet primarily occurs between sockets.

TCP/IP (Transmission Control Protocol/Internet Protocol) is the basic communication
language or protocol of the Internet. When you are set up with direct access to the
Internet, your computer is provided with a copy of the TCP/IP program just as every
other computer that you may send messages to or get information from also has a copy
of TCP/IP. TCP/IP often is used as a general term to indicate generic access to the
Internet.

43

Appendix B IP Address

An IP address is a unique 32-bit address assigned to a computer and includes:

• A network ID number identifying a network.

• A host ID number identifying a computer on the network.

All IP addresses have been divided into three smaller groups (classes) A, B and C

• Class A addresses have 8-bits of network ID and 24-bits of host ID. They can support
a large number of hosts, approximately 2 = 16,777,216 computers per network.

The IP addresses range in binary from 00000001.xxxxxxxx.xxxxxxxx.xxxxxxxx

to 01111111.xxxxxxxx.xxxxxxxx.xxxxxxxx

The IP addresses range in decimal from 1.x.x.x to 127.x.x.x

Class A network ID’s support a very large number of hosts.

• Class B addresses have 16-bits of network ID and 16-bits of host ID. They can
support approximately 216= 65,536 computers per network.

The IP addresses range in binary from 10000000 00000000.xxxxxxxx.xxxxxxxx

to 10111111 11111111.xxxxxxxx.xxxxxxxx

The IP addresses range in decimal from 128.0.x.x to 191.255.xxx.xxx

Class B network ID’s support a medium number of hosts.

• Class C addresses have 24-bits of network ID and 8-bits of host ID. They can support
approximately 28= 256 computers per network.

The IP addresses range in binary from 11000000.00000000.00000000.xxxxxxxx

to 11011111.11111111. 11111111.xxxxxxxx

The IP addresses range in decimal from 192.0.0.xxx to 223.255.255.xxx

Class C network ID’s support a small number of hosts.

The rest of the addresses are divided into two classes, D and E.
Class D networks are not assigned to the host. They are used for multicasting.
The address range from 224.x.x.x to 239.x.x.x

Class E networks are experimental or reserved addresses.
The address range from 240.x.x.x to 247.x.x.x

44

Appendix C IP Netmask

IP Netmask or Subnet Mask is a 32-bit pattern of ones and zeros used to determine
network portion of an IP address from the host portion of the IP address. Subnet mask is
a network ID that is created by borrowing bits from host portion of IP address and using
them as part of a network ID. The table below shows a default subnet mask for address
Classes A, B, and C. Each bit that is set to "1" in the subnet mask corresponds to the bit
in the IP address that is to be used as the network ID. Each bit that is set to "0" in the
subnet mask corresponds to a bit in the IP address that is to be used as the host ID.

Address Class Mask Binary Value Mask Decimal Value

or Dotted Notation

Class A 255.0.0.0
Class B 255.255.0.0
Class C 255.255.255.0

If your network requires more network ID’s, you can extend the default subnet mask to
include additional bits from the host ID. This allows for additional network ID’s within the
network. The table below shows some examples of subnet masks and bits moved from
the hosts ID to create a new subnet.

Mask Dotted Notation Mask Binary Mask Bits

Class A

255.0.0.0 (Default) 0

255.192.0.0 2

255.224.0.0 3

255.240.0.0 4

255.248.0.0 5

255.252.0.0 6

255.254.0.0 7

255.255.0.0 8

255.255.128.0 9

255.255.192.0.0 10

……………......... .

255.255.255.252 22

Class B

255.255.0.0 (Default) 0

255.255.192.0 2

……………......... .

255.255.255.252 14

Class C

255.255.255.0 (Default) 0

255.255.255.192 2
…………………. .

255.255.255.254 6

To determine the number of valid hosts ID’s remaining after subnetting, use the following
equation: 2n– 2, where n is the number of octet digits left after the subnet mask.

11111111
11111111
11111111

00000000
11111111
11111111

00000000
00000000
11111111

00000000
00000000
00000000

11111111
11111111
11111111
11111111
11111111
11111111
11111111
11111111
11111111
11111111

........

11111111

00000000
11000000
11100000
11110000
11111000
11111100
11111110
11111111
11111111
11111111

........

11111111

00000000
00000000
00000000
00000000
00000000
00000000
00000000
00000000
10000000
11000000

........

11111111

00000000
00000000
00000000
00000000
00000000
00000000
00000000
00000000
00000000
00000000

........

11111100

11111111
11111111

........

11111111

11111111
11111111

........

11111111

00000000
11000000

........

11111111

00000000
00000000

........

11111100

11111111
11111111

........

11111111

11111111
11111111

........

11111111

11111111
11111111

........

11111111

00000000
11000000

........

11111100

45

Appendix D ASCII Chart

ASCII Dec Hex Binary ASCII Dec Hex Binary

Char No Parity Char No parity

NUL 00 00 00000000 @ 64 40 01000000
SOH 01 01 00000001 A 65 41 01000000

STX 02 02 00000010 B 66 42 01000010

ETX 03 03 00000011 C 67 43 01000011
EOT 04 04 00000100 D 68 44 01000100
ENQ 05 05 00000101 E 69 45 01000101
ACK 06 06 00000110 F 70 46 01000110

BEL 07 07 00000111 G 71 47 01000111

BS 08 08 00001000 H 72 48 01001000
HT 09 09 00001001 I 73 49 01001001
LF 10 0A 00001010 J 74 4A 01001010
VT 11 0B 00001011 K 75 4B 01001011

FF 12 0C 00001100 L 76 4C 01001100
CR 13 0D 00001101 M 77 4D 01001101
SO 14 0E 00001110 N 78 4E 01001110

SI 15 0F 00001111 O 79 4F 01001111

DLE 16 10 00010000 P 80 50 01010000
DC1 17 11 00010001 Q 81 51 01010001
DC2 18 12 00010010 R 82 52 01010010
DC3 19 13 00010011 S 83 53 01010011
DC4 20 14 00010100 T 84 54 01010100
NAK 21 15 00010101 U 85 55 01010101
SYN 22 16 00010110 V 86 56 01010110

ETB 23 17 00010111 W 87 57 01010111
CAN 24 18 00011000 X 88 58 01011000

EM 25 19 00011001 Y 89 59 01011001
SUB 26 1A 00011010 Z 90 5A 01011010
ESC 27 1B 00011011 [ 91 5B 01011011

FS 28 1C 00011100 \ 92 5C 01011100
GS 29 1D 00011101 ] 93 5D 01011101
RS 30 1E 0001111 0 ^ 9 4 5E 0101111 0
US 31 1F 00011111

_

95 5F 010 11111

SP 32 20 00100000

`

96 60 01100000

! 33 21 00100001 a 97 61 01100001
" 34 22 00100010 b 98 62 01100010
# 35 23 00100011 c 99 63 01100011
$ 36 24 00100100 d 100 64 01100100

% 37 25 00100101 e 101 65 01100101

& 38 26 00100110 f 102 66 01100110

‘ 39 27 00100111 g 103 67 01100111
( 40 28 00101000 h 104 68 01101000
) 41 29 00101001 I 105 69 01101001
* 42 2A 00101010 j 106 6A 01101010

+ 43 2B 00101011 k 107 6B 01101011

, 44 2C 00101100 l 108 6C 01101100

- 45 2D 00101101 m 109 6D 01101101

. 46 2E 00101110 n 110 6E 01101110

46

Appendix D ASCII Chart Continuation

/ 47 2F 00101111 o 111 6 F 011 01111
0 48 30 00110000

p

112 70 01110000

1 49 31 00110001

q

113 71 01110001
2 50 32 00110010 r 114 72 01110010
3 51 33 00110011 s 115 73 01110011
4 52 34 00110100 t 116 74 01110100
5 53 35 00110101 u 117 75 01110101
6 54 36 00110110 v 118 76 01110110
7 55 37 00110111 w 119 77 01110111
8 56 38 00111000 x 120 78 01111000
9 57 39 00111001

y

121 79 01111001

: 58 3A 00111010 z 122 7A 01111010
; 59 3B 00111011

{

123 7B 01111011

< 60 3C 00111100

|

124 7C 01111100

= 61 3D 00111101

}

125 7D 01111101

> 6 2 3E 00111110 ~ 126 7 E 01111110

? 6 3 3F 00111111 D EL 127 7F 0 1111111

ASCII Control Codes

ASCII Dec Hex Ctrl Key Definition ASCII Dec Hex Ctrl Key Definition

Char Equiv. Char Equiv.

NUL 00 00 Crtl @ Null Character DC1 17 11 Crtl Q Data Control 1

- XON

SOH 01 01 Crtl A Start of DC2 18 12 Crtl R Data Control 2

Header

STX 02 02 Crtl B Start of Text DC3 19 13 Crtl S Data Control 3

- XOFF

ETX 03 03 Crtl C End of Text DC4 20 14 Crtl T Data Control 4

EOT 04 04 Crtl D End of NAK 21 15 Crtl U Negative

Transmission Acknowledge

ENQ 05 05 Crtl E Inquiry SYN 22 16 Crtl V Synchronous

Idle

ACK 06 06 Crtl F Acknowledge ETB 23 17 Crtl W End of Trans

Block

BEL 07 07 Crtl G Bell CAN 24 18 Crtl X Cancel

BS 08 08 Crtl H Back Space EM 25 19 Crtl Y End of Medium
HT 09 09 Crtl I Horizontal SUB 26 1A Crtl Z Substitute

Tabulation

LF 10 0A Crtl J Line Feed ESC 27 1B Crtl [ Escape

VT 11 0B Crtl K Vertical FS 28 1C Crtl \ File Separator

Tabulation

FF 12 0C Crtl L Form Feed GS 29 1D Crtl ] Group

Separator

CR 13 0D Crtl M Carriage RS 30 1E Crtl | Record

Return Separator

SO 14 0E Crtl N Shift Out US 31 1F Crtl_Unit Separator

SI 15 0F Crtl O Shift In SP 32 20 Space

DLE 16 10 Crtl P Data Link

Escape

47

PART 7

APPROVALS INFORMATION

7.1 CE APPROVAL

This product conforms to the EMC directive 89/336/EEC amended by
93/68/EEC, and with the European Low Voltage Directive 72/23/EEC.

Electrical Safety EN61010-1:2001

Safety requirements for electrical equipment for measurement, control and laboratory.

Basic Insulation
Pollution Degree 2
Dielectric withstand Test per 1 min

• Input Power to Ethernet Output: 1500Vac

Measurement Category I

Category I are measurements performed on circuits not directly connected to the Mains
Supply (power).

Transients Overvoltage Surge (1.2/50uS Pulse)

• Ethernet: 1500V Transients Overvoltage

Note: The ac/dc power adaptor must have Safety Qualified Agency Approvals

for CE with Double Insulation rating.
The ac/dc power adaptor is 9Vdc.
The minimum output current rating is 500mA.

EMC EN61000-6-1:2001 (Immunity) and EN61000-6-3:2001 (Emmissions)

Immunity requirements for residential, commercial and light-industrial environments

• EMC Emissions Table 1, Class B

• EMC Immunity Table 1: Enclosure

Table 2: Signal Lines Ports

EMC EN61326:1997 + and A1:1998 + A2:2001

Immunity and Emissions requirements for electrical equipment for measurement, control
and laboratory.

• EMC Emissions Table 4, Class B of EN61326

• EMC Immunity Table 1 of EN61326

Refer to the EMC and Safety installation considerations (Guidelines) of this manual
for additional information.

7.2 FCC

This device complies with Part 15, Subpart B, Class B of the FCC rules.

NOTES

48

WARRANTY/DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of one (1) year
from the date of purchase. In addition to OMEGA’s standard warranty period, OMEGA Engineering will extend the warranty
period for one (1) additional year if the warranty card enclosed with each instrument is returned to OMEGA.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will issue an
Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found
to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any
action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits,
improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having been tampered
with or shows evidence of having been damaged as a result of excessive corrosion; or current, heat, moisture or vibration;
improper specification; misapplication; misuse or other operating conditions outside of OMEGA’s control. Components which
wear are not warranted, including but not limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither assumes
responsibility for any omissions or errors nor assumes liability for any damages that result from the use of its
products in accordance with information provided by OMEGA, either verbal or written. OMEGA warrants only that the
parts manufactured by it will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL
IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of purchaser set forth herein are
exclusive, and the total liability of OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of the component upon which liability
is based. In no event shall OMEGA be liable for consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component”
under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical applications or used on
humans. Should any Product(s) be used in or with any nuclear installation or activity, medical application, used on
humans, or misused in any way, OMEGA assumes no responsibility as set forth in our basic WARRANTY/DISCLAIMER
language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage
whatsoever arising out of the use of the Product(s) in such a manner.

RETURN REQUESTS/INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE RETURNING
ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM
OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR
number should then be marked on the outside of the return package and on any correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in
transit.

FOR WARRANTY RETURNS, please have the following
information available BEFORE contacting OMEGA:

1. Purchase Order number under which the product was
PURCHASED,

2. Model and serial number of the product under warranty,
and

3. Repair instructions and/or specific problems relative to
the product.

FOR NON-WARRANTY REPAIRS,

consult OMEGA for current
repair charges. Have the following information available
BEFORE contacting OMEGA:

1. Purchase Order number to cover the COST of the repair,
