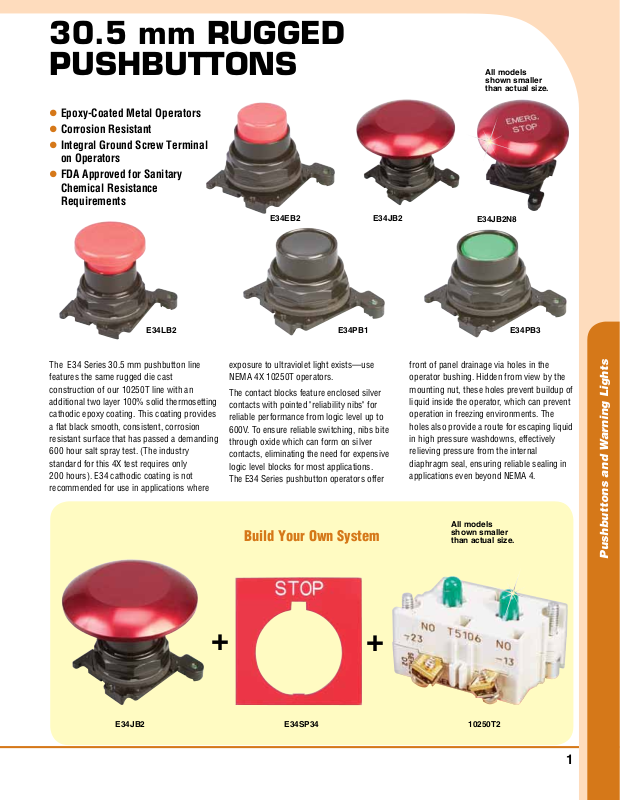

Page 1
30.5 mm Rugged
Pushbuttons
l Epoxy-Coated Metal Operators
l Corrosion Resistant
l Integral Ground Screw Terminal
on Operators
l FDA Approved for Sanitary
Chemical Resistance
Requirements

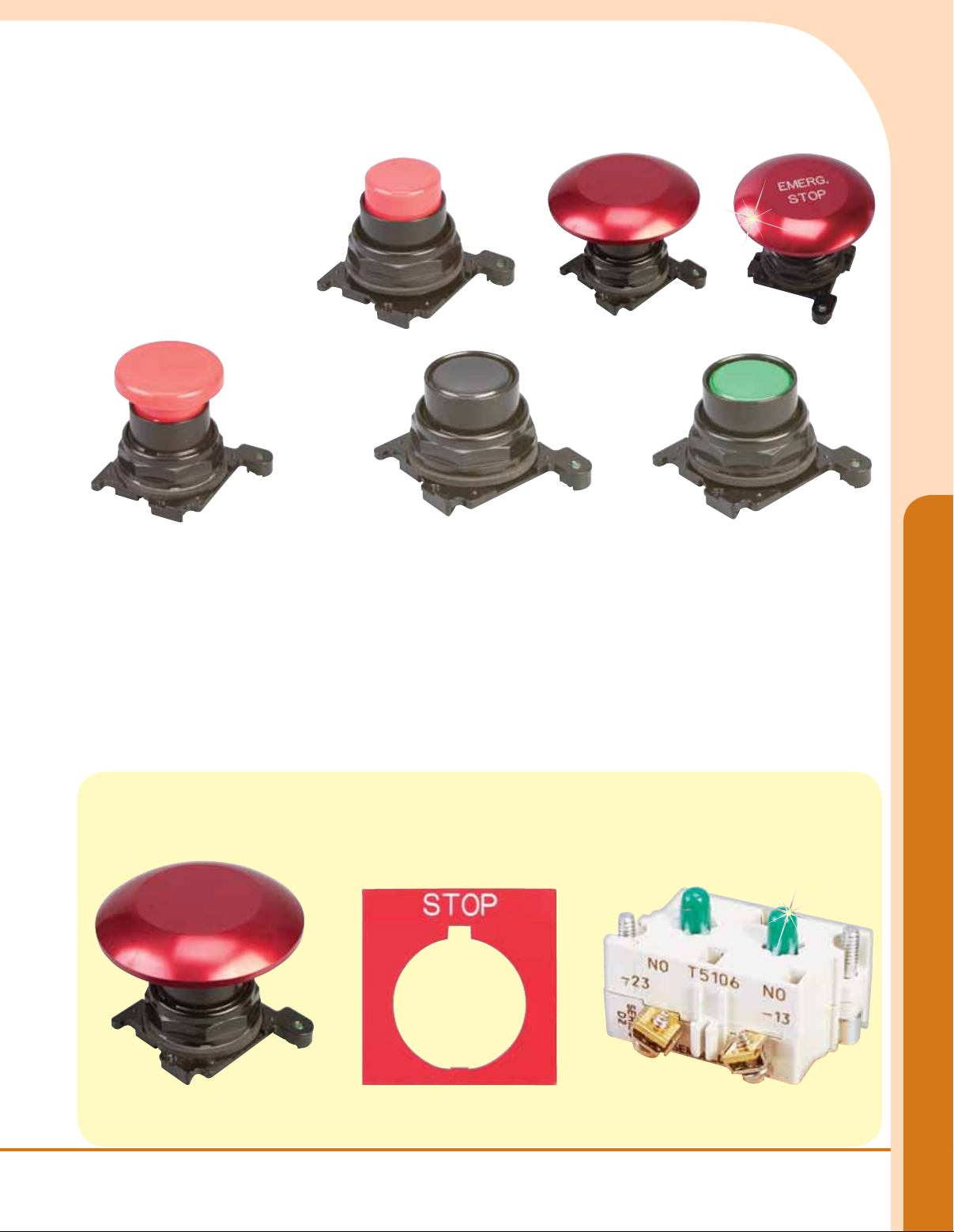

E34EB2
E34LB2
The E34 Series 30.5 mm pushbutton line
features the same rugged die cast
construction of our 10250T line with an
additional two layer 100% solid thermosetting
cathodic epoxy coating. This coating provides
a flat black smooth, consistent, corrosion
resistant surface that has passed a demanding
600 hour salt spray test. (The industry
standard for this 4X test requires only
200 hours). E34 cathodic coating is not
recommended for use in applications where
exposure to ultraviolet light exists—use
NEMA 4X 10250T operators.
The contact blocks feature enclosed silver
contacts with pointed "reliability nibs" for
reliable performance from logic level up to
600V. To ensure reliable switching, nibs bite
through oxide which can form on silver
contacts, eliminating the need for expensive
logic level blocks for most applications.
The E34 Series pushbutton operators offer
E34PB1
E34JB2
All models
shown smaller
than actual size.
E34JB2N8
E34PB3
front of panel drainage via holes in the
operator bushing. Hidden from view by the
mounting nut, these holes prevent buildup of
liquid inside the operator, which can prevent
operation in freezing environments. The
holes also provide a route for escaping liquid
in high pressure washdowns, effectively
relieving pressure from the internal
diaphragm seal, ensuring reliable sealing in
applications even beyond NEMA 4.
All models
Build Your Own System
+
E34JB2 E34SP34 10250T2
+
shown smaller
than actual size.
Pushbuttons and Warning Lights
1
Page 2

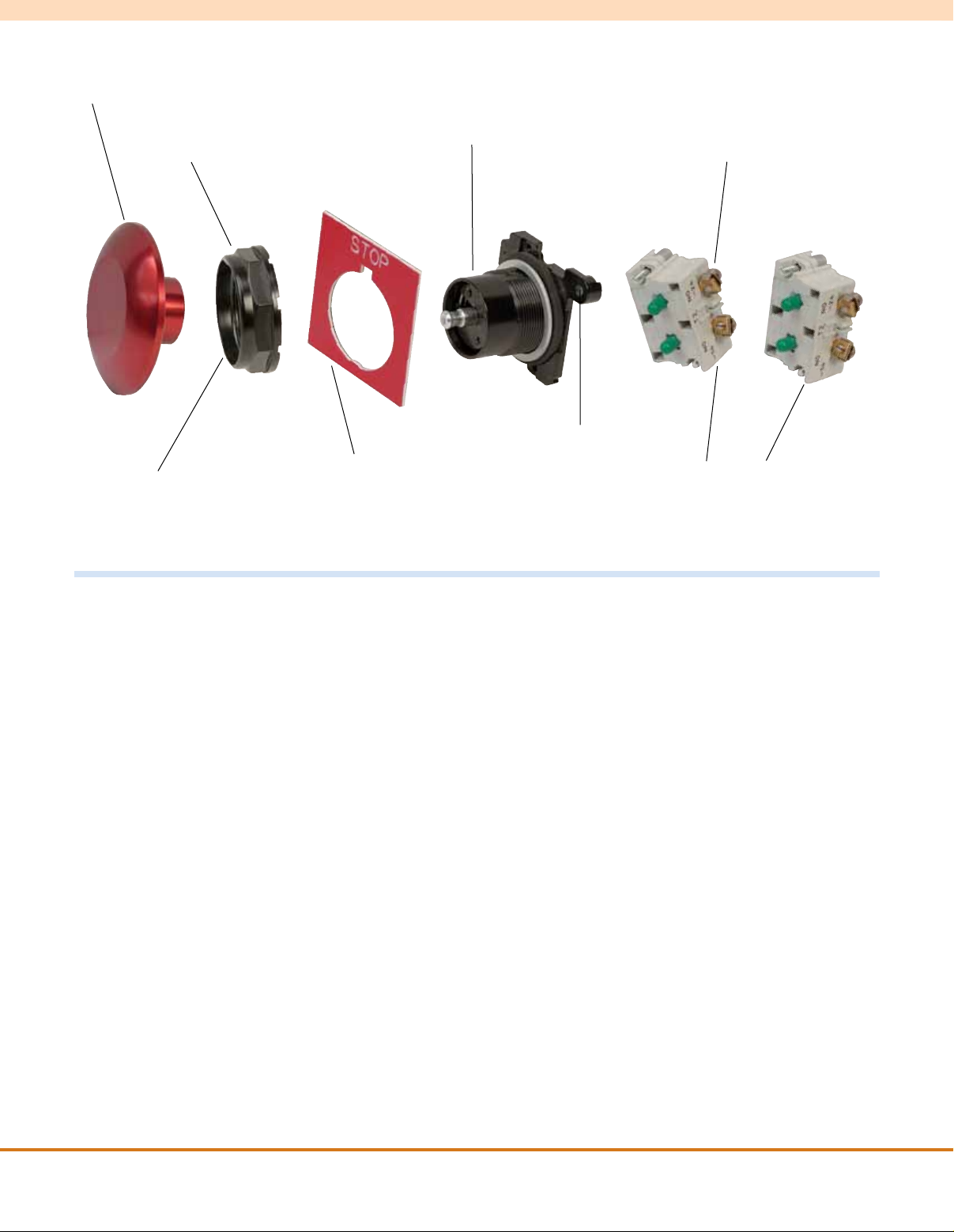

Red jumbo
mushroom button
Octagonal mounting nut, self-adjusts
to panel thickness—Eliminates spacer
washers and set screws
Die cast construction with
thick tough corrosion
resistant coating
Legend plates
Internal sealing diaphragm
for excellent sealing
Wide variety of operator
types and colors
E34 Series
Terminal clamps shipped
open ready to wire
Stackable contact blocks up
to 12 circuits per operator
SPECIFICATIONS
MECHANICAL RATINGS FREQUENCY
OF OPERATION
All Pushbuttons: 6000 operations/hr
Key and Lever Selector Switches: 3000
operations/hr
Auto-Latch Devices:
1200 operations/hr life
Pushbuttons: 10 x 106 operations
Contact Blocks: 10 x 106 operations
PresTest Units: 10 x 106 operations
Lever and Key Selector Switches:
0.25 x 106 operations
Twist to Release Pushbuttons:
0.3 x 106 operations
Shock Resistance Duration:
210 mS >= 5g
CLIMATE CONDITIONS
Operating Temperature: -17 to 66°C
(1 to 150°F)
Storage Temperature: -40 to 80°C
(-40 to 176°F)
Altitude: 6,562' (2,000 m)
Humidity: Max. 95% RH @ 60°C
Insulation: Ui = 660 VAC or DC
Thermal: lth = 10A
SHORT CIRCUIT COORDINATION
TO IEC/EN 60947-5-1
Rated Conditional Short Circuit
Current: 1 kA
Fuse Type: GE Power Controls TIA 10,
Red Spot Type gG, 10A, 660 VAC,
460 Vdc, BS88-2, IEC 60269-2-1
UL Rating: A600, P600 AC load life
duty cycle
1200 Operations/Hour – 10A: 110V pf
0.4 – 1 x 106 operations – 5A: 250V pf
0.4 – 1 x 106 Operations
2A: 660V pf 0.4 – 1 x 106 operations
Switching capacity AC15 rated make/
break (11 x le at 1.1 x Ue)
6A: 120V pf 0.3, 4A: 240V pf 0.3
2A: 660V pf 0.3 DC13 rated make/break
(1.1 x le at 1.1 x Ue)
1.0A: 125V L/R >=0.95 at 300 mS
0.55A: 250V L/R >=0.95 at 300 mS
0.1A: 660V L/R >= 0.95 at 300 mS
10A: 110V pure resistive Maximum
ratings for logic level and hostile
atmosphere application
Maximum Amperes: 0.5A
Maximum Volts: 120 VAC/dc
Low Voltage Switching: Conical
shaped points or "reliability nibs"
improve performance in dry circuit,
corrosive, fine dust and other
contaminated atmospheres. Under
normal environmental conditions, the
minimum operational voltage is 5V and
the minimum operational current is
1 mA, AC/DC.
Contact Operation: Slow make and
break. All normally closed contacts have
positive opening operation, i.e.,
normally closed contacts are forced
open in the event of contact weld or
spring breakage.
LIGHT UNITS
Transformers: will withstand short
circuit for 1 hour per IEC 60947-5-1
Bulbs—average life:
Transformer Type: 20,000 hrs.
Resistor/Direct Voltage Type: 2500 hrs
minimum @ rated V
LED: 60,000 to 100,000 hrs
TERMINALS
Marking: NC-NO on the contact block
to meet the NEMA requirements. Dual
marking system 1 to 2 for normally
closed, 3 to 4 for normally open to
meet BS5472 (Cenelec EN50 005).
Clamps: Terminals are saddle clamp
type for 1 x 22 AWG (0.34 mm2) to
2 x 14 AWG (2.5 mm2) conductors.
Torque = 7 lb-in (0.8 Nm) Degree of
protection against direct electrical
contact: IP2X with fingerproof shroud
2
Page 3
E34JB2
E34EB2
All models
shown smaller
than actual size.
E34JB2N8

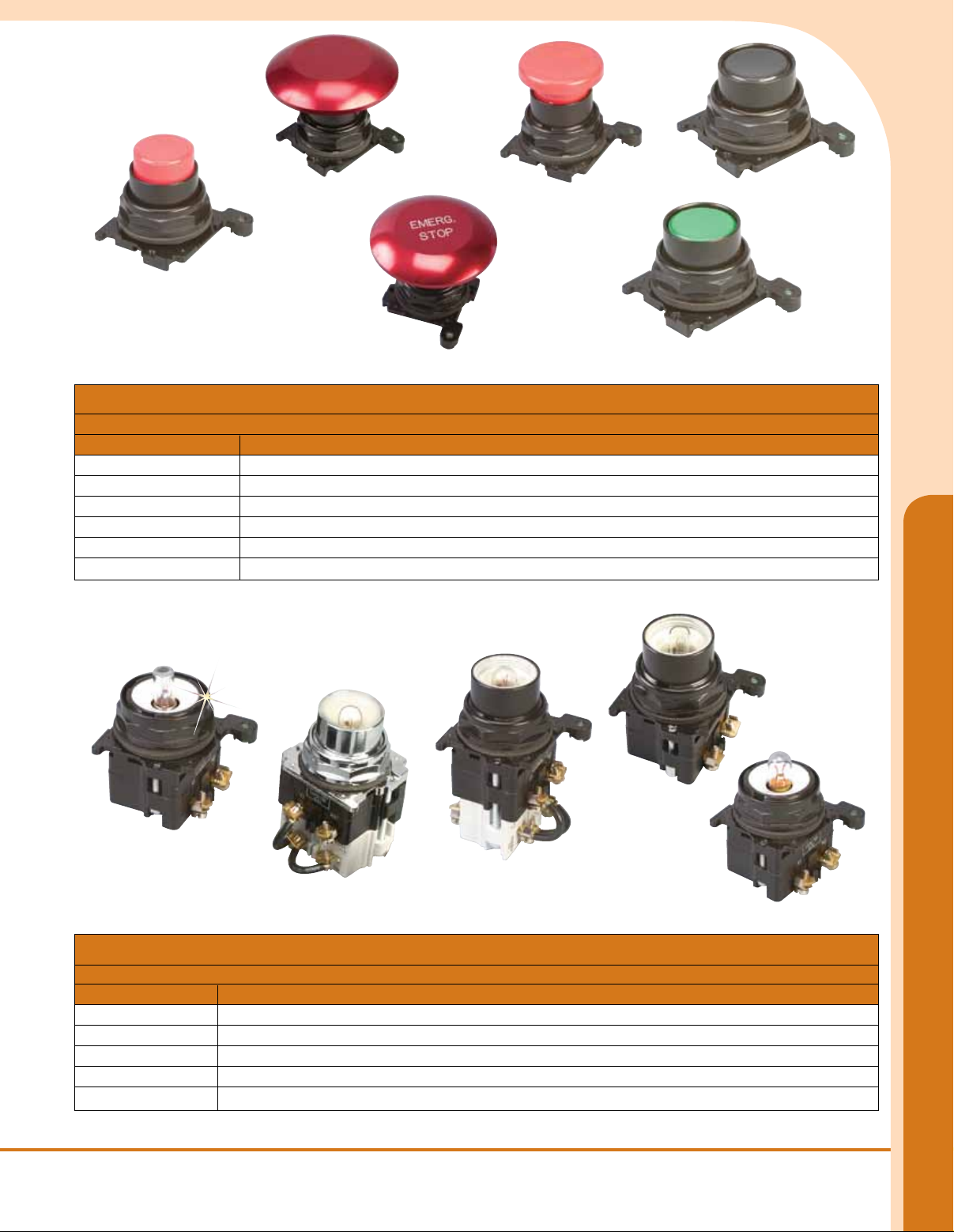

To Order
E34 OPERATORS
MODEL NO. DESCRIPTION
E34EB2 Red extended pushbutton operator
E34JB2 Red JUMBO mushroom head operator
E34JB2N8 E-STOP mushroom operator
E34LB2 Red mushroom head operator
E34PB1 Black flush pushbutton operator
E34PB3 Green flush pushbutton operator
Includes instruction sheet
Ordering Example: E34EB2, red extended pushbutton operator.
E34LB2
E34PB1
E34PB3
E34RB120
All models
shown smaller
than actual size.
E34RPB120
E34TPB120
To Order
ILLUMINATED PUSHBUTTONS AND INDICATING LIGHTS
MODEL NO. DESCRIPTION
E34RB120 120V full voltage/resistor type, no lens
E34RPB120 PresTest 120V full voltage/resistor type, no lens
E34SB120 Illuminated pushbutton operator 120V, no lens
E34TB120 120V transformer type, no lens
E34TPB120 PresTest 120V transformer type, no lens
Includes instruction sheet
Ordering Example: E34RB120, 120V full voltage/resistor type, no lens.
E34SB120
Pushbuttons and Warning Lights
E34TB120
3
Page 4
E34G2
E34G3
E34G5
E34G9
E34H2 E34H3 E34H5
E34P2
E34V3
E34P3
E34V2

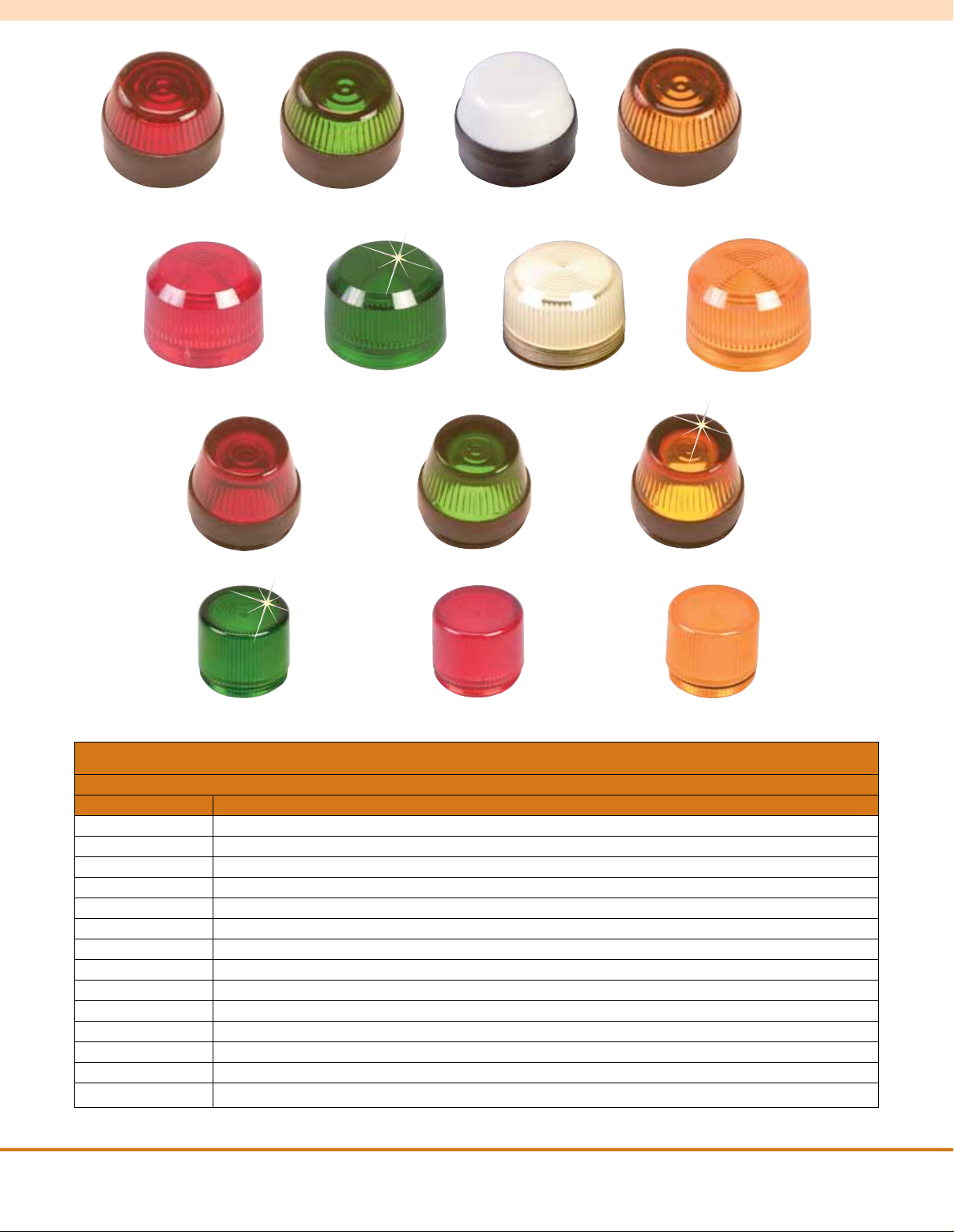

To Order
E34 LENS FOR INDICATING LIGHTS
MODEL NO. DESCRIPTION
E34G2 RED, glass (for indicating lights)
E34G3 GREEN, glass (for indicating lights)
E34G5 WHITE, glass (for indicating lights)
E34G9 AMBER, glass (for indicating lights)
E34H2 RED, plastic (for indicating lights)
E34H3 GREEN, plastic (for indicating lights)
E34H5 WHITE, plastic (for indicating lights)
E34H9 AMBER, plastic (for indicating lights)
E34P2 RED, glass (for PresTest or illuminated pushbuttons)
E34P3 GREEN, glass (for PresTest or illuminated pushbuttons)
E34P9 AMBER, glass (for PresTest or illuminated pushbuttons)
E34V2 RED, plastic (for PresTest or illuminated pushbuttons)
E34V3 GREEN, plastic (for PresTest or illuminated pushbuttons)
E34V9 AMBER, plastic (for PresTest or illuminated pushbuttons)
Includes instruction sheet
Ordering Example: E34G2, RED, glass (for indicating lights).
E34H9
All models
shown smaller
than actual size.
E34P9
E34V9
4
Page 5
E34C2
E34C2N8
E34J2
22.4
(0.88)
Contact
Block
22.4
(0.88)
Light Unit
1.5 (0.06) to 6.4 (0.25)
Panel Thickness
66.8
28.7
(1.13)
(2.63)
41.9
(1.65)
45.2
(1.78)
E34J2N8
E34M2
All models shown smaller than actual size.
E34M2N8
6.4
(0.25)
Dimensions: mm (in)

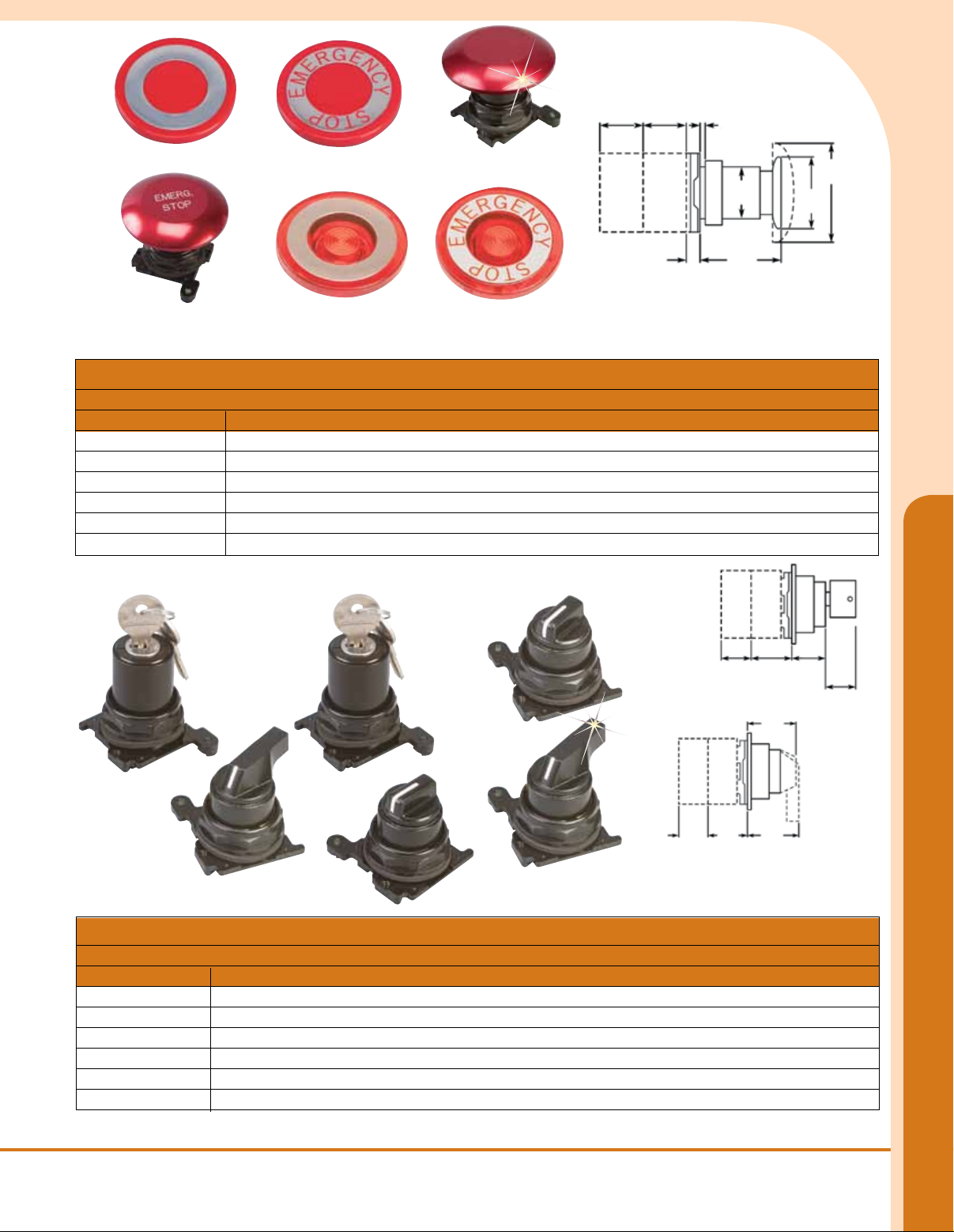

To Order
E34 PUSHBUTTONS - HEAD AND LENS
MODEL NO. DESCRIPTION
E34C2 Red Button for non-illuminated Push-Pull
E34C2N8 Red (EMERGENCY STOP) for non-illuminated Push-Pull
E34J2 Red jumbo mushroom head for non-illuminated Push-Pull
E34J2N8 Red jumbo mushroom head (EMERGENCY STOP) for non-illuminated Push-Pull
E34M2 Red lens for illuminated Push-Pull
E34M2N8 Red (EMERGENCY STOP) lens for illuminated Push-Pull
Includes instruction sheet
Ordering Example: E34C2, red button for non-illuminated Push-Pull.
E34KFB1
E34KGB4
All models
shown smaller
than actual size.
E34VFBK1
Contact Block
Each Addl.
Block
Contact Block
Each Addl.
22.4
(0.88)
Contact
Block
27.7
(1.09)
40.1
(1.58)
Knob
Contact
38.1
(1.5)
40.1 (1.58)
to remove
key
E34VFBL1
E34VGBK1
To Order
E34 SELECTOR SWITCHES
MODEL NO. DESCRIPTION
E34KFB1 2 position maintained selector switch - keyed
E34KGB4 3 position maintained selector switch - keyed
E34VFBK1 2 position maintained selector switch - knob
E34VFBL1 2 position maintained selector switch - lever
E34VGBK1 3 position maintained selector switch - knob
E34VGBL1 3 position maintained selector switch - lever
Includes instruction sheet
Ordering Example: E34KFB1, 2 position maintained selector switch - keyed.
E34VGBL1
22.4
(0.88)
40.1
27.7
(1.58)
(1.09)
Lever
Dimensions: mm (in)
Pushbuttons and Warning Lights
5
Page 6
All models
shown smaller
than actual size.
E34VFBK1-X1
E34VHBL1-Y2

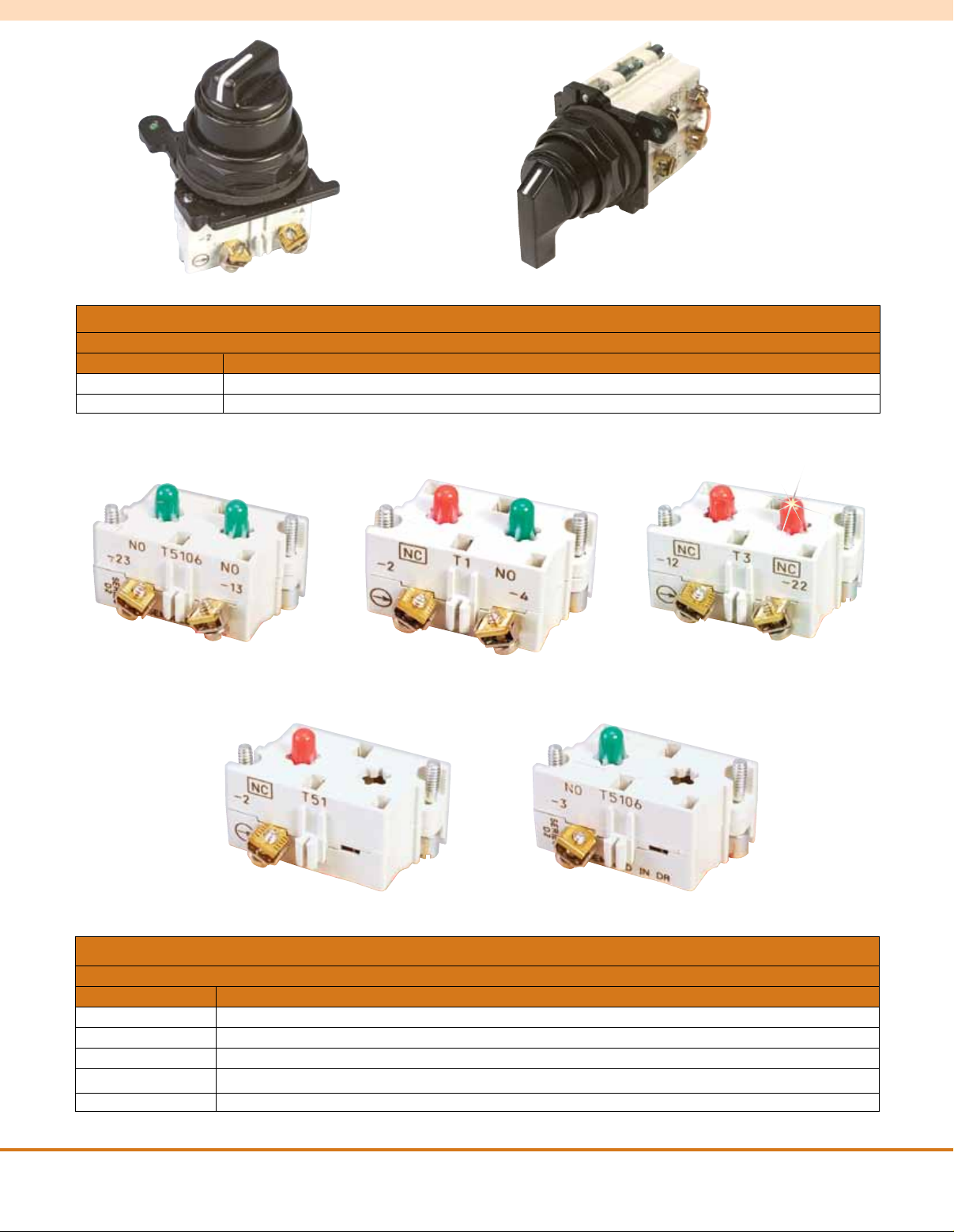

To Order
E34 COMMON COMPLETE DEVICES (INCLUDES CONTACT BLOCKS)
MODEL NO. DESCRIPTION
E34VFBK1-X1 ON-OFF switch (Black knob switch c/w NO/NC contact block)
E34VHBL1-Y2 H-O-A switch (Black lever switch c/w 2 NO/2 NC contact blocks)
Includes instruction sheet
Ordering Example: E34VFBK1-X1, ON-OFF switch.
10250T2
10250T1
10250T3
All models
shown smaller
than actual size.
10250T51
To Order
CONTACT BLOCKS
MODEL NO. DESCRIPTION
10250T1 Contact block, 1 NO/1 NC
10250T2 Contact block, 2 NO
10250T3 Contact block, 2 NC
10250T51 Contact block, 1 NC
10250T53 Contact block, 1 NO
Includes instruction sheet
Ordering Example: 10250T1, contact block, 1 normally open, 1 normally closed.
6
10250T53
