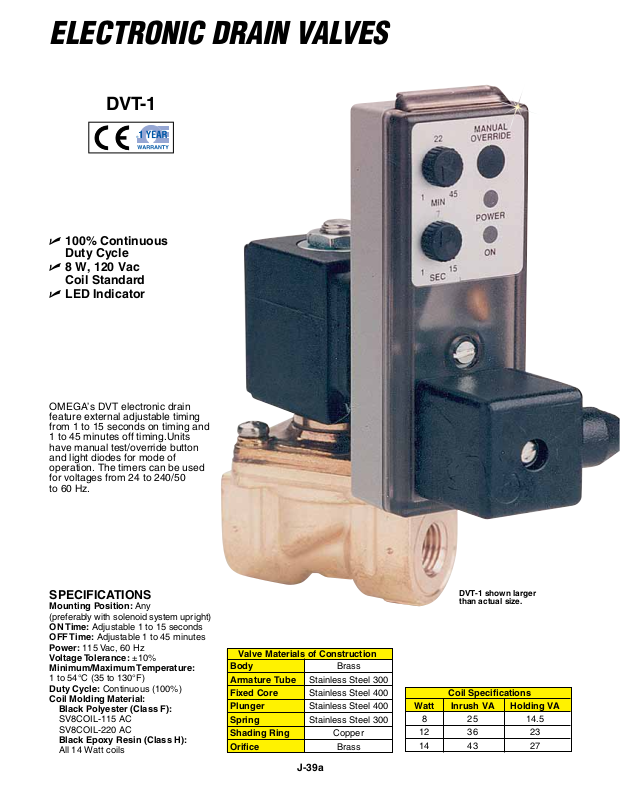

ElEctronic Drain ValVEs
DVT-1
U 100% Continuous
Duty Cycle
U 8 W, 120 Vac
Coil Standard
U LED Indicator
OMEGA’s DVT electronic drain
feature external adjustable timing
from 1 to 15 seconds on timing and
1 to 45 minutes off timing.Units
have manual test/override button
and light diodes for mode of
operation. The timers can be used
for voltages from 24 to 240/50
to 60 Hz.
SPECIFICATIONS
Mounting Position: Any
(preferably with solenoid system upright)
ON Time: Adjustable 1 to 15 seconds
OFF Time: Adjustable 1 to 45 minutes
Power: 115 Vac, 60 Hz
Voltage Tolerance: ±10%
Minimum/Maximum Temperature:
1 to 54°C (35 to 130°F)
Duty Cycle: Continuous (100%)
Coil Molding Material:
Black Polyester (Class F):
SV8COIL-115 AC
SV8COIL-220 AC
Black Epoxy Resin (Class H):
All 14 Watt coils
Valve Materials of Construction
Body Brass
Armature Tube Stainless Steel 300
Fixed Core Stainless Steel 400
Plunger Stainless Steel 400
Spring Stainless Steel 300
Shading Ring Copper
Orifice Brass
J-39a

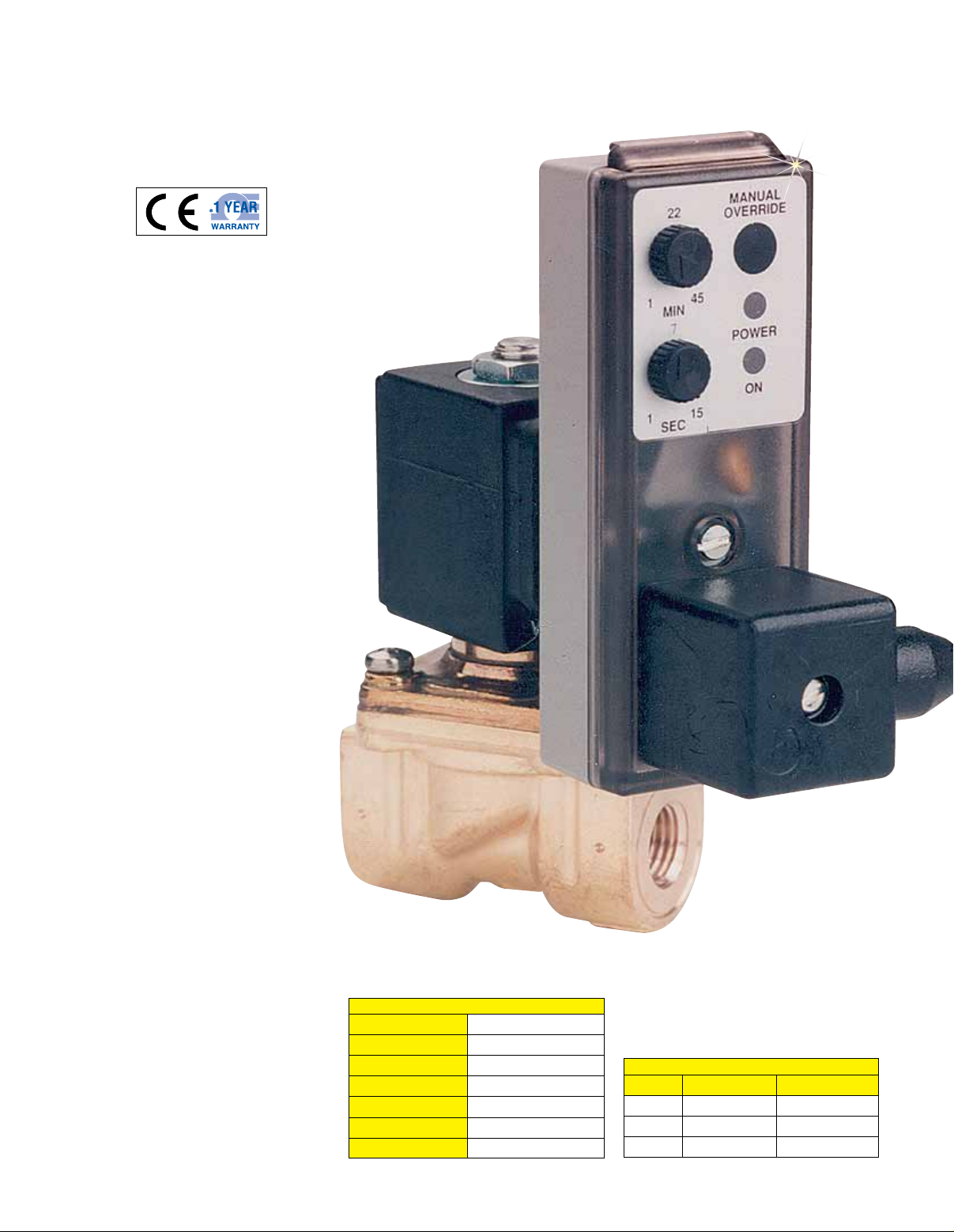

DVT-1 shown larger
than actual size.
Watt Inrush VA Holding VA
8 25 14.5
12 36 23
14 43 27
Coil Specifications
Page 2
F
E
D

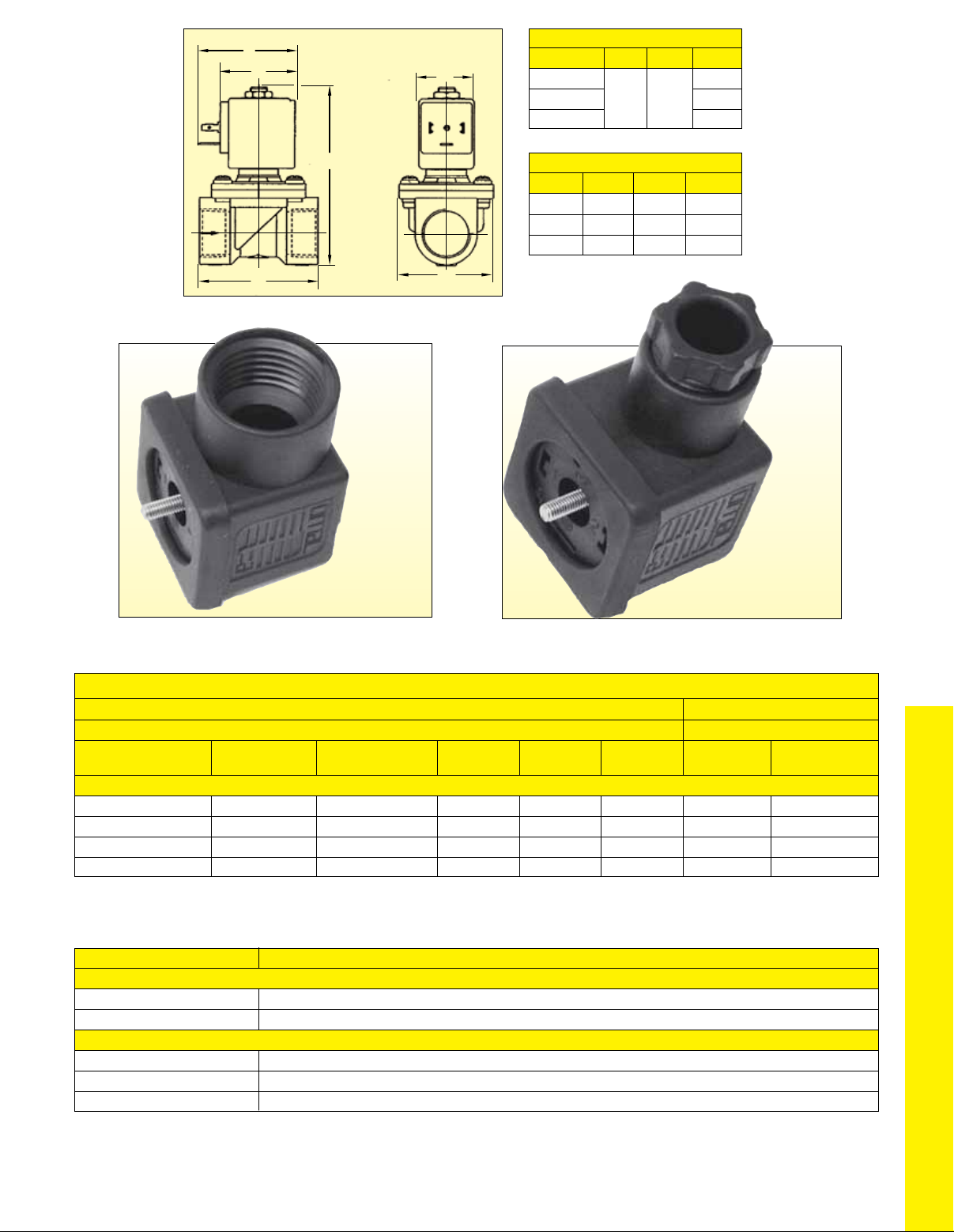

Valve Dimensions
Model No.
A B C
DVT-1, -2 2"
DVT-3 1⁹⁄₁₆" 3⁹⁄₁₆" 2"
DVT-4 2²⁷⁄₃₂"
B
C
connector, shown
larger than actual size.
SV-CC
1
⁄2" conduit
Coil Dimensions
Watt D E F
8 1³⁄₁₆" 1²¹⁄₃₂" 2¹⁄₈"
12 1⁷⁄₁₆" 1²⁹⁄₃₂" 2³⁄₈"
14 2¹⁄₁₆" 2⁷⁄₃₂" 2²¹⁄₃₂"
A
SV-CGC cable grip
connector, shown
larger than actual size.
To Order
Operating Pressure
M.O.P.D.*
Pipe Size Orifice Cv Flow Power MIN AC
Model No. NPT Size Factor O-ring (watt) psi psi
Normally Closed
DVT-1 ¹⁄₄ ¹⁄₈" 0.24 FKM 8 0 175
DVT-2 ¹⁄₄ ⁷⁄₁₆" 1.5 FKM 8 2 300
DVT-3 ³⁄₈ ⁷⁄₁₆" 1.7 FKM 8 2 300
DVT-4 ¹⁄₂ ⁷⁄₁₆" 1.7 FKM 8 2 300
*Maximum operating pressure differential.
Accessories
Model No. Description
Connectors
SV-CGC Cable grip connector
SV-CC ¹⁄₂" conduit connector
Coils
SV8COIL-115AC Replacement 8W coil for 110 to 120 Vac/50 to 60 Hz 154°C (310°F) (Class F)
SV8COIL-220AC 8W coil for 220 to 240/50 to 60 Hz 154°C (310°F) (Class F)
SV8COIL-115/60HZ 8W coil for 115/60 Hz 182°C (360°F) (Class H)
Comes complete with operator’s manual and cable grip connector.
Ordering Examples: DVT-2,
1
DVT-1,
NPT Valve with electronic timer.
⁄
8
1
NPT Valve with electronic timer.
⁄
4
J-39b
