T-dual TC/TypeJ

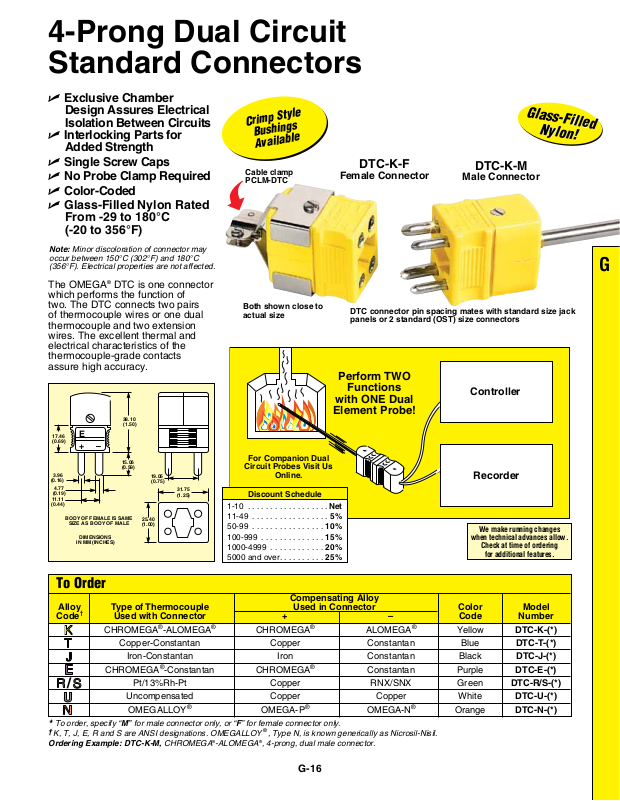

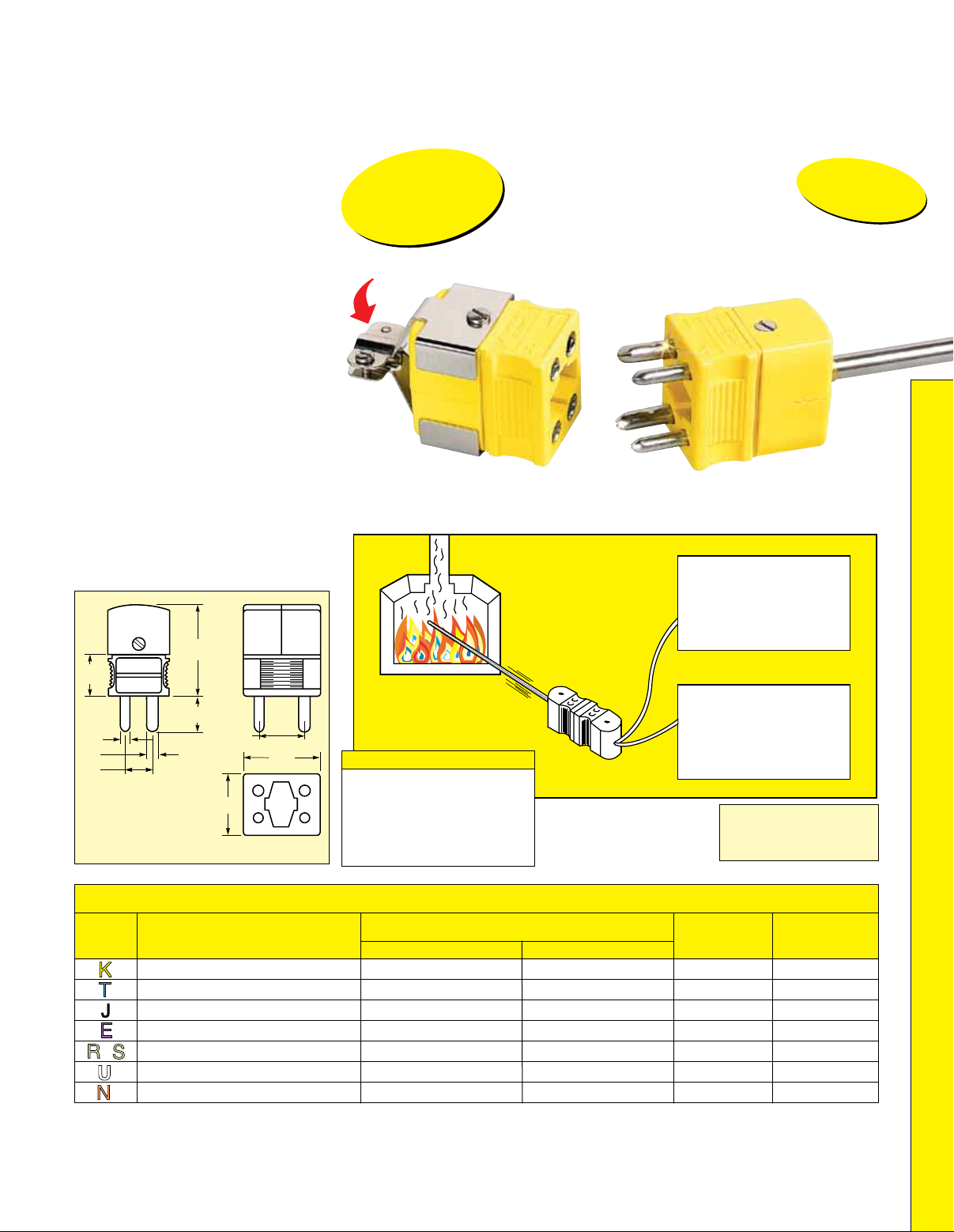

4-Prong Dual Circuit
U
Standard Connectors
U Exclusive Chamber
Design Assures Electrical
Isolation Between Circuits
U Interlocking Parts for
Added Strength
U Single Screw Caps
U No Probe Clamp Required
U Color-Coded
U Glass-Filled Nylon Rated
From -29 to 180°C
(-20 to 356°F)
Note: Minor discoloration of connector may
occur between 150°C (302°F) and 180°C
(356°F). Electrical properties are not affected.
The OMEGA® DTC is one connector
which performs the function of
two. The DTC connects two pairs
of thermocouple wires or one dual
thermocouple and two extension
wires. The excellent thermal and
electrical characteristics of the
thermocouple-grade contacts
assure high accuracy.
38.10
(1.50)
E
17.46
(0.69)
+–
15.06
3.96
(0.16)
4.77
(0.19)
11.11
(0.44)
BODY OF FEMALE IS SAME
SIZE AS BODY OF MALE
DIMENSIONS
IN MM (INCHES)
(0.59)
25.40
(1.00)
19.05
(0.75)
31.75
(1.25)
Crimp Style
Bushings
Available
Cable clamp
PCLM-DTC
Both shown close to
actual size
Element Probe!
For Companion Dual
Circuit Probes Visit Us
Online.
Discount Schedule
1-10 ..................Net
11-49 .................5%
50-99 ................10%
100-999 ..............15%
1000-4999 ............20%
5000 and over..........25%
Female Connector
DTC connector pin spacing mates with standard size jack
panels or 2 standard (OST) size connectors
Perform TWO
Functions
with ONE Dual
DTC-K-F
Glass-Filled
Glass-Filled
Nylon!
Nylon!
DTC-K-M
Male Connector
Controller
Recorder
We make running changes
when technical advances allow.
Check at time of ordering
for additional features.
G
To Order
Compensating Alloy
Alloy Type of Thermocouple Used in Connector Color Model
Code† Used with Connector + – Code Number
CHROMEGA
Copper-Constantan Copper Constantan Blue DTC-T-(*)
Iron-Constantan Iron Constantan Black DTC-J-(*)
CHROMEGA
Pt/13%Rh-Pt Copper RNX/SNX Green DTC-R/S-(*)
/
Uncompensated Copper Copper White DTC-U-(*)
OMEGALLOY
To order, specify “M” for male connector only, or “F” for female connector only.
*
†
K, T, J, E, R and S are ANSI designations. OMEGALLOY®, Type N, is known generically as Nicrosil-Nisil.
Ordering Example: DTC-K-M, CHROMEGA®-ALOMEGA®, 4-prong, dual male connector.
®
-ALOMEGA
®
-Constantan CHROMEGA
®
®
CHROMEGA
OMEGA-P® OMEGA-N® Orange DTC-N-(*)
®
®
®
ALOMEGA
Constantan Purple DTC-E-(*)
Yellow DTC-K-(*)
G-16
