[3] Ø1/4 [Ø6.3]
3-5/16
1-1/2 [38.1]
]
2-3/8 [60.45]
1/4 NPT

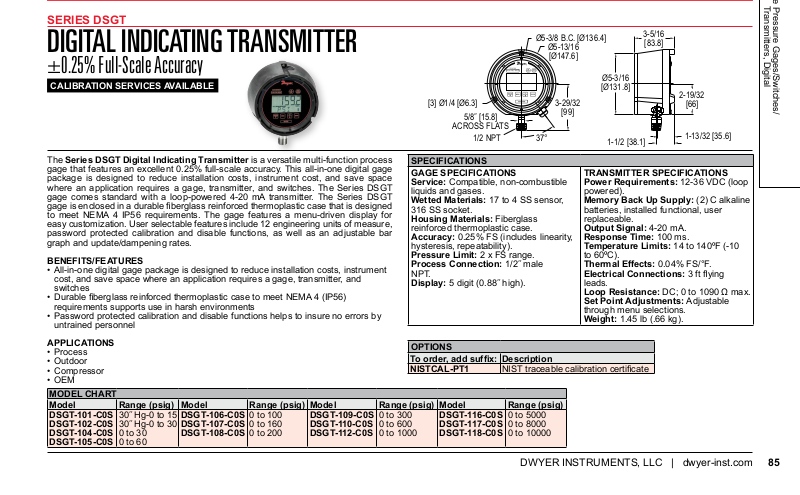

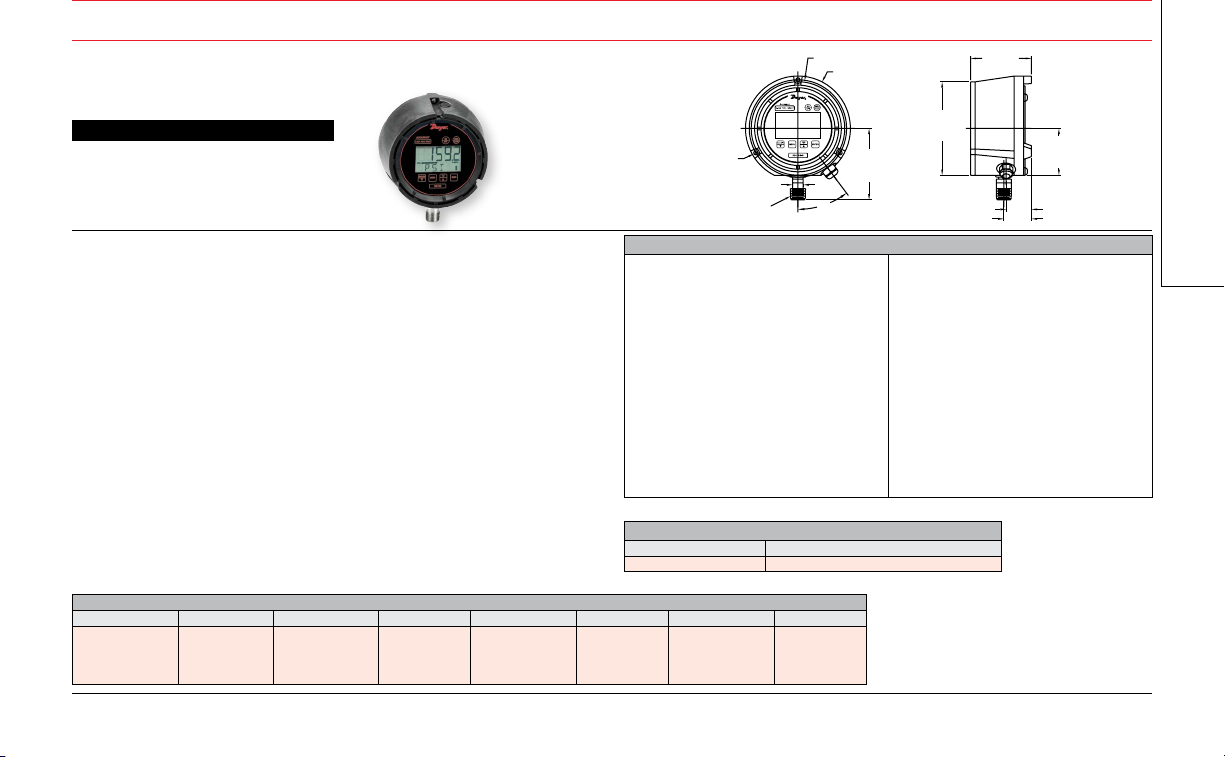

SERIES DSGT
Ø5-3/8 B.C. [Ø136.4]
DIGITAL INDICATING TRANSMITTER
Ø5-13/16
±0.25% Full-Scale Accuracy
CALIBRATION SERVICES AVAILABLE
5/8˝ [15.8]
ACROSS FLATS
1/2 NPT
The Series DSGT Digital Indicating Transmitter is a versatile multi-function process
gage that features an excellent 0.25% full-scale accuracy. This all-in-one digital gage
package is designed to reduce installation costs, instrument cost, and save space
where an application requires a gage, transmitter, and switches. The Series DSGT
gage comes standard with a loop-powered 4-20 mA transmitter. The Series DSGT
gage is enclosed in a durable berglass reinforced thermoplastic case that is designed
to meet NEMA 4 IP56 requirements. The gage features a menu-driven display for
easy customization. User selectable features include 12 engineering units of measure,
password protected calibration and disable functions, as well as an adjustable bar
graph and update/dampening rates.
BENEFITS/FEATURES
• All-in-one digital gage package is designed to reduce installation costs, instrument
cost, and save space where an application requires a gage, transmitter, and
switches
• Durable berglass reinforced thermoplastic case to meet NEMA 4 (IP56)
requirements supports use in harsh environments
• Password protected calibration and disable functions helps to insure no errors by
untrained personnel
APPLICATIONS
• Process
• Outdoor
• Compressor
• OEM
MODEL CHART
Model Range (psig) Model Range (psig) Model Range (psig) Model Range (psig)
DSGT-101-C0S
DSGT-102-C0S
DSGT-104-C0S
DSGT-105-C0S
30˝ Hg-0 to 15
30˝ Hg-0 to 30
0 to 30
0 to 60
DSGT-106-C0S
DSGT-107-C0S
DSGT-108-C0S
0 to 100
0 to 160
0 to 200
DSGT-109-C0S
DSGT-110-C0S
DSGT-112-C0S
SPECIFICATIONS
GAGE SPECIFICATIONS
Service: Compatible, non-combustible
liquids and gases.
Wetted Materials: 17 to 4 SS sensor,
316 SS socket.
Housing Materials: Fiberglass
reinforced thermoplastic case.
Accuracy: 0.25% FS (includes linearity,
hysteresis, repeatability).
Pressure Limit: 2 x FS range.
Process Connection: 1/2˝ male
NPT.
Display: 5 digit (0.88˝ high).
OPTIONS
To order, add sufx: Description
NISTCAL-PT1 NIST traceable calibration certicate
0 to 300
0 to 600
0 to 1000
DSGT-116-C0S
DSGT-117-C0S
DSGT-118-C0S
37°
0 to 5000
0 to 8000
0 to 10000
DWYER INSTRUMENTS, LLC | dwyer-inst.com
[Ø147.6]
Ø5-3/16
[Ø131.8]
3-29/32
[99]
TRANSMITTER SPECIFICATIONS
Power Requirements: 12-36 VDC (loop
powered).
Memory Back Up Supply: (2) C alkaline
batteries, installed functional, user
replaceable.
Output Signal: 4-20 mA.
Response Time: 100 ms.
Temperature Limits: 14 to 140ºF (-10
to 60ºC).
Thermal Effects: 0.04% FS/°F.
Electrical Connections: 3 ft ying
leads.
Loop Resistance: DC; 0 to 1090 Ω max.
Set Point Adjustments: Adjustable
through menu selections.
Weight: 1.45 lb (.66 kg).
[83.8]
2-19/32
[66]
1-13/32 [35.6
Transmitters, Digital
