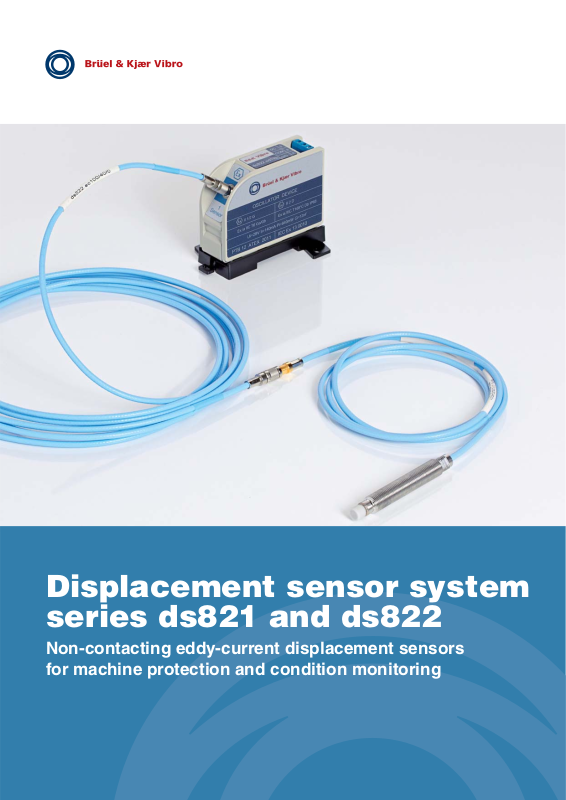

Page 1
Displacement sensor system
series ds821 and ds822
Non-contacting eddy-current displacement sensors
for machine protection and condition monitoring
Page 2
Sensors are the fingertips of any
vibration measurement installation.
Only high-quality sensors ensure that
measurements are taken reliably and
provide the necessary signal input for
accurately monitoring the machine’s
condition. We from Brüel & Kjær Vibro
develop our sensors to the highest
standards and in close cooperation
with our customers to meet their
demanding requirements.
Our wide range of sensors has now
been extended by the 2 mm measuring range family members of the noncontacting eddy-current displacement
sensor (ECDS) systems:
• Series ds821 - Suitable for standard
applications
• Series ds822 - For use in hazardous
environments (ATEX, IECEx, EAC
Ex, UL HazLoc)
Both series are now available in 4 mm
and 2 mm measuring ranges and are
designed for monitoring rotating and
reciprocating machines with journalbearings in a wide range of industrial
applications:
© Brüel & Kjær Vibro GmbH Status 04/2017 - All information non-binding.
We reserve the right to make changes without notice. BBR 0038-EN-13
• Vibration
(radial and axial vibration and
displacement)
• Reference
(phase reference and speed
measurement)
• Position
(e.g. axial shaft position, rod-drop/
rod position).
Some of the system's outstanding
features:
- Auto selection of system length:
The same ECDS oscillating driver
unit can be used for both 5 m and
10 m cable lengths; this minimizes
inventory costs and simplifies
installation
- Push-pull self-latching connectors
for secure, fast and easy installation
on site; wrong assembly is avoided
- Very good EMC behaviour
- Excellent temperature stability
- Ceramic probe cap for use in harsh
surroundings
- Solder tip design for 2 mm
measuring
- High reliability, even in harsh
environments
- Compliance to API 670
The new sensor systems have the
same high standard of design,
construction, performance and
reliability as do all Brüel & Kjær Vibro
displacement sensor systems. This
proven quality plus the new connection
concept make them ideal for both
machine protection and condition
monitoring installations.
Our in-house service ensures the
systems can be used for many years.
For more information, please contact
your local sales representative or go to
www.bkvibro.com for more information on this sensor system and our
complete product portfolio.
