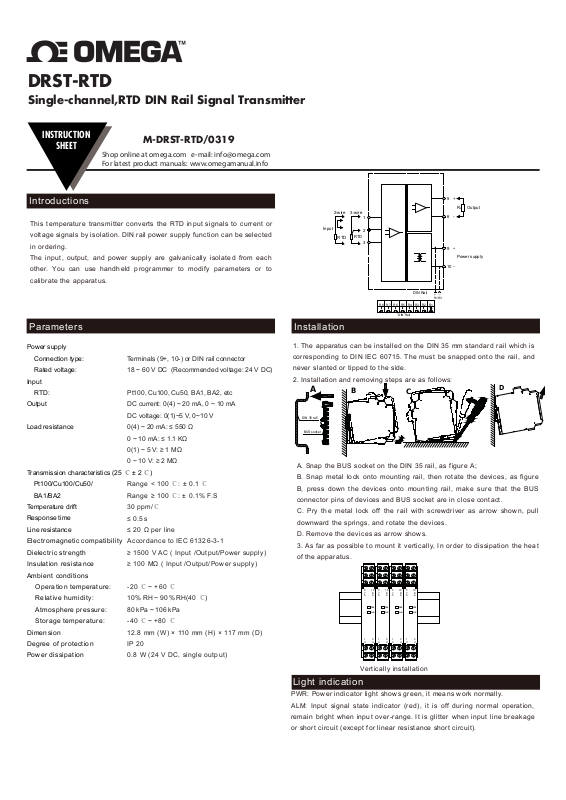

DRST-RTD

PWRPWRPWR PWR

ALM ALM ALM ALM

Single-channel,RTD DIN Rail Signal Transmitter

INSTRUCTION

SHEET

M-DRST-RTD/0319

Shop online at omega.com e-mail: [email protected] For latest product manuals: www.omegamanual.info

Introductions

This temperature transmitter converts the RTD input signals to current or

voltage signals by isolation. DIN rail power supply function can be selected

in ordering.

The input, output, and power supply are galvanically isolated from each

other. You can use handheld programmer to modify parameters or to

calibrate the apparatus.

Parameters

Power supply

Connection type:

Rated voltage:

Input

RTD:

Output

Load resistance

Transmission characteristics (25 ℃ ± 2 ℃)

Pt100/Cu100/Cu50/

BA1/BA2

Temperature drift

Response time

Line resistance

Electromagnetic compatibility

Dielectric strength

Insulation resistance

Ambient conditions

Operation temperature:

Relative humidity:

Atmosphere pressure:

Storage temperature:

Dimension

Degree of protection

Power dissipation

Terminals (9+, 10-) or DIN rail connector

18 ~ 60 V DC (Recommended voltage: 24 V DC)

Pt100, Cu100, Cu50, BA1, BA2, etc

DC current: 0(4) ~ 20 mA, 0 ~ 10 mA

DC voltage: 0(1)~5 V, 0~10 V

0(4) ~ 20 mA: ≤ 550 Ω

0 ~ 10 mA: ≤ 1.1 KΩ

0(1) ~ 5 V: ≥ 1 MΩ

0 ~ 10 V: ≥ 2 MΩ

Range < 100 ℃: ± 0.1 ℃ Range ≥ 100 ℃: ± 0.1% F.S 30 ppm/℃

≤ 0.5s

≤ 20 Ω per line

Accordance to IEC 61326-3-1

≥ 1500 V AC ( Input /Output/Power supply)

≥ 100 MΩ ( Input /Output/Power supply)

-20 ℃ ~ +60 ℃ 10% RH ~ 90% RH(40 ℃)

80 kPa ~ 106 kPa

-40 ℃ ~ +80 ℃

12.8 mm (W) × 110 mm (H) × 117 mm (D)

IP 20

0.8 W (24 V DC, single output)

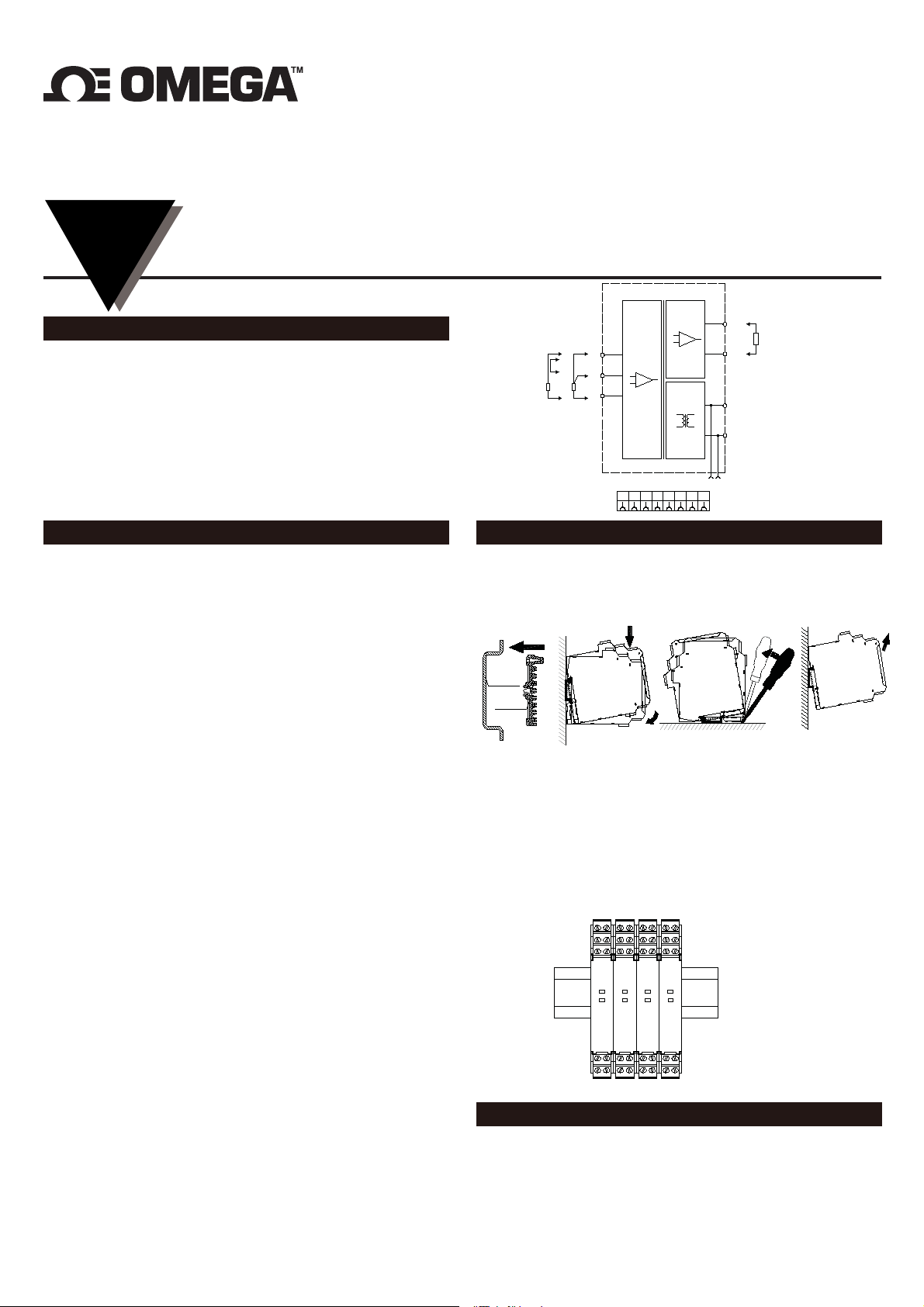

Wiring diagram

3-wire

2-wire

Input

RTD

R8R7R6 R5

DIN Rail

Output

Power supply

Installation

1. The apparatus can be installed on the DIN 35 mm standard rail which is

corresponding to DIN IEC 60715. The must be snapped onto the rail, and

never slanted or tipped to the side.

2. Installation and removing steps are as follows:

DIN 35 rai

BUS socket

A. Snap the BUS socket on the DIN 35 rail, as figure A;

B. Snap metal lock onto mounting rail, then rotate the devices, as figure

B, press down the devices onto mounting rail, make sure that the BUS

connector pins of devices and BUS socket are in close contact.

C. Pry the metal lock off the rail with screwdriver as arrow shown, pull

downward the springs, and rotate the devices.

D. Remove the devices as arrow shows.

3. As far as possible to mount it vertically, In order to dissipation the heat

of the apparatus.

Vertically installation

Light indication

PWR: Power indicator light shows green, it means work normally.

ALM: Input signal state indicator (red), it is off during normal operation,

remain bright when input over-range. It is glitter when input line breakage

or short circuit (except for linear resistance short circuit).

Light indication
