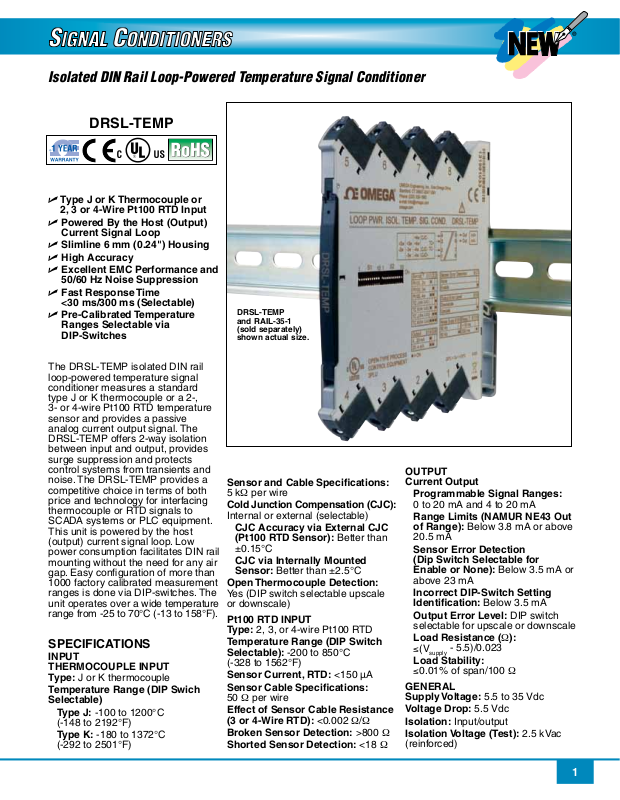

Page 1
Isolated DIN Rail Loop-Powered Temperature Signal Conditioner
DRSL-TEMP
U Type J or K Thermocouple or
2, 3 or 4-Wire Pt100 RTD Input
U Powered By the Host (Output)
Current Signal Loop
U Slimline 6 mm (0.24") Housing
U High Accuracy
U Excellent EMC Performance and
50/60 Hz Noise Suppression
U Fast Response Time
<30 ms/300 ms (Selectable)
U Pre-Calibrated Temperature
Ranges Selectable via
DIP-Switches
The DRSL-TEMP isolated DIN rail
loop-powered temperature signal
conditioner measures a standard
type J or K thermocouple or a 2-,
3- or 4-wire Pt100 RTD temperature
sensor and provides a passive
analog current output signal. The
DRSL-TEMP offers 2-way isolation
between input and output, provides
surge suppression and protects
control systems from transients and
noise. The DRSL-TEMP provides a
competitive choice in terms of both
price and technology for interfacing
thermocouple or RTD signals to
SCADA systems or PLC equipment.
This unit is powered by the host
(output) current signal loop. Low
power consumption facilitates DIN rail
mounting without the need for any air
gap. Easy configuration of more than
1000 factory calibrated measurement
ranges is done via DIP-switches. The
unit operates over a wide temperature
range from -25 to 70°C (-13 to 158°F).
SPECIFICATIONS
INPUT
THERMOCOUPLE INPUT
Type: J or K thermocouple
Temperature Range (DIP Swich
Selectable)
Type J: -100 to 1200°C
(-148 to 2192°F)
Type K: -180 to 1372°C
(-292 to 2501°F)

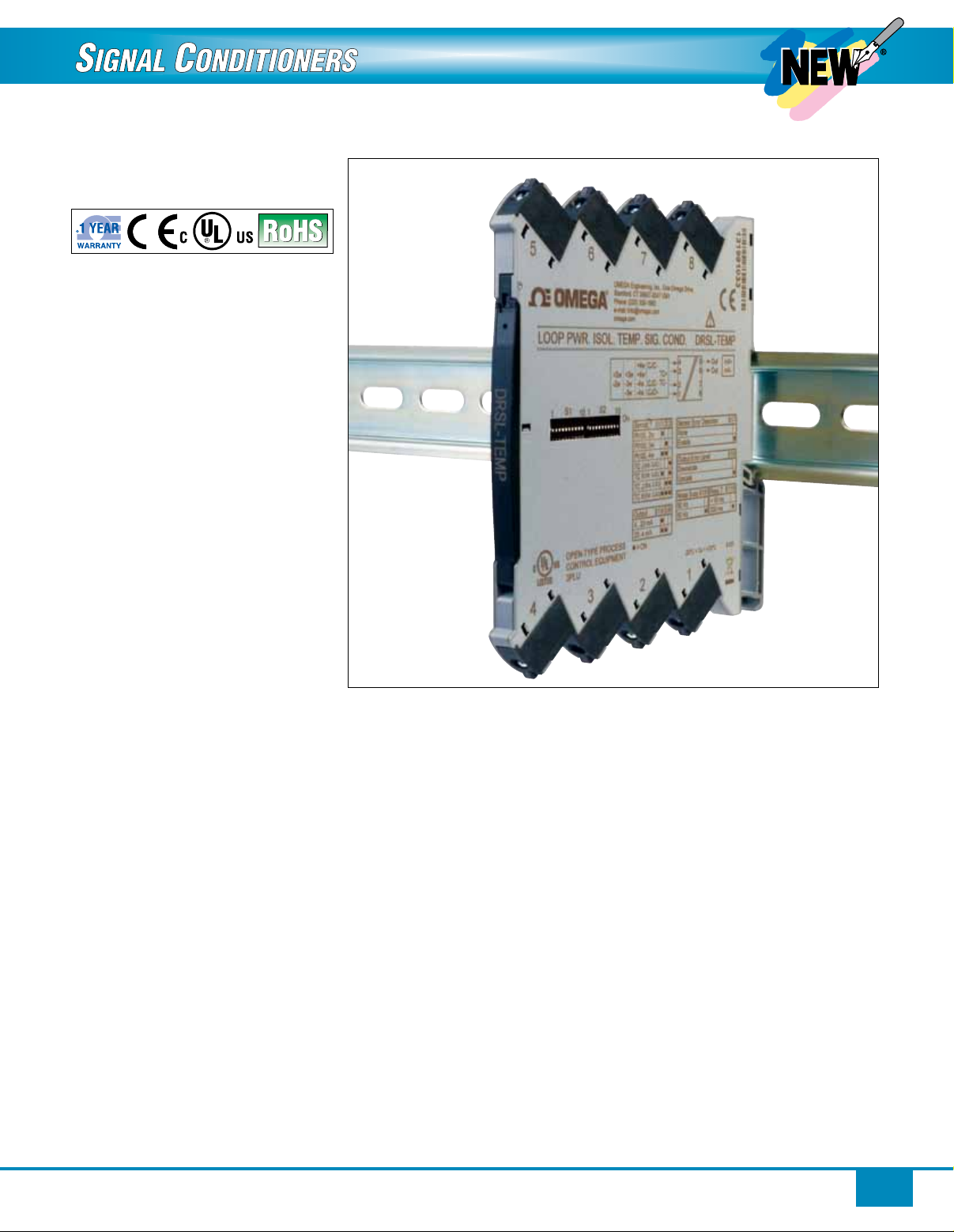

DRSL-TEMP
and RAIL-35-1
(sold separately)
shown actual size.
Sensor and Cable Specifications:
5 kΩ per wire
Cold Junction Compensation (CJC):
Internal or external (selectable)
CJC Accuracy via External CJC
(Pt100 RTD Sensor): Better than
±0.15°C
CJC via Internally Mounted
Sensor: Better than ±2.5°C
Open Thermocouple Detection:
Yes (DIP switch selectable upscale
or downscale)
Pt100 RTD INPUT
Type: 2, 3, or 4-wire Pt100 RTD
Temperature Range (DIP Switch
Selectable): -200 to 850°C
(-328 to 1562°F)
Sensor Current, RTD: <150 µA
Sensor Cable Specifications:
50 Ω per wire
Effect of Sensor Cable Resistance
(3 or 4-Wire RTD): <0.002 Ω/Ω
Broken Sensor Detection: >800 Ω
Shorted Sensor Detection: <18 Ω
OUTPUT
Current Output
Programmable Signal Ranges:
0 to 20 mA and 4 to 20 mA
Range Limits (NAMUR NE43 Out
of Range): Below 3.8 mA or above
20.5 mA
Sensor Error Detection
(Dip Switch Selectable for
Enable or None): Below 3.5 mA or
above 23 mA
Incorrect DIP-Switch Setting
Identification: Below 3.5 mA
Output Error Level: DIP switch
selectable for upscale or downscale
Load Resistance (Ω):
≤(V
Load Stability:
≤0.01% of span/100 Ω
GENERAL
Supply Voltage: 5.5 to 35 Vdc
Voltage Drop: 5.5 Vdc
Isolation: Input/output
Isolation Voltage (Test): 2.5 kVac
(reinforced)
- 5.5)/0.023
supply
1
Page 2
Isolation Voltage (Working): 300 Vac
Signal/Noise Ratio: >60 dB
Response Time (0 to 90%, 100 to
10%): <30 ms/300 ms (selectable,
provides either fast response or
signal dampening as needed)
Accuracy
Thermocouple Input: Better than
0.5°C or ±0.05% of span (selected
input range)
RTD Input: Better than 0.1°C or
±0.05% of span (selected input range)
Temperature Coefficient
Thermocouple Input: ≤±0.1°C/°C
or ≤±0.01%/°C
RTD Input: ≤±0.02 °C/°C
EMC Immunity Influence: <±0.5%
of span

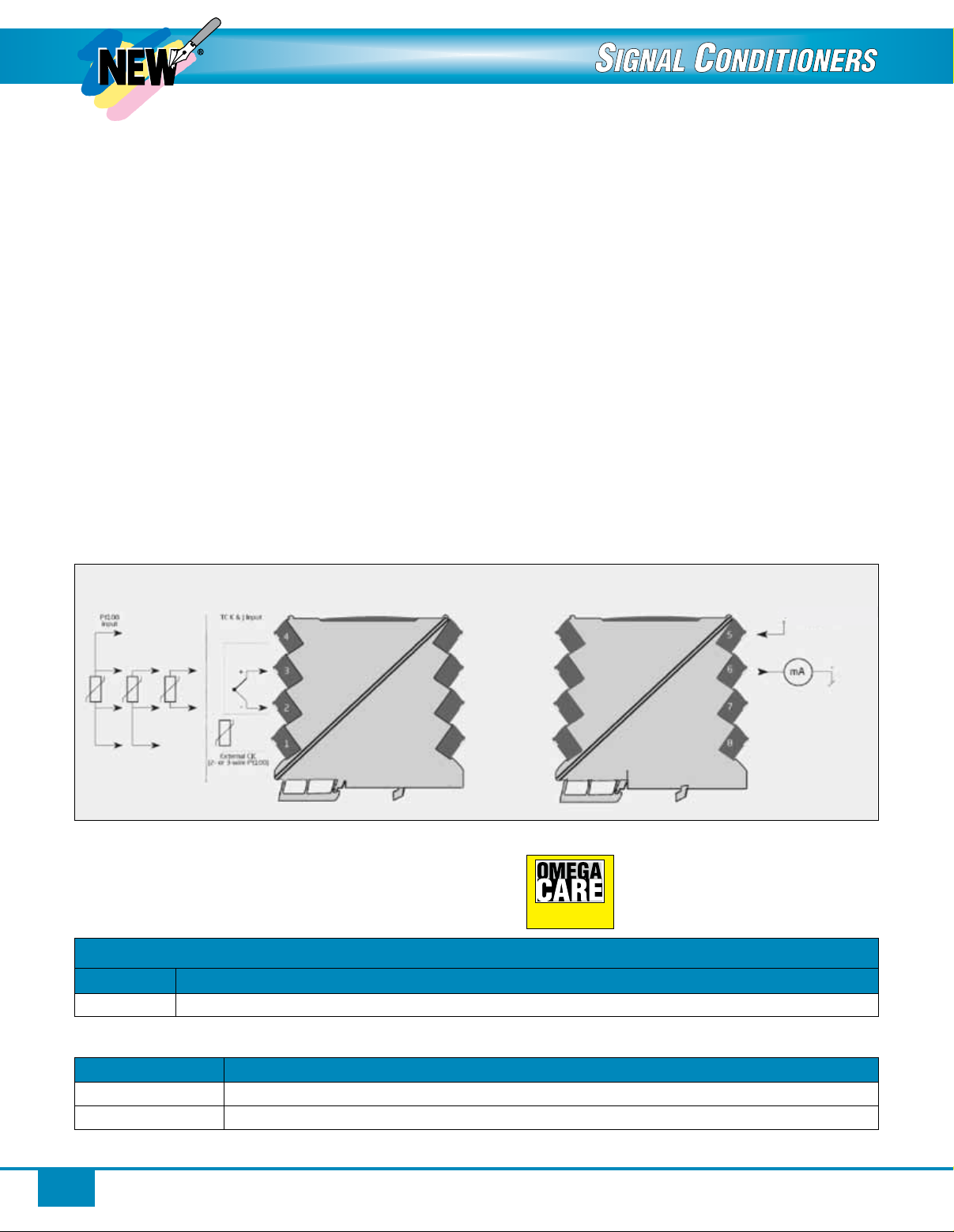

Connections
Extended EMC Immunity
NAMUR NE 21, A Criterion,
Burst: <±1% of span (span =
selected input range)
ENVIRONMENTAL
Operating Temperature: -25 to 70°C
(-13 to 158°F)
Storage Temperature: -40 to 85°C
(-40 to 185°F)
Calibration Temperature: 20 to
28°C (68 to 82°F)
Relative Humidity: 0 to 95% RH
non-condensing
Protection Degree: IP20
Installation Area: Pollution degree
2 and measurement/overvoltage
category II
MECHANICAL
Dimensions:
113 H x 6.1 W x 115 mm D
(4.4 x 0.24 x 4.5")
Weight: 70 g (0.15 lb) approx
DIN Rail Type: DIN EN 60715 - 35 mm
Wire Size: 0.13 x 2.5mm2/AWG
26 to 12 stranded wire
Screw Terminal Torque: 0.5 Nm
+ V supply 5.5_35 VDC
SM
OMEGACARESM extended warranty program is
available for models shown on this page. Ask
your sales representative for full details when
Extended Warranty
Program
placing an order. OMEGACARE
labor and equivalent loaners.
To Order
Model No. Description
DRSL-TEMP
Accessories
Model No. Description
RAIL-35-1
DRSL-MOD-STOP
Ordering Example DRSL-TEMP isolated DIN rail loop-powered temperature signal conditioner, RAIL-35-1 DIN rail,
DRSL-MOD-STOP module stop and OCW-1, OMEGACARE SM extends standard 1-year warranty to a total of 2 years.
2
Isolated DIN rail loop-powered temperature signal conditioner
35 mm (1.4") DIN rail, 1 m (3.3') length
Module stop (screwed onto DIN rail to support and hold mounted devices)
SM
covers parts,
