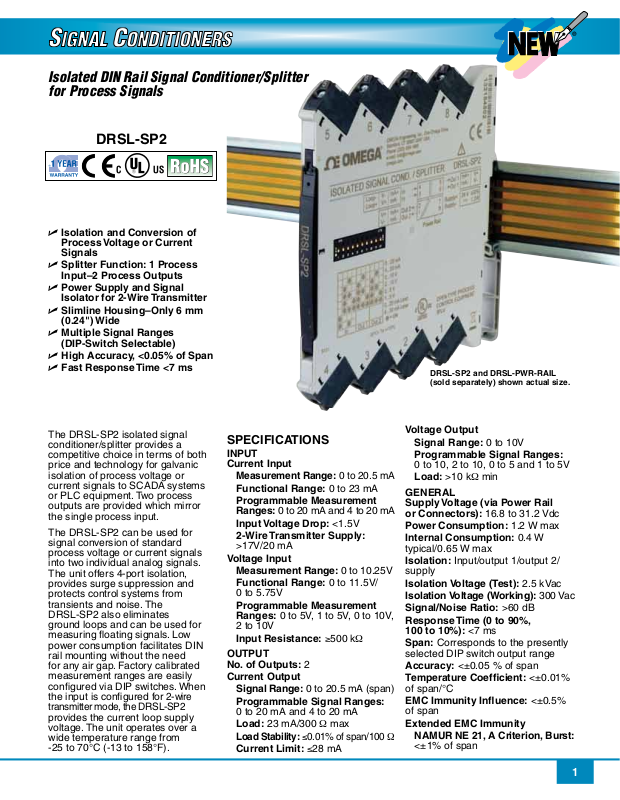

Isolated DIN Rail Signal Conditioner/Splitter
for Process Signals
DRSL-SP2
U Isolation and Conversion of
Process Voltage or Current
Signals
U Splitter Function: 1 Process
Input–2 Process Outputs
U Power Supply and Signal
Isolator for 2-Wire Transmitter
U Slimline Housing–Only 6 mm
(0.24") Wide
U Multiple Signal Ranges
(DIP-Switch Selectable)
U High Accuracy, <0.05% of Span
U Fast Response Time <7 ms

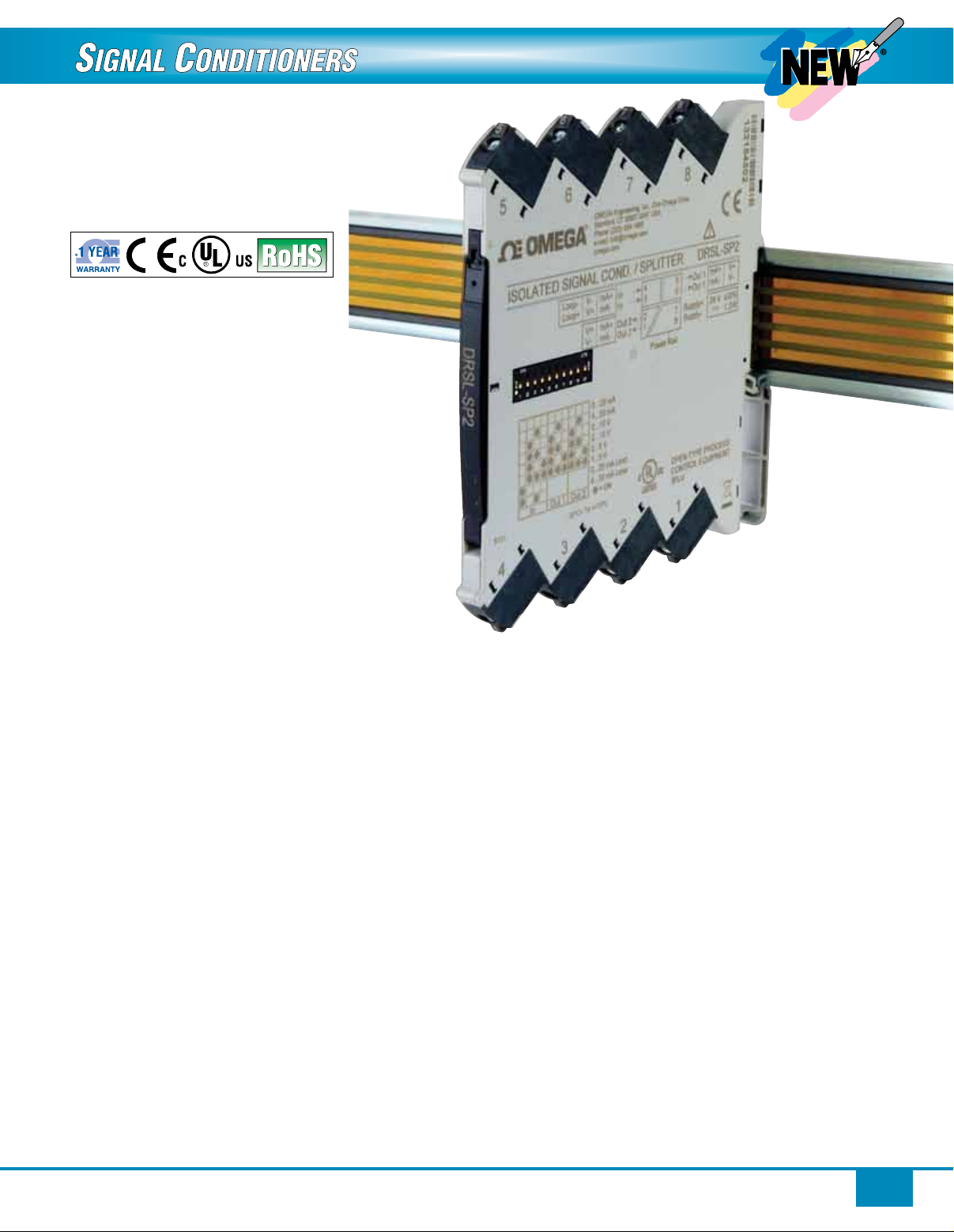

DRSL-SP2 and DRSL-PWR-RAIL
(sold separately) shown actual size.
The DRSL-SP2 isolated signal
conditioner/splitter provides a
competitive choice in terms of both
price and technology for galvanic
isolation of process voltage or
current signals to SCADA systems
or PLC equipment. Two process
outputs are provided which mirror
the single process input.
The DRSL-SP2 can be used for
signal conversion of standard
process voltage or current signals
into two individual analog signals.
The unit offers 4-port isolation,
provides surge suppression and
protects control systems from
transients and noise. The
DRSL-SP2 also eliminates
ground loops and can be used for
measuring floating signals. Low
power consumption facilitates DIN
rail mounting without the need
for any air gap. Factory calibrated
measurement ranges are easily
configured via DIP switches. When
the input is configured for
transmitter mode, the DRSL-SP2
provides the current loop supply
voltage. The unit operates over a
wide temperature range from
-25 to 70°C (-13 to 158°F).
2-wire
SPECIFICATIONS
INPUT
Current Input
Measurement Range: 0 to 20.5 mA
Functional Range: 0 to 23 mA
Programmable Measurement
Ranges: 0 to 20 mA and 4 to 20 mA
Input Voltage Drop: <1.5V
2-Wire Transmitter Supply:
>17V/20 mA
Voltage Input
Measurement Range: 0 to 10.25V
Functional Range: 0 to 11.5V/
0 to 5.75V
Programmable Measurement
Ranges: 0 to 5V, 1 to 5V, 0 to 10V,
2 to 10V
Input Resistance: ≥500 kΩ
OUTPUT
No. of Outputs: 2
Current Output
Signal Range: 0 to 20.5 mA (span)
Programmable Signal Ranges:
0 to 20 mA and 4 to 20 mA
Load: 23 mA/300 Ω max
Load Stability: ≤0.01% of span/100 Ω
Current Limit: ≤28 mA
Voltage Output
Signal Range: 0 to 10V
Programmable Signal Ranges:
0 to 10, 2 to 10, 0 to 5 and 1 to 5V
Load: >10 kΩ min
GENERAL
Supply Voltage (via Power Rail
or Connectors): 16.8 to 31.2 Vdc
Power Consumption: 1.2 W max
Internal Consumption: 0.4 W
typical/0.65 W max
Isolation: Input/output 1/output 2/
supply
Isolation Voltage (Test): 2.5 kVac
Isolation Voltage (Working): 300 Vac
Signal/Noise Ratio: >60 dB
Response Time (0 to 90%,
100 to 10%): <7 ms
Span: Corresponds to the presently
selected DIP switch output range
Accuracy: <±0.05 % of span
Temperature Coefficient: <±0.01%
of span/°C
EMC Immunity Influence: <±0.5%
of span
Extended EMC Immunity
NAMUR NE 21, A Criterion, Burst:
<±1% of span
1

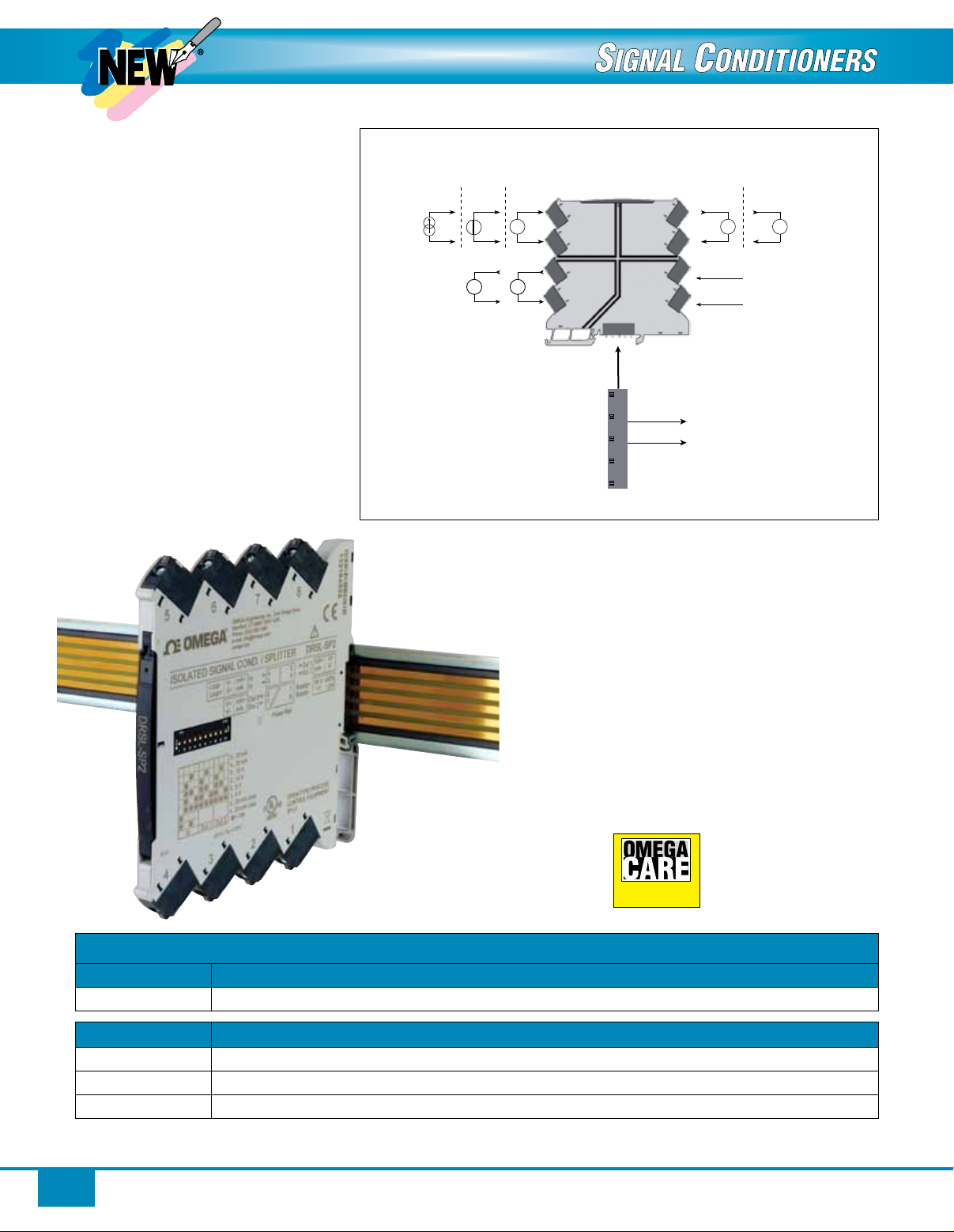

Page 2
ENVIRONMENTAL
Operating Temperature: -25 to 70°C
(-13 to 158°F)
Storage Temperature: -40 to 85°C
(-40 to 185°F)
Calibration Temperature: 20 to 28°C
(68 to 82°F)
Relative Humidity: 0 to 95% RH
non-condensing
Protection Degree: IP20
Installation Area: Pollution degree
2 and measurement/overvoltage
category II
MECHANICAL
Dimensions: 113 H x 6.1 W x 115 mm D
(4.4 x 0.24 x 4.5")
Weight: 70 g (0.15 lb) approx
DIN Rail Type: DIN EN 60715 - 35 mm
2
Wire Size: 0.13 x 2.5 mm
/AWG 26
to 12 stranded wire
Screw Terminal Torque: 0.5 Nm
CONNECTIONS
Current
input
+
-
Voltage
input
-
+
+
-
Current
output
2-wire
input
-
+
+
VmA
-
Voltage
output
4
Input
3
2
Output 2
81 82 83 84 85
Output 1
Supply
No connection
Rail, +24 VDC
Rail, Gnd.
No connection
No connection
Voltage
output
5
6
Supply +
7
Supply -
81
Current
output
+
V mATx
-
+
-
DRSL-SP2 and DRSL-PWR-RAIL
(sold separately) shown smaller
than actual size.
OMEGACARE
SM
warranty program is available for
SM
models shown on this page. Ask
your sales representative for full
Extended Warranty
Program
details when placing an order.
OMEGACARE
SM
labor and equivalent loaners.
To Order
Model No. Description
DRSL-SP2
Model. No. Description
DRSL-PWR-RAIL
DRSL-PCU
DRSL-MOD-STOP
Ordering Example: DRSL-SP2 isolated signal conditioner/splitter for process signals, DRSL-PWR-RAIL power rail, DRSL-PCU power
connector unit, DRSL-MOD-STOP module stop and OCW-1, OMEGACARE SM extends standard 1-year warranty to a total of 2 years.
2
Isolated signal conditioner/splitter for process signals
Power rail (with cover and two end covers, one right hand and one left hand), 1 m (3.3') length
Power connector unit, 24 Vdc/2.5 A output to power rail
Module stop (screwed onto power rail to support and hold mounted devices)
extended
covers parts,
