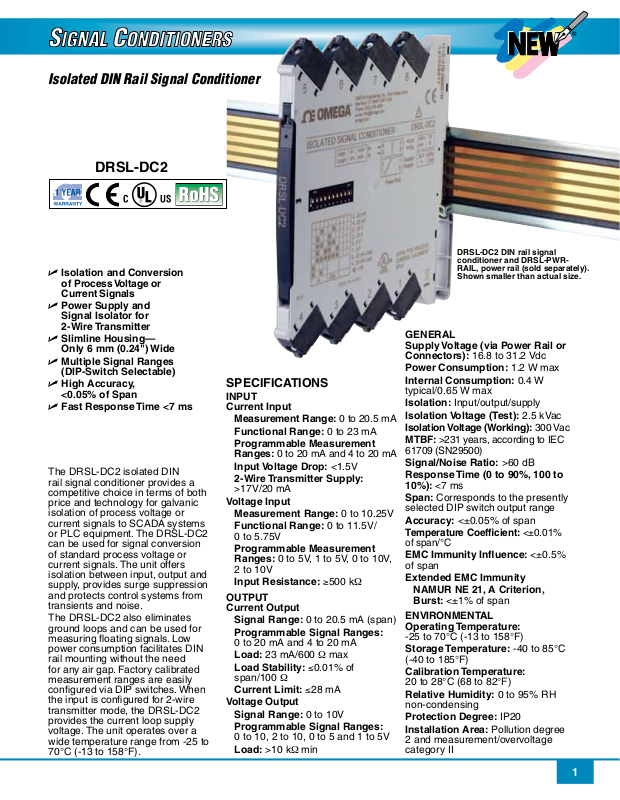

Isolated DIN Rail Signal Conditioner
DRSL-DC2
U Isolation and Conversion
of
Process Voltage or
Current Signals
U Power Supply and
Signal Isolator for
2-Wire Transmitter
U Slimline Housing—
Only 6 mm (0.24") Wide
U Multiple Signal Ranges
(DIP-Switch Selectable)
U High Accuracy,
<0.05% of Span
U Fast Response Time <7 ms
The DRSL-DC2 isolated DIN
rail signal conditioner provides a
competitive choice in terms of both
price and technology for galvanic
isolation of process voltage or
current signals to SCADA systems
or PLC equipment. The DRSL-DC2
can be used for signal conversion
of standard process voltage or
current signals. The unit offers
isolation between input, output and
supply, provides surge suppression
and protects control systems from
transients and noise.
The DRSL-DC2 also eliminates
ground loops and can be used for
measuring floating signals. Low
power consumption facilitates DIN
rail mounting without the need
for any air gap. Factory calibrated
measurement ranges are easily
configured via DIP switches. When
the input is configured for 2-wire
transmitter mode, the DRSL-DC2
provides the current loop supply
voltage. The unit operates over a
wide temperature range from -25 to
70°C (-13 to 158°F).
SPECIFICATIONS
INPUT
Current Input
Measurement Range: 0 to 20.5 mA
Functional Range: 0 to 23 mA
Programmable Measurement
Ranges: 0 to 20 mA and 4 to 20 mA
Input Voltage Drop: <1.5V
2-Wire Transmitter Supply:
>17V/20 mA
Voltage Input
Measurement Range: 0 to 10.25V
Functional Range: 0 to 11.5V/
0 to 5.75V
Programmable Measurement
Ranges: 0 to 5V, 1 to 5V, 0 to 10V,
2 to 10V
Input Resistance: ≥500 kΩ
OUTPUT
Current Output
Signal Range: 0 to 20.5 mA (span)
Programmable Signal Ranges:
0 to 20 mA and 4 to 20 mA
Load: 23 mA/600 Ω max
Load Stability: ≤0.01% of
span/100 Ω
Current Limit: ≤28 mA
Voltage Output
Signal Range: 0 to 10V
Programmable Signal Ranges:
0 to 10, 2 to 10, 0 to 5 and 1 to 5V
Load: >10 kΩ min

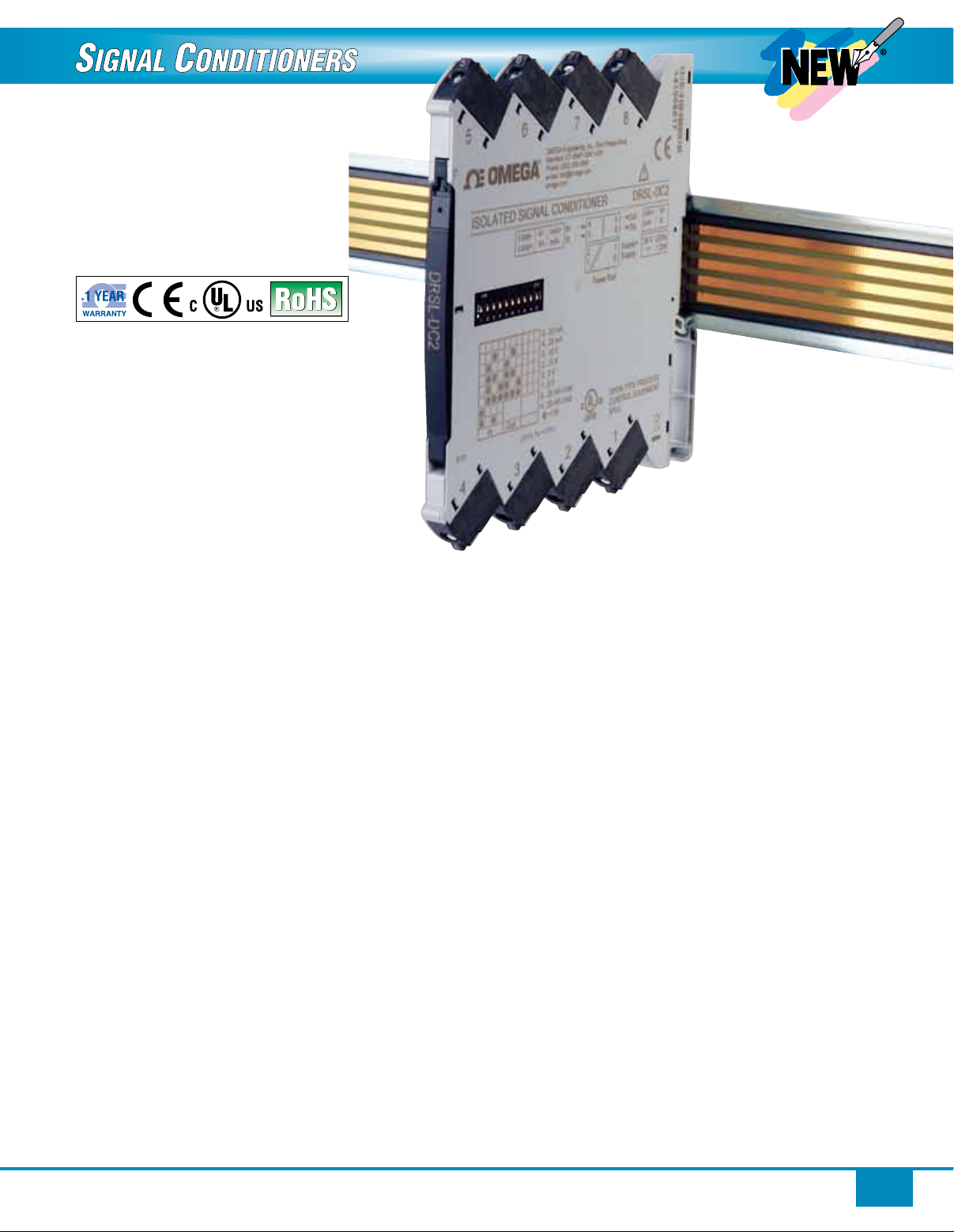

DRSL-DC2 DIN rail signal
conditioner and DRSL-PWRRAIL, power rail (sold separately).
Shown smaller than actual size.
GENERAL
Supply Voltage (via Power Rail or
Connectors): 16.8 to 31.2 Vdc
Power Consumption: 1.2 W max
Internal Consumption: 0.4 W
typical/0.65 W max
Isolation: Input/output/supply
Isolation Voltage (Test): 2.5 kVac
Isolation Voltage (Working): 300 Vac
MTBF: >231 years, according to IEC
61709 (SN29500)
Signal/Noise Ratio: >60 dB
Response Time (0 to 90%, 100 to
10%): <7 ms
Span: Corresponds to the presently
selected DIP switch output range
Accuracy: <±0.05% of span
Temperature Coefficient: <±0.01%
of span/°C
EMC Immunity Influence: <±0.5%
of span
Extended EMC Immunity
NAMUR NE 21, A Criterion,
Burst: <±1% of span
ENVIRONMENTAL
Operating Temperature:
-25 to 70°C (-13 to 158°F)
Storage Temperature: -40 to 85°C
(-40 to 185°F)
Calibration Temperature:
20 to 28°C (68 to 82°F)
Relative Humidity: 0 to 95% RH
non-condensing
Protection Degree: IP20
Installation Area: Pollution degree
2 and measurement/overvoltage
category II
1
Page 2
MECHANICAL
Dimensions: 113 H x 6.1 W x 115
mm D (4.4 x 0.24 x 4.5")
Weight: 70 g (0.15 lb) approx
DIN Rail Type: DIN EN 60715 - 35 mm
Wire Size: 0.13 x 2.5 mm2/AWG
26 to 12 stranded wire
Screw Terminal Torque: 0.5 Nm

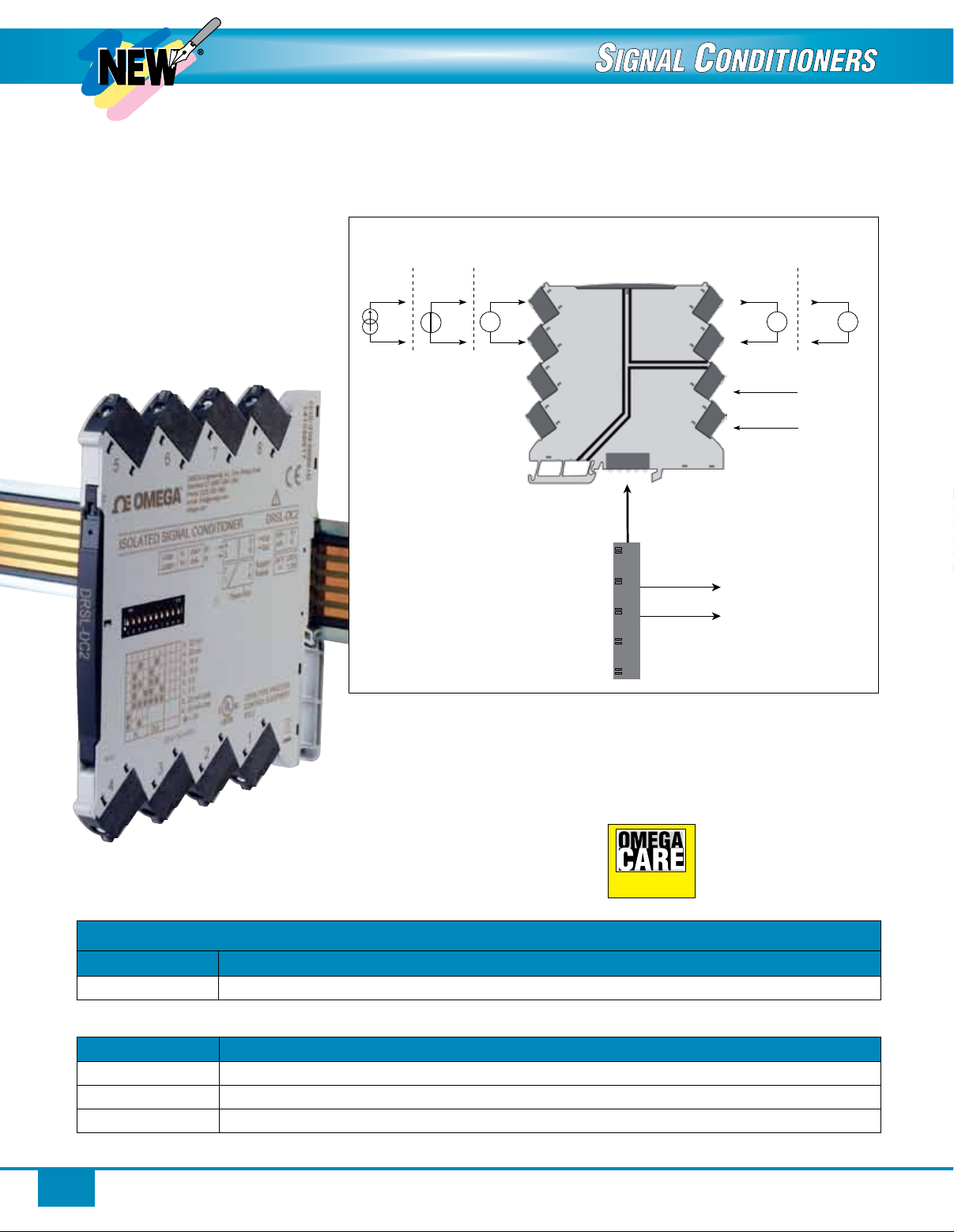

Current
input
+
-
Voltage
input
-
+
2-wire
input
-
+
Connections
4
Input Output
3
2
81 82 83 84 85
Supply
No connection
Rail, +24 VDC
Rail, Gnd.
No connection
Voltage
output
5
6
7
81
-
Supply +
Supply -
Current
output
+
VTx
+
mA
-
No connection
DRSL-DC2 and
DRSL-PWR-RAIL
shown smaller
than actual size.
OMEGACARESM extended
SM
warranty program is available for
models shown on this page. Ask
your sales representative for full
Extended Warranty
Program
details when placing an order.
OMEGACARE
SM
covers parts,
labor and equivalent loaners.
To Order
Model No. Description
DRSL-DC2
Accessories
Model No. Description
DRSL-PWR-RAIL
DRSL-PCU
DRSL-MOD-STOP
Ordering Example: DRSL-DC2 isolated DIN rail signal conditioner, DRSL-PWR-RAIL power rail, DRSL-PCU power connector unit,
DRSL-MOD-STOP module stop and OCW-1, OMEGACARESM extends standard 1-year warranty to a total of 2 years.
Isolated DIN rail signal conditioner
Power rail (with cover and two end covers, one right hand and one left hand), 1 m (3.3') length
Power connector unit, 24 Vdc/2.5 A output to power rail
Module stop (screwed onto power rail to support and hold mounted devices)
