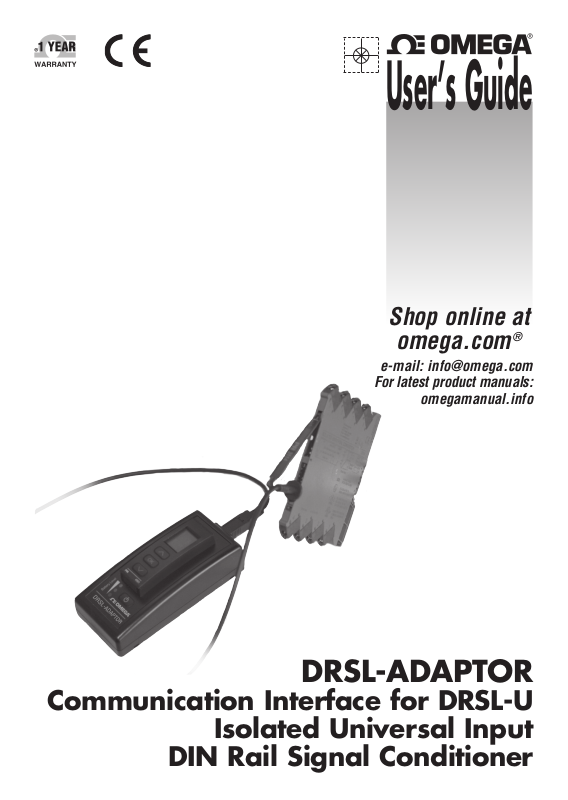

Page 1
User’s Guide
Shop online at
omega.com
e-mail: [email protected]
For latest product manuals:
omegamanual.info
®
DRSL-ADAPTOR
Communication Interface for DRSL-U
Isolated Universal Input
DIN Rail Signal Conditioner
Page 2
omega.com [email protected]
Servicing North America:
U.S.A.: Omega Engineering, Inc., One Omega Drive, P.O. Box 4047
Stamford, CT 06907-0047 USA
Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: (203) 359-1660 Fax: (203) 359-7700
e-mail: [email protected]
For Other Locations Visit omega.com/worldwide
The information contained in this document is believed to be correct, but OMEGA accepts no
liability for any errors it contains, and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, human
applications.
Page 3
COMMUNICATIONS INTERFACE
DRSL-ADAPTOR
CONTENTS
Warning ....................................................................................................... 2
Symbol identification ............................................................................ 3
Safety instructions ................................................................................. 4
Application ................................................................................................. 5
Adaptor Mode ........................................................................................... 6
Connection of DRSL-ADAPTOR to a DRSL-U Device................. 7
1
Page 4
GENERAL
EXPLO-
SION
This device is designed for connection to hazardous electric
WARNING
voltages. Ignoring this warning can result in severe personal injury
or mechanical damage.
To avoid the risk of electric shock and fire, the safety instructions
and warnings of this guide must be observed and the guidelines
followed. The specifications must not be exceeded, and the device
must only be applied as described in the following.
Prior to the commissioning of the device, this guide must be
examined carefully.
Only qualified personnel (technicians) should operate this
device. If the equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment may be
impaired.
Repair of the device must be done by OMEGA Engineering only.
Should there be any doubt as to the correct handling of the device,
please contact your local distributor or, alternatively, OMEGA
Engineering.
WARNING - RISK OF EXPLOSION HAZARD
To avoid risk of explosion and injury:
• Donotusethisequipmentwhenaflammableorcombustible
atmosphere is present
• Donotreplacebatteriesunlessareaisknowntobesafe.
• Use3x1.5VTYPEAAAbatteriesonlyandinsertcorrectly
as stipulated in battery compartment.
2
Page 5
WARNING - RISK OF ELECTRICAL SHOCK
To avoid risk of electrical shock and injury:
• DonotdisconnectthecablefromDRSL-ADAPTORwhile
cable is connected to a DRSL device.
• DonotremoveDRSL-DISPLAYwhilethecableisconnected
ELECTRICAL
SHOCK
to a DRSL device.
• Donotreplacebatterieswhilethecableisconnectedtoa
DRSL device.
SYMBOL IDENTIFICATION
Triangle with an exclamation mark: Warning/demand. Potentially lethal
situations.
The CE mark proves the compliance of the device with the requirements
of the EU directives.
The double insulation symbol shows that the device is protected by
double or reinforced insulation.
3
Page 6
SAFETY INSTRUCTIONS
DEFINITIONS
Hazardous voltageshavebeendefinedastheranges:75...1500VoltDC,and
50...1000VoltAC.
Technicians are qualified persons educated or trained to mount, operate, and also
trouble-shoot technically correct and in accordance with safety regulations.
Operators, being familiar with the contents of this manual, adjust and operate
the knobs or potentiometers during normal operation.
RECEIPT AND UNPACKING
Unpack the device without damaging it. Check on delivery of the device whether
the type corresponds to the one ordered.
ENVIRONMENT
Avoid direct sunlight, dust, high temperatures, mechanical vibrations and shock,
as well as rain and heavy moisture.
NORMAL OPERATION
Only technicians who are familiar with the technical terms, warnings, and
instructions in the manual and who are able to follow these should connect the
device.
Should there be any doubt as to the correct handling of the device, please contact
OMEGA Engineering,
CLEANING
When disconnected, the device may be cleaned with a cloth moistened with
distilled water.
BATTERY REPLACEMENT
Replacebatterieswith3x1.5VTYPEAAA(notincluded).
www.omega.com
4
Page 7
Application
The DRSL-ADAPTOR is a communications interface which is used along with the
DRSL-DISPLAYProgrammableDisplaytoconfigureordocumentandbackup/
restore configurations of DRSL programmable devices, standalone in Adaptor
Mode.
5
Page 8
Adaptor Mode
• The DRSL-ADAPTOR is a handheld device that can operate as an adapter
betweentheDRSL-DISPLAYprogrammingfrontandaDRSL-UUniversalInput
Signal Conditioner. This allows for configuration and monitoring of process
parameters of the installed modules.
• Note for connection to a DRSL-U module, the USB-B to a 2.5 mm jack cable
must be used.
• By pressing the power button, the DRSL-ADAPTOR will power on, and show the
statusoftheattachedDRSL-UmoduleontheDRSL-DISPLAY.
• IftheDRSL-Udeviceispowered,theDRSL-DISPLAYdisplaywillindicatethe
process variable or can be manually set to go into program mode.
• IftheDRSL-UdeviceisnotpoweredtheDRSL-DISPLAYdisplaywillbein
program mode only.
• Indication of battery level is displayed via the LEDs. This can be activated by
using the Power/Wake-up button. If while pressing the Power/Wake-up button
the LEDs are off, or only one LED is lit, the batteries should be exchanged. To
extend battery life the DRSL-ADAPTOR will automatically detect if it is not in
use, and will consequently shut itself down to conserve battery power.
• Battery life in Adaptor Mode is approximately 1 year of daily use, depending
upon battery type.
6
Page 9

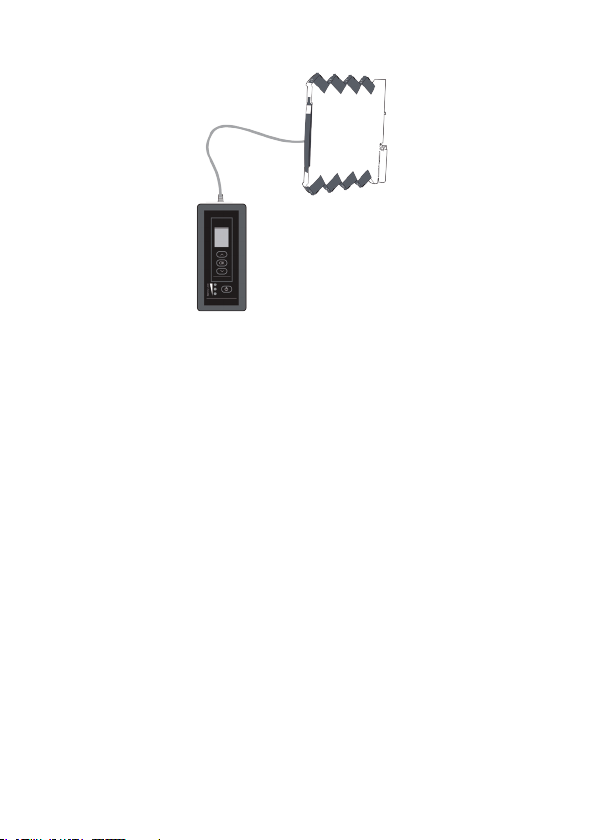

Connection of DRSL-ADAPTOR to a DRSL-U Device
7
Page 10
NOTES:
8
Page 11
OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 13 months from date of purchase. OMEGA’s Warranty adds an additional
one (1) month grace period to the normal one (1) year product warranty to cover handling
and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each
product.
If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer
Service Department will issue an Authorized Return (AR) number immediately upon phone or
written request. Upon examination by OMEGA, if the unit is found to be defective, it will be
repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting
from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification. This
WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence
of having been damaged as a result of excessive corrosion; or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating conditions outside of
OMEGA’s control. Components in which wear is not warranted, include but are not limited to
contact points, fuses, and triacs.
OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes
liability for any damages that result from the use of its products in accordance with
information provided by OMEGA, either verbal or written. OMEGA warrants only
that the parts manufactured by the company will be as specified and free of defects.
OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND
WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED
WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY:
The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of
the component upon which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.
CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as
a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity;
or (2) in medical applications or used on humans. Should any Product(s) be used in or with any
nuclear installation or activity, medical application, used on humans, or misused in any way,
OMEGA assumes no responsibility as set forth in our basic WARRANTY/ DISCLAIMER language,
and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability
or damage whatsoever arising out of the use of the Product(s) in such a manner.
WARRANTY/ DISCLAIMER
Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department.
BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN
AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT
(IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked
on the outside of the return package and on any correspondence. The purchaser is responsible for
shipping charges, freight, insurance and proper packaging to prevent breakage in transit.
FOR WARRANTY RETURNS, please have
the following information available BEFORE
contacting OMEGA:
1. Purchase Order number under which the
product was PURCHASED,
2. Model and serial number of the product under
warranty, and
3. Repair instructions and/or specific problems
relative to the product.
OMEGA’s policy is to make running changes, not model changes, whenever an improvement is
possible. This affords our customers the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2014 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied,
photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form,
in whole or in part, without the prior written consent of OMEGA ENGINEERING, INC.
RETURN REQUESTS/INQUIRIES
FOR NON-WARRANTY REPAIRS,
OMEGA for current repair charges. Have
the following information available BEFORE
contacting OMEGA:
1. Purchase Order number to cover the COST
of the repair,
2. Model and serial number of the product, and
3. Repair instructions and/or specific problems
relative to the product.
consult
