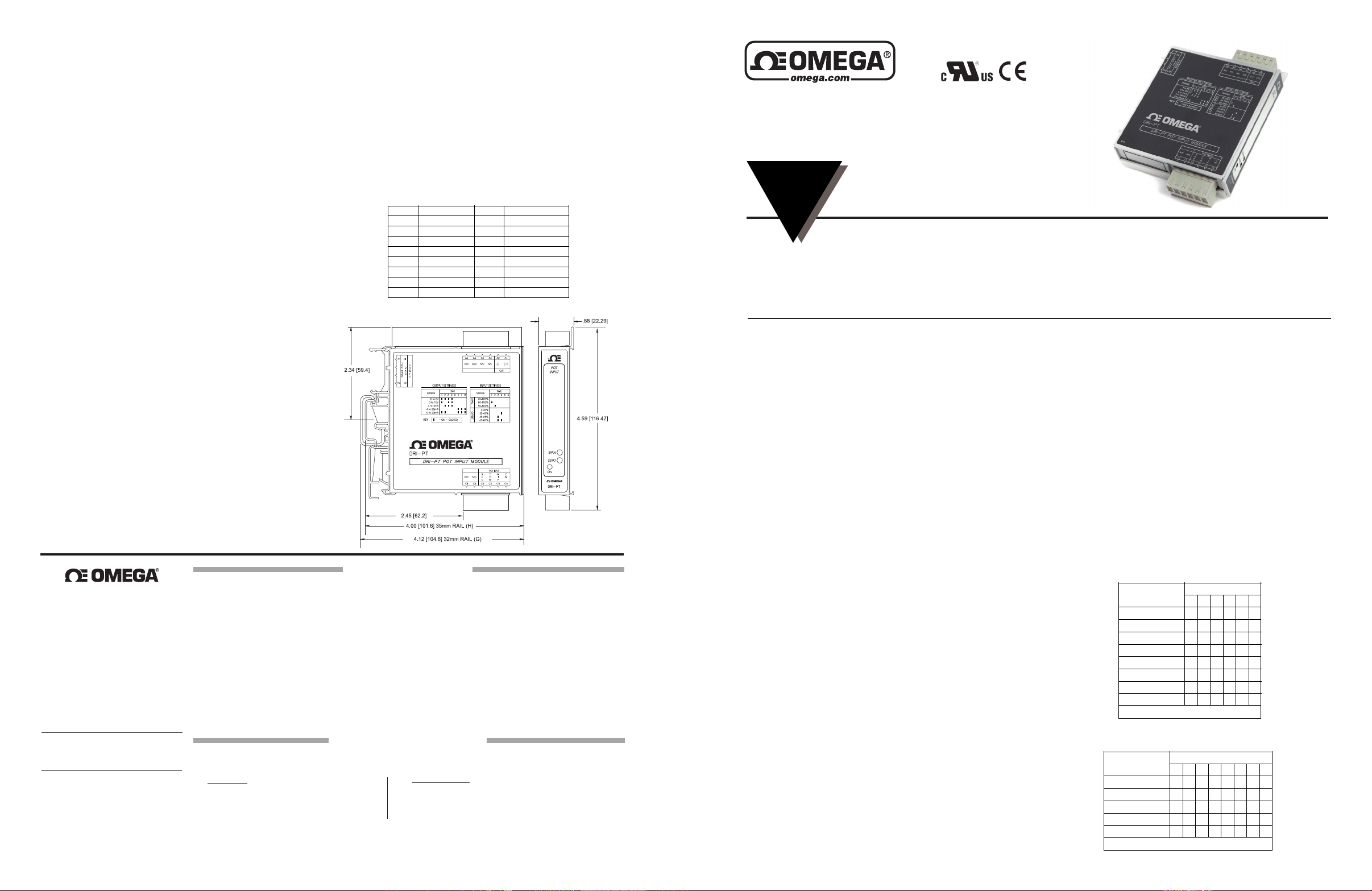

Specications
Terminal Connection Terminal Connection
A1 DC Output (+) C3 Shield Ground
A2 DC Output (-) C4 Pot. Input (fully CCW)
A3 Not Used C5 Pot. Input Wiper
A4 Not Used C6 Pot. Input (fully CW)
A5 Not Used P1 AC Power (Hot)
A6 Not Used P2 Not Used
C1 Not Used P3 Not Used
C2 Not Used P4 AC Power (Neutral)
Span
Selector SW2
1 2 3 4 5 6
20 - 100%
45 - 100%
(default) 85 - 100%
Offset 1 2 3 4 5 6
(default) 0 - 20%
20 - 45%
45 - 65%
65 - 80%
Key: = 1 = ON or Closed
Potentiometer Input:
End-to-end Resistance: 100 ohms up to 100k ohms
Input Impedance: >1M ohms
Input Excitation: 500mV, 5mA maximum drive.
Zero Turn-Up: 80% of full scale input
Span Turn-Down: 80% of full scale input
Common Mode Rejection: 1800VDC (input to power)
Output:
Voltage
Output: 0-5V, 0-10V
Source Impedance: <10 ohms
Drive: 10mA, max. (1k ohms min. @10V)
Current Output
Output: 0-1mA, 0-20mA, 4-20mA
Source Impedance: >100k ohms
Compliance:
0-1mA: 7.5V, max. (7.5k ohms, max.)
0-20mA: 12V, max. (600 ohms, max.)
4-20mA: 12V, max. (600 ohms, max.)
Accuracy (Including Linearity, Hysteresis):
±0.1% maximum at 25°C.
Stability:
Temperature: <±0.05%/°C maximum of full scale range.
Response Time (10 to 90%):
<200mSec., typical.
Common Mode Rejection:
120dB @ DC, >100dB @ 60Hz
Isolation:
800VDC between line power and input, output
EMC Compliance (CE Mark):
Emissions: EN50081-1
Immunity: EN50082-2
Safety: EN50178
LED Indication (green):
Active DC power
Humidity (Non-Condensing):
Operating: 15 to 95% @ 45°C
Soak: 90% for 24 hours @ 65°C
omega.com info@omega.
Servicing North America:
U.S.A.:
Omega Engineering, Inc., One Omega Drive,
P.O. Box 4047, Stamford, CT 06907-0047 USA
Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378
(USA & Canada only)
Engineering Service: 1-800-872-9436
(USA & Canada only)
Tel: (203) 359-1660
Fax: (203) 359-7700
e-mail: info @omega.com
For Other Locations Visit
omega.com/worldwide
The information contained in this document is
believed to be correct, but OMEGA accepts no
liability for any errors it contains, and reserves
the right to alter specifications without notice.
com
Temperature Range: :
Operating: 0 to 55°C (32 to 131°F)
Storage: -25 to 70°C (-13 to 158°F)
Power:
Consumption: 1.5W typical, 2.5W max
Range: 100 to 240VAC, ±10%, 50 to 400Hz
Weight:
0.48 lbs
Agency Approvals:
UL recognized per standard UL508 (File No. E99775).
CE Compliance per EMC directive 89/336/EEC
and Low Voltage 73/23/EEC.
Dimensions
OMEGA ENGINEERING, INC., warrants this unit to be free of defects in materials and workmanship for a period of 13 months from date of purchase.
OMEGA’s WARRANTY adds an additional one (1) month grace period to the normal one (1) year product warranty to cover handling and shipping
time. This ensures that OMEGA’s customers receive maximum coverage on each product.
If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will issue an Authorized Return
(AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired
or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to
mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification. This WARRANTY is VOID if
the unit shows evidence of having been tampered with or shows evidence of having been damaged as a result of excessive corrosion; or current,
heat, moisture or vibration; improper specification; misapplication; misuse or other operating conditions outside of OMEGA’s control. Components
in which wear is not warranted, include but are not limited to contact points, fuses, and triacs.
OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither assumes responsibility for any omissions
or errors nor assumes liability for any damages that result from the use of its products in accordance with information provided by OMEGA,
either verbal or written. OMEGA warrants only that the parts manufactured by the company will be as specified and free of defects. OMEGA
MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND
ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY
DISCLAIMED. LIMITATION OF LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of OMEGA with respect to
this order, whether based on contract, warranty, negligence, indemnification, strict liability or otherwise, shall not exceed the purchase price of
the component upon which liability is based. In no event shall OMEGA be liable for consequential, incidental or special damages.
CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC), used
in or with any nuclear installation or activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or with any nuclear
installation or activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set forth in our basic
WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage
whatsoever arising out of the use of the Product(s) in such a manner.
Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE RETURNING ANY PRODUCT(S) TO OMEGA,
PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID
PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return package and on any correspondence.
The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in transit.
FOR WARRANTY RETURNS, please have the following
information available BEFORE contacting OMEGA.
1. Purchase order number which the product was PURCHASED,
2. Model and serial number of the product under warranty, and
3. Repair instructions and/or specific problems relative to
the product.
OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords custo mers the latest
technology and engineering. OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© COPYRIGHT 2015 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied, translated, or reduced to
any electronic medium-readable form, in whole or in part, without the prior written consent of OMEGA ENGINEERING, INC.
WARRANTY/DISCLAIMER
RETURN REQUESTS/INQUIRIES
FOR NON-WARRANTY RETURNS, consult OMEGA for current repair
charges. Have the following information available BEFORE contacting
OMEGA.
1. Purchase Order number to cover the COST of the repair,
2. Model and serial number of the product and
3. Repair instructions and/or specific problems relative to the product.

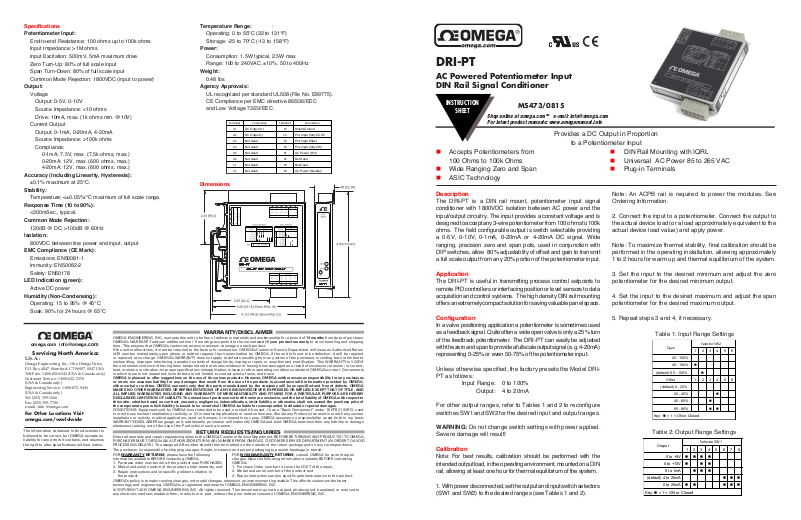

DRI-PT
AC Powered Potentiometer Input
DIN Rail Signal Conditioner
INSTRUCTION
SHEET
Shop online at omega.comSM e-mail: [email protected]
For latest product manuals: www.omegamanual.info
Accepts Potentiometers from
100 Ohms to 100k Ohms
Wide Ranging Zero and Span
ASIC Technology
Description
The DRI-PT is a DIN rail mount, potentiometer input signal
conditioner with 1800VDC isolation between AC power and the
input/output circuitry. The input provides a constant voltage and is
designed to accept any 3-wire potentiometer from 100 ohms to 100k
ohms. The eld congurable output is switch selectable providing
a 0-5V, 0-10V, 0-1mA, 0-20mA or 4-20mA DC signal. Wide
ranging, precision zero and span pots, used in conjunction with
DIP switches, allow 80% adjustablity of offset and gain to transmit
a full scale output from any 20% portion of the potentiometer input.
Application
The DRI-PT is useful in transmitting process control setpoints to
remote PID controllers or interfacing position or level sensors to data
acquisition and control systems. The high density DIN rail mounting
offers an extremely compact solution for saving valuable panel space.
Conguration
In a valve positioning application a potentiometer is sometimes used
as a feedback signal. Quite often a wide open valve is only a 25% turn
of the feedback potentiometer. The DRI-PT can easily be adjusted
with the zero and span to provide a fullscale output signal (e.g. 4-20mA)
representing 0-25% or even 50-75% of the potentiometer input.
Unless otherwise specied, the factory presets the Model DRI-
PT as follows:
Input Range: 0 to 100%
Output: 4 to 20mA
For other output ranges, refer to Tables 1 and 2 to recongure
switches SW1 and SW2 for the desired input and output ranges.
WARNING: Do not change switch settings with power applied.
Severe damage will result!
Calibration
Note: For best results, calibration should be performed with the
intended output load, in the operating environment, mounted on a DIN
rail, allowing at least one hour for thermal equilibrium of the system.
1. With power disconnected, set the output and input switch selectors
(SW1 and SW2) to the desired ranges (see Tables 1 and 2).
M5473/0815
Provides a DC Output in Proportion
to a Potentiometer Input
DIN Rail Mounting with IQRL
Universal AC Power 85 to 265 VAC
Plug-in Terminals
Note: An ACPB rail is required to power the modules. See
Ordering Information.
2. Connect the input to a potentiometer. Connect the output to
the actual device load (or a load approximately equivalent to the
actual device load value) and apply power.
Note: To maximize thermal stability, nal calibration should be
performed in the operating installation, allowing approximately
1 to 2 hours for warm up and thermal equilibrium of the system.
3. Set the input to the desired minimum and adjust the zero
potentiometer for the desired minimum output.
4. Set the input to the desired maximum and adjust the span
potentiometer for the desired maximum output.
5. Repeat steps 3 and 4, if necessary.
Table 1: Input Range Settings
Table 2: Output Range Settings
Output
0 to +5V
0 to +10V
0 to 1mA
(default) 4 to 20mA
0 to 20mA
Key: = 1 = ON or Closed
Selector SW1
1 2 3 4 5 6 7 8
