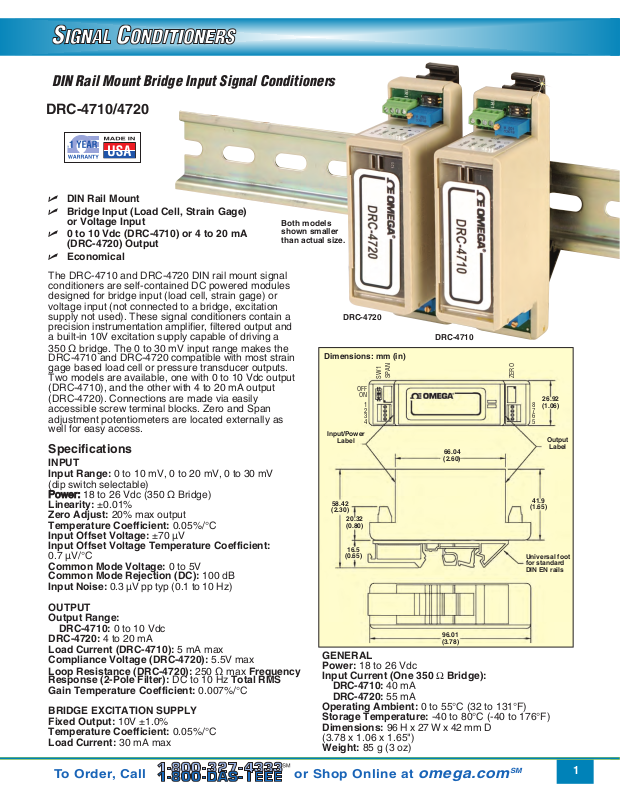

DIN Rail Mount Bridge Input Signal Conditioners
DRC-4710/4720
⻬ DIN Rail Mount
⻬ Bridge Input (Load Cell, Strain Gage)
or Voltage Input
⻬ 0 to 10 Vdc (DRC-4710) or 4 to 20 mA
(DRC-4720) Output
⻬ Economical
The DRC-4710 and DRC-4720 DIN rail mount signal
conditioners are self-contained DC powered modules
designed for bridge input (load cell, strain gage) or
voltage input (not connected to a bridge, excitation
supply not used). These signal conditioners contain a
precision instrumentation amplifier, filtered output and
a built-in 10V excitation supply capable of driving a
350 Ω bridge. The 0 to 30 mV input range makes the
DRC-4710 and DRC-4720 compatible with most strain
gage based load cell or pressure transducer outputs.
Two models are available, one with 0 to 10 Vdc output
(DRC-4710), and the other with 4 to 20 mA output
(DRC-4720). Connections are made via easily
accessible screw terminal blocks. Zero and Span
adjustment potentiometers are located externally as
well for easy access.
Specifications
INPUT
Input Range: 0 to 10 mV, 0 to 20 mV, 0 to 30 mV
(dip switch selectable)
Power: 18 to 26 Vdc (350 Ω Bridge)
Linearity: ±0.01%
Zero Adjust: 20% max output
Temperature Coefficient: 0.05%/°C
Input Offset Voltage: ±70 µV
Input Offset Voltage Temperature Coefficient:
0.7 µV/°C
Common Mode Voltage: 0 to 5V
Common Mode Rejection (DC): 100 dB
Input Noise: 0.3 µV pp typ (0.1 to 10 Hz)
Both models
shown smaller
than actual size.
DRC-4720
Dimensions: mm (in)
SPAN
SW1
OFF
ON
1
2
3
4
Input/Power
Label
58.42
(2.30)
20.32
(0.80)
16.5
(0.65)
DRC-4710
66.04
(2.60)
ZERO
8
7
6
5
41.9
(1.65)
Universal foot
for standard
DIN EN rails
26.92
(1.06)
Output
Label
OUTPUT
Output Range:
DRC-4710: 0 to 10 Vdc
DRC-4720: 4 to 20 mA
Load Current (DRC-4710): 5 mA max
Compliance Voltage (DRC-4720): 5.5V max
Loop Resistance (DRC-4720): 250 Ω
max Frequency
Response (2-Pole Filter): DC to 10 Hz Total RMS
Gain Temperature Coefficient: 0.007%/°C
BRIDGE EXCITATION SUPPLY
Fixed Output: 10V ±1.0%
Temperature Coefficient: 0.05%/°C
Load Current: 30 mA max
GENERAL
Power: 18 to 26 Vdc
Input Current (One 350 Ω Bridge):
DRC-4710: 40 mA
DRC-4720: 55 mA
Operating Ambient: 0 to 55°C (32 to 131°F)
Storage Temperature: -40 to 80°C (-40 to 176°F)
Dimensions: 96 H x 27 W x 42 mm D
(3.78 x 1.06 x 1.65")
Weight: 85 g (3 oz)
96.01
(3.78)
To Order, Call or Shop Online at omega.com
SM
1
Page 2
ON
4 to 20 mA
or
0 to 10 Vdc
OUPUT*
RETURN
ZERO
0 TO 30mV INPUT
SPAN
GAIN
SWITCH
mV INPUT
INSTUMENTATION
AMPLIFIER
OUTPUT
AMPLIFIER
AND
FILTER
BRIDGE
EXCITATION
SUPPLY
-COM
+ 10 V
-COM
DC POWER
+24V
4
3
2
1
8
7
6
5
1
2
ON
30Ω BRIDGE
GAIN
SWITCH
STRAIN GAGE TO VOLTAGE
BRIDGE
EXCITATION
SUPPLY
4 to 20 mA
or
0 to 10 Vdc
OUPUT*
RETURN
ZERO
SPAN
INSTUMENTATION
AMPLIFIER
OUTPUT
AMPLIFIER
AND
FILTER
-COM
+ 10 V
-COM
DC POWER
+24V
4
3
2
1
8
7
6
5
1
2
+10V EXCITATION
Extended Warranty
Program
SM
Voltage Input
(Not Connected to a Bridge)
Detail of input/output connections for DRC-4720 shown actual size.
2
Full Bridge Input
*DRC-4710 (0 to 10 Vdc output)
DRC-4720 (4 to 20 mA output)
OMEGACARESMextended warranty
program is available for models shown
on this page. Ask your sales
representative for full details when
placing an order.
To Order, Call or Shop Online at omega.com
To Order Visit omega.com/drc4710_4720 for Pricing and Details
Model No. Description
DRC-4710 Bridge input signal conditioner with 0 to 10 Vdc output
DRC-4720 Bridge input signal conditioner with 4 to 20 mA
