User’s Guide
http://www.omega.com
DRA-RTI-2
2 Wire RTD Temperature Transmitter
Page 2
OMEGA
TM
Internet e-mail
Canada:
976 Bergar Laval (Quebec) H7L 5A1 Tel: (514) 856-6928 FAX: (514) 856-6886 e-mail: [email protected]
omega.com
SM
OMEGAnet
On-Line Service
http://www.omega.com
One Omega Drive, Box 4047
USA:
ISO 9001 Certified
Stamford, CT 06907-0047 Tel: (203) 359-1660 FAX: (203) 359-7700 e-mail: [email protected]
USA and Canada: Sales Service: 1-800-826-6342 / 1-800-TC-OMEGASM
Mexico and Latin America: Tel: (95) 800-TC-OMEGASM FAX: (95) 203-359-7807
Benelux:; Postbus 8034, 1180 LA Amstelveen, The Netherlands
Czech Republic: ul. Rude armady 1868 733 01 Karvina-Hranice Tel: 420 (69) 6311899 FAX: 420 (69) 6311114
France: 9, rue Denis Papin, 78190 Trappes
Germany/Austria: Daimlerstrasse 26, D-75392 Deckenpfronn, Germany
United Kingdom: 25 Swannington Road, P.O. Box 7, Omega Drive,
ISO 9002 Certified Broughton Astley, Leicestershire, Irlam, Manchester,
It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that apply. OMEGA is constantly pursuing certification of its products to the European New Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification. The information contained in this document is believed to be correct but OMEGA Engineering, Inc. accepts no liability for any errors it contains, and reserves the right to alter specifications without notice. WARNING: These products are not designed for use in, and should not be used for, patient connected applications.
Customer Service: 1-800-622-2378 / 1-800-622-BESTSM Engineering Service: 1-800-872-9436 / 1-800-USA-WHENS M TELEX: 996404 EASYLINK: 62968934 CABLE: OMEGA
En Espan˜ol: (95) 203 359-7803 e-mail: [email protected]
Tel: (31) 20 6418405 FAX: (31) 20 6434643 Toll Free in Benelux: 06 0993344 e-mail: [email protected]
e-mail: [email protected] Tel: (33) 130-621-400 FAX: (33) 130-699-120
Toll Free in France: 0800-4-06342 e-mail: [email protected]
Tel: 49 (07056) 3017 FAX: 49 (07056) 8540 Toll Free in Germany: 0130 11 21 66 e-mail: [email protected]
LE9 6TU, England M44 5EX, England Tel: 44 (1455) 285520 Tel: 44 (161) 777-6611 FAX: 44 (1455) 283912 FAX: 44 (161) 777-6622 Toll Free in England: 0800-488-488 e-mail: [email protected]
Page 3
Contents
1. Procedure To Open The Housing
2. Calibration Instructions
2.1
Switch Setting
2.2
Calibration Tables
2.3
Calibration Instrumentation
3. Connection Diagram
4. Mechanical Dimensions
5. Specifications
1
Page 4

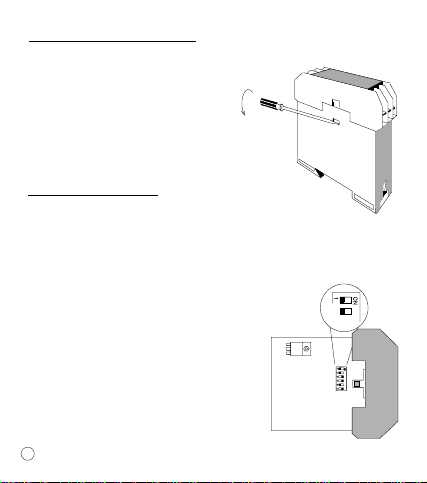

1. Procedure to open the housing Carefully insert a proper screwdriver tip into the side slots. By pressing
inward and rotating, the plastic locker will release. Gently pull out the unit's front panel.
To close the unit, insert the printed circuit board in the proper side guiding slots and push it all the way until the front panel clicks with the body box.
2. Calibration instructions
2.1 Switch Setting Inside the enclosure are located six DIP switches for coarse range, and two
multiturn trimmers are located on the transmitter panel for fine tuning. a.
Define the desired range limits: Tmin - the temperature at which the output current is 4mA. Tmax - the temperature at which the output current is 20mA. Tspan - the difference between Tmax and Tmin.
b.
Open the transmitter according to para. #1. According to the following tables, set switches
c.
no. 4 to 6 for the Zero (Tmin), and set switches 1 to 3 for the Span (Tspan).
Note: "1" represent the switch "ON" state.
2
Fig.1
Fig.2
Page 5
2.2 Calibrations tables
"Span" Table
Tspan
o
26.....45
C
o
45.....75
C
o
75...130
C
o
130...196
C
o
196...392
C
o
392...810
C
"Zero" Table
Tmin
o
C
-62.....-25
o
C
-25.....12
o
C
12.....48
o
C
48.....85
o
C
85...122
o
C
122...159
o
C
159...195
o
C
195...232
SW1 SW2 SW3
0
0
1
1
0
0
0
1
1
0
1
1
SW4 SW5 SW6
0 0 0 0 1 1 1 1
0 0 1 1 0 0 1 1
0 1 1 1 1 1
0 1 0 1 0 1 0 1
3
Page 6
2.3 Calibration instrumentation:
1. 24Vdc Power Supply
2. Pt-100 3-wire calibrator
3. High accuracy DVM
4. Small screwdriver

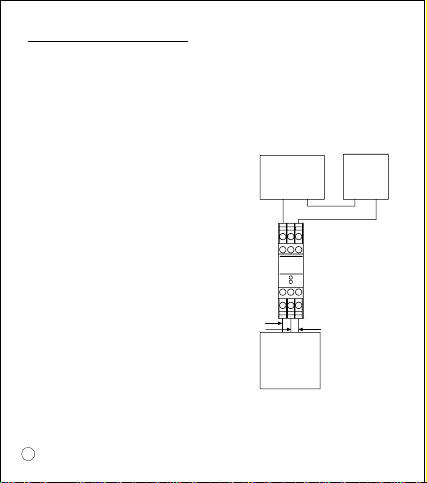

Connect the transmitter to be calibrated according to Fig #3. a. Set the Pt­b. Adjust with the Zero trimmer to obtain
an output current of 4.000mA. c. Set the Pt­d. Adjust the Span trimmer to obtain an
output current of 20.000mA. e. Repeat steps a. to d. until satisfactory
results are achieved.
* The Pt­the transmitter linearity curve. The default setting is according to DIN 43760 Pt-
table (a=0.00385).
4
100
calibrator to Tmin.
100
calibrator to Tmax.
100
calibrator should be set to fit
100
PAIR
POWER SUPPLY
––
24V
123
456
DRA–RTI–2
789
10 11 12
Pt–100
CALIBRATOR
–
S Z
Fig.3
SINGLE
DVM
CURRENT
MODE
0–20mA
–––
Page 7
Calibration example: Needed: -50..+50OC
O
C
Tmin: -50 Tspan: +50-(-50)=100
1. Set the DIP switch to: 0,0,1,0,0,0 (SW1..SW6)
2. Set the tune for -50
3. Set the tune for +50
4. Repeat steps 1..3 until satisfactory results are obtained.
O
C
0
C calibrate "Z" to 4.000mA.
0
C and calibrate "S" to 20.000mA.

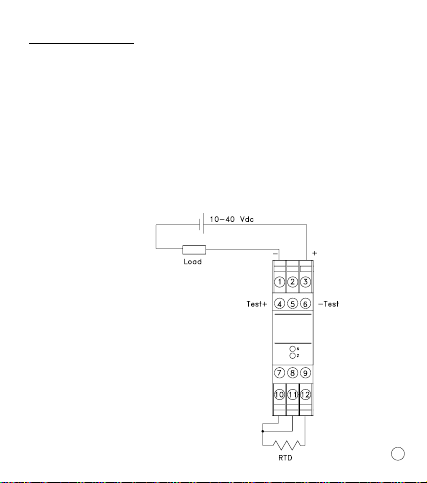

3. Connection Diagram
DRA–RTI–2
Fig.4
5
Page 8

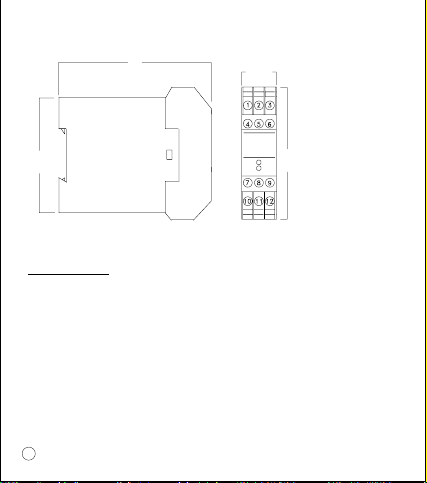

4. Mechanical Dimensions
99
(3.9)
22.5
(0.9)
75
(2.95)
82
S
(3.23)
Z
Fig.5
Dimentions are in mm (in)
5. Specifications
Input: 3wire Pt100 according to BS 1904 and DIN 43760 characteristics, (a = 0.00385) Leads compensation error: < 0.1 Sensor excitation: < 1 mA Output: 4...20 mA, (25 mA limited) Loop resistance: Rmax(Ω) = (Vsupply – 10)/.02 Isolation: 1500 Vdc or peak ac Response time: 160 msec (0 - 98%) Input span change: 26 to 810
6
O
C/ 20Ω leads resistance
O
C
Page 9
Span Calibration: Three DIP switches and "Span" potentiometer Input zero change: -62 to +232 Zero Calibration: Three DIP switches and "Zero" potentiometer Accuracy
(linearity, hysteresis and repeatability): < ± 0.1% of span (typical Test terminals: 40 to 200 mV represent 4-20 mA Supply voltage: 10 - 40 Vdc reverse polarity protected Supply and load variation effect: < ±0.03% of span for full change CMR:127db typical, dc to 60 Hz Temparture stability: ±0.01% of span /1 Operating temparture: -20 to +70 Storing temparture: -30 to +85 Humidity: 5 - 95% relative humidity, non-condensing Housing: Plastic polycarbonate Protection level: Housing: According to IP-40 Terminals: According to IP-20 Mounting: Standard 35 mm DIN rail Weight: 130 grams (4.6 oz)
O
C
O
C
O
C (-4 to 158OF)
O
C (-22 to 185OF)
)
7
