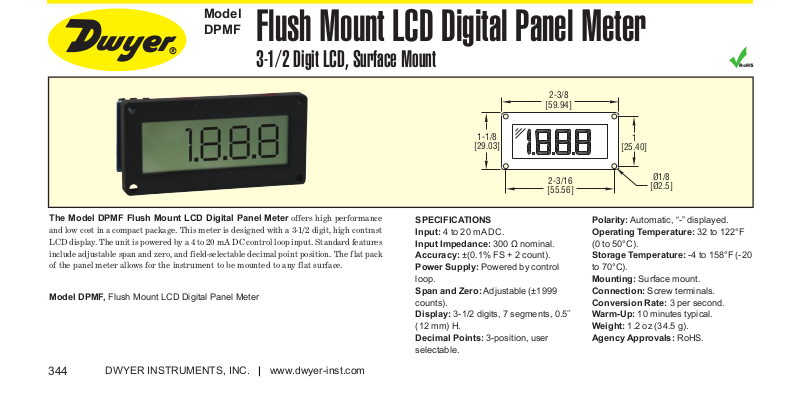

Flush Mount LCD Digital Panel Meter
3-1/2 Digit LCD, Surface Mount
$"*!"' '/-$*/). %#%.')"'".", offers high performance
and low cost in a compact package. This meter is designed with a 3-1/2 digit, high contrast
LCD display. The unit is powered by a 4 to 20 mA DC control loop input. Standard features
include adjustable span and zero, and field-selectable decimal point position. The flat pack
of the panel meter allows for the instrument to be mounted to any flat surface.
*!"' Flush Mount LCD Digital Panel Meter
344
DWYER INSTRUMENTS, INC. 3www.dwyer-inst.com
)+/. 4 to 20 mA DC.
)+/.(+"!) " 300 Ω nominal.
/, 2 ±(0.1% FS + 2 count).
*1",/++'2 Powered by control
loop.
+))!",* Adjustable (±1999
counts).
%-+'2 3-1/2 digits, 7 segments, 0.5˝
(12 mm) H.
" %('*%).- 3-position, user
selectable.
*',%.2 Automatic, “-” displayed.
+",.%)#"(+",./," 32 to 122°F
(0 to 50°C).
.*,#""(+",./," -4 to 158°F (-20
to 70°C).
*/).%)# Surface mount.
*))" .%*) Screw terminals.
*)0",-%*)." 3 per second.
,(+ 10 minutes typical.
"%#$. 1.2 oz (34.5 g).
#") 2++,*0'- RoHS.
