Page 1

User’s Guide

Shop on line at



www.omega.com

e-mail: [email protected]

www.omega.com/specs/iseries

Temperature/Process

Meters with Alarm Outputs

DPi8-AL/DPi16-AL/DPi32-AL

iSeries info:

omegamanual.info

Page 2

U.S.A.:

Omega.com [email protected]

Servicing North America:

Omega Engineering, Inc. Toll-Free: 1-800-826-6342 (USA & Canada only) Customer Service: 1-800-622-2378 (USA & Canada only) Engineering Service: 1-800-872-9436 (USA & Canada only) Tel: (203) 359-1660 Fax: (203) 359-7700 e-mail: [email protected]

For Other Locations Visit omega.com/worldwide

The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.

Page 3

TABLE OF CONTENTS

Part 1: Introduction .....................................................................................1

1.1 Description .....................................................................................2

1.2 Safety Considerations ....................................................................3

1.3 Before You Begin ...........................................................................4

Part 2: Setup ................................................................................................5

2.1 Front Panel ...................................................................................5

2.2 Disassembly ...................................................................................6

2.3 Electrical Installation ......................................................................7

2.3.1 Power Connections ............................................................7

2.3.3 Thermocouple - Input Connection ......................................8

2.3.4 Two / Three / Four Wire RTD-Hookups .............................9

2.3.5 Process Current - Wiring Hookup ....................................10

2.3.6 Process Voltage - Wiring Hookup ....................................10

2.3.7 Wiring Outputs - Wiring Hookup .......................................11

Part 3: Operation: Configuration Mode ...................................................12

3.1 Introduction .................................................................................12

Turning your device On for the First Time Buttons Functions in Configuration Mode

3.2 Menu Configuration .....................................................................13

3.2.1 ID Number ........................................................................14

3.2.2 Setpoints .........................................................................15

3.2.3 Configuration Menu ..........................................................16

3.2.4 Input Type Menu .............................................................17

3.2.5 Reading Configuration Menu ..........................................21

3.2.6 Alarm 1 Menu ..................................................................25

3.2.7 Alarm 2 Menu ...................................................................29

3.2.8 Reading Adjust Menu .......................................................30

3.2.9 Setpoint Deviation Menu/Field Calibration ......................31

3.2.10 ID Code Menu .................................................................32

3.2.11 Display Color Selection Menu ..........................................41

Part 4: Specifications......................................................................................44

Part 5: Factory Preset Values .......................................................................47

CE APPROVAL INFORMATION .....................................................................48

3.2.4.1 Input Type (Thermocouple) ................................ 18

3.2.4.2 Input Type (RTD) ............................................... 19

3.2.4.3 Input Type (Process) .......................................... 20

Page 4

LIST OF FIGURES:

Figure 2.1 Front Panel Display ........................................................................5

Figure 2.2 Rear Panel Input Connector Labels ..............................................6

Figure 2.4 Main Power Connections ..............................................................7

Figure 2.5 Thermocouple Wiring Hookup .......................................................8

Figure 2.6 Two/Three/Four-Wire RTD Wiring Hookup

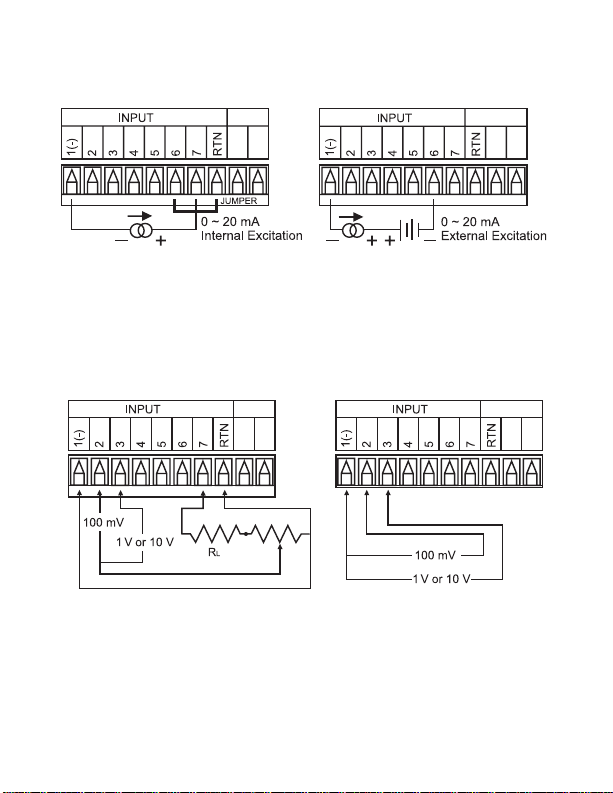

Figure 2.7 Process Current Wiring Hookup Figure 2.8 Process Voltage Wiring Hookup

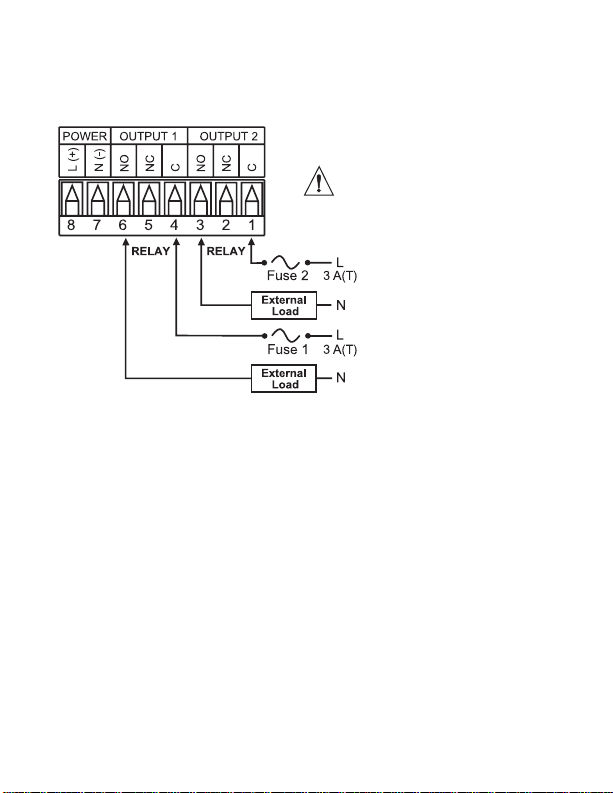

Figure 2.9 Mechanical Relay Outputs Wiring Hookup ..................................11

Figure 2.10 Excitation Output .........................................................................11

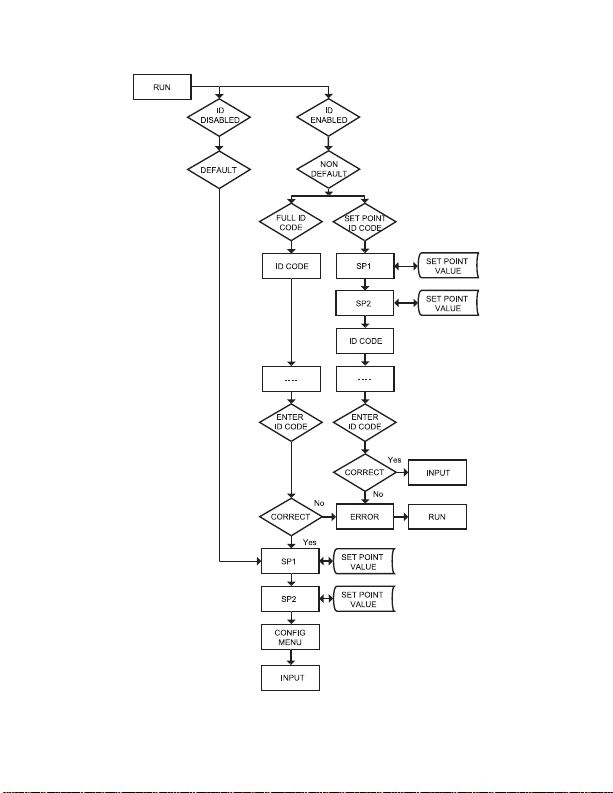

Figure 3.1 Flow Chart for ID and Setpoints . .................................................13

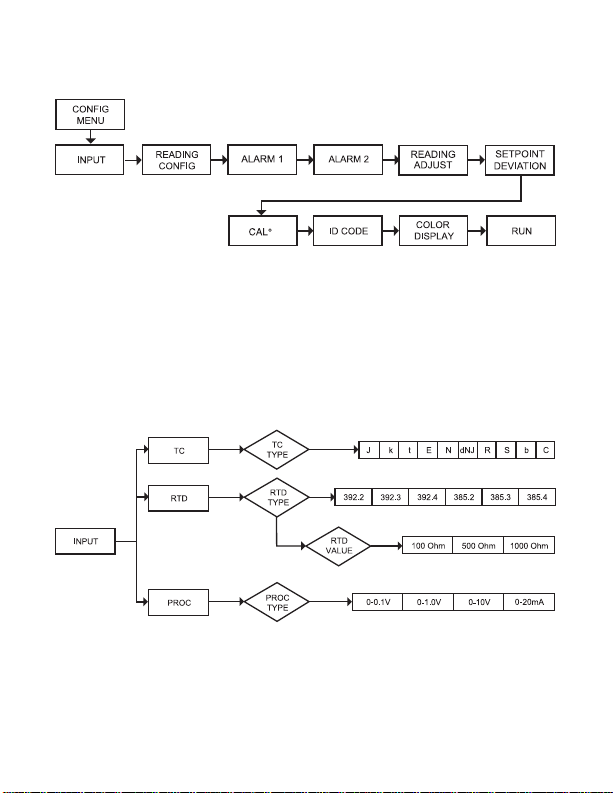

Figure 3.2 Flow Chart for Configuration Menu ..............................................16

Figure 3.3 Flow Chart for Input Type Menu .................................................17

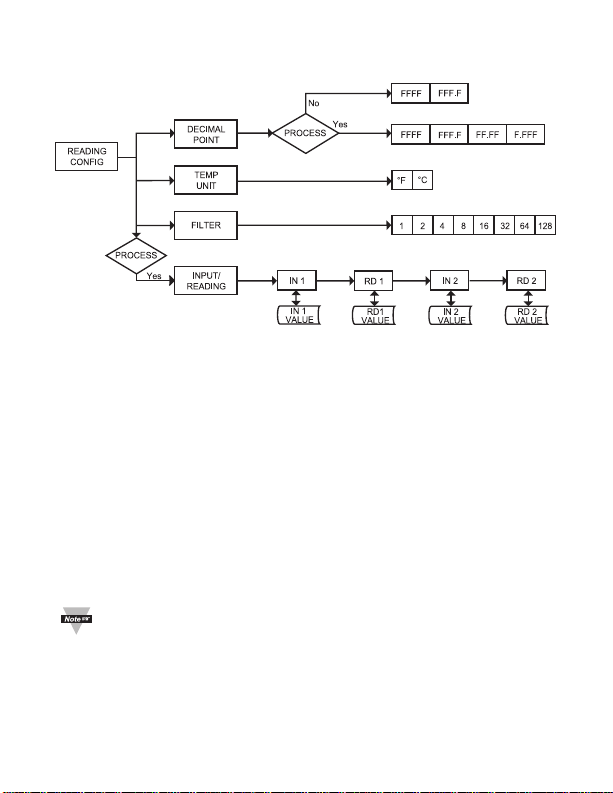

Figure 3.4 Flow Chart for Reading Configuration .........................................21

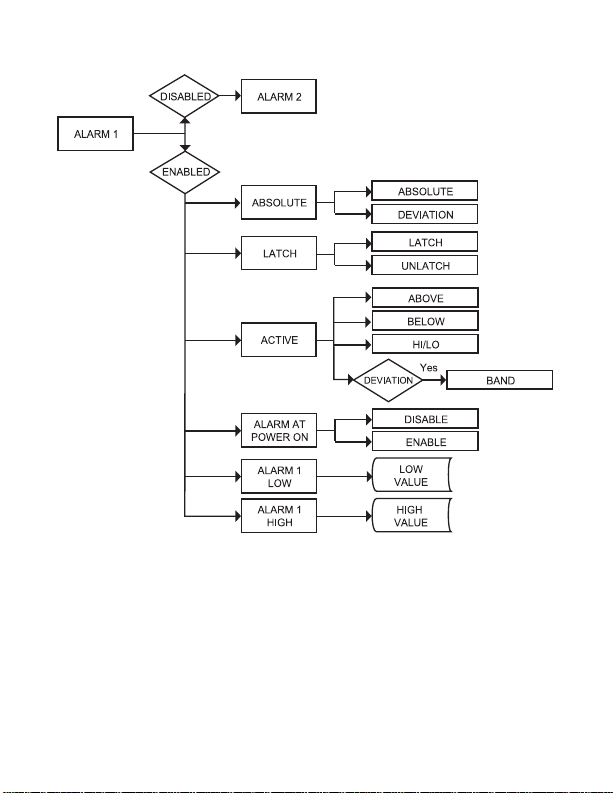

Figure 3.5 Flow Chart for Alarm 1 .................................................................25

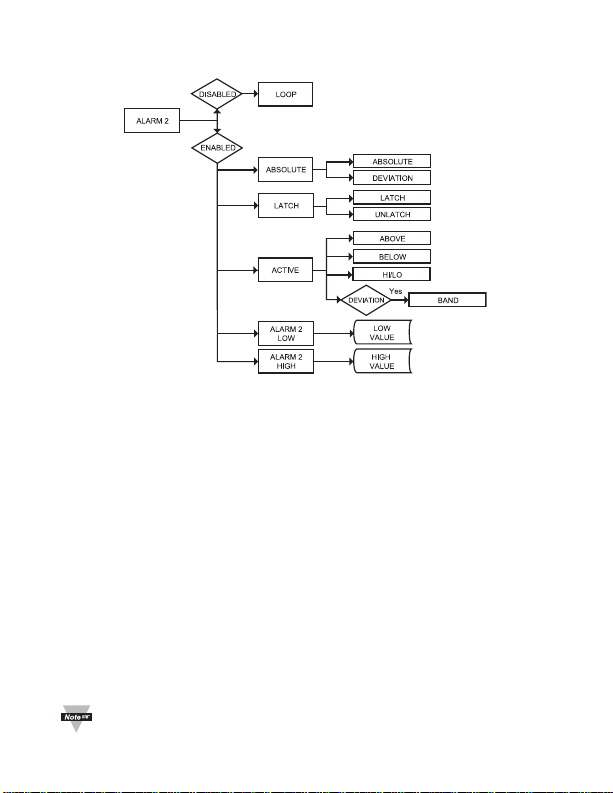

Figure 3.6 Flow Chart for Alarm 2 .................................................................29

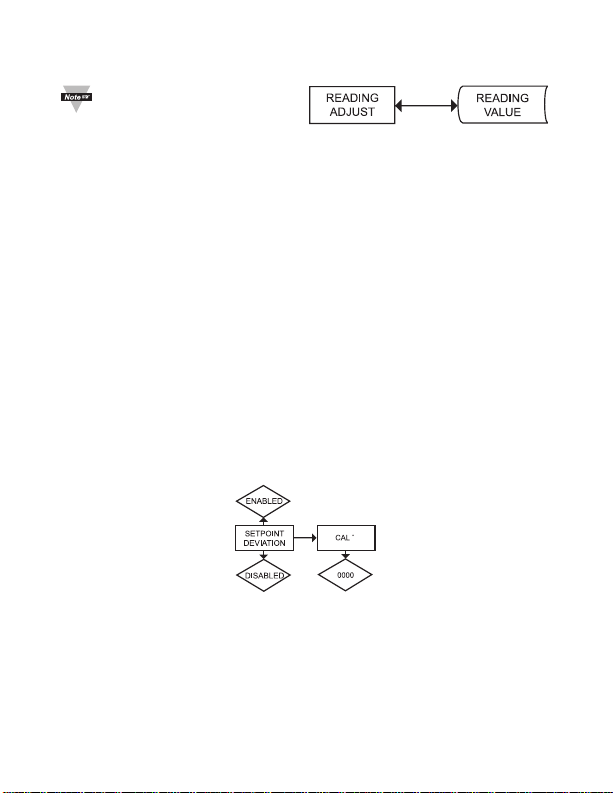

Figure 3.7 Flow Chart for Reading Adjust .....................................................30

Figure 3.8 Flow Chart for Setpoint Deviation/Field Calibration ....................31

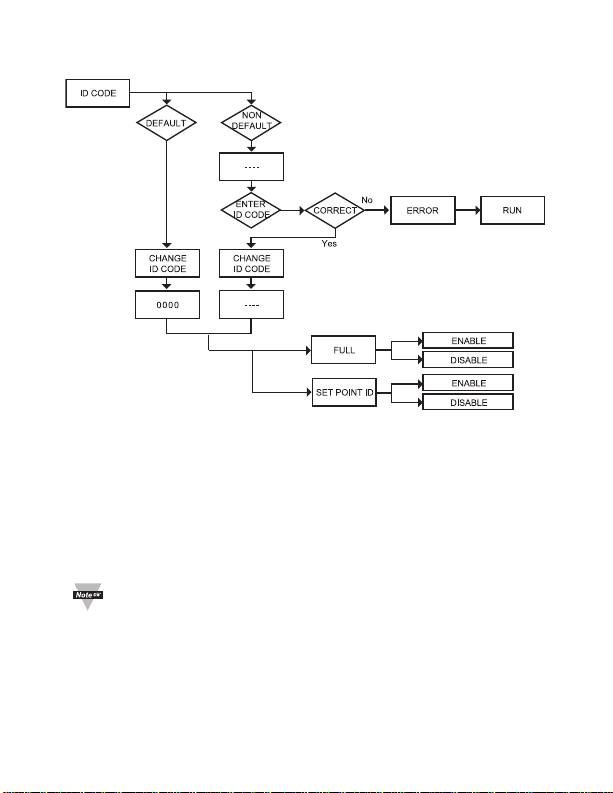

Figure 3.9 Flow Chart for ID Code ...............................................................32

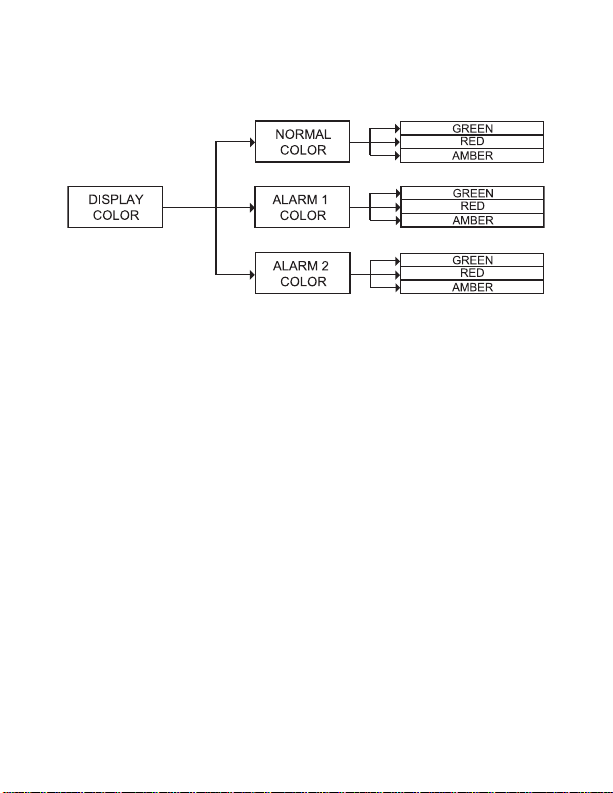

Figure 3.10 Flow Chart for Display Color Selection ........................................41

a) RTD-1000 ohm/RTD-500 ohm ...................................................9

b) RTD-100 ohm ...........................................................................9

(Internal and External Excitation) ................................................10

a) With Sensor Excitation ............................................................10

b) Without Sensor Excitation ........................................................10

LIST OF TABLES:

Table 2.1 Front Panel Annunciators ..............................................................5

Table 2.2 Rear Panel Connector ..................................................................6

Table 2.3 Power Connections .......................................................................7

Table 2.4 TC Wire Color Chart .....................................................................8

Table 3.1 Button Function in Configuration Mode ........................................12

Table 3.2 Conversion Table .........................................................................24

Table 4.1 Input Properties .. .........................................................................46

Table 5.1 Factory Preset Values .................................................................47

Page 5

NOTES, WARNINGS and CAUTIONS

Information that is especially important to note is identied by the following labels:

• NOTE

• WARNING or CAUTION

• IMPORTANT

• TIP

NOTE: Provide you with information that is important to successfully

setup and use the Programmable Digital System. CAUTION or WARNING: Tells you about the risk of

electrical shock. CAUTION, WARNING or IMPORTANT: Tells you of circumstances or

practices that can affect the instrument’s functionality and must refer to accompanying documents.

TIP: Provides you helpful hints.

PART 1 INTRODUCTION

1.1 Description

The iSeries meter with alarm outputs offer unparalleled exibility in process

measurement and alarm applications, accepting 10 different thermocouple types, 18 RTD combinations or 4 process voltage/current inputs and providing 2 relay

alarm outputs and a large multi-color, programmable display. Easily congured

options include 11 different alarm conditions.

Front panel conguration switches allow the user to select the type of input, the

alarm conditions and the resulting display color. Process inputs are fully scalable, supporting virtually all engineering units with a selectable decimal point providing

a perfect solution for pressure, ow or other process inputs.

Standard features include a built-in 24 Vdc excitation source for transmitters or other devices and a universal power supply that accepts 90 to 240 Vac. A low power option is available that supports 24 Vac or 12 to 36 Vdc.

OCG

Page 6

1.2 Safety Considerations

This device is marked with the international caution symbol. It is important to read this manual before installing or commissioning this device as it contains important information relating to Safety and EMC (Electromagnetic Compatibility).

This device is a panel mount device protected in accordance with 2014/35/EU, electrical safety requirements for electrical equipment for measurement, control and laboratory. Installation of this device should be done by qualified personnel. In order to ensure safe operation, the following instructions should be followed.

This device has no power-on switch. An external switch or circuitbreaker shall be included in the building installation as a disconnecting device. It shall be marked to indicate this function, and it shall be in close proximity to the equipment within easy reach of the operator. The switch or circuit-breaker shall meet the relevant requirements of IEC 947–1 and IEC 947-3 (International Electrotechnical Commission). The switch shall not be incorporated in the main supply cord.

Furthermore, to provide protection against excessive energy being drawn from the main supply in case of a fault in the equipment, an overcurrent protection device shall be installed.

• Do not exceed voltage rating on the label located on the top of the device housing.

• Always disconnect power before changing signal and power connections.

• Do not use this device on a work bench without its case for safety reasons.

• Do not operate this device in ammable or explosive atmospheres.

• Unit mounting should allow for adequate ventilation to ensure device does not exceed operating temperature rating.

• Use electrical wires with adequate size to handle mechanical strain and power requirements. Install without exposing bare wire outside the connector to minimize electrical shock hazards.

EMC Considerations

• Whenever EMC is an issue, always use shielded cables.

• Never run signal and power wires in the same conduit.

• Use signal wire connections with twisted-pair cables.

• Install Ferrite Bead(s) on signal wires close to the device if EMC problems persist.

Failure to follow all instructions and warnings may result in injury!

Page 7

1.3 Before you Begin

Inspecting Your Shipment:

Remove the packing slip and verify that you have received everything listed. Inspect the container and equipment for signs of damage as soon as you receive the shipment. Note any evidence of rough handling in transit. Immediately report any damage to the shipping agent. The carrier will not honor damage claims unless all shipping material is saved for inspection. After examining and removing the contents, save the packing material and carton in the event reshipment is necessary.

Customer Service:

If you need assistance, please call the nearest Customer Service Department, listed in this manual.

Manuals:

The latest Operation Manual is available from the website listed in this manual.

To Reset the Meter:

When the device is in the “MENU” Mode, push c once to direct device one step backward of the top menu item.

Push c twice to reset device, prior to resuming “Run” Mode except after “Alarms”, that will go to the “Run” Mode without resetting the device.

When using external reset switch: when the device is in the “RUN” Mode, push d twice to disable all outputs and alarms. It is now in “STANDBY” Mode.

Push d once more to resume “RUN” Mode.

Push d twice to disable the system during an EMERGENCY.

Page 8

PART 2 SETUP

2.1 Front Panel

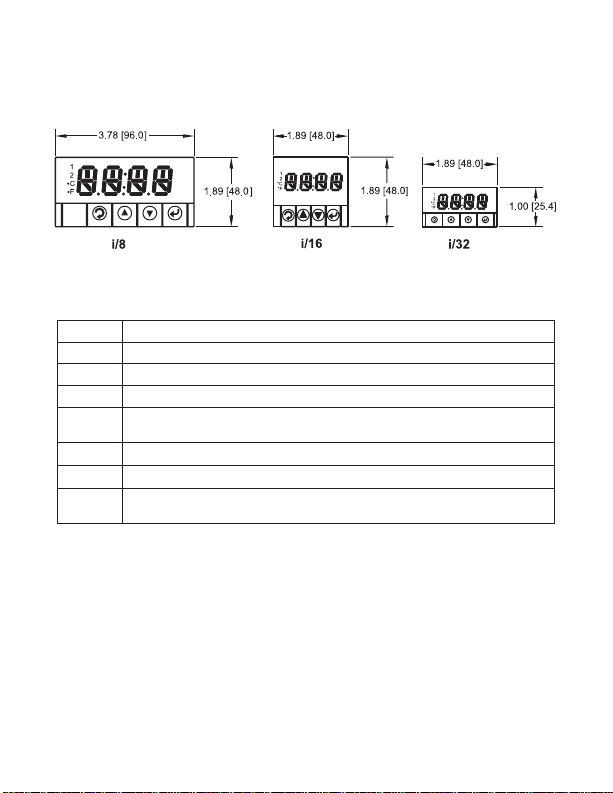

Figure 2.1 Front Panel Display

Table 2.1 Front Annunciators

1 Setpoint 1/ Alarm 1 indicator

2 Setpoint 2/ Alarm 2 indicator ºC °C unit indicator ºF °F unit indicator

Changes display to Conguration Mode and advances through

menu items* Used in Program Mode and Peak Recall*

Used in Program Mode and Valley Recall*

Accesses submenus in Conguration Mode and stores selected

* See Part 3 Operation: Configuration Mode

values*

Page 9

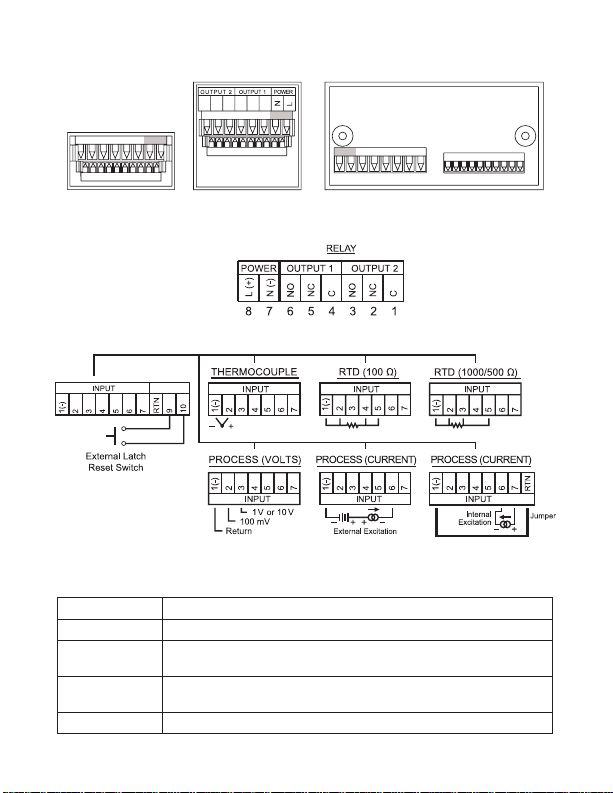

2.2 Rear Panel Connections

1/32 DIN 1/16 DIN 1/8 DIN

1 2 3 4 5 6 7 8

1 2 3 4 5 6 7 8 9 10

8 7 6 5 4 3 2 1

L N -OUTPUTS- -INPUTS-L N -OUTPUTS-

Figure 2.2 Rear Panel

Figure 2.3 Rear Panel Input Connector Labels

Table 2.2 Rear Panel Connector

POWER AC/DC Power Connector: All models

INPUT Input Connector: All models TC, PR (Process), RTD

ALARM 1

OUTPUT

ALARM 2

OUTPUT

Mechanical Relay SPDT

OPTION Excitation, not available with low power option (-DC)

1 2 3 4 5 6 7 8 9 10

Page 10

2.3 Electrical Installation

2.3.1 Power Connections

Caution: Do not connect power to your device until you have completed

all input and output connections. Failure to do so may result in injury!

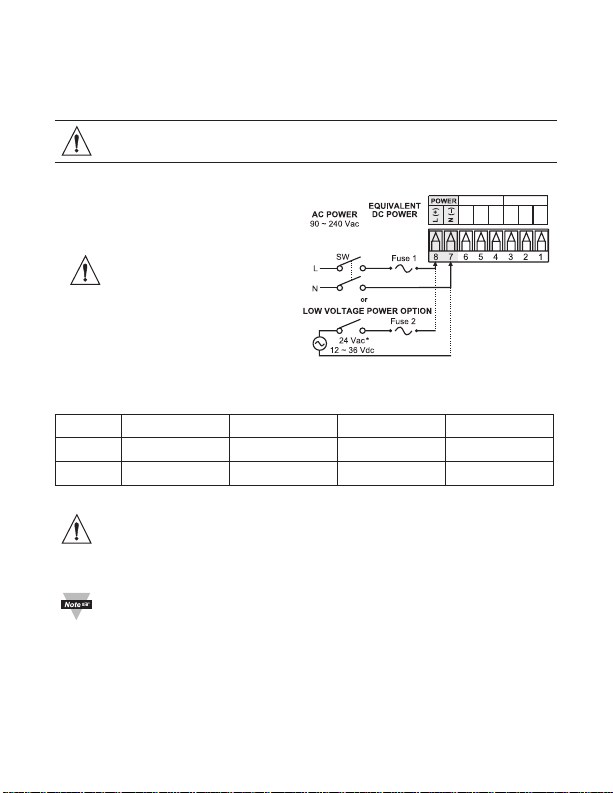

Connect the main power connections as shown in Figure 2.4.

110 - 300 Vdc

Use Copper Conductors only (rated 75 °C min.) for Power Connections.

Figure 2.4 Main Power Connections

Table 2.3 Power Connections

FUSE Connector For 115 Vac For 230 Vac DC FUSE 1 Power* 100 mA(T) 100 mA(T) 100 mA(T) FUSE 2 Power* N/A N/A 400 mA(T)

For the low voltage power option, in order to maintain the same degree of protection as the standard high voltage input power units (90 to 240 Vac), always use a Safety Agency Approved DC or AC source with the same Overvoltage Category and pollution degree as the standard AC unit (90 to 240 Vac).

The Safety European Standard 2014/35/EU for measurement, control,

and laboratory equipment requires that fuses must be specified based on IEC127. This standard specifies for a Time-lag fuse, the letter code

“T”. The above recommended fuses are of the type IEC127-2-sheet III.

Be aware that there are signicant differences between the requirements

listed in the UL 248-14/CSA 248.14 and the IEC 127 fuse standards. As a result, no single fuse can carry all approval listings. A 1.0 Amp IEC fuse is approximately equivalent to a 1.4 Amp UL/CSA fuse. It is advised to consult the manufacturer’s data sheets for a cross-reference.

Page 11

2.3.2 Thermocouple

The gure below shows the wiring hookup for any thermocouple type.

For example, for Type K hookup, connect the yellow wire to the “2” terminal and the red wire to the “1(-)” terminal.

When conguring your device, select Thermocouple and Thermocouple

Type in the Input Type menu (see Part 3).

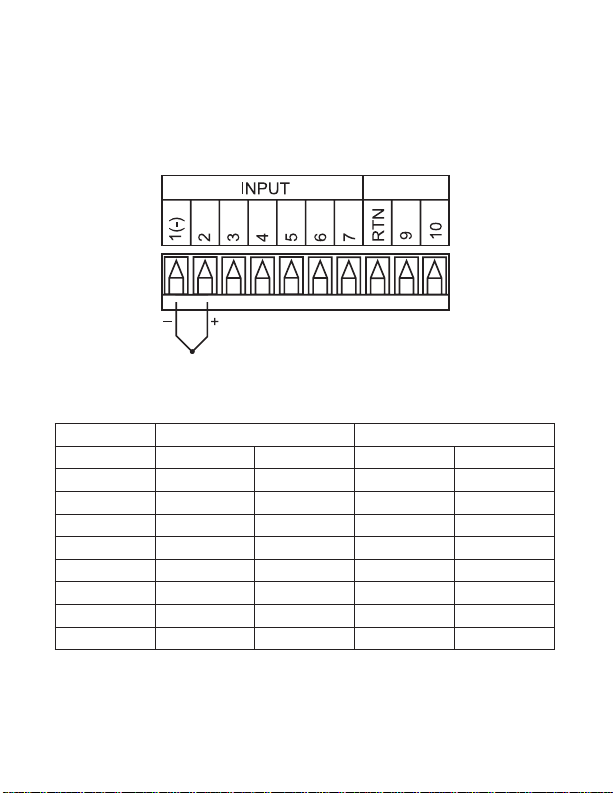

Figure 2.5 Thermocouple Wiring Hookup

Table 2.4 TC Wire Color Chart

Type Input Connector Jacket (External Insulation)

Terminal 1 (-) Terminal 2 (+) Extension Grade

J Red White Dark-Brown Black K Red Yellow Dark-Brown Yellow T Red Blue Dark-Brown Blue E Red Purple Dark-Brown Purple N Red Orange Dark-Brown Brown R Red Black - Green S Red Black - Green B Red Gray - Black

Page 12

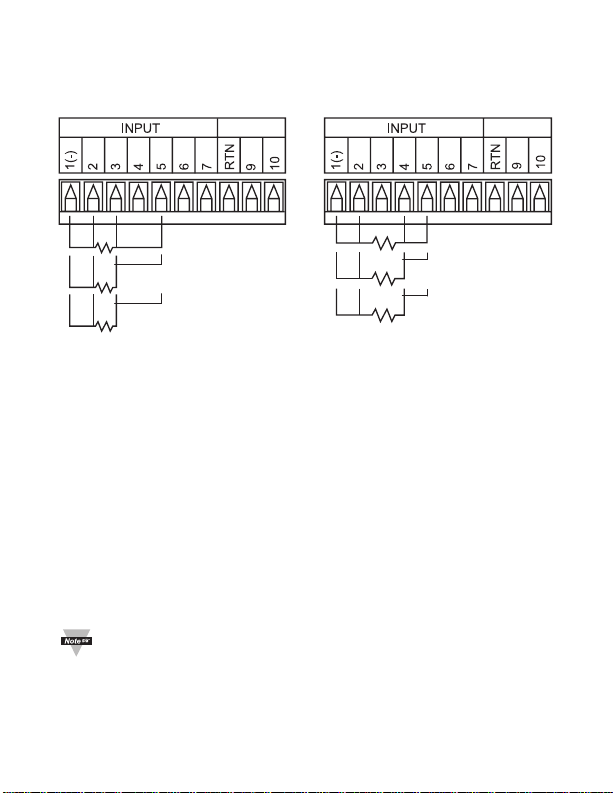

2.3.3 Two/Three/Four-Wire RTD

The gures below show the input connections and input connector jumpers

(shown in bold lines) required to hookup a 2-, 3- or 4-wire RTD.

RTD (1000/500) 4-Wire

RTD (1000/500) 3-Wire

RTD (1000/500) 2-Wire

Figure 2.6 a) RTD-100 ohm and b) RTD-100 ohm Wiring Hookup

The two-wire connection is simplest method, but does not compensate for lead-wire temperature change and often requires calibration to cancel lead-wire resistance offset.

The three-wire connection works best with RTD leads closely equal in resistance. The device measures the RTD, plus upper and lower lead drop voltage and the subtracts twice the measured drop in the lower supply current lead producing excellent lead-resistance cancellation for balanced measurements.

The four-wire RTD hookup is applicable to unbalanced lead resistance and enables the device to measure and subtract the lead voltage, which produces the best lead-resistance cancellation.

When conguring your device, select RTD type and RTD value in the Input

Type menu (see Part 3).

500 ohm Wiring Hookup

If the input wires of the meter get disconnected or broken, it will display

“Input (+) Open” message except in case of 500/1000 Ω 2-wire

+OPN

RTD. In this case the display shows For safety purpose you may want to set up your alarm to be triggered when input is open. See Alarm 1 & 2 Sections 3.2.6, 3.2.7 for details.

-OPN

RTD (100) 4-Wire

RTD (100) 3-Wire

RTD (100) 2-Wire

“Input (-) Open” message.

Page 13

2.3.4 Process Current

The gure below shows the wiring hookup for Process Current 0 – 20 mA.

Figure 2.7 Process Current Wiring Hookup

(Internal and External Excitation)

When conguring your device, select Process Type in the Input Type Menu

(see Part 3).

2.3.5 Process Voltage

The gure below shows the wiring hookup for Process Voltage 0 – 100 mV,

0 – 1 V, 0 – 10 V.

Figure 2.8 a) Process Voltage b) Process Voltage Wiring

RL - Voltage limited resistor, which allows to convert 24 Vdc internal excitation

voltage to the appropriate process input value. For instance: if the potentiometer

value is equal to 10 kΩ, the minimum RL is 14 kΩ for 10 V process input.

When conguring your device, select Process Type in the Input Type Menu

(see Part 3).

Wiring Hookup with Hookup without Sensor Sensor Excitation Excitation

Page 14

2.3.6 Wiring Outputs

This device has two factory installed outputs. The SPDT Mechanical Relay Connection is shown below.

Use Copper Conductors only (rated 75 °C min.) for Power Connections.

Figure 2.9 Mechanical Relay Output Wiring Hookup

Page 15

PART 3

OPERATION: Conguration Mode

3.1 Introduction

The device has two different modes of operation.

The rst, Run Mode, is used to display values for the Process Variable,

and to display or clear Peak and Valley values.

The other mode, Menu Conguration Mode, is used to navigate through the menu options and congure the device.

Part 3 of this manual will explain the Menu Conguration Mode. For your device to operate properly, the user must rst “program” or congure the

menu options.

Turning your device On for the First Time

The device becomes active as soon as it is connected to a power source. It has no On or Off switch.

The device at first momentarily shows the software version number, followed by reset

, and then proceeds to the Run Mode.

RST

Page 16

3.1 Introduction (continued)

Table 3.1 Button Function in Conguration Mode

• To enter the Menu, the user must first press a button.

• Use this button to advance/navigate to the next menu item. The user can navigate through all the top level menus by

(MENU)

(UP)

(DOWN)

(ENTER)

pressing a.

• While a parameter is being modified, press a to escape without saving the parameter.

• Press the up b button to scroll through “flashing” selections. When a numerical value is displayed press this key to increase

value of a parameter that is currently being modified.

• Holding the b button down for approximately 3 seconds will speed up the rate at which the set point value increments.

• In the Run Mode press b causes the display to flash the PEAK value – press again to return to the Run Mode.

• Press the down c button to go back to a previous Top Level Menu item.

• Press this button twice to reset the device to the Run Mode.

• When a numerical value is flashing (except set point value) press c to scroll digits from left to right allowing the user to select the desired digit to modify.

• When a setpoint value is displayed press c to decrease value of a setpoint that is currently being modified. Holding the c button down for approximately 3 seconds will speed up the rate at which the setpoint value is decremented.

• In the Run Mode press c causes the display to flash the VALLEY value – press again to return to the Run Mode.

• Press the enter d button to access the submenus from a Top Level Menu item.

• Press d to store a submenu selection or after entering a value — the display will flash a

• To reset flashing Peak or Valley press d.

• In the Run Mode, press d twice to enable Standby Mode with flashing

Reset: Except for Alarms, modifying any settings of the menu configuration will reset the device prior to resuming Run Mode.

STBY

message to confirm your selection.

STRD

Page 17

3.2 Menu Conguration

Figure 3.1 Flow Chart for ID and Set Points Menu

Page 18

3.2.1 ID Number Menu

SEE ID MENU SELECTION IN CONFIGURATION SECTION FOR ENABLE/DISABLE OR CHANGE ID CODE.

If ID Code is Disabled or set as Default (0000) the menu will skip ID step to Setpoint Menu.

If ID Code is set to Full Security Level and user attempts to enter the Main Menu, they will be prompted for an ID Code.

If ID Code is set to Set Point/ID Security Level and user attempts to

enter the Conguration Menu, they will be prompted for an ID Code.

ENTERING YOUR NON-DEFAULT FULL SECURITY ID NUMBER.

Press a Press d Press b & c

Press d

ENTERING YOUR NON-DEFAULT SET POINT/ID SECURITY ID NUMBER.

Press a Press a Press a Press d Press b & c Press d

1) Display shows ID.

2) Display advances to

3) Press b to increase digit 0-9. Press c to activate next digit

(flashing). Continue to use b and c to enter your 4-digit ID code.

4) If the correct ID code is entered, the menu will advance to the Setpoint 1 Menu, otherwise an error message will be displayed and the instrument will return to the Run Mode.

To change ID Code, see ID Menu in the Conguration section.

5) Display shows

6) Display shows

7) Display shows

8) Display advances to

9) Use b and c to change your ID Code.

10) If the correct ID code is entered, the display will advance

to the will be displayed and the unit will return to the Run Mode.

To prevent unauthorized tampering with the setup parameters, the instrument provides protection by requiring the user to enter the ID Code before allowing access to subsequent menus. If the ID Code entered does not match the ID Code stored, the unit responds with an error message and access to subsequent menus will be denied.

Use numbers that are easy for you to remember. If the ID Code is forgotten or lost, call customer service with your serial number to access and reset the default to

Input Menu, otherwise the error message

INPT

____

Setpoint 1 Menu.

SP1

Setpoint 2 Menu.

SP2

ID Code Menu.

____

0000

ERRo

Page 19

3.2.2 Set Points Menu

SETPOINT 1:

Press a Press d Press b & c

1) Press a, if necessary until

2) Display shows previous value of “Setpoint 1”.

3) Press b and c to increase or decrease Setpoint 1

respectively.

Holding b & c buttons down for approximately 3 seconds will speed up the rate at which the Setpoint value increments or decrements.

prompt appears.

SP1

Press b & c Press d

SETPOINT 2:

Press d Press b & c

Press d 8) Display shows

4) Continue to use b and c to enter your 4-digit Setpoint 1 value.

5) Display shows advance to a to advance to

6) Display shows previous value of “Setpoint 2”.

7) Press b and c to increase or decrease Setpoint 2

respectively.

Holding b & c buttons down for approximately 3 seconds will speed up the rate at which the Setpoint value increments or decrements.

advance to a to advance to

Setpoints are used for Deviation only.

SP2

CNFG

stored message momentarily and then

STRD

only, if a change was made, otherwise press

Setpoint 2 Menu.

SP2

stored message momentarily and then

STRD

only, if a change was made, otherwise press

Configuration Menu.

CNFG

Page 20

3.2.3 Conguration Menu

Figure 3.2 Flow Chart for Conguration Menu

ENTER CONFIGURATION MENU:

Press a Press d Press b & c

1) Press a, if necessary until

2) Display advances to

3) Press and release a to scroll through all available menus of

Configuration section.

3.2.4 Input Type Menu

Figure 3.3 Flow Chart for Input Type Menu

INPT

prompt appears.

CNFG

Input Menu.

Page 21

3.2.4.1 Input Type (Thermocouple)

ENTER INPUT TYPE MENU:

Press a Press d Press d

THERMOCOUPLE SUBMENU:

Press b Press d

Press d Press b Press d

Thermocouple Types: J, K, T, E, N, DIN J, R, S, B, C Display:

1) Press a, if necessary until

2) Display advances to

3) Display flashes

Process). If the displayed input type is step 6 (

4) Scroll through the available selection to

5) Display shows

T.ç

6) Display flashes previous thermocouple type selection. i.e. (see below for types).

7) Scroll through the available thermocouple types to the selection of your choice.

8) Display shows advances to the

Use the Input Type (Thermocouple) (RTD) or (Process) and verify your Electrical Installation (see Section 2.3).

stops flashing).

T.ç

(not flashing).

INPT

T.ç, RTD

stored message momentarily and then

STRD

stored message momentarily and then

STRD

Reading Configuration Menu.

RDG

prompt appears.

CNFG

Input Menu.

(Thermocouple, RTD or

PROC

T.ç

, press a to skip to

(flashing).

T.ç

J K T E N DNJ R S B C

Page 22

3.2.4.2 Input Type (RTD)

ENTER INPUT TYPE MENU:

Press a Press d Press d

RTD SUBMENU:

Press b Press d

Press d Press b Press d

RTD Types: 392 385 Two, Three or Four wire Display:

RTD VALUE SUBMENU:

Press d Press b Press d

RTD Values: 100 OHM 500 OHM 1000 OHM Display:

1) Press a, if necessary until

2) Display advances to

3) Display flashes

Process). If the displayed input type is step 6 (

4) Scroll through the available selection to

5) Display shows

RTD

6) Display flashes previous RTD type selection i.e. (see below for RTD types selection).

7) Scroll through the available RTD types to the selection of your choice.

8) Display shows advances to the

392.2, 392.3, 392.4, 385.2, 385.3, 385.4

Last digit indicates: 2-, 3- or 4-wire input.

9) Display flashes previous (see below for RTD value selection).

10) Scroll through the available RTD values to the selection of your choice.

11) Display shows then advances to

100_ 500_ 1000

stops flashing).

RTD

(not flashing).

INPT

T.ç, RTD

stored message momentarily and then

STRD

stored message momentarily and then

STRD

RTD value.

RTD

stored message momentarily and

STRD

Reading Configuration Menu.

RDG

prompt appears.

CNFG

Input Menu.

(Thermocouple, RTD or

PROC

RTD value selection i.e.

, press a to skip to

RTD

(flashing).

392.2

100_

Page 23

3.2.4.3 Input Type (Process)

ENTER INPUT TYPE MENU:

Press a Press d Press d

1) Press a, if necessary until

2) Display advances to

3) Display flashes

Process). If the displayed input type is to step 6 (

PROC

INPT

RTD

T.ç

stops flashing).

prompt appears.

CNFG

Input Menu.

PROC

(Thermocouple, RTD or

, press a to skip

PROC

PROCESS SUBMENU:

Press b Press d

Press d Press b Press d

Process Types: 100 mV 1 V 10 V 0 to 20 mA Display:

For 4 to 20 mA Input select 0 to 20 mA then adjust the Input/Reading accordingly. To adjust 4 to 20 mA input, see example under INPUT/READING Submenu. The factory preset value is 4 to 20 mA.

4) Scroll through the available selection to

5) Display shows

(not flashing).

PROC

6) Display flashes previous Process type selection i.e. (see below for Process types selection).

7) Scroll through the available Process types to the selection of your choice.

8) Display shows advances to the

0-0.1 0-1.0 0-10 0-20

stored message momentarily and then

STRD

stored message momentarily and then

STRD

Reading Configuration Menu.

RDG

PROC

(flashing).

0-10

Page 24

3.2.5 Reading Conguration Menu

Figure 3.4 Flow Chart for Reading Conguration Menu

ENTER READING CONFIGURATION MENU:

Press a Press d Press a Press d

DECIMAL POINT SUBMENU:

Press d Press b

Press d

1) Press a, if necessary until

2) Display advances to

3) Press and release

4) Display advances to

5) Display flashes previous selection for Decimal location.

6) Scroll though the available selections and choose Decimal

location:

FFFF

Process type was selected in the Input Type Menu).

7) Display shows advances to

Decimal Point for Process Input Type is passive.

TEMP

INPT

Reading Configuration Menu.

RDG

DEC

(also

FFF.F

stored message momentarily and then

STRD

Temperature Unit.

prompt appears.

CNFG

Input Menu.

Decimal Point.

and

FF.FF

F.FFF

— if

PROC

Page 25

3.2.5 Reading Conguration Menu (continued)

TEMPERATURE UNIT SUBMENU:

Press d Press b

Press d

FILTER CONSTANT SUBMENU:

Press d Press b

Press d

8) Display flashes previous Temperature Unit selection.

9) Scroll though the available selections to the Temperature

Unit of your choice: °F or °C.

10) Display shows then advances to

11) Display flashes previous selection for Filter Constant.

12) Scroll though the available selections:

0001, 0002, 0004, 0008, 0016, 0032, 0064, 0128

13) Display shows change were made, otherwise press a to advance to the next menu.

If Process was selected in the Input Type Menu the display will advance to

Input/Reading Submenu, otherwise the display advances to

IN.RD

the The Filter Constant Submenu allows the user to specify the number of

readings stored in the Digital Averaging Filter.

A lter value of 2 is approximately equal to 1 second RC low pass time

constant.

Alarm 1 Menu.

ALR1

stored message momentarily and

STRD

Filter Constant.

FLTR

stored message momentarily only, if

STRD

Page 26

3.2.5 Reading Conguration Menu (continued)

Reading Conguration (If Process was selected)

INPUT/READING (SCALE AND OFFSET) SUBMENU:

Input Voltage or Current can be converted or scaled into values appropriate for the process or signal being measured. So, a reading may be displayed, for example, in units of weight or velocity instead of in amperes or volts.

The instrument determines Scale and Offset values based on two user-provided input values entered with the corresponding readings. Note that “In1” Input 1 and “In2” Input 2 are represented and entered as a product of the input voltage/current and the conversion number from the Table 3.1.

The following instructions include details for a specic scenario in which

a 4-20 mA input (in the 20 mA Process Mode) is to be represented as a measurement of 0-100 percent.

Press d Press d

Press b & c

Press d Press b & c

Press d Press d

Press b & c Press d Press b & c

Press d

14) Press d at the submenu.

15) Display shows Input 1 value with first digit flashing.

16) Use b and c buttons to enter

The

value = min. input value * conversion number.

IN1

Disregard the position of the decimal point (2000 counts may actually appear as “200.0”, “20.00”, or “2.000”). Example: 4 mA as 4(mA) x 500 = 2000.

17) Display advances to

18) Use b and c buttons to enter

This value represents engineering units. To show the 4 mA as zero percent enter

value = 0000.

RD1

Example: RD 1 value = 0000.

19) Display shows

20) Display shows Input 2 value with first digit flashing.

The Example: 20(mA) x 500 = 10000 (9999).

21) Use b and c buttons to enter

22) Display advances to

23) Use b and c buttons to enter

Example: RD 2 value = 0100.

24) Display flashes then advances to press d to advance to

value = max. input value * conversion number.

IN!2

prompt. Display shows

IN.RD

value.

IN1

Reading 1 Submenu.

RD1

in terms of some meaningful

IN1

Input 2 Submenu.

IN!2

RD!2

stored message momentarily and

STRD

only, if change were made, otherwise

ALR1

value.

RD1

value.

IN!2

Reading 2 Submenu.

value.

RD!2

Alarm 1 Menu.

IN1

Input 1

Page 27

3.2.5 Reading Conguration Menu (continued)

Conversion number is a coefcient of conversion between input values

and real full display range (10000 counts). See Table 3.2 below for proper conversion number.

Table 3.2 Conversion Table

RANGE CONVERSION NUMBER

100 mV 10000 / (100 x 1) = 100

1 V 10000 / (1000 x 1) = 10

10 V 10000 / (1000 x 10) = 1

0 to 20 mA 10000 / (20 x 1) = 500

Example =

0 - 1 V = 0 - 100.0

In 1 = 0

Rd 1 = 0

Inp 2 = 9999

Rd 2 = 100.0

Page 28

3.2.6 Alarm 1 Menu

Figure 3.5 Flow Chart for Alarm 1 Menu

ENTER ALARM 1 MENU:

Press a Press d Press a

Press d

1) Press a, if necessary until

2) Display advances to

3) Press a, if necessary, until display advances to

Alarm 1 Menu.

4) Display advances to Alarm 1 Submenu and flashes the previous selection.

INPT

prompt appears.

CNFG

Input Menu.

Enable or

ENBL

ALR1

DSBL

Disable

Page 29

3.2.6 Alarm 1 Menu (continued)

ALARM 1 ENABLE/DISABLE SUBMENU:

Press b Press d

ALARM 1 ABSOLUTE/DEVIATION SUBMENU:

Press d Press d

Absolute Mode allows Alarm 1 to function independently from Setpoint 1. If the process being monitored does not change often, then “Absolute” Mode is recommended.

Deviation Mode allows changes to Setpoint 1 to be made automatically to Alarm

1. Deviation Mode is typically the ideal mode if the process temperature changes often. In Deviation Mode, set Alarm 1 a certain number of degrees or counts

away from Setpoint 1 — this relation remains xed even if Setpoint 1 is changed.

ALARM 1 LATCH/UNLATCH SUBMENU:

Press d Press d

Latched Mode: Alarm remains “latched” until reset. To reset already latched alarm, select Alarm Latch and press Max twice (i.e. Unlatch and then back to Latch) or from a Run Mode, push d twice to put the monitor in Standby Mode and then push d one more time to return to the Run Mode.

Unlatched Mode: Alarm remains latched only as long as the alarm condition is true.

5) Scroll though the available selection until use Alarm 1.

6) Display shows advances to advance to

Alarm 1 Disabled was selected, all submenus of Alarm 1 Menu

DSBL

will be skipped and meter advances to

7) Display flashes previous selection. Press b to Absolute or

8) Display shows advances to advance to

9) Display flashes previous selection. Press b to Latched or

10) Display shows then advances to press a to advance to

ABSo

_DEV

LTçH

UNLT

stored message momentarily and then

STRD

only if it was changed, otherwise press a to

Alarm 1 Absolute/Deviation Submenu.

ALR2

Deviation.

stored message momentarily and then

STRD

only if it was changed, otherwise press a to

Alarm 1 Latch/Unlatch Submenu.

Unlatched.

stored message momentarily and

STRD

only, if it was changed, otherwise

AçTV

Active Submenu.

AçTV

ENBL

Alarm 2 Menu.

displays to

ABSo

LTçH

Page 30

3.2.6 Alarm 1 Menu (continued)

ACTIVE SUBMENU:

Press d

Above: Alarm 1 condition triggered when the process variable is greater than the Alarm Hi Value (Low value ignored).

Below: Alarm 1 condition triggered when the process variable is less than the Alarm Low Value (Hi value ignored).

Hi/Low: Alarm 1 condition triggered when the process variable is less than the Alarm Low Value or above the Hi Value.

Band: Alarm 1 condition triggered when the process variable is above or below the “band” set around Setpoint 1. Band equals Hi Value (Low Value ignored). A “band” is set around the set point by the instrument only in the “Deviation” Mode.

The Band for the AL 1 would be following the Setpoint 1 value. The Band for the AL 2 would be following the Setpoint 2 value. The Band or the Deviation Value should be entered under:

Example: if customer requires a Deviation Value of ±10 degrees around a setpoint (using Output 2 as alarm)

Then the Band Value is to be entered under AL2 HI: 10 not 80 + 10 = 90

11) Display flashes previous selection. Press b to scroll through the available selections:

HI/Low and

HI.Lo

Deviation was selected).

12) Display shows then advances to press a to advance to On Submenu.

AL1 High (if they want Alarm 1) AL2 High (if they want Alarm 2) AL Low value is ignored in the Band mode.

Alarm 2: - Deviation Contact Closure type: Deviation -- Band AL2 High: 10 (Band they want around Setpoint 2)

Band. (Band is active if

BAND

stored message momentarily and

STRD

only if it was changed, otherwise

A.P.oN

Above,

ABoV

Alarm Enable/Disable at Power

BELo

_DEV

Below,

Page 31

3.2.6 Alarm 1 Menu (continued)

ALARM ENABLE/DISABLE AT POWER ON:

Press d Press d

ALARM 1 LOW VALUE SUBMENU:

Press d Press b & c

Press d

ALARM 1 HI VALUE SUBMENU:

Press d Press b & c

Press d

13) Display flashes previous selection. Press b to enable or

14) Display shows then advances to press a to advance to the Submenu.

If the alarm is enabled at Power On, the alarm will be active right after reset. If the alarm is disabled at Power On, the alarm will become enabled when the process value enters the non alarm area. The alarm is not active while the process value is approaching Setpoint 1.

15) Display flashes first digit of previous value. Use b and c to enter new value.

16) Use b and c to enter Alarm 1 Low Value.

17) Display shows

then advances to press a to advance to

18) Display flashes first digit of previous value. Use b and c to enter new value.

19) Use b and c to enter Alarm 1 Hi Value.

20) Display shows

then advances to the next menu only, if it was changed, otherwise press a to advance to the next menu.

DSBL

disable.

stored message. momentarily and

STRD

only if it was changed, otherwise

ALR.L

STRD

ALR.H

STRD

ALR.H

Alarm 1 Low Value

ALR.L

storage message momentarily and

only, if it was changed, otherwise

Alarm 1 Hi Value Submenu.

stored message momentarily and

ENBL

Page 32

3.2.7 Alarm 2 Menu

Figure 3.6 Flow Chart for Alarm 2 Menu

ENTER ALARM 2 MENU:

Press a Press d Press a

Press d

ALARM 2 ENABLE/DISABLE SUBMENU:

Press b Press d

1) Press a, if necessary until

2) Display advances to

3) Press a ,if necessary, until display advances to

Alarm 2 Menu.

4) Display advances to Alarm 2 Submenu.

5) Display flashes previous selection. Press b until displays to use Alarm 2.

6) Display shows advances to advance to

DSBL

Alarm 2 Menu will be skipped and meter advances to Cold Junction (C.J.) Reading Adjust Menu.

The remaining Alarm 2 menu items are identical to Alarm 1 Menu. Modifying Alarm Settings will not reset the instrument.

ABSo

Alarm 2 Disabled was selected, all submenus of

INPT

stored message momentarily and then

STRD

only if it was changed, otherwise press a to

Absolute/Deviation Submenu.

prompt appears.

CNFG

Input Menu.

ENBL

Enable or

ALR1

DSBL

ENBL

Disable

R.ADJ

Page 33

3.2.8 Reading Adjust Menu

For T emperature Reading only, not Process

Figure 3.7 Flow Chart for Reading Adjust Menu

ENTER READING ADJUST MENU:

Press a Press d Press a

READING ADJUST VALUE SUBMENU:

Press d Press b & c

Press d

Reading Offset Adjust allows the user to ne tune a minor error of the

ransducer, however some applications may require a large offset adjust. (Displayed Process Value = Measured Process Value ±R.ADJ). Reading Adjust value is adjustable between -1999 to 9999.

3.2.9 Setpoint Deviation Menu / Field Calibration

Figure 3.8 Flow Chart for Setpoint Deviation Menu / Field Calibration

ENTER SETPOINT DEVIATION MENU:

Press a Press d Press a

1) Press a, if necessary until

2) Display advances to

3) Press a ,if necessary, until display advances to

Reading Adjust Menu.

4) Display flashes first digit of previous Reading Adjust value.

5) Press b and c buttons to enter a new Reading Adjust value

(-1999 to 9999).

6) Display shows advances to

1) Press a, if necessary, until

2) Display advances to

3) Press a, if necessary, until Display advances to

Setpoint Deviation Menu.

SP.DV

INPT

stored message momentarily and then

STRD

Setpoint Deviation Menu.

INPT

prompt appears.

CNFG

Input Menu.

prompt appears.

CNFG

Input Menu.

R.ADJ

SP.DV

Page 34

3.2.9 Setpoint Deviation Menu / Field Calibration (continued)

ENTER READING ADJUST MENU:

Press d Press b

Press d

Setpoint Deviation menu, if “enabled”, allows changes to Setpoint 1 to be made automatically to Setpoint 2. This mode is very helpful if the Process value changes often. In Setpoint Deviation Mode, set SP2 a certain number of degrees or counts away from SP1 - this relation remains fixed when SP1 is changed. For instance: Setting SP1=200 and SP2=20 and enabling absolute value of SP2=220. Moving SP1 to 300, the absolute value of SP2 becomes 320.

THERMOCOUPLE FIELD CALIBRATION SUBMENU:

4) Display advances to Setpoint Deviation

. Disable Submenu and flashes the previous selection.

DSBL

5) Scroll through the available selections:

6) Display shows

advances to the next menu item.

CAUTION: Do not perform the following steps until you fully understand this entire section.

RTD and Process are perfectly calibrated. This section is applicable to Thermocouple (TC) calibration only.

Be sure that the TC being used to calibrate the meter is of the type selected in the TC submenu. Place the TC in an ice-bath (or other 0°C / 32°F environment). In ambient temperature conditions: connect the TC to the meter, apply power to the meter.

CAUTION: Do not proceed with TC calibration unless the above conditions have been in effect for at least one hour.

stored message momentarily and then

STRD

Enable or

ENBL

means that the

SP.DV

DSBL

Press d Press b Press d * Press d *

7) Display shows

8) Display shows flashing

9) Display will still show flashing

10) Display shows

* If you accidently engage the ashing

re-press the last button you pressed, to avoid unintentionally miscalibrating your meter.

CAL1

OUT1

0000

(meaning Calibration is complete)

0000

(CAL° alert) simply

0000

Page 35

3.2.10 ID Code Menu

Figure 3.6 Flow Chart for Alarm 2 Menu

ENTER ID CODE MENU:

Press a 1) Press a, if necessary, until Press d 2) Display advances to

Press a 3) Press a, if necessary, until display advances to ID ID

ENTERING OR CHANGING YOUR (NON-DEFAULT) ID CODE:

Press d 4) Display advances to Press b & c 5) Press b and c to enter your 4-digit “ID Code” number. Press d 6) Display advances to

Press d 7) Display flashes the first digit of previous entered “ID Press b & c 8) Press b and c buttons to enter your new “ID Code” Press d 9) Display shows

Code Menu.

If entered “ID Code” is incorrect display shows message momentarily and then skips to the Run Mode.

Code” number. number. then advances to the

INPT

____

CH.ID

stored message momentarily and

STRD

FULL

prompt appears.

CNFG

Input Menu.

with first under score flashing.

Change ID Code Submenu.

ERRo

Full Security Submenu.

Error

Page 36

ENTERING OR CHANGING YOUR (DEFAULT) ID CODE:

Enter ID menu (Repeat steps from 1 to 3). Press d 10) Display advances to

Press d 11) Display shows

If you want to change your default “ID Code” you can do it now, otherwise press a and menu will skip to

Submenu. Press b & c 12) Press b and c buttons to enter your new “ID Code” Press d 13) Display shows

FULL SECURITY LEVEL SUBMENU:

Press d 14) Display flashes Press b

Press d 16) Display shows

SETPOINT/ID SECURITY LEVEL SUBMENU:

Press d 17) Display flashes Press b

Press d 19) Display shows

number. then advances to the

15) Scroll through the available selections: “Enable” or “Disable”.

then advances to

If “Full” Security Level is “Enabled” and the user attempts to enter

the Main Menu, they will be prompted for an ID Code. The ID Code

should be correct to enter the instrument Menu item.

This Security Level can be functional only if

Disabled.

18) Scroll through the available selections: “Enable” or “Disable”.

then advances to

If “Setpoint/ID” Security Level is “Enabled” and the user attempts

to advance into the

for ID Code number. The ID Code should be correct to proceed into

the Configuration Menu, otherwise display will show an Error and

skip to the Run Mode.

If “Full” and “Setpoint/ID” Security Levels are “Disabled”, the ID

code will be “Disabled” and user will not be asked for ID Code to

enter the Menu items (“ID” Submenu will not show up in “ID/Setpoint”

Menu).

0000

STRD

FULL

ENBL

STRD

SP.ID

ENBL

STRD

COMM

Configuration Menu, he will be prompted

CNFG

Change ID Code Submenu.

CH.ID

message with flashing first digit.

Full Security

FULL

stored message momentarily and

Full Security Submenu.

Enable or

stored message momentarily and

Setpoint/ID Submenu.

Enable or

stored message momentarily and

Communication Submenu.

Disable.

DSBL

Security Level is

FULL

Disable.

DSBL

Page 37

3.2.12 Display Color Selection Menu

This submenu allows the user to select the color of the display.

Figure 3.11 Flow Chart for Display Color Selection Menu

ENTER DISPLAY COLOR SELECTION MENU:

Press a 1) Press a, if necessary, until Press d 2) Display advances to Press a 3) Press a, if necessary, until display advances to

Press d 4) Display advances to

NORMAL COLOR DISPLAY SUBMENU:

Press d 5) Display flashes the previous selection for “Normal Color”. Press b 6) Scroll through the available selections: Press d 7) Display shows

The menu below allows the user to change the color of display when alarm is triggered.

ALARM 1 DISPLAY COLOR SUBMENU:

Press d 8) Display flashes previous selection for “Alarm 1 Color Press b 9) Scroll through the available selections:

Press d 10) Display shows

Display Color Selection Menu.

advances to to advance to

Display”.

then advances to press a to advance to

1.CLR

INPT

N.CLR

stored message momentarily and then

STRD

only, if it was changed, otherwise press a

Alarm 1 Display Color Submenu.

1.CLR

stored message momentarily and

STRD

only, if it was changed, otherwise

2.CLR

prompt appears.

CNFG

Input Menu.

Normal Color Submenu.

GRN, RED

Alarm 2 Display Color Submenu.

COLR

AMBR

Page 38

ALARM 2 DISPLAY COLOR SUBMENU:

Press d 11) Display flashes previous selection for “Alarm 2 Color Display”. Press b 12) Scroll through the available selections: Press d 13) Display shows

Display Colors change sequences:

--------------------------------•-----------------------------•------------------------------

•u 0 AL1.L = 32 AL2.H = 212

--------------------------------•-----------------------------•------------------------------

•t 0 AL1.L = 32 AL2.H = 212 300

Display Colors change sequences:

AMBER | RED | GREEN

--------------•----------------------------------•------------------------------------------t--

•t 0 AL1.L = 100 AL2.L = 300

then momentarily shows the software version number, followed by

Reset, and then proceeds to the Run Mode.

RST

IN ORDER TO DISPLAY ONE COLOR, SET THE SAME DISPLAY

COLOR ON ALL THREE SUBMENUS ABOVE.

If user wants the display to change color every time that both Alarm

1 and Alarm 2 are triggered, the Alarm values should be set in such

a way that Alarm 1 value is always on the top of Alarm 2 value,

otherwise value of Alarm 1 will overwrite value of Alarm 2 and

Display Color would not change when Alarm 2 is triggered.

Example 1:

Alarm Setup: Absolute, Above, Alarm 2 HI Value “ALR.H” = 212,

Alarm 1 Below, LO Value “ALR.L” = 32

“Color Display” Setup: Normal Color “N.CLR” = Green, Alarm 1 Color

“1.CLR” = Amber, Alarm 2 Color “2.CLR” = Red

AMBER | GREEN | RED

Example 2:

Alarm Setup: Absolute, Below, Alarm 2 Low Value “ALR.L” = 300,

Alarm 1 Low Value “ALR.L” = 100

Color Display Setup: “N.CLR” = Green, “1.CLR” = Amber, “2.CLR” =

Red

stored message momentarily and

STRD

GRN, RED

AMBR

•

Page 39

Example 3:

Setpoint 1 = 300,

Setpoint 2 = 200

Alarm 1 & 2 Setup: Deviation, Band, “ALR.H” = 10

Color Display Setup: “N.CLR” = Green, “1.CLR” = Amber, “2.CLR” =

Red

Display Colors change sequences:

AMBER | AMBER | AMBER | GREEN | AMBER

--------------•------•------•--------------------------------•-------•-------•-------------------

•u 0 190 200 210 290 300 310

Alarm 1 is designed to monitor the Process Value around the

Setpoint 1. Alarm 2 is designed to monitor the Process Value around

the Setpoint 2.

Example 4:

Setpoint 1 = 200

Setpoint 2 = 200

Alarm 1 Setup: Deviation, Band, “ALR.H” = 20

Alarm 2 Setup: Deviation, Hi/Low, “ALR.H” = 10, “ALR.L” = 5

Color Display Setup: “N.CLR” = Green, “1.CLR” = Amber, “2.CLR” =

Red

Display colors change sequences:

------------------•---------------•--------------•-------------•-------------•-------------------

•u 0 180 195 200 210 220

Reset: The instrument automatically resets after the last menu of the

Configuration Mode has been entered. After the instrument resets, it

advances to the Run Mode.

Page 40

PART 4 SPECIFICATIONS

Accuracy:

±0.5°C temp; 0.03% reading process

Resolution: 1°/0.1°; 10 µV process Temperature Stability:

1) RTD: 0.04°C/°C

2) TC @ 25°C (77°F): 0.05°C/°C

- Cold Junction Compensation

3) Process: 50 ppm/°C

NMRR: 60 dB CMRR: 120 dB A/D Conversion: Dual slope Reading Rate: 3 samples per second Digital Filter: Programmable Display:

Single 4-digit, 9-segment LED,

• 10.2 mm (0.40”) for 1/16, 1/32 DIN;

• 21 mm (0.83”) for 1/8 DIN. Red, green and amber programmable colors for process variable, setpoint and temperature units

Warm up to Rated Accuracy: 30 min.

INPUT Input Types: Thermocouple, RTD,

Analog Voltage, Analog Current

Thermocouple Type (ITS 90):

J, K, T, E, R, S, B, C, N, L (J DIN)

Thermocouple Lead Resistance:

100 ohm max

RTD Input (ITS 68):

100/500/1000 Ω Pt sensor, 2-, 3- or 4-wire; 0.00385 or 0.00392 curve

Voltage Input:

0 to 100 mV, 0 to 1 V, 0 to 10 Vdc

Input Impedance:

10 MΩ for 100 mV 1 MΩ for 1 or 10 Vdc

Current Input:

0 to 20 mA (5 ohm shunt)

Configuration: Single-ended Polarity: Unipolar Step Response: 0.7 sec for 99.9% Decimal Selection:

None, 0.1 for temperature; None, 0.1, 0.01 or 0.001 for process

Setpoint Adjustment:

-1999 to 9999 counts

Span Adjustment:

0.001 to 9999 counts

Offset Adjustment:

-1999 to +9999

ALARM 1 & 2 OUTPUTS

Programmable to display color change Relay: SPDT, 250 Vac or

30 Vdc @ 3 A (Resistive Load) Operation High/low, above/below,

band, latch/unlatch, normally open/ normally closed and process/deviation; front panel configurations

EXCITATION

24 Vdc @ 25 mA Not available with Low Power Option

Page 41

INSULATION Power to Input/Output

2300 Vac per 1 min. test 1500 Vac per 1 min. test (Low Voltage/Power Option)

Power to Relay Outputs

2300 Vac per 1 min. test Relay to Relay Outputs

2300 Vac per 1 min. test

GENERAL Line Voltage/Power:

90 to 240 Vac +/-10%, 50 to 400 Hz* 110 - 300 Vdc, equivalent voltage;4 W

* No CE compliance above 60 Hz

Low Voltage/Power Option:

12 to 36 Vdc; 3 W** External power source must meet

Safety Agency Approvals.

** Units can be powered safely with 24 Vac power but, no Certification for CE/UL are claimed.

External Fuse Required:

Time-Delay, UL 248-14 listed: 100 mA/250 V 400 mA/250 V Option)

Time-Lag, IEC 127-3 recognized: 100 mA/250 V 400 mA/250 V Option)

Environmental Conditions:

0 to 55°C (32 to 131°F), 90% RH non-condensing

Protection: NEMA-4x/Type 4x/IP65 front bezel: for 1/16, 1/32 DIN

NEMA-1/Type 1 front bezel: for 1/8 DIN

Approvals

see CE Approval Section

FM, UL, C-UL, and

(Low Voltage/Power

Dimensions 1/8 DIN: 48 H x 96 W x 127 mm D (1.89 x 3.78 x 5”)

1/16 DIN: 48 H x 48 W x 127 mm D (1.89 x 1.89 x 5”)

1/32 DIN: 25.4 H x 48 W x 127 mm D (1.0 x 1.89 x 5”)

Panel Cutout:

1/8 DIN: 45 H x 92 mm W (1.772” x 3.622”),

1/16 DIN: 45 mm (1.772”) square 1/32 DIN: 22.5 H x 45 mm W

(0.886” x 1.772”)

Weight:

1/8 DIN Series: 295 g (0.65 lb) 1/16 DIN Series: 159 g (0.35 lb) 1/32 DIN Series: 127 g (0.28 lb)

Page 42

Table 4.1 Input Properties

RTD RTD

PROCESS PROCESS

Input Type Range Accuracy*

Iron-Constantan

CHROMEGA®-ALOMEGA®

Copper-Constantan

CHROMEGA-Constantan

Pt/13%Rh-Pt

Pt/10%Rh-Pt

30%Rh-Pt/6%Rh-Pt

5%Re-W/26%Re-W

Nicrosil-Nisil

J DIN

Pt, 0.00385, 100 Ω, 500 Ω, 1000 Ω

Pt, 0.00392, 100 Ω, 500 Ω, 1000 Ω

Voltage Current

-210 to 760°C 0.4°C

-346 to 1400°F 0.7°F

-270 to -160°C 1.0°C

-160 to 1372°C 0.4°C

-454 to -256°F 1.8°F

-256 to 2502°F 0.7°F

-270 to -190°C 1.0°C

-190 to 400°C 0.4°C

-454 to -310°F 1.8°F

-310 to 752°F 0.7°F

-270 to -220°C 1.0°C

-220 to 1000°C 0.4°C

-454 to -364°F 1.8°F

-364 to 1832°F 0.7°F

-50 to 40°C 1.0°C 40 to 1788°C 0.5°C

-58 to 104°F 1.8°F 104 to 3250°F 0.9°F

-50 to 100°C 1.0°C 100 to 1768°C 0.5°C

-58 to 212°F 1.8°F 212 to 3214°F 0.9°F 200 to 640°C 1.0°C 640 to 1820°C 0.5°C 212 to 1184°F 1.8°F 1184 to 3308°F 0.9°F 0 to 2354°C 0.4°C 32 to 4253°F 0.7°F

-250 to -100°C 1.0°C

-100 to 1300°C 0.4°C

-418 to -148°F 1.8°F

-148 to 2372°F 0.7°F

-200 to 900°C 0.4°C

-328 to 1652°F 0.7°F 200 to 900°C 0.4°C

-328 to 1652°F 0.7°F

-200 to 850°C 0.4°C

-328 to 1562°F 0.7°F 0 to 100 mV, 0 to 1 V, 0.03% rdg 0 to 10 Vdc 0.03% rdg 0 to 20 mA, 4 to 20 mA 0.03% rdg

Page 43

PART 5 FACTORY PRESET VALUES

Table 5.1 Factory Preset Values

MENU ITEMS FACTORY PRESET VALUES NOTES

Set Point 1 (SP1) 000.0 Set Point 2 (SP2) 000.0

Input:

Input Type (INPT) TC, type K

Reading Configuration (RDG):

Decimal Point (DEC.P) FFF.F Temperature unit (TEMP) °F Filter value (FLTR) 0004

Alarm 1:

Alarm 1 (ALR1) Enable (ENBL) Absolute/Deviation (ABSO/DEV) Absolute (ABSO) Latch/Unlatch (LTCH/UNLT) Unlatch (UNLT) Active (ACTV) Below (BELO) Alarm 1 At Power On (A.P.ON) Enable (ENBL) Alarm 1 only Alarm 1 Low (ALR.L) 32.00 Alarm 1 High (ALR.H) 000.0

Alarm 2:

Alarm 2 (ALR2) Disable (DSBL) Absolute/Deviation (ABSO/DEV) Absolute (ABSO) Latch/Unlatch (LTCH/UNLT) Unlatch (UNLT) Active (ACTV) Above (ABOV) Alarm 2 Low (ALR.L) 000.0 Alarm 2 High (ALR.H) 212.0 Reading Adjust Value (R.ADJ) 000.0 Sepoint Deviation (SP.dV) Disabled

ID:

ID Value 0000 Full ID (FULL) Disable (DSBL) Set Point ID (ID.SP) Disable (DSBL)

Communication Parameters: (not available) Display Color (COLR):

Normal Color (N.CLR) Green (GRN) Alarm 1 Color (1.CLR) Amber (AMBR) Alarm 2 Color (2.CLR) Red (RED)

Page 44

PART 6 ce APPRoVALS INFoRmATIoN

This product conforms to the EMC directive 2014/30/EU.

Electrical Safety 2014/35/EU (Low Voltage Directive)

Safety requirements for electrical equipment for measurement, control and laboratory.

Double Insulation Pollution Degree 2 Dielectric withstand Test per 1 min

• Power to Input/Output: 2300Vac (3250Vdc)

• Power to Input/Output: 1500Vac (2120Vdc)

(Low Voltage dc Power Option*)

• Power to Relays Output: 2300Vac (3250Vdc)

Measurement Category I

Category I are measurements performed on circuits not directly connected to the Mains Supply (power). Maximum Line-to-Neutral working voltage is 50Vac/dc. This unit should not be used in Measurement Categories II, III, IV.

Transients Overvoltage Surge (1.2 / 50uS pulse)

• Input Power: 2500V

• Input Power: 1500V

(Low Voltage dc Power Option*)

• Ethernet: 1500V

• Input/Output Signals: 500V Note: *Units configured for external low power dc voltage, 12 to 36Vdc

Additional Information: UL File Number: E209855

Refer to the EMC and Safety installation considerations (Guidelines) of this manual for additional information.

Page 45

NOTES

Page 46

Page 47

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of one (1) year from the date of purchase. In addition to OMEGA’s standard warranty period, OMEGA Engineering will extend the warranty period for four (4) additional years if the warranty card enclosed with each instrument is returned to OMEGA.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence of having been damaged as a result of excessive corrosion; or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating conditions outside of OMEGA’s control. Components which wear are not warranted, including but not limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any damages that result from the use of its products in accordance with information provided by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by it will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of OMEGA with respect to this order, whether based on contract, warranty, negligence, indemnification, strict liability or otherwise, shall not exceed the purchase price of the component upon which liability is based. In no event shall OMEGA be liable for consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or with any nuclear installation or activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set forth in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the Product(s) in such a manner.

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return package and on any correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in transit.

FOR WARRANTY RETURNS, please have the following information available BEFORE contacting OMEGA:

1. Purchase Order number under which the product was PURCHASED,

2. Model and serial number of the product under warranty, and

3. Repair instructions and/or specific problems relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our customers the latest in technology and engineering.

© Copyright 2016 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the prior written consent of OMEGA ENGINEERING, INC.

TRADEMARK NOTICE: ®, omega.com®, PATENT NOTICE: This product is covered by one or more of the following patents: U.S. Pat. No. Des. 336,895; 5,274,577;

6,243,021 / CANADA 2052599; 2052600 / ITALY 1249456; 1250938 / FRANCE BREVET No. 91 12756 / SPAIN 2039150; 2048066 / UK PATENT No. GB2 249 837; GB2 248 954 / GERMANY DE 41 34398 C2. The “Meter Bezel Design” is a Trademark of NEWPORT Electronics, Inc. Used under License. Other US and International Patents pending or applied for.

WARRANTY/DISCLAIMER

RETURN REQUESTS/INQUIRIES

FOR NON-WARRANTY REPAIRS, current repair charges. Have the following information available BEFORE contacting OMEGA:

1. Purchase Order number to cover the COST of the repair,

2. Model and serial number of product, and

3. Repair instructions and/or specific problems relative to the product.

, and ® are Trademarks of OMEGA ENGINEERING, INC.

consult OMEGA for

Page 48

Where Do I Find Everything I Need for

Process Measurement and Control?

OMEGA…Of Course!

Shop on line at omega.com

TEMPERATURE

Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies

Wire: Thermocouple, RTD & Thermistor

Calibrators & Ice Point References

Recorders, Controllers & Process Monitors

Infrared Pyrometers

PRESSURE, STRAIN AND FORCE

Transducers & Strain Gauges

Load Cells & Pressure Gauges

Displacement Transducers

Instrumentation & Accessories

FLOW/LEVEL

Rotameters, Gas Mass Flowmeters & Flow Computers

Air Velocity Indicators

Turbine/Paddlewheel Systems

Totalizers & Batch Controllers

pH/CONDUCTIVITY

pH Electrodes, Testers & Accessories

Benchtop/Laboratory Meters

Controllers, Calibrators, Simulators & Pumps

Industrial pH & Conductivity Equipment

DATA ACQUISITION

Data Acquisition & Engineering Software

Communications-Based Acquisition Systems

Plug-in Cards for Apple, IBM & Compatibles

Datalogging Systems

Recorders, Printers & Plotters

HEATERS

Heating Cable

Cartridge & Strip Heaters

Immersion & Band Heaters

Flexible Heaters

Laboratory Heaters

ENVIRONMENTAL MONITORING AND CONTROL

Metering & Control Instrumentation

Refractometers

Pumps & Tubing

Air, Soil & Water Monitors

Industrial Water & Wastewater Treatment

pH, Conductivity & Dissolved Oxygen Instruments

M5305/0816

M5305/0920
