Measurement & Control

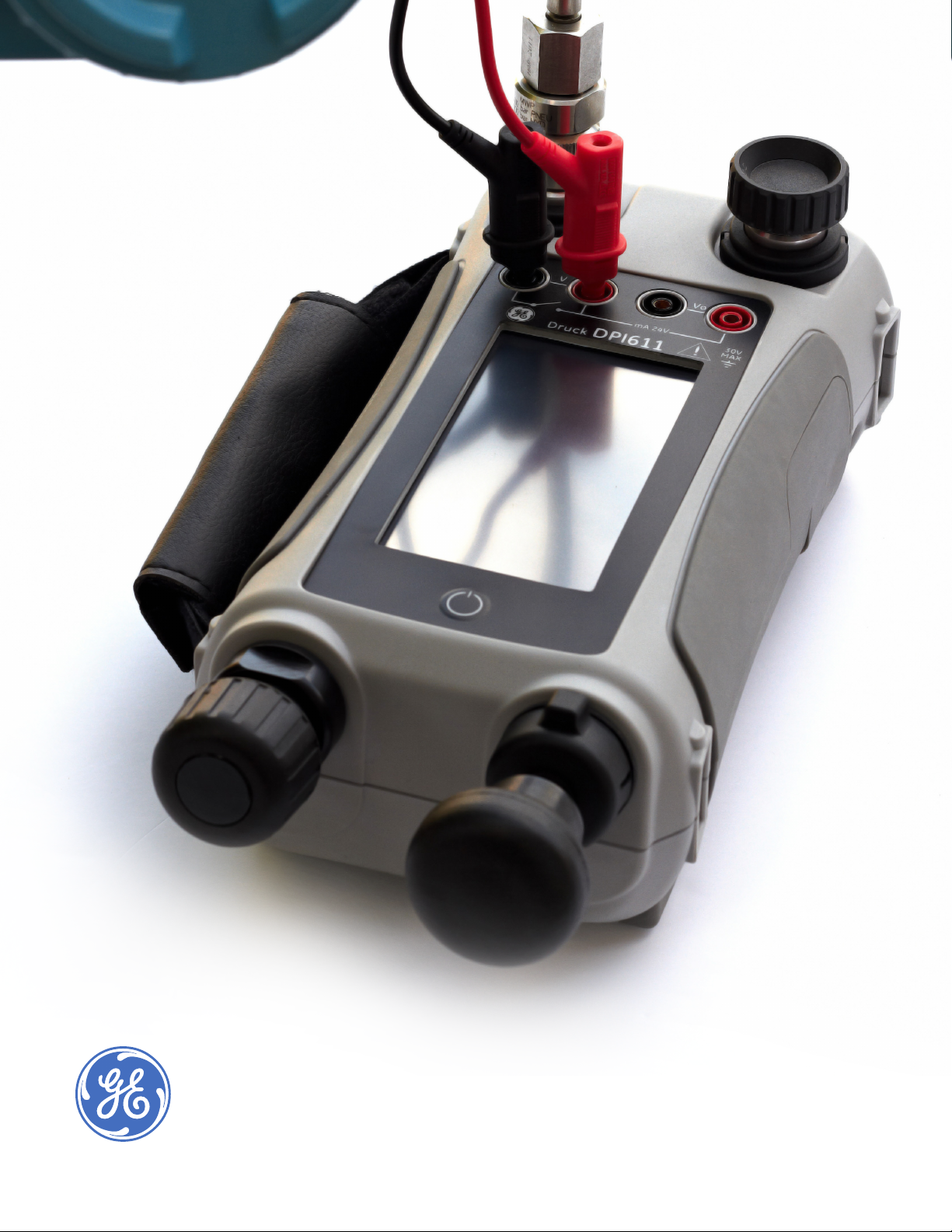

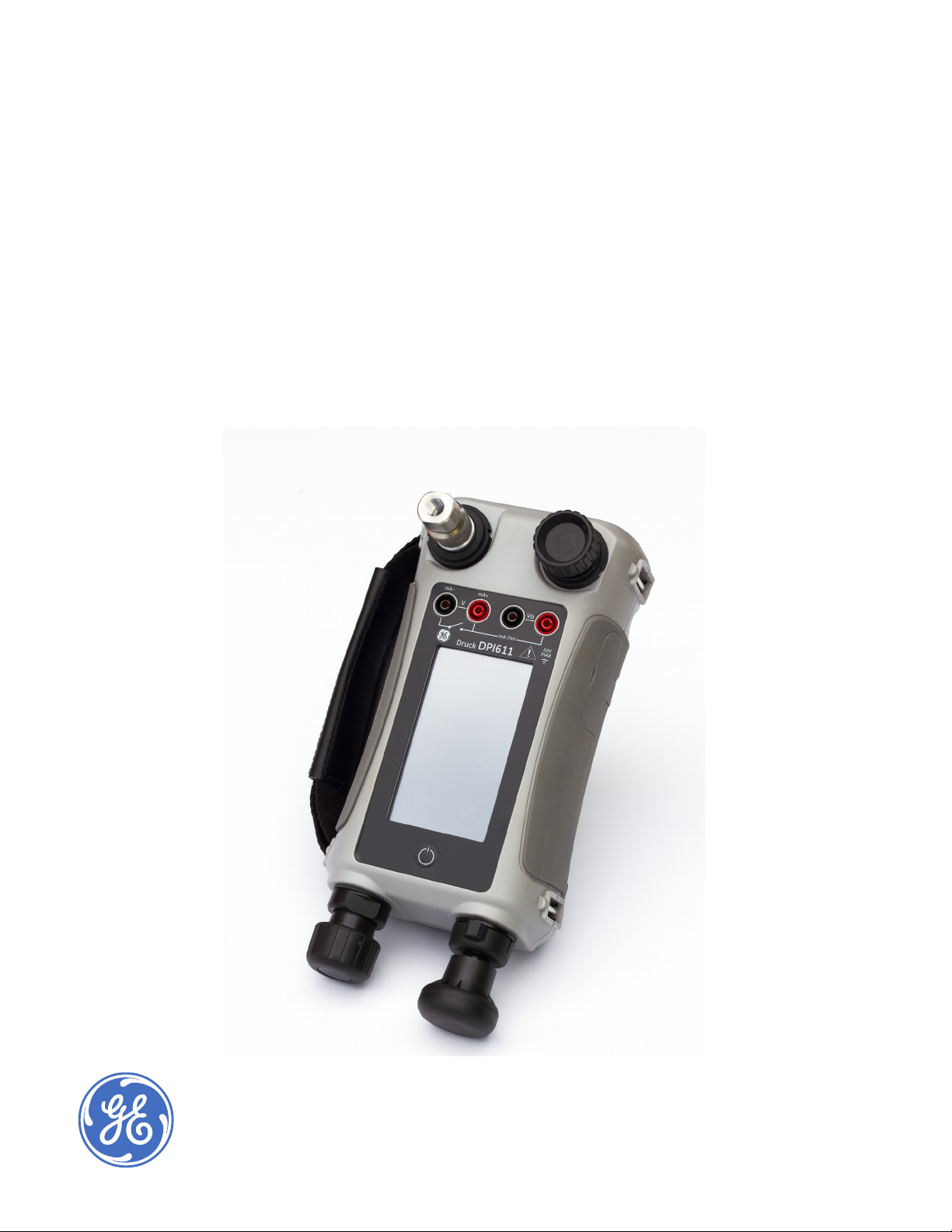

DPI 611 Hand-held Pressure Calibrator

This fully self-contained pressure test and calibration system combines pressure generation, signal measurement and loop power to provide all the convenience of the Druck DPI 610/615 and yet it’s half the size, twice as accurate and easier to use.

Page 2

DPI 611 hand-held

Precision engineering

pressure calibrator

The DPI 611 is the fourth generation in the DPI

600 family, which was rst introduced in 1984. The DPI 600 family revolutionized test and calibration by providing all the tools for pressure generation and signal measurement in selfcontained portable packages. The DPI 600 soon became the industry workhorse and today it is simply known as the “Druck.”

Building on the technical legacy and more than three decades of experience in pressure measurement and calibration, the DPI 611 provides all the convenience and reliability of a true “Druck,”

yet oers twice the performance in a product half

the size.

• 50% smaller and 33% lighter than the DPI 610

• Generates 0 to 20 bar/300 psi in less than 30

seconds

• Creates 95% vacuum

• Pressure measurement is twice as accurate

• Three times better electrical accuracy

• Simplied touch screen interface with application DASHBOARD, quick TASK selection and FAVOURITES storage

• Fast, three touch set-up for any application

• Calculates PASS/FAIL errors, documents results

and interfaces with calibration software

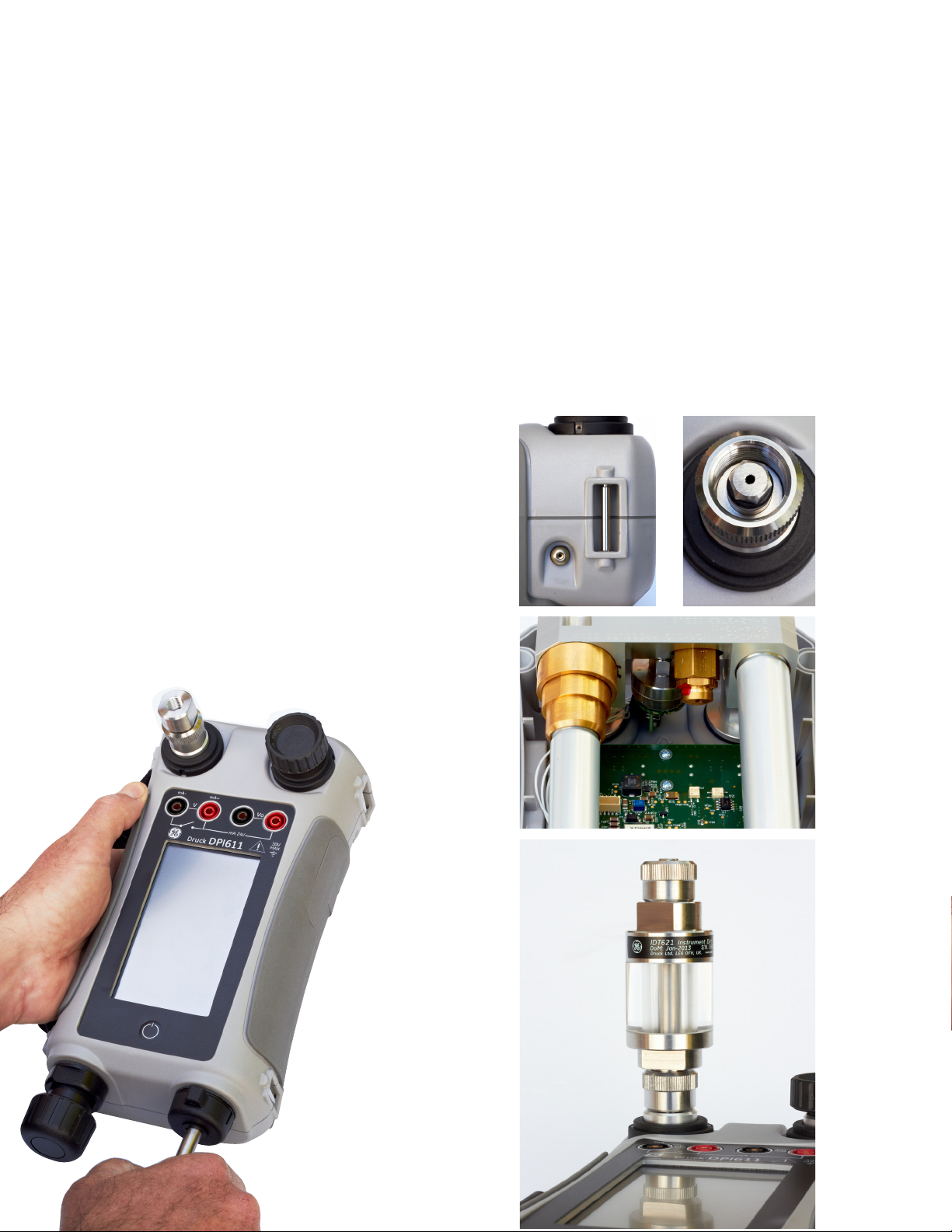

Performance is a function of precision engineering.

The innovative design of the DPI 611 pressure

system can only achieve ecient generation and

precise control through the use of carefully selected materials with high tolerance machining and perfect

nishes.

The choice of case material and precision moulding ensures that the DPI 611 is both rugged and weatherproof.

State-of-the-art analogue and digital

microelectronics contribute both accuracy and processing power to provide a class leading pressure

and electrical capability with a unique simple-to-use

interface.

Page 3

PERFORMANCE IS A FUNCTION

PERFORMANCE IS A FUNCTION OF PRECISION ENGINEERING

OF PRECISION ENGINEERING

Page 4

Pressure generation

With the DPI 611 you can generate from 95% vacuum to 20 bar/300 psi pneumatic pressure. A simple selector lets

you convert from vacuum to pressure and with a few stokes

of the pump, you will generate the required pressure. Fine

adjustment is made with the built-in volume adjuster and falling calibration points are achieved with the precision vent valve.

• The redesigned mechanical system provides signicantly improved performance, allowing you to generate 20 bar/300

psi while holding the instrument in one hand.

• It’s also quicker, taking just 30 seconds to generate

maximum pressure even with a one metre hose connecting the device.

• Ergonomic design, a hand strap you can position on the left or right and a soft over-moulding provide you with a rm

grip for hand-held use and prevent the instrument from sliding when on a test bench.

• The proven mechanical design provides a simple-to-use,

dependable system without the pitfalls of electromechanical devices; namely, poor reliability, regular servicing, dependence on battery condition and long pressure cycle times.

Pressure accuracy

P1P2 IDOS mA V mV 10 Vdc 24 V Switch

Measure

Source

P2 IDOS is an optional external pressure sensor.

• The DPI 611 mA measurement accuracy includes one year

stability, temperature errors and calibration uncertainty, making it three times more accurate than the DPI 610 series.

• For ease of use the electrical connectors have been

rationalised to four 4mm sockets.

     

   

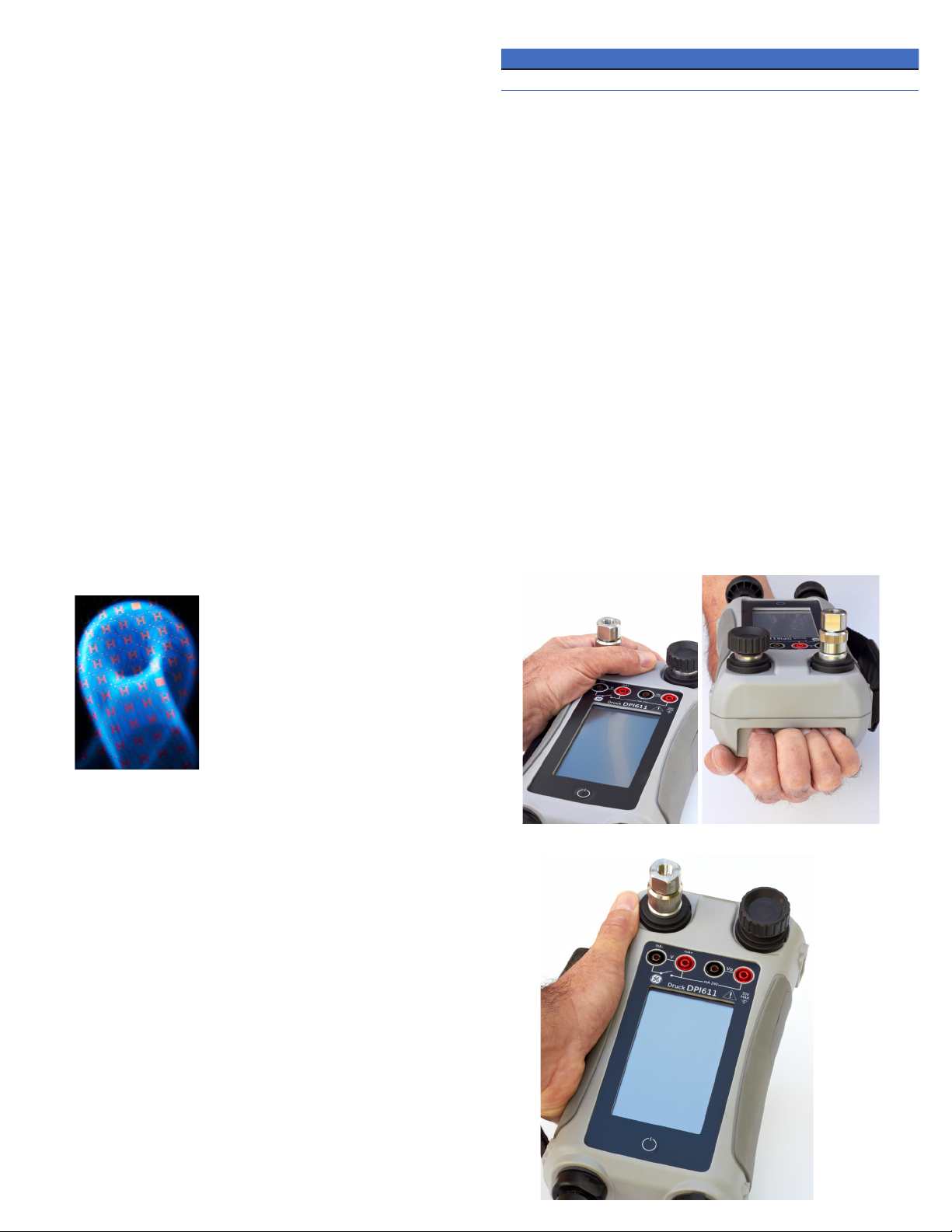

Truly hand-held

The DPI 611 is truly a hand-held pressure calibrator, being

50% smaller and 33% lighter than the DPI 610.

• Redesign of the pressure assembly has resulted in a more ecient and higher performance system that is both

smaller and lighter.

• State-of-the art microelectronics has reduced the size of

the PCA (printed circuit assembly) and lowered the power consumption, which in turn means smaller batteries.

• Even though the instrument is much smaller, the touch

display is almost twice as large for clear viewing and more information.

Using advanced silicon technology, the

digitally corrected “Druck” pressure

sensor achieves 0.0185% FS accuracy compared with 0.025% FS for the DPI

610/615. Taking stability and temperature errors into account over the one year calibration period, the DPI 611 is more than twice as accurate as its predecessor. This is expressed as a total uncertainty to

give you complete condence in the

measurement accuracy between annual calibrations.

Electrical capability

The DPI 611 retains the comprehensive electrical measurement and sourcing capability of the DPI 610 series, but has better

accuracy and simplied connections.

Page 5

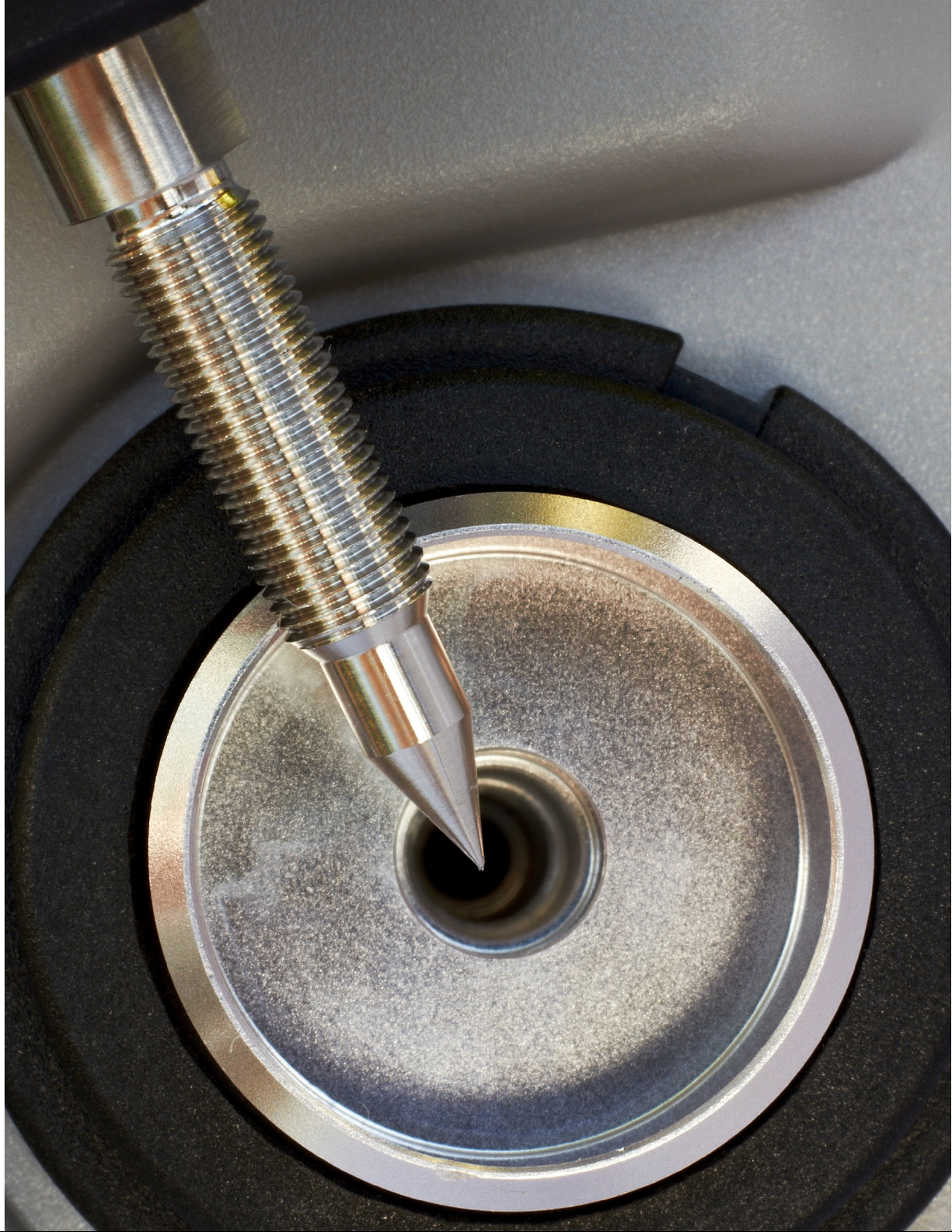

Quick-to-t pressure connections

Making a leak-tight pressure connection in the eld is inevitably frustrating. The DPI 611 comes with a quick-to-t adaptor system

that has a number of advantages over conventional methods:

• All adaptors, hoses and accessories, including the dirt moisture trap, are quick and simple to t. No tools or sealing are required

and connections are leak free.

• Damaged adaptors are very simply replaced and there’s no repair

downtime.

• Making leak tight connections wastes time and for several joints,

it takes longer than a calibration. The DPI 611 system is proven to

signicantly reduce set-up time.

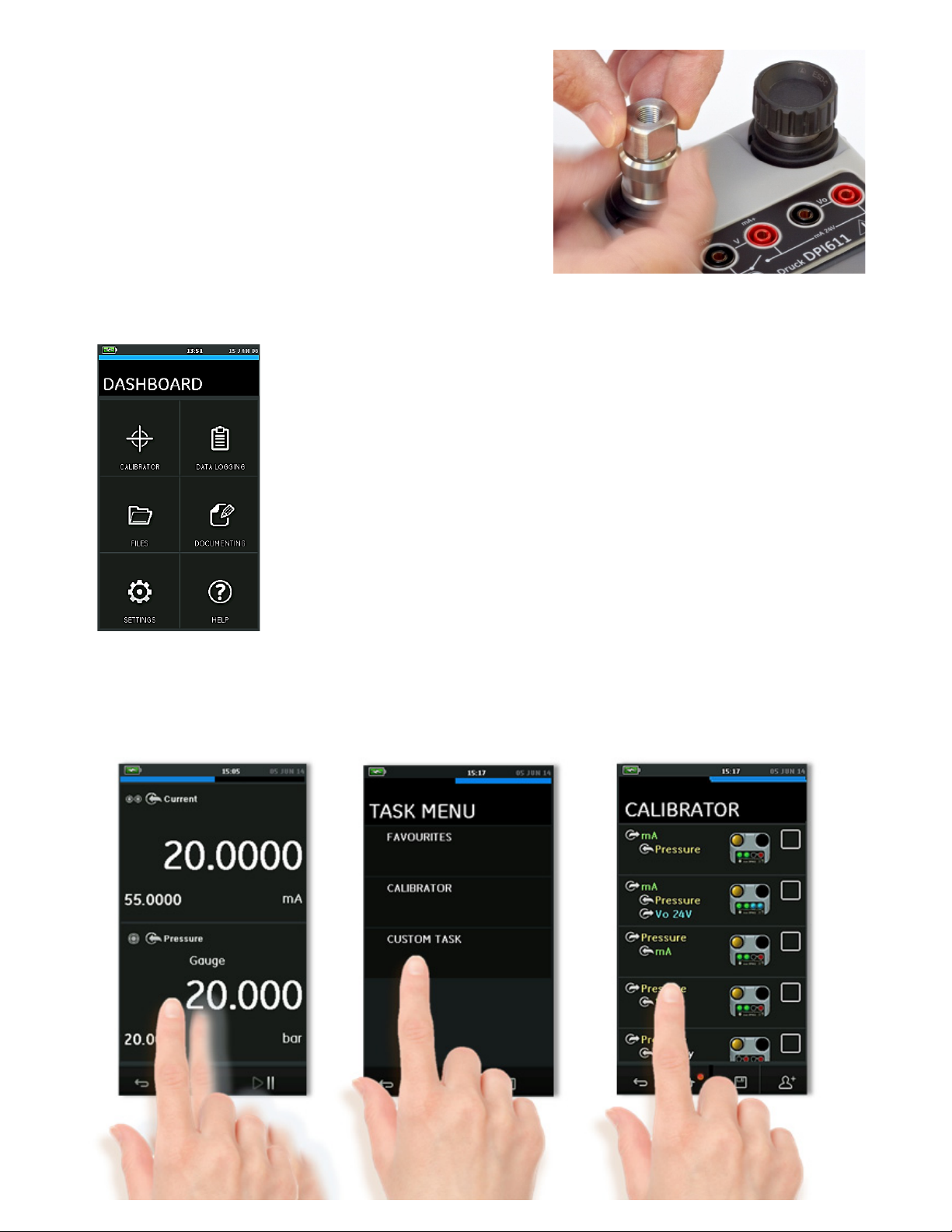

Simplied touch screen

The DPI 611 uses the same interface design as the unique and award-winning DPI 620 Genii (Measures magazine innovative product of 2014).

• The DASHBOARD allows quick application selection without

menus or special keys - just tap the app.

• The TASK menu provides a library of popular congurations.

From the calibrator screen three simple gestures completely

recongure the DPI 611 for the next job.

• From the FAVOURITES menu it’s even quicker to access regularly used and customised TASKS.

• The DPI 611 touch screen only shows function keys when they’re required, making it quicker and simpler to use than complex

keypads with special function keys and key combinations.

• Application connection diagrams can be viewed on screen

Easy as 1, 2, 3

1) Swipe from right to left 2) Touch to make a selection 3) Touch to select the TASK

Page 6

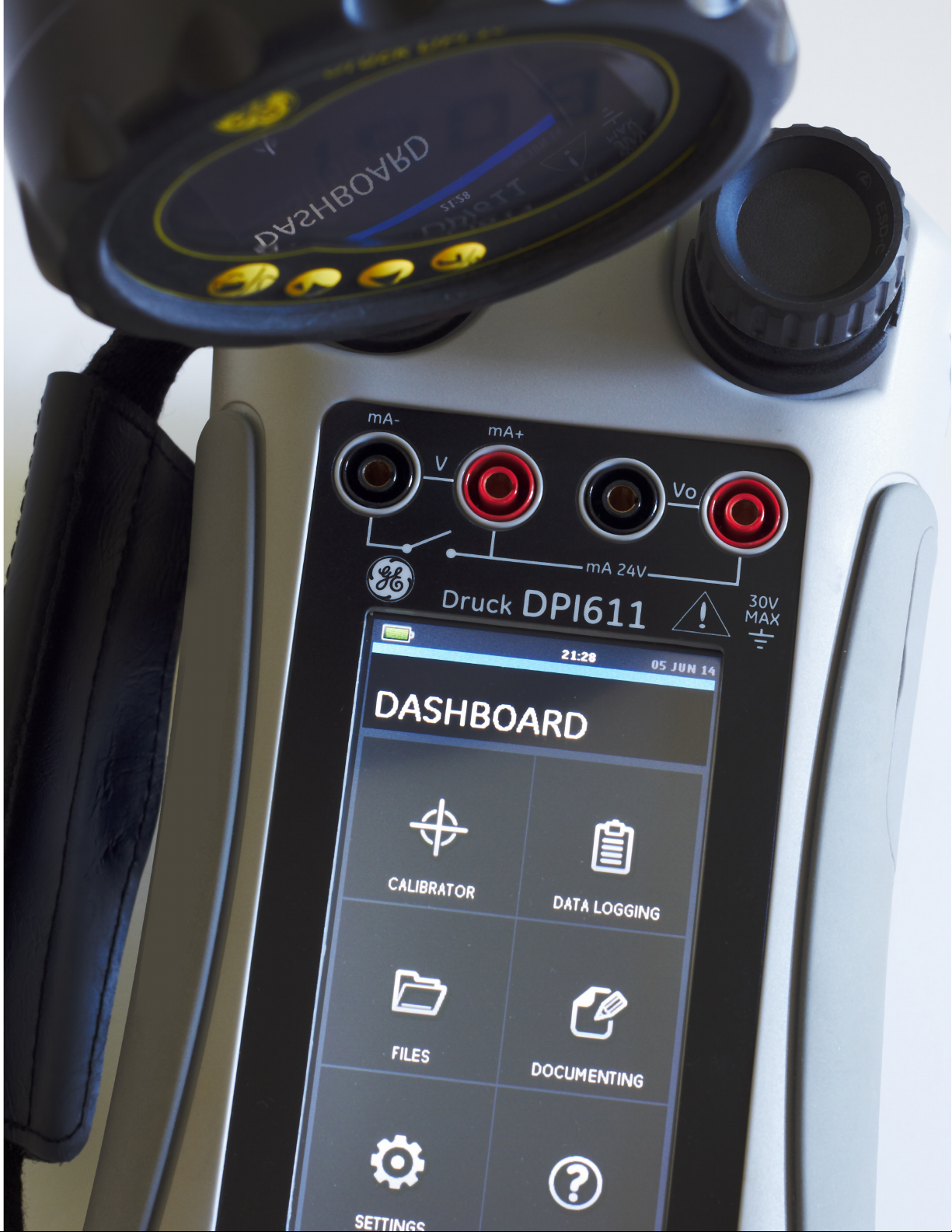

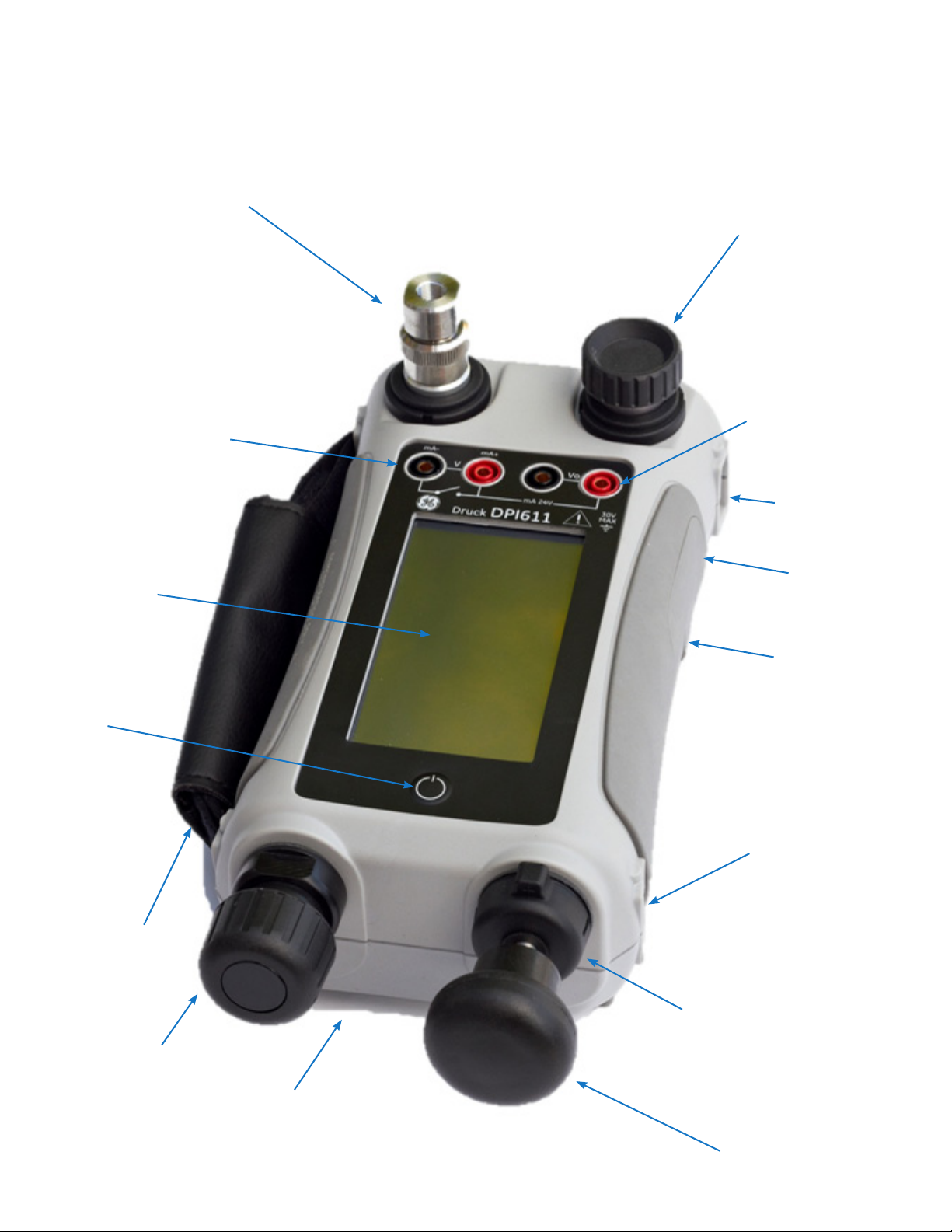

DPI 611 external features

Quick-to-t pressure

adaptor system (no

tools required or seals)

Pressure vent

valve (precision

needle valve

for ne control)

Electrical connections for

measuring mA, mV, V and detecting switch

contacts.

Full colour touch

screen display

On/O/Sleep

10V DC regulated

supply and 24V loop

power

Hand strap

attachment

Protective cover

USB master and

slave sockets

Hand strap attachment

Padded leather

hand strap (attaches

to left or right)

Volume adjuster for

precise pressure

setting

Pressure/vacuum selection

Anti-slip feet (front and rear)

Pump

Page 7

Fully documenting

4Sight calibration and

The DPI 611 is a simple-to-use “everyday” tool for maintaining and calibrating pressure instruments. It

also has the advanced features of the DPI 620 Genii

for automating calibration procedures, calculating errors and interfacing with PCs and calibration and maintenance systems.

• Automated calibration procedures

• PASS/FAIL error analysis

• Multi-channel data logging

• 8 GB (nominal) user memory

• Connectivity with leading calibration and maintenance software including 4Sight from GE

Automated calibration procedures

Procedures generated by calibration management software can be downloaded to the DPI 611. These procedures are presented as a list of work orders

and when selected, each one will congure the DPI 611 to calibrate a specic device. The procedures

run automatically and all you have to do is set the pressure. The data is recorded digitally ready to be uploaded to the management software.

Using the DPI 611 with automated procedures signicantly reduces the time taken to calibrate a

device, from typically 40 minutes to less than 10 minutes including the time to set-up. Further time is saved when assessing the data and creating calibration reports because these operations are automated within the software.

PASS/FAIL error analysis

Error analysis calculates the error of the device being tested and reports a pass or fail. The error is displayed live allowing zero and span adjustments to be assessed as they are made.

maintenance software

4Sight is the new state-of-the-art, integrated, web-based Software as a Service (SaaS)

calibration manager.

• Maintains compliance with industry standards

• Provides a full-time and date stamped audit

trail

• Signicantly reduces your operating costs

• Provides automated paperless solutions

• Ensures that you are always ready for an audit

• Optional web hosting means no IT overhead

4Sight calibration and maintenance software

gives you total control for all your calibration and maintenance tasks.

• Software

• Mobile solutions

• Workshop solutions

• Global service

Multi-channel data logging

The DPI 611 can record data from three channels simultaneously by manually touching a record button or automatically at a user set interval. Data can be

reviewed on screen or the data le can be transferred

to a PC for further analysis.

Connectivity with leading calibration and

maintenance software

The DPI 611 integrates with leading calibration and

maintenance software including 4Sight from GE.

Typically such applications provide an automated and

paperless solution to calibration and realise signicant benets including reduced operating costs, regulatory compliance and improved process eciency.

4Sight calibration management software will

help you comply with regulations, reduce running

costs and improve process eciency. As your calibration manager, its automated workow,

robust data and complete traceability will

signicantly reduce calibration and maintenance

costs.

Please visit http://www.ge-mcs.com/4sight for more information.

Page 8

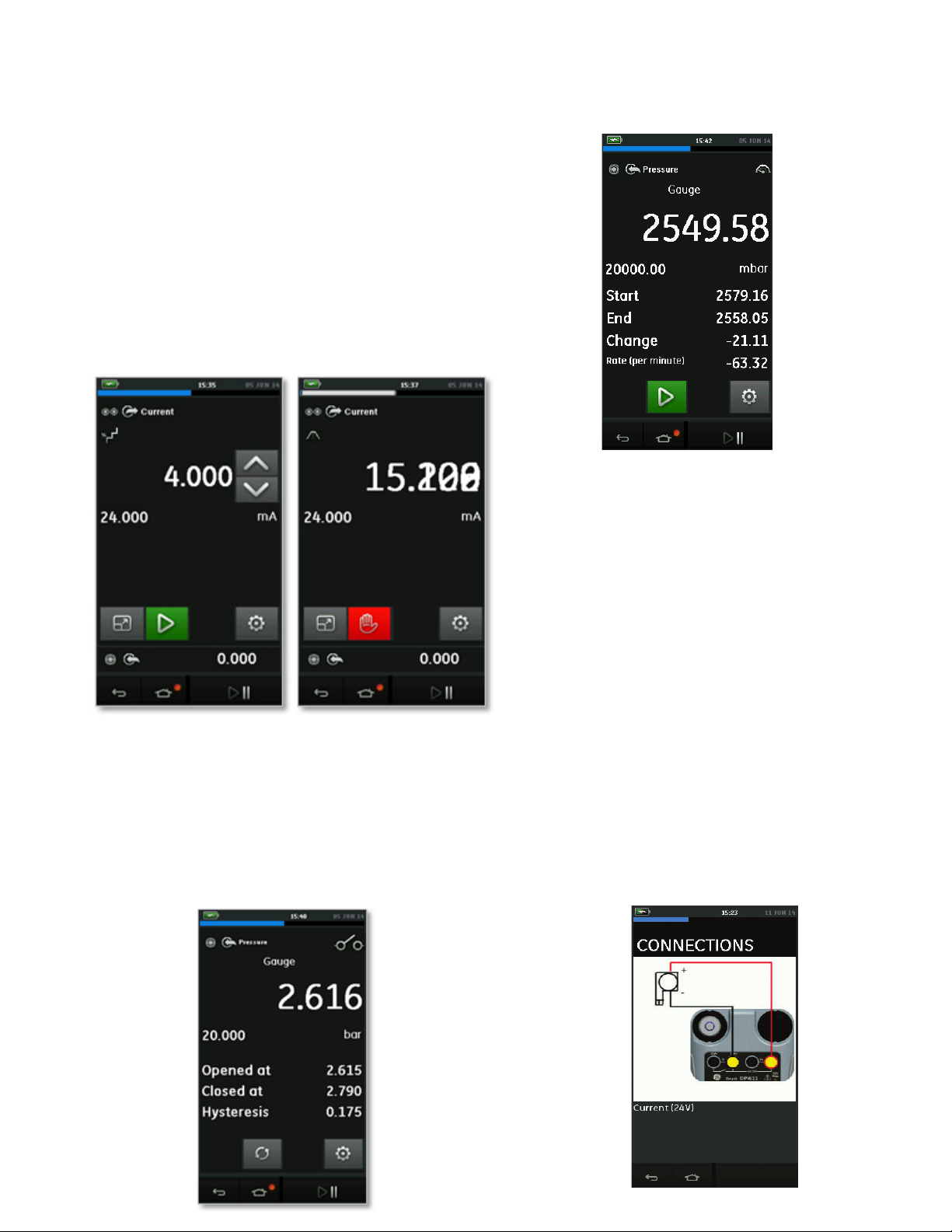

Advanced features

Step and ramp mA output: Simply congured for

simulating transmitter outputs into control loops, testing valve positioners and checking safety systems. The function has programmable end points, manual

or automatic sequencing and the following options for quick set-up:

• % step: The step size is dened as a percentage. For example 25% provides ve test points of 4, 8, 12, 16 and 20 mA.

• Dened step: The step size is dened as a value in mA.

• Span check: Toggles between two end points, for example, 4 and 20 mA for checking zero and FS.

• Ramp: A linear ramp between two end points with

programmable travel and dwell times is perfect for dynamically testing switches.

Pressure leak test: This automated procedure for detecting leaks and determining leak rates has programmable settle and run times. The start and end pressures are reported along with the pressure change and leak rate.

Max/min: Captures maximum and minimum values and calculates the mean.

25% step manual advance RAMP automatic cycle

Nudge: Simply used to make a small incremental change

to a mA output using up/down keys. This is great for determining trip values.

Switch test: Automates the capture of pressure switch actuation and de-actuation values and calculates the hysteresis.

Relief valve: Captures the venting pressure of a relief valve.

Scaling: Scales the measured value into a process value. For example, mA expressed as a %. Flow correction is available for scaling dierential ow

transmitter outputs.

Pressure Resolution: Adjustable from four to seven digits; this matches the displayed value to that of the test device for easy comparison.

Help: The DPI 611 is provided with a multi-lingual

quick user guide to get you up and running

without delay. For convenience, the full manual is stored digitally within the instrument and can be transferred to a PC for viewing or printing. In the help application you can also view wiring connection diagrams.

Page 9

Page 10

Specications

Pressure (gauge ranges referenced to atmosphere)

Pressure

Range

bar psi %FS %FS %FS

-1 to 1 -14.5 to 15 0.0185 0.025 150

-1 to 2 -14.5 to 30 0.0185 0.025 150

-1 to 7 -14.5 to 100 0.0185 0.025 150

-1 to 10 -14.5 to 150 0.0185 0.025 150

-1 to 20 -14.5 to 300 0.0185 0.025 150

FS = Full scale

Accuracy dened as non-linearity, hysteresis and repeatability.

Add 0.001%FS/°C from -10°C to 10°C and 30°C to 50°C (14°F to 50°F and 86°F to 122°F).

The system is protected from over-pressure with an internal pressure relief valve.

Accuracy1Total uncertainty

10° to 30°C

(50° to 86°F)

for one year

Pressure media

Most gases compatible with aluminium, brass, stainless steel, nitrile and polyurethane seals, PTFE, acetal, nylon

Pressure connection

Tool-less quick-t connection. Supplied with G1/8 female and 1/8 NPT female adaptors. Other adaptors available, see

accessories.

External pressure modules

IDOS (intelligent digital output sensor) pressure modules can be connected via a USB converter P/N IO620-USB-IDOS to extend the measuring range of the instrument. Please refer to the IDOS UPM datasheet.

Electrical measurement and source

Total uncertainty 10°C to 30°C

(50° to 86°F)

for one year

%Rdg + %FS %FS/°C

Measure mode

DC Voltage

+/- 200 mV 0.018 0.005 0.001 0.001

+/- 2000 mV 0.018 0.005 0.001 0.01

+/- 20 V 0.018 0.005 0.001 0.00001

+/- 30 V 0.018 0.005 0.001 0.0001

Current

+/- 20 mA 0.015 0.006 0.001 0.0001

+/- 55 mA 0.018 0.006 0.001 0.0001

Source mode

DC Voltage

10V (Fixed, 25mA max.) 0 0.1 0 0.001

24V (Fixed, 25mA max.) 0 1.0 0 0.001

Current

0 to 24 mA 0.018 0.006 0.001 0.001

0 to 24 mA (internal

loop power)

0.018 0.006 0.001 0.001

FS = Full scale Rdg = reading

Additional error

-10°C to 10°C

& 30°C to 50°C

(14°F to 50°F and 86°F to 122°F).

Over-

pressure

Resolution

Multiple parameter display capability

The display can be congured to show a maximum of

three simultaneous reading windows as follows: pressure,

electrical measurement or electrical source, IDOS external

pressure module.

General specications

Display Size: 110 mm (4.3in) diagonal. 480 x 272 pixels. LCD colour

Internal memory 8 GB (nominal) user memory for automated procedures,

Languages English (default), Chinese, Dutch, French, German, Italian,

Operating temperature

Storage temperature

Ingress protection IP 54. Protected against dust and splashing water from any

Humidity 0 to 90% RH none condensing. To Def Stan 66-31, 8.6 cat III

Shock / vibration BS EN 61010-1:2010 / MIL-PRF-28800F CLASS 2

Altitude Up to 2000m

EMC BS EN 61326-1:2013

Electrical safety BS EN 61010-1:2010

Pressure safety Pressure Equipment Directive - Class: Sound Engineering

Enclosure materials Polycarbonate, polyamide, polypropylene, acrylic, cotton

Approved CE marked

Size (L:W:H) 270 x 130 x 120mm (10.6 x 5.1 x 4.7 in)

Weight 1.96Kg (4.3lbs) including batteries

Power supply 8 x AA alkaline batteries

Battery life 18 to 26 hours depending on functions

Connectivity USB type A, USB type mini B

display with touch screen

calibration data and data log les

Japanese, Korean, Portuguese, Russian, Spanish

-10° to 50°C (14° to 122°F). 0° to 40°C (32° to 104°F) when powered from optional mains adaptor IO620-PSU

-20° to 70°C (-4° to 158°F)

direction

Practice (SEP)

Optional mains adaptor P/N IO620-PSU 100 – 260V +/10%, 50 / 60Hz AC, Output DC V=5A, 1.6A

Ordering Information

Please use the following part numbers when ordering:

DPI611-05G for -1 to 1 bar / -14.5 to 15 psi gauge range DPI611-07G for -1 to 2 bar / -14.5 to 30 psi gauge range DPI611-10G for -1 to 7 bar / -14.5 to 100 psi gauge range DPI611-11G for -1 to 10 bar / -14.5 to 150 psi gauge range DPI611-13G for -1 to 20 bar / -14.5 to 300 psi gauge range

Please order accessories by part number as separate line items.

Each DPI 611 is supplied with a set of alkaline batteries,

hand strap, test leads, G1/8 female and 1/8 NPT female adaptors, calibration certicate, quick user guide and an

electronic copy of the user manual stored in memory on the instrument.

Page 11

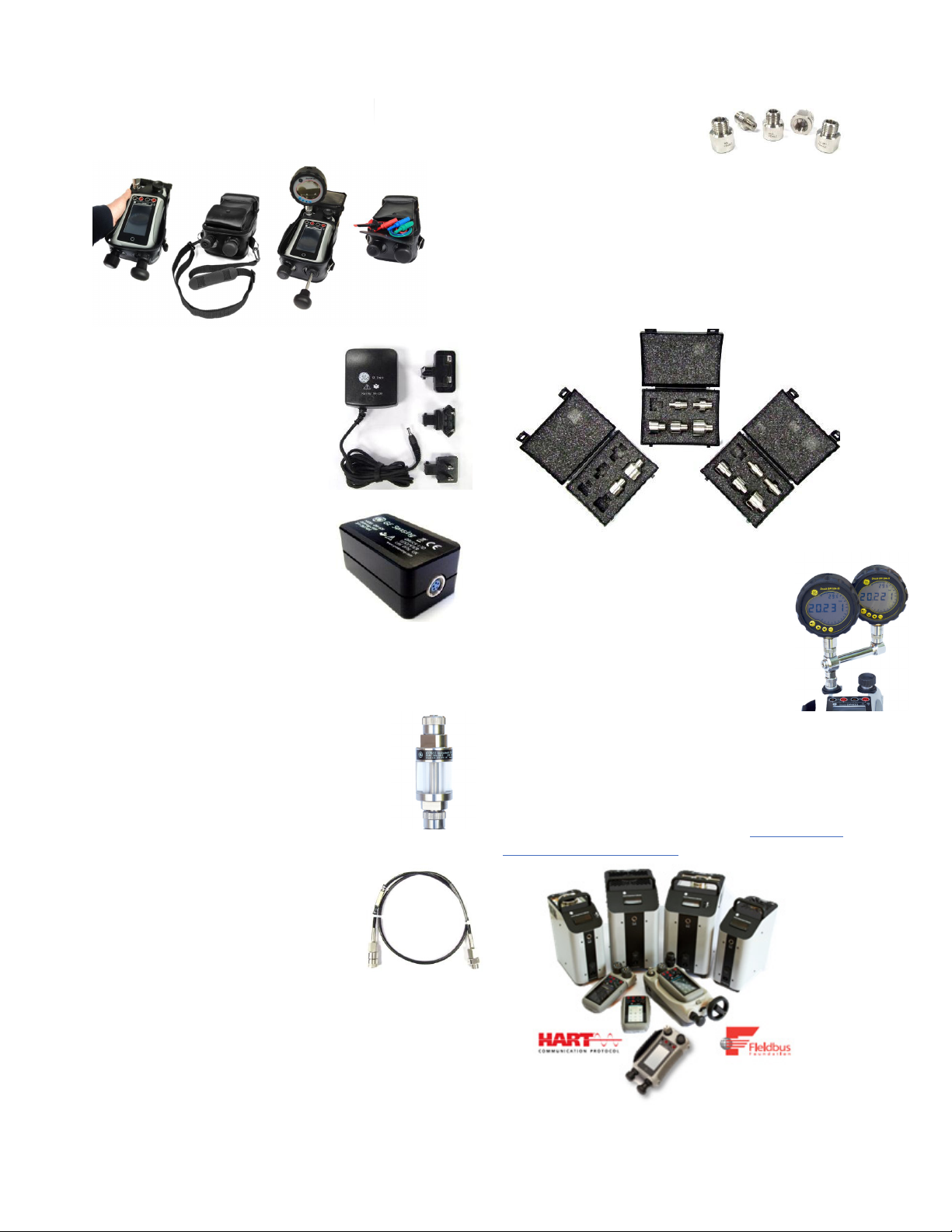

Accessories

DPI 611 carry case (P/N IO611-CASE-1)

A tailored carry case made from durable leather allows the DPI 611 to be used without removing it from the case. Detachable shoulder strap and storage pocket for test leads.

Mains adaptor (P/N IO620-PSU)

A universal input mains adaptor. Input

voltage 100 to 240 VAC 50/60 Hz. Mains

socket adaptors are provided.

USB cable (P/N IO620-USB-PC)

Connects the DPI 611 to a PC.

IDOS to USB converter (P/N IO620IDOS-USB)

Allows connection of an IDOS universal pressure module to the DPI 611. P/N IO620-USB-PC is also required to connect the converter to the DPI 611 USB port.

USB to RS 232 cable (P/N IO620-USB-RS232)

Connects the DPI 611 to an RS 232 interface.

Dirt moisture trap (P/N IO620-IDT621)

Prevents contamination of the DPI 611 pneumatic system and cross contamination from one device under test to another. The trap connects directly to the pressure port and replicates the DPI 611

quick t connection for compatibility with the

standard adaptors, adaptor kits and hoses.

Pneumatic hose

A high pressure pneumatic hose rated to 400 bar (5800 psi). The hose connects directly to the DPI 611 pressure port and replicates the

quick t connection for compatibility with the

standard adaptors supplied and the adaptor kits.

Pressure adaptor set

A set of test point adaptors to

connect the tool-less quick t

DPI 611 pressure port or the extension hoses to the device under test

P/N IO620-BSP: G1/8 male and G1/4 male, G1/4

female, G3/8 female and G1/2 female

P/N IO620-NPT: 1/8” male and 1/4”male, 1/4”

female, 3/8” female, and 1/2” female

P/N IO620-MET: 14 mm female and 20 mm female

Comparator adaptor (P/N IO620COMP)

For greater eciency, two test devices can

be connected at the same time. The adaptor connects to the pressure port of the DPI 611 and provides two outlet ports. Compatible with the standard adaptors supplied and the adaptor kits.
