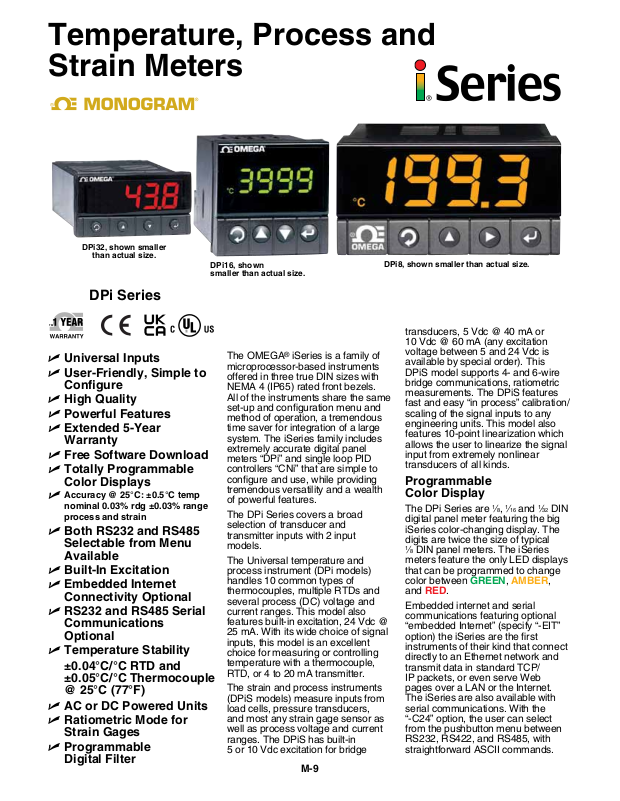

Temperature, Process and
Strain Meters
DPi32, shown smaller
than actual size.
DPi16, shown
smaller than actual size.
DPi Series
DPi8, shown smaller than actual size.
TM
U Universal Inputs
U User-Friendly, Simple to
Configure
U High Quality
Powerful Features
Extended 5-Year
Warranty
Free Software Download
Totally Programmable
Color Displays
Accuracy @ 25°C: ±0.5°C temp
nominal 0.03% rdg ±0.03% range
process and strain
Both RS232 and RS485
Selectable from Menu
Available
Built-In Excitation
Embedded Internet
Connectivity Optional
RS232 and RS485 Serial
Communications
Optional
Temperature Stability
±0.04°C/°C RTD and
±0.05°C/°C Thermocouple
@ 25°C (77°F)
U AC or DC Powered Units
U
Ratiometric Mode for
Strain Gages
U Programmable
Digital Filter
The OMEGA® iSeries is a family of
microprocessor-based instruments
offered in three true DIN sizes with
NEMA 4 (IP65) rated front bezels.
All of the instruments share the same
set-up and configuration menu and
method of operation, a tremendous
time saver for integration of a large
system. The iSeries family includes
extremely accurate digital panel
meters “DPi” and single loop PID
controllers “CNi” that are simple to
configure and use, while providing
tremendous versatility and a wealth
of powerful features.
The DPi Series covers a broad
selection of transducer and
transmitter inputs with 2 input
models.
The Universal temperature and
process instrument (DPi models)
handles 10 common types of
thermocouples, multiple RTDs and
several process (DC) voltage and
current ranges. This model also
features built-in excitation, 24 Vdc @
25 mA. With its wide choice of signal
inputs, this model is an excellent
choice for measuring or controlling
temperature with a thermocouple,
RTD, or 4 to 20 mA transmitter.
The strain and process instruments
(DPiS models) measure inputs from
load cells, pressure transducers,
and most any strain gage sensor as
well as process voltage and current
ranges. The DPiS has built-in
5 or 10 Vdc excitation for bridge
M-9
transducers, 5 Vdc @ 40 mA or
10 Vdc @ 60 mA (any excitation
voltage between 5 and 24 Vdc is
available by special order). This
DPiS model supports 4- and 6-wire
bridge communications, ratiometric
measurements. The DPiS features
fast and easy “in process” calibration/
scaling of the signal inputs to any
engineering units. This model also
features 10-point linearization which
allows the user to linearize the signal
input from extremely nonlinear
transducers of all kinds.
Programmable
Color Display
The DPi Series are 1⁄8, 1⁄16 and 1⁄32 DIN
digital panel meter featuring the big
iSeries color-changing display. The
digits are twice the size of typical
1
⁄8 DIN panel meters. The iSeries
meters feature the only LED displays
that can be programmed to change
color between GREEN, AMBER,
and RED.
Embedded internet and serial
communications featuring optional
“embedded Internet” (specify “-EIT”
option) the iSeries are the first
instruments of their kind that connect
directly to an Ethernet network and
transmit data in standard TCP/
IP packets, or even serve Web
pages over a LAN or the Internet.
The iSeries are also available with
serial communications. With the
“-C24” option, the user can select
from the pushbutton menu between
RS232, RS422, and RS485, with
straightforward ASCII commands.

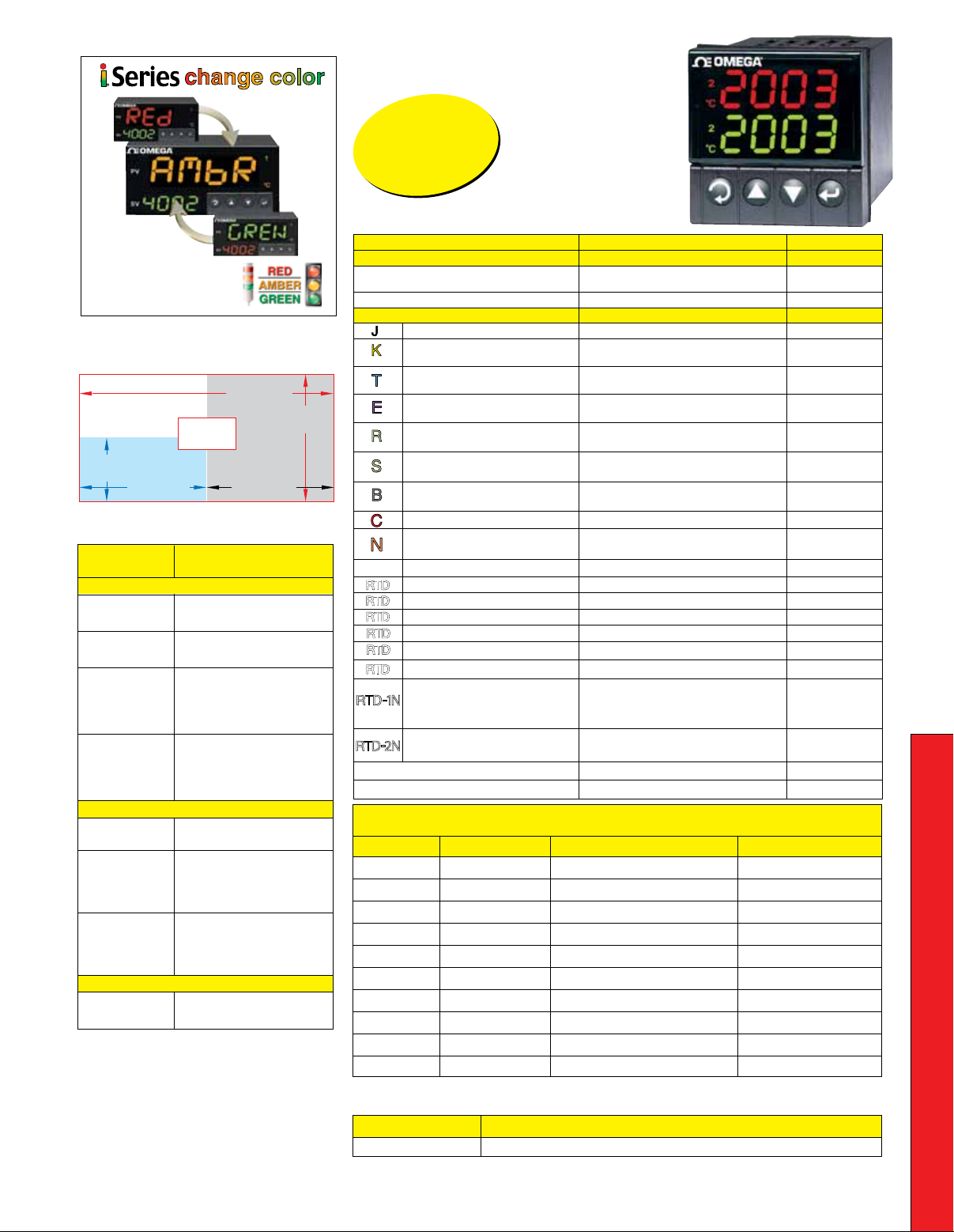

Page 2
at any
setpoint
i Series Models
N
C
with Control and
larm Outputs,
A
Visit OMEG
iSeries Controllers
Also Available!
A
CNi16D, shown actual size.
PATENTED
Totally
Programmable
Color Displays
Dimensions: mm (inch)
92 (3.622)
45
DIN
SIZES
22.5
(0.886)
45 x 22.5
(1.772 x 0.886)
45 (1.772)
45 (1.772)
Options
Ordering
Suffix Description
Network Options
-EIT
-C24
-C4EIT
-DC
Factory Setup
-FS
configuration
-FS(RTD-1N)
-FS(RTD-2N)
Software (Requires Network Option)
OPC-SERVER OPC server/driver
LICENSE software license
Note: “-DC”, “-C24” and “-C4EIT” not available
with excitation. Models “-EIT” and “-C4EIT”
are only offered on DPi8 and DPiS8 models.
* 20 to 36 Vdc for DPi8A, DPi16A, -C4EIT
or -EIT.
Ordering Examples: DPi8A,
with isolated scalable analog retransmission
of process value. DPi8C,
meter in compact case, DPi32,
process monitor.
Ethernet with
embedded internet
Isolated RS232 and
RS485, 300 to 19.2 KB
Ethernet with embedded
Web server + isolated
RS485/422 hub for up
to 31 devices
12 to 36 Vdc
(standard power input:
90 to 240 Vac/dc, 50 to
400 Hz)
Factory setup
Customized DPiS
model for MIL-T-7990B
nickel RTD input, 0 to
200°C (32 to 392°F)
Customized DPiS for
MIL-T-7990B nickel
RTD input, -40 to
300°C (-40 to 572°F)
1
1
DIN temp/process
⁄
8
(1.772)
45
(1.772) sq.
, 24 Vac
*
and
DIN meter
⁄
8
1
DIN temp/
⁄
32
Input Type Range Accuracy
Process Voltage
Process Current
CHROMEGA
Copper-Constantan
CHROMEGA®-Constantan
Pt/30%Rh - Pt6%Rh
W/5%Re - W/26%Re
L
Pt, 0.00385, 1000 ohm
Pt, 0.00392, 100 ohm
Pt, 0.00392, 500 ohm -200 to 850°C (-328 to 1562°F) ±0.8°C
Pt, 0.00392, 500 ohm -200 to 850°C (-328 to 1562°F) ±0.8°C ±.01% rdg
-
(Nickel MIL-T-7990B)
-
Process Voltage 0 to 100 mV, 0 to 1V, 0 to 10V 0.03% rdg
Process Current 0 to 20 mA (4 to 20 mA) 0.03% rdg
Universal Strain/Process Input Models
Universal Temperature/Process Input Models
Iron-Constantan -210 to 760°C (-346 to 1400°F) 0.4°C (0.7°F)
®
-ALOMEGA
Pt - Pt/13%Rh
Pt - Pt/10%Rh
®
OMEGALLOY
Nicrosil-Nisil
Pt, 0.00385, 100
Pt, 0.00385, 500 ohm
(FS required)
(Nickel MIL-T-7990B)
(FS required)
®
J DIN -200 to 900°C (-328 to 1652°F) 0.4°C (0.7°F)
0 to 100 mV, 0 to 1V,
±100 mV, 0 to 10V
0 to 20 mA (4 to 20 mA) 0.03% rdg
-270 to -160°C (-454 to -256°F)
-160 to 1372°C (-256 to 2502°F)
-270 to -190°C (-454 to -310°F)
-190 to 400°C (-310 to 752°F)
-270 to -220°C (-454 to -364°F)
-220 to 1000°C (-364 to 1832°F)
-50 to 40°C (-58 to 104°F)
40 to 1768°C (104 to 3214°F)
-50 to 100°C (-58 to 212°F)
100 to 1768°C (212 to 3214°F)
100 to 640°C (212 to 1184°F)
640 to 1820°C (1184 to 3308°F)
0 to 2320°C (32 to 4208°F) 0.4°C (0.7°F)
-250 to -100°C (-418 to -148°F)
-100 to 1300°C (-148 to 2372°F)
-200 to 850°C (-328 to 1652°F) ±0.5°C ±.02% rdg
-200 to 850°C (-328 to 1652°F)
-200 to 850°C (-328 to 1652°F) ±0.5°C ±.02% rdg
-200 to 850°C (-328 to 1562°F)
0 to 200°C (32 to 392°F)
-40 to 300°C (-40 to 572°F) 0.3°C (0.5°F)
0.03% rdg
1.0°C (1.8°F)
0.4°C (0.7°F)
1.0°C (1.8°F)
0.4°C (0.7°F)
1.0°C (1.8°F)
0.4°C (0.7°F)
1.0°C (1.8°F)
0.5°C (0.9°F)
1.0°C (1.8°F)
0.5°C (0.9°F)
1.0°C (1.8°F)
0.5°C (0.9°F)
1.0°C (1.8°F)
0.4°C (0.7°F)
±0.6°C ±.02% rdg
±0.5°C ±.02% rdg
0.1°C (0.2°F)
To Order
Model No. Size/Cutout Input Type Other Features
DPi8
DPi8A
DPiS8
DPi16
DPi16A
DPiS16
DPi32
DPiS32
DPi8C
DPiS8C
Comes complete with operator’s manual.
Accessory
Model No. Description
DPP-5
1
DIN Temperature/process —
⁄
8
1
DIN Temperature/process Analog output
⁄
8
1
DIN Strain/process —
⁄
8
1
DIN Temperature/process —
⁄
16
1
DIN Temperature/process Analog output
⁄
16
1
DIN Strain/process —
⁄
16
1
DIN Temperature/process —
⁄
32
1
DIN Strain/process —
⁄
32
1
DIN Temperature/process Compact depth
⁄
8
1
DIN Strain/process Compact depth
⁄
8
1
⁄
8 DIN panel punch
M
M-10
Page 3
Common Specifications
(All
i/8, i/16, i/32 DIN)
Universal Temperature and
Process Input (DPi/CNi Models)
Accuracy @ 25°C: ±0.5°C temp nominal;
0.03% rdg ±0.03% range
process and strain
Resolution: 1° /0.1°; 10 µV process
Temperature Stability:
RTD: 0.04°C/°C
TC @ 25°C (77°F): 0.05°C/°C
Cold Junction Compensation
Process: 50 ppm/°C
NMRR: 60 dB
CMRR: 120 dB
A/D Conversion: Dual slope
Reading Rate: 3 samples/s
Digital Filter: Programmable
Display: 4-digit 9-segment LED
10.2 mm (0.40"); i32, i16, i16D, i8DV
21 mm (0.83"); i8 10.2 mm (0.40") and
21 mm (0.83"); i8DH RED, GREEN,
and AMBER programmable colors
for process variable, setpoint and
temperature units
Input Types: Thermocouple, RTD,
analog voltage, analog current
Thermocouple Lead Resistance:
100 Ω max
Thermocouple Types (ITS 90):
J, K, T, E, R, S, B, C, N, L (J DIN)
RTD Input (ITS 68): 100/500/1000 Ω
Pt sensor, 2-, 3- or 4-wire; 0.00385 or
0.00392 curve
Voltage Input: 0 to 100 mV, 0 to 1V,
0 to 10 Vdc
Input Impedance: 10 MΩ for 100 mV
1 MΩ for 1 or 10 Vdc
Current Input: 0 to 20 mA (5 Ω load)
Configuration: Single-ended
Polarity: Unipolar
Step Response: 0.7 sec for 99.9%
Decimal Selection:
Temperature: None, 0.1
Process: None, 0.1, 0.01 or 0.001
Setpoint Adjustment:
-1999 to 9999 counts
Span Adjustment:
0.001 to 9999 counts
Offset Adjustment: -1999 to 9999
Excitation (Not Included with
Communication): 24 Vdc @ 25 mA
(not available for low-power option)
Universal Strain and Process
Input (DPiS/CNiS Models)
Accuracy: 0.03% reading
Resolution: 10/1µV
Temperature Stability: 50 ppm/°C
NMRR: 60 dB
CMRR: 120 dB
A/D Conversion: Dual slope
Reading Rate: 3 samples/s
Digital Filter: Programmable
Input Types: Analog voltage and current
Voltage Input: 0 to 100 mVdc,
-100 mVdc to 1 Vdc, 0 to 10 Vdc
Input Impedance: 10 MΩ for 100 mV;
1 MΩ for 1V or 10 Vdc
Current Input:
0 to 20 mA (5 Ω load)
Linearization Points: Up to 10
Configuration: Single-ended
Polarity: Unipolar
Step Response: 0.7 sec for 99.9%
Decimal Selection: None, 0.1, 0.01
or 0.001
Setpoint Adjustment:
-1999 to 9999 counts
Span Adjustment: 0.001 to 9999 counts
Offset Adjustment: -1999 to 9999
Excitation (Optional In Place Of
Communication): 5 Vdc @ 40 mA;
10 Vdc @ 60 mA
Control
Action: Reverse (heat) or direct (cool)
Modes: Time and amplitude proportional
control; selectable manual or auto PID,
proportional, proportional with integral,
proportional with derivative and anti-reset
Windup, and on/off
Rate: 0 to 399.9 s
Reset: 0 to 3999 s
Cycle Time: 1 to 199 s; set to 0 for on/off
Gain: 0.5 to 100% of span; setpoints 1 or 2
Damping: 0000 to 0008
Soak: 00.00 to 99.59 (HH:MM), or OFF
Ramp to Setpoint:
00.00 to 99.59 (HH:MM), or OFF
Auto Tune: Operator initiated from
front panel
Control Output 1 and 2
Relay: 250 Vac or 30 Vdc @ 3 A (resistive
load); configurable for on/off, PID and ramp
and soak
Output 1: SPDT, can be configured as
alarm 1 output
Output 2: SPDT, can be configured as
alarm 2 output
SSR: 20 to 265 Vac @ 0.05 to 0.5 A
(resistive load); continuous
DC Pulse: Non-isolated; 10 Vdc @ 20 mA
Analog Output (Output 1 Only):
Non-isolated, proportional 0 to 10 Vdc or
0 to 20 mA; 500 Ω max
Output 3 Retransmission
Isolated Analog Voltage and Current
Current: 10 V max @ 20 mA output
Voltage: 20 mA max for 0 to 10 V output
Network and Communications
Ethernet: Standards compliance
IEEE 802.3 10 Base-T
Supported Protocols:
TCP/IP, ARP, HTTPGET
RS232/RS422/RS485: Selectable from
menu; both ASCII and MODBUS protocol
selectable from menu; programmable
300 to 19.2 Kb; complete programmable
setup capability; program to transmit
current display, alarm status, min/max,
actual measured input value and status
M-11
RS485: Addressable from 0 to 199
Connection: Screw terminals
Alarm 1 and 2 (Programmable)
Type: Same as output 1 and 2
Operation: High/low, above/below,
band, latch/unlatch, normally open/
normally closed and process/deviation;
front panel configurations
Analog Output (Programmable):
Non-isolated, retransmission 0 to 10 Vdc
or 0 to 20 mA, 500 Ω max (output 1 only);
accuracy is ± 1% of FS when following
conditions are satisfied: input is not scaled
below 1% of input FS, analog output is not
scaled below 3% of output FS
General
Power: 90 to 240 Vac ±10%, 50 to 400
*, 110 to 300 Vdc, equivalent voltage
Hz
Low Voltage Power Option: 24 Vac
12 to 36 Vdc for DPi/CNi/DPiS/CNiS;
20 to 36 Vdc for dual display, ethernet
and isolated analog output from qualified
safety approved source
**,
Isolation
Power to Input/Output: 2300 Vac
per 1 minute test
For Low Voltage Power Option:
1500 Vac per 1 minute test
Power to Relay/SSR Output:
2300 Vac per 1 minute test
Relay/SSR to Relay/SSR Output:
2300 Vac per 1 minute test
RS232/485 to Input/Output:
500 Vac per 1 minute test
Environmental Conditions:
All Models: 0 to 55°C (32 to 131°F)
90% RH non-condensing
Dual Display Models:
0 to 50°C (32 to 122°F), 90% RH
non-condensing (for UL only)
Protection:
DPi/CNi/DPiS/CNiS32, i16, i16D, i8C:
NEMA 4X/Type 4 (IP65) front bezel
DPi/CNi8, CNi8DH, i8DV:
NEMA 1/Type 1 front bezel
Approvals: UL, C-UL, UKCA, CE per
2014/35/EU
D
imensions
i/8 Series: 48 H x 96 W x 127 mm D
(1.89 x 3.78 x 5")
i/16 Series: 48 H x 48 W x 127 mm D
(1.89 x 1.89 x 5")
i/32 Series: 25.4 H x 48 W x 127 mm D
(1.0 x 1.89 x 5")
Panel Cutout
i/8 Series: 45 H x 92 mm W
(1.772 x 3.622"),
i/16 Series: 45 mm (1.772") square,
1
⁄16 DIN
i/32 Series: 22.5 H x 45 mm W
(0.886 x 1.772"),
Weight
i/8 Series: 295 g (0.65 lb)
i/16 Series: 159 g (0.35 lb)
i/32 Series: 127 g (0.28 lb)
* No CE compliance above 60 Hz.
** Units can be powered safely with 24 Vac
power, but no certification for CE/UL are claimed.
1
⁄8 DIN
1
⁄32 DIN
Loading...
