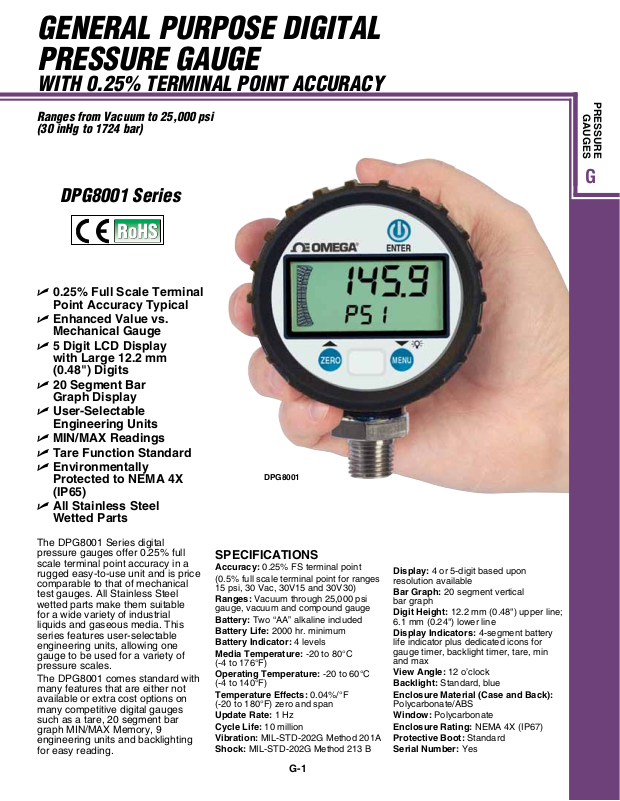

GENERAL PURPOSE DIGITAL
PRESSURE GAUGE
WITH 0.25% TERMINAL POINT ACCURACY
Ranges from Vacuum to 25,000 psi
(30 inHg to 1724 bar)
DPG8001 Series
U 0.25% Full Scale Terminal
Point Accuracy Typical
U Enhanced Value vs.
Mechanical Gauge
U 5 Digit LCD Display
with Large 12.2 mm
(0.48") Digits
U 20 Segment Bar
Graph Display
U User-Selectable
Engineering Units
U MIN/MAX Readings
U Tare Function Standard
U Environmentally
Protected to NEMA 4X
(IP65)
U All Stainless Steel
Wetted Parts

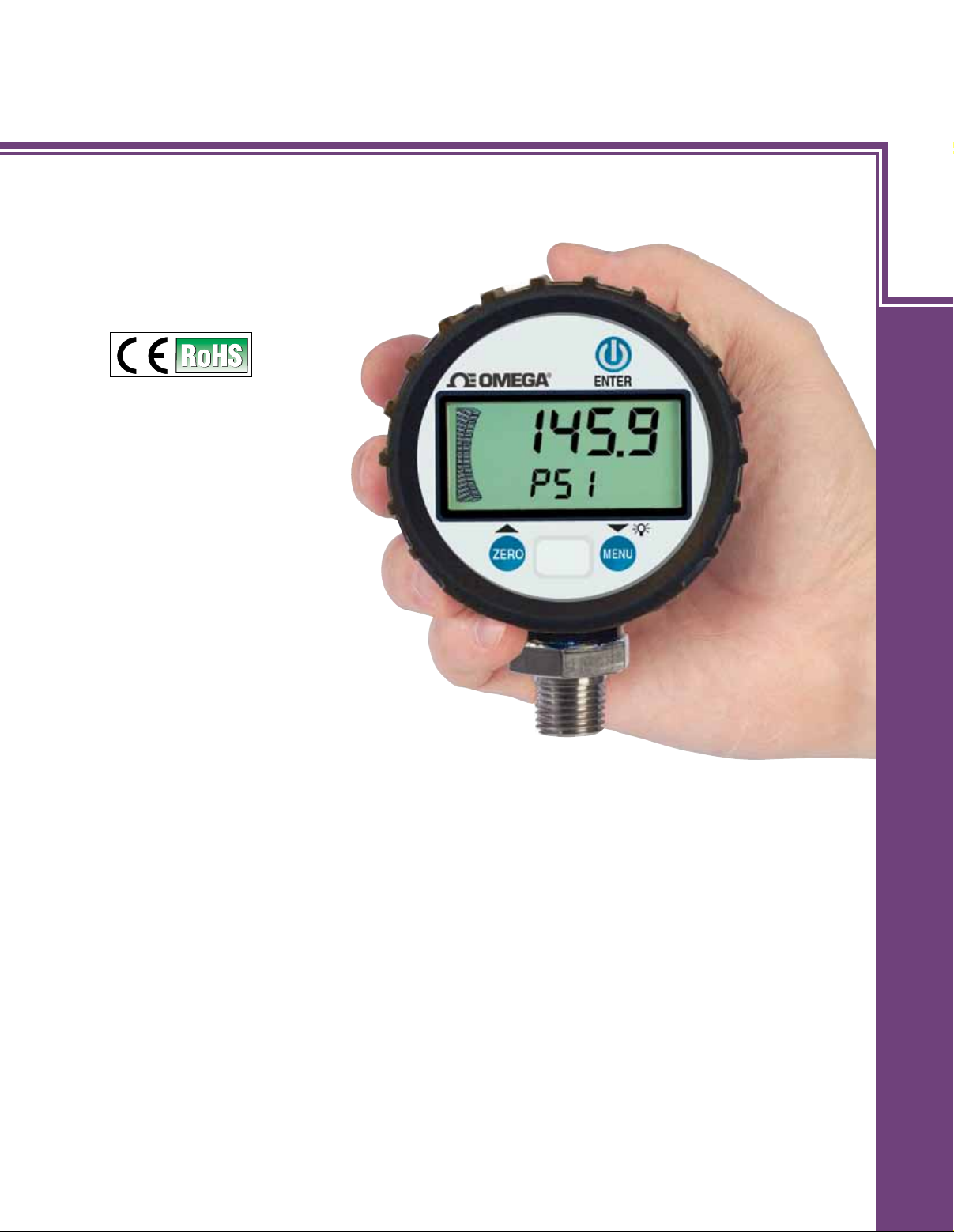

DPG8001
PRESSURE
GAUGES
G
The DPG8001 Series digital
pressure gauges offer 0.25% full
scale terminal point accuracy in a
rugged easy-to-use unit and is price
comparable to that of mechanical
test gauges. All Stainless Steel
wetted parts make them suitable
for a wide variety of industrial
liquids and gaseous media. This
series features user-selectable
engineering units, allowing one
gauge to be used for a variety of
pressure scales.
The DPG8001 comes standard with
many features that are either not
available or extra cost options on
many competitive digital gauges
such as a tare, 20 segment bar
graph MIN/MAX Memory, 9
engineering units and backlighting
for easy reading.
SPECIFICATIONS
Accuracy: 0.25% FS terminal point
(0.5% full scale terminal point for ranges
15 psi, 30 Vac, 30V15 and 30V30)
Ranges: Vacuum through 25,000 psi
gauge, vacuum and compound gauge
Battery: Two “AA” alkaline included
Battery Life: 2000 hr. minimum
Battery Indicator: 4 levels
Media Temperature: -20 to 80°C
(-4 to 176°F)
Operating Temperature: -20 to 60°C
(-4 to 140°F)
Temperature Effects: 0.04%/°F
(-20 to 180°F) zero and span
Update Rate: 1 Hz
Cycle Life: 10 million
Vibration: MIL-STD-202G Method 201A
Shock: MIL-STD-202G Method 213 B
G-1
Display: 4 or 5-digit based upon
resolution available
Bar Graph: 20 segment vertical
bar graph
Digit Height: 12.2 mm (0.48") upper line;
6.1 mm (0.24") lower line
Display Indicators: 4-segment battery
life indicator plus dedicated icons for
gauge timer, backlight timer, tare, min
and max
View Angle: 12 o’clock
Backlight: Standard, blue
Enclosure Material (Case and Back):
Polycarbonate/ABS
Window: Polycarbonate
Enclosure Rating: NEMA 4X (IP67)
Protective Boot: Standard
Serial Number: Yes
Page 2
Proof Pressure
Ø
40.9
(1.61)
67.6
(2.66)
17.5
(0.69)
Vac to <300 psi: 200% range
300 to <5000 psi: 150% range
5000 to 25,000 psi: 120% range
Burst Pressure
Vac to <300 psi: 800% range
300 to <5000 psi: 500% range
5000 to 25,000 psi: 300% range

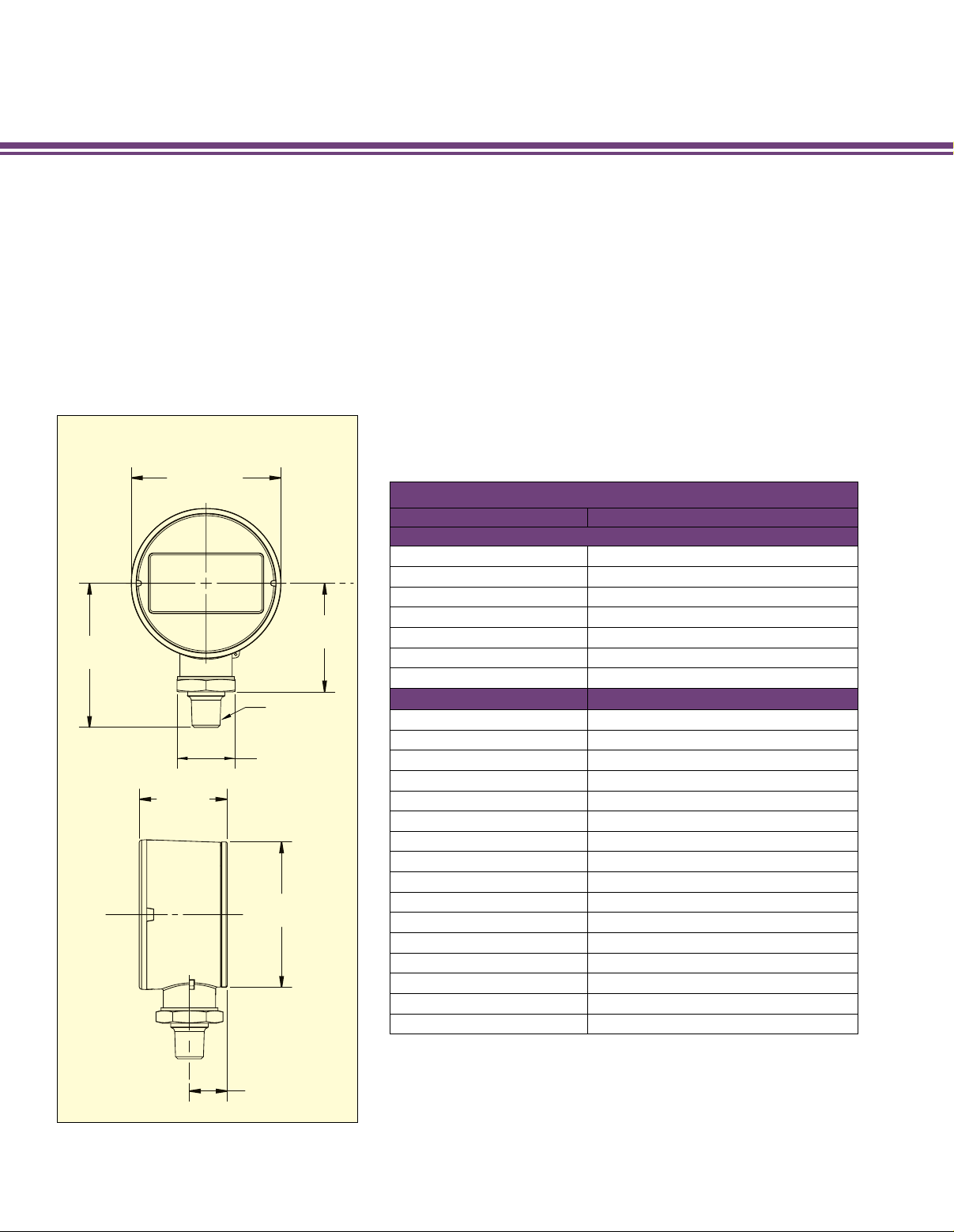

Dimensions: mm (inch)
69.36
(2.73)
Ø
67
(2.64)
40.9
(1.61)
50.5
(1.99)
1/4 NPT Male
27
(1.063)
Hex
67.6
(2.66)
Ø
17.5
(0.69)
Keypad Functions
3 Key with Multi Press Functionality
On/Off: Power symbol and enter
Zero: Zero, tare, and scroll up arrow
Menu: access, backlight, down arrow
Engineering Units: psi, bar, inHg,
cmHg, mmHg, kPa, mPa, kg/cm
2
,
ftH2O, custom units, except on
compound gauge ranges
Auto-Off: Programmable for 1, 5 or 20
minutes or none for on/off
To Order
RANGE/RESOLUTION MODEL NO.
VACUUM AND COMPOUND GAUGE RANGES
30.00 inHg to 0
30.00 inHg to 15.00 psi
30.00 inHg to 30.00 psi
30.00 inHg to 60.00 psi
30.00 inHg to 100.0 psi
30.00 inHg to 150.0 psi
30.00 inHg to 300.0 psi
GAUGE PRESSURE (PSI)
0 to 15.00
0 to 30.00 DPG8001-30
0 to 60.00
0 to 100.0
0 to 200.0 DPG8001-200
0 to 300.0
0 to 500.0
0 to 1000
0 to 1500
0 to 2000
0 to 3000
0 to 5000
0 to 10,000
0 to 15,000
0 to 20,000
0 to 25,000
Comes complete with protective rubber boot, 2 “AA” batteries, and operator’s manual.
†
15,000, 20,000 and 25,000 psi models supplied with female AMINCO
female AMINCO fitting.
Ordering Examples: DPG8001-15, digital pressure gauge with range of 0 to 15 psi
with protective rubber boot and backlight.
DPG8001-30V30, digital pressure gauge with range of 30" Hg Vacuum to 30 psi
compound gauge pressure with protective rubber boot and backlight.
Display Update: Adjustable for 1 sec,
500 msec or 250 msec
Agency Approvals: CE (heavy
industrial), ASME B40.7, RoHs, UL
61010/cUL pending
Connection:
1
⁄4 NPT male, lower
position up to 10,000 psi
>10,000 psi: ⁹⁄₁₆-18 UNF Female
AMINCO
Dimensions: 27 mm Hex (1
1
⁄16")
Wetted Parts: 17-4 SS & 316L SS
laser welded
DPG8001-VAC
DPG8001-30V15
DPG8001-30V30
DPG8001-30V60
DPG8001-30V100
DPG8001-30V150
DPG8001-30V300
DPG8001-15
DPG8001-60
DPG8001-100
DPG8001-300
DPG8001-500
DPG8001-1K
DPG8001-1.5K
DPG8001-2K
DPG8001-3K
DPG8001-5K
DPG8001-10K
DPG8001-15K
DPG8001-20K
DPG8001-25K
†
†
†
9
-18 UNF
⁄
16
G-2
