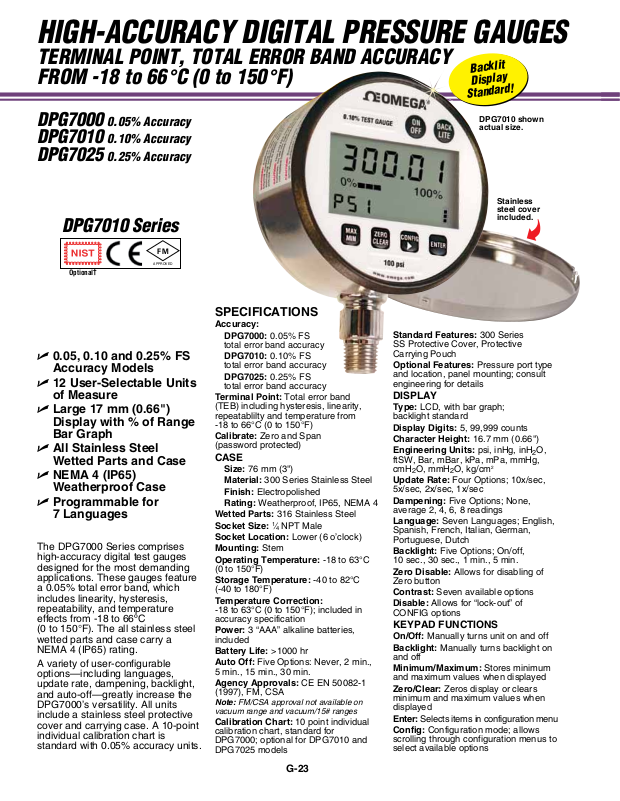

HIGH-ACCURACY DIGITAL PRESSURE GAUGES
FM
APPROVED
TERMINAL POINT, TOTAL ERROR BAND ACCURACY
FROM -18 to 66°C (0 to 150°F)
DPG7000 0.05% Accuracy
DPG7010
DPG7025 0.25% Accuracy
DPG7010 Series
Optional
U 0.05, 0.10 and 0.25% FS
Accuracy Models
U 12 User-Selectable Units
of Measure
U Large 17 mm (0.66")
Display with % of Range
Bar Graph
U All Stainless Steel
Wetted Parts and Case
U NEMA 4 (IP65)
Weatherproof Case
U Programmable for
7 Languages
The DPG7000 Series comprises
high-accuracy digital test gauges
designed for the most demanding
applications. These gauges feature
a 0.05% total error band, which
includes linearity, hysteresis,
repeatability, and temperature
effects from -18 to 66ºC
(0 to 150°F). The all stainless steel
wetted parts and case carry a
NEMA 4 (IP65) rating.
A variety of user-configurable
options—including languages,
update rate, dampening, backlight,
and auto-off—greatly increase the
DPG7000’s versatility. All units
include a stainless steel protective
cover and carrying case. A 10-point
individual calibration chart is
standard with 0.05% accuracy units.
0.10% Accuracy
†
SPECIFICATIONS
Accuracy:
DPG7000:
total error band accuracy
DPG7010: 0.10% FS
total error band accuracy
DPG7025: 0.25% FS
total error band accuracy
Terminal Point: Total error band
(TEB) including hysteresis, linearity,
repeatablilty and temperature from
-18 to 66°C (0 to 150°F)
Calibrate: Zero and Span
(password protected)
CASE
Size: 76 mm (3")
Material: 300 Series Stainless Steel
Finish: Electropolished
Rating: Weatherproof, IP65, NEMA 4
Wetted Parts: 316 Stainless Steel
Socket Size:
Socket Location: Lower (6 o’clock)
Mounting: Stem
Operating Temperature: -18 to 63°C
(0 to 150°F)
Storage Temperature: -40 to 82°C
(-40 to 180°F)
Temperature Correction:
-18 to 63°C (0 to 150°F); included in
accuracy specification
Power: 3 “AAA” alkaline batteries,
included
Battery Life: >1000 hr
Auto Off: Five Options: Never, 2 min.,
5 min., 15 min., 30 min.
Agency Approvals: CE EN 50082-1
(1997), FM, CSA
Note: FM/CSA approval not available on
vacuum range and vacuum/15# ranges
Calibration Chart: 10 point individual
calibration chart, standard for
DPG7000; optional for DPG7010 and
DPG7025 models
0.05% FS
1
NPT Male
⁄
4
Standard Features: 300 Series
SS Protective Cover, Protective
Carrying Pouch
Optional Features: Pressure port type
and location, panel mounting; consult
engineering for details
DISPLAY
Type: LCD, with bar graph;
backlight standard
Display Digits: 5, 99,999 counts
Character Height: 16.7 mm (0.66")
Engineering Units: psi, inHg, inH
ftSW, Bar, mBar, kPa, mPa, mmHg,
cmH2O, mmH2O, kg/cm
Update Rate: Four Options; 10x/sec,
5x/sec, 2x/sec, 1x/sec
Dampening: Five Options; None,
average 2, 4, 6, 8 readings
Language: Seven Languages; English,
Spanish, French, Italian, German,
Portuguese, Dutch
Backlight: Five Options; On/off,
10 sec., 30 sec., 1 min., 5 min.
Zero Disable: Allows for disabling of
Zero button
Contrast: Seven available options
Disable: Allows for “lock-out” of
CONFIG options
KEYPAD FUNCTIONS
On/Off: Manually turns unit on and off
Backlight: Manually turns backlight on
and off
Minimum/Maximum: Stores minimum
and maximum values when displayed
Zero/Clear: Zeros display or clears
minimum and maximum values when
displayed
Enter: Selects items in configuration menu
Config: Configuration mode; allows
scrolling through configuration menus to
select available options
Backlit
Display
Standard!

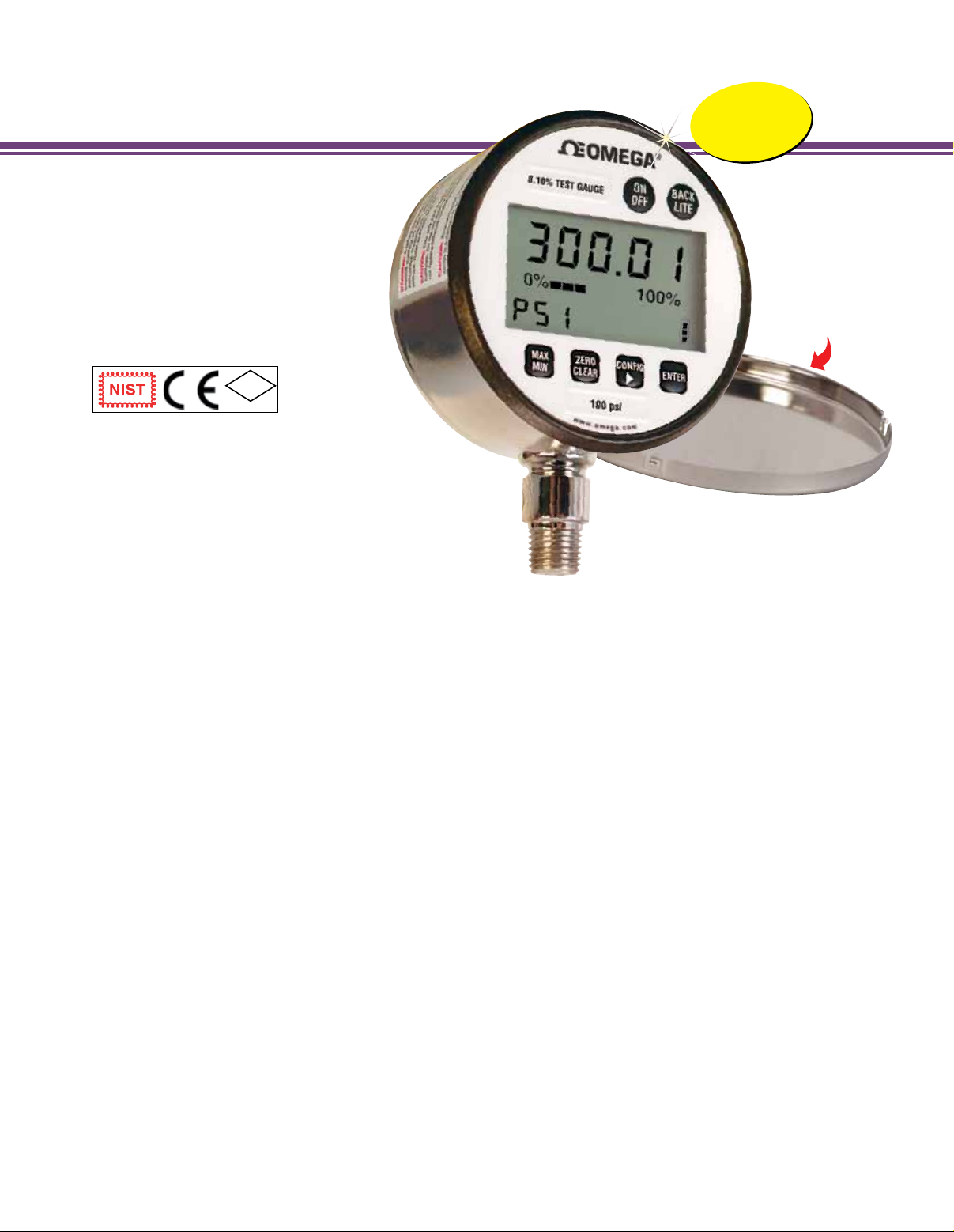

DPG7010 shown
actual size.
Stainless
steel cover
included.
2
2
O,
G-23
Page 2
AVAILABLE RANGES
psi
vac. 15 and vac. -100/0 1 -1 to 0
5 30 and vac. 25 1.6 -1 to 1
10 60 and vac. 40 2.5 -1 to 2
15 100 and vac. 60 4 -1 to 3
30 100 6 -1 to 30
60 160 10
100 250 16
160 400 25
200 600 40
300 1000 60
500 160
600 250
800 400
1000 500
2000
2500
3000
5000
7000
mmH
3000 1 250 15
User-Selectable Ranges*
5000 1.6 300 25
10,000 2.5 400 50
O
2
Compound
(psi)
mPa
6 500
40 600
kPa
mbar/
cmH2O
1000
1600
2000
2500
4000
5000
6000
10,000
Bar/
KSC
Absolute
(psia)
Order psi range
*
closest to full
scale range of the
units desired. The
units selection is
programmable via the
front-panel buttons.
Compound
(bar)
HIGH-ACCURACY GAUGES

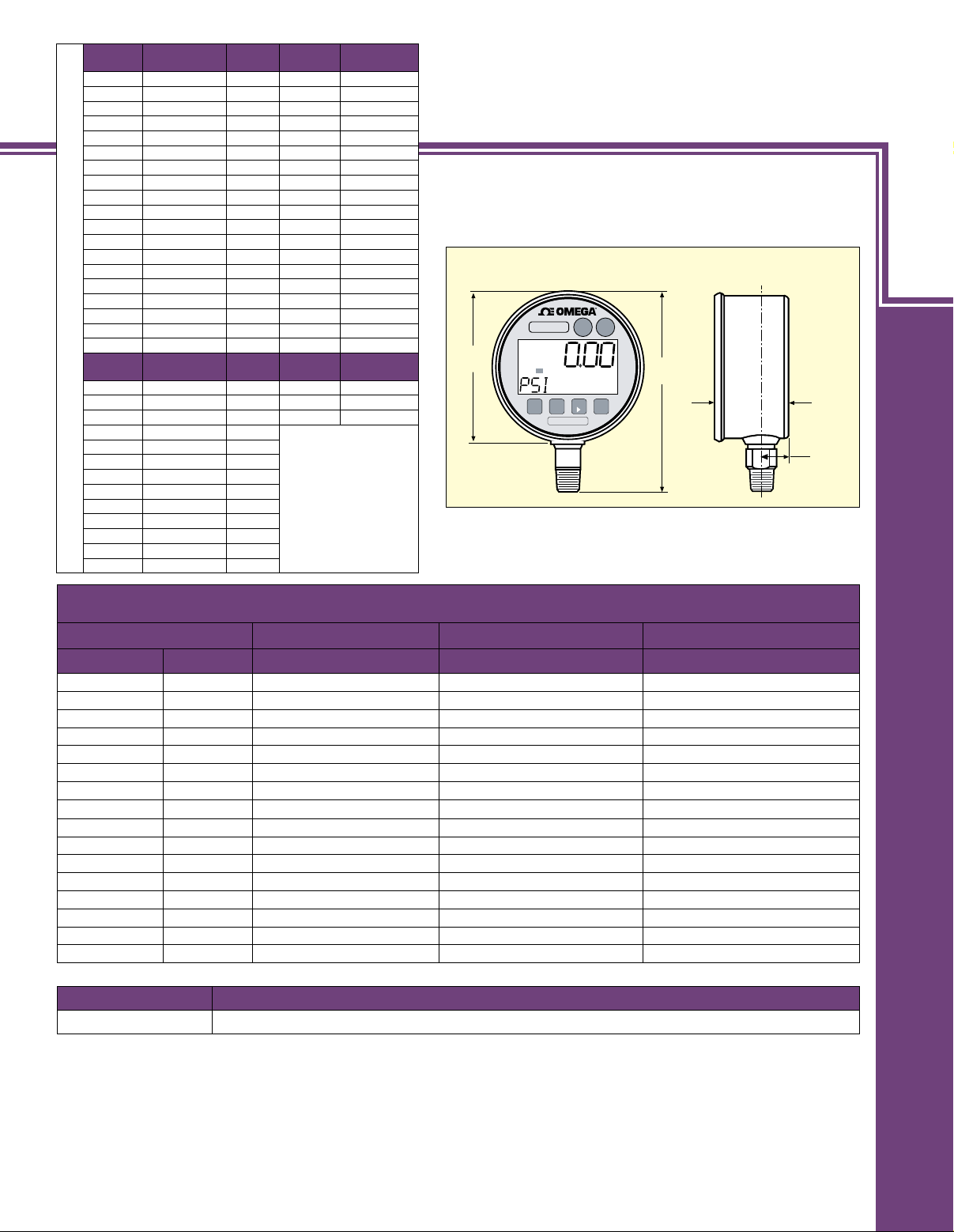

DPG7000 Series Dimensions: mm (inch)
ON
BACK
OFF
LITE
100%0%
ZERO
CONFIG
ENTER
30 psig
110
(4.34)
85
(3.34)
0.1% TEST GAUGE
MAX
MIN
CLEAR
43
(1.70)
15.5
(0.61)
PRESSURE
GAUGES
G
To Order
RANGE MODEL NO. MODEL NO. MODEL NO.
psig bar 0.25% ACCURACY 0.10% ACCURACY 0.05% ACCURACY
0 to -14.7 0 to -1
-14.7 to 15 -1 to 1
-14.7 to 30 -1 to 2
0 to 10 0 to 0.7
0 to 15 0 to 1
0 to 30 0 to 2
0 to 60 0 to 4
0 to 100 0 to 7
0 to 200 0 to 13
0 to 300 0 to 20
0 to 500 0 to 34
0 to 1000 0 to 69
0 to 2000 0 to 138
0 to 3000 0 to 207
0 to 5000 0 to 345
0 to 7000 0 to 483
ACCESSORY
MODEL NO. DESCRIPTION
DPG7000-ABS-CASE
Comes complete with stainless steel cover, padded carrying case and operator’s manual. DPG7000 0.05% units also include NIST-traceable
calibration certificate.
†
To order DPG7025 or DPG7010 units with optional NIST traceable calibration certificate, add suffix “-NIST” to model number for
additional cost.
Note: To order a range not shown in the “Most Popular Models” above, replace the range in the model number (the numbers and letters
after the “-” with the range and units you need from the “Available Range” chart (i.e., DPG7010-25 psia is a 0 to 25 psi absolute gauge with
0.10% accuracy).
Ordering Examples: DPG7010-Vac/15, compound range, vacuum to 15 psi gauge digital pressure gauge, 0.10% accuracy.
DPG7025-100, 100 psi gauge pressure digital pressure gauge, 0.25% accuracy.
DPG7025-Vac DPG7010-Vac DPG7000-Vac
DPG7025-Vac/15 DPG7010-Vac/15 DPG7000-Vac/15
DPG7025-Vac/30 DPG7010-Vac/30 DPG7000-Vac/30
DPG7025-10 DPG7010-10 DPG7000-10
DPG7025-15 DPG7010-15 DPG7000-15
DPG7025-30 DPG7010-30 DPG7000-30
DPG7025-60 DPG7010-60 DPG7000-60
DPG7025-100 DPG7010-100 DPG7000-100
DPG7025-200 DPG7010-200 DPG7000-200
DPG7025-300 DPG7010-300 DPG7000-300
DPG7025-500 DPG7010-500 DPG7000-500
DPG7025-1K DPG7010-1K DPG7000-1K
DPG7025-2K DPG7010-2K DPG7000-2K
DPG7025-3K DPG7010-3K DPG7000-3K
DPG7025-5K DPG7010-5K DPG7000-5K
DPG7025-7K DPG7010-7K DPG7000-7K
Weatherproof ABS gauge carrying case
