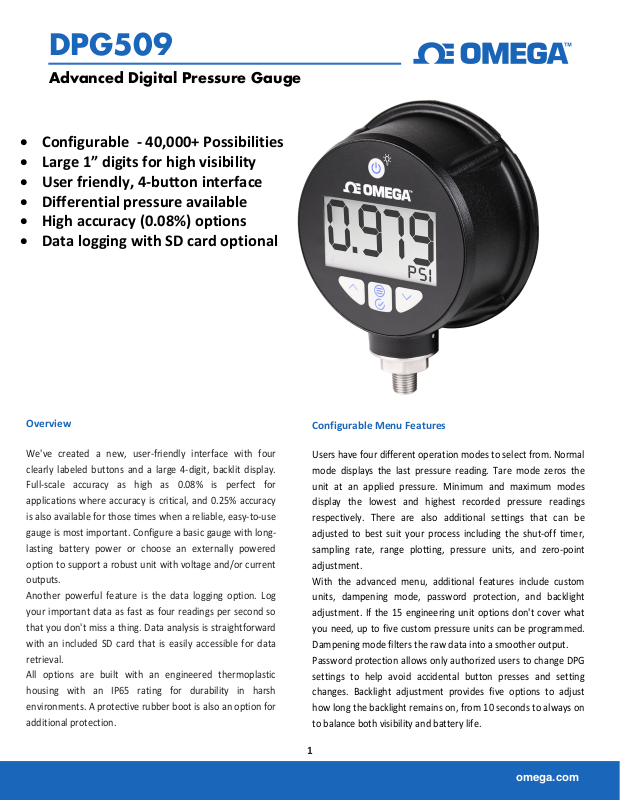

Page 1

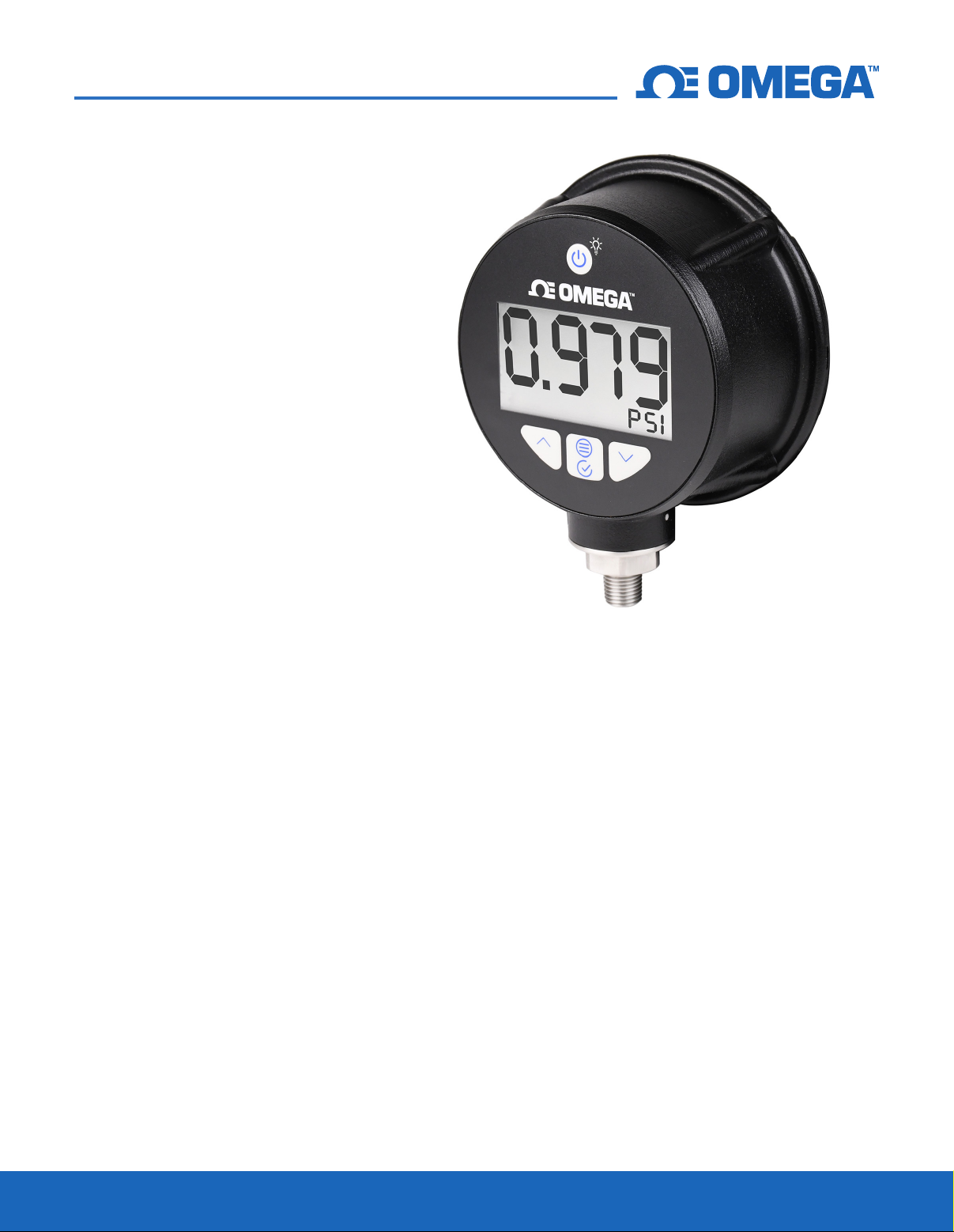

DPG509
Advanced Digital Pressure Gauge
• Configurable - 40,000+ Possibilities
• Large 1” digits for high visibility
• User friendly, 4-button interface
• Differential pressure available
• High accuracy (0.08%) options
• Data logging with SD card optional
Overview
We've created a new, user-friendly interface with four
clearly labeled buttons and a large 4-digit, backlit display.
Full-scale accuracy as high as 0.08% is perfect for
applications where accuracy is critical, and 0.25% accuracy
is also available for those times when a reliable, easy-to-use
gauge is most important. Configure a basic gauge with longlasting battery power or choose an externally powered
option to support a robust unit with voltage and/or current
outputs.
Another powerful feature is the data logging option. Log
your important data as fast as four readings per second so
that you don't miss a thing. Data analysis is straightforward
with an included SD card that is easily accessible for data
retrieval.
All options are built with an engineered thermoplastic
housing with an IP65 rating for durability in harsh
environments. A protective rubber boot is also an option for
additional protection.
Configurable Menu Features
Users have four different operation modes to select from. Normal
mode displays the last pressure reading. Tare mode zeros the
unit at an applied pressure. Minimum and maximum modes
display the lowest and highest recorded pressure readings
respectively. There are also additional settings that can be
adjusted to best suit your process including the shut-off timer,
sampling rate, range plotting, pressure units, and zero-point
adjustment.
With the advanced menu, additional features include custom
units, dampening mode, password protection, and backlight
adjustment. If the 15 engineering unit options don't cover what
you need, up to five custom pressure units can be programmed.
Dampening mode filters the raw data into a smoother output.
Password protection allows only authorized users to change DPG
settings to help avoid accidental button presses and setting
changes. Backlight adjustment provides five options to adjust
how long the backlight remains on, from 10 seconds to always on
to balance both visibility and battery life.
1
omega.com
Page 2
omega.com
DPG509
Advanced Digital Pressure Gauge
Specicaons
Configuration
Option
Accuracy (Combined Linearity,
Hysteresis and Repeatability)
Power Supply
Output
Pressure Type
Engineering Units
Protective Rubber Boot
Calibration
Data Logging
Pressure Connection Options
Long Term Stability
Battery Life (Typical)
Display
User Interface
Minimum Resistance Between
Transducer Body and any Wire
Operang Temperature
Storage Temperature (without batteries)
Pressure Cycles
Over Pressure
Materials
Enclosure rotaon aer securing uid
connecon
Weight
Environmental Rang
CE
RoHS
Vibraon
25
------------------------------------------------------------------------------------------------------------------------------------------------------
08
B
------------------------------------------------------------------------------------------------------------------------------------------------------
D
N
------------------------------------------------------------------------------------------------------------------------------------------------------
I
------------------------------------------------------------------------------------------------------------------------------------------------------
V
------------------------------------------------------------------------------------------------------------------------------------------------------
IV
A
------------------------------------------------------------------------------------------------------------------------------------------------------
D
------------------------------------------------------------------------------------------------------------------------------------------------------
G
B
------------------------------------------------------------------------------------------------------------------------------------------------------
A
B
C
D
14 options
available in
configurator
Standard
for all units
±0.25% Full Scale Span
±0.08% Full Scale Span
4 Alkaline AA Batteries are included with all configurations
DC Power through M12 connection and 4 Alkaline AA Batteries
6' M12 connector cable included with all configurations that have DC power option
None
4 to 20 mA
0 to 5 Vdc and 0 to 10 Vdc
4 to 20 mA, 0 to 5 Vdc, and 0 to 10 Vdc
Absolute
Differential
Gauge
psi, bar, mbar, inH2O, ftH2O, mmH2O, inHG, mmHG, cmHG, Pa, hPa, kPa, MPa, ATM, TORR
Includes units listed above and programmable custom units
Adds another layer of durability to the pressure gauge
5-point NIST traceable calibration is a configurable option (it does not come standard)
8 Gb Micro SD card
micro SD is included with configurations that have data logging option
Can accept up to 32 Gb Micro SD
1/4-18 NPT, 1/8-27 NPT, BSPP 1/8 B, BSPP 1/4 B, 7/16-20 UNF
(MS33656-04), 9/16-18 UNF, M12x1.5
All connections available as male or female types.
±0.3% Span/Year
1,000 hours (no backlight usage)
4-digit LCD with backlight and 25 mm (1”) character height
4 membrane key switches
100 MOhms @100 VDC
-17°C to 54°C (0°F to 130°F)
-40°C to 82°C (-40°F to 180°F)
1 million
1.5 x rated pressure
Enclosure: Engineered Thermoplastic
Sensor Wetted Parts: 316L Stainless Steel, Viton Seal
±150°
1.25 lbs
IP65
EN61326-1: 2012
2015/863
ASME B40.7
2
Page 3

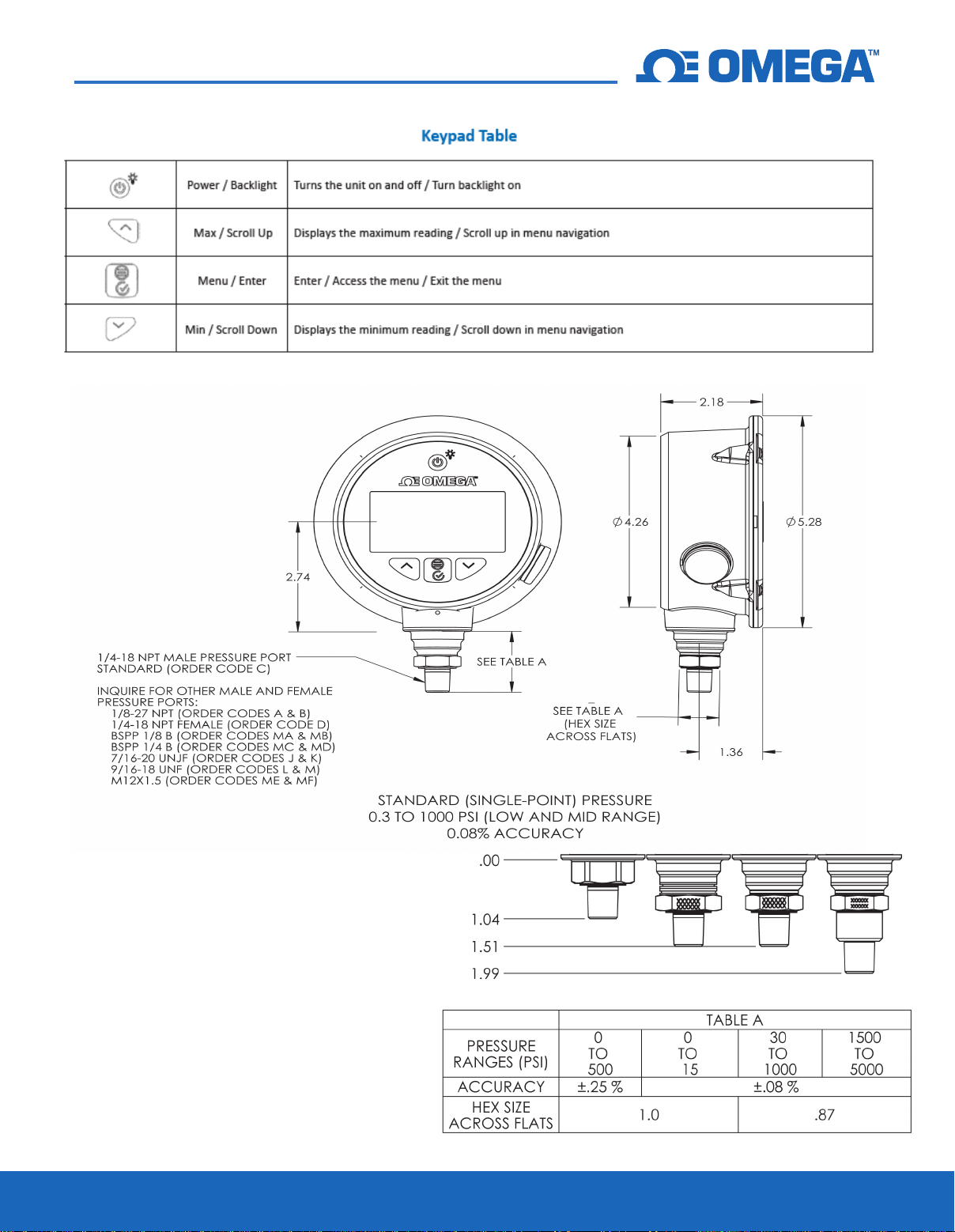

DPG509 Dimensions & Pressure Ports
DPG509
Advanced Digital Pressure Gauge
3
omega.com
Page 4

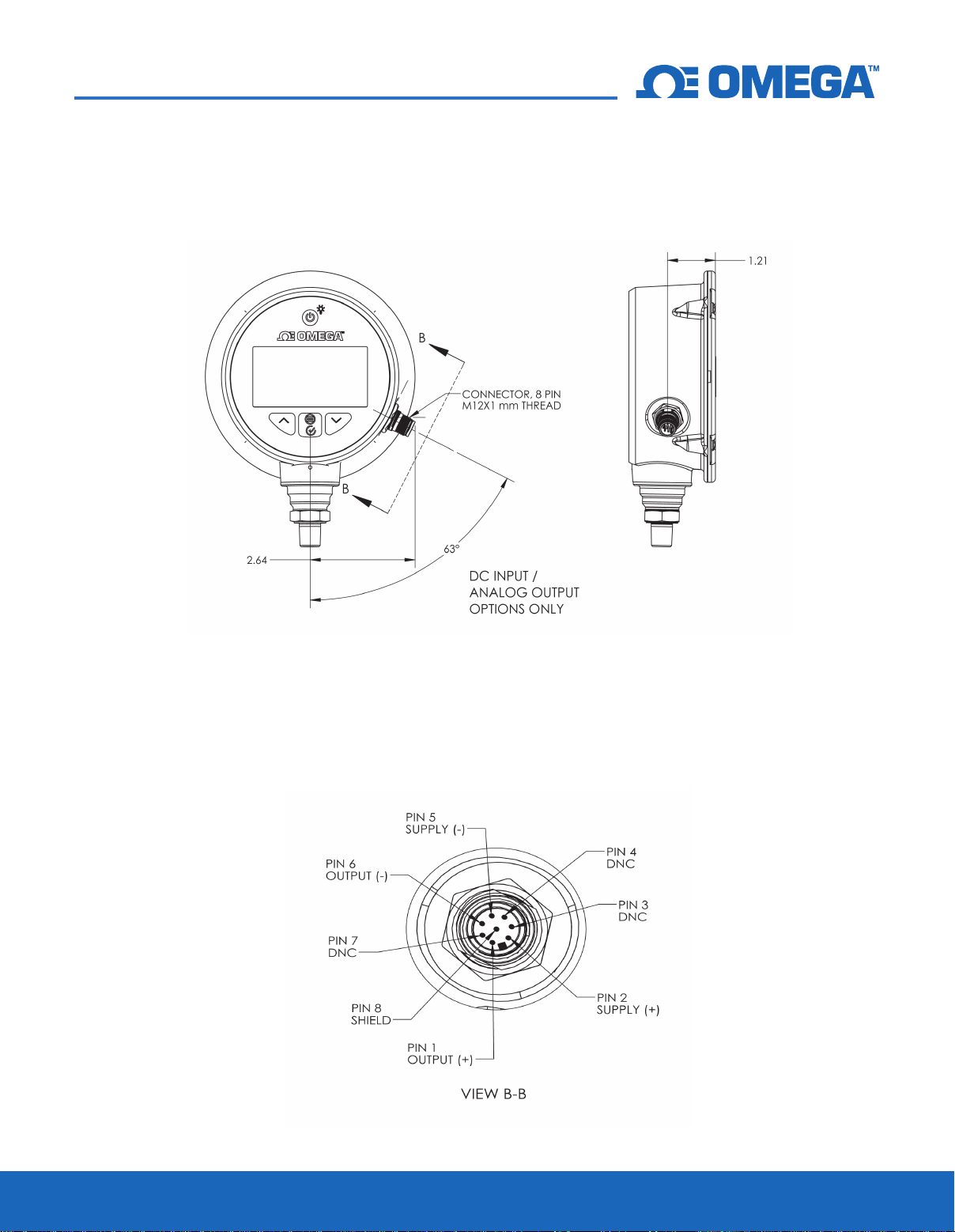

DPG509 Dimensions for Units with DC Power
M12 Pin-Out for DC Power and Analog Output
DPG509
Advanced Digital Pressure Gauge
4
omega.com
Page 5

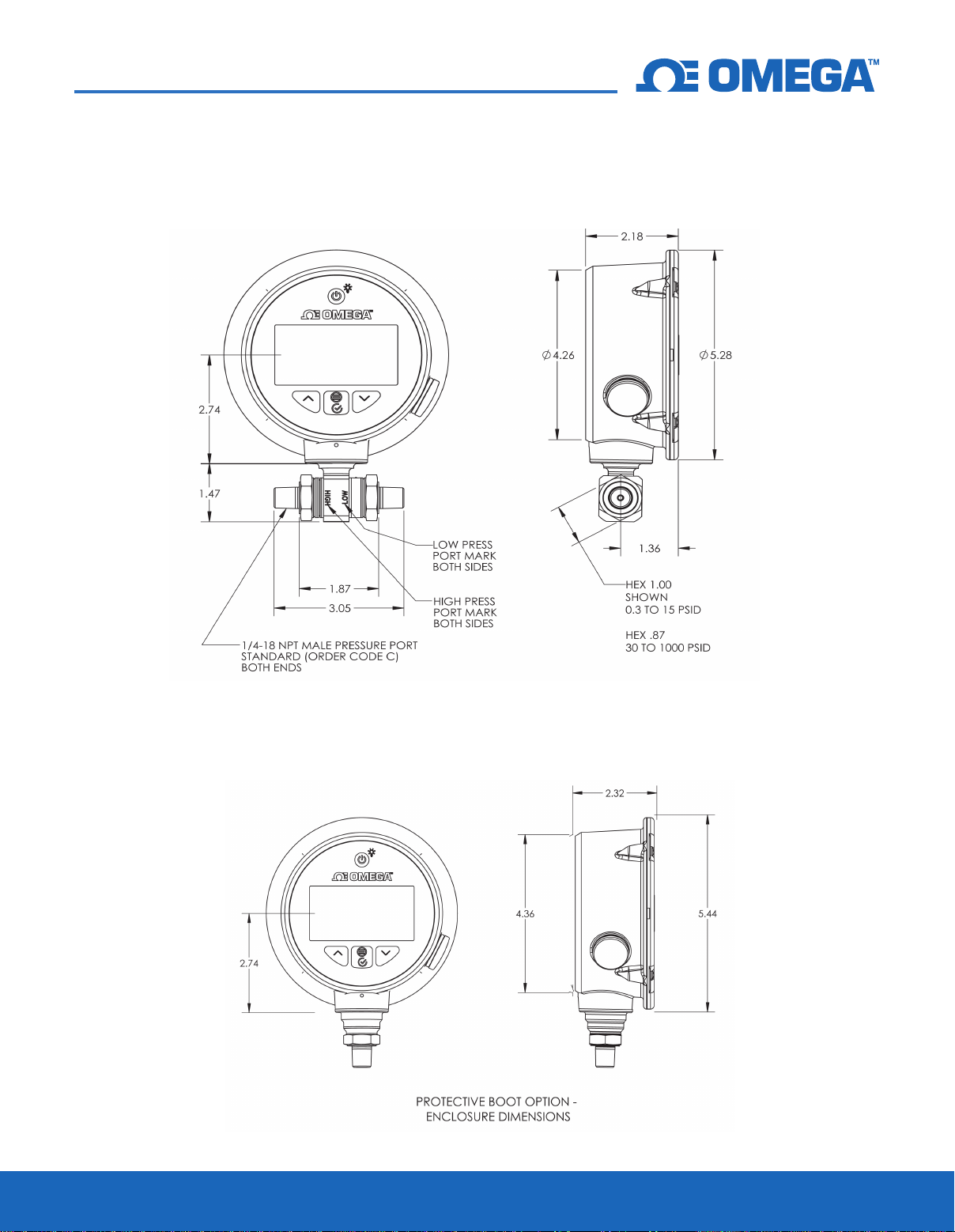

DPG509 Differential Unit Dimensions
DPG509 Protective Boot Dimensions
DPG509
Advanced Digital Pressure Gauge
5
omega.com
Page 6

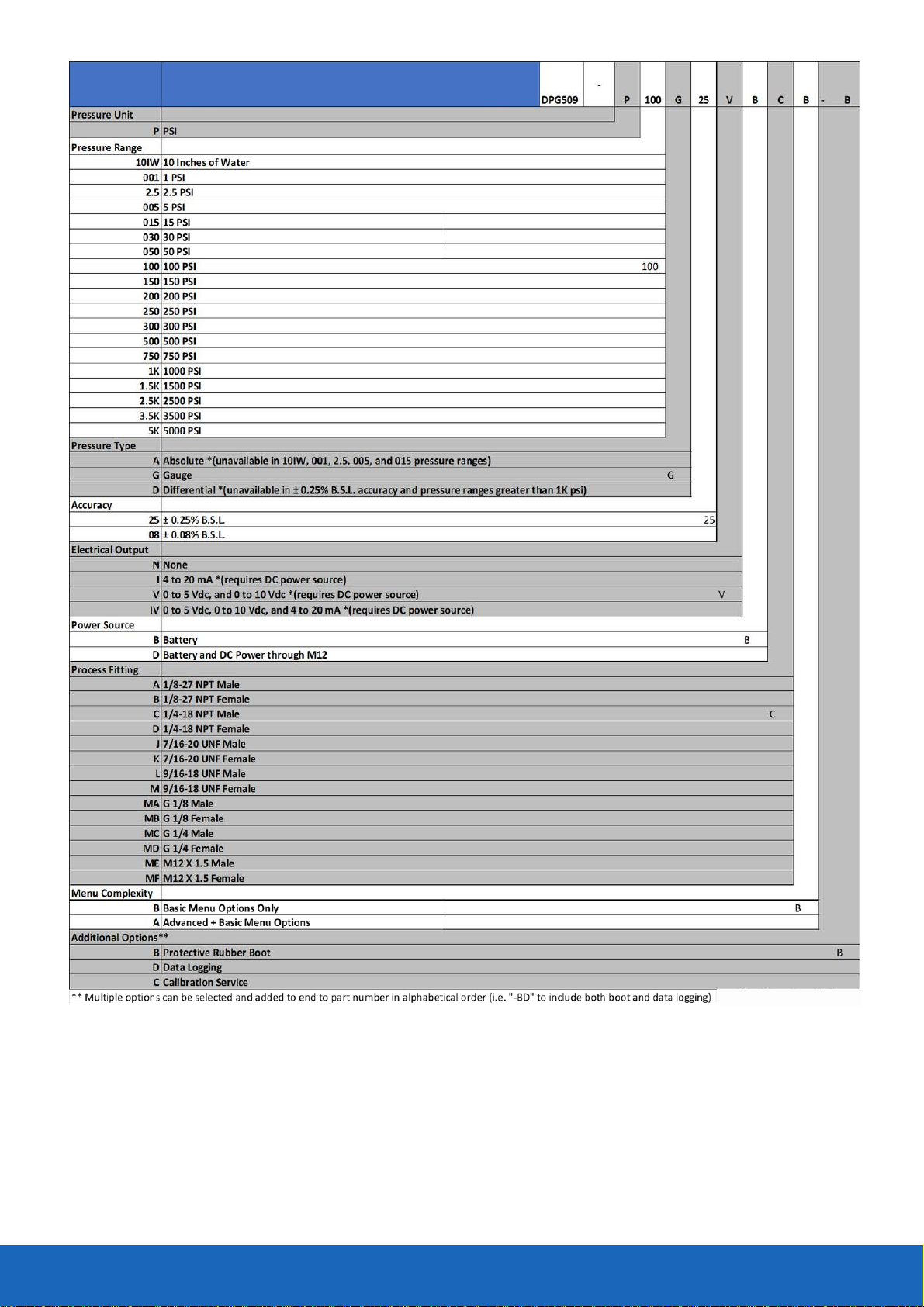

Part number
value
Description Example:
6
omega.com
