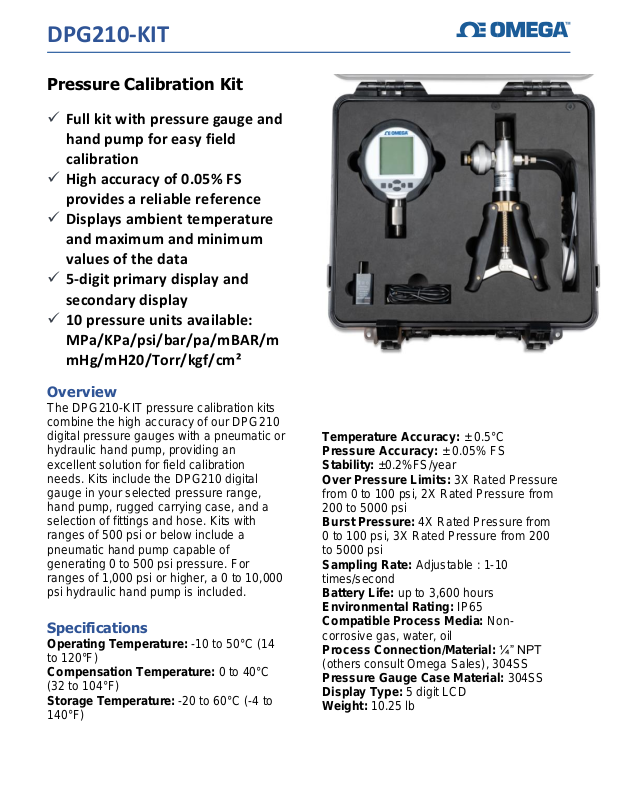

Pressure Calibration Kit
✓ Full kit with pressure gauge and
hand pump for easy field
calibration
✓ High accuracy of 0.05% FS
provides a reliable reference
✓ Displays ambient temperature
and maximum and minimum
values of the data
✓ 5-digit primary display and
secondary display
✓ 10 pressure units available:
MPa/KPa/psi/bar/pa/mBAR/m
mHg/mH20/Torr/kgf/cm²
Overview
The DPG210-KIT pressure calibration kits
combine the high accuracy of our DPG210
digital pressure gauges with a pneumatic or
hydraulic hand pump, providing an
excellent solution for field calibration
needs. Kits include the DPG210 digital
gauge in your selected pressure range,
hand pump, rugged carrying case, and a
selection of fittings and hose. Kits with
ranges of 500 psi or below include a
pneumatic hand pump capable of
generating 0 to 500 psi pressure. For
ranges of 1,000 psi or higher, a 0 to 10,000
psi hydraulic hand pump is included.
Specifications
Operating Temperature: -10 to 50°C (14
to 120°F)
Compensation Temperature: 0 to 40°C
(32 to 104°F)
Storage Temperature: -20 to 60°C (-4 to
140°F)
Temperature Accuracy: ± 0.5°C
Pressure Accuracy: ± 0.05% FS
Stability: ±0.2%FS/year
Over Pressure Limits: 3X Rated Pressure
from 0 to 100 psi, 2X Rated Pressure from
200 to 5000 psi
Burst Pressure: 4X Rated Pressure from
0 to 100 psi, 3X Rated Pressure from 200
to 5000 psi
Sampling Rate: Adjustable : 1-10
times/second
Battery Life: up to 3,600 hours
Environmental Rating: IP65
Compatible Process Media: Non-
corrosive gas, water, oil
Process Connection/Material: ¼” NPT
(others consult Omega Sales), 304SS
Pressure Gauge Case Material: 304SS
Display Type: 5 digit LCD
Weight: 10.25 lb
DPG210-KIT
