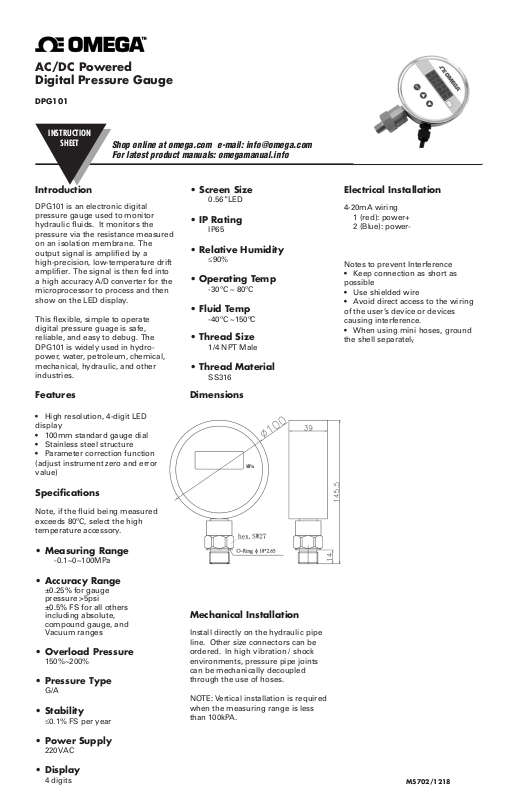

AC/DC Powered
Digital Pressure Gauge
DPG101
INSTRUCTION
SHEET
Shop online at omega.com e-mail: [email protected]
For latest product manuals: omegamanual.info
Introduction
DPG101 is an electronic digital
pressure gauge used to monitor
hydraulic fluids. It monitors the
pressure via the resistance measured
on an isolation membrane. The
output signal is amplified by a
high-precision, low-temperature drift
amplifier. The signal is then fed into
a high accuracy A/D converter for the
microprocessor to process and then
show on the LED display.
This flexible, simple to operate
digital pressure guage is safe,
reliable, and easy to debug. The
DPG101 is widely used in hydropower, water, petroleum, chemical,
mechanical, hydraulic, and other
industries.
Features
• High resolution, 4-digit LED
display
• 100mm standard gauge dial
• Stainless steel structure
• Parameter correction function
(adjust instrument zero and error
value)
Specifications
Note, if the fluid being measured
exceeds 80ºC, select the high
temperature accessory.
• Measuring Range
-0.1~0~100MPa
• Accuracy Range
±0.25% for gauge
pressure >5psi
±0.5% FS for all others
including absolute,
compound gauge, and
Vacuum ranges
• Overload Pressure
150%~200%
• Pressure Type
G/A
• Stability
≤0.1% FS per year
• Power Supply
220VAC
• Display
4 digits
• Screen Size
0.56”LED
• IP Rating
IP65
• Relative Humidity
≤90%
• Operating Temp
-30ºC ~ 80ºC
• Fluid Temp
-40ºC ~150ºC
• Thread Size
1/4 NPT Male
• Thread Material
SS316

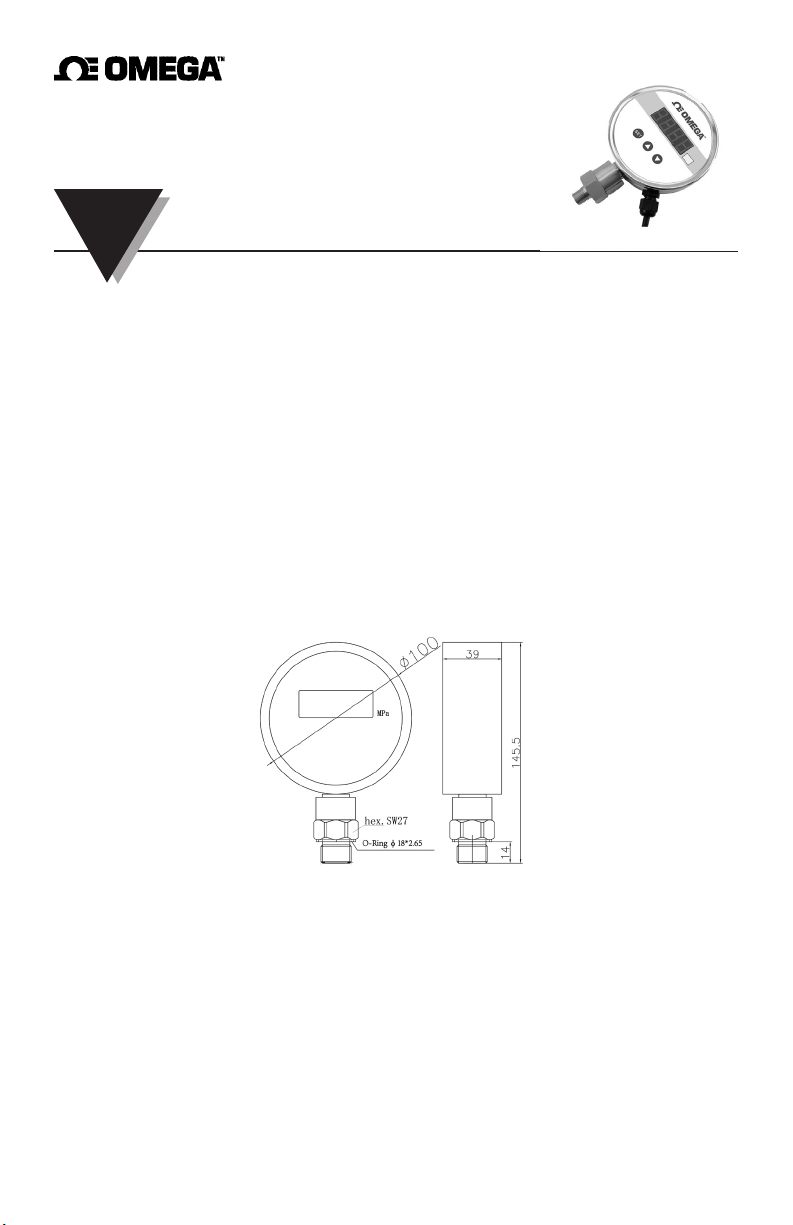

Dimensions
Mechanical Installation
Install directly on the hydraulic pipe
line. Other size connectors can be
ordered. In high vibration / shock
environments, pressure pipe joints
can be mechanically decoupled
through the use of hoses.
NOTE: Vertical installation is required
when the measuring range is less
than 100kPA.
Electrical Installation
4-20mA wiring
1 (red): power+
2 (Blue): power-
Notes to prevent Interference
• Keep connection as short as
possible
• Use shielded wire
• Avoid direct access to the wiring
of the user’s device or devices
causing interference.
• When using mini hoses, ground
the shell separately
M5702/
1218
