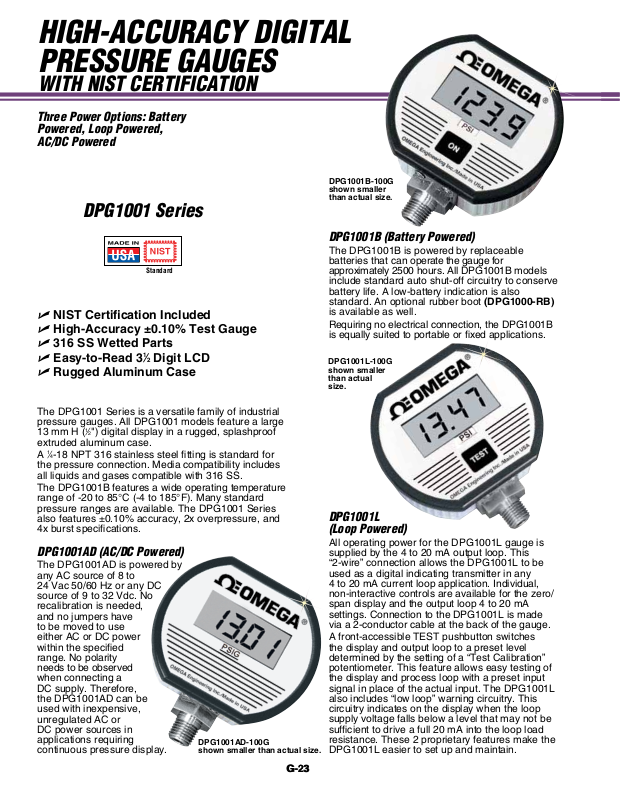

HIGH-ACCURACY DIGITAL
PRESSURE GAUGES
WITH NIST CERTIFICATION
Three Power Options: Battery
Powered, Loop Powered,
AC/DC Powered

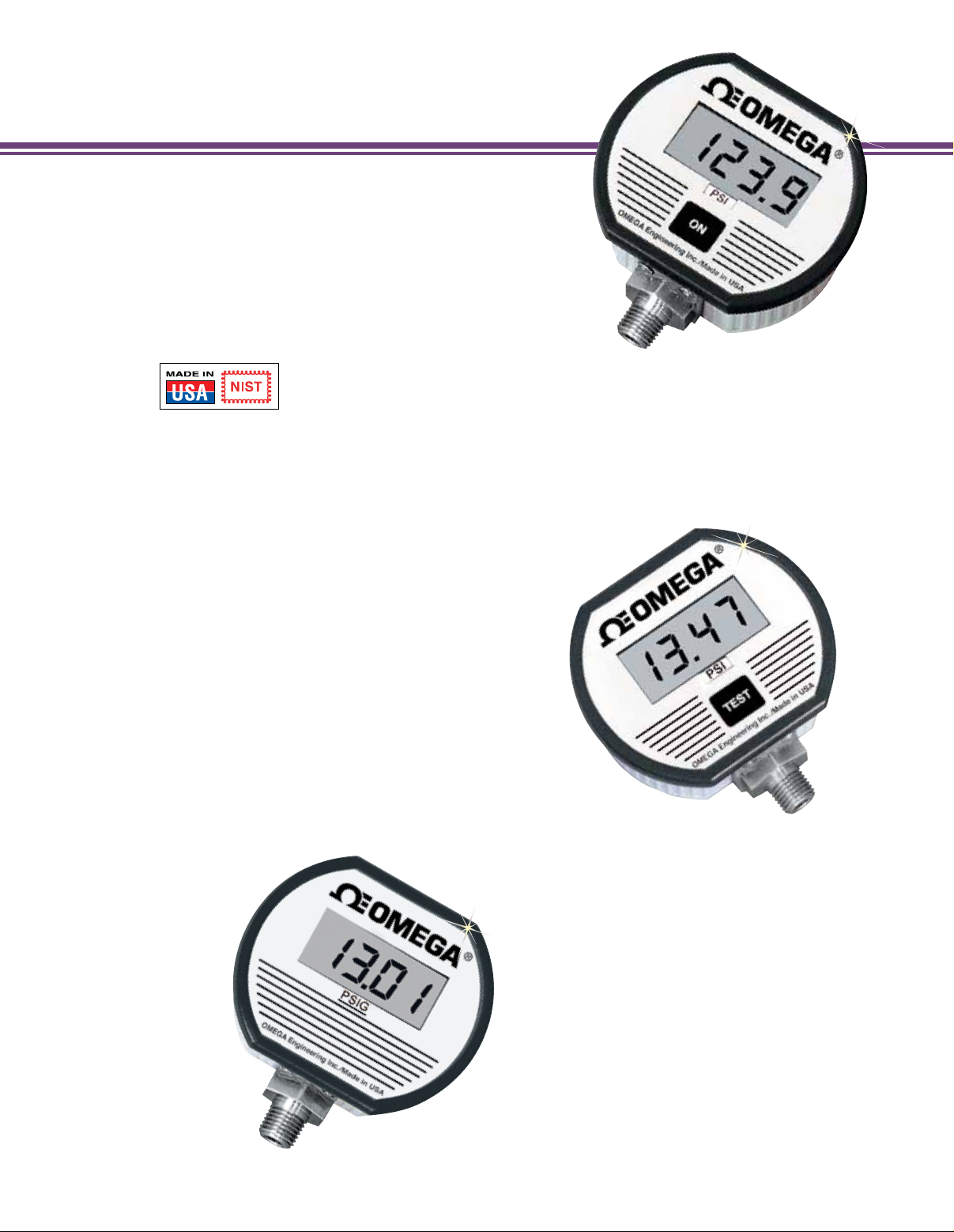

DPG1001B-100G
shown smaller
than actual size.
DPG1001 Series
DPG1001B (Battery Powered)
The DPG1001B is powered by replaceable
Standard
U NIST Certification Included
U High-Accuracy ±0.10% Test Gauge
U 316 SS Wetted Parts
1
U Easy-to-Read 3
⁄2 Digit LCD
U Rugged Aluminum Case
batteries that can operate the gauge for
approximately 2500 hours. All DPG1001B models
include standard auto shut-off circuitry to conserve
battery life. A low-battery indication is also
standard. An optional rubber boot (DPG1000-RB)
is available as well.
Requiring no electrical connection, the DPG1001B
is equally suited to portable or fixed applications.
DPG1001L-100G
shown smaller
than actual
size.
The DPG1001 Series is a versatile family of industrial
pressure gauges. All DPG1001 models feature a large
13 mm H (
extruded aluminum case.
1
⁄4-18 NPT 316 stainless steel fitting is standard for
A
the pressure connection. Media compatibility includes
all liquids and gases compatible with 316 SS.
The DPG1001B features a wide operating temperature
range of -20 to 85°C (-4 to 185°F). Many standard
pressure ranges are available. The DPG1001 Series
also features ±0.10% accuracy, 2x overpressure, and
4x burst specifications.
1
⁄2") digital display in a rugged, splashproof
DPG1001AD (AC/DC Powered)
The DPG1001AD is powered by
any AC source of 8 to
24 Vac 50/60 Hz or any DC
source of 9 to 32 Vdc. No
recalibration is needed,
and no jumpers have
to be moved to use
either AC or DC power
within the specified
range. No polarity
needs to be observed
when connecting a
DC supply. Therefore,
the DPG1001AD can be
used with inexpensive,
unregulated AC or
DC power sources in
applications requiring
continuous pressure display.
DPG1001AD-100G
shown smaller than actual size.
DPG1001L
(Loop Powered)
All operating power for the DPG1001L gauge is
supplied by the 4 to 20 mA output loop. This
“2-wire” connection allows the DPG1001L to be
used as a digital indicating transmitter in any
4 to 20 mA current loop application. Individual,
non-interactive controls are available for the zero/
span display and the output loop 4 to 20 mA
settings. Connection to the DPG1001L is made
via a 2-conductor cable at the back of the gauge.
A front-accessible TEST pushbutton switches
the display and output loop to a preset level
determined by the setting of a “Test Calibration”
potentiometer. This feature allows easy testing of
the display and process loop with a preset input
signal in place of the actual input. The DPG1001L
also includes “low loop” warning circuitry. This
circuitry indicates on the display when the loop
supply voltage falls below a level that may not be
sufficient to drive a full 20 mA into the loop load
resistance. These 2 proprietary features make the
DPG1001L easier to set up and maintain.
G-23G-23
Page 2
P-DPG500 Fig. 1
HIGH-ACCURACY DIGITAL PRESSURE GAUGES
SPECIFICATIONS
Power:
DPG1001B: 2 “AA” batteries
(included) provide up to 2500 hr life
typically; auto shut-off: 5 minutes;
LOBAT indication
DPG1001L: 8 to 32 Vdc at gauge;
reverse polarity protected
DPG1001AD: 8 to 24 Vac 50/60 Hz
or 9 to 32 Vdc; 5 mA max
Standard Ranges: 0 to 5.00,
0 to 15.00, 0 to 100.0, 0 to 500,
0 to 1000 psi gauge
Display Type/Size: LCD, 13 mm (0.5")
digit height, 3 readings per second
Controls and Location:
DPG1001B and DPG1001AD:
Display zero/span, non-interactive,
±15% range; top-accessible,
multiturn potentiometers
DPG1001L: Display zero/span,
non-interactive, ±15% range;
test calibration level, 0 to 100%
range; top-accessible, multiturn
potentiometers; loop 4 mA and
20 mA internal potentiometers
Accuracy: ±0.10% FSO or better,
±1 least-significant digit (includes
linearity, hysteresis, repeatability);
NIST certificate included
Temperature Stability:
±0.003% of span per ºC (typical)
±0.01% of span per ºC (max)
0 to 70°C (-18 to 158°F)
Storage Temperature: -55 to 95°C
(-67 to 203°F)
Operating Temperature: -20 to 85°C
(-4 to 185°F)
Compensated Temperature:
0 to 70°C (32 to 158°F)
Weight: Approx. 255 g (9 oz)
Standard Case: Extruded aluminum
case, epoxy powder coated; polycarbonate cover, front and rear gaskets
Pressure Connection:
316 SS,
Wetted Parts: 316 SS
Electrical Connection: 0.9 m (3')
2-conductor 22 AWG cable (none
required on DPG1001B)
Overpressure: 2x rated pressure min
Burst Pressure: 4x rated pressure min
1
⁄4-18 MNPT
1
⁄4 NPT Pressure
Snubbers
PS-4G = Gas
PS-4E = Lt Oil
PS-4D = Dense Lq
PSIG
OMEGA Engineering Inc./Made in USA
1
⁄4NPT
W

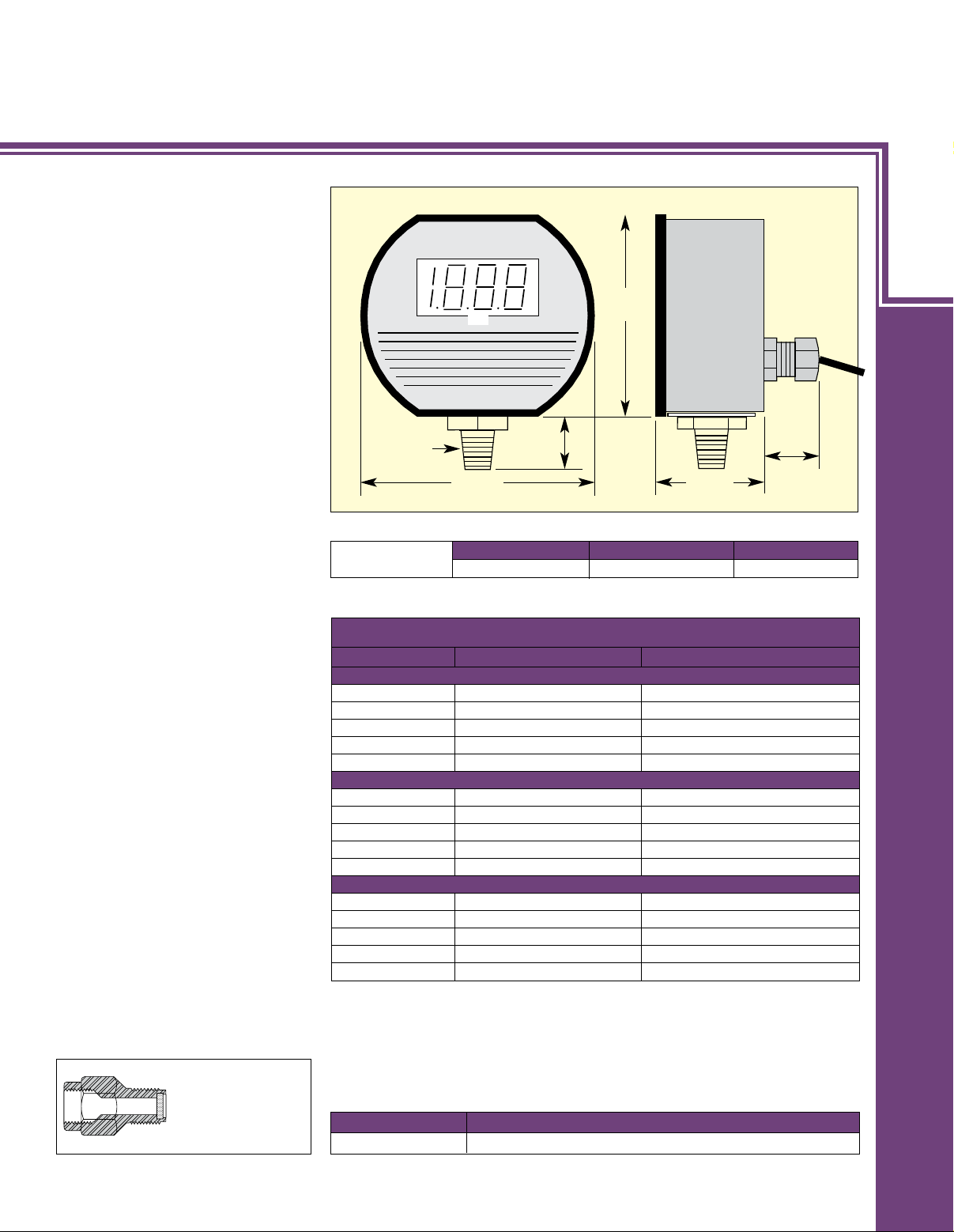

Dimensions: mm (inch)
W H D
Standard Case 86 (3.38) 73 (2.88) 42 (1.65)
To Order Visit omega.com/dpg1001 for Pricing and Details
RANGE (psi) MODEL NO. COMPATIBLE METERS
BATTERY POWERED - STANDARD CASE
0 to 5.00 DPG1001B-05G N/A
0 to 15.00 DPG1001B-15G N/A
0 to 100.0 DPG1001B-100G N/A
0 to 500 DPG1001B-500G N/A
0 to 1000 DPG1001B-1KG N/A
LOOP POWERED - STANDARD CASE
0 to 5.00 DPG1001L-05G DP41-E, DP25B-E, DP24-E
0 to 15.00 DPG1001L-15G DP41-E, DP25B-E, DP24-E
0 to 100.0 DPG1001L-100G DP41-E, DP25B-E, DP24-E
0 to 500 DPG1001L-500G DP41-E, DP25B-E, DP24-E
0 to 1000 DPG1001L-1KG DP41-E, DP25B-E, DP24-E
AC/DC POWERED - STANDARD CASE
0 to 5.00 DPG1001AD-05G N/A
0 to 15.00 DPG1001AD-15G N/A
0 to 100.0 DPG1001AD-100G N/A
0 to 500 DPG1001AD-500G N/A
0 to 1000 DPG1001AD-1KG N/A
Comes complete with operator’s manual.
To order wall-mount 115 Vac power supply, specify DPG1000-PS.
Custom ranges not available.
Ordering Example: DPG1001B-100G, high-accuracy battery-powered digital gauge with a
range of 0 to 100.0 psig, NIST certificate included.
ACCESSORY
MODEL NO. DESCRIPTION
DPG1000-PS Wall-mount 115 Vac power supply
Dimensions: mm (inch)
19
(0.75)
PRESSURE
GAUGES
G
H
D
G-24
