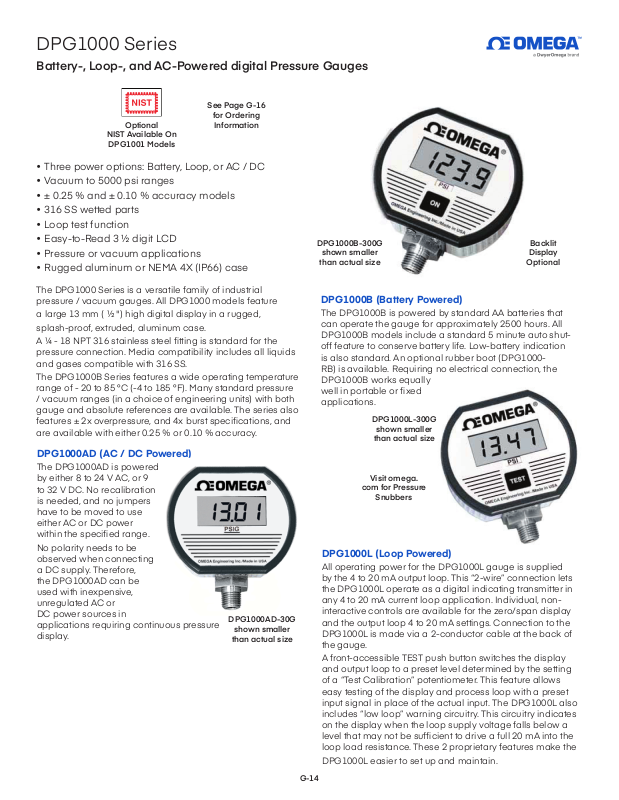

DPG1000 Series
Battery-, Loop-, and AC-Powered digital Pressure Gauges
See Page G-16
Optional
NIST Available On
DPG1001 Models
• Three power options: Battery, Loop, or AC / DC
• Vacuum to 5000 psi ranges
• ± 0.25 % and ± 0.10 % accuracy models
• 316 SS wetted parts
• Loop test function
• Easy-to-Read 3 ½ digit LCD
• Pressure or vacuum applications
• Rugged aluminum or NEMA 4X (IP66) case
for Ordering
Information

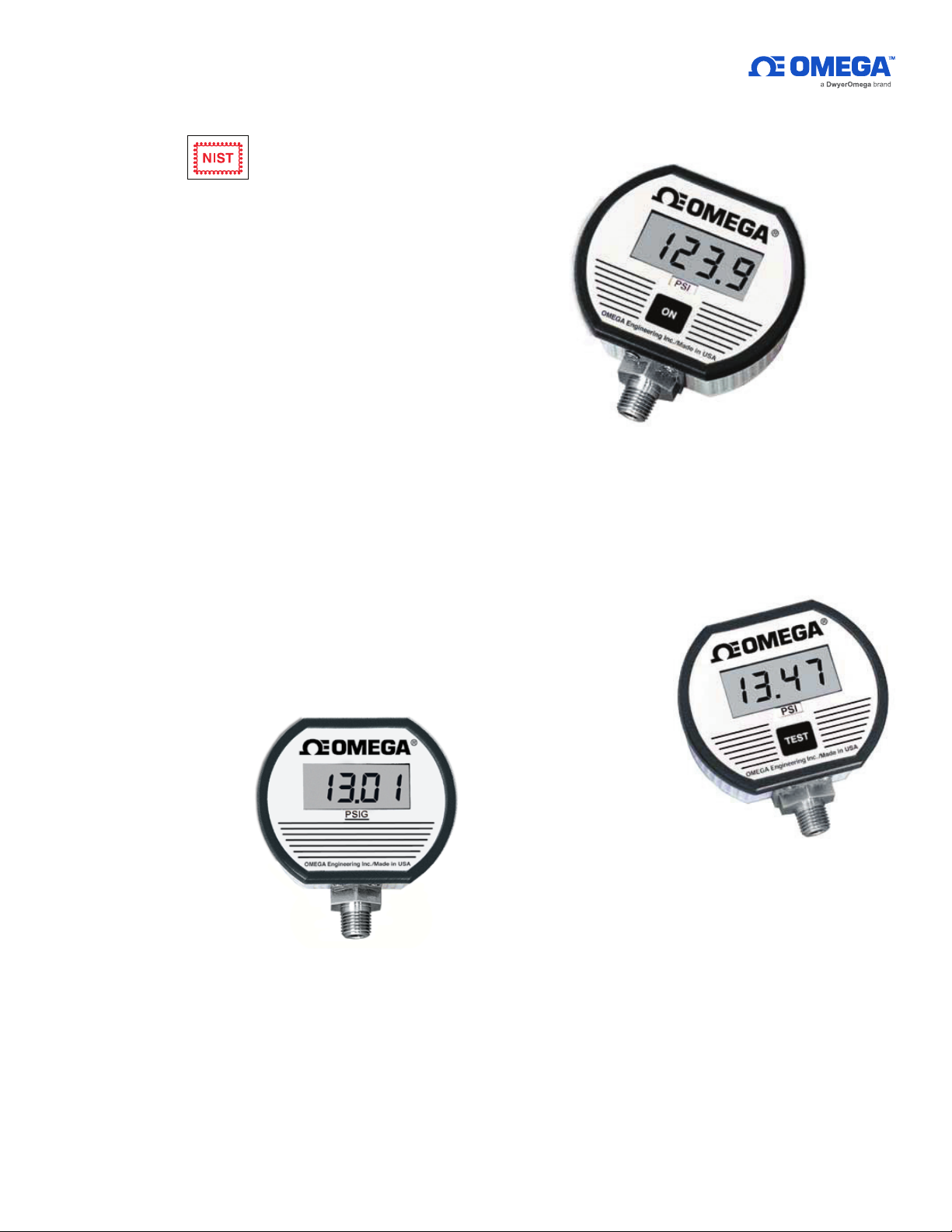

DPG1000B-300G
shown smaller
than actual size
Backlit
Display
Optional
The DPG1000 Series is a versatile family of industrial
pressure / vacuum gauges. All DPG1000 models feature
a large 13 mm ( ½ ") high digital display in a rugged,
splash-proof, extruded, aluminum case.
pressure connection. Media compatibility includes all liquids
and gases compatible with 316 SS.
The DPG1000B Series features a wide operating temperature
range of - 20 to 85 °C (-4 to 185 °F). Many standard pressure
/ vacuum ranges (in a choice of engineering units) with both
gauge and absolute references are available. The series also
are available with either 0.25 % or 0.10 % accuracy.
DPG1000AD (AC / DC Powered)
The DPG1000AD is powered
by either 8 to 24 V AC, or 9
to 32 V DC. No recalibration
is needed, and no jumpers
have to be moved to use
either AC or DC power
No polarity needs to be
observed when connecting
a DC supply. Therefore,
the DPG1000AD can be
used with inexpensive,
unregulated AC or
DC power sources in
applications requiring continuous pressure
display.
DPG1000AD-30G
shown smaller
than actual size
DPG1000B (Battery Powered)
The DPG1000B is powered by standard AA batteries that
can operate the gauge for approximately 2500 hours. All
DPG1000B models include a standard 5 minute auto shutoff feature to conserve battery life. Low-battery indication
is also standard. An optional rubber boot (DPG1000RB) is available. Requiring no electrical connection, the
DPG1000B works equally
applications.
DPG1000L-300G
shown smaller
than actual size
Visit omega.
com for Pressure
Snubbers
DPG1000L (Loop Powered)
All operating power for the DPG1000L gauge is supplied
by the 4 to 20 mA output loop. This “2-wire” connection lets
the DPG1000L operate as a digital indicating transmitter in
any 4 to 20 mA current loop application. Individual, noninteractive controls are available for the zero/span display
and the output loop 4 to 20 mA settings. Connection to the
DPG1000L is made via a 2-conductor cable at the back of
the gauge.
A front-accessible TEST push button switches the display
and output loop to a preset level determined by the setting
of a “Test Calibration” potentiometer. This feature allows
easy testing of the display and process loop with a preset
input signal in place of the actual input. The DPG1000L also
includes “low loop” warning circuitry. This circuitry indicates
on the display when the loop supply voltage falls below a
loop load resistance. These 2 proprietary features make the
DPG1000L easier to set up and maintain.
G-14
Page 2

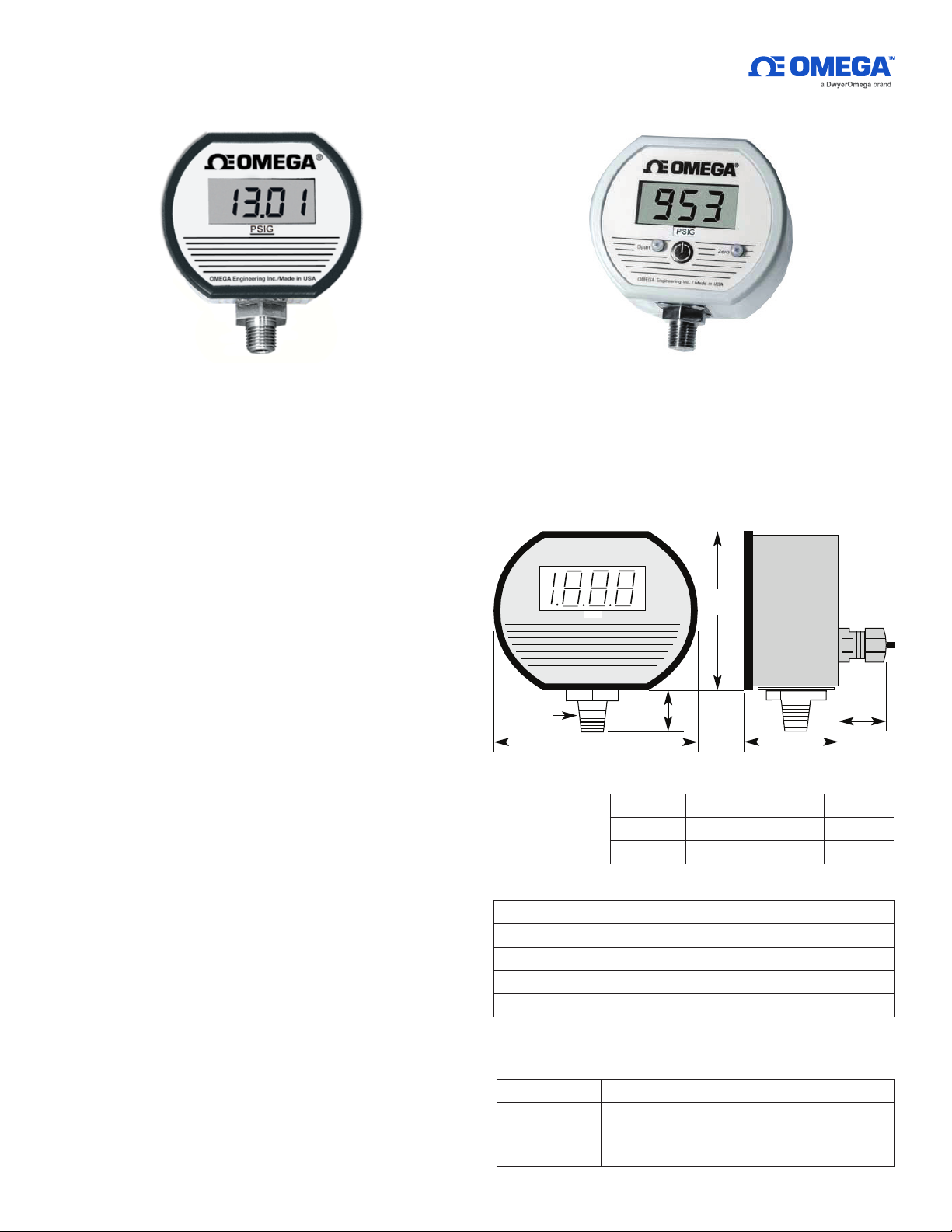

Battery-, Loop-, and AC-Powered Digital Pressure Gauges
OMEGA Engineering Inc./Made in USA
H
W
19
(0.75)
19
(0.75)
D
PSIG
1
⁄4NPT
Dimensions: mm (inch)
DPG1000L-300G
shown smaller than
actual size
Specications
Power: 2 “AA” batteries (included), provide
B Models: Up to 2500 hr life typically; auto shut-off: 5 min;
LOBAT indication
L Models: 8 to 32 V DC at gauge; reverse polarity
protected
AD Models: 8 to 24 V AC 50 to 60 Hz or 9 to 32
V DC; 5 mA max
Pressure / Vacuum Reference: Gage (psig) or absolute (psia)
Optional Units: Gauge can be factory scaled to any
engineering unit such as: psi, kPa, bar, mbar, inHg, inHO,
mmHg, ftHO, torr, kg/cm
Display Type/Size: LCD, 13 mm (0.5 ") digit height, 3 readings
per second
Controls and Location:
B and AD models: Display zero / span, non-interactive, ±
15 % range; top-accessible, multi-turn potentiometers
L Models: Display zero/span, non-interactive, ± 15 %
range; test calibration level, 0 to 100 % range; top accessible, multi-turn potentiometers; loop 4 mA and 20
mA internal potentiometers
Accuracy:
DPG1000/1100: ± 0.25 % FSO or better, ± 1 least
repeatability)
DPG1001:
digit (includes linearity, hysteresis, repeatability)
Temperature Stability [25 °C (77 °F)]:
DPG1000/1100: ± 0.25 % FSO or better, ± 1 least
repeatability) ± 1 % FS for offset and span, 0 to 70 °C (32
to 158 °F) typical; ± 2 % FS for offset and span, 0 to 70 °C
(32 to 158 °F) typical for 3 and 5 psi range
DPG1001
digit (includes linearity, hysteresis, repeatability); optional
Operating Temperature: -20 to 85°C (-4 to 185°F)
Compensated Temperature: 0 to 70°C (32 to 158°F) Storage
Temperature: -55 to 95°C (-67 to 203°F) Weight: Approx. 255
g (9 oz)
Standard Case: Extruded aluminum case, epoxy powder
coated; poly-carbonate cover, front and rear gaskets
NEMA 4X Case (DPG1100 models): UV stabilized
polycarbonate/ABS case, clear polycarbonate window,
gasketed rear cover, captive SS screws
DPG1100B-1KG
with NEMA 4X case
shown smaller than
actual size
To order NEMA 4X
case, specify model
number DPG1100
Pressure/Vacuum Connection:
Wetted Parts: 316 SS
Electrical Connection: 0.9 m (3') 2-conductor 22 AWG cable
(none required on DPG1000B)
Overpressure: 2x rated pressure min
Burst Pressure: 4x rated pressure min
Dimensions: mm (inch)
Dimensions: mm (inch)
W H D
Std Case
NEMA 4X
86 (3.38) 73 (2.88) 42 (1.65)
89 (3.5) 76 (3.0) 51 (2.0)
Options
Order Sufx Description
-F10
-F30
-NS
BL
* Not available with DPG1000L models, with compound range "30 V
100 G" models, or with DPGL1001 models.
10 min auto shut-off for DPG1000B units
30 min auto shut-off for DPG1000B units
No auto shut-off for DPG1000B units
Backlit display*
Accessories
Model No. Description
DPG1000-PS
Wall mount 115 V AC power supply for
DPG1000AD units
DPG1000-RB
G-15
Rubber boot for DPG1000B units
Page 3
To Order
Range (PSI) ± 0.25 % Accuracy Standard
Case
Battery Powered
-30 inHg to 100.0
0 to 5.00
0 to 15.00
0 to 30.0
0 to 60.0
0 to 100.0
0 to 300
0 to 500
0 to 1000
0 to 2000
0 to 3000
0 to 5000
DPG1000B-30V100G DPG1100B-30V100G -
DPG1000B-05G DPG1100B-05G DPG1001B-05G
DPG1000B-15G DPG1100B-15G DPG1001B-15G
DPG1000B-30G DPG1100B-30G -
DPG1000B-60G DPG1100B-60G DPG1001B-60G
DPG1000B-100G DPG1100B-100G DPG1001B-100G
DPG1000B-300G DPG1100B-300G -
DPG1000B-500G DPG1100B-500G DPG1001B-500G
DPG1000B-1KG DPG1100B-1KG DPG1001B-1KG
DPG1000B-2KG DPG1100B-2KG -
DPG1000B-3KG - -
DPG1000B-5KG - -
Loop Powered - Backlight Not Available
0 to 5.00
0 to 15.00
0 to 30.0
0 to 60.0
0 to 100.0
0 to 300
0 to 500
0 to 1000
0 to 2000
0 to 3000
0 to 5000
DPG1000L-05G DPG1100L-05G DPG1001L-05G
DPG1000L-15G DPG1100L-15G DPG1001L-15G
DPG1000L-30G DPG1100L-30G -
DPG1000L-60G DPG1100L-60G DPG1001L-60G
DPG1000L-100G DPG1100L-100G DPG1001L-100G
DPG1000L-300G DPG1100L-300G -
DPG1000L-500G DPG1100L-500G DPG1001L-500G
DPG1000L-1KG DPG1100L-1KG DPG1001L-1KG
DPG1000L-2KG DPG1100L-2KG -
DPG1000L-3KG - -
DPG1000L-5KG - -
AC / DC Powered
-30 inHg to 100.0
0 to 5.00
0 to 15.00
0 to 30.0
0 to 60.0
0 to 100.0
0 to 300
0 to 500
0 to 1000
0 to 2000
0 to 3000
0 to 5000
DPG1000AD-30V100G DPG1100AD-30V100G -
DPG1000AD-05G DPG1100AD-05G DPG1001AD-05G
DPG1000AD-15G DPG1100AD-15G DPG1001AD-15G
DPG1000AD-30G DPG1100AD-30G -
DPG1000AD-60G DPG1100AD-60G DPG1001AD-60G
DPG1000AD-100G DPG1100AD-100G DPG1001AD-100G
DPG1000AD-300G DPG1100AD-300G -
DPG1000AD-500G DPG1100AD-500G DPG1001AD-500G
DPG1000AD-1KG DPG1100AD-1KG DPG1001AD-1KG
DPG1000AD-2KG DPG1100AD-2KG -
DPG1000AD-3KG - -
DPG1000AD-5KG - -
± 0.25 % Accuracy NEMA 4X
Case
± 0.10 % Accuracy Standard
Case
Comes complete with operator’s manual. DPG1001 models also include NIST-traceable calibration certicate.
15, 30 and 100 psi models available with absolute pressure range on DPG1000B models. Change model number from “-15G” to “-15A”,
“-30G” to “-30A”, or “-100G” to “-100A”, and add additional cost to price.
Ordering Examples: DPG1000B-100G, ±0.25% battery-powered digital gauge, 0 to 100.0 psig range. DPG1000BBL-60G, battery-
powered ± 0.25 % unit, 60 psi range.
DPG1001L-500G, ± 0.1 % loop-powered digital gauge, 0 to 500 psig range.
